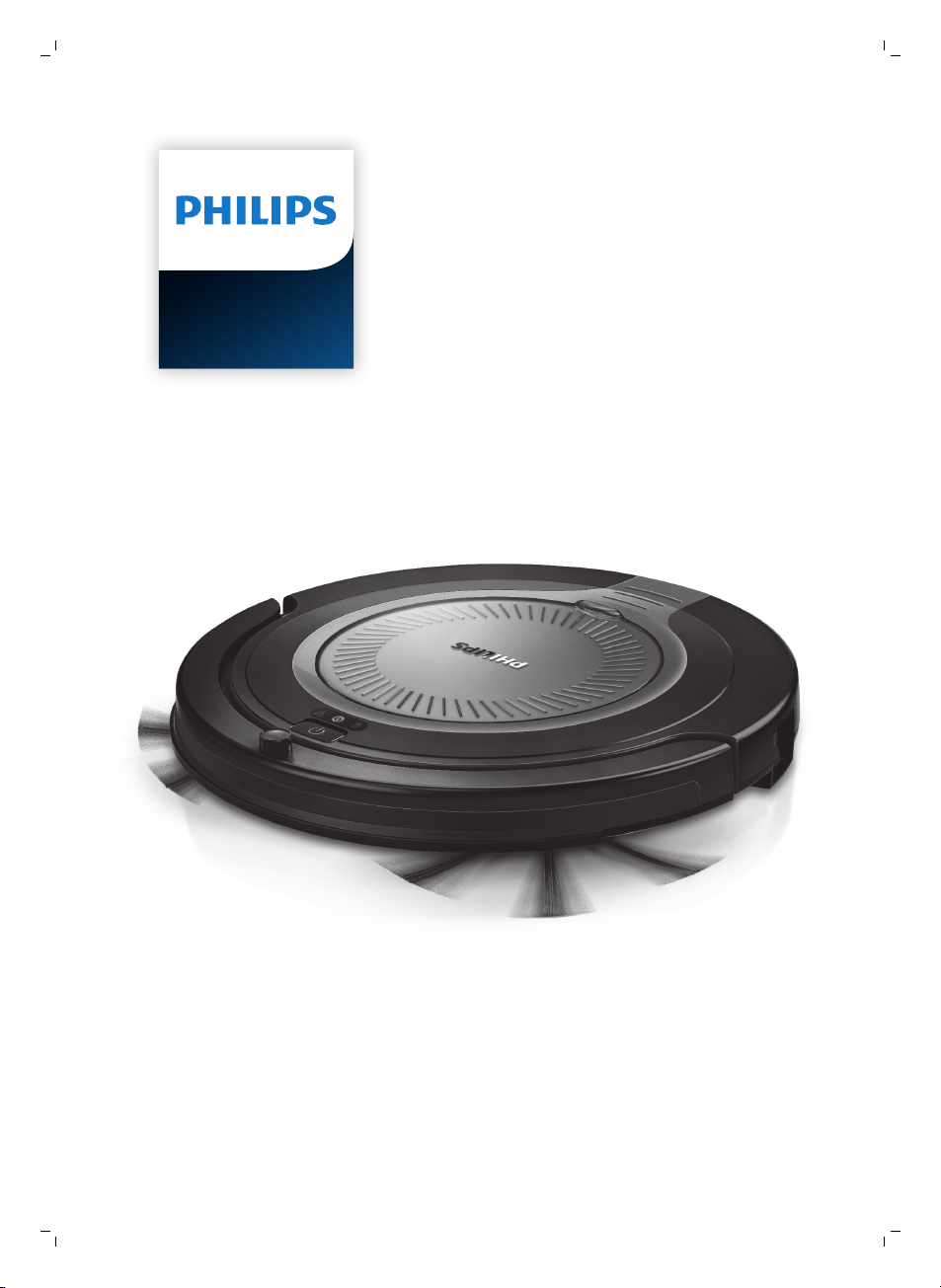

Philips FC8705 User manual

FC8715, FC8710,
FC8705, FC8700

FC8715
FC8710
FC8705
5
6
4
3
2
1
7
8
15
13
12
14
11
9 10
17
18
2021
19
16
1

English 6
Deutsch 17
Español 29
Français 41
Italiano 53
Nederlands 64
Português 75
Svenska 86
Русский 97
Қазақша 109

English
Introduction
Introduction
Congratulations on your purchase and welcome to Philips! To fully benefit from the support that
Philips offers, register your product at www.philips.com/welcome.
General description
1 Top cover
2 Handle of dust container lid
3 Dust container lid
4 Filter
5 Dust container
6 Fan
7 Bumper
8 Docking station sensor
9 Start/stop button (to start or stop the robot)
10 Display
11 Front wheel
12 Side brush shafts
13 Drop-off sensors
14 Wheels
15 Suction opening
16 Side brushes
17 Battery holder
18 Remote control (FC8715, FC8710, FC8705)
19 Small plug
20 Adapter
21 Docking station
Display and remote control
Display (Fig. 2):
1 Warning indicator
2 Start/stop indicator
3 Dust container full indicator
Remote control (Fig. 3):
1 Navigation buttons and start/stop
2 Docking button
3 Cleaning time button
4 Cleaning mode buttons
How your robot works
What your robot cleans
This robot is equipped with features that make it a suitable cleaner to help you clean the floors in your
home.
6English

The robot is especially suitable for cleaning hard floors, such as wooden, tiled or linoleum floors. It
may experience problems cleaning soft floors, such as carpet or rugs. If you use the robot on a carpet
or rug, please stay close by the first time to see if the robot can deal with this type of floor.
Because the robot uses infrared sensors to navigate, it may run into difficulties on very dark and shiny
floors. If you use the robot on such surfaces, please stay close by the first time to see if the robot can
deal with such a dark and shiny floor.
How your robot cleans
Cleaning system
The robot has a 2-stage cleaning system to clean your floors efficiently.
-The two side brushes help the robot clean in corners and along walls. They also help to remove dirt
from the floor and move it towards the suction opening (Fig. 4).
-The suction power of the robot picks up loose dirt and transports it through the suction opening
into the dust container (Fig. 5).
Cleaning patterns
In its auto cleaning mode, the robot uses an automatic sequence of cleaning patterns to clean each
area of the room optimally. The cleaning patterns it uses are:
1 Z-pattern or zigzag pattern (Fig. 6)
2 Random pattern (Fig. 7)
3 Wall-following pattern (Fig. 8)
4 Spot-cleaning pattern (Fig. 9)
In its auto cleaning mode, the robot uses these patterns in a fixed sequence: z-pattern, random
pattern, wall-following pattern, and spot-cleaning pattern.
When the robot has completed this sequence of patterns, it starts moving in Z-pattern again. The
robot continues to use this sequence of patterns to clean the room until the rechargeable battery runs
low, or until it is switched off manually.
Note (FC8715, FC8710, FC8705): You can also select each mode individually by pressing the
appropriate button on the remote control. For more details, see chapter 'Using your robot', section
'Cleaning modes'.
How your robot avoids height differences
The robot has three drop-off sensors in its bottom. It uses these drop-off sensors to detect and avoid
height differences such as staircases.
Note: It is normal for the robot to move slightly over the edge of a height difference, as its front drop-
off sensor is located behind the bumper.
Caution: In some cases, the drop-off sensors may not detect a staircase or other height difference
in time. Therefore monitor the robot carefully the first few times you use it, and when you operate it
near a staircase or another height difference. It is important that you clean the drop-off sensors
regularly to ensure the robot continues to detect height differences properly (see chapter ' Cleaning
and maintenance' for instructions).
7
English

Before first use
Before first use
1Unpack the side brushes and place the robot upside down on a table or on the floor.
2Push the side brushes onto the shafts on the bottom of the robot (Fig. 10).
Note: Make sure you attach the side brushes properly. Press them onto the shaft until you hear
them lock into position with a click.
Removing the protection tag from the remote control
This only applies to FC8715, FC8710, FC8705.
The remote control works on a CR2025 coin-shaped battery. This battery is protected with a
protection tag that has to be removed before use.
1Pull the battery protection tag out of the battery compartment of the remote control (Fig. 11).
Now the remote control is ready for use.
Preparing for use
Installing the docking station
1Insert the small plug of the adapter into the socket on the docking station (1) and insert the adapter
into the wall socket (2) (Fig. 12).
2Place the docking station on a horizontal, level floor against a wall.
Note: Make sure that there are no obstacles or height differences 80 cm in front, 30 cm to the right
and 100 cm to the left of the docking station (Fig. 13).
Important note: deep sleep mode
In deep sleep mode, the robot does not respond at all when you press a button. To reactivate the
robot when it is in deep sleep mode:
1Press the start/stop button on the robot for 1 second to bring the robot from deep sleep mode to
standby mode.
2Press the start/stop button on the robot or on the remote control briefly to start the robot.
3If the robot does not start cleaning, place it on the plugged-in docking station to recharge its
rechargeable battery.
The robot enters deep sleep mode when you press the start/stop button for 3 seconds. It may also
enter the deep sleep mode when its battery is empty. The battery may, for instance, run empty if the
robot is unable to find its docking station.
Charging
-When charging for the first time and when the rechargeable battery of the robot is empty, the
charging time is 4 hours.
-When the rechargeable battery is fully charged, it has a runtime of about 130 minutes.
-Your robot can only be charged on the docking station.
8English

Charging on the docking station
1Place the robot on the plugged-in docking station (Fig. 14).
2The robot starts charging automatically and the start/stop indicator starts flashing green slowly
(Fig. 15).
3When the rechargeable battery is fully charged, the start/stop indicator lights up solid green (Fig.
16).
Charging automatically during use
1When the robot has finished cleaning or when only 15% of the battery power remains, it
automatically searches for the docking station to recharge. When the robot searches for the
docking station, the start/stop indicator flashes green slowly (Fig. 17).
2When the battery runs low, the start/stop button turns solid red and the robot searches for the
docking station.
3When the rechargeable battery is fully charged, the start/stop indicator lights up solid green.
Note: The robot only searches for the docking station automatically when it started cleaning from the
docking station.
Clap response
The clap response is enabled when the robot enters sleep mode in the following situations:
-when it stops cleaning due to an error
-when it cannot find its docking station in 20 minutes
If you do not see the robot, you can locate it by clapping your hands once. The robot will respond by
beeping and by lighting up all icons on its display.
Using your robot
Preparing the room for a cleaning run
Before you start the robot on its cleaning run, make sure that you remove all loose and fragile objects
from the floor (Fig. 18).
Also remove all cables, wires and cords from the floor.
Functions of the start/stop button
The start/stop button has the following functions:
How you press start/stop button How robot responds
Press start/stop button for 1 second Robot switches from sleep mode to standby
Press start/stop button briefly Robot starts or stops cleaning
Press start/stop button for 3 seconds Switches robot on or off.
Signals and their meaning
The robot has a display with three indicators: a warning indicator, a start/stop indicator and the dust
container full indicator. The table below explains the meaning of the signals.
9
English

Signal Meaning
The start/stop indicator lights up solid green. The robot is ready to clean.
The start/stop indicator flashes green slowly. The robot is charging.
The robot searches for the docking station
because the battery is low.
The start/stop indicator lights up solid red. The rechargeable battery of the robot runs low
and the robot searches for its docking station.
The dust container full indicator lights up solid
red.
The dust container is full.
The warning indicator lights up solid red but the
start/stop indicator is green.
The robot was lifted while it was cleaning.
The warning indicator is solid red. The bumper of the robot is stuck.
The dust container is not present or not placed
properly.
The color of the floor is too dark.
The warning indicator flashes red. A wheel or side brush is stuck.
Charging error or battery is not present.
Starting and stopping
1Press the start/stop button.
-You can press the start/stop button on the robot (Fig. 19).
-FC8715, FC8710, FC8705: You can also press the start/stop button on the remote control (Fig.
20).
2The start/stop indicator lights up solid green and the robot starts cleaning (Fig. 22).
3The robot cleans in the auto-cleaning mode until its battery runs low. In the auto-cleaning mode, it
follows repeated sequences of Z-pattern, random, wall-following and spot-cleaning patterns (Fig.
21).
FC8715, FC8710, FC8705:
Note: To select an individual mode, press one of the mode buttons on the remote control. See
section 'Cleaning mode selection' for more details.
4When the battery runs low, the start/stop indicator turns solid red and the robot searches for the
docking station to recharge (Fig. 17).
5You can also press the start/stop button to interrupt or stop the cleaning run. If you press the
start/stop button again and there is still enough energy in the rechargeable battery, the robot
continues cleaning in the auto-cleaning mode.
6FC8715, FC8710, FC8705: To make the robot return to the docking station before the rechargeable
battery runs low, press the docking button on the remote control (Fig. 23).
The start/stop indicator starts flashing green slowly and the robot searches for the docking station
to recharge (Fig. 24).
FC8715, FC8710, FC8705: If there is still enough energy in the rechargeable battery, you can press
the docking button on the remote control to make the robot return to the docking station. If the
10 English

rechargeable battery is completely empty, you have to place the robot on the docking station
manually.
Operating the docking station
The docking station has two controls that can be used to operate the robot.
Battery full and go button
If you press the battery full and go button on the docking station while the robot is charging, the robot
starts cleaning as soon as the rechargeable battery is full (Fig. 25).
24h button
If you press the 24h button on the docking station, the docking station starts to count down the 24
hours until the next cleaning run. When the countdown is finished, the robot starts cleaning until its
battery runs low and then returns to the docking station automatically to recharge (Fig. 26).
Cleaning mode selection
Cleaning mode selection is only possible with the remote control (FC8715, FC8710, FC8705). Next to
the auto-cleaning mode, this robot has four individual cleaning modes that can each be activated by
pressing the appropriate button on the remote control.
Z-pattern mode
In Z-pattern mode, the robot cleans by making Z-shaped loops through the room to clean large areas
(Fig. 27).
Random mode
In this mode, the robot cleans the room in a mixed pattern of straight and crisscross movements (Fig.
28).
Wall-following mode
In this mode, the robot follows the walls of the room to give the area alongside the walls an extra
clean (Fig. 29).
Spot-cleaning mode
In this mode, the robot moves randomly on a small area to clean this area thoroughly (Fig. 30).
Note: The manually selected modes are only active for a couple of minutes. After that, the robot
switches to auto-cleaning mode.
Manual driving
You can drive the robot manually with buttons on the remote control (FC8715, FC8710, FC8705).
1Use the arrow buttons above and below and to the left and right of the start/stop button on the
remote control to navigate the robot through the room (Fig. 31).
Note: Be careful when you drive the robot manually close to height differences and staircases.
Note: The vacuuming function and the side brushes only work when the robot is driven forward.
The left, right or back buttons are only for maneuvering the robot.
11
English

Using the cleaning time button on the remote control
FC8715, FC8710, FC8700: Press the cleaning time button on the remote control to make the robot
clean for 35 minutes. When the cleaning time is finished, the robot stops (Fig. 32).
Cleaning and maintenance
Emptying and cleaning the dust container
Empty and clean the dust container when the dust container full indicator lights up solid red.
1Remove the cover (Fig. 33).
2Pull up the handle of the dust container lid and lift the dust container out of the dust container
compartment (Fig. 34).
Note: When you remove or reinsert the dust container, take care not to damage the blades of the
motor fan.
3Carefully lift the lid off the dust container (1) and take out the filter (2) (Fig. 35).
4Shake the dust container over a dustbin to empty it. Clean the filter and the inside of the dust
container with a cloth or a toothbrush with soft bristles. Also clean the suction opening in the
bottom of the dust container (Fig. 36).
Caution: Do not clean the dust container and the filter with water or in the dishwasher.
5Put the filter back into the dust container (1). Then place the lid on the dust container(2) (Fig. 37).
6Put the dust container back into the dust container compartment and put the top cover back on
the robot (Fig. 38).
Caution: Always make sure the filter is present inside the dust container. If you use the robot
without the filter inside the dust container, the motor will be damaged.
Cleaning the robot
To maintain good cleaning performance, you have to clean the drop-off sensors, the wheels, the side
brushes and the suction opening from time to time.
1Place the robot upside down on a flat surface.
2Use a brush with soft bristles (e.g. a toothbrush) to remove dust or fluff from the drop-off sensors.
(Fig. 39)
Note: It is important that you clean the drop-off sensors regularly. If the drop-off sensors are dirty,
the robot may fail to detect height differences or staircases.
3Use a brush with soft bristles (e.g. a toothbrush) to remove dust or fluff from the front wheel and
side wheels (Fig. 40).
4To clean the side brushes, grab them by the bristles and pull them off their shafts (Fig. 41).
5Remove fluff, hairs and threads from the shaft and from the side brush with a soft brush (e.g. a
toothbrush) or a cloth (Fig. 42).
6Clean the suction opening with a soft brush (e.g. a toothbrush) (Fig. 43).
7Check the side brushes and the bottom of the robot for any sharp objects that could damage your
floor.
12 English

Ordering accessories
To buy accessories or spare parts, visit www.philips.com/parts-and-accessories or go to your Philips
dealer. You can also contact the Philips Consumer Care Center in your country (see the international
warranty leaflet for contact details).
Replacement
Replacing the filter
Replace the filter if it is very dirty or damaged. You can order a new filter under order number FC8065.
See 'Emptying and cleaning the dust container' in chapter 'Cleaning and maintenance' for instructions
on how to remove the filter from the dust container and how to place it in the dust container.
Replacing the side brushes
Replace the side brushes after some time to ensure proper cleaning results.
Note: Always replace the side brushes when you notice signs of wear or damage. We also recommend
that you replace both side brushes at the same time. You can order a set of two side brushes and two
filters under type number FC8067.
1To replace the side brushes, grab the old side brushes by the bristles and pull them off their shafts.
2Push the new side brushes onto the shafts.
Replacing the rechargeable battery
The rechargeable battery of the robot may only be replaced by qualified service engineers. Take the
robot to an authorized Philips service center to have the battery replaced when you can no longer
recharge it or when it runs out of power quickly. You can find the contact details of the Philips
Consumer Care Center in your country in the international warranty leaflet or on the website at
www.philips.com/support.
Replacing the battery of the remote control (FC8715, FC8710,
FC8705)
The remote control works on a CR2025 coin-shaped battery. Replace the battery when the robot no
longer responds when you press the buttons on the remote control.
1Hold the remote control upside down. Push the release button on the battery holder and at the
same time slide the battery holder out of the remote control (Fig. 44).
2Remove the empty battery from the battery holder and place a new battery in the battery holder.
Then slide the battery holder back into the remote control (Fig. 45).
Storage
When you are not going to use the robot for more than one month, press the start/stop button on the
robot for 3 seconds to make the robot enter deep sleep mode to protect its rechargeable battery.
Unplug the docking station to save energy.
13
English

Removing the rechargeable battery
Warning: Only remove the rechargeable battery when you discard the appliance. Make
sure the battery is completely empty when you remove it.
To remove the rechargeable battery, follow the instructions below. You can also take the robot to a
Philips service center to have the rechargeable battery removed. Contact the Philips Consumer Care
Center in your country for the address of a service center near you.
1Start the robot from a place somewhere in the room and not from the docking station.
2Let the robot run until the rechargeable battery is empty to make sure that the rechargeable
battery is completely discharged before you remove it and dispose of it.
3Undo the screws of the battery compartment lid and remove the lid (Fig. 46).
4Lift out the rechargeable battery and disconnect it (Fig. 47).
5Take the robot and the rechargeable battery to a collection point for electrical and electronic
waste.
Troubleshooting
This chapter summarizes the most common problems you could encounter with the appliance. If you
are unable to solve the problem with the information below, visit www.philips.com/support for a list
of frequently asked questions or contact the Consumer Care Center in your country.
Problem Possible cause Solution
The robot does not start
cleaning when I press the
start/stop button.
The rechargeable battery is
empty.
Charge the rechargeable battery (see
chapter 'Preparing for use').
The robot is in deep sleep
mode.
Press the start/stop button for 1 second
to switch on the robot. When you press
the start/stop button briefly again, the
robot starts cleaning. If the battery is
completely empty, place the robot on
the plugged-in docking station.
The robot does not
respond when I press
one of the buttons.
The rechargeable battery is
empty.
Place the robot on the plugged-in
docking station. After a few seconds,
you will hear a beep and the display
lights up.
The warning indicator
lights up solid red.
One or both wheels are stuck. Remove the fluff, hair, thread or wire
that is caught around the wheel
suspension.
One or both side brushes are
stuck.
Clean the side brushes (see chapter
'Cleaning and maintenance').
The dust container is not
present or is not placed
properly.
When the dust container is not present
or is not placed properly, the warning
indicator lights up solid red and the
robot stops working. Place the dust
container in the robot in the robot
properly.
14 English

Problem Possible cause Solution
The bumper is stuck. Lift the robot so that its bumper comes
free. Place the robot at some distance
from the obstacle and press the
start/stop button to make it resume
cleaning.
The robot was lifted while it
was cleaning.
Place the robot on the floor. Then press
the start/stop button to make the robot
resume cleaning.
The robot does not clean
properly.
The bristles of one or both side
brushes are crooked or bent.
Soak the brush or brushes in warm
water for a while. If this does not restore
the bristles to their proper shape,
replace the side brushes (see chapter
'Replacement').
The filter in the dust container
is dirty.
Clean the filter in the dust container with
a cloth or a toothbrush with soft bristles.
You can also clean the filter and dust
container with a regular vacuum cleaner
at a low suction power setting.
If brushing or vacuuming does not help
to clean the filter, replace the filter with
a new one. We advise you to replace the
filter at least once a year.
The suction opening in the
bottom of the dust container is
clogged.
Clean the suction opening (see chapter
'Cleaning and maintenance').
The front wheel is jammed
with hair or other dirt.
Clean the front wheel (see chapter
'Cleaning and maintenance').
The robot is cleaning a very
dark or shiny surface, which
triggers the drop-off sensors.
This causes the robot to move
in an unusual pattern.
Press the start/stop button and then
move the robot to a lighter colored
piece of the floor. If the problem
continues to occur on lighter colored
floors, please go to
www.philips.com/support or contact the
Consumer Care Center in your country.
The robot is cleaning a floor
that reflects sunlight quite
strongly. This triggers the drop-
off sensors and causes the
robot to move in an unusual
pattern.
Close the curtains to block sunlight from
entering the room. You can also start
cleaning when the sunlight is less bright.
The rechargeable battery
can no longer be charged
or runs empty very fast.
The rechargeable battery has
reached the end of its life.
Have the rechargeable battery replaced
by a Philips service center (see chapter
'Replacement').
15
English

Problem Possible cause Solution
FC8715, FC8710, FC8705:
The battery of the
remote control runs
empty too fast.
Perhaps you did not insert the
correct type of battery.
For the remote control, you need a
CR2025 coin-shaped battery. If the
problem persists, go to the website at
www.philips.com/support or contact the
Consumer Care Center in your country.
The robot is moving in
circles.
The robot is in spot-cleaning
mode.
This is normal behavior. The spot-
cleaning mode can be activated when a
lot of dirt is detected on the floor for a
thorough clean. It is also part of the auto
cleaning mode. After approximately one
minute the robot resumes its normal
cleaning pattern. You can also stop the
spot-cleaning mode by selecting a
different cleaning mode on the remote
control.
FC8715, FC8710, FC8705: You can also
stop the spot-cleaning mode by
selecting a different cleaning mode on
the remote control.
The robot cannot find the
docking station.
There is not enough room for
the robot to navigate towards
the docking station.
Try to find another place for the docking
station. See 'Installing the docking
station' in chapter 'Preparing for use'.
The robot is still actively
searching.
Give the robot around 20 minutes to
return to the docking station.
16 English

Deutsch
Einführung
Einführung
Herzlichen Glückwunsch zu Ihrem Kauf und willkommen bei Philips! Um die Unterstützung von Philips
optimal nutzen zu können, sollten Sie Ihr Produkt unter www.philips.com/welcome registrieren.
Allgemeine Beschreibung
1 Obere Abdeckung
2 Griff des Staubbehälterdeckels
3 Staubbehälterdeckel
4 Filter
5 Staubbehälter
6 Ventilator
7 Stoßfänger
8 Sensor Docking-Station
9 Start-/Stopp-Taste (um den Roboter zu starten oder zu stoppen)
10 Display
11 Vorderrad
12 Seitenbürstenschäfte
13 Stopp-Sensoren
14 Laufräder
15 Ansaugöffnung
16 Seitenbürsten
17 Batteriehalterung
18 Fernbedienung (FC8715, FC8710, FC8705)
19 Gerätestecker
20 Ladegerät
21 Docking-Station
Display und Fernbedienung
Display (Abb. 2):
1 Warnanzeige
2 Start-/Stopp-Anzeige
3 Anzeige für vollen Staubbehälter
Fernbedienung (Abb. 3):
1 Navigationstasten und Start/Stopp
2 Docking-Taste
3 Reinigungszeit-Taste
4 Tasten für den Reinigungsmodus
So funktioniert Ihr Roboter
Das reinigt Ihr Roboter
Dieser Roboter ist mit Funktionen ausgestattet, die ihn zu einem idealen Reinigungsgerät machen, um
Sie beim Reinigen der Böden in Ihrem Heim zu unterstützen.
Der Roboter ist besonders zum Reinigen harter Böden, wie etwa Holz-, Kachel- oder Linoleum-
Böden, geeignet. Beim Reinigen weicher Böden, zum Beispiel Teppichböden oder Teppiche, können
17
Deutsch

Probleme auftreten. Wenn Sie den Roboter auf einem Teppichboden oder Teppich verwenden,
bleiben Sie beim ersten Mal in der Nähe, sodass Sie erkennen, ob der Roboter mit diesem Bodentyp
zurechtkommt.
Da sich der Roboter mithilfe von Infrarotsensoren orientiert, kann es auf sehr dunklen und glänzenden
Böden zu Schwierigkeiten kommen. Wenn Sie den Roboter auf solchen Oberflächen verwenden,
bleiben Sie beim ersten Mal in der Nähe, sodass Sie erkennen, ob der Roboter mit einem solchen
dunklen und glänzenden Boden zurechtkommt.
So reinigt Ihr Roboter
Reinigungssystem
Der Roboter weist ein 2-stufiges Reinigungssystem zur effizienten Reinigung Ihrer Böden auf.
-Die beiden Seitenbürsten unterstützen den Roboter bei der Reinigung von Ecken sowie entlang
von Wänden. Sie helfen auch, Schmutz vom Boden zu beseitigen und ihn Richtung Ansaugöffnung
(Abb. 4) zu bewegen.
-Mit der Saugkraft des Roboters wird loser Schmutz aufgesaugt und durch die Ansaugöffnung in
den Staubcontainer (Abb. 5) transportiert.
Reinigungsmuster
Im automatischen Reinigungsmodus verwendet der Roboter eine automatische Abfolge von
Reinigungsmustern, sodass jeder Bereich des Raums optimal gereinigt wird. Die folgenden
Reinigungsmuster werden verwendet:
1 Z-Muster oder Zickzack-Muster (Abb. 6)
2 Zufälliges Muster (Abb. 7)
3 Den Wänden entlang (Abb. 8)
4 Muster (Abb. 9) zur punktuellen Reinigung
In seinem automatischen Reinigungsmodus verwendet der Roboter diese Muster in einer festgelegten
Reihenfolge: Z-Muster, Zufallsmuster, Muster zur Reinigung entlang den Wänden und Muster zur
punktuellen Reinigung.
Wenn der Roboter mit dieser Muster-Abfolge fertig ist, beginnt er wieder mit dem Z-Muster. Der
Roboter verwendet diese Muster-Abfolge zur Reinigung des Raums, bis der Akku fast leer ist oder das
Gerät manuell ausgeschaltet wird.
Hinweis (FC8715, FC8710, FC8705): Sie können jeden Modus auch einzeln auswählen, indem Sie die
entsprechende Taste auf der Fernbedienung drücken. Weitere Hinweise finden Sie im Kapitel "Ihren
Roboter verwenden", Abschnitt "Reinigungsmodus auswählen".
So vermeidet Ihr Roboter Höhenunterschiede
Der Roboter hat drei Stopp-Sensoren an der Unterseite. Er verwendet diese Stopp-Sensoren, um
Höhenunterschiede, wie z.B. Stufen, zu erkennen und zu vermeiden.
Hinweis: Es ist normal, dass sich der Roboter etwas über den Rand eines Höhenunterschieds bewegt,
da sich der vordere Stopp-Sensor hinter dem Stoßfänger befindet.
Achtung: In einigen Fällen können die Stopp-Sensoren einen Treppenabsatz oder anderen
Höhenunterschied nicht rechtzeitig erkennen. Beobachten Sie den Roboter bei den ersten
Einsätzen also sorgfältig, sowie bei Nutzung in der Nähe einer Treppe oder eines sonstigen
Höhenunterschieds. Es ist wichtig, dass Sie die Stopp-Sensoren regelmäßig reinigen, damit der
Roboter Höhenunterschiede korrekt erkennt (siehe Anweisungen im Kapitel „Reinigung und
Wartung“).
18 Deutsch

Vor dem ersten Gebrauch
Vor dem ersten Gebrauch
1Packen Sie die Seitenbürsten aus, und legen Sie den Roboter umgekehrt auf einen Tisch oder auf
dem Boden.
2Drücken Sie die Seitenbürsten auf die Metallschäfte unten am Roboter (Abb. 10).
Hinweis: Vergewissern Sie sich, dass die Seitenbürsten ordnungsgemäß angebracht sind. Drücken
Sie sie auf den Schaft, bis sie mit einem Klicken einrasten.
Schutzlasche von der Fernbedienung abnehmen
Dies gilt nur für FC8715, FC8710, FC8705.
Die Fernbedienung funktioniert mit einer CR2025-Knopfzelle. Diese Batterie ist mit einer Schutzlasche
versehen, die vor dem Gebrauch entfernt werden muss.
1Ziehen Sie die Batterieschutzlasche aus dem Batteriefach der Fernbedienung (Abb. 11).
Jetzt ist die Fernbedienung einsatzbereit.
Für den Gebrauch vorbereiten
Docking-Station aufstellen
1Stecken Sie den kleinen Stecker des Adapters in die entsprechende Buchse der Docking-Station (1)
und den Adapter in die Steckdose (2) (Abb. 12).
2Stellen Sie die Docking-Station auf einen ebenen Untergrund an eine Wand.
Hinweis: Achten Sie darauf, dass sich 80cm vor der Docking-Station (Abb. 13), 30cm rechts davon
und 100cm links von ihr keine Hindernisse oder Höhenunterschiede befinden.
Wichtiger Hinweis: Schlafmodus
Im Schlafmodus reagiert der Roboter überhaupt nicht, wenn Sie eine Taste drücken. So reaktivieren
Sie den Roboter aus dem Schlafmodus:
1Drücken Sie 1Sekunde lang die Start-/Stopp-Taste auf dem Roboter, um den Roboter aus dem
Schlafmodus in den Standby-Modus zu versetzen.
2Drücken Sie kurz die Start-/Stopp-Taste auf dem Roboter oder der Fernbedienung, um den
Roboter zu starten.
3Falls der Roboter nicht mit der Reinigung beginnt, platzieren Sie ihn an der angeschlossenen
Docking-Station, damit der Akku aufgeladen wird.
Der Roboter wechselt in den Schlafmodus, wenn Sie die Start-/Stopp-Taste 3Sekunden lang
drücken. Er wechselt evtl. auch in den Schlafmodus, wenn der Akku leer ist. Der Akku kann
beispielsweise entleert werden, wenn der Roboter die Docking-Station nicht finden kann.
Aufladen
-Wenn Sie den Akku des Roboters zum ersten Mal aufladen, und wenn der Akku leer ist, dauert der
Ladevorgang 4Stunden.
-Ein vollständig aufgeladener Akku ermöglicht eine Laufzeit von etwa 130Minuten.
-Der Roboter kann nur in der Docking-Station geladen werden.
19
Deutsch

An der Docking-Station aufladen
1Stellen Sie den Roboter in die eingesteckte Docking-Station (Abb. 14).
2Der Roboter beginnt automatisch mit dem Aufladevorgang, und die Start-/Stopp-Anzeige beginnt,
langsam grün zu blinken (Abb. 15).
3Ist der Akku vollständig aufgeladen, leuchtet die Start-/Stopp-Anzeige dauerhaft grün (Abb. 16).
Automatisches Aufladen während des Betriebs
1Wenn der Roboter die Reinigung beendet hat oder der Akku nur noch 15% Kapazität aufweist,
sucht der Roboter zum Aufladen automatisch die Docking-Station. Wenn der Roboter die Docking-
Station sucht, blinkt die Start-/Stopp-Anzeige langsam grün (Abb. 17).
2Wenn der Akku fast leer ist, leuchtet die Start-/Stopp-Taste dauerhaft rot, und der Roboter sucht
die Docking-Station.
3Ist der Akku vollständig aufgeladen, leuchtet die Start-/Stopp-Anzeige dauerhaft grün.
Hinweis: Der Roboter sucht nur dann automatisch die Docking-Station, wenn die Reinigung an der
Docking-Station gestartet wurde.
Klatsch-Funktion
Die Klatsch-Funktion wird aktiviert, wenn der Roboter in den folgenden Situationen in den
Ruhemodus wechselt:
-wenn er aufgrund eines Fehlers anhält
-wenn Sie eine kurze Reinigungszeit programmiert haben
-wenn er die Docking-Station nicht innerhalb von 20Minuten finden kann
Wenn Sie den Roboter nicht sehen, können Sie ihn durch einmaliges Klatschen finden. Der Roboter
reagiert durch einen Piepton und Aufleuchten aller Symbole auf dem Display.
Ihren Roboter verwenden
Den Raum für die Reinigung vorbereiten
Bevor Sie mit dem Roboter die Reinigung starten, sollten Sie sich vergewissern, dass sich keine losen
und zerbrechlichen Gegenstände auf dem Boden (Abb. 18) befinden.
Bringen Sie auch alle Kabel, Drähte und Schnüre in Sicherheit.
Funktionen der Start-/Stopp-Taste
Die Start-/Stopp-Taste hat die folgenden Funktionen:
Wie Sie die Start-/Stopp-Taste
drücken Wie der Roboter reagiert
Halten Sie die Start-/Stopp-Taste
1Sekunde lang gedrückt
Der Roboter wechselt aus dem Schlafmodus in den
Standby-Modus
Drücken Sie kurz die Start-/Stopp-Taste Der Roboter beginnt oder beendet die Reinigung.
Halten Sie die Start-/Stopp-Taste
3Sekunden lang gedrückt.
Schaltet den Roboter ein oder aus.
20 Deutsch
