Phoenix Contact RPI-BC User manual

© PHOENIX CONTACT 2016-04-15
107161_en_00
RPI-BC 107,6 DEV-KIT KMGY
Data sheet
1 Description
The RPI-BC housing system is designed to accommodate a
Raspberry Pi computer. The housing can be used with
Raspberry Pi models A+, B+, B2, and B3. Further PCBs can
also be inserted in the housing in addition to the Raspberry
Pi board.
Integration in distributor housing is possible since the RPI-
BC housing system complies with DIN 43880. The housing
can be mounted on a TS 35 DIN rail or on a wall.
The RPI-BC housing system consists of a special BC
housing (overall width 107.6) and a PCB holder for
mounting the Raspberry Pi board.
The HBUS DIN rail connector can be used to connect
together several RPI-BC housings or other BC housings.
This housing can be combined with the BC DEV-KIT to
create an I/O system (BC 107,6 DEV-KIT KMGY, 2202525).
The BC DEV-KIT is a set comprising BC housing and PCB
terminal blocks. An appropriate perfboard is also available
for the BC DEV-KIT.
Table of contents
1 Description ..................................................................1
2 Ordering data...............................................................2
3 Technical data .............................................................3
4 Overview of the housing system ..................................4
5 Dimensions..................................................................5
5.1 PCB dimensions of additional PCBs....................5
5.2 Dimensions of upper housing part .......................7
5.3 Installation example .............................................8
5.4 Dimensions of PCB holder...................................9
5.5 Dimensions of adapter.........................................9
5.6 Dimensions of DIN rail connector.......................10
6 Mounting the RPI-BC housing with Raspberry Pi.......11
Make sure you always use the latest documentation.
It can be downloaded at phoenixcontact.net/products.
This document is valid for all products listed in “Ordering data” on page 2.
RPI-BC housing system

RPI-BC 107,6 DEV-KIT KMGY
107161_en_00 PHOENIX CONTACT 2 / 13
2 Ordering data
RPI-BC housing system
Description Type Order No. Pcs./Pkt.
RPI-BC housing system, lower housing part including base latch, upper
housing part, housing cover (permanently snapped onto the upper housing
part), and PCB holder for mounting the Raspberry Pi board, color: light gray
RPI-BC 107,6 DEV-KIT KMGY 2202874 1
RPI-BC housing system, individual parts
Description Type Order No. Pcs./Pkt.
Lower housing part, including base latch, color: jet black BC 107,6 UT HBUS BK 2896270 10
Lower housing part, including base latch, color: light gray BC 107,6 UT HBUS KMGY 2202951 10
Upper housing part, including PCB holder for mounting the Raspberry Pi
board, color: light gray
RPI-BC 107,6 DEV-KIT KMGY P10 2202875 10
Housing cover, permanently snapped onto the upper housing part, color:
light gray
BC 107,6 DKL R KMGY 2896173 10
Housing cover, hinged, can be sealed, transparent, including fitted cover BC 107,6 DKL S TRANS 2896131 10
Accessories
Description Type Order No. Pcs./Pkt.
Adapter, for mounting the Raspberry Pi A+ model RPI-BC A+-ADAPTER ATGY 2202906 1
DIN rail connector, 16-pos., 1 slot, without pin strip, color: jet black HBUS 107,6-16P-1S BK P1 2202876 1
Perfboard, including pin strip for connection to the DIN rail connector RPI-BC EXT-PCB HBUS SET 2202995 1
Perfboard, including socket strips for the GPIO connection, solder rings for
PTSM header, and PTSM header
RPI-BC INT-PCB SET 2202994 1
Socket strip, for connecting the RPI-BC INT-PCB SET perfboard (or another
additional PCB) to the GPIOs of the Raspberry Pi computer
PSTD 0,65X0,65/40-2,54 2202992 1
Pin strip, for connecting the RPI-BC EXT-PCB HBUS SET perfboard (or
another additional PCB) to the DIN rail connector
PSTD 0,65X0,65/18-3IS-2,54 2202993 1
Additional products
Description Type Order No. Pcs./Pkt.
Housing kit for the BC 107,6 product range, including PCB terminal blocks
(MKDS 1,5), supplied in individual parts
BC 107,6 DEV-KIT KMGY 2202525 1
Perfboard, for the BC 107,6 DEV-KIT BC 107,6/40 U11 HBUS DEV-PCB 2202544 1
DIN rail connector,
16-pos., 1 slot, with pin strip, color: jet black HBUS 107,6-16P-1S DEV-KIT BK 2202545 1

RPI-BC 107,6 DEV-KIT KMGY
107161_en_00 PHOENIX CONTACT 3 / 13
3 Technical data
RPI-BC housing system
Mounting NS 35 DIN rail or wall mounting
Temperature range -40°C ... +105°C
Degree of protection according to DIN EN 60529 IP20
Dimensions, W x H x D 107.6 mm x 89.7 mm x 62.2 mm
PCB, maximum usable area Raspberry Pi board, plus 8200 mm²
Power dissipation PVat 20°C in the horizontal mounting position, aligned
without spacing
13.08 W
PCB connection of additional PCB, maximum number of positions 16 positions
Insulation material PC (polycarbonate), PA (polyamide)
Flammability rating UL 94 V0
DIN rail connector
Number of positions 16
Current carrying capacity, depending on derating Maximum of 3 A per contact, total current 25 A, maximum,
60 V DC
Perfboard
Current carrying capacity 50 V DC, maximum
Maximum nominal current for the GPIO connection 0.7 A per position
Maximum nominal current for the DIN rail connector 0.7 A per position
Maximum nominal current for the PTSM terminal blocks 1.8 A per position

RPI-BC 107,6 DEV-KIT KMGY
107161_en_00 PHOENIX CONTACT 4 / 13
4 Overview of the housing system
Figure 1 RPI-BC housing system
1Housing cover
2Upper housing part
3Perfboard (optional), RPI-BC EXT-PCB HBUS SET
4Perfboard (optional), RPI-BC INT-PCB SET
5Raspberry Pi board (not supplied as standard)
6PCB holder
7Lower housing part including base latch
8DIN rail connector (optional)
9Base latch
1
2
3
4
5
6
7
8
9

RPI-BC 107,6 DEV-KIT KMGY
107161_en_00 PHOENIX CONTACT 5 / 13
5 Dimensions
5.1 PCB dimensions of additional PCBs
PCB for DIN rail connector
Figure 2 Dimensions of PCB RPI-BC EXT-PCB HBUS SET, 2202995
1 Connection area for the pin strip for connecting the DIN rail connector
(PSTD 0,65X0,65/18-3IS-2,54, 2202993)
PCB thickness 1.6 mm ±0.2 mm
Perforated grid 2.54 mm
Drill hole ø 1 mm
85
38,5
1
TOP

RPI-BC 107,6 DEV-KIT KMGY
107161_en_00 PHOENIX CONTACT 6 / 13
PCB for the GPIO connection
Figure 3 Dimensions of PCB RPI-BC INT-PCB SET, 2202994
1 Connection area for the pin strip for the GPIO connection (PSTD 0,65X0,65/40-2,54, 2202992)
2 Connection area for the header for (PTSM 0,5/ 4-HH-2,5-THR WH R32, 1814867)
PCB thickness 1.6 mm ±0.2 mm
Perforated grid 2.54 mm
Drill hole ø 1 mm
Keep-out zone, no components at these positions
1 2
85
59
TOP

RPI-BC 107,6 DEV-KIT KMGY
107161_en_00 PHOENIX CONTACT 7 / 13
5.2 Dimensions of upper housing part
Figure 4 Dimensions of housing
1Removable fin
2PCB
3Position of PCB
4Latching for PCB RPI-BC EXT-PCB HBUS SET
5Latching for PCB RPI-BC INT-PCB SET
6Mounting holes for adapter
89,7
(49,78)
(1,93)
(3,8)
(14,3)
45
3
2
A-A
107,6
A
A
1
6
6
45

RPI-BC 107,6 DEV-KIT KMGY
107161_en_00 PHOENIX CONTACT 8 / 13

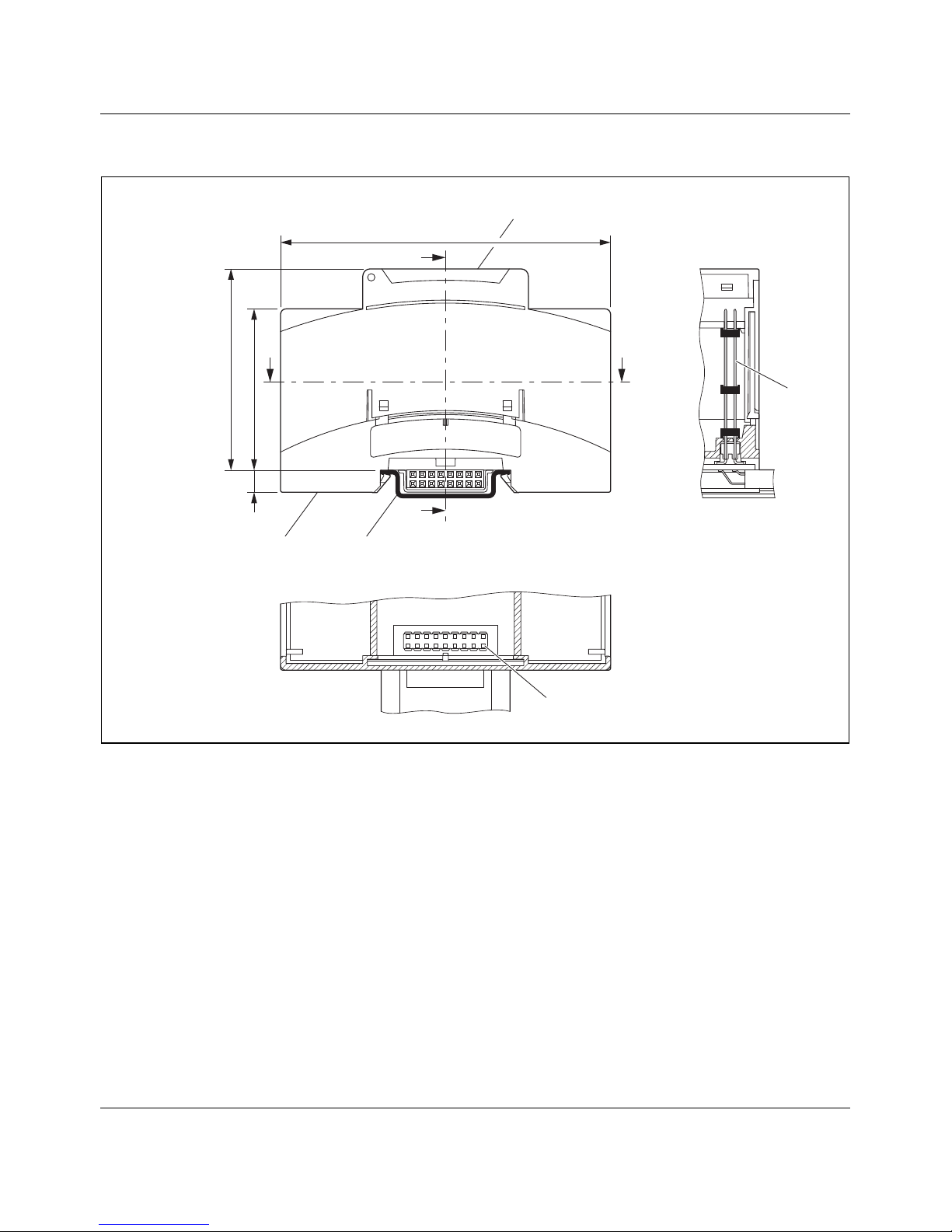

5.3 Installation example
Figure 5 Installation example
1Lower housing part
2TS 35-7,5 or TS 35-15 x 1,5 DIN rail
3Housing cover
4DIN rail connector
43,8
54,7
6
B
B
AA
89,7
1 2
3
4
B-B
A-A 4

RPI-BC 107,6 DEV-KIT KMGY
107161_en_00 PHOENIX CONTACT 9 / 13

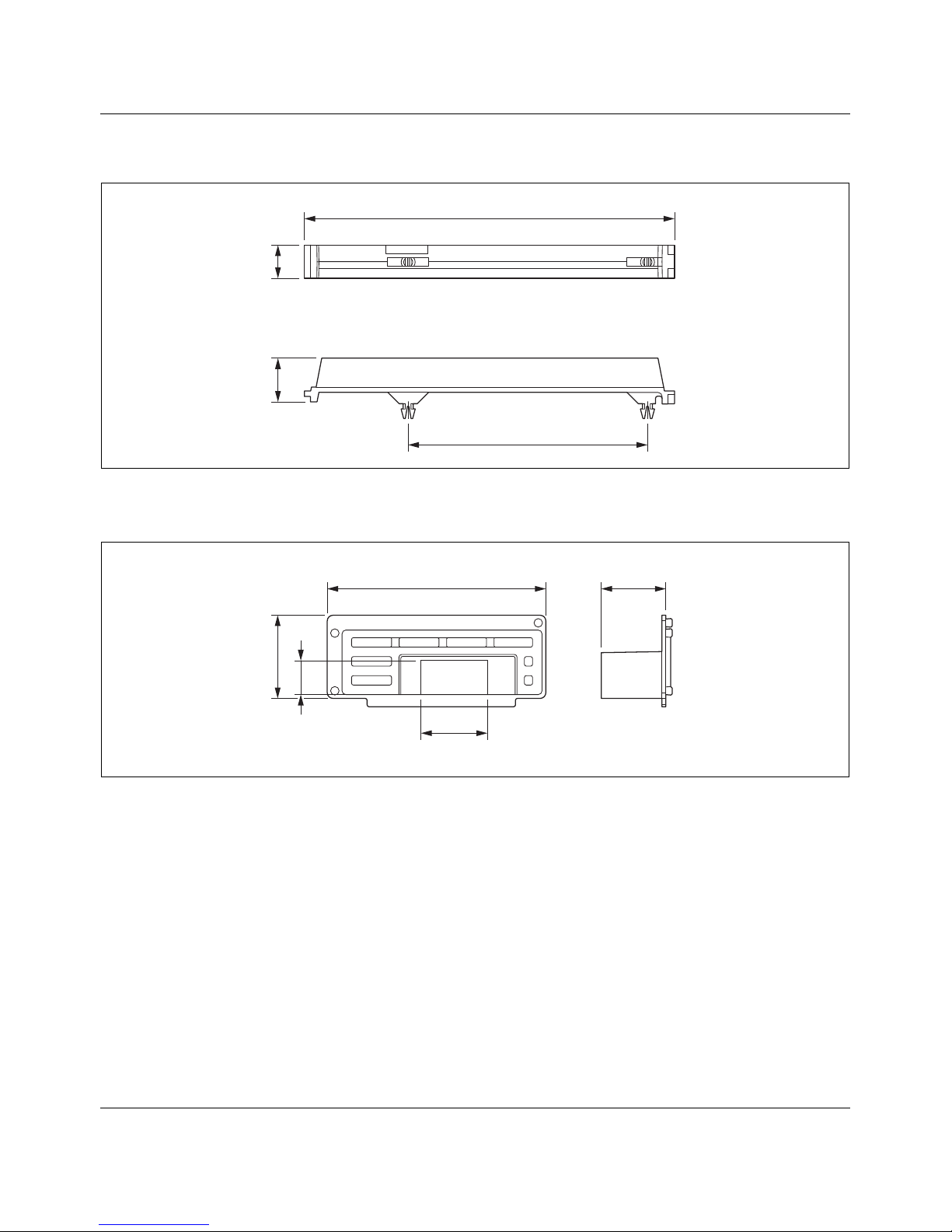

5.4 Dimensions of PCB holder
Figure 6 Dimensions of PCB holder
5.5 Dimensions of adapter
Figure 7 Dimensions of the adapter for mounting the Raspberry Pi A+ model (RPI-BC A+-ADAPTER ATGY, 2202906)
11
58
8
89,7
57,6
8,95
21,9
17,5
17

RPI-BC 107,6 DEV-KIT KMGY
107161_en_00 PHOENIX CONTACT 10 / 13
5.6 Dimensions of DIN rail connector
Figure 8 Dimensions of HBUS DIN rail connector and NS 35 DIN rail
Figure 9 Circuit diagram for HBUS DIN rail connector
EN 50022, NS 35 x 7,5
37,1
3,2
7,6
6
a
4,7
1
1
Dimensions for a
BC 107,6 UT HBUS BK 107.6 mm
12
3
5
8
21
43
56
78
10 9
12 11
14 13
15a15b
16a16b
4
1
3
56
78
12
910
11
13 14
15 16
4
2
6
8
12
10
14
16
1
3
5
7
9
11
13
15

RPI-BC 107,6 DEV-KIT KMGY
107161_en_00 PHOENIX CONTACT 11 / 13
6 Mounting the RPI-BC housing with Raspberry Pi
All parts latch together by hand. No tools are required.
•Place the upper housing part with the cover side on the
work surface.
•The removable fin is labeled in the upper housing part.
The fin can be removed if necessary.
•If you are using additional PCBs, insert them into the
upper housing part with the long side first.
•Insert the PCBs on the housing panel side first and then
pull them down.
When using a DIN rail connector, use a PCB that has an
appropriate pin strip on the left-hand side.
The Raspberry Pi A+ model is shorter than the other models.
If you are using the Raspberry Pi A+ model, you can use an
adapter. You can also use the housing without an adapter
with the A+ model.
•Insert the adapter. The adapter latches into the upper
housing part in three places.

RPI-BC 107,6 DEV-KIT KMGY
107161_en_00 PHOENIX CONTACT 12 / 13
•Fit the PCB holders provided onto the Raspberry Pi.
Make sure that the arrow on the PCB holder is pointing
in the direction of the SD card slot.
•Insert the plastic catches in the holes provided on the
Raspberry Pi.
•Push the Raspberry Pi into the housing with a slight
rotary motion.
Insert the Raspberry Pi so that its interfaces fit in the
corresponding openings in the housing. Push down the
Raspberry Pi until the PCB holders snap into the
housing.
•Connect the required interfaces on the Raspberry Pi.
The interfaces on the long side will be difficult to access
later (e.g., micro USB for power supply, HDMI port, CSI
interface for a camera or composite video output).
•Lead the adapter out of the housing.

RPI-BC 107,6 DEV-KIT KMGY
107161_en_00 13 / 13
PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany
phoenixcontact.com
•Note the orientation of the housing parts. The lower
housing part has an opening for the DIN rail connector,
which should be on the side of the upper housing part
that does not hold the Raspberry Pi.
•During insertion, ensure that the pin strip is not damaged
by the DIN rail connector.
•Place the lower housing part on the upper housing part.
The upper part slides on guides.
Alternatively, you can use a transparent housing cover which
can be reopened (BC 107,6 DKL S TRANS, 2896131).
•Turn the housing over.
•Put the cover on.
•Mount the base latch.
•The housing can be mounted directly on a wall or on a
mounting plate. Pull out the base latch as far as it will go
for mounting.
NOTE: You can no longer remove the cover
after installation.
