Phoenix LEXI LE726 CHR User manual

S/S HOSE
BUILT-IN
DIVERTER
PREMIUM
CHROME
FINISH
EASY
INSTALLATION
MATCH WITH....
LEXI
TWIN SHOWER
PRODUCT CODE:
FINISH:
LE726 CHR
CHROME

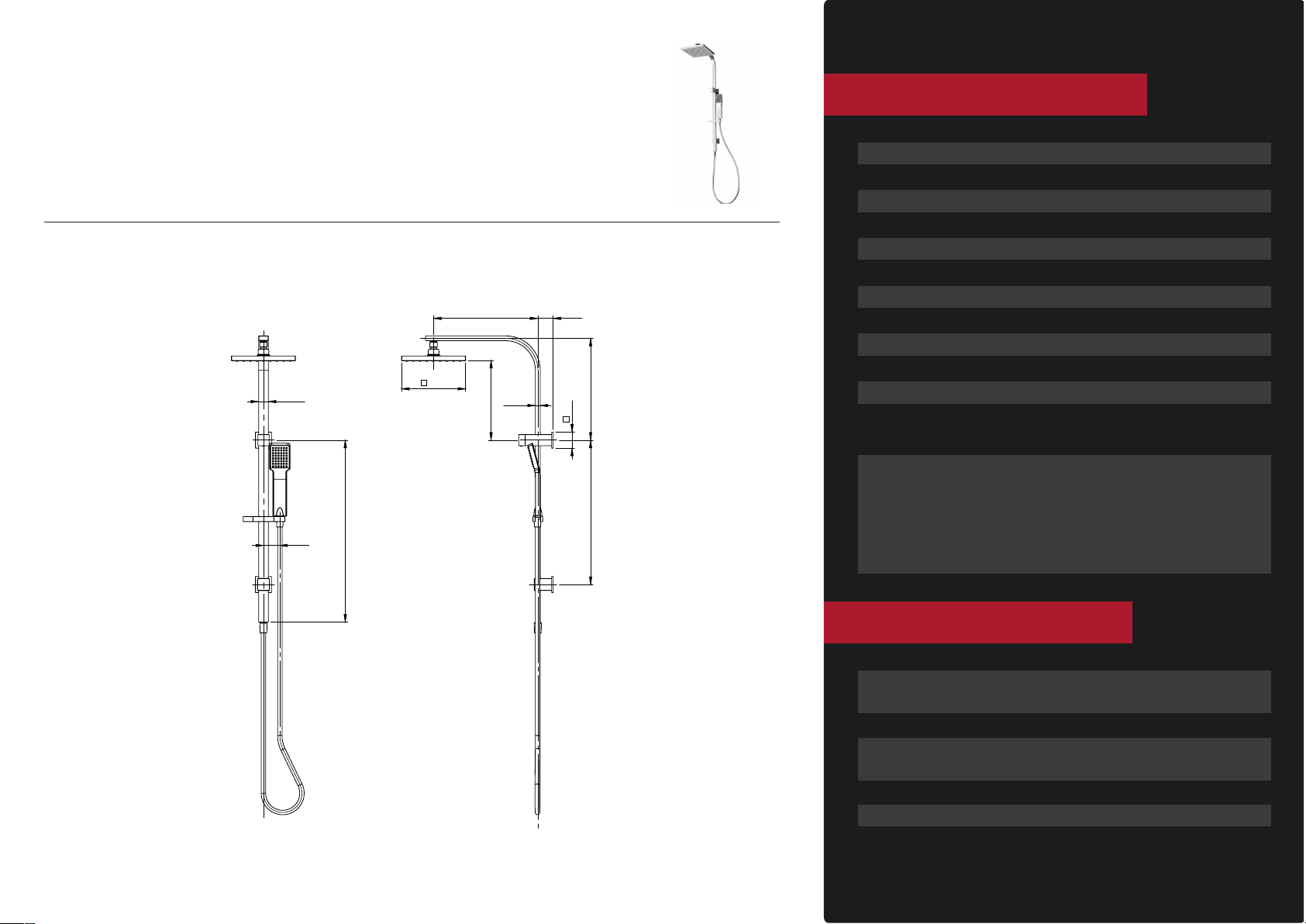

TECHNICAL SPECIFICATIONS
CONSUMER INFORMATION
MERCHANT INFORMATION
PRODUCT:
RANGE:
TWIN SHOWER
LEXI
PRODUCT CODE: LE726 CHR
BARCODE NUMBER: 9320594 020 354
L 1040MM X W 420MM
X H 90MM
WM22181
REVISION DATE: NOVEMBER 2013
CONNECTION TYPE: N/A
MATERIAL: BRASS
AVAILABLE FINISHES: CHROME
WELS RATING: 3 STARS
FLOW RATE: 7.5 LITRES PER MINUTE
TEMPERATURE RATING: MIN 1° - MAX 75°
PRESSURE RATING: MIN 150 KPA
- MAX 500 KPA
WARRANTY: 3 YEAR REPLACEMENT
PRODUCT OR PARTS
1YEAR REPLACEMENT PARTS
OR PRODUCT & LABOUR
CARTON SIZE:
OUTER BOX SIZE:
OUTER BOX QUANTITY:
CARTON WEIGHT:
OUTER BOX WEIGHT:
WATERMARK LICENCE:
568
50
30
450
318
325
48
50
249
200
15

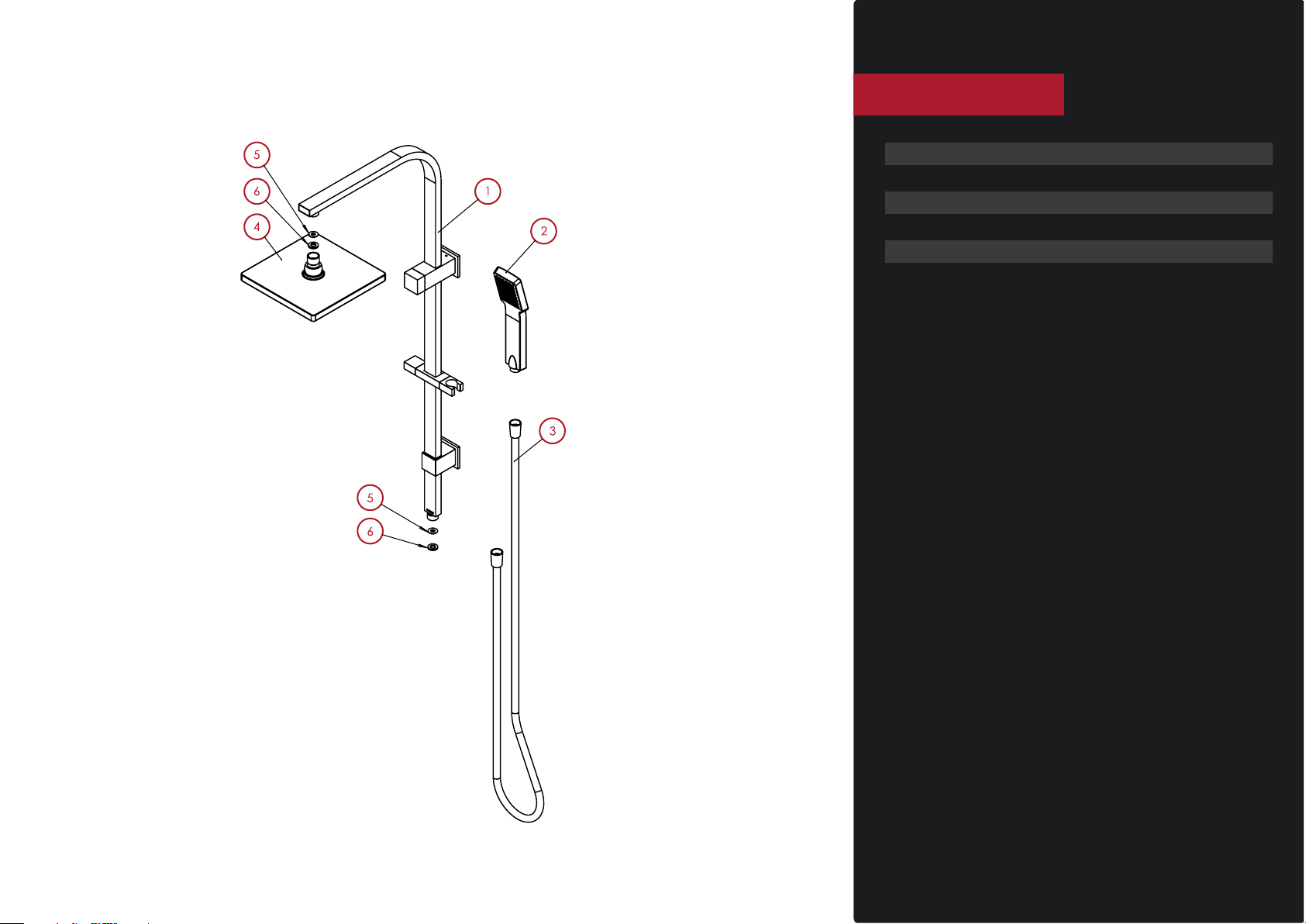

EXPLODED VIEW
PARTS LIST
1. SQUARE SHOWER RAIL ASSEMBLY
2. LEXI HAND PIECE
3. S/S SHOWER HOSE
4. SHOWER ROSE 200x200MM
5. FLOW RESTRICTOR
6. RUBBER WASHER

LEXI TWIN SHOWER
INSTALLATION INSTRUCTIONS
450-500mm
recommended
Shower Wall Outlet
hole 25mm
diameter
7mm diameter hole
Apply teon tape
Screw threaded adaptor to wall outlet.
Tighten rmly with allen key
Push appropriate plastic plug
into drilled hole. Locate lower
mounting adaptor over hole and
rmly screw in place.
SHOWER
HAND SHOWER
1 2
4 5
Insert washers and ow
restrictor as shown into Shower
Rose.
Screw Shower Rose to arm.
Insert washers and ow
restrictor as shown into Shower
Hose.
Screw Shower Hose to Hand
Shower
and Shower Rail
IN0206 rev C
3
6
Test and check
for leaks
x2
x2
Thin Rubber
Washer
Flow
Restrictor
Thick Rubber
Washer
Thin Rubber
Washer
Flow
Restrictor
Thick Rubber
Washer
Adjust Lower Body to correct
position and tighten
grub screw.
Position Shower Rail over Wall
Inlet Adaptor and lower Wall
Adaptor and gently push in
place.
Fasten Shower rail by tightening
top and bottom grub screws.
Diverter Operation
Gently rotate the Main Tube
anti-clockwise 90 degrees.
When Main Tube is aligned
with the Shower Arm,
carefully remove the
protective Plastic Tab.
x2
Inlet Body
Main Tube
Removable
Plastic Tab
Tighten 2 grub
screws located at
the rear of the
Main Tube
Shower Arm

WARRANTY INFORMATION
MANUFACTURER’S WARRANTY
“Our goods come with a guarantee that cannot be
excluded under the Australian Consumer Law
(“ACL”), You are entitled to a replacement or refund
for a major failure and for compensation for any
reasonable or foreseeable loss or damage. You are
also entitled to have repaired or replaced if the
goods fail to be of acceptable quality and a failure
does not amount to a major failure”.
In addition to the above obligations Phoenix oers
the following Manufacturer’s Warranty subject to
the following terms and conditions. Any provision in
the warranty which is inconsistent with the ACL or is
otherwise unenforceable shall be severed from this
warranty to the extent of the inconsistency and the
remainder of the provisions shall continue to apply.
WARRANTY PERIODS
Residential
Phoenix tapware and accessories is made to the
highest industry standards and quality. Refer to
table below for warranty periods.
Commercial
(Hotels, Aged Care Facilities, Hospitals, Schools,
Factories, Motels, etc.)
For all Service Enquiries contact below:
This Manufacturer’s Warranty is provided by Phoenix
Industries Pty Ltd.
Telephone: [phone]
Facsimile: + 61 3 9764 1898
Email: [email protected]om.au
Subject always to any overriding obligation pursuant
to the ACL, warranty shall be void for the following
reasons:
- Inability to provide proof of purchase or equivalent
documentation.
- Products not installed by a licensed plumber.
- Products not to relevant National Standards and
State Regulations.
- Products not installed in accordance with the
manufacturer’s installation instructions.
- Products exposed to environmental elements.
- Tapware exposed to water pressures and or
temperatures that exceed stated limitations.
MAXIMUM: Temperature- 75 degrees & Pressure-
550kPa
MINIMUM: Temperature- 1 degree & Pressure -
150kPa (300kPa for Shower/Bath Diverters)
Note: AS/NSZ 3500.1-2003 (Clause 3.3.4) species
550kPa maximum water supply pressure at any
outlet within a building for new installations.
- Showers may not be suitable for use within:
* Gravity-fed water systems.
* Some instantaneous hot water systems.
* Pressure supply less than 150kPa.
Note: The 550kPa maximum water supply pressure
does not apply to re service outlets.
- Isolation stop taps are not tted as stated on
manufacturer’s installation instructions.
- Fitting of other devices to the outlet of tapware, eg.
water lters.
- Fitting of Phoenix non-approved water ow
regulating devices.
- Fitting of other devices to outlet of tap, e.g., water
lters.
- Non-installation of ow regulated check valve for
hand showers.
- Products used for incorrect applications, non
potable water etc.
- Damage as a result of obstructions due to
inadequate ushing of system before use.
- Services repairs or with non-standard replacement
parts previously undertaken without Phoenix’s
written approval.
- Damage to nishes by adhesives, sealants etc.
- Failure to clean & replace outlet aerator inserts etc.
- Damage to nishes which arise from installation or
post installation use.
- Failure to observe manufacturers care and cleaning
instructions.
- The warranty work is limited to the pre-approved
scope of work. Additional work will require author
zation from Phoenix After Sales & Services
Departments.
- Evidence cannot be produced which conrms that
the relevant product was purchased from a
Phoenix Tapware authorized distributor.
WARRANTY CONDITIONS
Phoenix Warranty covers the repair or, at Phoenix’s
option, the replacement of any products which are
defective through faulty workmanship or materials.
The warranty period commences from date of
purchase or for new buildings date of handover to a
maximum period of 6 months. The warranty period
for replacement products is limited to the expiry
date of the original purchase. The warranty is limited
to the original purchaser and non-transferable. In
order to make a warranty claim, Proof of Purchase
(POP), handover documentation for new homes or
equivalent documentation must be supplied for
warranty claims to be considered. Claims must be
processed through Phoenix’s Customer Service and
each credit claim will be issued with a claim number
which is recorded on the Phoenix system.
Phoenix will not be liable for any claims for labour,
additional products or parts associated with alleged
faulty product for work not approved in advance by
Phoenix in writing.
* Note: These warranty periods apply to
products purchased after 10th April 2011.
Catagory
Mixers
Hand
Shower on
Rail
Tapware &
Standard
Showers
Accessories
Warranty
Period
Warranty
Details
15Years
3Years
7Years
7Years
-15 Years replacement cartridge
-7Years replacement product or parts
Note: Excludes damage to ceramic
disc cartridges from pieces of copper
tube, plastic tube, sand, dirt or thread
tape etc.
-1 Year replacement product or parts
& labour.
-3Years replacement product or parts
-1 Year replacement product or parts
and labour
-7Years replacement product or parts
-1Year replacement product or parts
and labour.
Note: Jumper valves and ceramic disc
spindles; 1Year parts only.
-7Years replacement product or parts
Catagory
All Products
Warranty
Period
Warranty
Details
1 Year -1Year replacement product or parts

WARRANTY INFORMATION
WARRANTY CONDITIONS CONT.
Should any warranty claim be made and attended to
by a Phoenix authorized Service Agent and that in the
opinion of the Service Agent or Phoenix the problem
was from faulty installation or use of the goods in
conjunction with products of another manufacturer
or from some other cause other than a manufacturing
defect to the goods for which Phoenix is responsible,
Phoenix has the right to charge a service fee for each
service staattending the Owner’s premise where
goods have been installed.
Phoenix requires adequate access to products, ttings
and xtures to undertake warranty repairs. Phoenix
will not be responsible for any consequential damage
or costs where adequate access to product ttings
and xtures is not accessible.
TAPWARE AND ACCESSORIES
Care and cleaning Instructions
- Under no circumstances should you install
tapware using acetone silicones.
- Never use harsh detergents, citrus based
cleaners or abrasive cleaners, as these will
scratch the surface.
- Where your tapware remains dry in use, a soft
cloth can be used to remove surface dust.
Alternatively, a wipe over with warm soapy
water is all that is required to maintain the
nish in perfect condition for a lifetime of use.
- Use of wax based furniture cream should be
avoided as these can result in a build-up of
deposits, which could detract from the
appearance.
- Do not use undue pressure and wipe in one
direction only.
Note: Phoenix reserves the right to alter, or amend
this warranty oer in writing at any time. Phoenix
reserves the right to provide minor components (eg.
handles, aerators, buttons, dress rings, hinges, clips,
rod and washers) as‘Parts Only’ to the customer.
