Phonic PCT-1000 User manual

User's Manual
Manual del Usuario
PCT-1000
SCAN
A B
LOCK
RF AF
SCAN
LOCK
RF AF

Dual Channel Diversity Wireless System
Sistema Dual de Canal de Diversidad Inalámbrica
English Español
ENGLISH........................................I
ESPAÑOL.......................................II
APPENDIX.....................................III
V1.0 08/07/2014
PCT-1000

English
3PCT-1000
Introduction.........................................................................................1
Features.....................................................................................1
Operation.....................................................................................1
One-Touch Auto Scan..............................................................................1
Manual Scan...................................................................................1
System Overview.....................................................................................2
Front View........................................................................................2
Rear View........................................................................................2
Specifications.....................................................................................3
APPENDIX

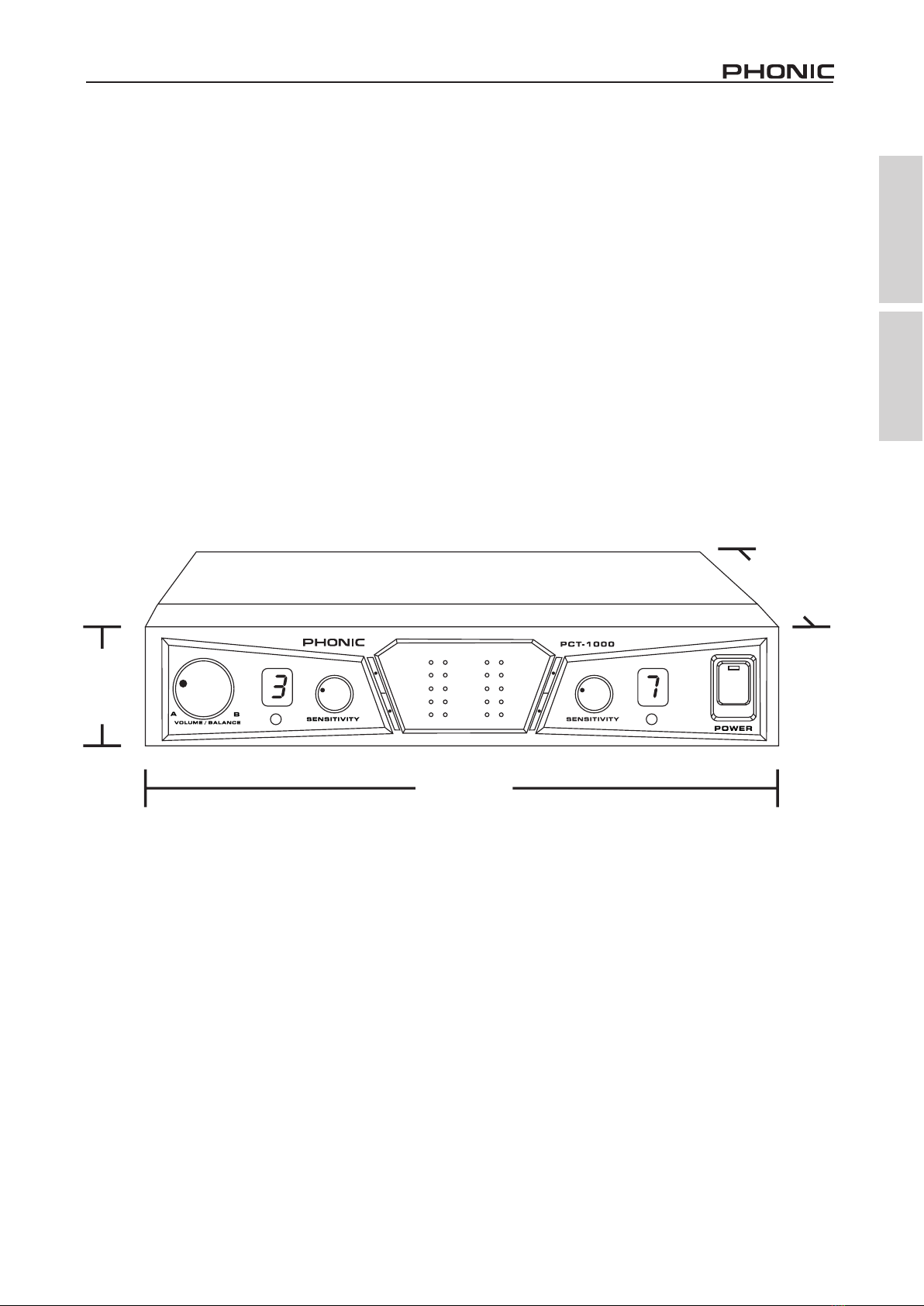

Dimensions.......................................................................................1
CONTENTS
USER'S MANUAL
Phonic preserves the right to improve or alter any information within this
document without prior notice

4
English
PCT-1000
1. Read these instructions before operating this
apparatus.
2. Keep these instructions for future reference.
3. Heed all warnings to ensure safe operation.
4. Follow all instructions provided in this document.
5. Do not use this apparatus near water or in locations
where condensation may occur.
6. Clean only with dry cloth. Do not use aerosol or liquid
cleaners. Unplug this apparatus before cleaning.
7. Do not block any of the ventilation openings. Install
in accordance with the manufacturer
’
s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If
the provided plug does not into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plug, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories by the
manufacturer.
12. Use only with a cart, stand, tripod, bracket, or
table by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus
combination to avoid injury from tip-
over.
13. Unplug this apparatus during lighting
storms or when unused for long
periods of time.
14. Refer all servicing to service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated
“
dangerous voltage
”
within the
product
’
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is in-
tended to alert the user to the presence of important operat-
ing and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING: To reduce the risk of or electric shock, do
not expose this apparatus to rain or moisture.
CAUTION: Use of controls or adjustments or performance
of procedures other than those may result in
hazardous radiation exposure.
The apparatus shall not be exposed to dripping or splashing and that no objects with liquids, such as vases,
shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall
remain readily operable.
Warning: the user shall not place this apparatus in the area during the operation so that the mains switch
can be easily accessible.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

English
1PCT-1000
Introduction
Congratulations on your purchase of the Phonic PCT-1000
dual channel diversity wireless microphone system. The
culmination of years of working in the wireless domain, the
PCT-1000 combines the tried and true one-touch autoscan
technology that Phonic is famous for with a brand new
stand-alone construct. Connecting the transmitter and
receiver units is a breeze with the PCT-1000, with a single
scan button automatically searched and locking to the
best frequency for use. Ideal for live stage performances,
speeches, karaoke and more, the PCT-1000 wireless
microphone system ensures you never have to worry about
microphone cables again.
Features
• Autoscantechnologyautomaticallyseeksanduses
the best frequency
• FrontpanelRFandAFmeteringforsystemand
performance monitoring
• ¼”phonejackandXLRoutputsforbalancedor
unbalanced signals
• Frontpanelsensitivitycontrolsforadjustingincoming
mic signals
• Volumebalancecontroladjustslevelbalance
between A and B channels
• Advanceddiversitycircuitryhelpstoimprovestability
and avoid dropouts
• Broadchannelrangemakesmultiplesystemsideal
for use at any one time
• Rear-panel+10,0,-6dBswitchforcontouringlevelto
input devices
• Stableperformanceevenintheeventthatmultiple
units or channels are used
• Flexiblenoisesquelchtechnologyforclear,noise-free
performances every time
• Detachablediversityantennasforexiblesetupand
installation
• PerfectforKaraoke(KTV)barsandlivestage
performances
Operation
One-Touch Auto Scan
1. Power-on the PCT-1000 wireless receiver by icking
the power switch.
2. Power-on your handheld microphone or bodypack
transmitter unit.
3. Hold the transmitter close against the PCT-1000 receiver
and push the Scan button for 4 to 5 seconds until
thenumericchannelLEDdigitsstarttoautomatically
change,indicatingthattheautoscanisndingthebest
wireless channel.
4. TheautoscanprocessisnishedwhentheLEDdisplay
stopsattheoptimalchannel.Atthispoint,theRFLEDs
willactivate.IftheRFLEDsonthePCT-1000receiver
do not light on, the connection has not been established
successfully. To reinforce the connection, click the
Lockbuttonwhileholdingthetransmittersclosetothe
receiver.
5. Uponasuccessfulconnection,theAFLEDsonthePCT-
1000 will activate as you speak into the microphone.
Manual Scan
1. Power-on PCT-1000 receiver and the microphone
transmitter(handheldorbodypack).
2. Push the Scan button on the PCT-1000 receiver for
2 seconds. The numeric LEDs will begin to blink.To
manually select frequency, continue to click the Scan
button until you reach the desired channel.
3. Hold the microphone or bodypack against the receiver
andpushtheLockbuttontoconrmthechanneland
establish the link between the microphone transmitter
andreceiver.Atthispoint,theRFLEDswillactivateand
theAFLEDswillrespondtothemicrophonesignal.If
the connection is not established, reattempt the manual
or autoscan process.

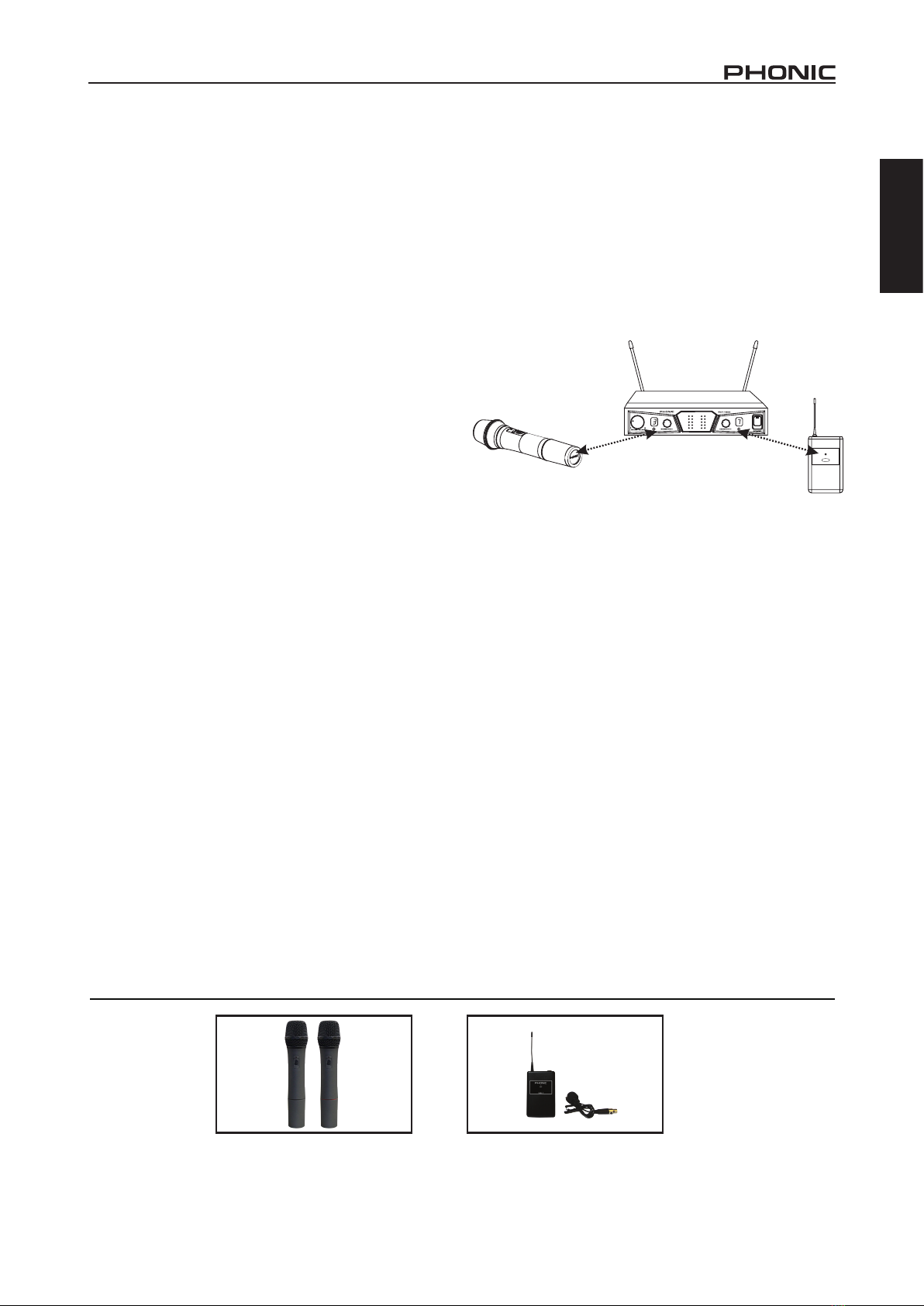

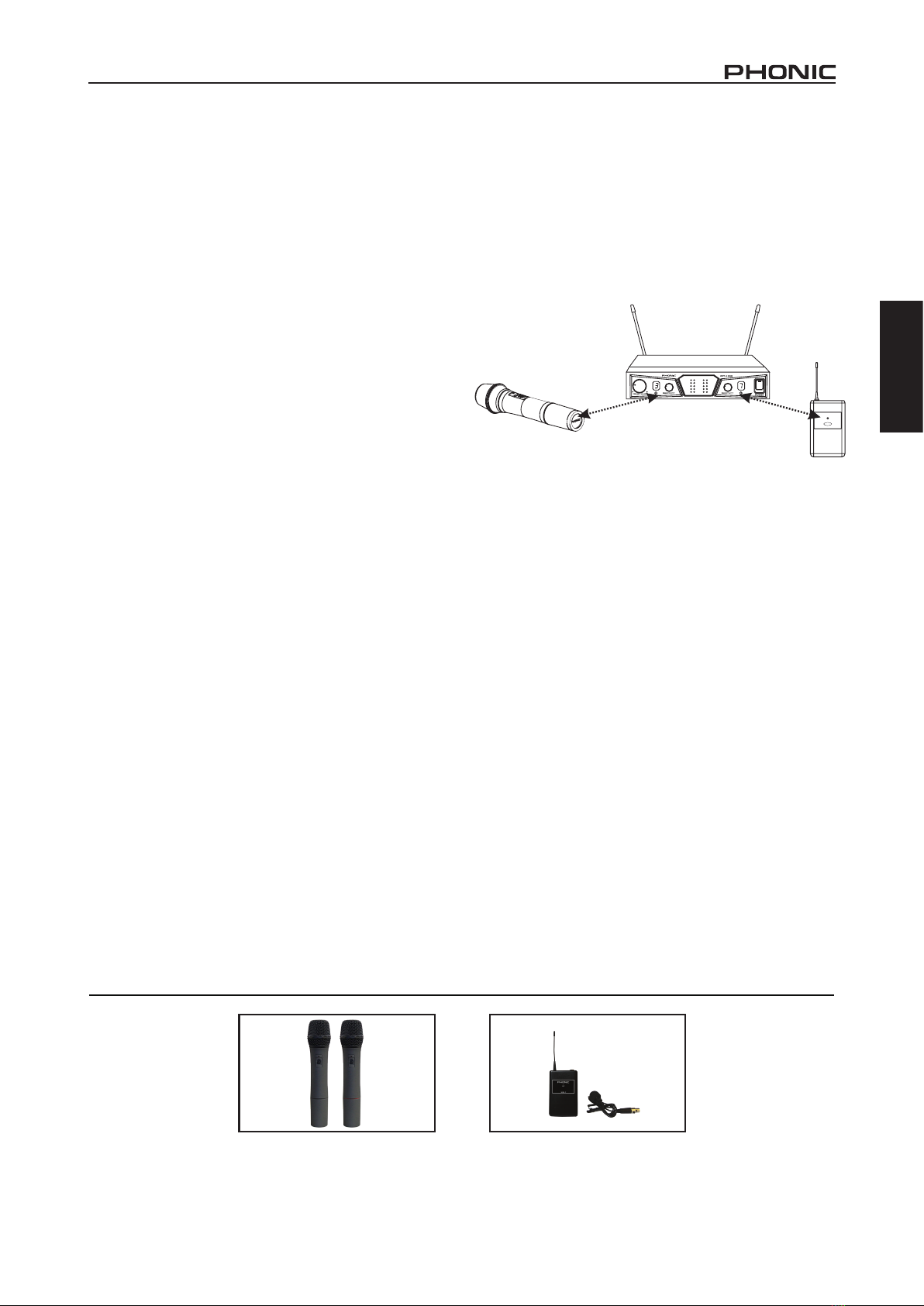

PCT-1000
(Handsets)
PCT-1000B
(BodypackandLavaierMic)
Microphones
SCAN
AB
LOCK
RF AF
SCAN
LOCK
RF AF

2
English
PCT-1000

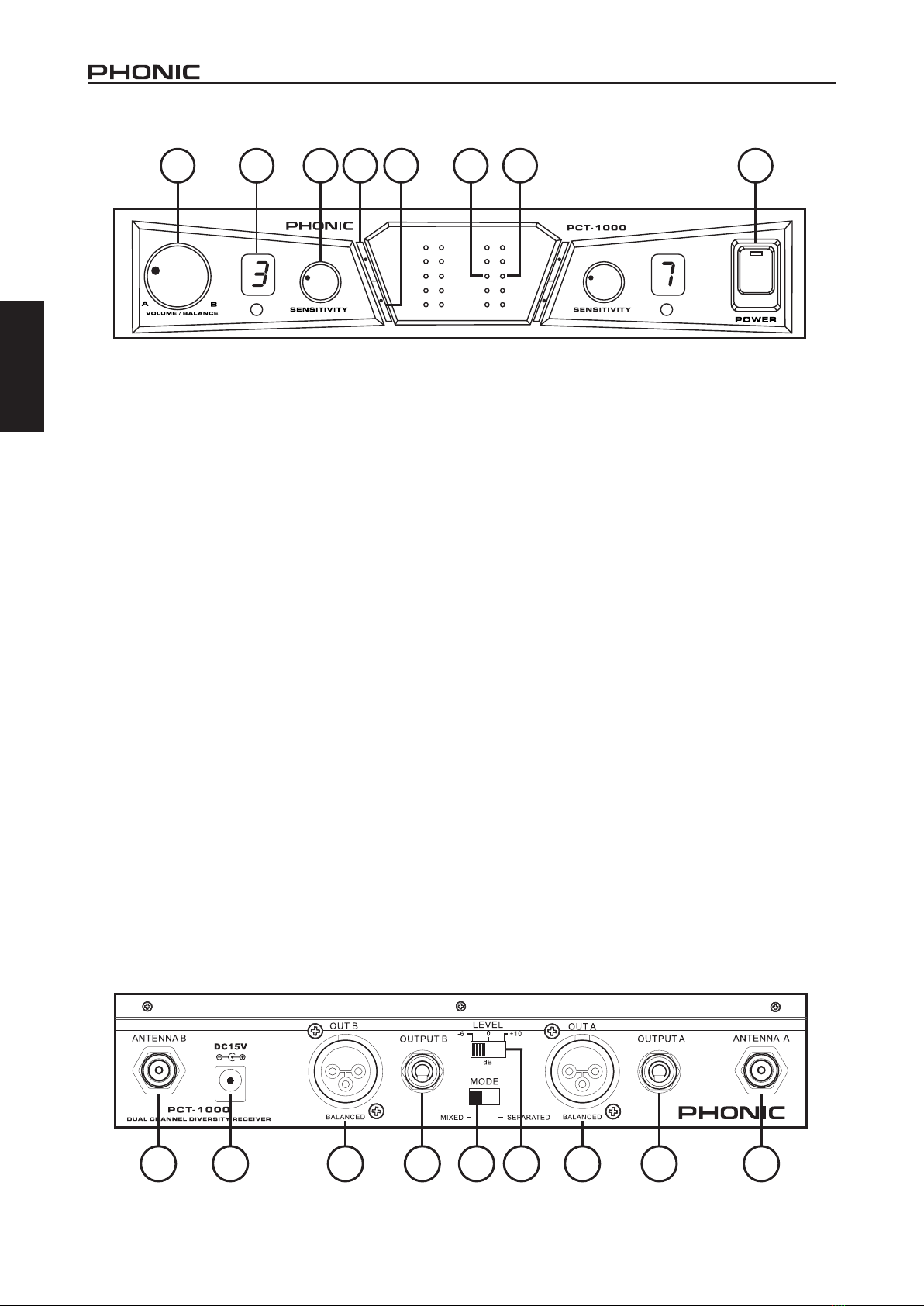

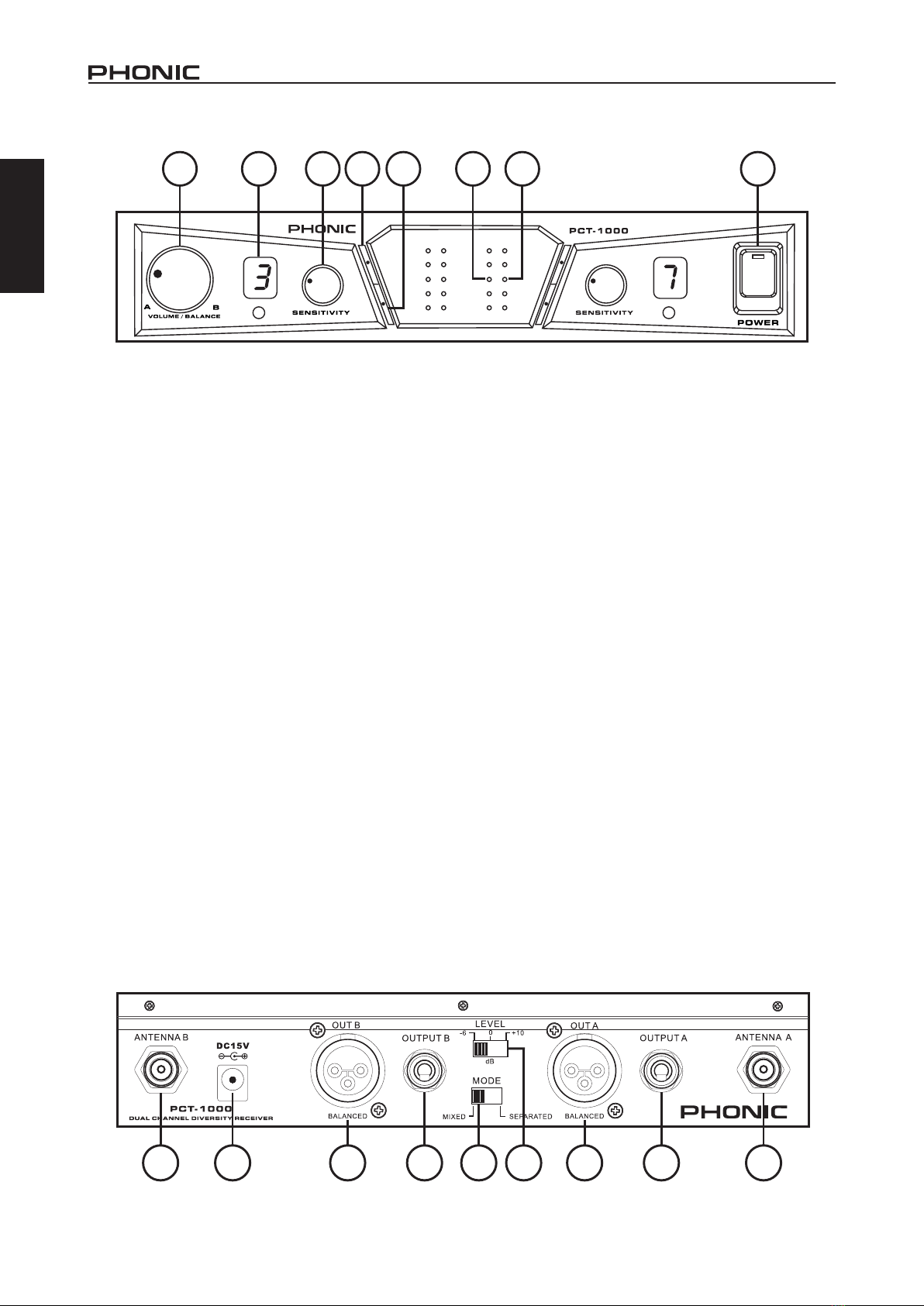

Front Panel
1. Channel Indicator
This indicator shows the channel number currently used
by the receiver channel.
2. Scan Button
Push and hold the scan button to search for the best
frequency for transmission. For more detailed information
on operation, please check the operation section of this
manual.
3. Lock Button
When manually setting the wireless channel, use the lock
buttontoconrmthechannel.Formoredetailedinformation
on operation, please check the operation section of this
manual.
4. Sensitivity Control
Usethisrotarycontroltoadjusttheincomingsignallevel
from the wireless microphones.
5. RF Meter
This meter will light up indicating a connection has been
established between the PCT-1000 and the transmitter unit
(eitherthehandheldmicrophoneorbodypacktransmitter).
There is an RF meter for each of the wireless channels.
6. AF Meter
The AF meter will light up when a connection is established
between the transmitter and receiver and a signal is being
received from the transmitter. There is an AF meter for each
of the wireless channels.
7. A-B Balance Control
ThisrotarycontroladjuststhebalancebetweentheAand
Bchannels,essentiallylettingyouadjusttheirrespective
levels simultaneously. This is particularly helpful when
using“MixedMode”wherebothchannelswillbecombined
and sent through both channels.
8. Power Switch
Use this power switch to turn the receiver unit on and off.
Rear Panel
9. DC Power Input
Connect the included DC power adapter to this input.
Connect the power plug end into an appropriate AC power
source.
10. BNC Antenna Connector
The PCT-1000 comes complete with 2 antennas. Connect
themtotheseBNCconnectors.Screwintoplacetoxthem
securely to the receiver unit.
11. Mode Switch
Thisswitchhastwooptions:mixedandseparated.When
settomixed,microphonesAandBwillbecombinedand
sent out both outputs A and B. When the switch is set to
separated, the microphone signals will be sent to their
corresponding outputs.
12. Operating Level Switch
This switch lets the user determine the output level of
theAandBoutputs.Whensetto-6,theunitisidealfor
consumer-level application. The 0 and +10 settings are
ideal for professional devices.
13. Output Connectors
EachofthePCT-1000outputchannelsfeaturesbalanced
XLR and ¼” TRS connectors.These are ideal for
connectiontomixingconsolesorotherinputdevices.
10 9 13 13 1311 12 13 10
SCAN
AB
LOCK
RF AF
SCAN
LOCK
RF AF
7 81 4 2 3 5 6
System Overview

English
3PCT-1000
Specications
Preprogrammed Frequencies 16-PresetChannelsw/AutoscanTechnology
Carrier Frequency Range 500to875MHz(regiondependent)
Deviation ±50KHz,withlevellimiting
Stability ±0.005%
S/N Ratio >106dB(A-weighted)
T.H.D. <0.5% @ 1 kHz
Frequency Response 50Hz~18KHz
Sensitivity S/N>76dBat10microV
SpuriousRejection > 80dB
Output Connectors 1/4"TRSandXLR(perchannel)
OutputLevel Selectable:+10dBV,0dBV,-6dBV
Power Supply DC15V,0.6A
Dimensions(WxDxH) 218×192×44mm(8.6"x7.6"x1.7")
Weight 1.8kg(3.97lbs)

4
English
PCT-1000
SERVICE AND REPAIR
For replacement parts, service and repairs please contact the Phonic distributor in your
country. Phonic does not release service manuals to consumers, and advice users to not
attempt any self repairs, as doing so voids all warranties. You can locate a dealer near you at
http://www.phonic.com/where/.
WARRANTY INFORMATION
Phonic stands behind every product we make with a no-hassles warranty. Warranty coverage
may be extended, depending on your region. Phonic Corporation warrants this product for a
minimum of one year from the original date of purchase against defects in material and
workmanship under use as instructed by the user’s manual. Phonic, at its option, shall repair
or replace the defective unit covered by this warranty. Please retain the dated sales receipt as
evidence of the date of purchase. You will need it for any warranty service. No returns or repairs
will be accepted without a proper RMA number (return merchandise authorization). In order to
keep this warranty in effect, the product must have been handled and used as prescribed in the
instructions accompanying this warranty. Any tampering of the product or attempts of self repair
voids all warranty. This warranty does not cover any damage due to accident, misuse, abuse,
or negligence. This warranty is valid only if the product was purchased new from an authorized
Phonic dealer/distributor. For complete warranty policy information, please visit
http://www.phonic.com/warranty/.
CUSTOMER SERVICE AND TECHNICAL SUPPORT
We encourage you to visit our online help at http://www.phonic.com/support/. There you can find
answers to frequently asked questions, tech tips, driver downloads, returns instruction and other
helpful information. We make every effort to answer your questions within one business day.
FCC Caution: To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to operate this
equipment. (Example - use only shielded interface cables when connecting to computer or
peripheral devices).
THIS DEVICE COMPLIES WITH PART 74 OF THE FCC RULES. This equipment complies with
FCC RF radiation exposure limits set forth for an uncontrolled environment.
http://www.phonic.com

Español
5
PCT-1000
CONTENIDO
Manual del Usuario
Phonicsereservaelderechodemejoraroalterarcualquierinformaciónprovista
dentro de este documento sin previo aviso.
Introducción..................................................................................1
Carácterísticas.......................................................................................1
Funcionamiento..........................................................................1
One-Touch Auto Scan........................................................................1
ExploraciónManual............................................................................1
DescripciónGeneralDelSistema...................................................2
Panel Frontal......................................................................................2
Panel Trasero......................................................................................2
Especicaciones.....................................................................................3
APÉNDICE
Dimensiones.................................................................................1

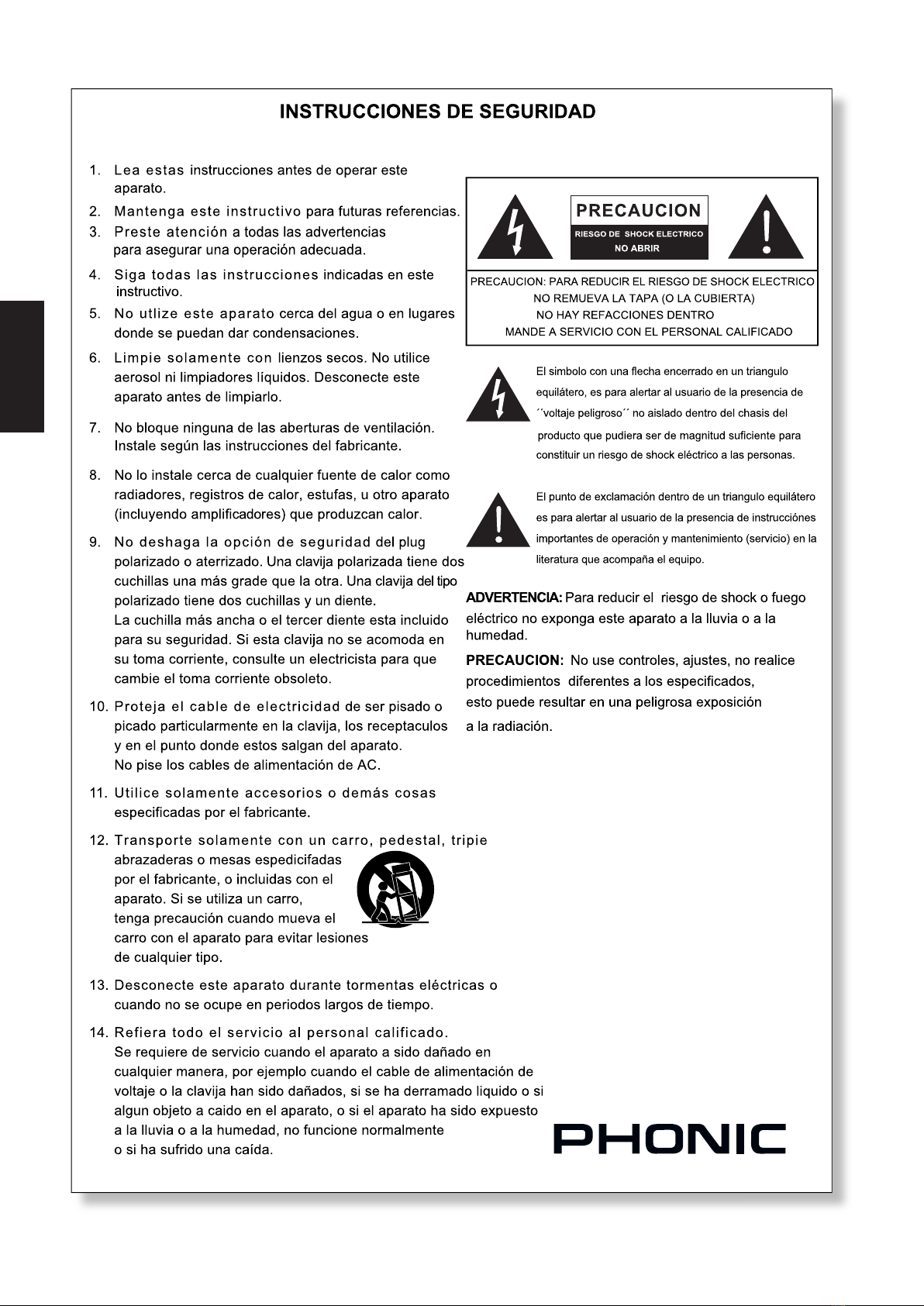

6
Español
PCT-1000

Español
1
PCT-1000
Introducción
Felicitacionesporsucompradelsistemademicrófonoinalámbrico
doble canal PCT-1000 de Phonic. La culminación de años de
trabajo en el dominio inalámbrico, el PCT-1000 combina la
tecnologíadeexploraciónautomáticadeunsolotoqueporlacual
Phonicesfamoso.Laconexióndelasunidadesdetransmisióny
recepciónesdelomásfácilconelPCT-1000,conunsolotoque
debotónbuscaráautomáticamentelamejorfrecuenciaparasu
uso. Ideal para representaciones teatrales en vivo, discursos,
karaokeymás,elsistemademicrófonoinalámbricoPCT-1000
asegura que nunca tendrá que preocuparse de los cables del
micrófonodenuevo.
Carácterísticas
• Latecnologíadeescaneoautomáticobuscayutilizaautomáti-
camentelamejorfrecuencia
• PanelfrontalRFymediciónAFparalasupervisióndelsistema
y el rendimiento
• Conexionesjackde6.35mmysalidasXLRparaseñalessimé-
tricasyasimétricas
• SensibilidadControlesdelpanelfrontalparaajustarlasseñales
demicrófonoentrantes
• Elcontroldevolumenseequilibraajustandoelbalancedenivel
entre los canales A y B
• Circuitosavanzadosayudaamejorarlaestabilidadydiversidad
del sistema ayudando a que ese no se estrelle.
• Canalderangoampliohacequelossistemasseanidealespara
el uso múltiple en un momento dado
• Interruptor10,0,-6dBdelpaneltraseroayudaacontornearel
nivel para dispositivos de entrada
• Funcionamientoestableinclusoenelcasodequeseutilicen
múltiples unidades o canales
• Latecnologíadesilenciamientoderuidoexiblepara,actua-
ciones claras sin ruido en todo momento
• Antenas de diversidad desmontables para la conguración
exibleylainstalación
• IdealparaKaraokebares(KTV)yrepresentacionesteatrales
en vivo
Funcionamiento
One-Touch Auto Scan
1. Encienda el receptor inalámbrico PCT-1000 accionando el
interruptor de encendido.
2. Enciendaelmicrófonodemanoounidaddetransmisorde
bolsillo.
3. Sostenga el transmisor cerca contra el receptor PCT-1000 y
pulseelbotónScande4a5segundoshastaquelosdígitos
LED de canal numéricos comienzan a cambiar de forma
automática, lo que indica que la exploración automática es
encontrarelmejorcanalinalámbrico.
4.Elprocesodeexploraciónautomáticaseterminacuandola
pantallaLEDsedetiene enelcanalóptimo.Enestepunto,
losLEDdeRFseactivarán.SilosLEDdeRFenelreceptor
PCT-1000noseencienden,laconexiónnosehaestablecido
conéxito.Parareforzarlaconexión,hagaclicenelbotónde
bloqueo mientras mantiene las emisoras situadas en el recep-
tor.
5. Trasunaconexiónsatisfactoria,losLEDsAFsobreelPCT-
1000seactivaránmientrashablaporelmicrófono.
Exploración Manual
1. EnciendaelreceptoryeltransmisordemicrófonoPCT-1000.
2. PulseelbotónScanenelreceptorPCT-1000durante2se-
gundos.LosLEDnuméricoscomenzaránaparpadear.Para
seleccionar manualmente la frecuencia, continúe haciendo clic
enelbotónScanhastallegaralcanaldeseado.
3. Sostengaelmicrófonodebolsillocontraelreceptorypresione
elbotónde bloqueoparaconrmarelcanalyestablecerel
vínculoentreeltransmisoryelreceptordemicrófono.Eneste
punto,losLEDdeRFseactivaráylosLEDsAFresponderáa
laseñaldelmicrófono.Sinoseestablecelaconexión,vuelvaa
intentarelprocesomanualoiniciarunaexploraciónautomática
(autoscanprocess).
Micrófonos
SCAN
AB
LOCK
RF AF
SCAN
LOCK
RF AF
PCT-1000
(ConjuntoMano)
PCT-1000B
(DeCuerpoyMicLavaier)

2
Español
PCT-1000
Panel Frontal
1. Canal Indicador
Esteindicadormuestraelnúmerodecanalutilizadoactualmente
por el canal receptor.
2. Botón Scan
Mantenga pulsado el botón de escaneo para buscar la mejor
frecuencia para la transmisión. Para obtener información más
detallada sobre el funcionamiento, consulte la sección de
operacióndeestemanual.
3. Botón de bloqueo
Si desea congurar manualmente el canal inalámbrico, utilice
el botón de bloqueo para confirmar el canal. Para obtener
informaciónmásdetalladasobreelfuncionamiento,consultela
seccióndeoperacióndeestemanual.
4. Control de Sensibilidad
Utilice este control giratorio para ajustar el nivel de la señal
entranteenelmicrófonoinalámbrico
5. Medidor de RF
Este medidor se encenderá indicando una conexión se ha
establecidoentreelPCT-1000ylaunidaddetransmisión(yasea
elmicrófonodemanootransmisordebolsillo).Hayunmedidor
de RF para cada uno de los canales inalámbricos.
6. Meter AF
ElmedidordeAFseencenderácuandoseestableceunaconexión
entreeltransmisoryelreceptorynoserecibeunaseñaldesde
el transmisor. Hay un metro de AF para cada uno de los canales
inalámbricos.
7. A-B Balance de Control
Este control giratorio ajusta el balance entre los canalesA y
B,enesencialoquelepermiteajustarsusrespectivosniveles
simultáneamente.Estoesparticularmenteútilcuandoseutiliza
“modomixto”enelquesecombinanlosdoscanalesyseenvían
atravésdelosdoscanales.
8. Interruptor de encendido
Utilice este interruptor para encender el receptor encendido y
apagado.
Panel Trasero
9. Entrada de corriente DC
Conecte el adaptador de energía DC incluido a esta entrada.
Conecteelextremodelenchufedealimentaciónaunatomade
corriente alterna adecuada.
10. BNC Conector de antena
ElPCT-1000vienecon2antenas.Seconectanalosconectores
BNC.Atornilleensulugarparajardeformaseguraalaunidad
receptora.
11. Interruptor de modo
Este interruptor tiene dos opciones: mezclados y separados.
Cuandoseestablececomomixto,micrófonosAyBsecombinará
yenvióambassalidasAyB.Cuandoelinterruptorestáseparado,
lasseñalesdemicrófonoseránenviadosasuscorrespondientes
salidas.
12. Interruptor de nivel de funcionamiento
Esteinterruptorpermitealusuariodeterminarelniveldesalida
delassalidasAyB.Cuandoseajustaa-6,launidadesideal
paralaaplicaciónaniveldeconsumidor.Los0y10ajustesson
ideales para dispositivos profesionales.
13. Conectores de salida
Cada uno de los canales de salida del PCT-1000 dispone de
conexiones XLR y TRS 6.35mm. Estos son ideales para la
conexiónalasconsolasdemezclauotrosdispositivosdeentrada.
10 9 13 13 1311 12 13 10
SCAN
AB
LOCK
RF AF
SCAN
LOCK
RF AF
7 81 4 2 3 5 6
Descripción General Del Sistema

Español
3
PCT-1000
Especicaciones
PCT-1000
Lasfrecuenciaspreprogramadas Canalesde16preseleccionadasw/TecnologíaAutoscan
Rango de frecuencia Portador 500a875MHz(dependedelaregión)
Desviación 50KHz±,conniveldelimitación
Estabilidad ± 0,005%
S / N Ratio >106dB(ponderado)
T.H.D. <0,5% a 1 kHz
Respuesta de frecuencia 50Hz a 18kHz
Sensibilidad S/N>76dBa10microV
Rechazodeseñalesespurias > 80dB
Conectores de salida 4.1"TRSyXLR(porcanal)
Nivel de salida Seleccionable:+10dBV,0dBV,-6dBV
Fuentedealimentación DC15V,0.6A
Dimensiones(WxDxH) 218×192×44mm(8.6"7.6"x1.7")
Peso 1,8kg(3,97libras)

4
Español
PCT-1000
SERVICE AND REPAIR
For replacement parts, service and repairs please contact the Phonic distributor in your
country. Phonic does not release service manuals to consumers, and advice users to not
attempt any self repairs, as doing so voids all warranties. You can locate a dealer near you at
http://www.phonic.com/where/.
WARRANTY INFORMATION
Phonic stands behind every product we make with a no-hassles warranty. Warranty coverage
may be extended, depending on your region. Phonic Corporation warrants this product for a
minimum of one year from the original date of purchase against defects in material and
workmanship under use as instructed by the user’s manual. Phonic, at its option, shall repair
or replace the defective unit covered by this warranty. Please retain the dated sales receipt as
evidence of the date of purchase. You will need it for any warranty service. No returns or repairs
will be accepted without a proper RMA number (return merchandise authorization). In order to
keep this warranty in effect, the product must have been handled and used as prescribed in the
instructions accompanying this warranty. Any tampering of the product or attempts of self repair
voids all warranty. This warranty does not cover any damage due to accident, misuse, abuse,
or negligence. This warranty is valid only if the product was purchased new from an authorized
Phonic dealer/distributor. For complete warranty policy information, please visit
http://www.phonic.com/warranty/.
CUSTOMER SERVICE AND TECHNICAL SUPPORT
We encourage you to visit our online help at http://www.phonic.com/support/. There you can find
answers to frequently asked questions, tech tips, driver downloads, returns instruction and other
helpful information. We make every effort to answer your questions within one business day.
FCC Caution: To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to operate this
equipment. (Example - use only shielded interface cables when connecting to computer or
peripheral devices).
THIS DEVICE COMPLIES WITH PART 74 OF THE FCC RULES. This equipment complies with
FCC RF radiation exposure limits set forth for an uncontrolled environment.
http://www.phonic.com

1
PCT-1000
Appendix Apéndice
SCAN
AB
LOCK
RF AF
SCAN
LOCK
RF AF
218 / 8.6
192 / 7.6
44 / 1.7
Measurements are shown in mm/inches.
Todas las medidas están mostradas en mm/pulgadas.
Dimensions Dimensiones

Table of contents
Other Phonic Microphone System manuals
