Phonic PR-800 User manual
User's Manual
Manual del Usuario
PR-800
PR-900
A B
RF AF RF AF
Wireless Microphone Systems
Sistemas de Micrófonos Inalámbricos
English Español
ENGLISH........................................I
ESPAÑOL.......................................II
APPENDIX.....................................III
V1.0 08/19/2014
PR-800 | PR-900
English
3
PR-800 | PR-900
Introduction.........................................................................................1
Features.....................................................................................1
Operation.....................................................................................1
Transmitter Components..........................................................................1
Microphones......................................................................................1
System Overview.....................................................................................2
Front View........................................................................................2
Rear View........................................................................................2
Specifications.....................................................................................3
Troubleshooting.....................................................................................3
APPENDIX
Dimensions.......................................................................................1
CONTENTS
USER'S MANUAL
Phonic preserves the right to improve or alter any information within this
document without prior notice
4
English
PR-800 | PR-900
1. Read these instructions before operating this
apparatus.
2. Keep these instructions for future reference.
3. Heed all warnings to ensure safe operation.
4. Follow all instructions provided in this document.
5. Do not use this apparatus near water or in locations
where condensation may occur.
6. Clean only with dry cloth. Do not use aerosol or liquid
cleaners. Unplug this apparatus before cleaning.
7. Do not block any of the ventilation openings. Install
in accordance with the manufacturer
’
s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If
the provided plug does not into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plug, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories by the
manufacturer.
12. Use only with a cart, stand, tripod, bracket, or
table by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus
combination to avoid injury from tip-
over.
13. Unplug this apparatus during lighting
storms or when unused for long
periods of time.
14. Refer all servicing to service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated
“
dangerous voltage
”
within the
product
’
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is in-
tended to alert the user to the presence of important operat-
ing and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING: To reduce the risk of or electric shock, do
not expose this apparatus to rain or moisture.
CAUTION: Use of controls or adjustments or performance
of procedures other than those may result in
hazardous radiation exposure.
The apparatus shall not be exposed to dripping or splashing and that no objects with liquids, such as vases,
shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall
remain readily operable.
Warning: the user shall not place this apparatus in the area during the operation so that the mains switch
can be easily accessible.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
English
1
PR-800 | PR-900
Introduction
Congratulations on your purchase of the Phonic PR-800
and PR-900 wireless microphone systems. The culmination
of years of working in the wireless domain, the PR
series combines the tried and true wireless technology
that Phonic is famous for with a brand new stand-alone
construct. Connecting the transmitter and receiver units is
a breeze with the PR-800 and PR-900, where microphone
transmitters and receivers set to identical frequencies
as default. Ideal for live stage performances, speeches,
karaoke and more, the PR series wireless microphone
system ensures you never have to worry about microphone
cables again.
Features
• Plug-and-playdesignforimmediateoperationwithout
any additional setup
• FrontpanelRFandAFindicatorsforsystemand
performance monitoring
• ¼”phonejackoutputsforbalancedorunbalanced
signals
• Frontpanelsensitivitycontrolsforadjustingincoming
mic signals
• Advanceddiversitycircuitryhelpstoimprovestability
and avoid dropouts
• Volumebalancecontroladjustslevelbalance
betweenAandBchannels(PR-900only)
• Rear-panel+10,0,-6dBswitchforcontouringlevelto
input devices
• Stableperformanceevenintheeventthatmultiple
units or channels are used
• Flexiblenoisesquelchtechnologyforclear,noise-free
performances every time
• Detachablediversityantennasforexiblesetupand
installation
• PerfectforKaraoke(KTV)barsandlivestage
performances
Operation
1. Connect your PR wireless receiver’s output connectors
toyourmixerorotherinputdevice.
2. Turn on the PR-800 or PR-900 receiver unit followed by
either the handheld transmitter or bodypack.
3. Wait until the RF meter lights up. This means a
connection has been established between your
transmitter and the receiver.
4. Uponconnection,theAFwillactivateasyouspeakinto
the microphone.
5. Adjustthesensitivitycontrolsasneeded.
PR-800
(Handsets)
PR-900
(Handsets)
PR-800B
(BodypackandLavaierMic)
PR-900B
(BodypackandLavaierMic)

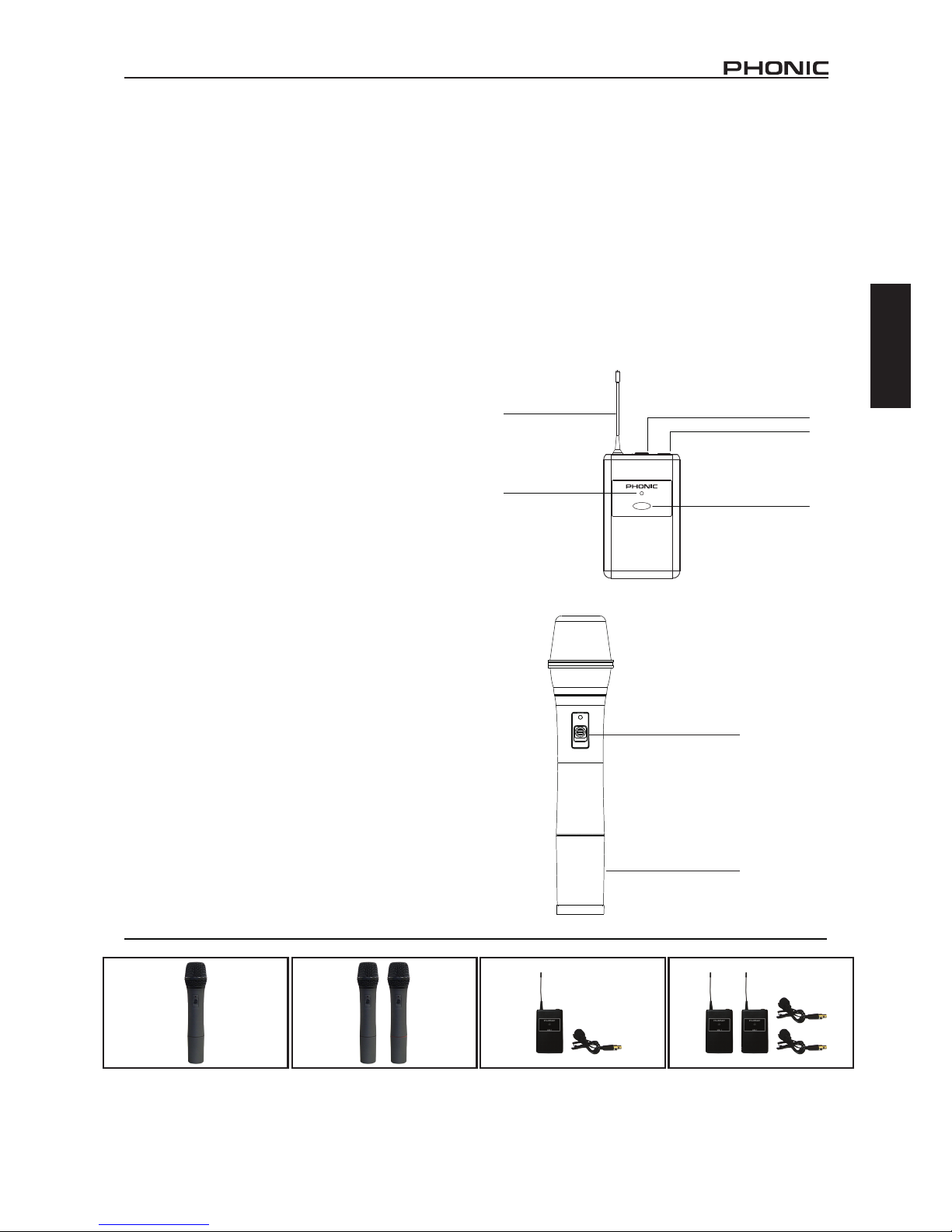

Microphones
Transmitter Components
Beltpack
Handheld Microphone
WB-1
UHF
Antenna Power Switch
Headset / lavalier mic jack
Power Status
Infrared
Power Switch
Battery Compartment
2
English
PR-800 | PR-900
Front Panel
1. Sensitivity Control
Usethisrotarycontroltoadjusttheincomingsignallevel
from the wireless microphones.
2. RF Meter
This meter will light up indicating a connection has
been established between the PR wireless system and
the transmitter unit (either the handheld microphone or
bodypack transmitter). There is an RF meter for each
of the wireless channels. The PR-800 features a single
indicator only.
3. AF Meter
TheAFmeterwilllightupwhenaconnectionisestablished
between the transmitter and receiver and a signal is being
receivedfromthetransmitter.There isanAFmeterfor
each of the wireless channels. The PR-800 features a
single indicator only.
4. A-B Balance Control (PR-900 only)
ThisrotarycontroladjuststhebalancebetweentheAand
Bchannels,essentiallylettingyouadjusttheirrespective
levels simultaneously. This is particularly helpful when
using“MixedMode”wherebothchannelswillbecombined
and sent through both channels.
5. Power Switch
Use this power switch to turn the receiver unit on and off.
Rear Panel
6. DC Power Input
Connect the included DC power adapter to this input.
ConnectthepowerplugendintoanappropriateACpower
source.
7. BNC Antenna Connector
The PR wireless system comes complete with either 1 or 2
antennas.ConnectthemtotheseBNCconnectors.Screw
intoplacetoxthemsecurelytothereceiverunit.
8. Mode Switch (PR-900 only)
Thisswitchhastwooptions:mixedandseparated.When
settomixed,microphonesAandBwillbecombinedand
sentoutbothoutputsAandB.Whentheswitchissetto
separated, the microphone signals will be sent to their
corresponding outputs.
9. Operating Level Switch
This switch lets the user determine the output level of
theAandBoutputs.Whensetto-6,theunitisidealfor
consumer-level application. The 0 and +10 settings are
ideal for professional devices.
10. Output Connectors
Each of the PR wireless system output channels features
balanced ¼” TRS connectors.These are ideal for
connectiontomixingconsolesorotherinputdevices.

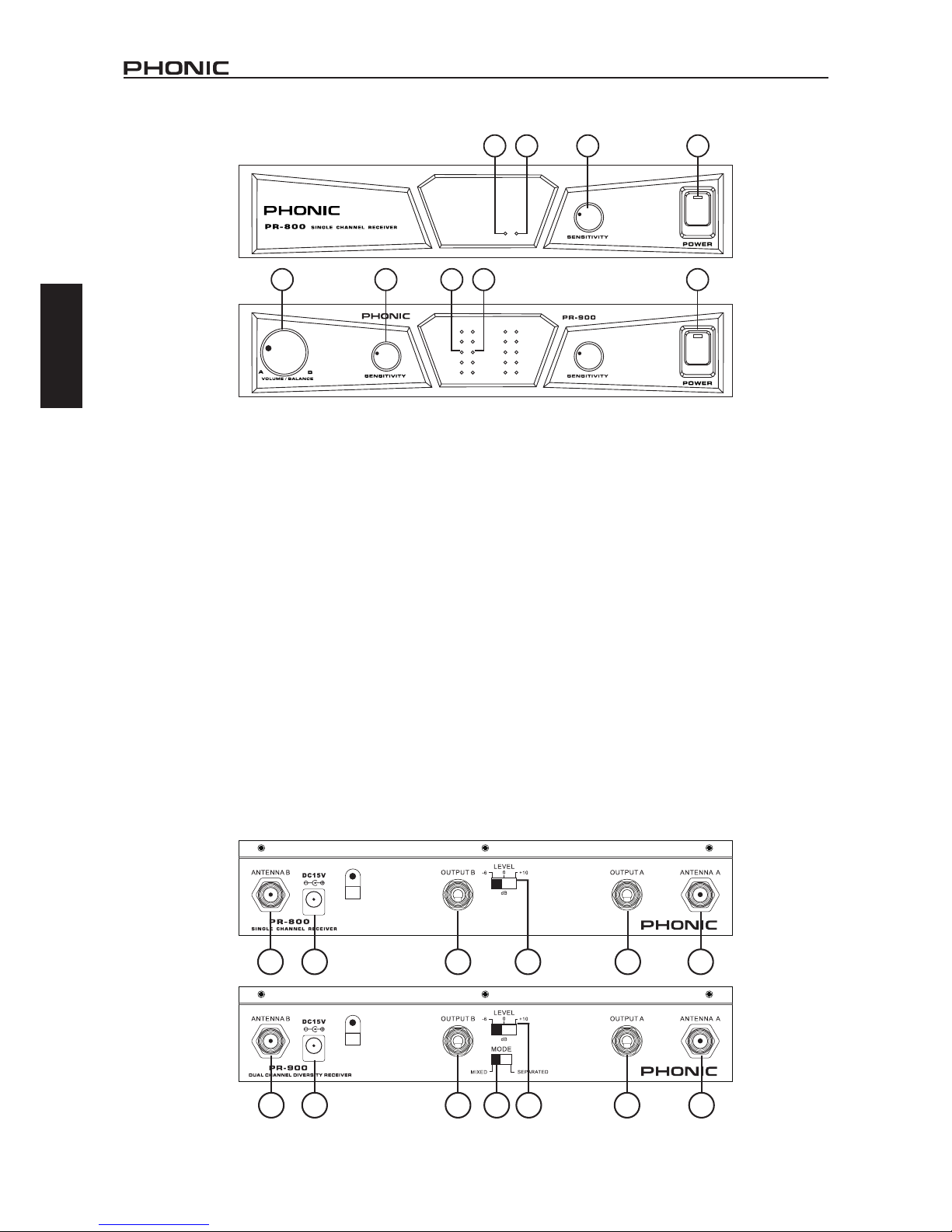

System Overview
RF AF
2 3 1 5
AB
RF AF RF AF
4 51 2 3
7 6 10 109 7
7 6 10 108 9 7
English
3
PR-800 | PR-900
Specications
PR-800 PR-900
Preprogrammed Frequencies SingleChannelFixedFrequency DualChannelFixedFrequency
Carrier Frequency Range 500to875MHz(regiondependent) 500to875MHz(regiondependent)
Deviation ±56KHz,withlevellimiting ±56KHz,withlevellimiting
Stability ±0.005% ±0.005%
S/NRatio >106dB(A-weighted) >106dB(A-weighted)
T.H.D. <0.5%@1kHz <0.5%@1kHz
Frequency Response 50Hzto18kHz 50Hzto18kHz
Sensitivity S/N>76dBat10microV S/N>76dBat10microV
SpuriousRejection >80dB >80dB
Output Connectors 1/4" TRS 1/4"TRS(perchannel)
OutputLevel Selectable:+10dBV,0dBV,-6dBV Selectable:+10dBV,0dBV,-6dBV
Power Supply DC15V,0.6A DC15V,0.6A
Dimensions(WxDxH) 218×192×44mm(8.6"7.6"x1.7") 218×192×44mm(8.6"7.6"x1.7")
Weight 1.2kg(2.6lbs) 1.7kg(3.75lbs)
Troubleshooting
• Keepaclearline-of-sightbetweenthetransmitterand
receiverantenna.Metalobjectsobstructingthesignal
in particular will reduce the transmission range.
• Trytokeepthedistancebetweenthetransmitterand
receiver as short as possible for optimal performance.
• Keepthe receiver’santennasfullyextendedandas
highaspossibleabovetheoororstage.
• Donotletthereceiverantennastouchoneanother.
• Besuretocarefullytestyourenvironmentbeforeyour
performance. If you find any problem areas/dead
spots, you may want to consider moving the receiver
slightly.Any problemareasthatstillremain,mark
them so and be sure to avoid them.
• Asinglereceiverchannelcannotreceivesignalsfrom
two transmitters at the same time.
• Turnthetransmitteroffwhennotinuse.
• Removebatteriesfrom thetransmitterwhennot in
use for long periods of time.

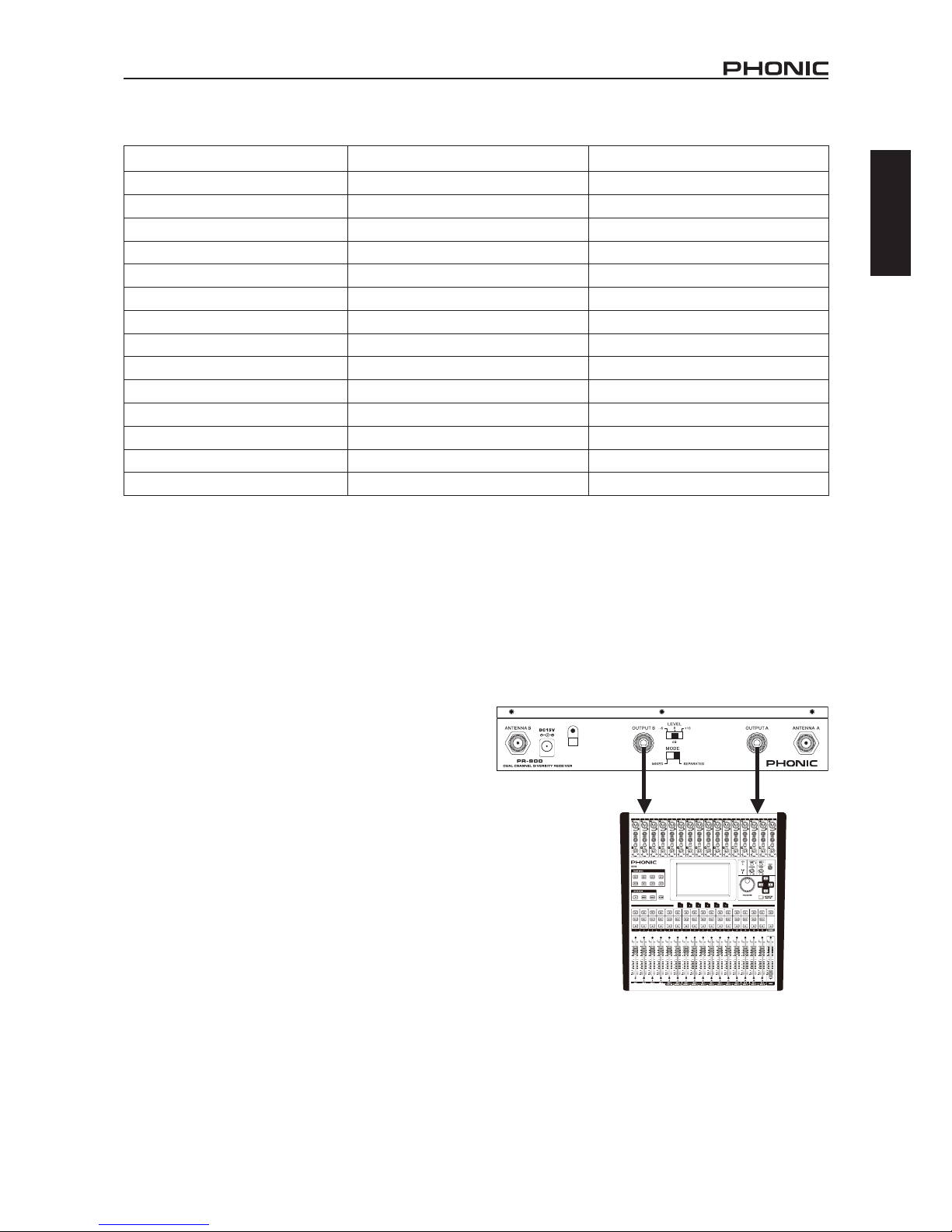

Application
Connect the PR
series wireless
system directly to
your front of house
mixer’sinputs.
4
English
PR-800 | PR-900
SERVICE AND REPAIR
For replacement parts, service and repairs please contact the Phonic distributor in your
country. Phonic does not release service manuals to consumers, and advice users to not
attempt any self repairs, as doing so voids all warranties. You can locate a dealer near you at
http://www.phonic.com/where/.
WARRANTY INFORMATION
Phonic stands behind every product we make with a no-hassles warranty. Warranty coverage
may be extended, depending on your region. Phonic Corporation warrants this product for a
minimum of one year from the original date of purchase against defects in material and
workmanship under use as instructed by the user’s manual. Phonic, at its option, shall repair
or replace the defective unit covered by this warranty. Please retain the dated sales receipt as
evidence of the date of purchase. You will need it for any warranty service. No returns or repairs
will be accepted without a proper RMA number (return merchandise authorization). In order to
keep this warranty in effect, the product must have been handled and used as prescribed in the
instructions accompanying this warranty. Any tampering of the product or attempts of self repair
voids all warranty. This warranty does not cover any damage due to accident, misuse, abuse,
or negligence. This warranty is valid only if the product was purchased new from an authorized
Phonic dealer/distributor. For complete warranty policy information, please visit
http://www.phonic.com/warranty/.
CUSTOMER SERVICE AND TECHNICAL SUPPORT
We encourage you to visit our online help at http://www.phonic.com/support/. There you can find
answers to frequently asked questions, tech tips, driver downloads, returns instruction and other
helpful information. We make every effort to answer your questions within one business day.
FCC Caution: To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to operate this
equipment. (Example - use only shielded interface cables when connecting to computer or
peripheral devices).
THIS DEVICE COMPLIES WITH PART 74 OF THE FCC RULES. This equipment complies with
FCC RF radiation exposure limits set forth for an uncontrolled environment.
http://www.phonic.com
Español
5
PR-800 | PR-900
CONTENIDO
Manual del Usuario
Phonicsereservaelderechodemejoraroalterarcualquierinformaciónprovista
dentro de este documento sin previo aviso.
Introducción..................................................................................1
Carácterísticas.......................................................................................1
Funcionamiento..........................................................................1
Componentes del Transmisor..........................................................1
Micrófonos.....................................................................................1
Descripción General Del Sistema...................................................2
Panel Frontal.......................................................................................2
Panel Trasero.......................................................................................2
Especicaciones.....................................................................................3
Resolución de Problemas.......................................................................3
Aplicación....................................................................................3
APÉNDICE
Dimensiones.................................................................................1
6
Español
PR-800 | PR-900
Español
1
PR-800 | PR-900
Introducción
Felicitaciones por su compra de uno de los sistemas de micrófonos
inalámbricosPhonicPR-800yPR-900.LaseriePReselresultado
deculminacióndeañosdetrabajoeneldominioinalámbrico,el
cual combina la tecnología inalámbrica probada y verdadera por
lacual Phonic se volvió famoso.La conexión de las unidades
de transmisión y recepción es muy sencilla con la PR-800 y
PR-900,dondetransmisoresyreceptoresdemicrófonosajustan
las frecuencias predeterminadas. Ideal para presentaciones en
vivo, en teatro, discursos, karaoke y mucho más, el sistema de
micrófono inalámbrico de la serie PR asegura que nunca tendrá
que preocuparse con cables de micrófonos otra vez.
Carácterísticas
• DiseñoPlug-and-playparaunaoperacióninmediatasinningún
tipodeconguraciónadicional
• SistemademedidaRFyAFenelPanelfrontalparalasuper-
visión del rendimiento
• ConectoresJackde6.35mmparaseñalessimétricasyasimé-
tricas
• Controles de sensibilidad del panel frontal para ajustar las
señales de micrófono entrantes
• Circuitosdiversosyavanzadosayudaamejorarlaestabilidad
yevitarladeserciónacústica
• Elcontroldevolumenseequilibraajustandoelbalancedenivel
entreloscanalesAyB(PR-900solamente)
• Interruptordenivel10,0,-6dBenelpaneltraseroparalos
dispositivos de entrada
• Funcionamientoestableinclusoenelcasodequeseutilicen
múltiplesunidadesocanales
• Tecnologíaexibledesilenciamientoderuidopara;actuaciones
con ruido cristalino en todo momento
• Antenas de diversidad desmontables para la conguración
exibleylainstalación
• Perfectoparakaraoke(KTV)yrepresentacionesteatralesen
vivo
Funcionamiento
1. Conecte los conectores de salida de su receptor inalámbrico
PR y a su mezclador u otro dispositivo de entrada.
2. Encienda el receptor de la unidad PR-800 o PR-900 seguido
por el transmisor de mano o de bolsillo.
3. Espere hasta que las luces del medidor RF se activen. Esto
signicaqueunaconexiónsehaestablecidoentreelemisor
y el receptor.
4.Alrespecto,elAFseactivarámientrashablaporelmicrófono.
5. Ajusteloscontrolesdesensibilidadsegúnseanecesario.
Micrófonos
PR-800
(ConjuntoMano)
PR-900
(ConjuntoMano)
PR-800B
(DeCuerpoyMicLavaier)
PR-900B
(DeCuerpoyMicLavaier)
Componentes del Transmisor
Beltpack
Handheld Microphone-Micrófono de Mano
Estado de Potencia
Compartimiento de Batería
WB-1
UHF
Antena Interruptor de Potencia
Jack mic lavalier/Auricular
Estado de Potencia
Infrarojo
2
Español
PR-800 | PR-900
Panel Frontal
1. Control De Sensibilidad
Utiliceestecontrolgiratorioparaajustarelniveldelaseñalde
entrada desde los micrófonos inalámbricos.
2. Medidor RF
Este medidor se encenderá indicando que una conexión se
ha establecido entre el sistema de PR inalámbrico y la unidad
de transmisión (ya sea el micrófono de mano o transmisor de
bolsillo).UnmedidorRFestáincluidoparacadaunodeloscanales
inalámbricos.ElPR-800sólocuentaconunindicadorúnico.
3. Medidor AF
ElmedidordeAFseencenderácuandoseestableceunaconexión
entre el transmisor y el receptor y no se recibe una señal desde el
transmisor.HayunmedidordeAFparacadaunodeloscanales
inalámbricos.ElPR-800sólocuentaconunindicadorúnico.
4. Balance Control (PR-900 Solamente)
Este control giratorio ajusta el balance entre los canalesA y
B,enesencialoquelepermiteajustarsusrespectivosniveles
simultáneamente.Estoesparticularmenteútilcuandoseutiliza
“modomixto”enelquesecombinanlosdoscanalesyseenvían
atravésdelosdoscanales.
5. Interruptor De Apagado
Utilice este interruptor para encender el receptor encendido y
apagado.
Panel Trasero
6. Entrada De Corriente DC
Conecte el adaptador de corriente DC incluido a esta entrada.
Conecteelextremodelenchufedealimentaciónaunatomade
corriente alterna adecuada.
7. Conector De Antena BNC
El sistema inalámbrico PR viene completado con 1 o 2 antenas.
ConecteaestosconectoresBNC.Atornilleensulugarparajar
de forma segura a la unidad receptora.
8. Interruptor De Modo (PR-900 Solamente)
Esteinterruptortienedosopciones:mixtoyseparado.Cuando
sedenecomomixtolosmicrófonosAyBsecombinaranylas
señalesseenviaranenlasdossalidasAyB.Cuandoelinterruptor
está separado, las señales de micrófono serán enviadas a sus
correspondientes salidas.
9. Interruptor De Nivel De Operación
Este interruptor permite al usuario determinar el nivel de salida
delassalidasAyB.Cuandoseajustaa-6,launidadesideal
paralaaplicaciónaniveldeconsumidor.Losajustes0y+10son
ideales para dispositivos profesionales.
10. Conectores De Salida
Cada uno de los canales de salida del sistema PR inalámbrico
cuentaconTRSde6.35mmsimétricas.Estossonidealespara
laconexión a las consolas de mezclas u otros dispositivos de
entrada.
Descripción General Del Sistema
RF AF
2 3 1 5
AB
RF AF RF AF
4 51 2 3
7 6 10 109 7
7 6 10 108 9 7
Español
3
PR-800 | PR-900
Especicaciones
PR-800 PR-900
Lasfrecuenciaspreprogramadas CanalIndividualFrecuenciaja CanaldobleFrecuenciaja
Rango de frecuencia 500a875MHz(dependederegion) 500a875MHz(dependederegion)
Desviación ±56KHz,conlimitadordenivel ±56KHz,conlimitadordenivel
Estabilidad ±0.005% ±0.005%
RelacionS/N >106dB(A-weighted) >106dB(A-weighted)
T.H.D. <0.5%@1kHz <0.5%@1kHz
Respuesta de frecuencia 50Hzto18kHz 50Hzto18kHz
Sensibilidad S/N>76dBat10microV S/N>76dBat10microV
Rechazo de espurias >80dB >80dB
Conectores de salida 1/4" TRS 1/4"TRS(perchannel)
Niveldesalida Seleccionable:+10dBV,0dBV,-6dBV Seleccionable:+10dBV,0dBV,-6dBV
Fuente de alimentación DC15V,0.6A DC15V,0.6A
Dimensiones(WxDxH) 218×192×44mm(8.6"7.6"x1.7") 218×192×44mm(8.6"7.6"x1.7")
Peso 1.2kg(2.6lbs) 1.7kg(3.75lbs)
Resolución de Problemas
• Mantenerunalíneadevisióndirectaentreeltransmisoryla
antenadelreceptorclaro.Losobjetosmetálicosqueobstruyan
la señal en particular, reducirán el rango de transmisión.
• Tratedemantenerladistanciaentreeltransmisoryelreceptor
lo más corto posible para un rendimiento óptimo.
• Mantengalasantenasdelreceptorcompletamenteextendida
y tan alto como sea posible sobre el escenario.
• Nopermitaquelasantenasdelreceptorsetoquen.
• Asegúresedeprobarelentornoantesdesuactuación.Siusted
encuentra cualquier área con problemas / puntos muertos, es
posible que desee considerar la posibilidad de mover el recep-
torligeramente.Lasáreasconproblemasqueaúnpersisten,
marcanellosasíyasegúresedeevitarlos.
• Unsolocanalreceptornopuederecibirseñalesdedostrans-
misores en el mismo tiempo.
• Apagueeltransmisorcuandonoestéenuso.
• Retire las pilas del transmisor cuando no lo utilice durante
largos períodos de tiempo.
Conecte el sistema
inalámbrico
de la serie PR
directamente en
la parte frontal del
mezclador.
Aplicación
4
Español
PR-800 | PR-900
SERVICE AND REPAIR
For replacement parts, service and repairs please contact the Phonic distributor in your
country. Phonic does not release service manuals to consumers, and advice users to not
attempt any self repairs, as doing so voids all warranties. You can locate a dealer near you at
http://www.phonic.com/where/.
WARRANTY INFORMATION
Phonic stands behind every product we make with a no-hassles warranty. Warranty coverage
may be extended, depending on your region. Phonic Corporation warrants this product for a
minimum of one year from the original date of purchase against defects in material and
workmanship under use as instructed by the user’s manual. Phonic, at its option, shall repair
or replace the defective unit covered by this warranty. Please retain the dated sales receipt as
evidence of the date of purchase. You will need it for any warranty service. No returns or repairs
will be accepted without a proper RMA number (return merchandise authorization). In order to
keep this warranty in effect, the product must have been handled and used as prescribed in the
instructions accompanying this warranty. Any tampering of the product or attempts of self repair
voids all warranty. This warranty does not cover any damage due to accident, misuse, abuse,
or negligence. This warranty is valid only if the product was purchased new from an authorized
Phonic dealer/distributor. For complete warranty policy information, please visit
http://www.phonic.com/warranty/.
CUSTOMER SERVICE AND TECHNICAL SUPPORT
We encourage you to visit our online help at http://www.phonic.com/support/. There you can find
answers to frequently asked questions, tech tips, driver downloads, returns instruction and other
helpful information. We make every effort to answer your questions within one business day.
FCC Caution: To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to operate this
equipment. (Example - use only shielded interface cables when connecting to computer or
peripheral devices).
THIS DEVICE COMPLIES WITH PART 74 OF THE FCC RULES. This equipment complies with
FCC RF radiation exposure limits set forth for an uncontrolled environment.
http://www.phonic.com
1
PR-800 | PR-900
Appendix Apéndice
AB
RF AF RF AF
218 / 8.6
192 / 7.6
44 / 1.7
Measurements are shown in mm/inches.
Todas las medidas están mostradas en mm/pulgadas.
Dimensions Dimensiones
This manual suits for next models
1
Table of contents
Other Phonic Microphone System manuals
