Sennheiser EK 300 IEM Dimensions

ew 300 G3 Monitor Set
Wireless Monitor Set ©300 Series
RF Wireless Systems | evolution wireless G3
General Description
With the evolution wireless monitor set, you are given complete control
of your own performance across the entire stage. Earphones that have
been specially developed for the rigors of everyday life on tour render
the singing or instrumentation exactly as it is heard in the venue. But it
is on loud rock stages that the monitor set really comes into its own. The
bodypack receiver is intuitive and uncomplicated to use. Allowing you to
set up your own personal volume levels.
Features
Sturdy metal housing
PC-supported frequency management for transmitter and receiver
Tunable UHF frequencies within a large switching bandwidth
Compact, adaptive diversity receiver for optimum reception
Ethernet port for connecting to the Wireless Systems Manager
(WSM) software for control via computer – this delivers a good
overview of monitoring and professional data management for
multi-channel systems
Adaptive diversity receiver (integrated second antenna)
Wireless synchronization of transmitters via infrared interface
Enhanced frequency bank with up to 16 compatible frequencies
42 MHz bandwidth, 1,680 switchable frequencies
Increased range for audio sensitivity with calibration function
Large, illuminated dot matrix display with warning indicator
More control options (menu)
Enhanced AF frequency range
Switchable RF output power (10/30 mW)
Loop-out sockets for pass-through of audio signals
Integrated 5-band graphic equalizer
Receiver with adjustable limiter and HiBoost
2 AA batteries for more than 8 hours of use (depending on volume)
4-level battery indicator for receiver
Contacts for recharging the BA 2015 accupack directly in the
receiver
HDX compander for crystal-clear sound
Operating options: mono / stereo / focus
Focus mode: 2 channel, mix, adjustable by artist
4-level battery indicator for receiver
Technical Specifications
ew 300 IEM ©
Modulation..................................................wideband FM
Frequency ranges ..........................516–558, 566–608,
......................626–668, 734–776, 780–822, 823–865
Transmission/Receiving
frequencies ............... 20 channel banks, 6 user banks,
..................................... 16 factory preset channels each
Switching bandwidth.......................................... 42 MHz
Noise reduction system....................... Sennheiser HDX
AF frequency response......................... 25 – 18,000 Hz
S/N ratio (at 1 mV and peak deviation) .......≥90 dBA
THD (at nominal deviation and 1 kHz) ............≤0.9 %
EK 300 IEM ©
Receiver principle............................................... Diversity
Sensitivity (with HDX,
peak deviation)....................<2.5 µV at 52 dBAeff S/N
Adjacent channel rejection................................ ≥65 dB
Intermodulation attenuation............................ ≥70 dB
Blocking ................................................................. ≥80 dB
Pilot-tone squelch.......................................... detachable
Headphone output ......................... 3.5 mm jack socket
AF output voltage (at peak
deviation, 1 kHz AF)..................... 2 x 100 mW at 32 Ω
Power supply.................................2 AA batteries, 1.5 V
Dimensions .................................. 3.23“ x 2.52“ x 0.94“
Weight .......................... approx. 5.6 oz (incl. batteries)
SR 300 IEM©
RF output power at 50 Ω.................... typ. 30/10 mW,
............................................................................switchable
Antenna output ................................. BNC socket, 50 Ω’
Headphone output .. 1/4“ (6.3 mm) stereo jack socket
Output power
at headphone output..................... 2x 100 mW at 32Ω
AF input......... 2 x XLR-3/Jack combi socket, balanced
Max. input voltage
(at peak deviation, 1 kHz)...............................+ 22 dBu
Input impedance............................... 200 kΩ// 0.65 nF
Power supply........................................................ 12 V DC
Max. power consumption
at nominal voltage ............................... approx. 300 mA
Dimensions .................................. 7.48“ x 8.35“ x 1.69“
Weight ....................................................approx. 1.99 lbs
IE 4
Frequency response .............................. 40 – 20,000 Hz
Max. SPL ..........................................................118 dB SPL
Impedance.................................................................. 32 Ω

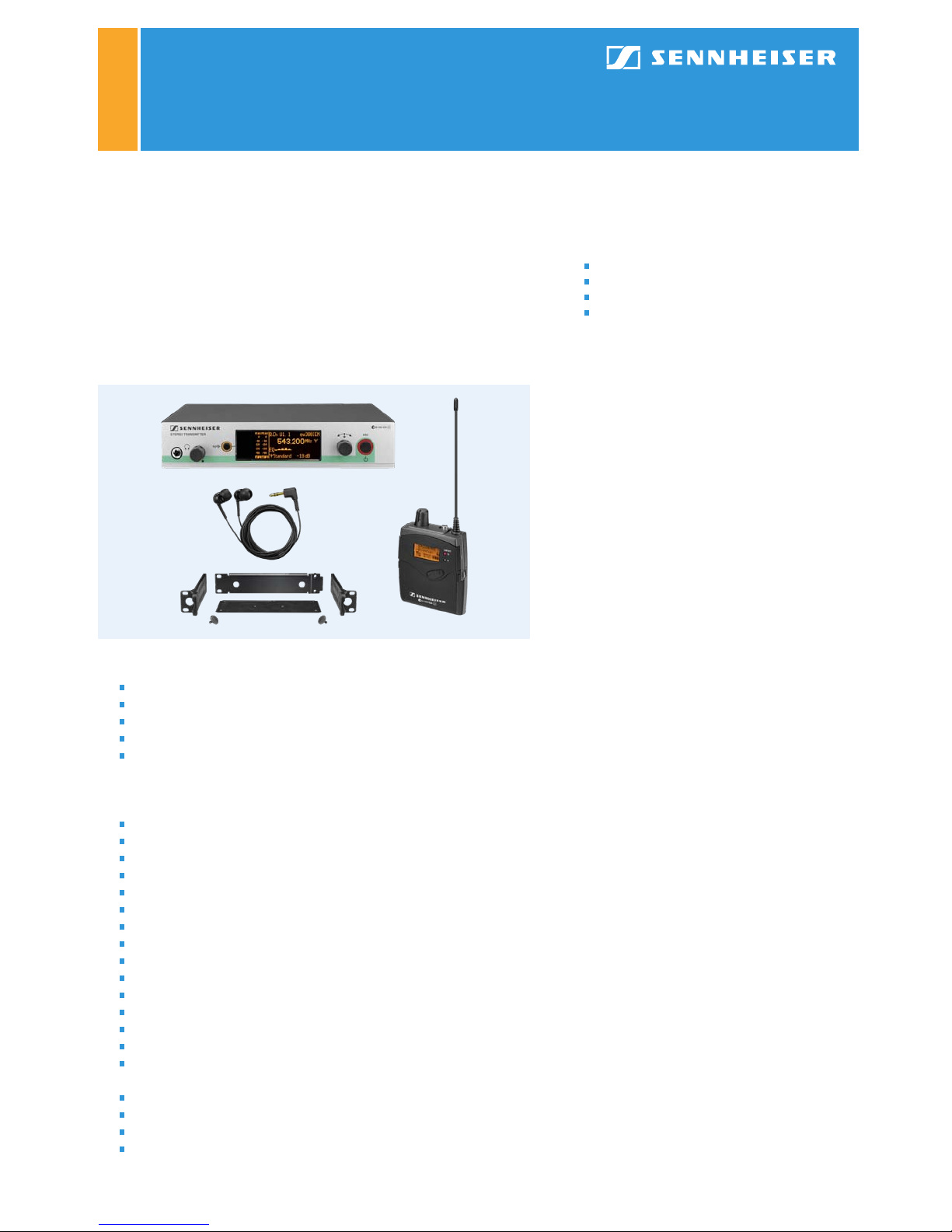

System includes:
SR 300 IEM G3 Stereo Transmitter
EK 300 IEM G3 bodypack transmitter
IE 4 ear-canal headphones
GA 3 rack mount adapter
For recommended accessories please visit
www.sennheiserusa.com
