AboutThisManual
Purpose
ThismanualprovidesinformationaboutconguringtheZXMWNR8120A/8120DDigital
MicrowaveSystemontheLocalMaintenanceT erminal(LMT).
TaketheZXMW8120Dasanexample.
IntendedAudience
Thismanualisintendedfor:
lCommissioningengineers
lMaintenanceengineers
WhatIsinThisManual
Thismanualcontainsthefollowingchapters:
Chapter1,PreparationsDescribesthepreparationsbeforetheZXMWNR8120A/8120D
conguration.
Chapter2,NEBasicData
Conguration
DescribesthecongurationowandcongurationexampleofZXMW
NR8120A/8120DNEbasicdata.
Chapter3,RadioLinkData
Conguration
DescribesthecongurationowandcongurationexampleofZXMW
NR8120A/8120Dradiolinkdata.
Chapter4,TDMService
DataConguration
DescribesthecongurationowandcongurationexampleofZXMW
NR8120A/8120DTDMservicedata.
Chapter5,EthernetService
DataConguration
DescribesthecongurationowandcongurationexampleofZXMW
NR8120A/8120DEthernetservicedata.
Chapter6,ClockData
Conguration
DescribesthecongurationowandcongurationexampleofZXMW
NR8120A/8120Dclockdata.
Chapter7,Other
CongurationOperation
Describestheoperationproceduresofotherserviceconguration
ontheLMT .
Chapter8,Conguration
Check
Describesthecongurationcheckitems.
Conventions
Thismanualusesthefollowingconventions.
I
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

Danger:indicatesanimminentlyhazardoussituation.Failuretocomplycanresultin
deathorseriousinjury,equipmentdamage,orsitebreakdown.
Warning:indicatesapotentiallyhazardoussituation.Failuretocomplycanresultin
seriousinjury,equipmentdamage,orinterruptionofmajorservices.
Caution:indicatesapotentiallyhazardoussituation.Failuretocomplycanresultin
moderateinjury,equipmentdamage,orinterruptionofminorservices.
Note:providesadditionalinformationaboutatopic.
II
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

Chapter1
Preparations
TableofContents
PreparingToolsandSoftware.....................................................................................1-1
LoggingintotheWebLMT.........................................................................................1-1
CheckingVersions......................................................................................................1-4
1.1PreparingToolsandSoftware
Prepareacomputerthatmeetsthefollowingcongurationrequirements:
lOperatingsystem:
àMicrosoftWindowsXP
àMicrosoftWindows7
lWebbrowser:MicrosoftInternetExplorer6.0,7.0or8.0.InternetExplorer8.0is
recommended.
1.2LoggingintotheWebLMT
UserscanlogintotheWebLocalMaintenanceTerminal(LMT)byusingeitherofthe
followingmethods:
lLoginthroughtheRCMUC/RCMUDboards'LMTinterface,whichhasaninitialIP
addressof192.168.1.16.TheIPaddresscanbemodiedafterloginthroughtheLMT
interface.
lLoginthroughtheRCMUC/RCMUDboards'networkmanagementsystem(NMS)
interface,whichhasanIPaddressthatisthesameasthatoftheNE.
Context
ThesecondmethodofloggingintotheWebLMThelpslogintotheentirenetwork
managementsystem,whichisNetNumenM31(MW).Beforeusingthesecondmethodto
logintotheWebLMT,usersmustusetherstmethodtologintotheWebLMTonce.
Thedetailedproceduresaredescribedasfollows:
1.LogintotheWebLMTthroughtheRCMUC/RCMUDboards'LMTinterface.
2.Intheleftpane,selectSetup>System>Parameter.Thesystemparameter
congurationpageisdisplayed.
3.ModifytheIPaddress,whichshouldbeuniqueintheentirenetwork.
4.LogintoWebLMTthroughtheRCMUC/RCMUDboards'NMSinterface.
ThefollowingdescribeshowtologintotheWebLMTbyusingtherstmethod.
1-1
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

ZXMWNR8120A/8120DCongurationGuide
Steps
1.Right-clicktheMyNetworkPlacesicononthedesktop,andclickPropertiesfromthe
shortcutmenu.Right-clickthelocalconnectionicon,andclickProperties,seeFigure
1-1.
Figure1-1LocalAreaConnectionPropertiesDialogBox
2.Double-clickInternetProtocol(TCP/IP).IntheInternetProtocol(TCP/IP)
Propertiesdialogbox,selectObtainanIPaddressautomatically,seeFigure1-2.
1-2
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

Chapter1Preparations
Figure1-2InternetProtocol(TCP/IP)PropertiesDialogBox
3.ClickOK.
4.UseanEthernetcabletoconnecttheLMTinterfaceoftheIDU'sRCMUC/RCMUD
withthePC.
Note:
ThisisthemethodoflogginginthroughtheRCMUC/RCMUDboard'sLMTinterface.
ForthemethodoflogginginthroughtheRCMUC/RCMUDboard'sNMSinterface,you
shouldconnecttheNMSinterfacetothePC.
YoumustenabletheNMSinterfacebeforeusingit,becausethisinterfaceisdisabled
bydefault.
5.RuntheInternetExplorer.EntertheIPaddressoftheIDU'sLMTinterface,for
example,http://192.168.1.16,andpressEnter.TheWebLMTlogindialogboxis
displayed,seeFigure1-3.
1-3
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

ZXMWNR8120A/8120DCongurationGuide
Figure1-3WebLMTLoginDialogBox
6.EntertheusernameinUserNameandthepasswordinPassword.Then,click
LOGIN.Aftertheloginsucceeds,thesysteminterfaceisdisplayed,seeFigure1-4.
Figure1-4WebLMTHomePage(ZXMW8120D)
–EndofSteps–
1.3CheckingVersions
ThisproceduredescribeshowtocheckIDU,ODUandAOUversionsandupdatethemif
required.
1-4
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

Chapter1Preparations
Steps
1.Intheleftpane,selectMaintenance>Version>IDUVersion.
2.ChecktheIDUversionintheVersionManagementarea,seeFigure1-5.
Figure1-5IDUVersion
Note:
Packagestatusdescription:
lTheRUNNINGstatusindicatesarunningIDUversion.
lTheVALIDstatusindicatesanactivatedbackupIDUversion.
lTheNOTVALIDstatusindicatesabackupIDUversionthatisnotactivated.
3.ClicktheQuerybuttonintheHardwareVersionInformationarea,seeFigure1-6.
Figure1-6HardwareVersionInformation
4.Intheleftpane,selectMaintenance>Version>ODU.
5.ChecktheODUversionintherightpane,seeFigure1-7.
1-5
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

ZXMWNR8120A/8120DCongurationGuide
Figure1-7ODUVersion
6.EnsurethattheIDU,ODUandAOUversionsarecorrect.Ifnot,updatetheversions.
Note:
ItisunnecessarytoupdatetheODUversionmanually.Thesystemwillupdatethe
ODUversiontothelatestautomatically.
–EndofSteps–
1-6
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

Chapter2
NEBasicDataConguration
StepCongurationDescription
1ConguretheNEnameandIPaddress.Required
Forthecongurationprocedure,referto“2.1
ConguringtheNEInformation”.
2ConguretheNEtimeandtimezone.Required
Forthecongurationprocedure,referto“2.2
ConguringtheNETime”.
3Conguretheconnectionbetweenthe
NEandNMS.
Required
Forthecongurationprocedure,referto“2.3
ConguringtheNMS”.
4CongureAOUhost.RequiredifAOUismanagedasanelement
ofIDU.
Forthecongurationprocedure,referto“2.4
ConguringAOUHost”.
TableofContents
ConguringtheNEInformation..................................................................................2-1
ConguringtheNETime............................................................................................2-4
ConguringtheNMS..................................................................................................2-8
ConguringAOUHost..............................................................................................2-10
2.1ConguringtheNEInformation
ThissectiondescribeshowtocongureNEinformation,suchasNEnameandIPaddress.
AnNEIDandNEIPaddresscanidentifyanNEinanetwork.TheNEIPaddressis
usedforcommunicationthroughTransmissionControlProtocol(TCP)/IP .AftertheNE
informationiscongured,userscanmanagetheNEthroughtheNMSinterfaceonthe
RCMUC/RCMUDboard.
Steps
1.Intheleftpane,selectSetup>System>Parameter.Thesystemparameter
congurationpageisdisplayed,seeFigure2-1.
2-1
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

ZXMWNR8120A/8120DCongurationGuide
Figure2-1SystemParameterCongurationPage
2.SettheNEinformation.Foradescriptionoftheparameters,refertoT able2-1.
Table2-1SystemParameterDescription
ParameterValueRangeDefault
Value
Description
SiteID--Setsthesitename.Itcancontainatmost
100characters,whichcannotbe<,>,&,'',
?,+,or\.
NEID1–655350ConguredintheNetNumenU31Unied
ManagementSystem.
NEName-zteSetsthenameofanNE.Usually,itisset
tothesitename.Itcancontainatmost30
characters,includingnumbers,letters,and
symbols(@,(,),-,_,and.),whichcannotbe
<,>,&,?,+,or\.
NETypelNR8120A
lNR8120D
NR8120Aor
NR8120D
Setstheequipmenttype.Itissettothedefault
valueandcannotbemodied.
2-2
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

Chapter2NEBasicDataConguration
ParameterValueRangeDefault
Value
Description
DeviceIP
Address
-193.254.1.2SetstheIPaddressofanNEconnectedto
theInternetthroughtheNMSinterface.Itcan
bemodied.
Thisparametercannotbesettothefollowing
values:
lIPaddressesthatstartwith127or192.
AnIPaddressthatstartswith127isa
loopbackaddressofthehost,thatis,an
IPaddressusedbytheNEtosendIP
packetstoitself.Itisusedfornetwork
softwaretestsandlocalinter-process
communication.AnIPaddressthatstarts
with192isusedforLMTportdebugging.
lBroadcastaddresses
TheIPaddressesinwhichhost
IDconsistsofall1sarebroadcast
addresses.Forexample,thebroadcast
addressforthe10.1.1.0/24network
segmentis10.1.1.255.
lMulticastaddresses(from224.0.0.0to
239.255.255.255).
DeviceMAC
Address
--SetstheMACaddressofthemicrowaveNE.
Thevalueofthisparameterisdisplayed
automaticallyandcannotbecongured.
SubnetMask-255.255.255
.0
SetsthesubnetmaskofanNE.Itisused
withtheDeviceIPAddressparameterto
separatetheIPaddressofanNEintotwo
parts:networkaddressandhostaddress.
Default
Gateway
IPaddresses
exceptthose
startwith127or
192,broadcast
addresses,
andmulticast
addresses
193.254.1.1SetsthedefaultgatewayforanNE.ItistheIP
addressofanIProuterthatcanbereached
directly.
WhentheNEsendsadatapacket,ifthereis
noavailablegateway,thedatapacketissent
tothedefaultgatewayforprocessing.
2-3
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

ZXMWNR8120A/8120DCongurationGuide
ParameterValueRangeDefault
Value
Description
NEHealthlNoAlarm
lMinor
Alarm
lMajor
Alarm
lCritical
Alarm
NoalarmDisplaysthecurrentdevicestatus.
Afterthistaskiscompleted,userscanlogintotheWebLMTthroughthe
RCMUC/RCMUD'sNMSinterface(theNMSinterfaceisOnandenabled).ThePC's
IPaddressandtheNE'sIPaddressmustbeconguredinthesamenetworksegment.
3.ClickApply.
–EndofSteps–
2.2ConguringtheNETime
Thisproceduredescribeshowtosetthesystemtimeandtimezone,whichprovidestime
referencesforfunctionssuchasfaultmanagementandperformancequery.Afterthetime
zoneischanged,thesystemtimeisupdatedautomatically.
Steps
ConguringtheNETimeZone
1.Intheleftpane,selectSetup>System>Time.Thesystemtimecongurationpage
isdisplayed,seeFigure2-2.
2-4
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

Chapter2NEBasicDataConguration

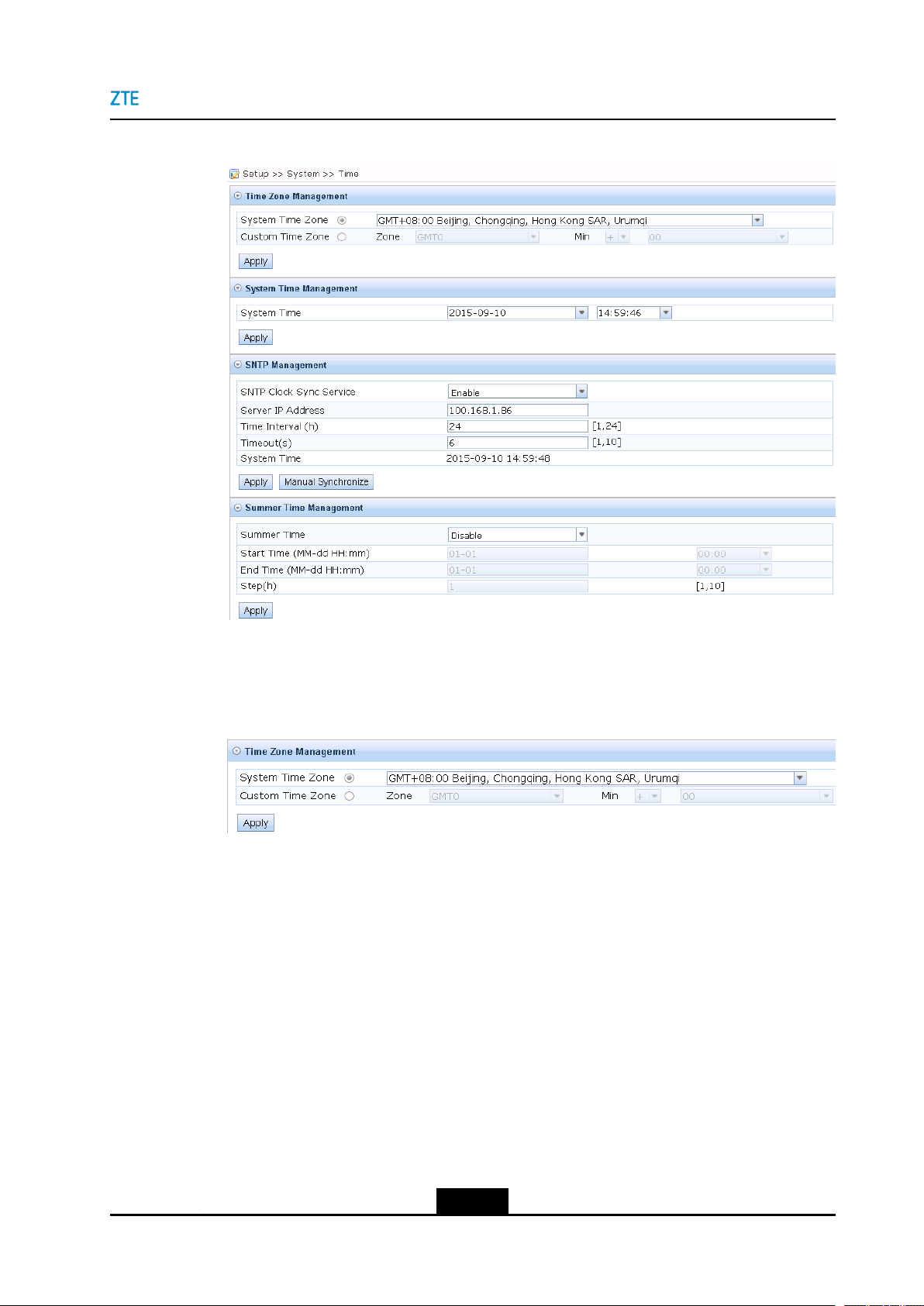

Figure2-2SystemTimeManagementPage
2.IntheTimeZoneManagementarea,selectSystemTimeZoneorCustomTime
Zone.AndselectthetimezoneoftheNEfromthedrop-downlist,seeFigure2-3.
Figure2-3TimeZoneCongurationExample
3.ClickApply.
ConguringtheNETime
4.ClicktheSystemTimetextboxintheSystemTimeManagementarea.Thecalendar
isdisplayed,seeFigure2-4.
2-5
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

ZXMWNR8120A/8120DCongurationGuide
Figure2-4ConguringtheSystemTime
5.IntheSystemTimetextbox,movethecursortothetimepart,deletetheincorrect
time,andentertheaccuratetimeintheformofHH:MM:SS.
6.ClickApply.
ConguringSNTPManagement
7.IntheSNTPManagementarea,conguretheparameters.Foradescriptionofthe
parameters,refertoT able2-2.
Table2-2SNTPManagementParameters
ParameterValueRangeDefaultValueDescription
SNTPClock
SyncService
lEnable
lDisable
DisableEnablesordisablestheSNTPclock
synchronizationservice.
ServerIP
Address
lTheserver
IPaddress
cannotbethe
IPaddressof
theNMSor
Debugport.
lTheserver
IPaddress
cannotbethe
loopbackIP
address(the
IPaddresses
of127.***.)
lTheserverIP
addresscan
beA.x.x.x.
“A”mustbe
withinthe
192.168.1.1Usually,anSNTPserverisa
devicewithSNTPconguration.
Thenetworkmanagementserver
isoftenusedasSNTPserver.
IftheSNTPserverisavailable,
timecanbecalibratedtoensure
timeconsistencywithintheentire
network.
2-6
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

Chapter2NEBasicDataConguration
ParameterValueRangeDefaultValueDescription
rangefrom
0to224,
excluding0
and224.
TimeInterval(h)1–246Setstheintervalofservertime
synchronization.
Timeout(s)1–106Setsthetimeofwaitingforresponse
fromtheserverduringtheprocess
oftimecalibrationbetweenadevice
andtheserver.Iftheparameter
valueexpires,thesystemtimeisnot
calibratedproperly.
SystemTime--Displaysthecurrentsystemtime.
8.ClickApply.
ConguringtheDSTTime
9.IntheSummerTimeManagementarea,conguretheDaylightSavingTime(DST)
parameters.Foradescriptionoftheparameters,refertoT able2-3.
Table2-3SummerTimeManagementParameters
ParameterValueRangeDefaultValueDescription
SummerTimelEnable
lDisable
DisableTheDSTsystemisalocaltime
systemusedtosaveenergy.In
areaswheretheDSTsystemis
applied,theuniedtimeusedis
calledsummertime.Insummer
whendaybreakisearlier,timeis
setonehouraheadofthestandard
time.Ithelpsreducelightingcost
andmakefulluseofsunlight.
CountriesthatusetheDSTsystem
havedifferentregulations.Almost
110countriesusetheDSTsystem
everyyeararoundtheworld.
StartTime
(MM-ddHH:mm)
MM:1–12
dd:1–30(31)
hh:0–23
mm:0–59
01-0100:00SetsthestarttimeoftheDST
system.
2-7
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

ZXMWNR8120A/8120DCongurationGuide
ParameterValueRangeDefaultValueDescription
EndTime
(MM-ddHH:mm)
MM:1–12
dd:1–30(31)
hh:0–23
mm:0–59
01-0100:00SetstheendtimeoftheDST
system.
Step(h)1–101TheDSTsystemcanadjustthe
currenttimeaccordingtotheset
offset.Forexample,ifOffsetisset
to1,thesummertimeisonehour
aheadofthestandardtime.Inother
words,ifthestandardtimeis10
a.m.,thesummertimeis11a.m..
10.ClickApply.
–EndofSteps–
2.3ConguringtheNMS
TheZXMWNR8120A/8120Dmanagesmicrowaveequipmentremotelybyusinginband
networkmanagementmode.UsersneedtosetSimpleNetworkManagementProtocol
(SNMP)IPparameterstoaddtheNetworkManagementSystem(NMS)IPaddresstothe
IPaddresslist.
Steps
1.Intheleftpane,selectSetup>NMS.TheNMScongurationpageisdisplayed,see
Figure2-5.
2-8
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

Chapter2NEBasicDataConguration
Figure2-5NMSVLANandBandwidthCongurationExample
2.EnterthenetworkmanagementVLANID,andthenclickApply.
3.Selecttherequiredbandwidth,andthenclickApply.
4.Intheleftpane,selectSecurity>SNMP.TheSNMPcongurationpageisdisplayed,
seeFigure2-6.
Figure2-6SNMPCongurationPage
5.FromtheSwitchdrop-downlist,selectONorOFF.
lIfOFFisselected,thesystemdoesnotlterNMSIPaddresses.
lIfONisselected,thesystemltersaddedNMSIPaddresses.Ifthereisnoadded
IPaddress,thesystemdoesnotlterNMSIPaddresses.
6.ClickAdd.TheSNMPIPAddressCongurationdialogboxisdisplayed,seeFigure
2-7.
2-9
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential

ZXMWNR8120A/8120DCongurationGuide

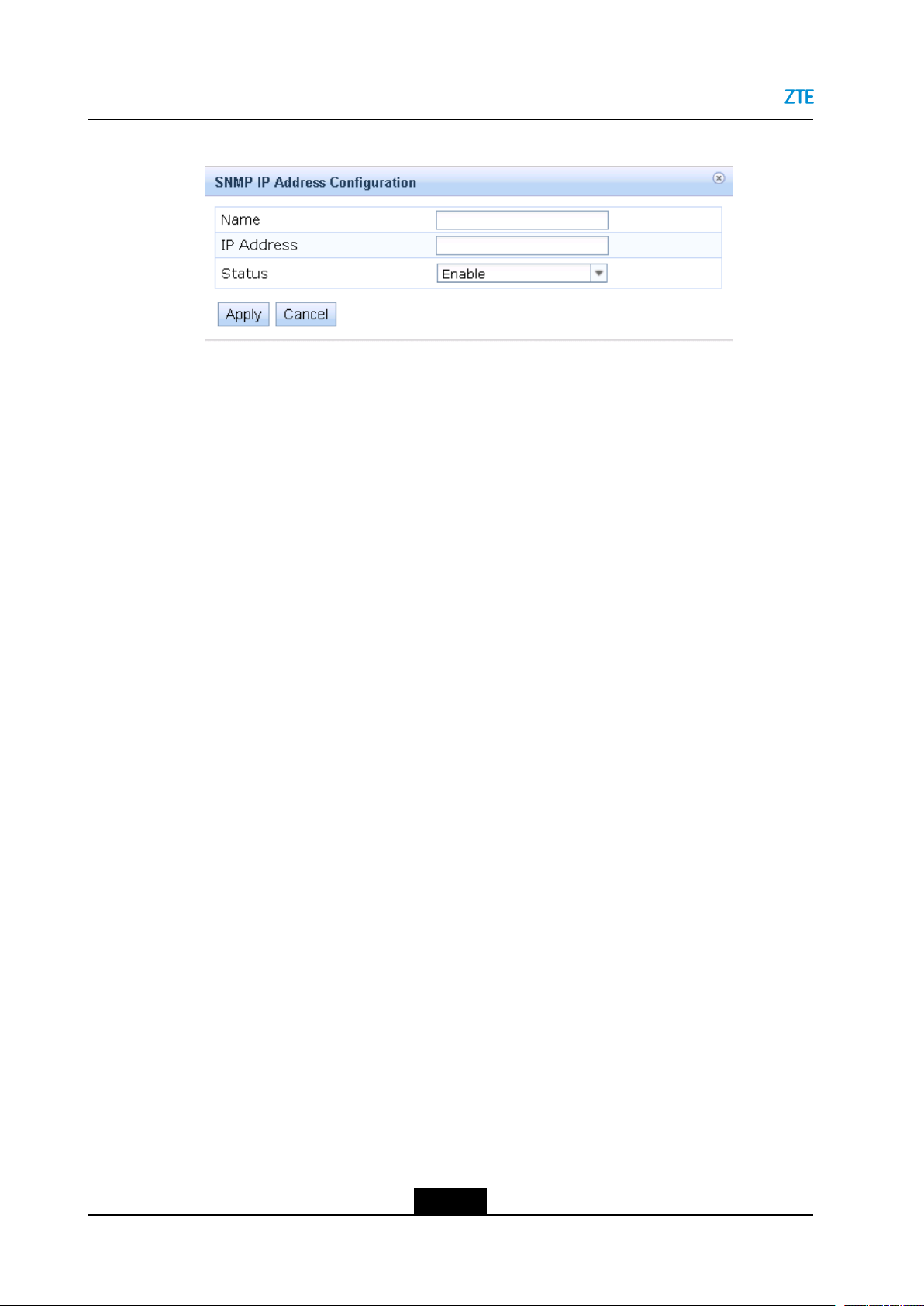

Figure2-7SNMPIPAddressCongurationDialogBox
7.EntertheNMSnameintheNametextbox,entertheNMSIPaddressintheIP
Addresstextbox,selectEnableasthestatus,andthenclickApply.Then,theNMS
IPaddressisaddedtotheIPaddresslist.
–EndofSteps–
2-10
SJ-20150804150350-005|2015-10-23(R1.1)ZTEProprietaryandCondential
