Pilz PDP20 F 4 mag User manual

PDP20 F 4 mag
Operating Manual-24737-EN-03
}Decentralised periphery

Preface
This document is a translation of the original document.
All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made
for internal purposes. Suggestions and comments for improving this documentation will be
gratefully received.
Source code from third-party manufacturers or open source software has been used for
some components. The relevant licence information is available on the Internet on the Pilz
homepage.
Pilz®, PIT®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®,
SafetyEYE®, SafetyNET p®, the spirit of safety® are registered and protected trademarks
of Pilz GmbH & Co. KG in some countries.
SD means Secure Digital

Contents
Operating Manual PDP20 F 4 mag
24737-EN-03 3
Introduction 4
Validity of documentation 4
Using the documentation 4
Definition of symbols 4
Safety 5
Intended use 5
Safety regulations 5
Safety assessment 5
Use of qualified personnel 6
Warranty and liability 6
Disposal 6
For your safety 6
Unit features 7
Block diagram 7
Function description 7
Timing diagram 8
Installation 9
Wiring 9
Permitted sensors from Pilz 9
Preparing for operation 10
Operation 11
Status indicator 12
Fault indicator 12
Technical details 13
Safety characteristic data 15
Order reference 15
Product 15
Accessories 15
EC Declaration of Conformity 16

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 4
Introduction
Validity of documentation
This documentation is valid for the product PDP20 F 4 mag. It is valid until new documenta-
tion is published.
This operating manual explains the function and operation, describes the installation and
provides guidelines on how to connect the product.
Using the documentation
This document is intended for instruction. Only install and commission the product if you
have read and understood this document. The document should be retained for future ref-
erence.
Definition of symbols
Information that is particularly important is identified as follows:
DANGER!
This warning must be heeded! It warns of a hazardous situation that poses
an immediate threat of serious injury and death and indicates preventive
measures that can be taken.
WARNING!
This warning must be heeded! It warns of a hazardous situation that could
lead to serious injury and death and indicates preventive measures that can
be taken.
CAUTION!
This refers to a hazard that can lead to a less serious or minor injury plus
material damage, and also provides information on preventive measures
that can be taken.
NOTICE
This describes a situation in which the product or devices could be dam-
aged and also provides information on preventive measures that can be
taken. It also highlights areas within the text that are of particular import-
ance.

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 5
INFORMATION
This gives advice on applications and provides information on special fea-
tures.
Safety
Intended use
The sensor interface PDP20F4mag enables up to 4 sensors to be connected in series.
Permitted sensors are sensors with a N/O / N/O combination and the Pilz sensors listed in
the section entitled "Permitted sensors from Pilz".
The sensor interface meets the requirements in accordance with:
}EN 60204-1
}EN 60947-5-3
}EN 62061: up to max. SIL CL 3
}EN ISO 13849-1: up to max. PL e
If multiple sensor interfaces PDP20F4mag are connected in series, 3 additional sensors
per sensor interface may be connected in series.
The following is deemed improper use in particular:
}Any component, technical or electrical modification to the product
}Use of the product outside the areas described in this manual
}Use of the product outside the technical details (see Technical details [ 13]).
NOTICE
EMC-compliant electrical installation
The product is designed for use in an industrial environment. The product
may cause interference if installed in other environments. If installed in other
environments, measures should be taken to comply with the applicable
standards and directives for the respective installation site with regard to in-
terference.
Safety regulations
Safety assessment
Before using a unit it is necessary to perform a safety assessment in accordance with the
Machinery Directive.
Functional safety is guaranteed for the product as a single component. However, this does
not guarantee the functional safety of the overall plant/machine. In order to achieve the re-
quired safety level for the overall plant/machine, define the safety requirements for the
plant/machine and then define how these must be implemented from a technical and organ-
isational standpoint.

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 6
Use of qualified personnel
The products may only be assembled, installed, programmed, commissioned, operated,
maintained and decommissioned by competent persons.
A competent person is a qualified and knowledgeable person who, because of their train-
ing, experience and current professional activity, has the specialist knowledge required. To
be able to inspect, assess and operate devices, systems and machines, the person has to
be informed of the state of the art and the applicable national, European and international
laws, directives and standards.
It is the company’s responsibility only to employ personnel who
}Are familiar with the basic regulations concerning health and safety / accident preven-
tion,
}Have read and understood the information provided in this description under "Safety"
}Have a good knowledge of the generic and specialist standards applicable to the spe-
cific application.
Warranty and liability
All claims to warranty and liability will be rendered invalid if
}The product was used contrary to the purpose for which it is intended
}Damage can be attributed to not having followed the guidelines in the manual
}Operating personnel are not suitably qualified
}Any type of modification has been made (e.g. exchanging components on the PCB
boards, soldering work etc.).
Disposal
}In safety-related applications, please comply with the mission time TM in the safety-re-
lated characteristic data.
}When decommissioning, please comply with local regulations regarding the disposal of
electronic devices (e.g. Electrical and Electronic Equipment Act).
For your safety
The unit meets all the necessary conditions for safe operation. However, please note the
following:
}Note for overvoltage category III: If voltages higher than low voltage (>50 VAC or >120
VDC) are present on the unit, connected control elements and sensors must have a
rated insulation voltage of at least 250 V.

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 7
Unit features
}Connection of 4 sensors with a N/O / N/O combination
}2 safety outputs
}1 signal output
}LED display for:
– State of the outputs
– State of the inputs
– Operational readiness
}Multiple PDP20F4mag may be connected in series
}Plug-in connection terminals:
Either spring-loaded terminal or screw terminal available as an accessory (see order
reference [ 15])

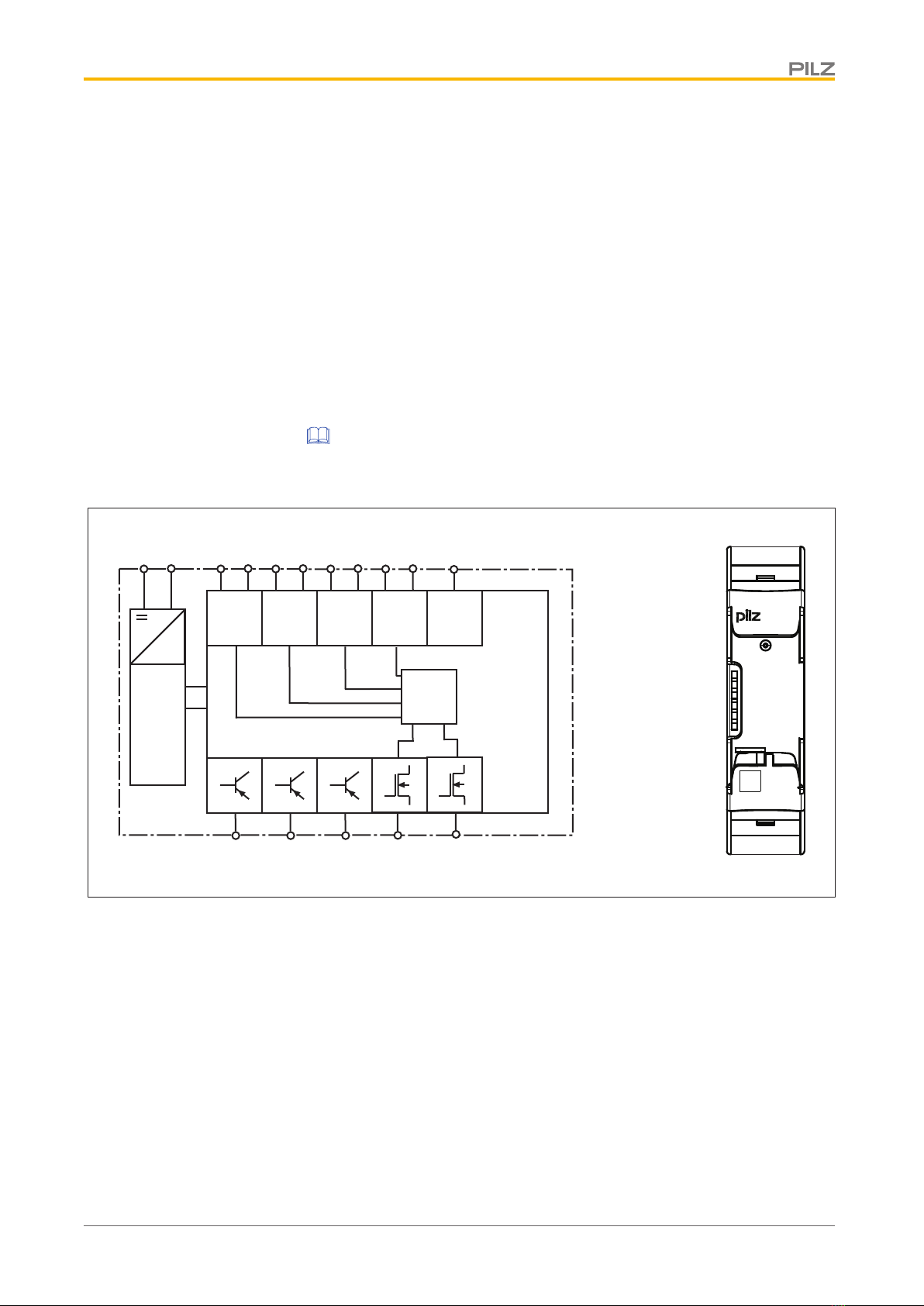

Block diagram
InputInput
A1 A2 I20 I21
Input
I30 I31I10 I11
=
Power
T0
Diag-
nostics
SI
T1 SO O0 O1
&
Input
I40 I41
A1 I30 T0 I31
I10 I11 I20 I21
PDP20 F 4 mag
X3
X1
O0 O1 T1 SI
A2 I40 I41 SO
X2
X4
773310
Power
O0/1
I10/11
I20/21
I30/31
I40/41
Function description
The inputs of the PDP20F4mag are AND-linked. The result of the logic AND operation is
expressed via safety outputs O0 and O1.
A signal output (SO) indicates the state of the sensors.
Safety outputs
}There is a high signal at safety outputs O0, O1 when all the input circuits I10 ... I41 are
closed.
}If at least one of the input circuits is open or a sensor is partially operated, the safety
outputs will switch to a low signal.

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 8
Signal Output
}There is a high signal at the signal output SO when the connected sensors are oper-
ated (N/O contact closed).
}If at least one of the sensors is not operated or is partially operated, the signal output
SO will switch to a low signal.
Detection of shorts across contacts
2 test pulse outputs T0 and T1 enable shorts across contacts to be detected at the inputs.
The two test pulse outputs are permanently assigned to the inputs. If the test pulses are
swapped or there is a short circuit at the inputs, the device switches off the safety outputs
safely (low signal) and registers an error.
Series connection
The safety outputs of a PDP20F4mag may be connected to the cascading inputs I40 - I41
on another PDP20 F 4 mag. 3 additional sensors may be AND-linked via this device. In the
event of a short across the contacts, the safety outputs will be switched off safely (low sig-
nal).
Input SI
The input SI is reserved for future functions and may not be used.
Timing diagram
POWER
t2
Unit 1
I10...I41
Unit 1
O0/O1
Unit 2
I40-I41
Unit 2
I10...I31
Unit 2
O0/O1
t2t3t2t3t3
t2t2
t1
t1t3
12
t1t2
t1
Legend
}: Single connection with Unit 1
}: Series connection of Unit 1 and Unit 2
}Power: Supply voltage
}Unit 1, I10 ... I41: Input circuits of Unit 1
}Unit 1, O0/O1: Safety outputs of Unit 1
}Unit 2, I40- I41: Cascading input of Unit 2
}Unit 2, I10 ... I31: Input circuits of Unit 2

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 9
}Unit 2, O0/O1: Safety outputs of Unit 2
}t1: Max. processing time for input when signal changes from "0" to "1"
}t2: Typ. switch-on delay
}t3: Max. processing time for semiconductor output when signal changes from "1" to "0"
Installation
}The unit should be installed in a control cabinet with a protection type of at least IP54.
}Use the notch on the rear of the unit to attach it to a DIN rail (35mm).
}When installed vertically: Secure the unit by using a fixing element (e.g. retaining
bracket or end angle)
}Push the device upwards or downwards before lifting it from the DIN rail.
Wiring
Please note:
}Information given in the "Technical details [ 13]" must be followed.
}Calculation of the max. cable length lmax in the input circuit:
Rlmax
Rl / km
Imax =
Rlmax = max. overall cable resistance (see Technical details [ 13])
Rl/km = cable resistance/km
}Use copper wiring with a temperature stability of 75 °C.
}The power supply must comply with the regulations for extra low voltages with protect-
ive electrical separation (SELV, PELV) in accordance with VDE 0100, Part 410.
}1 wire may be connected per terminal. Use a terminal block if you need multiple con-
nections per terminal.
}Ensure the wiring and EMC requirements of IEC 60204-1 are met.
Permitted sensors from Pilz
}PSENmag:
– PSEN1.1p-10, PSEN1.1p-20
– PSENma1.3-20M12, PSENma1.3a-20, PSENma1.3b-20, PSENma1.3b-23,
PSENma1.3n-20, PSENma1.3p-20
– PSENma1.4-51M12, PSENma1.4a-50, PSENma1.4a-51, PSENma1.4n-50,
PSENma1.4n-51, PSENma1.4p-50, PSENma1.4p-51
}PSENhinge
– PSENhs1.1p
– PSENhs1.2p
}PSENrope
– PSENrs1.0
– PSENrs2.0

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 10
}PITestop
– PITes Set1s-5, PITes Set1s-5c, PITes Set1s-5ns
– PITesc1, PITesc1c, PITesc2, PITesc2c
Preparing for operation

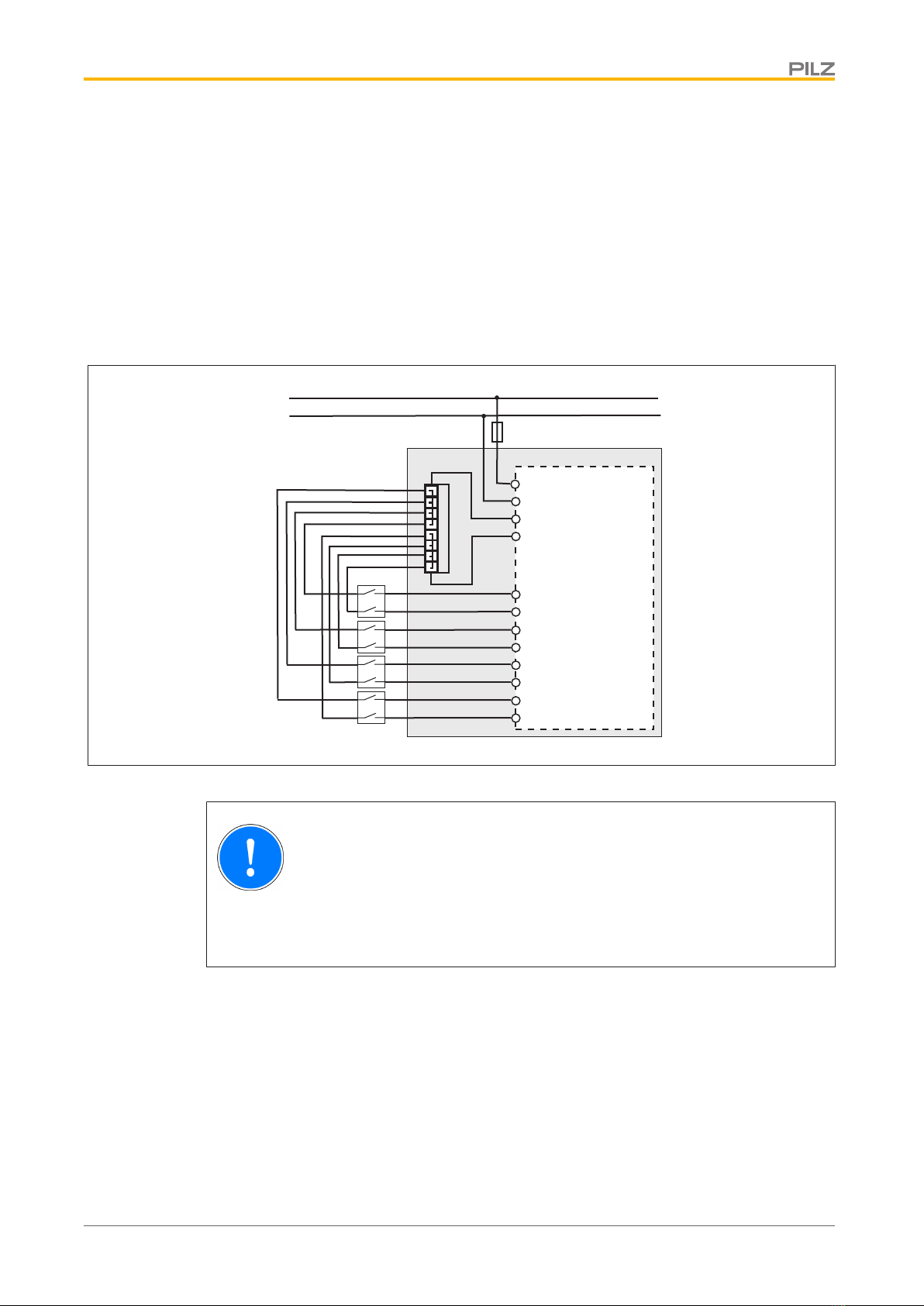

Single connection
X1: Terminal block
Grey area: Control cabinet
T0
PDP20 F 4 mag
T1
I10
I31
I30
I21
I20
I11
I41
I40
A1
A2
24 V
0 V
X1
T0
T0
T0
T0
T1
T1
T1
T1
F1
NOTICE
– The test pulses are permanently assigned to the inputs (T0 to I10,
I20, I30, I40 and T1 to I11, I21, I31, I41) and must be connected as
shown in the wiring diagram.
– Unused inputs must also be connected to the assigned test pulse.

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 11
Series connection
X1, X2: Terminal block
Grey area: Control cabinet
T0
PDP20 F 4 mag
T1
I10
I31
I30
I21
I20
I11
I41
I40
A1
A2
24 V
0 V
X1
T0
PDP20 F 4 mag
T1
I10
I31
I30
I21
I20
I11
I41
I40
A1
A2
X2
O0
O1
T0
T0
T0
T0
T1
T1
T1
T1
T0
T0
T0
T1
T1
T1
F1 F1
NOTICE
–No sensor should be connected between safety outputs O0 and O1
of the first PDP20F4mag and inputs I40 and I41 of the second
PDP20F4mag. With a series connection, only safety output O0/O1
may be connected to the cascading inputs I40 - I41.
– The signal output SO indicates the state of the connected sensors.
The state at input circuit I40 - I41 is not considered.
Operation
NOTICE
The safety function should be checked after initial commissioning and each
time the plant/machine is changed. The safety functions may only be
checked by qualified personnel.
When the supply voltage is applied, the device checks whether the device is operating as a
stand-alone device or in series with another PDP20F4mag.
The unit is ready for operation when the Power LED is permanently lit.

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 12
LEDs indicate the status and errors during operation:
LED on
LED flashes
LED off
Status indicator
O0 or O1
High signal at the safety outputs
O0 or O1
Low signal at the safety outputs
I10/11 or I20/21 or I30/31 or I40/41
Input circuit is closed
I10/11 or I20/21 or I30/31 or I40/41
Input circuit is open
Fault indicator
Power
Supply voltage is missing, device is not ready for operation.
Power
Run-up phase, device checks whether it's a single or series connection
O0 or O1
Fault, short across contact or short circuit in the input or output circuit
Remedy: Switch off supply voltage, rectify the fault and then switch the supply
voltage back on again.
I10/11 or I20/21 or I30/31 or I40/41
Input circuit is partially operated
Remedy: Open input circuit and close both N/O contacts again.

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 13
Technical details
General
Approvals CE, TÜV, cULus Listed
Application range Failsafe
Electrical data
Supply voltage
for Module supply
Voltage 24 V
Kind DC
Voltage tolerance -15 %/+10 %
Output of external power supply (DC) 3,5 W
Residual ripple DC 20 %
External unit fuse protection F1 max. 6 A slow/10 A quick
Inputs
Number 8
Input voltage in accordance with EN 61131-2 Type 1 24 V DC
Input current range 5 mA
Max. overall cable resistance Rlmax
Single-channel at UB DC 1000 Ohm
Dual-channel without detection of shorts across
contacts at UB DC 2000 Ohm
Dual-channel with detection of shorts across con-
tacts at UB DC 2000 Ohm
Max. line capacitance 450 nF
Max. processing time of input when signal changes
from "0" to "1" 40 ms
Semiconductor outputs
Overall performance ext. loading, semiconductor 40 W
Number of positive-switching single-pole semicon-
ductor outputs 2
Rated voltage 24 V DC
Permitted current range 0,000 - 0,500 A
Max. processing time of semiconductor output when
signal changes from "1" to "0" 40 ms
Max. line capacitance at the outputs without load 2 nF
Test pulse outputs
Number of test pulse outputs 2
Voltage, test pulse outputs 24 V DC
Relay outputs
Contact material AgCdO
Times
Switch-on delay
Typ. switch-on delay 500 ms
Recovery time at max. switching frequency 1/s
After power failure 40 ms

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 14
Times
Supply interruption before de-energisation 20 ms
Environmental data
Climatic suitability EN 60068-2-78
Ambient temperature
Temperature range -10 - 55 °C
Storage temperature
Temperature range -25 - 70 °C
EMC EN 60947-5-1, EN 60947-5-3, EN 61000-6-2, EN
61000-6-4, EN 61326-3-1
Vibration
In accordance with the standard EN 60068-2-6
Frequency 10 - 55 Hz
Amplitude 0,35 mm
Airgap creepage
In accordance with the standard EN 60947-1
Overvoltage category III
Pollution degree 2
Rated insulation voltage 30 V
Rated impulse withstand voltage 0,8 kV
Protection type
In accordance with the standard EN 60529
Housing IP40
Terminals IP20
Mounting area (e.g. control cabinet) IP54
Mechanical data
Mounting position Any
Material
Bottom PC
Front PC
Top PC
Connection type Spring-loaded terminal, screw terminal
Mounting type plug-in
Conductor cross section with screw terminals
1 core flexible 0,25 - 2,5 mm², 24 - 12 AWG
2 core with the same cross section, flexible with
crimp connectors, no plastic sleeve 0,25 - 1 mm², 24 - 16 AWG
2 core with the same cross section, flexible without
crimp connectors or with TWIN crimp connectors 0,2 - 1,5 mm², 24 - 16 AWG
Torque setting with screw terminals 0,5 Nm
Conductor cross section with spring-loaded terminals:
Flexible with/without crimp connector 0,2 - 2,5 mm², 24 - 12 AWG
Spring-loaded terminals: Terminal points per connec-
tion 2
Stripping length with spring-loaded terminals 9 mm

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 15
Mechanical data
Dimensions
Height 98 mm
Width 22,5 mm
Depth 120 mm
Weight 110 g
Where standards are undated, the 2017-01 latest editions shall apply.
Safety characteristic data
NOTICE
You must comply with the safety-related characteristic data in order to
achieve the required safety level for your plant/machine.
Operating
Mode
EN ISO
13849-1:
2015
PL
EN ISO
13849-1:
2015
Category
EN 62061
SIL CL
EN 62061
PFHD [1/h]
IEC 61511
SIL
IEC 61511
PFD
EN ISO
13849-1:
2015
TM [year]
2-channel PL e Cat. 4 SIL CL 3 3,44E-09 SIL 3 4,36E-05 20
Cascading
inputs PL e Cat. 4 SIL CL 3 3,72E-09 SIL 3 5,84E-05 20
All the units used within a safety function must be considered when calculating the safety
characteristic data.
INFORMATION
A safety function's SIL/PL values are not identical to the SIL/PL values of
the units that are used and may be different. We recommend that you use
the PAScal software tool to calculate the safety function's SIL/PL values.
Order reference
Product
Product type Features Order no.
PDP20 F 4 mag Sensor interface 773310
Accessories
Product type Features Order no.
Set spring terminals 1 set of spring-loaded terminals 751004
Set screw terminals 1 set of screw terminals 750004

PDP20 F 4 mag
Operating Manual PDP20 F 4 mag
24737-EN-03 16
EC Declaration of Conformity
This product/these products meet the requirements of the directive 2006/42/EC for ma-
chinery of the European Parliament and of the Council. The complete EC Declaration of
Conformity is available on the Internet at www.pilz.com/downloads.
Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost-
fildern, Germany

The Best of
German
Engineering
Partner of:
Support
Technical support is available from Pilz round the clock.
Americas
Brazil
[phone]
Canada
+1 888-315-PILZ (315-7459)
Mexico
[phone]
USA (toll-free)
+1 877-PILZUSA (745-9872)
Asia
China
[phone]
Japan
[phone]
South Korea
[phone]
Australia
[phone]
Europe
Austria
[phone]
Belgium, Luxembourg
[phone]
France
[phone]
Germany
[phone]
Ireland
[phone]
Italy, Malta
[phone]
Scandinavia
[phone]
Spain
[phone]
Switzerland
[phone]
The Netherlands
[phone]
Turkey
[phone]
United Kingdom
[phone]
You can reach our
international hotline on:
[phone]
[email protected]
CMSE®, InduraNET p®, PAS4000®, PAScal®, PASconfig®, Pilz®, PIT®, PLID®, PMCprimo®, PMCprotego®, PMCtendo®, PMD®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®,
SafetyEYE®, SafetyNET p®, THE SPIRIT OF SAFETY® are registered and protected trademarks of Pilz GmbH & Co. KG in some countries. We would point out that product features may vary
from the details stated in this document, depending on the status at the time of publication and the scope of the equipment. We accept no responsibility for the validity, accuracy and entirety of the text and graphics presented in this information. Please contact our Technical Support if you have any questions.
Pilz develops environmentally-friendly products using
ecological materials and energy-saving technologies.
Offices and production facilities are ecologically designed,
environmentally-aware and energy-saving. So Pilz offers
sustainability, plus the security of using energy-efficient
products and environmentally-friendly solutions.
Pilz GmbH & Co. KG
Felix-Wankel-Straße 2
73760 Ostfildern, Germany
Tel.: [phone]
Fax: [phone]
[email protected]
www.pilz.com
200XXXX-EN-0X
0-0-2-3-000, 2017-00 Printed in Germany
© Pilz GmbH & Co. KG, 2017
24737-EN-03, 2017-04 Printed in Germany © Pilz GmbH & Co. KG, 2015
Back cover
