PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 4
Introduction
Validity of documentation
This documentation is valid for the product PSEN ma1.4a-52. It is valid until new document-
ation is published.
This operating manual explains the function and operation, describes the installation and
provides guidelines on how to connect the product.
Using the documentation
This document is intended for instruction. Only install and commission the product if you
have read and understood this document. The document should be retained for future ref-
erence.
Definition of symbols
Information that is particularly important is identified as follows:
DANGER!
This warning must be heeded! It warns of a hazardous situation that poses
an immediate threat of serious injury and death and indicates preventive
measures that can be taken.
WARNING!
This warning must be heeded! It warns of a hazardous situation that could
lead to serious injury and death and indicates preventive measures that can
be taken.
CAUTION!
This refers to a hazard that can lead to a less serious or minor injury plus
material damage, and also provides information on preventive measures
that can be taken.
NOTICE
This describes a situation in which the product or devices could be dam-
aged and also provides information on preventive measures that can be
taken. It also highlights areas within the text that are of particular import-
ance.

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 5
INFORMATION
This gives advice on applications and provides information on special fea-
tures.
Safety
Intended use
The safety function of the safety switch is:
}Safe detection of the magnetic actuator within the response range
The safety switch meets the requirements in accordance with:
}EN 60947-5-3: PDDB only in connection
– with the operator PSEN ma1.4-03 or operator PSEN ma1.4-10
– the interface PSEN ix1 and
– the suitable evaluation devices (see Requirements and connection to evaluation
devices [ 10]).
The safety switch is designed for applications in series connections and it must only be op-
erated with the following components:
}Actuator PSEN ma1.4-03 or actuator PSEN ma1.4-10 ,
}interface PSEN ix1 (see Order reference [ 21]) and
}an approved evaluation device.
The following is deemed improper use in particular:
}Any component, technical or electrical modification to the product
}Use of the product outside the areas described in this manual
}Use of the product outside the technical details (see Technical details [ 19]).
NOTICE
EMC-compliant electrical installation
The product is designed for use in an industrial environment. The product
may cause interference if installed in other environments. If installed in other
environments, measures should be taken to comply with the applicable
standards and directives for the respective installation site with regard to in-
terference.

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 6
Safety regulations
Safety assessment
Before using a unit it is necessary to perform a safety assessment in accordance with the
Machinery Directive.
Functional safety is guaranteed for the product as a single component. However, this does
not guarantee the functional safety of the overall plant/machine. In order to achieve the re-
quired safety level for the overall plant/machine, define the safety requirements for the
plant/machine and then define how these must be implemented from a technical and organ-
isational standpoint.
Use of qualified personnel
The products may only be assembled, installed, programmed, commissioned, operated,
maintained and decommissioned by competent persons.
A competent person is a qualified and knowledgeable person who, because of their train-
ing, experience and current professional activity, has the specialist knowledge required. To
be able to inspect, assess and operate devices, systems and machines, the person has to
be informed of the state of the art and the applicable national, European and international
laws, directives and standards.
It is the company’s responsibility only to employ personnel who
}Are familiar with the basic regulations concerning health and safety / accident preven-
tion,
}Have read and understood the information provided in this description under "Safety"
}Have a good knowledge of the generic and specialist standards applicable to the spe-
cific application.
Warranty and liability
All claims to warranty and liability will be rendered invalid if
}The product was used contrary to the purpose for which it is intended
}Damage can be attributed to not having followed the guidelines in the manual
}Operating personnel are not suitably qualified
}Any type of modification has been made (e.g. exchanging components on the PCB
boards, soldering work etc.).
Disposal
}In safety-related applications, please comply with the mission time TM in the safety-re-
lated characteristic data.
}When decommissioning, please comply with local regulations regarding the disposal of
electronic devices (e.g. Electrical and Electronic Equipment Act).

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 7
For your safety
WARNING!
Loss of safety function due to manipulation of the interlocking device
Manipulation of the interlocking device may lead to serious injury and death.
– You should prevent any possibility of the interlocking device being
manipulated through the use of a spare actuator.
– Keep the substitute actuator in a safe place and protect it from unau-
thorised access.
– If spare actuators are used, these must be installed as described in
Installation [ 13].
– If the original actuators are replaced with substitute actuators, the ori-
ginal actuators must be destroyed before disposal.
Unit features
}The actuator PSEN ma1.4-03 or PSEN ma1.4-10 belongs to the safety switch.
}Coded actuator
}Safety switch with cable (5 m)
}2 safety contacts (reed contacts - N/O)
}Different operating distances depending on the actuator see Technical details [ 19]
}Design:
– Safety switch with square design
– Actuator with square design: PSEN ma1.4-03
– Actuator with square design: PSEN ma1.4-10
}Operation Magnetic
}Switching voltage 24 VDC
}Series connection via PSEN ix1 interface
Function description
If the actuator is within the response range (safety gate closed), the safety contacts of the
safety switch are closed.
The safety switch is designed for applications in series connections.
Operate the PSEN ma1.4a-52 in conjunction with the following components:
}Actuator PSEN ma1.4-03 or actuator PSEN ma1.4-10 (see Order reference [ 21]),
}interface PSEN ix1 (see Order reference [ 21]) and
}a connected evaluation device (see Requirements and connection to evaluation
devices [ 10]).

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 8

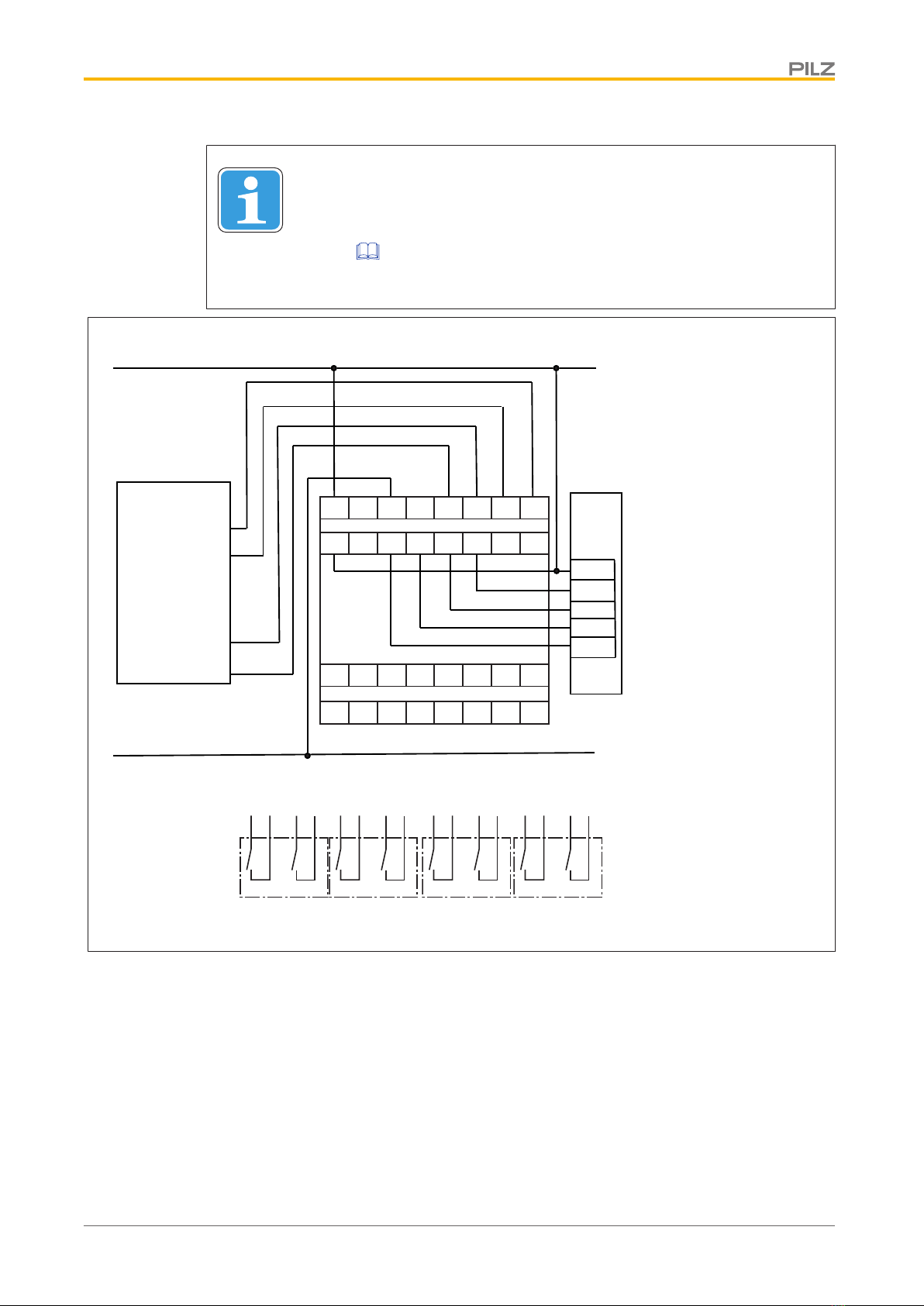

Block diagram
1
2
3
4
Actuator Safety switch
Magnet
Operating distances
Sao SoSrSar (mm)Somin
On
Off
Legend
Sao Assured operating distance
Somin Min. operating distance
Sar Assured release distance
The offset-independent values for the switching distances are included in the Technical
details [ 19].

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 9

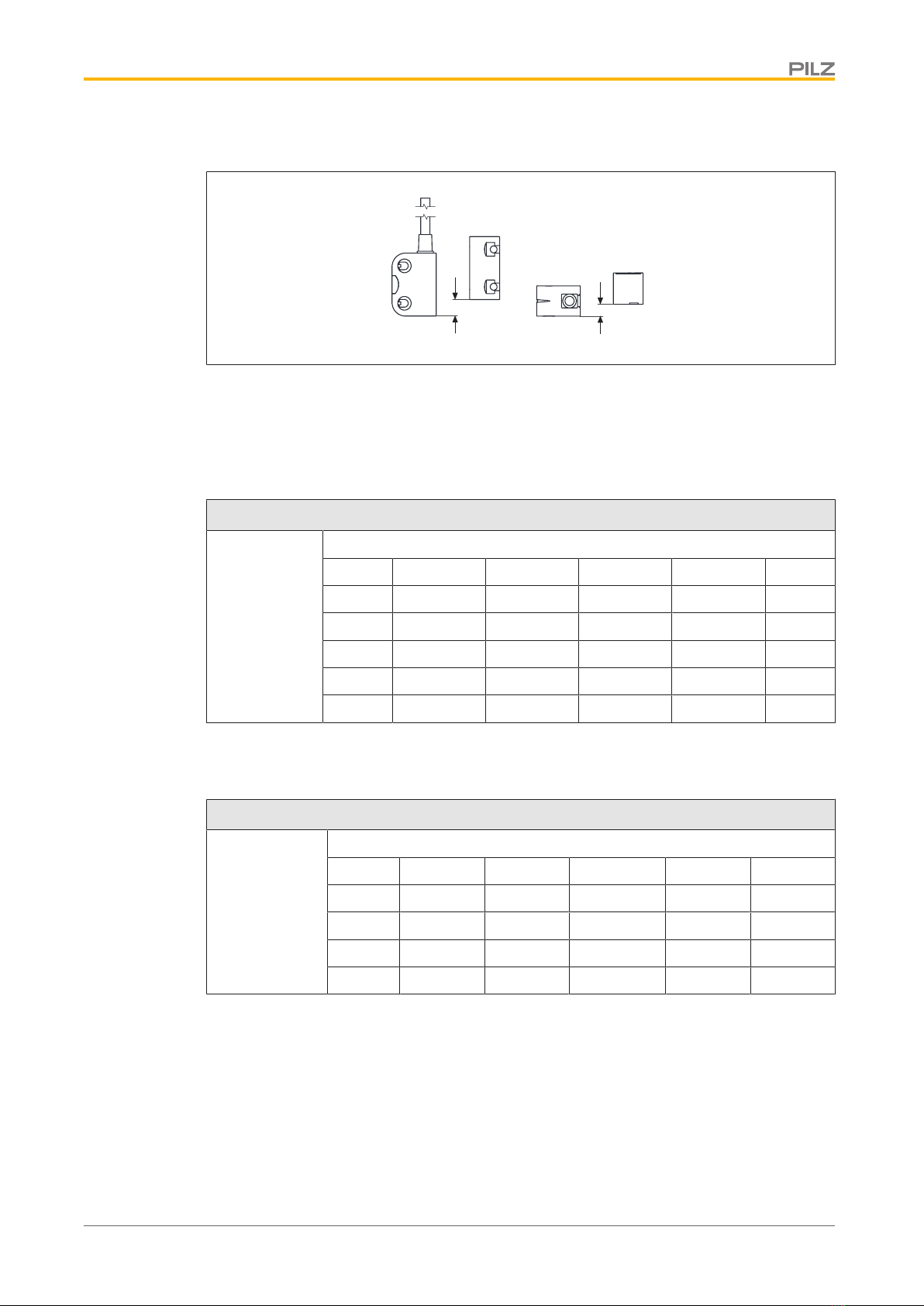

Lateral and vertical offset
[1] [2]
Legend
[1] Lateral offset
[2] Vertical offset
Actuator PSEN ma1.4-03
Assured operating distance Sao in mm
Vertical offset
Lateral offset
0 1 2 3 4
03.0 3.0 2.5 1.5 1.0
13.0 2.5 2.0 0.5 -
22.5 1.5 1.0 - -
31.5 0.5 - - -
40.5 - - - -
The stated values are valid at a temperature of 20 °C.
Actuator PSEN ma1.4-10
Assured operating distance Sao in mm
Vertical offset
Lateral offset
0 mm 2 mm 4 mm 6 mm 8 mm
0mm 10.0 10.0 9.0 7.0 5.0
2 mm 10.0 10.0 8.0 6.0 3.0
4 mm 9.0 8.0 7.0 5.0 -
6 mm 7.0 6.0 5.0 - -
The stated values are valid at a temperature of 20 °C.

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 10
Wiring
Please note:
}Information given in the Technical details [ 19] must be followed.
}Calculation of the max. cable length lmax:
Rlmax - Ri
Rl / km
Imax =
Rlmax = Max. overall cable resistance (see evaluation device's technical details)
Ri = Internal resistance sensor (see Technical details [ 19])
Rl/km = Cable resistance/km of the cable (seetechnical details cable)
}Ensure the wiring and EMC requirements of EN 60204-1 are met.
}In the following cases, check the function that detects shorts across contacts prior to
commissioning:
– On evaluation devices with DC supply voltage: Overall cable resistance ≥ 15 Ohms
per channel
– On evaluation devices with AC supply voltage: Overall cable resistance ≥ 25 Ohms
per channel
– For details of how to perform the test for shorts across the contacts, please refer to
the operating manual for the relevant evaluation device.

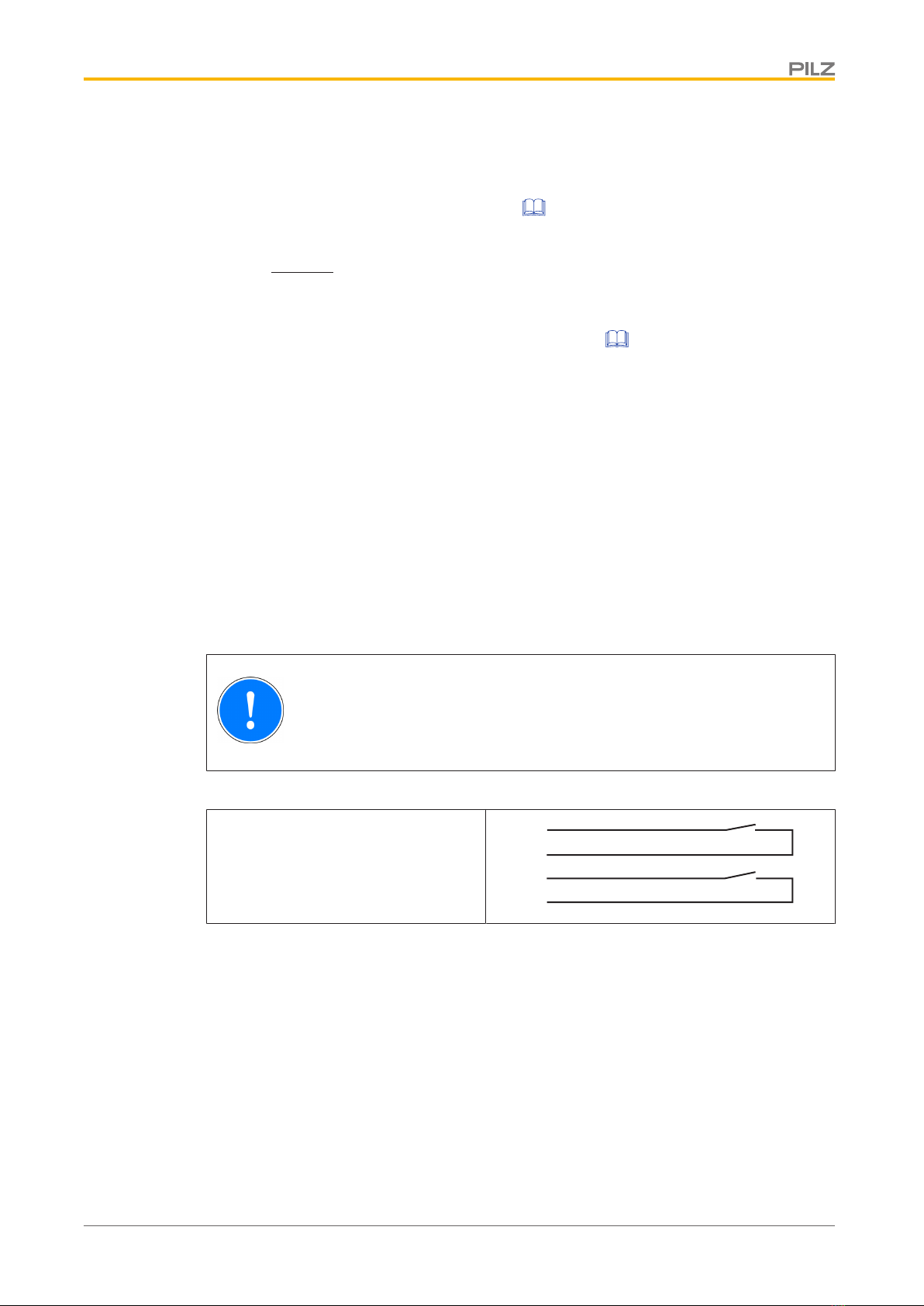

Pin assignment
NOTICE
The colour marking for the connection lead only applies for the cable that
Pilz supplies as an accessory
The safety switch is shown in an unoperated condition.
Layout of the 4-core cable
[1]
[2]
[3]
[4]
white
brown
blue
black
Requirements and connection to evaluation devices
For use of PSEN ma1.4a-52 in accordance with DIN EN 60947-5-3 an evaluation device
must be connected.
Connect the PSEN ma1.4a-52
}either with a certified Pilz evaluation device
}or with an evaluation device with defined properties

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 11
Certified Pilz evaluation devices are, for example:
}PNOZelog for safety gate monitoring
– PNOZ e1p, PNOZ e1.1p, PNOZ e1vp
– PNOZ e5.11p
– PNOZ e6vp, PNOZ e6.1p
}PNOZpower for safety gate monitoring
– PNOZ p1p, PNOZ p1vp
}PNOZsigma for safety gate monitoring:
– PNOZ s3
– PNOZ s4
– PNOZ s5
}PNOZ X for safety gate monitoring
– PNOZ X2, PNOZ X2.5P, PNOZ X2.7P, PNOZ X2.8P, PNOZ X2.9P, PNOZX2C,
– PNOZ X3, PNOZ X3.1, PNOZ X3P, PNOZ X3.10P
– PNOZ X4
– PNOZ X5, PNOZ X5J
– PNOZ Ex
}PNOZmulti for safety gate monitoring
Configure the switch in the PNOZmulti Configurator with switch type 3.
}PSS for safety gate monitoring with standard function block SB064, SB066 or
FS_SafetyGate
}PSSuniversal PLC for safety gate monitoring with function block FS_SafetyGate
The correct connection to the respective evaluation device is described in the operating
manual for the evaluation device. Make sure that the connection is made in accordance
with the specifications in the operating manual for the selected evaluation device.
Defined properties of evaluation devices:
}2-channel with feasibility monitoring
}Open circuit monitoring of the safety switch is performed
}The inputs and outputs of the evaluation device must fulfil the requirements of
IEC61131
}Technical data of the evaluation device must fulfil the requirements in the Technical
details [ 19] of PSEN ma1.4a-52
– Always comply with the max. switching current safety contacts of PSEN ma1.4a-52.
}Outputs at the evaluation device must only be switched on again when both reed con-
tacts at the safety switch have been opened and closed (partial operation lock)

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 12
INFORMATION
Risk time in accordance with DIN EN 60947-5-3
The risk time is made up of the reaction time of the sensor (see Technical
details [ 19]) and the processing and delay times of the evaluation
device (s. operating manual for the relevant evaluation device).
Y1 Y8
A2A1
11 12
14
Y2 Y3 Y4Y5 Y6 Y9
1 2 3 4
13 23 24
21 22 31
33 34
32 41
43 44
42
A1 A2
1 2 3 4
11 12 1413
1 2 3 4
21 22 2423
1 2 3 4
31 33 3432
1 2 3 4
41 43 4442
+24 V
I0.0
I0.1
I0.2
I0.3
+24 V
0 V
PSEN ix1
PLC
PSENmag
Evaluation
device
Input circuit
Input circuit
Fig.: Dual-channel connection of four PSENmag to the input circuits of an evaluation device

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 13

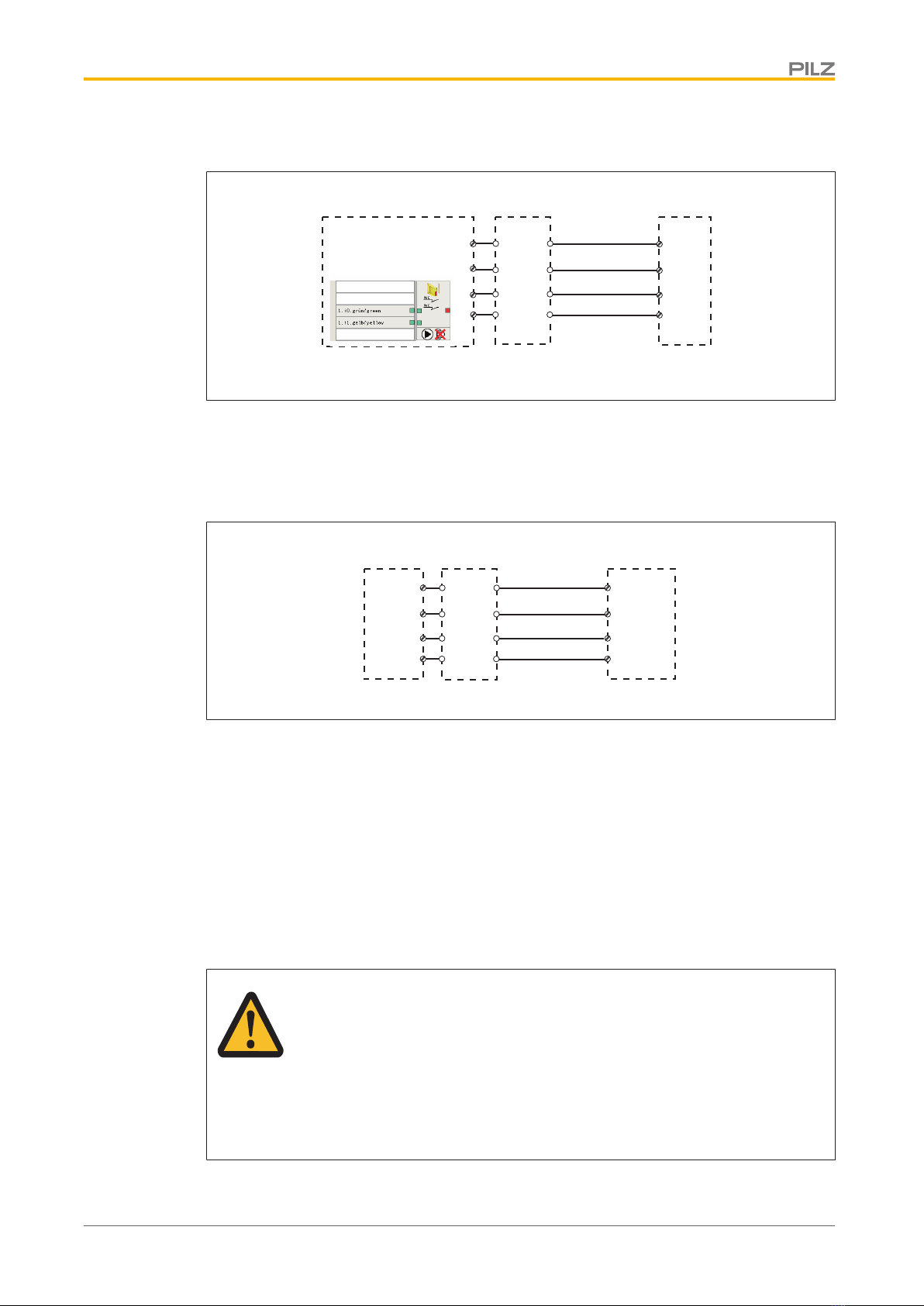

Examples for connection to Pilz evaluation devices:
I0
I1
PNOZmulti PSENmag
3
1
2
4
T1
T0
PSEN ix1
3
1
2
4
11
12
13
14
brown
white
blue
black
Legend
I0 Input OSSD
I1 Input OSSD
T1, T2 Test pulse outputs
brown
white
blue
black
1
2
3
4
PSENmag
PSEN ix1
3
1
2
4
11
12
13
14
S21
S22
S11
S12
PNOZ s3
Installation
}The unit can be installed in any position. However, safety switches and actuators must
be positioned opposite each other in parallel.
}If possible, do not install the safety switch and actuator on to ferromagnetic material.
Changes to the operating distances are to be expected.
}Safety switches and actuators should only be secured using M4 screws with a flat head
(e.g. M4 cheese-head or pan head screws). Use screws made of non-magnetic mater-
ial (e.g. brass).
CAUTION!
Potential loss of safety function due to changed device properties
The unit's properties may be affected if installed in an environment contain-
ing electrically or magnetically conductive material.
– Please check the operating distances and the assured release dis-
tance.

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 14
CAUTION!
Possible loss of the safety function by changing the release distance Sar
with non-flush installation
Installing the safety switch non-flush within electrically or magnetically con-
ductive material, the value for the assured release distance Sar can change.
– Check the assured release distance Sar.
}Safety switches and actuators must be positioned so that they are secured against a
change of position.
}The safety switch and actuator should only be secured using screws and nuts made of
non-magnetic material (e.g. brass or stainless steel).
}Avoid the risk of damages from foreseeable external influences by attaching the safety
switch and actuator. If necessary, safety switch and actuator have to be protected.
INFORMATION
The actuator should be protected from unauthorised removal and from con-
tamination.
}Prevent self-loosening of the fastening elements of safety switch and actuator.
}The fastening of safety switch and actuator has to be sufficiently stable to ensure the
proper operation of the safety switch and the actuator.
}The distance between two safety switches must be maintained (see Technical
details [ 19]).
}Safety switches and actuators
– Should be kept away from iron swarf
– Should not be exposed to strong magnetic fields
– Should be used for fixed wiring only
}Prevent the safety switch and actuator being exposed to heavy shock or vibration
}Make sure that the safety switch and actuator cannot be used as an end stop.
}Circumvention of the safety switch in a reasonably foreseeable manner must be pre-
vented.
}Please note the installation measures in accordance with EN ISO 14119 for a proximity
switch design 4 and with level of coding Low
}Alignment errors of the guard must not adversely affect the safety function of the guard.
}The assured operating distance Sao and the assured release distance Sar must be tested
under real conditions.
Installation type 1
}1. Cut the thread (M4) in the required position.
}2. Use a screw to fix the sensor.

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 15
}3. Attach the second screw to the sensor. (Important: do not tighten the screws). Attach
the screws for the actuator, maintaining the distance between the screw head and the
plate: ca. 3 ... 6 mm.
}4. Align actuator to sensor.
INFORMATION
The inscribed area on the actuator (sensing face) should face the sensor.
}5. Slide the actuator on to the screws.
}6. Align sensor and tighten screws with max. 0,8 Nm.
}7. Align actuator and tighten screws with max. 0,8 Nm.
}8. Close used mounting holes using seal (1) or (4) (see Diagram [ 16]).
}9. Close unused mounting holes using seal (2) (see Diagram [ 16]).
}10. Close mounting holes on the sensing face using seal (3) (see Diagram [ 16]).
}11. Installation of sensor and actuator is now complete.

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 16
1 2 3
4 5 6
789
10 11
INFORMATION
Seals (1), (2), (3) meet the requirements of UL 94 V0, seal (4) does not
meet UL requirements.
Installation type 2
Install the sensor as shown for installation type 1
}1. Attach the screws for the actuator, maintaining the distance between the screw head
and the plate: ca. 3 ... 6 mm.
}2. Close unused mounting holes on the plate using seal (2) (see Diagram [ 17]).
}3. Slide the actuator on to the screws.
}4. Align actuator and tighten screws with max. 0,8 Nm.
}5. Close used mounting holes using seal (1) or (4) (see Diagram [ 17]).
}6. Close mounting holes on the sensing face using seal (3) (see Diagram [ 17]).

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 17
}7. Installation of sensor and actuator is now complete.
1 2 3
4 5 6
7
INFORMATION
Seals (1), (2), (3) meet the requirements of UL 94 V0, seal (4) does not
meet UL requirements.
Adjustment
}The safety switch may only be used with the corresponding actuator PSEN ma1.4-03 or
PSEN ma1.4-10.
}Always test the function with the PSEN ix1 interface and connected evaluation device.
}The stated operating distances (see Technical details [ 19]) only apply when the
safety switch and actuator are installed according to the specifications
Installation [ 13]. Operating distances may deviate if other arrangements are used.
Note the maximum permitted lateral and vertical offset (see Operating distances and
Lateral and vertical offset [ 8]).
Periodic test
}Carry out a monthly function test on the safety switch and actuator.
}Always test the function with the PSEN ix1 interface and connected evaluation device.
}The safety function may only be checked by qualified personnel.

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 18
Dimensions in mm
18
19
Ø 8
37
22
4,5
R 8
26,4
14,4
4,5
18
37
22
14,4
18
Safety switch Actuator

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 19
Technical details
General 506321 506323
Approvals CE, EAC (Eurasian), TÜV, cULus
Listed
CE, EAC (Eurasian), TÜV, cULus
Listed
Sensor's mode of operation Magnetic Magnetic
Coding level in accordance with EN
ISO 14119 Low Low
Design in accordance with EN ISO
14119 4 4
Classification in accordance with
EN 60947-5-3 PDDB PDDB
Electrical data 506321 506323
Supply voltage
Voltage 24 V 24 V
Kind DC DC
Voltage tolerance -20 %/+20 % -20 %/+20 %
Supply voltage
Max. current 200 mA 200 mA
Max. switching frequency 1 Hz 1 Hz
Lowest operating current (Im) 1 mA 1 mA
Switching voltage 24 V 24 V
Internal resistance 0 Ohm 0 Ohm
Max. switching current, safety con-
tacts 0,2 A 0,2 A
Max. breaking capacity, safety con-
tacts 5 W 5 W
Times 506321 506323
Reaction time (actuator removed) 2 ms 2 ms
Environmental data 506321 506323
Ambient temperature
Temperature range -10 - 55 °C -10 - 55 °C
Climatic suitability
In accordance with the standard IEC 60068-2-30 IEC 60068-2-30
Humidity 93 % r. h. at 40 °C 93 % r. h. at 40 °C
Max. operating height above sea
level 2000 m 2000 m
EMC EN 60947-5-3 EN 60947-5-3
Vibration
In accordance with the standard EN 60947-5-2 EN 60947-5-2
Frequency 10 - 55 Hz 10 - 55 Hz
Amplitude 1 mm 1 mm
Shock stress
Acceleration 30g 30g
Duration 11 ms 11 ms

PSEN ma1.4a-52
Operating Manual PSEN ma1.4a-52
22122-EN-06 20
Environmental data 506321 506323
Airgap creepage
Pollution degree 3 3
Rated insulation voltage 250 V 250 V
Rated impulse withstand voltage 4 kV 4 kV
Protection type
Housing IP6K9K IP6K9K
Mechanical data 506321 506323
Actuator 1 PSEN ma1.4-03mm PSEN ma1.4-10mm
Typ. Hysteresis 2,5 mm 3,5 mm
Operating distances
Assured operating distance Sao 3 mm 10 mm
Min. operating distance Somin 0,0 mm 0,0 mm
Typical operating distance So 3,5 mm 12,5 mm
Assured release distance Sar 12 mm 22 mm
Typical release distance Sr 6 mm 16 mm
Repetition accuracy switching
distances 6 % 6 %
Min. distance between safety
switches 50 mm 50 mm
Sensor flush installation in accord-
ance with EN 60947-5-2
Yes, follow installation
guidelines
Yes, follow installation
guidelines
Connection type 5 m cable 5 m cable
Cable LiY11Y 4 x 0,25 mm2 LiY11Y 4 x 0,25 mm2
Material
Top PBT PBT
Max. torque setting
Safety switch 0,8 Nm 0,8 Nm
Actuator 1 0,8 Nm 0,8 Nm
Dimensions
Height 37 mm 37 mm
Width 26,4 mm 26,4 mm
Depth 18 mm 18 mm
Actuator dimensions
Height 37 mm 37 mm
Width 18 mm 18 mm
Depth 18 mm 18 mm
Weight of safety switch 180 g 180 g
Weight of actuator 16 g 18 g
Weight 196 g 198 g
Where standards are undated, the 2015-09 latest editions shall apply.
