Pima Electronic Systems VISION User manual

VISION
Wireless Intruder Alarm System
User Guide
Version: 1.X

VISION Wireless Alarm System User Guide
2
TABLE OF CONTENTS
1. Introduction........................................................................................ 5
1.1. Main features ........................................................................................... 7
1.2. Technical specifications .............................................................................. 8
2. Pairing to PIMA Cloud and App ........................................................... 9
2.1. How to pair your alarm system ................................................................... 9
2.1.1. Using the RMC key fob ............................................................................ 9
2.1.2. Using the KAS arming station ..................................................................10
2.2. How to pair your smartphone.....................................................................10
3. Arm and Disarm ................................................................................ 13
3.1. Via the PIMAlink 3.0 app ...........................................................................13
3.2. Via the key fob and arming station .............................................................14
3.3. Open zones and faults ..............................................................................15
4. Peripherals........................................................................................ 16
4.1. RMC key fob............................................................................................16
4.1.1. Quick guide ..........................................................................................16

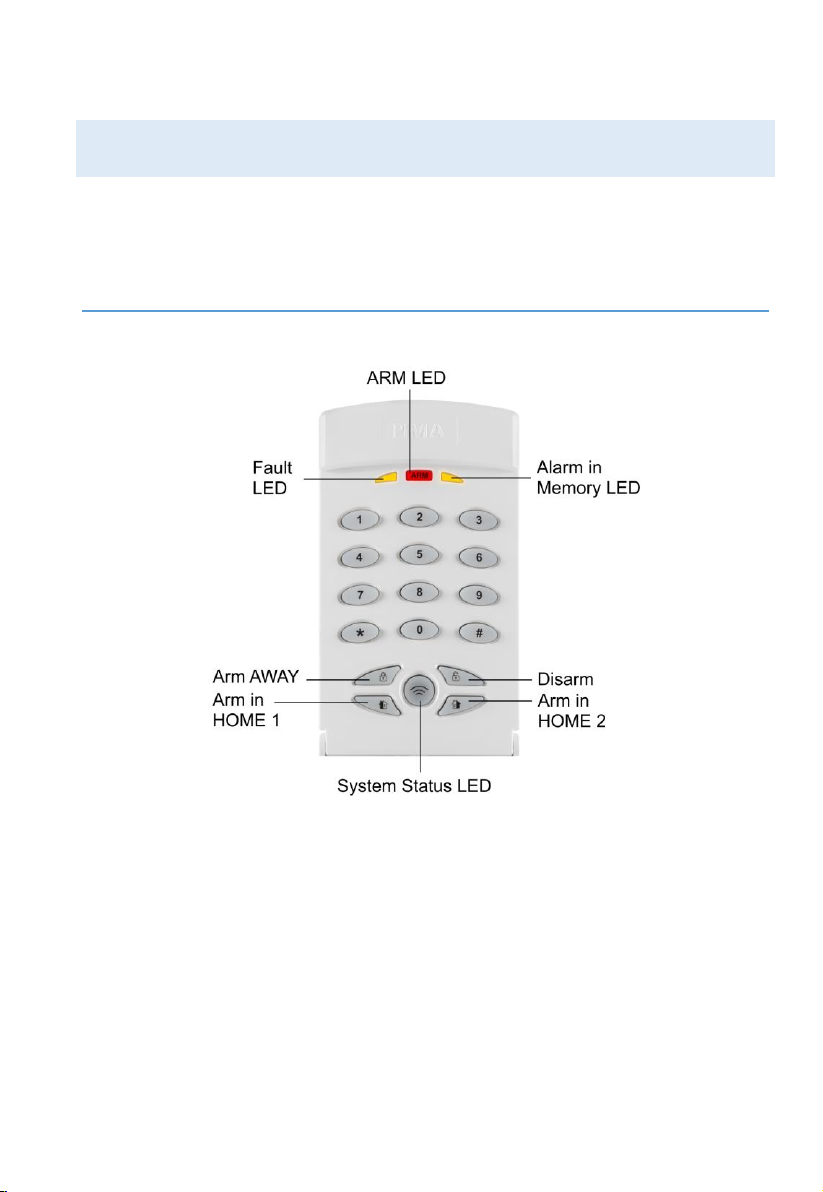

4.2. KAS keypad arming station........................................................................17
4.2.1. Quick guide ..........................................................................................17
5. Partitions .......................................................................................... 21
5.1. Applications ............................................................................................21
6. Troubleshooting Faults ..................................................................... 25
7. Glossary............................................................................................ 28
8. Zone Number and Location ............................................................... 32

Introduction
PIMA Electronic Systems
3
SAFETY
The VISION security system has been registered in accordance
with EN60950 and its rules. Among other things, EN60950
requires us to advise you the following information:
Hazards of fire and electric shock exist in this alarm system.
To reduce the risk of fire or electric shock, do not expose this
alarm system to rain or moisture. Pay attention: telephone
cords could be a good conductor for lightings energy.
Warning: this equipment has no mains On/Off switch. The
plug of the direct plug-in power supply is intended to serve as
the disconnecting device.
Dangerous high voltages are present inside the control
panel’s enclosure. Refer servicing to qualified technician only.
This alarm system should be used with 230VAC/110VAC,
50/60Hz, protected by anti-electric shock breaker. Use only
the power supply provided with this equipment. Use of
unauthorized power supplies may cause damage.
Do not spill liquid of any kind onto the unit. If liquid is
accidentally spilled onto the unit, immediately consult a
qualified service.
The battery should not be exposed to water.

VISION Wireless Alarm System User Guide
4
Do not place the enclosure near a heat source. This will
reduce the working life of the battery
Do not short circuit the battery by connecting the positive
terminal to the negative terminal. High currents can be
generated resulting in high temperatures and risking fire and
personal injury.
Disposal of used batteries must be made in accordance with
local waste recovery and recycling regulations.
Default Codes
Master User: 5555
Master Installer: 1234
Signs in this guide
Warning
Note

Introduction
PIMA Electronic Systems
5
1. INTRODUCTION
Dear customer
Congratulations on your purchase of the VISION - PIMA
Electronic Systems’ wireless alarm system. You can use the
VISION with our wireless detectors and peripherals, which
include, among others, key fobs, wireless keypads, and a panic
buttons.
The VISION offers advanced communication technology,
including built-in Ethernet connection. Cellular, PSTN and wi-fi
communications are optional.
With the PIMAlink 3.0 smartphone application (for Android and
iOS) and cloud service, you can receive notifications, and arm
and disarm your alarm system from anywhere.
Note: This alarm system must be checked by a qualified
technician at least once every three years.
This User guide refers to the VISION alarm system, version 1.X.
The system is supplied with three guides:
This guide, which includes the user-programming guide and
the system maintenance instructions.
User quick start guide

VISION Wireless Alarm System User Guide
6
Installation guide, which includes the system and
accessories installation, and wiring instructions, as well as
the technician-programming guide.
If you purchased an LCD keypad, refer to the full programming
instructions in the FORCE and VISION programming guide,
which can be downloaded from our website at
https://www.pima-alarms.com/download/ .
Cautions: the VISION is based on wireless
(RF) transmissions. Any wireless
transmission can be subject to RF
interference and, although unlikely, this
interference may cause the Vision not to
operate as intended.
RF transmissions will be attenuated by
tinted glass, in wall isolation with metal
foils, metal objects, etc.

Introduction
PIMA Electronic Systems
7
1.1. Main features
Zones (detectors): 64
Users: 64, with unique code and remote control for each.
Contacts: 16, for receiving alarm and other notifications.
Partitions: 8
Multi-channel communications: Ethernet, and optional
cellular, wi-fi, and PSTN
1
.
Up to two CMSs (Central Monitoring Station)
The PIMAlink 3.0 cloud and smartphone application allows
you to:
Arm and disarm
Receive alarm and other notifications
Bypass zones
Remote configuration via the PIMA Total Manager Web
application.
1
Requires a separate module for each. Wi-fi and Ethernet
cannot be installed together.

VISION Wireless Alarm System User Guide
8
1.2. Technical specifications
Optional frequencies (MHz):
433.92
868.95
DC power input: 12VDC
Battery: 2X 18650, 3.7A, Lithium-ion
Power supply: 1A, +12VDC
Power consumption (max):
Control panel: 100mA
PSTN module: 10mA
Cellular module: 85mA
Wi-fi module: 120mA
Operating temperature: -10 to +50 °C
Humidity (max.): up to 90% R.H., non-condensing

Pairing to PIMA Cloud and App
PIMA Electronic Systems
9
2. PAIRING TO PIMA CLOUD AND APP
You need to pair your VISION alarm system to PIMA cloud, to be
able to receive notifications on your smartphone, and control
the alarm system remotely. Pairing allows a secure connection
between devices (the same as in Bluetooth technology).
To pair your alarm system, you will need a pairing code. Your
alarm’s code is printed on a label on the system’s enclosure, as
a QR or bar code. You can scan the label or manually enter the
code, via the PIMAlink 3.0 app, as will be explained further on.
Connecting to the system is only allowed to paired phones.
2.1. How to pair your alarm system
You need to use a key fob (RMC) or a keypad arming station
(KAS) to pair your alarm (and your phone).
2.1.1. Using the RMC key fob
1. Press and hold the Arm and Disarm buttons (see below)
shortly. From this moment on, the cloud will allow to pair
devices to your alarm system for 10 minutes.

VISION Wireless Alarm System User Guide
10
2. Enter your pairing code in the app; see how next.
3. Repeat this as necessary in the future to pair other phones.

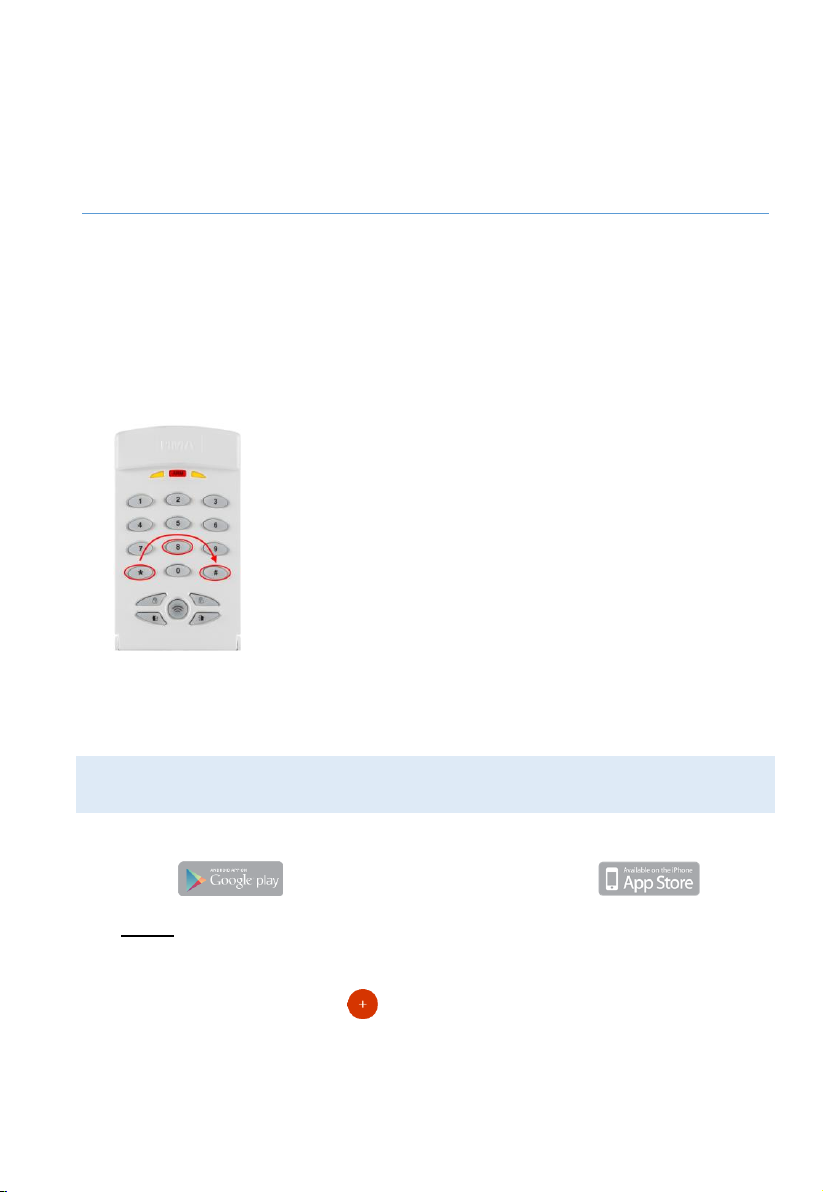

2.1.2. Using the KAS arming station
1. Press the following key sequence: Master/User code 
asterisk (*)8 pound (#). From this moment on, the
cloud will allow to pair devices to your alarm system for
10 minutes.
2. Enter your pairing code in the app; see how next.
3. Repeat this as necessary in the future to pair other phones.

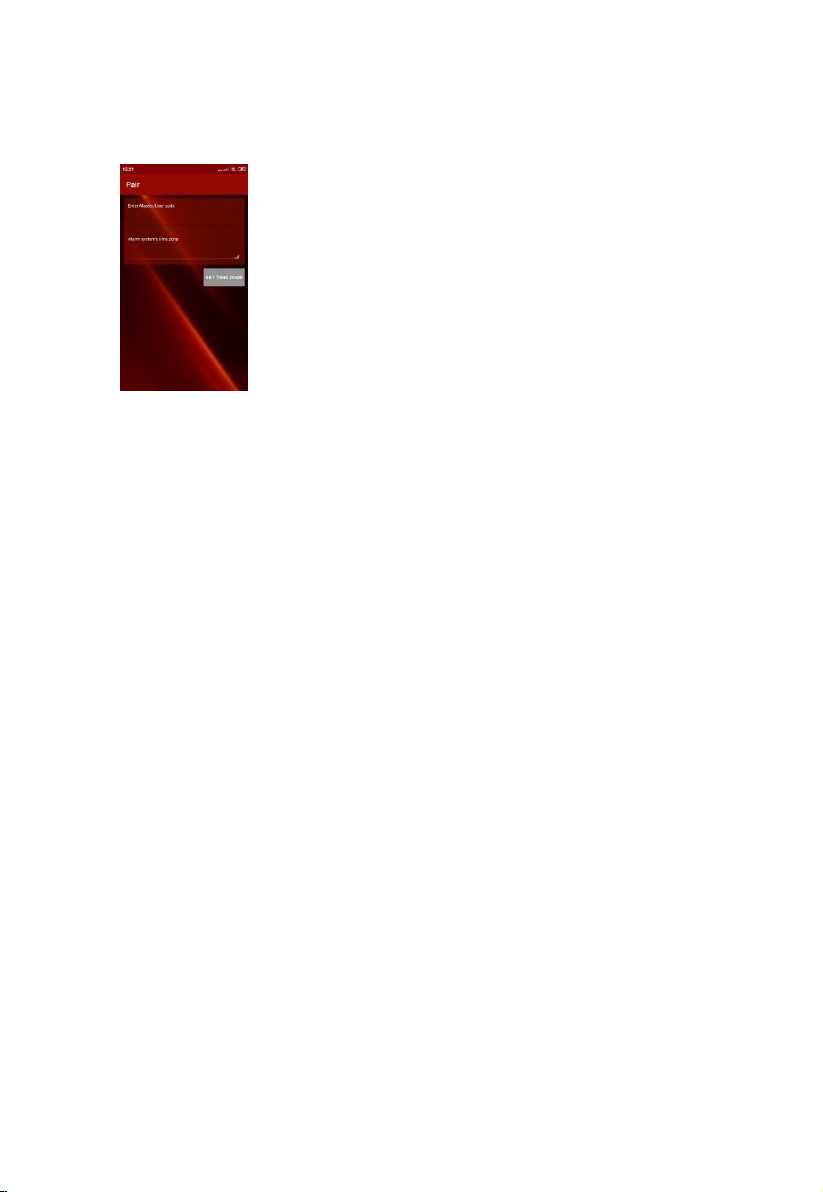

2.2. How to pair your smartphone
1. Download the PIMAlink 3.0 app for Android (on Google
Play) or iPhone (on the App Store) .
Note: download only version 3.0 or higher. Do it on every
phone that needs to be paired with the VISION.

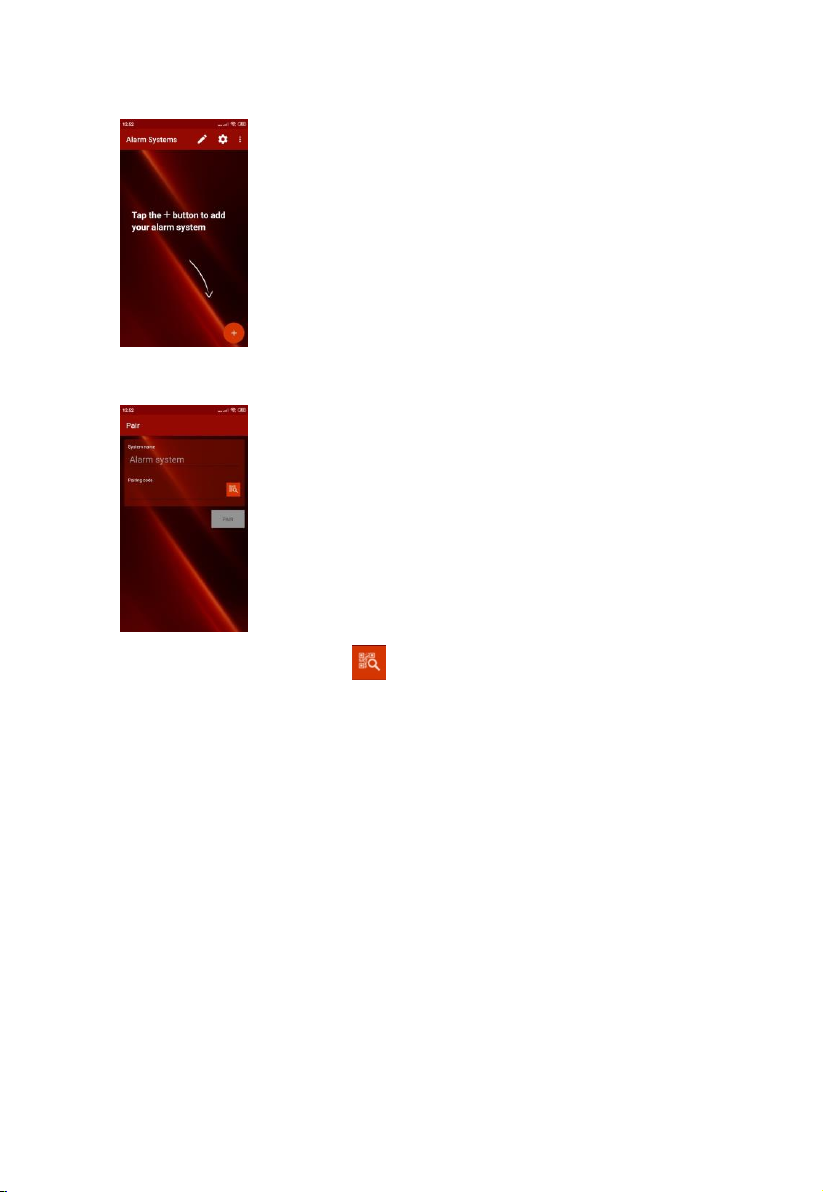

2. Tap the ‘Plus’button to add your alarm system.
