Pinnacle ProTemp PT-18PNCH-A Training manual

CONSUMER: READ AND RETAIN THESE INSTRUCTIONS FOR FUTURE USE
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUC-
TIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH,
SERIOUS BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE,
EXPLOSION, BURN. ASPHYXIATION, CARBON MONOXIDE POISONING AND / OR ELECTRIC
SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE
OR SERVICE THIS HEATER. IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS
AN INSTRUCTIONS MANUAL, LABEL, ETC. CONTACT THE MANUFACTURER.
FIRE, BURN, INHALATION, AND EXPLOSION
HAZARD. KEEP SOLID COMBUSTIBLES,
SUCH AS BUILDING MATERIALS, PAPER OR
CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS REC-
OMMENDED BY THESE INSTRUCTIONS. NEVER USE THE HEATER
IN SPACES WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE
COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS,
PAINT THINNERS, DUST PARTICLES OR UNKNOWN CHEMICALS.
KEEP ALL COMBUSTIBLE MATERIALS, GASOLINE, AND OTHER FLAM
MABLE VAPORS AND LIQUID AWAY FROM THIS HEATER.
This heater is designed and approved for use as a construction heater in accordance with
Standard for Gas fired Construction heaters ANS Z83.7 * CSA 2.14-2017. CHECK WITH YOUR
LOCAL FIRE SAFETY AUTHORITY IF YOU HAVE ANY QUESTIONS ABOUT APPLICATIONS.
Other standards govern the use of fuel gasses and heating products for specific uses. Your
local authority can advise you about these.
MODEL NUMBER
PT-18PNCH-A
Factory ID: 525
DANGER
WARNING
Sauk Rapids, MN 56379 USA • Toll Free [phone]
Fax: [phone] • Web: www.protemp.us • Email: [email protected]
© 2019 Pinnacle Climate Technologies, Inc. PTCC-403
User’s Manual &
Operating Instructions
CABINET HEATER
Locating Your Serial Number:
Your serial number can be found on the heater’s rating label. It will be 8 digits. For Example: 12345678.
Have your Serial Number ready before calling customer service at 1-800-641-6996.

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2019 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
2
This is an unvented portable heater. It uses air (oxygen) from the
area in which it is used. Adequate combustion and ventilation air
must be provided. Refer to VENTILATION on Page 10.
Not for use in residential living areas or in non-adequately venti-
lated enclosed spaces. Never bring or store a propane cylinder
indoors.
DO NOT OPERATE THIS HEATER UNTIL YOU HAVE READ AND
THOROUGHLY UNDERSTAND THESE SAFETY AND OPERATING
INSTRUCTIONS.
Failure to comply with the precautions and instructions provided with this heater can result
in death, serious bodily injury, property loss or damage from the hazards of fire, explosions,
burns, asphyxiation or carbon monoxide poisoning. Only persons who can read and
understand these instructions should use or service this heater.
WARNING: This product can expose you to chemicals, including lead, which is known to
the State of California to cause cancer and birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov.
EXTREMELY HOT DURING OPERATION! Do Not touch any metal
components while in operation. Keep all combustible materials, gas-
oline, and other flammable vapors and liquid away from this heater.
DANGER
WARNING
WARNING
WARNING
SAFETY INFORMATION
NOT FOR HOME OR RECREATIONAL VEHICLE USE.
Carbon Monoxide Hazard This heater produces carbon monoxide,
which has no odor. Burning the heater in an enclosed space can
kill you. Never use the heater in enclosed spaces such as a tent,
a camper, any vehicle or recreational vehicle (RV), enclosed shelter, or any other enclosed
areas.
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or
loss of life.
WARNING
DANGER
DANGER
TABLE OF CONTENTS
Safety Information......................................................2-5
Specifications..................................................................5
Features............................................................................6
What’s in the Box............................................................6
Unpacking........................................................................6
Assembly ........................................................................ 7
Operation....................................................................8-10
Ventilation........................................................................10
Storage and Maintenance...........................................11
Troubleshooting Guide................................................12
Exploded View & Parts List.........................................13
Warranty...........................................................................14

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2019 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
3
SAFETY INFORMATION CONT.
The products described in this manual are pro-
pane direct-fired, forced air heaters. Propane
forced air heaters are primarily intended for use
for temporary heating of buildings under construc-
tion, alteration or repair. Direct-fired means that
all of the combustion products of the heater enter
the heated space. This appliance is rated at 98%
combustion eciency, but does produce small
amounts of carbon monoxide.
Carbon monoxide is toxic. Humans can tolerate
only small amounts of carbon monoxide and so
precautions should be taken to provide proper
ventilation. Failure to provide proper ventilation
in accordance with the instructions in this manual
can result in death.
People with breathing problems should consult a
physician before using this heater.
Early signs of carbon monoxide poisoning re-
semble the flu. Symptoms of improper ventilation /
carbon monoxide poisoning are:
Headache • Dizziness • Nausea • Dry Mouth
Sore Throat • Burning of Nose and Eyes
If you experience any of these symptoms:
GET FRESH AIR AT ONCE! Have your heater
serviced and check for proper ventilation. Some
people are more affected by carbon monoxide
than others. These include: pregnant women, those
with heart or lung problems, anemia or those under
the influence of alcohol or at high altitudes.
FOR INDOOR USE ONLY: Adequate ventilation
shall be provided in accordance with OSHA 29
CFR 1926.154, Safety Requirements for Temporary
and Portable Space Heating Devices and
Equipment, ANSI A10.10, ANSI Z223.1/NFPA 54
Liquefied Petroleum Gas Code, NFPA 58 or the
Natural Gas and Propane Installation Code, CAN
B149.1 as appropriate.
WHAT TO DO IF THE SMELL OF GAS IS PRESENT:
–DO NOT attempt to light the heater.
–Extinguish any open flame.
–Shut o gas to heater.
–If odor continues, contact your local gas
supplier or fire department.
–DO NOT touch or use any electric switch or
any electric device that can cause a spark.
–Immediately call your gas supplier from a
neighbors phone. Follow the gas suppliers
instructions.
–If you can not reach your gas supplier, call the
fire department.
–Service must be done by a qualified service
agency.
NEVER store or use gasoline or other flammable
vapors and liquids in the vicinity of this heater.
NEVER store a propane (LP) cylinder not connected
to this heater in the vicinity of this heater.
NEVER connect heater to an unregulated gas supply.
NEVER obstruct the flow of combustion and
ventilation air.
NEVER use duct work in front or rear of heater.
NEVER modify this heater or operate a heater that
has been modified.
NEVER service, move or handle heater while still hot
or operating
Keep all combustible materials, gasoline, and other
flammable vapors and liquid away from this heater.
Minimum Clearance From Combustibles
Front Sides Top
40 in. 16 in. 40 in.
RISK OF BURNS,
FIRE AND EXPLO-
SION!
PROPANE IS AN
EXPLOSIVE GAS.
DANGER
WARNING
RISK OF INDOOR
AIR POLLUTION!
WARNING
CARBON MONOXIDE
POISONING MAY
LEAD TO DEATH!
DANGER

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2019 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
4
–Do not use this heater for heating human living
quarters
–Use of direct-fired heaters in the construction
environment can result in exposure to levels of
CO, CO, and NOconsidered to be hazardous
to health and potentially life threatening
–Do not use in unventilated areas
–Know the signs of CO and COpoisoning
•Headaches, stinging eyes
•Dizziness, disorientation
•Difficulty breathing, feels of being
suffocated
–Proper ventilation air exchange (OSHA 29
CFR 1926.57) to support combustions and
maintain acceptable air quality shall be
provided in accordance with OSHA 29 CFR
Part 1926.154, ANSI A10.10 Safety Requirements
for Temporary and Portable Space Heating
Devices and Equipment used in the
Construction Industry or the Natural Gas and
Propane Installation Codes CSA B149.1
–Periodically monitor levels of CO, COand
NOexisting at the construction site – at the
minimum at the start of the shift and after 4
hours.
–Provide ventilation air exchange, either
natural or mechanical, as required to maintain
acceptable indoor air quality
–Ensure that the flow of combustion and
ventilation air exchanges cannot become
obstructed
–As the building “tightens up” during the
construction phase ventilation may need to be
increased
AIR QUALITY HAZARD
WARNING
USA 8-Hr Time weighted average
(OSHA 29 CFR 1926.55 App A)
Canada 8-hr time weighted average WorkSafe
BC OHS Guidelines Part 5.1 and Ontario Work-
places Reg 833
CO 50 ppm 25 ppm
CO 5000 ppm 5000 ppm
NO 3 ppm (Reg 833)
USA – Ceiling Limit
(Short Term Exposure Limit = 15 minutes)
Canada STEL (15 minutes Reg 833/1 hour
WSBC) WorkSafe BC OHS Guidelines Part 5.1
and Ontario Workplaces Reg 833
CO 100 ppm
CO 15000 ppm (WSBC)
30000 ppm (Reg 833)
NO 5 ppm 1.0 ppm (WorkSafeBC)
5.0 ppm (Reg 833)
SAFETY INFORMATION CONT.
CAUTION! HOT WHILE
IN OPERATION. DO NOT
TOUCH. KEEP CHILDREN,
ANIMALS, CLOTHING AND COMBUSTIBLES AWAY
FROM HEATER.
WARNING

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2019 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
5
RISK OF FIRE! ALWAYS LOCATE HEATER ON A STABLE AND LEVEL
SURFACE!
WARNING
SPECIFICATIONS
Model # PT-18PNCH-A
BTU 6,000 / 12,000 / 18,000
Fuel Consumption (lb./hr) 0.29 /0.57 / 0.86
Heat Settings 3
Maximum Operating Hours 69 / 35 / 23
Required Cylinder Lbs. 20
Fuel Type Use ONLY 20 lb. LP Gas
Cylinder: 18" x 12.25"
Heating Area (Ft.2) 150 / 300 / 450
Specifications subject to change without notice.
–ALWAYS install the heater so that it is not directly
exposed to water spray, rain, dripping water, or
wind.
–Use heater in accordance with all local codes
and with CSA 5.90 U.S. (5th Ed.) Infrared Patio
Heater.
–This heater is shipped from the factory for use
with propane (LP) gas only. Do not convert
to any other gas. Installation must conform
to local codes, or in their absence, with the
standard for the Storage and Handling of
Liquefied Petroleum Gases ANSI/NFPA 58 and
the Natural Gas and Propane Installation Code
CSA B149.1.
–Gas supply connections should be checked by
using a 50/50 soap and water solution. Never
use a flame to check for gas leaks.
–Use only the regulator and hose assembly
provided with this heater. Inspect the
regulator/hose assembly prior to each use
of the heater. If there is excessive abrasion
or wear, or if the hose is cut, replace it with
the proper assembly shown in the parts list,
prior to using the heater. The replacement
hose assembly should follow manufacturer's
specification.
–This heater is not for use on finished floors.
Minimum and Maximum Inlet Pressure
Model PT-18PNCH-A
Min. 5 PSI
Max. Bottle Pressure
For use with propane
(LP) gas only.
WARNING
The hose assembly
shall be protected
from trac, building
material and contact with hot surfaces both
during use and while in storage.
WARNING
SAFETY INFORMATION CONT.

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2019 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
6
1. Remove all packing items applied to heater for
shipment. Keep plastic cover caps attached to
inlet connector and hose / regulator assembly
for storage.
2. Remove all items from carton
3. Check all items for shipping damage. If the
heater is damaged, promptly inform dealer
where you purchased the heater.
UNPACKING
The Propane (LP)
gas pressure
regulator and hose
assembly supplied with the heater must be
used without alteration.
CAUTION

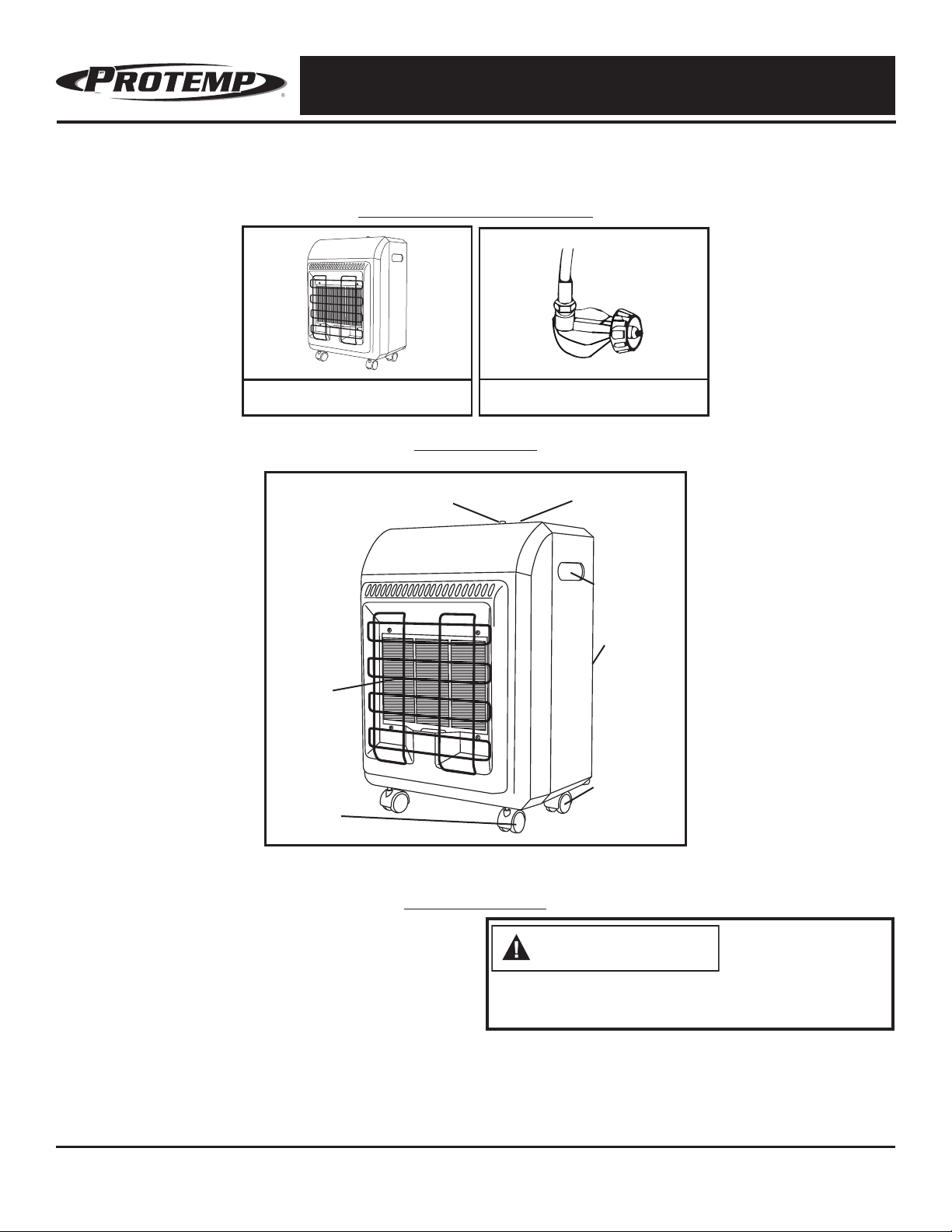

FEATURES
WHAT'S IN THE BOX
Safety
Guard
Piezo Valve Knob
Handle
Slot
Protective
Guard
Rear
Castor
Front
Castor
Heater Cabinet Hose and Regulator

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2019 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
7

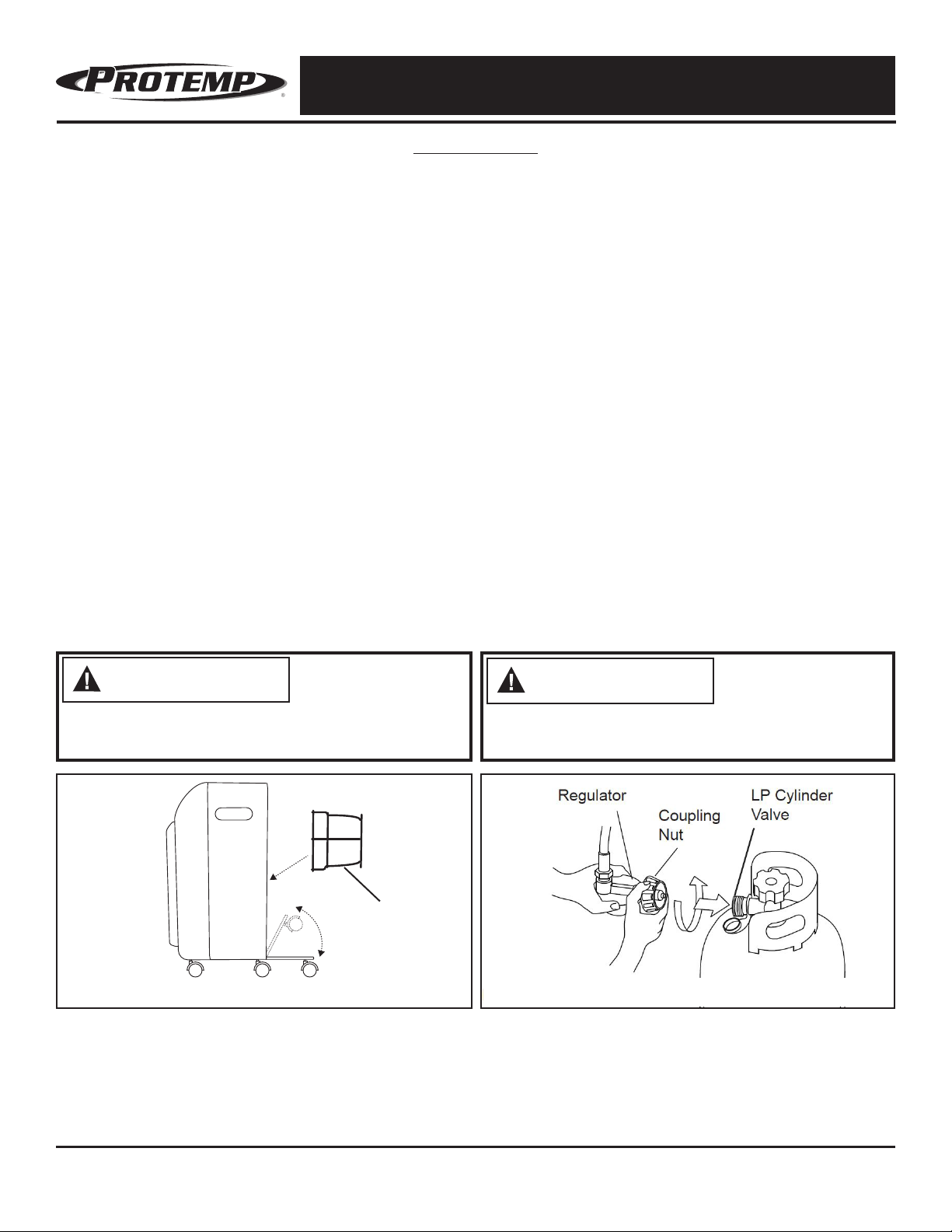

1. Place heater on a flat surface.
2. Fold propane tank tray down (see Figure 1)
3. Attach Back Cover.
4. Inspect heater closely for any damage that
may have occured during shipping. If there
is any damage, return the heater to place of
purchase.
Connecting to Gas Supply
IMPORTANT! - Always use a propane (LP)
cylinder that has a connection device compatible
with the hose and regulator assembly supplied.
1. Remove the back cover by sliding the cover
straight up and away from the heater body.
Place the LP cylinder on the bottom plate and
replace the back cover.
2. To connect LP cylinder, insert regulator end
fitting into cylinder valve, rotate coupling nut
clockwise and tighten firmly (see Figure 2)
3. Open valve on propane cylinder slowly. If the
valve is not opened slowly, the excess flow
check valve in the regulator will stop the flow
of gas. If this should happen, close the valve,
wait one minute (or until you hear the valve
click), and re-open, slowly.
4. Be sure to inspect all connections for leaks, by
using a 50/50 mixture of dish soap and water
on all connection. Any bubbles forming indi-
cate a leak.
ASSEMBLY
The Propane (LP)
gas pressure
regulator and hose
assembly supplied with the heater must be used
without alteration.
Be sure to inspect
the regulator hose
before each use.
If the hose is cut or frayed, replace it with the
manufacturer suggested assembly.
CAUTION
CAUTION
Figure 1 Figure 2
Back
Cover

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2019 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
8
OPERATION
Propane Supply / Information:
Propane (LP)
This heater is not supplied with a propane cylinder. Use
only an approved propane cylinder.
LP Characteristics
– Flammable, explosive under pressure, heavier than
air and pools in low areas.
– In its natural state, propane has no odor, but for your
safety an odor that smells like rotten cabbage has
been added.
– Contact of propane (LP) gas with the skin can cause
freeze burns.
– Heater is manufactured for use with propane gas
only. DO NOT attempt to convert to any other gas.
Such modifications are dangerous and will void the
warranty.
– When heater is not in use, LP Cylinder must be
turned OFF.
– Be sure that the LP Cylinder is located on a level and
stable surface.
– DO NOT use this heater in a basement or below
ground level. Propane is heavier than air and will
always seek the lowest level. If you suspect a leak,
shut o the valve at the LP Cylinder immediately.
The Propane (LP) cylinder must also be equipped with
the following:
– A collar to protect the gas valve.
– A shut-o valve terminating a LP cylinder valve
outlet as specified in the American National
Standard for Compressed Gas Cylinder Valve
Outlets and Inlets Connections.
– A safety relief valve having direct communications
with the vapor space of the LP cylinder.
– The heater must operate on vapor withdrawal from
the operating cylinder.
– Always keep LP cylinder fastened and upright.
– Avoid tipping the LP cylinder on its side when
connected to a regulator, since this may cause
damage to diaphragm in the regulator.
– Handle valves with care.
– Never connect an unregulated LP cylinder to a
construction heater.
– DO NOT subject LP cylinder to excessive heat.
– Tightly close the gas shuto valve on the LP
cylinder after each use.
– All fittings must be protected when disconnected
from the LP cylinder.
– Never store an LP cylinder inside a building or in the
vicinity of an gas burning appliances.
Pre-Lighting Instructions:
Connecting the LP Cylinder
ALL NEW LP CYLINDERS MUST BE PURGED
BEFORE THE FIRST FILLING.
– Turn heater gas valve knob and LP cylinder valve
to OFF position.
– LP cylinder valve equipped with old style fitting has
LEFT HANDED THREADS. Turn fitting CLOCKWISE
to loosen. Protect this fitting when disconnected
from LP cylinder.
– Have your LP cylinder filled by your local propane
gas supplier.
– Some LP cylinders have a bleed-OFF valve. This
valve should be inspected for leaks after each
filling of the LP cylinder. Turn the valve clockwise to
close.
– Fasten full propane tank and connect proper
fitting to LP cylinder valve by turning COUNTER-
CLOCKWISE.
– With heater gas valve knob still in OFF position
turn ON the LP cylinder valve and check for leaks
with soap solution.
Propane is safe
to use when
properly handled.
Careless handling of the LP cylinder could
result in a fire and or an explosion.
CAUTION
The disconnected
tank must never
be stored in a
building, garage or any other enclosed
area.
CAUTION
Purging and
filling of the LP
cylinders must be
performed by personnel who have been
thoroughly trained in accepted LP gas
industry procedures. Failure to follow these
instructions may result in explosion, fire,
severe personal injury or death.
WARNING

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2019 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
9
OPERATION CONT.
Checking For Leaks
– To check for leaks, make up a 50/50 solution
of dish soap and water. Apply this solution to
all gas connections. If bubbles appear, there
is a leak. If a leak is found, turn o the gas
supply, and re-connect the leaking connection.
If the leak persists after several tries, contact
Pinnacle Customer Service at [phone].
– The installation of this heater must meet all
local codes and/or gas utility requirements. In
the absence of local codes, the National Fuel
Code ANSI Z223.1 should be followed.
– The minimum clearances to any combustible
construction materials must be maintained at
all times (See Page 3).
– Inspect the heater before each use, and at
least annually by a qualified service person.
Supply Valve
Regulator
Hose
Propane Tank
Figure 6
EXTREMELY HOT
during operation. Do
Not touch any metal
components while in operation. Keep gasoline
and any other flammable liquids away from
the heater.
WARNING

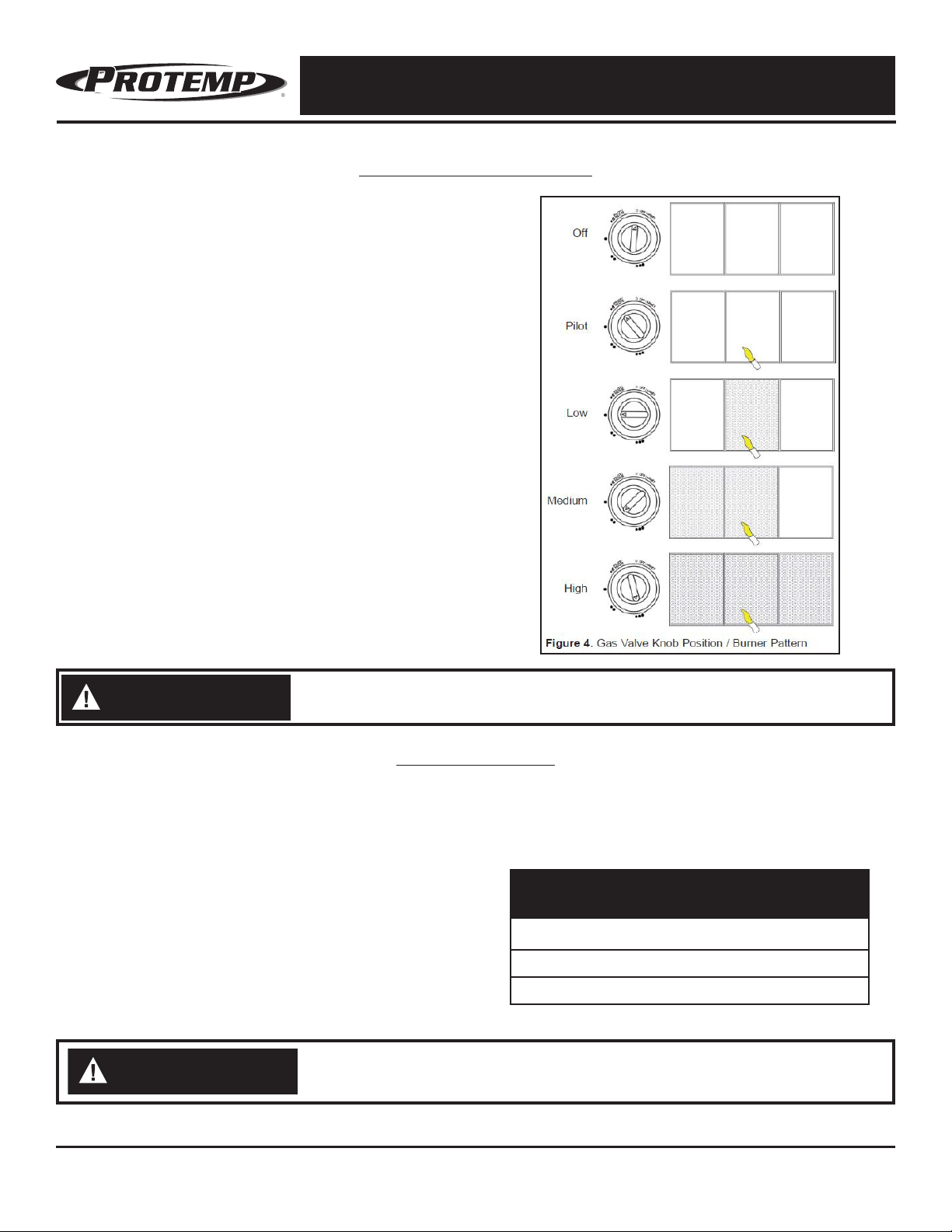

Lighting Instructions:
1. STOP! Read all of the safety information
provided with this heater.
2. Turn valve on propane cylinder
COUNTERCLOCKWISE until fully open.
3. Wait five (5) minutes for any gas to clear. Smell
for gas. If none is evident, proceed to the next
step.
4. Push in the valve knob and turn to "PILOT".
NOTE: If this is first time use for heater or LP
cylinder has been replaced, hold the valve knob for
approximately 30 seconds to allow bleeding of air
from system then turn valve knob to PILOT.
5. While depressing the valve knob, press red
piezo ignition button to ignite. It may be
necessary to press the igniter button several
times to ignite the center burner panel.
6. Continue to hold valve knob down for 30
seconds after the panel has lit. This will heat the
thermocouple. After 30 seconds, release the
valve knob.
7. If heater fails to light, or does not stay lit, repeat
steps 2 through 6.
8. When the center burner panel stays lit, turn the
valve knob to the desired setting.
Shut Down Instructions:
1. Turn valve knob to the OFF position.
2. Turn the knob at the LP cylinder CLOCKWISE to
the OFF position.
3. Disconnect regulator hose assembly from the
LP cylinder.

NEVER LEAVE HEATER UNATTENDED WHILE BURNING, CONNECTED
TO A POWER SOURCE, OR WHILE CONNECTED TO A FUEL SOURCE.
© 2019 Pinnacle Climate Technologies, Inc. Cabinet Heater User's Manual
10
Test Firing Heater:
It is always a good idea to test fire your heater
in a safe and controlled environment, in an area
with adequate ventilation, and away from any
combustibles to be sure that all functions of the
heater and gas supply system are operating
properly.
Leak test all gas connections with a 50/50 solution
of dish soap and water. DO NOT use a flame to test
for leaks!
Moving and Positioning the Heater:
There is a brake in each of the front wheels of your
heater that helps keep it in place when in use. To
engage the brakes, push the lever down on each
wheel. To move the heater, release the brakes,
simply by flipping the levers on both brakes up.
The gas must be turned o at the propane supply
cylinders(s) when the heater is not in use.
OPERATION CONT.
–Risk of indoor air pollution and Carbon
Monoxide Poisoning. Use heater only in well
ventilated areas.
–Refer to Safety Information on pages 2-3
for information about Carbon Monoxide
Poisoning.
–ALWAYS provide a fresh air opening in the
heated space of at least 3 square feet (2,800
sq. cm) for each 100,000 BTU / Hr. of heater
output. Provide a larger opening if more
heaters are being used.
– FOR INDOOR USE PERMITTED ONLY
FOR: The temporary heating of adequately
ventilated buildings or structures under
construction, alteration or repair.
Minimum Ventilation Opening Needed
PT-18PNCH-A
0.54 ft.2
501.7 cm2
CARBON MONOXIDE POISONING MAY LEAD TO DEATH!
Not for use in residential living areas or in non-adequately
ventilated enclosed spaces.
DANGER
DANGER
VENTILATION
