Pinnacle PCTV 100I User manual

PCTV 100i
Hardware

PCTV 100i Hardware
GB January 2005
© Pinnacle Systems GmbH 2005
All rights reserved.
No part of this manual may be reproduced or transferred to other media without
explicit written permission from Pinnacle Systems GmbH, Braunschweig,
Germany.
All brand or product names are trademarks or registered trademarks of their
respective holders.
This manual is printed on chlorine-free, bleached paper using solvent-free ink.
Pinnacle Systems GmbH has written this manual to the best of its knowledge,
but does not guarantee that the programs/systems will fulfill the users’ intended
applications.
No warranty is made as to the specifications of features.
Pinnacle Systems GmbH retains the right to make alterations to the content of
the manual without obligation to inform third parties.
All quotes, sales, supply and manufacturing contracts from Pinnacle Systems
GmbH, including consulting, installation and other contractual services are
subject exclusively to the General Sales and Delivery Terms of Pinnacle
Systems GmbH.

i
Table of Contents
System requirements ............................................................................................. 1
Computer hardware............................................................................................ 1
Computer software............................................................................................. 1
For your own safety............................................................................................... 2
Hardware Installation ............................................................................................ 3
Preparing installation ......................................................................................... 3
Using PCTV MediaCenter 100i hardware......................................................... 4
After installation ................................................................................................ 4
Connecting the Equipment .................................................................................... 5
Technical Data....................................................................................................... 6
Bus system ......................................................................................................... 6
Video decoder .................................................................................................... 6
TV tuner ............................................................................................................. 6
Video inputs ....................................................................................................... 6
Antenna input..................................................................................................... 6
Remote control input.......................................................................................... 7
Audio output ...................................................................................................... 7

1
System requirements
Your system must satisfy the following requirements in order for your PCTV
MediaCenter 100i to function without problems:
Computer hardware
Processor
Minimum: Pentium III 1 GHz or equivalent AMD processor
Recommended: Pentium IV 2 GHz or AMD Athlon XP 2200+
Memory
Minimum: 256 MB RAM
Recommended: 512 MB RAM
Hard disk
Minimum: IDE hard disk with master mode drivers and with 5 GB free disk
space
Recommended: U-DMA hard disk with 20 GB free disk space
Graphics card
Minimum: DirectX 8-compatible graphics card
Recommended: DirectX 9-compatible (or higher) graphics card
Sound card
Minimum: DirectX 9-compatible sound card
Expansion slot
PCI 2.3-compatible expansion slot
CD-ROM / DVD-ROM drive or recorder
Minimum: CD-ROM or DVD-ROM drive
Recommended: CD or DVD recorder
Computer software
Windows XP (Home Edition, Professional Edition or Media Center Edition
2005) with the latest Service Pack

2
For your own safety
If you purchased your PCTV MediaCenter 100i together with a PC and thus
it is already installed, then please skip the following chapters in this manual and
continue reading with the chapter "Connecting the Equipment“.
In the interest of your own safety and the flawless functioning of your new
PCTV MediaCenter 100i and computer system please note the following:
Computer components are sensitive to static charge. Divert any electrostatic
charge from your person before touching the components with your hands or
any tools.
Before opening the computer make sure that the power plug is disconnected
from the wall outlet.

3
Hardware Installation
Preparing installation
The only tool you need for the installation is a screwdriver.
Discharge yourself of static charge by touching the power unit casing.
Turn off your computer and all peripheral devices. Disconnect the computer
from the power supply and all necessary components.
Loosen the computer's cover screws and remove the cover.
Select a free PCI (busmaster) slot. Remove the slot's cover at the back of the
computer and keep the screws.

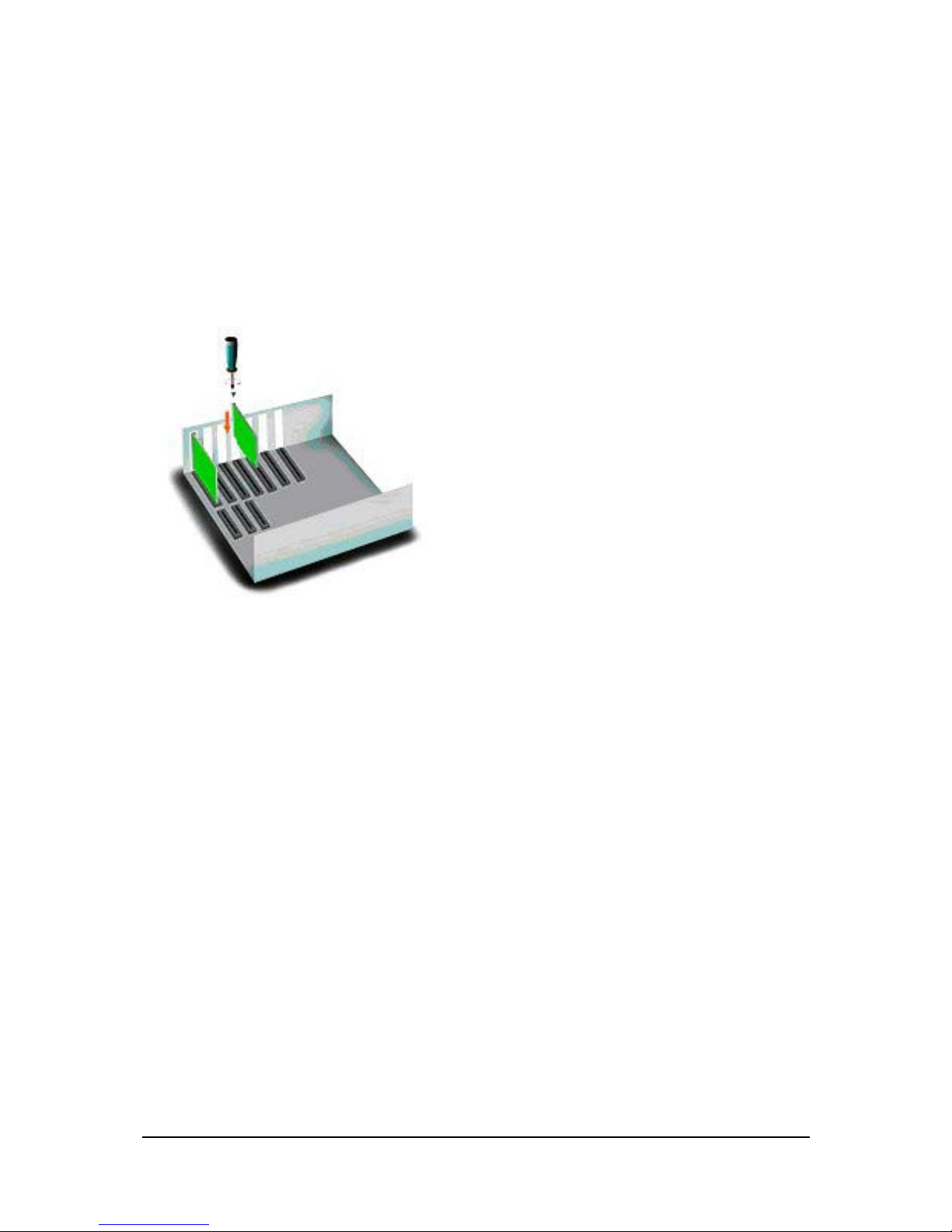

Slots
Slot shields
Power
supply
unit
PCI slots

4
Using PCTV MediaCenter 100i hardware
Please connect an internal audio cable plug to the internal audio output of the
board and the other plug to the internal audio input of your soundcard.
Plug the board into the previously selected PCI slot. To do so hold the board
at the top and push it down into the slot applying even pressure at both ends.
Press down on the upper edge so that the board fits firmly in the slot.
If the board is not easily inserted into the slot, then please do not use force as
this may bend the contact springs on the socket connector. Instead, remove
the board and try to insert it once again.
After installation
After you have inserted the hardware, firmly tighten the retaining bracket of
the board on the back of the computer.
Now place the cover onto your computer and connect the peripheral devices.

5
Connecting the Equipment

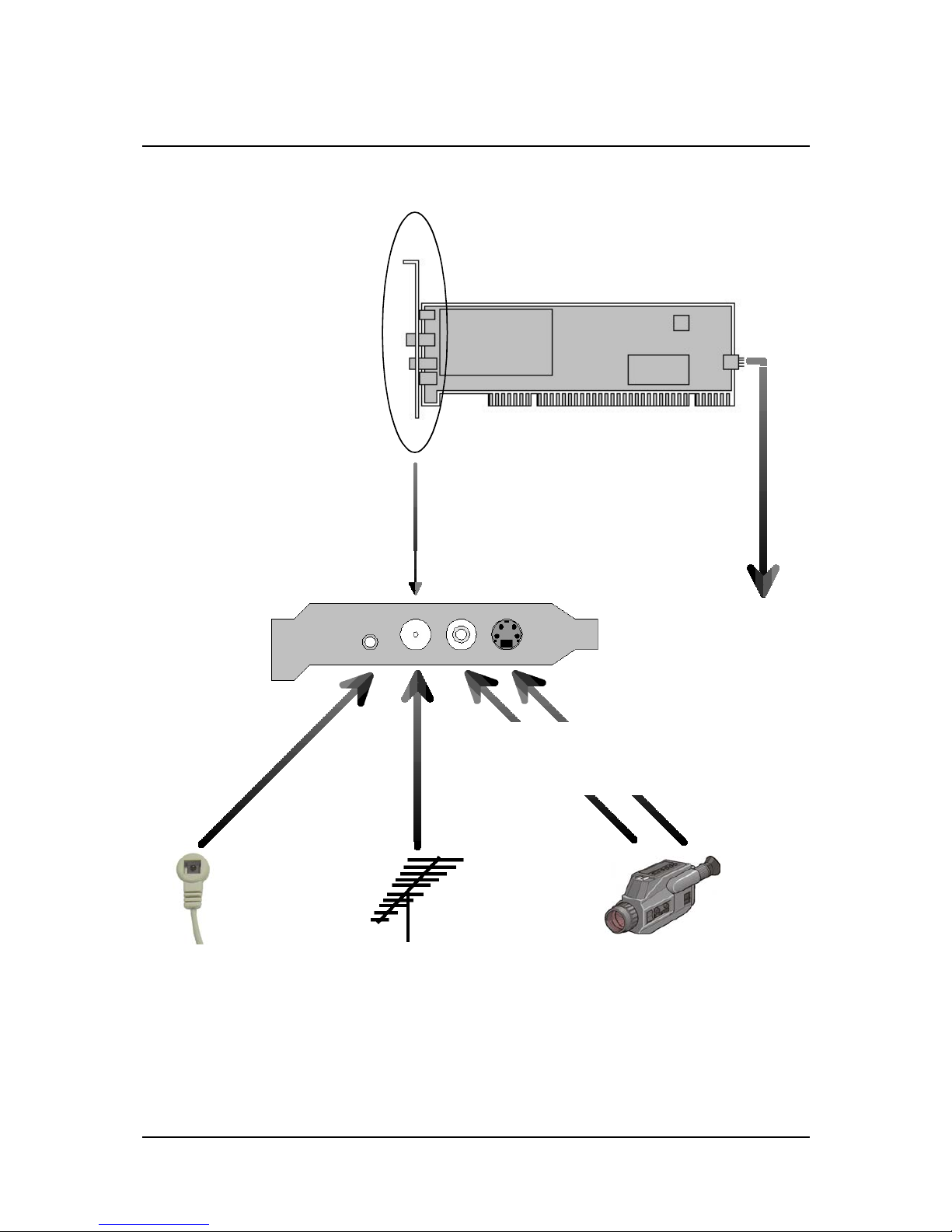

TV antenna
OR
cable terminal
For example:
camcorder, video recorder,
CCD camera, DVD/VCD player,
video game console
Composite video
OR
S-Video
internal
audio
to
sound card
Remote control
receiver

6
Technical Data
Bus system
PCI Rev. 2.3
Video decoder
Philips SAA7134
TV tuner
Microtune MT2050
The tuner supports the following depending on its circuit configuration:
PAL B/G/D/K/I
or
PAL B/G/D/K/I/SECAM
or
NTSC, PAL M/N
The frequency range is 45.75 to 863.25 MHz.
Video inputs
S-Video input (Mini-DIN), Composite video input (chinch)
Antenna input
75 Ohm IEC adapter or F-connector

7
Remote control input
Remote control input for connecting optionally supplied receiver cable
Depending on the model, your board may not have a separate remote
control input terminal. In this case, connect the receiver cable to any available
serial port (RS2323) on your PC.
Audio output
Internal audio output (for the sound card) via 4-pole connector, 2.8 mm pitch
Depending on the model, an optional external 3.5 mm jack plug is available for
audio output.

8
