Pioneer DEH-3000MP User manual

Operation Manual
Mode d’emploi
CD RDS RECEIVER
AUTORADIO CD RDS
DEH-3000MP
English FrançaisDeutschEspañol

Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate
your model properly. After you have finished reading the instructions, keep this man-
ual in a safe place for future reference.
Before You Start
About this unit 3
Visit our website 4
Protecting your unit from theft 4
–Removing the front panel 4
–Attaching the front panel 4
Operating this unit
What’s What 5
–Head unit 5
–Optional remote control 5
–LCD display 6
Basic Operations 6
–Turning the unit on and selecting a
source 6
–Adjusting the volume 6
–Turning the unit off 6
Tuner 7
–Listening to the radio 7
–Storing and recalling broadcast
frequencies 7
–Tuning in strong signals 7
–Storing the strongest broadcast
frequencies 7
–Switching the RDS display 7
–Receiving PTY alarm broadcasts 8
–Selecting alternative frequencies 8
–Receiving traffic announcements 9
Built-in Player 9
–Playing a disc 9
–Repeating play 10
–Playing tracks in random order 10
–Scanning tracks or folders 10
–Pausing disc playback 11
–Using compression and BMX 11
–Searching every 10 tracks in the current
disc or folder 11
–Displaying text information on disc 11
Audio Adjustments 12
–Using balance adjustment 12
–Using the equalizer 12
–Adjusting equalizer curves 12
–Adjusting loudness 12
–Adjusting source levels 12
Other Functions 13
–Adjusting initial settings 13
–Setting the FM tuning step 13
–Switching Auto PI Seek 13
–Switching the auxiliary setting 13
–Saving the battery consumption 13
–Multi language display setting 13
–Sound muting 14
Additional Information
Error messages 15
Handling guideline of discs and player 15
Dual Discs 15
Compressed audio files 16
–Example of a hierarchy 16
–Compressed audio compatibility 16

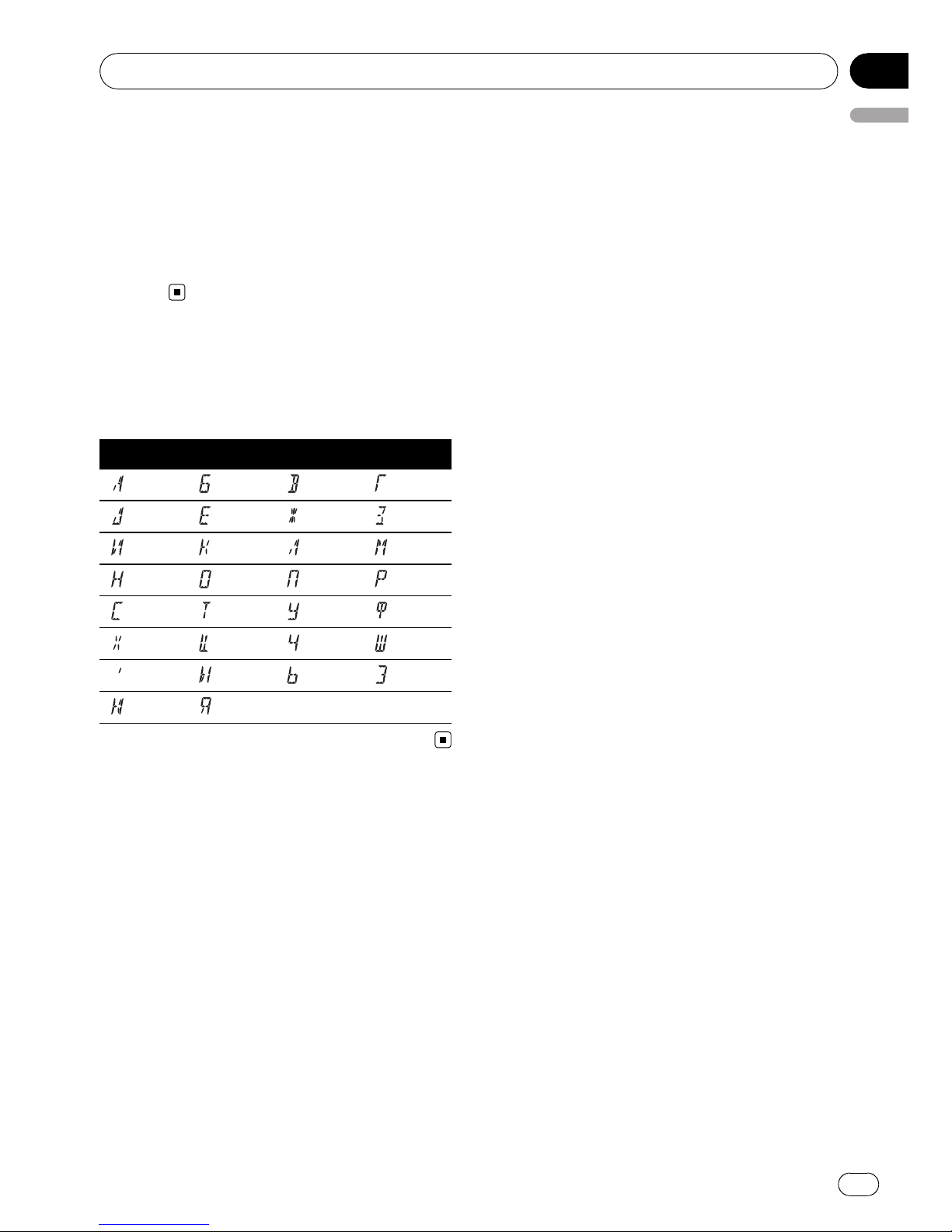

Russian character chart 17
Specifications 18
Contents
En
2

If you want to dispose this product, do not mix
it with general household waste. There is a se-
parate collection system for used electronic
products in accordance with legislation that re-
quires proper treatment, recovery and recy-
cling.
Private households in the member states of the
EU, in Switzerland and Norway may return their
used electronic products free of charge to desig-
nated collection facilities or to a retailer (if you
purchase a similar new one).
For countries not mentioned above, please con-
tact your local authorities for the correct method
of disposal.
By doing so you will ensure that your disposed
product undergoes the necessary treatment, re-
covery and recycling and thus prevent potential
negative effects on the environment and human
health.
About this unit
The tuner frequencies on this unit are allo-
cated for use in Western Europe, Asia, the
Middle East, Africa and Oceania. Use in other
areas may result in poor reception. The RDS
(radio data system) function operates only in
areas with FM stations broadcasting RDS sig-
nals.
CAUTION
!Do not allow this unit to come into contact
with liquids. Electrical shock could result.
Also, damage to this unit, smoke, and over-
heating could result from contact with liquids.
!“CLASS 1 LASER PRODUCT”
This product contains a laser diode of higher
class than 1. To ensure continued safety, do
not remove any covers or attempt to gain ac-
cess to the inside of the product. Refer all ser-
vicing to qualified personnel.
!The Pioneer CarStereo-Pass is for use only in
Germany.
!Keep this manual handy as a reference for op-
erating procedures and precautions.
!Always keep the volume low enough so that
you can hear sounds from outside the vehicle.
!Protect this unit from moisture.
!If the battery is disconnected or discharged,
the preset memory will be erased and must be
reprogrammed.
!Should this product fail to operate properly,
contact your dealer or nearest authorized
Pioneer Service Station.
About WMA
The Windows Media™logo printed on the box
indicates that this unit can play back WMA
data.
WMA is short for Windows Media Audio and
refers to an audio compression technology
that is developed by Microsoft Corporation.
WMA data can be encoded by using Windows
Media Player version 7 or later.
Windows Media and the Windows logo are tra-
demarks or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
!This unit may not operate correctly depend-
ing on the application used to encode
WMA files.
Before You Start
En 3
English
Section
01

About MP3
Supply of this product only conveys a license
for private, non-commercial use and does not
convey a license nor imply any right to use
this product in any commercial (i.e. revenue-
generating) real time broadcasting (terrestrial,
satellite, cable and/or any other media), broad-
casting/streaming via internet, intranets and/
or other networks or in other electronic con-
tent distribution systems, such as pay-audio or
audio-on-demand applications. An indepen-
dent license for such use is required. For de-
tails, please visit
http://www.mp3licensing.com.
Visit our website
Visit us at the following site:
http://www.pioneer.co.uk
!Register your product. We will keep the de-
tails of your purchase on file to help you
refer to this information in the event of an
insurance claim such as loss or theft.
!We offer the latest information about
Pioneer Corporation on our website.
Protecting your unit from
theft
The front panel can be detached to deter theft.
Important
!Handle gently when removing or attaching
the front panel.
!Avoid subjecting the front panel to excessive
shocks.
!Keep the front panel out of direct sunlight and
high temperatures.
Removing the front panel
1 Press DETACH to release the front
panel.
2 Grab the front panel and remove.
3 Put the front panel into provided pro-
tective case for safe keeping.
Attaching the front panel
1 Slide the front panel to the left until it
clicks.
Front panel and the head unit are jointed on
the left side. Make sure that the front panel
has been jointed to the head unit.
2 Press the right side of the front panel
until it is firmly seated.
#If you can’t attach the front panel to the head
unit successfully, try again. Front panel may be
damaged if you attach the front panel forcedly.
Before You Start
En
4
Section
01

What’s What
Head unit
1
1
1
2
2
2
3
3
3
5
5
5
6
6
6
e
e
e
d
d
d
b
b
b
4
4
4
a
a
9
9
9
8
8
8
7
7
c
c
c
1AUDIO button
Press to select various sound quality con-
trols.
2DISPLAY button
Press to select different displays.
3SOURCE button, VOLUME
This unit is turned on by selecting a source.
Press to cycle through all the available
sources.
Press and hold to recall the initial setting
menu when the sources are off.
Rotate it to increase or decrease the vo-
lume.
4LOUD button
Press to turn loudness on or off.
5Disc loading slot
Insert a disc to play.
6EJECT button
Press to eject a CD from your built-in CD
player.
7a/b/c/dbuttons
Press to perform manual seek tuning, fast
forward, reverse and track search controls.
Also used for controlling functions.
8AUX input jack (3.5 mm stereo jack)
Use to connect an auxiliary equipment.
9DETACH button
Press to remove the front panel from the
head unit.
a1 to 6 buttons
Press for preset tuning.
bTA button
Press to turn TA function on or off. Press
and hold to turn AF function on or off.
cEQ button
Press to select various equalizer curves.
dBAND button
Press to select among MW/LW and two FM
bands and cancel the control mode of func-
tions.
eFUNCTION button
Press to recall the function menu when op-
erating a source.
Optional remote control
The remote control CD-SR100 is sold separately.
Operation is the same as when using the but-
tons on the head unit. See the explanation of
the head unit about the operation of each but-
ton with the exception of ATT, which is ex-
plained below.
d
e
f
h
1
g
7
fATT button
Press to quickly lower the volume level by
about 90%. Press once more to return to the
original volume level.
gSOURCE button
Press to cycle through all the available
sources. Press and hold to turn the source
off.
hVOLUME button
Press to increase or decrease the volume.
Operating this unit
En 5
English
Section
02

LCD display
6
3
2
1
5
47 8 9 a
1Main display section
Shows the various information such as
band, play time, and other setting.
!Tuner
Band and frequency are displayed.
!RDS
Program service name, PTY information
or frequency is displayed.
!Built-in CD Player (Audio CD)
Elapsed play time is displayed.
!Built-in CD Player (WMA/MP3/WAV disc)
Folder number and elapsed play time are
displayed.
!Audio and initial setup
Function names and setup status are dis-
played.
2Preset number/track number indicator
Shows the track number or preset number.
!If a track number 100 or more is selected,
don the left of the track number indica-
tor will light.
3AF indicator
Shows when AF (alternative frequencies
search) function is on.
4TP indicator
Shows when a TP station is tuned in.
5TA indicator
Shows when TA (traffic announcement
standby) function is on.
6MP3/WMA indicator
Shows the type of the currently playing disc.
7RPT indicator
Shows when repeat play is turned on.
8LOUD indicator
Appears in the display when loudness is
turned on.
9Stereo (5) indicator
Shows when the selected frequency is
being broadcast in stereo.
aLOC indicator
Shows when local seek tuning is on.
Basic Operations
Turning the unit on and
selecting a source
You can select a source you want to listen to.
To switch to the built-in CD player, load a disc
in the unit (refer to page 9).
%Press SOURCE to select a source.
Press SOURCE repeatedly to switch between
the following sources:
Tuner—Built-in CD player—AUX
Notes
!In the following cases, the sound source will
not change:
—When there is no disc in the unit.
—When AUX (auxiliary input) is set to off
(refer to page 13).
!AUX is set to on by default. Turn off the AUX
when not in use (refer to Switching the auxili-
ary setting on page 13).
!When this unit’s blue/white lead is connected
to the vehicle’s auto-antenna relay control
terminal, the vehicle’s antenna extends when
this unit’s source is turned on. To retract the
antenna, turn the source off.
Adjusting the volume
%Use VOLUME to adjust the sound level.
Turning the unit off
%Press SOURCE and hold until the unit
turns off.
Operating this unit
En
6
Section
02

Tuner
Listening to the radio
1 Press SOURCE to select the tuner.
2 Press BAND to select a band.
Press BAND until the desired band (F1,F2 for
FM or MW/LW) is displayed.
3 To perform manual tuning, briefly press
cor d.
4 To perform seek tuning, press and hold
cor dfor about one second and release.
The tuner will scan the frequencies until a
broadcast strong enough for good reception is
found.
#You can cancel seek tuning by briefly pressing
cor d.
#If you press and hold cor dyou can skip sta-
tions. Seek tuning starts as soon as you release
the button.
Storing and recalling broadcast
frequencies
%When you find a frequency that you
want to store in memory, press one of pre-
set tuning buttons 1 to 6 and hold until the
preset number stops flashing.
Memorized radio station frequency can be re-
called by pressing the preset tuning button.
#Up to 12 FM stations, 6 for each of the two FM
bands, and 6 MW/LW stations can be stored in
memory.
#Press aor bto recall radio station frequen-
cies.
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals
for good reception.
1 Press FUNCTION to select LOCAL.
2 Press aor bto turn local seek tuning
on or off.
3 Press cor dto set the sensitivity.
FM: LOCAL 1—LOCAL 2—LOCAL 3—
LOCAL 4
MW/LW: LOCAL 1—LOCAL 2
The LOCAL 4 setting allows reception of only
the strongest stations, while lower settings let
you receive progressively weaker stations.
Storing the strongest broadcast
frequencies
BSM (best stations memory) lets you automa-
tically store the six strongest broadcast fre-
quencies under preset tuning buttons 1to 6.
Once stored you can tune in to those frequen-
cies with the touch of button.
!Storing broadcast frequencies with BSM
may replace broadcast frequencies you
have saved using buttons 1to 6.
1 Press FUNCTION to select BSM.
2 Press ato turn BSM on.
Six strongest broadcast frequencies will be
stored in the order of their signal strength.
#To cancel the storage process, press b.
Switching the RDS display
RDS (radio data system) contains inaudible in-
formations that helps searching of the radio
stations.
!RDS service may not be provided by all sta-
tions.
!RDS functions such as AF and TA are only
active when your radio is tuned to an RDS
station.
%Press DISPLAY.
Press DISPLAY repeatedly to switch between
the following settings:
Program service name—PTY information—
Frequency
#PTY information and the frequency appear on
the display for eight seconds.
Operating this unit
En 7
English
Section
02

PTY list
Specific Type of program
NEWS News
AFFAIRS Current affairs
INFO General information and advice
SPORT Sports
WEATHER Weather reports/meteorological infor-
mation
FINANCE Stock market reports, commerce,
trading, etc.
POP MUS Popular music
ROCK MUS Contemporary modern music
EASY MUS Easy listening music
OTH MUS Non-categorized music
JAZZ Jazz
COUNTRY Country music
NAT MUS National music
OLDIES Oldies, golden oldies
FOLK MUS Folk music
L.CLASS Light classical music
CLASSIC Classical music
EDUCATE Educational programs
DRAMA Radio plays and serials
CULTURE National or regional culture
SCIENCE Nature, science and technology
VARIED Light entertainment
CHILDREN Children’s
SOCIAL Social affairs
RELIGION Religious affairs or services
PHONE IN Phone in
TOURING Travel programs; not for traffic an-
nouncements
LEISURE Hobbies and recreational activities
DOCUMENT Documentaries
Receiving PTY alarm broadcasts
When the emergency PTY code broadcasts,
the unit receives it automatically (ALARM ap-
pears). When the broadcasting ends, the sys-
tem returns to the previous source.
!An emergency announcement can be can-
celed by pressing TA.
Selecting alternative frequencies
When the tuner can’t get good reception, the
unit automatically search for a different sta-
tion in a same network.
%Press and hold TA repeatedly to turn AF
(alternative frequency search) on or off.
Notes
!You can also turn the AF function on or off in
the menu that appears with the pressing of
FUNCTION.
!Only RDS stations are tuned in during seek
tuning or BSM when AF is on.
!When you recall a preset station, the tuner
may update the preset station with a new fre-
quency from the station’s AF list. (This is only
available when using presets on the F1 or F2
bands.) No preset number appears on the dis-
play if the RDS data for the station received
differs from that for the originally stored sta-
tion.
!Sound may be temporarily interrupted by an-
other program during an AF frequency
search.
!AF can be turned on or off independently for
each FM band.
Using PI Seek
If the tuner can’t find a suitable station, or re-
ception status becomes bad, the unit will auto-
matically search for a different station with a
same programming. During the search,
PI SEEK is displayed and the output is muted.
Using Auto PI Seek for preset stations
When preset stations cannot be recalled, as
when travelling long distances, the unit can
be set to perform PI Seek during preset recall.
!The default setting for Auto PI Seek is off.
See Switching Auto PI Seek on page 13.
Operating this unit
En
8
Section
02

Limiting stations to regional
programming
When AF is used, the regional function limits
the selection of stations broadcasting regional
programs.
1 Press FUNCTION to select REG.
2 Press aor bto turn the regional func-
tion on or off.
Notes
!Regional programming and regional networks
are organized differently depending on the
country (i.e., they may change according to
the hour, state or broadcast area).
!The preset number may disappear from the
display if the tuner tunes in a regional station
which differs from the originally set station.
!The regional function can be turned on or off
independently for each FM band.
Receiving traffic announcements
TA (traffic announcement standby) lets you re-
ceive traffic announcements automatically, no
matter what source you are listening to. TA
can be activated for both a TP station (a sta-
tion that broadcasts traffic information) or an
enhanced other network’s TP station (a station
carrying information which cross-references
TP stations).
1 Tune in a TP or enhanced other net-
work’s TP station.
TP indicator will light.
2 Press TA to turn traffic announcement
standby on.
#To turn traffic announcements standby off,
press TA again.
3 Use VOLUME to adjust the TA volume
when a traffic announcement begins.
The newly set volume is stored in memory and
recalled for subsequent traffic announce-
ments.
4 Press TA while a traffic announcement
is being received to cancel the announce-
ment.
The tuner returns to the original source but re-
mains in the standby mode until TA is pressed
again.
Notes
!You can also turn the TA function on or off in
the menu that appears with the pressing of
FUNCTION.
!The system switches back to the original
source following traffic announcement recep-
tion.
!Only TP and enhanced other network’s TP sta-
tions are tuned in during seek tuning or BSM
when TA is on.
Built-in Player
Playing a disc
1 Insert a CD (CD-ROM) into the disc load-
ing slot.
Playback will automatically start.
#Be sure to turn up the label side of a disc.
#After a CD (CD-ROM) has been inserted, press
SOURCE to select the built-in CD player.
#You can eject a CD (CD-ROM) by pressing
EJECT.
2 Press aor bto select a folder when
playing a compressed audio.
#You cannot select a folder that does not have
a compressed audio file recorded in it.
#To return to folder 01 (ROOT), press and hold
BAND. However, if folder 01 (ROOT) contains no
files, playback commences with folder 02.
3 To perform fast forward or reverse,
press and hold cor d.
#If you select ROUGH, pressing and holding c
or denables you to search every 10 tracks in the
current disc (folder). (Refer to Searching every 10
tracks in the current disc or folder on page 11.)
Operating this unit
En 9
English
Section
02

4 To skip back or forward to another
track, press cor d.
Notes
!Read the precautions with discs and player on
page 15.
!If an error message such as ERROR-11 is dis-
played, refer to Error messages on page 15.
!There is sometimes a delay between starting
up disc playback and the sound being issued.
When being read, FRMTREAD is displayed.
!When playing CD-EXTRA or MIXED-MODE
CDs, compressed audio and CD-DA can be
switched by pressing BAND.
!If you have switched between compressed
audio and CD-DA, playback starts at the first
track on the disc.
!The built-in CD player can play back com-
pressed audio recorded on CD-ROM. (Refer to
page 16 for files that can be played back.)
!When playing back VBR (variable bit rate) re-
corded files, elapsed play time may not be dis-
played correctly.
!When playing compressed audio, there is no
sound on fast forward or reverse.
Repeating play
Repeat play plays the same track/folder within
the selected repeat play range.
1 Press FUNCTION to select RPT.
2 Press cor dto select the repeat range.
DSC –Repeat all tracks
TRK –Repeat just the current track
FLD –Repeat the current folder
#If you select another folder during repeat play,
the repeat play range changes to disc repeat.
#When playing CD, performing track search or
fast forward/reverse cancels the repeat play auto-
matically.
#When playing compressed audio, performing
track search or fast forward/reverse during TRK
(track repeat) changes the repeat play range to
folder repeat.
#When FLD (folder repeat) is selected, it is not
possible to play back a subfolder of that folder.
#To return to the normal display, press BAND.
Playing tracks in random order
Tracks in a selected repeat range are played in
random order.
1 Select the repeat range.
Refer to Repeating play on this page.
2 Press FUNCTION to select RDM.
3 Press aor bto turn random play on or
off.
When random play is on, RDM appears in the
display.
If you turn random play on during folder re-
peat, FRDM appears in the display.
#To return to the normal display, press BAND.
Scanning tracks or folders
Scan play searches the song within the se-
lected repeat range.
1 Select the repeat range.
Refer to Repeating play on this page.
2 Press FUNCTION to select SCAN.
3 Press ato turn scan play on.
SCAN appears in the display. The first 10 sec-
onds of each track is played.
#If you turn scan play on during FLD,FSCN ap-
pears in the display.
4 When you find the desired track press
bto turn scan play off.
#If the display has automatically returned to
the playback display, select SCAN again by press-
ing FUNCTION.
#After scanning of a disc (folder) is finished,
normal playback of the tracks will begin again.
Operating this unit
En
10
Section
02

Pausing disc playback
Pause lets you temporarily stop playback of
the disc.
1 Press FUNCTION to select PAUSE.
2 Press aor bto turn pause on or off.
#To return to the normal display, press BAND.
Using compression and BMX
Using the COMP (compression) and BMX
functions let you adjust the sound playback
quality of this unit.
1 Press FUNCTION to select COMP OFF.
2 Press aor bto select your favorite set-
ting.
COMP OFF—COMP 1—COMP 2—
COMP OFF—BMX 1—BMX 2
#To return to the normal display, press BAND.
Searching every 10 tracks in the
current disc or folder
You can switch the search method between
fast forward/reverse and searching every 10
tracks. Selecting ROUGH enables you to
search every 10 tracks.
1 Press FUNCTION to select FF/REV.
#If the search method ROUGH has been pre-
viously selected, ROUGH will be displayed.
2 Press dto select ROUGH.
!FF/REV –Fast forward and reverse
!ROUGH –Searching every 10 tracks
#To select FF/REV, press c.
3 Press BAND to return to the playback
display.
4 Press and hold cor dto search every
10 tracks on a disc (folder).
#If the rest of track number is less than 10,
press and hold cor drecalls the first (last) one.
Displaying text information on
disc
%Press DISPLAY.
Press DISPLAY repeatedly to switch between
the following settings:
For CD TEXT discs
Play time—DISC TTL (disc title)—ART NAME
(disc artist name)—TRK TTL (track title)—
ART NAME (track artist name)
For WMA/MP3 discs
Play time—FOLDER (folder name)—FILE (file
name)—TRK TTL (track title)—ART NAME (ar-
tist name)—ALBM TTL (album title)—
COMMENT (comment)—Bit rate
For WAV discs
Play time—FOLDER (folder name)—FILE (file
name)—Sampling frequency
Notes
!You can scroll to the left of the title by pressing
and holding DISPLAY.
!Audio CD that contains certain information
such as text and/or number is CD TEXT.
!If specific information has not been recorded
on a disc, NO XXXX will be displayed (e.g.,
NO T-TTL).
!When playing back VBR (variable bit rate)-re-
corded WMA files, the average bit rate value is
displayed.
!When playing back VBR (variable bit rate)-re-
corded MP3 files, VBR is displayed instead of
bit rate value.
!Depending on the version of iTunes®used to
write MP3 files onto a disc, comment informa-
tion may not be correctly displayed.
—iTunes is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.
!The sampling frequency shown in the display
may be abbreviated.
Operating this unit
En 11
English
Section
02

Audio Adjustments
Using balance adjustment
Fader/balance setting creates an ideal listen-
ing environment in all occupied seats.
1 Press AUDIO to select FAD.
2 Press aor bto adjust front/rear speak-
er balance.
FAD F15 to FAD R15 is displayed.
#FAD 0 is the proper setting when only two
speakers are used.
3 Press cor dto adjust left/right speaker
balance.
BAL L15 to BAL R15 is displayed.
#To return to the normal display, press BAND.
Using the equalizer
There are six stored equalizer settings such as
DYNAMIC,VOCAL,NATURAL,CUSTOM,
FLAT and POWERFUL that can easily be re-
called at any time.
!CUSTOM is an adjusted equalizer curve
that you create.
!When FLAT is selected no supplement or
correction is made to the sound.
%Press EQ to select the equalizer.
Press EQ repeatedly to switch between the fol-
lowing equalizers:
DYNAMIC—VOCAL—NATURAL—CUSTOM
—FLAT—POWERFUL
Adjusting equalizer curves
You can adjust the currently selected equalizer
curve setting as desired. Adjusted equalizer
curve settings are memorized in CUSTOM.
Adjusting bass/mid/treble
You can adjust the bass/mid/treble level.
1 Press AUDIO to select BASS/MID/
TREBLE.
2 Press aor bto adjust the level.
+6 to –6is displayed as the level is increased
or decreased.
#To return to the normal display, press BAND.
Adjusting loudness
Loudness compensates for deficiencies in the
low- and high-sound ranges at low volume.
1 Press AUDIO to select LOUD.
2 Press aor bto turn loudness on or off.
#You can also turn loudness on or off by press-
ing LOUD.
3 Press cor dto select a desired level.
LOW (low)—HI (high)
#To return to the normal display, press BAND.
Adjusting source levels
SLA (source level adjustment) lets you adjust
the volume level of each source to prevent ra-
dical changes in volume when switching be-
tween sources.
!Settings are based on the FM volume level,
which remains unchanged.
!The MW/LW volume level can also be ad-
justed with source level adjustments.
1 Compare the FM volume level with the
level of the source you wish to adjust.
2 Press AUDIO to select SLA.
3 Press aor bto adjust the source vo-
lume.
SLA +4 to SLA –4is displayed as the source
volume is increased or decreased.
#To return to the normal display, press
BAND.
Operating this unit
En
12
Section
02

Other Functions
Adjusting initial settings
Using the initial settings, you can customize
various system settings to achieve optimal per-
formance from this unit.
1 Press SOURCE and hold until the unit
turns off.
2 Press SOURCE and hold until function
name appears in the display.
3 Press FUNCTION to select one of the in-
itial settings.
Press FUNCTION repeatedly to switch be-
tween the following settings:
FM (FM tuning step)—A-PI (auto PI Seek)—
AUX (auxiliary input)—SAVE (power save)—
TITLE (multi language)
Use the following instructions to operate each
particular setting.
#To cancel initial settings, press BAND.
#You can also cancel initial settings by holding
down SOURCE until the unit turns off.
Setting the FM tuning step
Normally the FM tuning step employed by
seek tuning is 50 kHz. When AF or TA is on,
the tuning step automatically changes to 100
kHz. It may be preferable to set the tuning step
to 50 kHz when AF is on.
!The tuning step remains at 50 kHz during
manual tuning.
1 Press FUNCTION to select FM.
2 Press cor dto select the FM tuning
step.
Press cto select 50 (50 kHz). Press dto se-
lect 100 (100 kHz).
Switching Auto PI Seek
The unit can automatically search for a differ-
ent station with the same programming, even
during preset recall.
1 Press FUNCTION to select A-PI.
2 Press aor bto turn the Auto PI seek
on or off.
Switching the auxiliary setting
It is possible to use auxiliary equipment with
this unit. Activate the auxiliary setting when
using auxiliary equipment connected to this
unit.
1 Press FUNCTION to select AUX.
2 Press aor bto turn the auxiliary set-
ting on or off.
Saving the battery consumption
Switching this function on enables you to save
the consumption of battery power.
!Operations other than turning on the
source are not allowed when this function
is on.
Important
If the battery in your vehicle is disconnected the
Power Save mode is canceled. Turn on Power
Save again once the battery has been recon-
nected. If the ignition switch in your vehicle
doesn’t have an ACC (accessory) position, it is
possible depending on the connection method
that when Power Save is off, the unit will draw
power from the battery.
1 Press FUNCTION to select SAVE.
2 Press aor bto turn the power save on
or off.
Multi language display setting
Text information such as title name, artist
name or comment can be recorded on a com-
pressed audio disc.
This unit can display them even if they are em-
bedded in either European language or Rus-
sian language.
Operating this unit
En 13
English
Section
02

!If embedded language and selected lan-
guage setting are not consistent with each
other, text information may not be dis-
played properly.
!Some characters may not be displayed
properly.
1 Press FUNCTION to select TITLE.
2 Press cor dto select the language.
EUR (European language)—RUS (Russian lan-
guage)
Sound muting
Sound from this unit is muted automatically in
the following cases:
!When a call is made or received using a
cellular telephone connected to this unit.
!When the voice guidance is output from a
Pioneer navigation unit connected to this
unit.
The sound is turned off, MUTE is displayed
and no audio adjustments, except volume con-
trol, are possible. Operation returns to normal
when the phone connection or the voice gui-
dance is ended.
Operating this unit
En
14
Section
02

Error messages
When you contact your dealer or your nearest
Pioneer Service Center, be sure to record the
error message.
Message Cause Action
ERROR-11, 12,
17, 30
Dirty disc Clean disc.
ERROR-11, 12,
17, 30
Scratched disc Replace disc.
ERROR-10, 11,
12, 15, 17, 30,
A0
Electrical or me-
chanical
Switch the ignition
key, or switch to a
different source,
then back to the
CD player.
ERROR-15 The inserted disc
does not contain
any data
Replace disc.
ERROR-22, 23 The CD format
cannot be played
back
Replace disc.
NO AUDIO The inserted disc
does not contain
any files that can
be played back
Replace disc.
PROTECT All the files on
the inserted disc
are secured by
DRM
Replace disc.
SKIPPED The inserted disc
contains WMA
files that are pro-
tected by DRM
Replace disc.
Handling guideline of discs
and player
!Use only discs featuring either of following
two logos.
!Use only conventional, fully circular discs.
Do not use shaped discs.
!Use 12-cm or 8-cm CD. Do not use an
adapter when playing 8-cm CDs.
!Do not insert anything other than a CD into
the CD loading slot.
!Do not use cracked, chipped, warped, or
otherwise damaged discs as they may da-
mage the player.
!Unfinalized CD-R/CD-RW disc playback is
not possible.
!Do not touch the recorded surface of the
discs.
!Store discs in their cases when not in use.
!Avoid leaving discs in excessively hot envir-
onments including under direct sunlight.
!Do not attach labels, write on or apply che-
micals to the surface of the discs.
!To clean a CD, wipe the disc with a soft
cloth outward from the center.
!Condensation may temporarily impair the
player’s performance. Leave it to adjust to
the warmer temperature for about one
hour. Also, wipe any dump discs with a soft
cloth.
!Playback of discs may not be possible be-
cause of disc characteristics, disc format,
recorded application, playback environ-
ment, storage conditions and so on.
!Text information may not be correctly dis-
played depending on the recorded environ-
ment.
!Road shocks may interrupt disc playback.
!Read the precautions with discs before
using them.
Dual Discs
!Dual Discs are two-sided discs that have a
recordable CD for audio on one side and a
recordable DVD for video on the other.
Additional Information
En 15
English
Appendix

!Since the CD side of Dual Discs is not phy-
sically compatible with the general CD
standard, it may not be possible to play the
CD side with this unit.
!Frequent loading and ejecting of a Dual
Disc may result in scratches on the disc.
Serious scratches can lead to playback pro-
blems on this unit. In some cases, a Dual
Disc may become stuck in the disc loading
slot and will not eject. To prevent this, we
recommend you refrain from using Dual
Disc with this unit.
!Please refer to the information from the
disc manufacturer for more detailed infor-
mation about Dual Discs.
Compressed audio files
!Depending on the version of Windows
Media Player used to encode WMA files,
album names and other text information
may not be correctly displayed.
!There may be a slight delay when starting
playback of WMA files encoded with image
data.
!ISO 9660 Level 1 and 2 compliant. Romeo
and Joliet file systems are both compatible
with this player.
!Multi-session playback is possible.
!Compressed audio files are not compatible
with packet write data transfer.
!Only 64 characters from the beginning can
be displayed as a file name (including the
extension such as .wma, .mp3 or .wav) or a
folder name.
!Folder selection sequence or other opera-
tion may be altered depending on the en-
coding or writing software.
!Regardless of the length of blank section
between the songs of original recording,
compressed audio discs will play with a
short pause between songs.
!File extensions such as .wma, .mp3 or .wav
must be used properly.
Example of a hierarchy
: Folder
: Compressed audio file
1
2
3
4
5
6
L
e
v
e
l 1 L
e
v
e
l 2 L
e
v
e
l 3 L
e
v
e
l 4
!This unit assigns folder numbers. The user
cannot assign folder numbers.
!Folder hierarchy is allowed up to eight tiers.
However, practical hierarchy of folder is
less than two tiers.
!Up to 99 folders on a disc can be played
back.
Compressed audio compatibility
WMA
!Compatible format: WMA encoded by
Windows Media Player
!Bit rate: 48 kbps to 320 kbps (CBR), 48 kbps
to 384 kbps (VBR)
!Sampling frequency: 32 kHz to 48 kHz
!Windows Media Audio 9 Professional, Loss-
less, Voice: No
MP3
!Bit rate: 8 kbps to 320 kbps
!Sampling frequency: 16 kHz to 48 kHz (32,
44.1, 48 kHz for emphasis)
!Compatible ID3 tag version: 1.0, 1.1, 2.2,
2.3, 2.4 (ID3 tag Version 2.x is given priority
than Version 1.x.)
!M3u playlist: No
!MP3i (MP3 interactive), mp3 PRO: No
Additional Information
En
16
Appendix

WAV
!Compatible format: Linear PCM (LPCM),
MS ADPCM
!Quantization bits: 8 and 16 (LPCM), 4 (MS
ADPCM)
!Sampling frequency: 16 kHz to 48 kHz
(LPCM), 22.05 kHz to 44.1 kHz (MS AD-
PCM)
Russian character chart
D: Display
C: Character
DC DC DC DC
А Б В Г
Д Е,Ё Ж З
И,Й К Л М
Н О П Р
С Т У Ф
Х Ц Ч Ш,Щ
Ъ Ы Ь Э
Я
Additional Information
En 17
English
Appendix

Specifications
General
Power source ............................. 14.4 V DC (10.8 V to 15.1 V
allowable)
Grounding system ................... Negative type
Max. current consumption
..................................................... 10.0 A
Dimensions (W × H × D):
DIN
Chassis ..................... 178 × 50 × 162 mm
Nose ........................... 188 × 58 × 14 mm
D
Chassis ..................... 178 × 50 × 162 mm
Nose ........................... 170 × 48 × 14 mm
Weight .......................................... 1.3 kg
Audio
Maximum power output ....... 50 W × 4
Continuous power output ... 22 W × 4 (50 Hz to 15 000
Hz, 5% THD, 4 Wload, both
channels driven)
Load impedance ...................... 4 W(4 Wto 8 Wallowable)
Preout max output level ....... 2.2 V
Tone controls:
Bass
Frequency ................ 100 Hz
Gain ............................ ±13dB
Mid
Frequency ................ 1 kHz
Gain ............................ ±12 dB
Treble
Frequency ................ 10 kHz
Gain ............................ ±12 dB
CD player
System .......................................... Compact disc audio system
Usable discs .............................. Compact disc
Signal-to-noise ratio ............... 94 dB (1 kHz) (IEC-A net-
work)
Number of channels .............. 2 (stereo)
WMA decoding format ......... Ver. 7, 7.1, 8, 9, 10, 11 (2ch
audio)
(Windows Media Player)
MP3 decoding format ........... MPEG-1 & 2 Audio Layer 3
WAV signal format .................. Linear PCM & MS ADPCM
FM tuner
Frequency range ...................... 87.5 MHz to 108.0 MHz
Usable sensitivity ..................... 8 dBf (0.7 µV/75 W, mono,
S/N: 30 dB)
Signal-to-noise ratio ............... 75 dB (IEC-A network)
MW tuner
Frequency range ...................... 531 kHz to 1 602 kHz (9 kHz)
Usable sensitivity ..................... 18 µV (S/N: 20 dB)
Signal-to-noise ratio ............... 65 dB (IEC-A network)
LW tuner
Frequency range ...................... 153 kHz to 281 kHz
Usable sensitivity ..................... 30 µV (S/N: 20 dB)
Signal-to-noise ratio ............... 65 dB (IEC-A network)
Note
Specifications and the design are subject to mod-
ifications without notice due to improvements.
Additional Information
En
18
Appendix

Gracias por haber comprado este producto Pioneer.
Lea con detenimiento estas instrucciones sobre el funcionamiento del aparato,
para que pueda darle el mejor uso posible. Una vez que las haya leído, conserve
este manual en un lugar seguro para consultarlo en el futuro.
Antes de comenzar
Acerca de esta unidad 20
Visite nuestro sitio Web 21
Protección del producto contra robo 21
–Extracción de la carátula 21
–Colocación de la carátula 21
Utilización de esta unidad
Qué es cada cosa 23
–Unidad principal 23
–Mando a distancia opcional 23
–Display LCD 24
Funciones básicas 25
–Encendido de la unidad y selección de
una fuente 25
–Ajuste del volumen 25
–Apagado de la unidad 25
Sintonizador 25
–Para escuchar la radio 25
–Almacenamiento y recuperación de
frecuencias 25
–Sintonización de señales fuertes 26
–Almacenamiento de las frecuencias de
radio más fuertes 26
–Cambio de la visualización RDS 26
–Recepción de transmisiones de alarma
PTY 27
–Selección de frecuencias
alternativas 27
–Recepción de anuncios de tráfico 28
Reproductor incorporado 28
–Reproducción de un disco 28
–Repetición de reproducción 29
–Reproducción de las pistas en orden
aleatorio 29
–Exploración de pistas o carpetas 29
–Pausa de la reproducción de un
disco 30
–Uso de la compresión y BMX 30
–Búsqueda cada 10 pistas en el disco o
carpeta actual 30
–Visualización de información de texto
en el disco 30
Ajustes de audio 31
–Uso del ajuste del balance 31
–Uso del ecualizador 31
–Ajuste de las curvas de
ecualización 31
–Ajuste de la sonoridad 32
–Ajuste de los niveles de la fuente 32
Otras funciones 32
–Configuración de los ajustes
iniciales 32
–Ajuste del paso de sintonía de FM 32
–Cambio de la búsqueda PI
automática 32
–Cambio del ajuste de un equipo
auxiliar 33
–Ahorro del consumo de la batería 33
–Ajuste de la visualización en idiomas
múltiples 33
–Silenciamiento del sonido 33
Información adicional
Mensajes de error 34
Pautas para el manejo de discos y del
reproductor 34
Discos dobles 35
Archivos de audio comprimidos 35
–Ejemplo de una jerarquía 35
–Compatibilidad con audio
comprimido 36
Tabla de caracteres rusos 36
Especificaciones 37
Es 19
Español
Contenido

Si desea deshacerse de este producto, no lo
mezcle con los residuos generales de su
hogar. De conformidad con la legislación vi-
gente, existe un sistema de recogida distinto
para los productos electrónicos que requieren
un procedimiento adecuado de tratamiento,
recuperación y reciclado.
Las viviendas privadas en los estados miembros
de la UE, en Suiza y Noruega pueden devolver
gratuitamente sus productos electrónicos usados
en los centros de recolección previstos o bien en
una tienda minorista (si adquieren un producto
similar nuevo).
En el caso de los países que no se han menciona-
do en el párrafo anterior, póngase en contacto
con las autoridades locales a fin de conocer el
método de eliminación correcto.
Al actuar siguiendo estas instrucciones, se ase-
gurará de que el producto eliminado se someta a
los procesos de tratamiento, recuperación y reci-
claje necesarios, evitando de este modo efectos
potencialmente negativos en el entorno y la salud
humana.
Acerca de esta unidad
Las frecuencias del sintonizador de esta uni-
dad están asignadas para su uso en Europa
Occidental, Asia, Medio Oriente, África y
Oceanía. El uso en otras áreas puede causar
una recepción deficiente. La función RDS (sis-
tema de datos de radio) opera sólo en áreas
con emisoras de FM que trasmiten señales de
RDS.
PRECAUCIÓN
!No permita que esta unidad entre en contacto
con líquidos, ya que ello puede producir una
descarga eléctrica. Además, el contacto con
líquidos puede causar daños en la unidad,
humo y recalentamiento.
!“PRODUCTO LÁSER DE CLASE 1”
Este producto contiene un diodo de láser de
clase superior a 1. Para garantizar la seguri-
dad continua, no extraiga ninguna tapa ni in-
tente acceder a la parte interna del producto.
Solicite a personal cualificado que realice el
servicio técnico.
!El CarStereo-Pass Pioneer es para usarse sólo
en Alemania.
!Conserve este manual a mano para que
pueda consultar los procedimientos de opera-
ción y las precauciones cuando sea necesa-
rio.
!Mantenga siempre el volumen lo suficiente-
mente bajo como para que pueda escuchar
los sonidos que provienen del exterior del ve-
hículo.
!Proteja esta unidad de la humedad.
!Si se desconecta o se descarga la batería, la
memoria preajustada se borrará y deberá ser
reprogramada.
!En caso de que este producto no funcione co-
rrectamente, comuníquese con su concesio-
nario o el Servicio técnico oficial Pioneer más
próximo a su domicilio.
Acerca de WMA
El logo de Windows Media™impreso en la
caja indica que esta unidad puede reproducir
datos WMA.
WMA es la abreviatura de Windows Media
Audio, y se refiere a la tecnología de compre-
sión de audio desarrollada por Microsoft
Corporation. Los datos WMA se pueden cifrar
con la versión 7 o posterior del Windows
Media Player.
Antes de comenzar
Es
20
Sección
01
