Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate
your model properly. After you have finished reading the instructions, keep this man-
ual in a safe place for future reference.
Before You Start
Information to User 3
About this unit 3
About this manual 3
Operating with different Pioneer head
units 3
Function compatibility charts 4
–Head unit group 2 4
–Head unit group 3 5
–Head unit group 4 5
–Head unit group 5 6
–Head unit group 6 7
–Head unit group 7 7
Detailed instructions on selecting a team 9
SIRIUS tuner
What’s What 10
–Head unit group 1(e.g. DEH-
P6000UB) 10
–Remote control 10
Selecting SIRIUS source 11
Listening to SIRIUS 11
–Selecting a SIRIUS channel
directly 11
–Switching the SIRIUS display 12
–Storing and recalling channels 12
–Displaying the Radio ID 12
Introduction of advanced operations 12
Selecting the SIRIUS channel select
mode 13
–Selecting a channel in the channel
category 13
Using the Game Alert function 14
–Selecting teams for Game Alert 14
–Switching the Game Alert on or off 14
–When the game of the selected team
starts 14
–Displaying game information 14
Using Instant Replay function 15
–Pausing playback 15
Installation
Connecting the units 16
Connections 17
Installing this unit 17
–Installing with hook and loop
fasteners 17
Additional Information
Specifications 19
Contents
En
2

Information to User
Alteration or modifications carried out without
appropriate authorization may invalidate the
user’s right to operate the equipment.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that
may cause undesired operation.
About this unit
WARNING
Handling the cord on this product or cords asso-
ciated with accessories sold with the product
may expose you to chemicals listed on proposi-
tion 65 known to the State of California and other
governmental entities to cause cancer and birth
defects or other reproductive harm. Wash hands
after handling.
CAUTION
!Do not allow this unit to come into contact
with liquids. Electrical shock could result.
Also, damage to this unit, smoke, and over-
heating could result from contact with liquids.
!Keep this manual handy as a reference for op-
erating procedures and precautions.
About this manual
Instructions in this manual use DEH-P6000UB
as an example head unit. When using other
head units, refer to Operating with different
Pioneer head units on this page.
Operating with different
Pioneer head units
Head units are divided into several groups;
find which group yours falls into and operate it
according to the corresponding function com-
patibility charts on the following pages.
!Select SIRIUS source when using this sys-
tem with head units grouped 1, 2 and 3. Se-
lect EXTERNAL source to use with other
head units. For detailes about EXTERNAL
source, refer to the head unit’s manual.
Head unit group 1
Operation of the following head units is the
same as the “DEH-P6000UB”. Refer to the in-
struction starting on page 10.
DEH-P600UB, DEH-P680MP, DEH-P690UB,
DEH-P700BT, DEH-P780MP, DEH-P790BT,
DEH-P800PRS, DEH-P880PRS, DEH-P980BT,
DEH-P6800MP, DEH-P6900UB, DEH-P7000BT,
DEH-P7800MP, DEH-P7900BT, DEH-P9800BT,
FH-P800BT, FH-P8000BT
Head unit group 2
When using this system with these head
units, operate while referring to the head unit
group 2 function compatibility chart.
DEH-P390MP, DEH-P480MP, DEH-P490MP,
DEH-P2900MP, DEH-P3800MP, DEH-P3900MP,
DEH-P4800MP, DEH-P4900MP
Head unit group 3
When using this system with these head
units, operate while referring to the head unit
group 3 function compatibility chart.
DEH-P400UB, DEH-P500UB, DEH-P3000IB,
DEH-P4000UB, DEH-P5000UB
Before You Start
En 3
English
Section
01

Head unit group 4
When using this system with these head
units, operate while referring to the head unit
group 4 function compatibility chart.
DEH-P580MP, DEH-P960MP, DEH-P5800MP,
DEH-P9600MP, DVH-P5000MP, FH-P5000MP
Head unit group 5
When using this system with these head
units, operate while referring to the head unit
group 5 function compatibility chart.
DEH-P8MP, DEH-P80MP, DEH-P860MP, DEH-
P8600MP
Head unit group 6
When using this system with these head
units, operate while referring to the head unit
group 6 function compatibility chart.
AVH-P6600DVD, AVH-P7600DVD, AVX-
P8DVD*
!* ADD-ON mode (M) only.
Head unit group 7
When using this system with these head
units, operate while referring to the head unit
group 7 function compatibility chart.
AVIC-N2
Other head units
Operation of the following head units is fully
explained in the head units’manual. Refer to
the instruction manual that came with your
head unit.
AVH-P4000DVD, AVH-P4900DVD, AVH-
P5000DVD, AVH-P5900DVD, AVH-P7800DVD,
AVIC-D2, AVIC-D3, AVIC-F700BT, AVIC-F900BT,
AVIC-N3, AVIC-Z1, AVIC-Z2
!FUNCTION 3 and FUNCTION 4 are not
available with AVIC-D2.
Function compatibility charts
Head unit group 2
Controls
Selecting the source Press SOURCE to select
SIRIUS.
Selecting channel Press cor d.
Changing bands Press BAND.
Storing presets Press and hold 1to 6.
Recalling presets Press 1to 6.
Recalling presets se-
quentially (in Channel
Number Select mode)
Press aor b.
Selecting category (in
Channel Category Se-
lect mode)
Press aor b.
Displaying the function
menu
Press FUNCTION.
Switching channel in-
formation
Press DISPLAY.
Switching the channel
select mode (in the
function menu)
Select CHNUMBER/CATE-
GORY and press cor d.
Turning the game alert
function on/off (in the
function menu)
Select TEAMSETTING and
press and hold aor b.
Selecting a league (in
the function menu)
In the league select mode,
press aor b.
Switching the display
to the team select
mode (in the function
menu)
In the league select mode
and with a desired league
displayed, press and hold
aor b.
Selecting a team (in
the function menu)
In the team select mode,
press aor b.
Storing the selected
team in memory (in the
function menu)
In the team select mode
and with a desired team
displayed, press and hold
aor b.
Before You Start
En
4
Section
01

Controls
Deleting the team se-
lection from memory
(in the function menu)
In the team select mode
and with the selected team
displayed, press and hold
aor b.
Displaying game infor-
mation (in the function
menu)
Select GAME INFO and
press aor b.
Notes
!With some units, pressing and holding
CLOCK can directly change the channel select
mode.
!For detailed instructions on the Team Setting
function, refer to Detailed instructions on se-
lecting a team on page 9.
Head unit group 3
Controls
Selecting the source Press SRC (SOURCE) to se-
lect SIRIUS.
Selecting channel Push MULTI-CONTROL left
or right.
Changing bands Press BAND.
Storing presets Press LIST and then use
MULTI-CONTROL.
Recalling presets Press LIST and then use
MULTI-CONTROL.
Recalling presets se-
quentially (in Channel
Number Select mode)
Push MULTI-CONTROL up
or down.
Selecting category (in
Channel Category Se-
lect mode)
Push MULTI-CONTROL up
or down.
Displaying the function
menu
Use MULTI-CONTROL.
Switching channel in-
formation
Press DISP.
Switching the channel
select mode (in the
function menu)
Select CH SELECT MODE
and press MULTI-CON-
TROL.
Controls
Turning the game alert
function on/off (in the
function menu)
Select GAME ALERT and
press MULTI-CONTROL.
Selecting a league (in
the function menu)
In the league select mode,
turn MULTI-CONTROL.
Switching the display
to the team select
mode (in the function
menu)
In the league select mode
and with a desired league
displayed, press MULTI-
CONTROL.
Selecting a team (in
the function menu)
In the team select mode,
turn MULTI-CONTROL.
Storing the selected
team in memory (in the
function menu)
In the team select mode
and with a desired team
displayed, press and hold
MULTI-CONTROL.
Deleting the team se-
lection from memory
(in the function menu)
In the team select mode
and with the selected team
displayed, press and hold
MULTI-CONTROL.
Displaying game infor-
mation (in the function
menu)
Select GAME INFO and
press MULTI-CONTROL.
Note
!With some units, pressing and holding
SAT MODE can directly change the channel
select mode.
Head unit group 4
Controls
Selecting the source Press SOURCE to select an
external source for SIRIUS.
Selecting channel Press cor d.
Changing bands Press BAND.
Storing presets Press and hold 1to 6.
Recalling presets Press 1to 6.
Recalling presets se-
quentially (in Channel
Number Select mode)
Press aor b.
Before You Start
En 5
English
Section
01

Controls
Selecting category (in
Channel Category Se-
lect mode)
Press aor b.
Displaying the function
menu
Press FUNCTION.
Switching channel in-
formation (FUNC1)
Press aor b.
Switching the channel
select mode (FUNC2)
Press aor b.
Turning the game alert
function on/off
(FUNC3)
Press and hold aor b.
Selecting a league
(FUNC3)
In the league select mode,
press aor b.
Switching the display
to the team select
mode (FUNC3)
In the league select mode
and with a desired league
displayed, press and hold
aor b.
Selecting a team
(FUNC3)
In the team select mode,
press aor b.
Storing the selected
team in memory
(FUNC3)
In the team select mode
and with a desired team
displayed, press and hold
aor b.
Deleting the team se-
lection from memory
(FUNC3)
In the team select mode
and with the selected team
displayed, press and hold
aor b.
Displaying game infor-
mation (FUNC4)
Press aor b.
Notes
!For detailed instructions on FUNCTION 3,
refer to Detailed instructions on selecting a
team on page 9.
!With some head units,
AUTO/MANUAL (A/M) may appear in the
function menu, but this function is not avail-
able with SIRIUS source.
Head unit group 5
Controls
Selecting the source Press SOURCE to select an
external source for SIRIUS.
Selecting channel Push MULTI-CONTROL left
or right.
Changing bands Press BAND.
Storing presets Press and hold 1to 6.
Recalling presets Press 1to 6.
Recalling presets se-
quentially (in Channel
Number Select mode)
Push MULTI-CONTROL up
or down.
Selecting category (in
Channel Category Se-
lect mode)
Push MULTI-CONTROL up
or down.
Displaying the function
menu
Use MULTI-CONTROL.
Switching channel in-
formation (FUNC1)
Press MULTI-CONTROL.
Switching the channel
select mode (FUNC2)
Press MULTI-CONTROL.
Turning the game alert
function on/off
(FUNC3)
Press and hold MULTI-
CONTROL.
Selecting a league
(FUNC3)
In the league select mode,
push MULTI-CONTROL up
or down.
Switching the display
to the team select
mode (FUNC3)
In the league select mode
and with a desired league
displayed, press and hold
MULTI-CONTROL.
Selecting a team
(FUNC3)
In the team select mode,
push MULTI-CONTROL up
or down.
Storing the selected
team in memory
(FUNC3)
In the team select mode
and with a desired team
displayed, press and hold
MULTI-CONTROL.
Before You Start
En
6
Section
01

Controls
Deleting the team se-
lection from memory
(FUNC3)
In the team select mode
and with the selected team
displayed, press and hold
MULTI-CONTROL.
Displaying game infor-
mation (FUNC4)
Push MULTI-CONTROL up
or down.
Notes
!For detailed instructions on FUNCTION 3,
refer to Detailed instructions on selecting a
team on page 9.
!With some head units,
AUTO/MANUAL (A/M) may appear in the
function menu, but this function is not avail-
able with SIRIUS source.
Head unit group 6
Controls
Selecting the source Press SOURCE to select an
external source for SIRIUS.
Selecting channel Touch cor d.
Changing bands Press BAND.
Storing presets Keep touching one of
1KEY to 6KEY.
Recalling presets Touch one of 1KEY to
6KEY.
Recalling presets se-
quentially (in Channel
Number Select mode)
Touch aor b.
Selecting category (in
Channel Category Se-
lect mode)
Touch aor b.
Displaying the function
menu
Touch A.MENU and then
touch FUNCTION (FUNC).
Switching channel in-
formation (FUNC1)
Touch .
Switching the channel
select mode (FUNC2)
Touch .
Controls
Turning the game alert
function on/off
(FUNC3)
Keep touching .
Selecting a league
(FUNC3)
In the league select mode,
touch .
Switching the display
to the team select
mode (FUNC3)
In the league select mode
and with a desired league
displayed, keep touching
.
Selecting a team
(FUNC3)
In the team select mode,
touch .
Storing the selected
team in memory
(FUNC3)
In the team select mode
and with a desired team
displayed, keep touching
.
Deleting the team se-
lection from memory
(FUNC3)
In the team select mode
and with the selected team
displayed, keep touching
.
Displaying game infor-
mation (FUNC4)
Touch .
Notes
!For detailed instructions on FUNCTION 3,
refer to Detailed instructions on selecting a
team on page 9.
!With some head units,
AUTO/MANUAL (A/M) may appear in the
function menu, but this function is not avail-
able with SIRIUS source.
Head unit group 7
Controls
Selecting the source Touch the source icon and
touch an external source
for SIRIUS.
Selecting channel Touch cor d.
Changing bands Touch BAND.
Storing presets Touch A.MENU and
1-6KEY. Then, touch one of
1KEY to 6KEY.
Before You Start
En 7
English
Section
01

Controls
Recalling presets Touch one of 1to 6.
Recalling presets se-
quentially (in Channel
Number Select mode)
Touch aor b.
Selecting category (in
Channel Category Se-
lect mode)
Touch aor b.
Displaying the function
menu
Touch A.MENU and then
touch FUNCTION.
Switching channel in-
formation (FUNCTION
1)
Touch SEND.
Switching the channel
select mode (FUNC-
TION 2)
Touch SEND.
Turning the game alert
function on/off (FUNC-
TION 3)
Keep touching SEND.
Selecting a league
(FUNCTION 3)
In the league select mode,
touch SEND.
Switching the display
to the team select
mode (FUNCTION 3)
In the league select mode
and with a desired league
displayed, keep touching
SEND.
Selecting a team
(FUNCTION 3)
In the team select mode,
touch SEND.
Storing the selected
team in memory
(FUNCTION 3)
In the team select mode
and with a desired team
displayed, keep touching
SEND.
Deleting the team se-
lection from memory
(FUNCTION 3)
In the team select mode
and with the selected team
displayed, keep touching
SEND.
Displaying game infor-
mation (FUNCTION 4)
Touch SEND.
Notes
!For detailed instructions on FUNCTION 3,
refer to Detailed instructions on selecting a
team on the next page.
!With some head units,
AUTO/MANUAL (A/M) may appear in the
function menu, but this function is not avail-
able with SIRIUS source.
Before You Start
En
8
Section
01

Detailed instructions on selecting a team
The chart below illustrates the Team Setting menu. Select teams for the Game Alert function referring to
this chart and the function compatibility chart for your head unit.
!“The key”referred to in the diagram below varies depending on the head unit.
Game alert ON/OFF settin
g
Alert
ON
Alert
O
F
F
Lea
g
ue select mo
de
T
ea
m
se
l
ec
t mo
de
Quick press of the ke
y
P
ress and hold the ke
y
O
FF AT
L
㨯㨯㨯
O
FF
C
H
A
O
FF B
OS
O
N LA
L
O
FF LA
L
CH displa
y
Example: When selecting an NBA team Lakers
Menu chan
g
es
:
C
learALL
*
NH
L
NF
L
㨯㨯㨯
NBA
The
g
ame alert function no
w
bec
om
es
e
ff
ec
tiv
e
on L
a
k
e
r
s.
!* With the ClearAll selected, holding “the key”deletes all team selections.
!To return to the normal display, press BAND.
Before You Start
En 9
English
Section
01

What’s What
Head unit group 1
(e.g. DEH-P6000UB)
1SRC/OFF button
The head unit is turned on by selecting a
source. Press to cycle through all the avail-
able sources.
2DISP/SCROLL button
Press to select different displays.
3MULTI-CONTROL
Move to perform channel select, channel re-
call and category select. Also used for con-
trolling functions.
Turn to increase or decrease the volume.
4S.Rtrv/SAT MODE button
When XM tuner or SIRIUS tuner is selected
as the source, press to change the channel
select mode.
When SIRIUS tuner is selected as the
source, press and hold to perform the In-
stant Replay mode.
5LIST button
Press to display the preset channel list.
6BAND/ESC button
Press to select among three bands and can-
cel the control mode of functions.
Remote control
Operation is the same as when using the but-
tons on the head unit.
7VOLUME buttons
Press to increase or decrease the volume.
8FUNCTION button
Press to select functions.
9Thumb pad
Move to perform channel select, channel re-
call and category select. Also used for con-
trolling functions.
Functions are the same as
MULTI-CONTROL except for volume con-
trol.
aDIRECT button
Press to directly select the desired channel.
13 2 4
6 5
8
2
c
1
76
b
a
9
SIRIUS tuner
En
10
Section
02

bCLEAR button
Press to cancel the input number when 0to
9are used.
c0 to 9 buttons
Press to directly select the desired channel
or preset tuning. Buttons 1to 6can operate
the preset tuning.
Selecting SIRIUS source
%Press SRC to select SIRIUS.
Listening to SIRIUS
1 2 3
5
4
1SIRIUS band indicator
2SIRIUS channel number indicator
3SIRIUS preset number indicator
4SIRIUS channel select setting indicator
Shows what channel select setting has been
selected. CH is displayed when
Channel number is selected, and CAT is dis-
played when Category is selected.
I.R is displayed during the Instant Replay
mode.
5SIRIUS channel name
Shows the channel name of broadcast
channel.
%Select a SIRIUS band.
Press BAND.
#Band can be selected from SR-1,SR-2 or
SR-3.
%Select a channel.
Push MULTI-CONTROL left or right.
#If you push and hold MULTI-CONTROL left or
right, you can increase or decrease channel num-
ber continuously.
#You can also perform tuning from a desired
channel category. (Refer to Selecting a channel in
the channel category on page 13.)
Notes
!It may take a few seconds before you can hear
anything while this system acquires and pro-
cesses the satellite signal.
!When you change the channel, the channel
name is displayed, followed by the category
name.
Selecting a SIRIUS channel directly
When using the remote control, you can select
the SIRIUS channel directly by entering the de-
sired channel number.
1 Press DIRECT.
Channel number input display appears.
2 Press 0 to 9 to enter the desired channel
number.
#You can cancel the input number by pressing
CLEAR.
3 Press DIRECT.
The SIRIUS channel of entered number is
selected.
#After entering the number input mode, if you
do not perform an operation within about eight
seconds, the mode is automatically canceled.
SIRIUS tuner
En 11
English
Section
02

Switching the SIRIUS display
Various information, including channel num-
ber, name and category, song/program title,
artist/feature and composer, can be displayed
for the selected channel.
%Press DISP to switch the SIRIUS display.
Each press of DISP changes the SIRIUS dis-
play in the following order:
Play time—Channel number—Channel name
—Category name—Artist name—Song title/
program title—Composer name
#When you change the display, text automati-
cally scrolls.
#Play time is displayed during the Instant Re-
play mode. Refer to Using Instant Replay function
on page 15.
#Play time display indicates the time inverted
from the live broadcast. Play time is displayed in
negative number.
Storing and recalling channels
You can easily store up to six broadcast sta-
tions for later recall.
!Only the remote control can operate this
function.
!Six stations for each band can be stored in
memory.
!Channels are stored and recalled on a
broadcast station basis. This means that if
the broadcast station you stored has been
assigned to a different channel by SIRIUS,
you can still recall the same broadcast sta-
tion (though a different channel number
may appear in the display).
%When you find a station that you want
to store in memory press one of preset tun-
ing buttons 1 to 6 and hold until the SIRIUS
preset number stops flashing.
The number you have pressed will flash in the
SIRIUS preset number indicator and then re-
main lit. The selected station has been stored
in memory.
The next time you press the same preset tun-
ing button the station is recalled from mem-
ory.
#You can also recall stations assigned to preset
tuning numbers by pushing MULTI-CONTROL up
or down.
Note
If a channel cannot be recalled from memory, the
tuner automatically receives the channel 184.
Displaying the Radio ID
If you select CH 000, the ID code is displayed.
%Push MULTI-CONTROL left or right to
select CH 000.
Note
To select CH 000, set the channel select setting to
Channel number. About the channel select set-
ting, refer to Selecting the SIRIUS channel select
mode on the next page.
Introduction of advanced
operations
1 Press MULTI-CONTROL to display the
main menu.
2 Use MULTI-CONTROL to select
FUNCTION.
The function selection menu is displayed.
Turn to change the menu option. Press to
select.
SIRIUS tuner
En
12
Section
02

3 Turn MULTI-CONTROL to select the
function.
Channel mode (channel select mode setting)
—Game alert (game alert setting)—
Team Setting (team setting)—Game Info
(game info)—Pause (pause)
Notes
!You can also select the function by pressing
FUNCTION on the remote control.
!To return to the ordinary display, press BAND.
!If you do not operate functions within about
30 seconds, the display is automatically re-
turned to the ordinary display.
!During the Instant Replay mode, you can se-
lect Pause (pause). Refer to Using Instant Re-
play function on page 15.
Selecting the SIRIUS
channel select mode
You have two methods for selecting a channel:
by number and by category. When selecting
by number, channels in any category can be
selected. Select by category to narrow your
search down to only channels in a particular
category.
%Press SAT MODE repeatedly to select
the desired channel select setting.
Channel number (channel number select set-
ting)—Category (channel category select
setting)
Note
You can also perform this operation in the menu
that appears by using MULTI-CONTROL.
Selecting a channel in the
channel category
Channels are organized into various program
categories, e.g. Rock, Classic, Jazz. You can
specify channels by selecting the desired cate-
gory.
1 Select the channel select settings to
Category.
Refer to Selecting the SIRIUS channel select
mode on this page.
2 Push MULTI-CONTROL up or down to
select the desired channel category.
Once you select a channel category, the tuner
searches for channels in that category. During
search, the channel category does not imme-
diately change even if you push
MULTI-CONTROL. To successively change the
channel category, continue pushing
MULTI-CONTROL.
3 Push MULTI-CONTROL left or right to
select the desired channel in the selected
channel category.
The channel number moves up or down in the
selected channel category.
Channels that cannot currently be selected
are skipped, and the next channel in that
channel category is selected.
Note
If you select a channel of another category by
channel recall, etc., during step 2 and 3, the cate-
gory selected in step 2 remains in memory. If you
push MULTI-CONTROL left or right, the channel
number moves up or down in the category se-
lected in step 2 regardless of the category of the
preset channel.
SIRIUS tuner
En 13
English
Section
02

Using the Game Alert function
This system can alert you when games invol-
ving your favorite teams are about to start. To
use this function you need in advance to set
up a game alert for the teams.
Selecting teams for Game Alert
1 Use MULTI-CONTROL to select
Team Setting in the function menu.
Refer to Introduction of advanced operations on
page 12.
2 Push MULTI-CONTROL left or right to
select a desired league.
League names are switched in the display.
3 Push MULTI-CONTROL up or down to
select a desired team.
Teams in the selected category are switched in
the display.
4 Press MULTI-CONTROL to store the se-
lected team in memory.
The game alert function will start on that
team.
#To turn the Game Alert off of the selected
team, press MULTI-CONTROL again.
#When you have already made 12 team selec-
tions, FULL is displayed and additional team se-
lection is not possible. In this case, first delete
the team selection and then try again.
5 Repeat these steps for selecting other
teams.
Up to 12 teams can be selected.
Switching the Game Alert on or off
Once you made team selections, you need to
turn the Game Alert function on.
!The Game Alert function is on at the default
setting.
1 Use MULTI-CONTROL to select
Game alert in the function menu.
Refer to Introduction of advanced operations on
page 12.
2 Press MULTI-CONTROL to turn the
Game Alert on.
The Game Alert function is now on.
#To turn the Game Alert function off, press
MULTI-CONTROL again.
When the game of the selected
team starts
When a game of the selected team is about to
start (or is currently playing) on a different sta-
tion, Game alert info is displayed. Press and
hold MULTI-CONTROL to switch to that sta-
tion, and you can listen to that game.
!If you do not operate the function within
about 10 seconds, the display is automati-
cally returned.
Displaying game information
If games of your selected teams are currently
playing, you can display information of the
games and tune to the broadcast channel.
You can display information of the games
while enjoying the sound from currently tun-
ing station. You can also tune to the broadcast
channel when you wish to.
1 Use MULTI-CONTROL to select
Game Info in the function menu.
The game information of your selected team is
displayed.
Refer to Introduction of advanced operations on
page 12.
2 Push MULTI-CONTROL up or down to
select a game.
The game is displayed, followed by more de-
tailed game information.
SIRIUS tuner
En
14
Section
02

!Game score will be updated automatically.
3 Press MULTI-CONTROL to switch to that
station to listen to the game.
Notes
!If you have not made any team selections,
NOT SET is displayed.
!When games involving your favorite teams are
not currently playing, NO GAME is displayed.
Using Instant Replay function
Following functions can be operated during
the Instant Replay mode.
!To use this function, Pioneer head unit
which is compatible with Instant Replay
Function is required.
!To use this function, SIRIUS plug-and-play
unit with Instant Replay Function is re-
quired.
%Performing the Instant Replay mode
When SIRIUS tuner is selected as the source,
press and hold SAT MODE.
#In the following conditions, tuner exits from
the Instant Replay mode.
—When BAND is pressed
—When another source is selected
%Select a track
Push MULTI-CONTROL left or right.
%Fast forward or reverse
Push and hold MULTI-CONTROL left or right.
Pausing playback
You can operate this function only during the In-
stant Replay mode.
1 Use MULTI-CONTROL to select Pause in
the function menu.
Refer to Introduction of advanced operations on
page 12.
2 Press MULTI-CONTROL to turn pause
on.
Playback of the current track pauses.
#To turn pause off, press MULTI-CONTROL
again.
SIRIUS tuner
En 15
English
Section
02

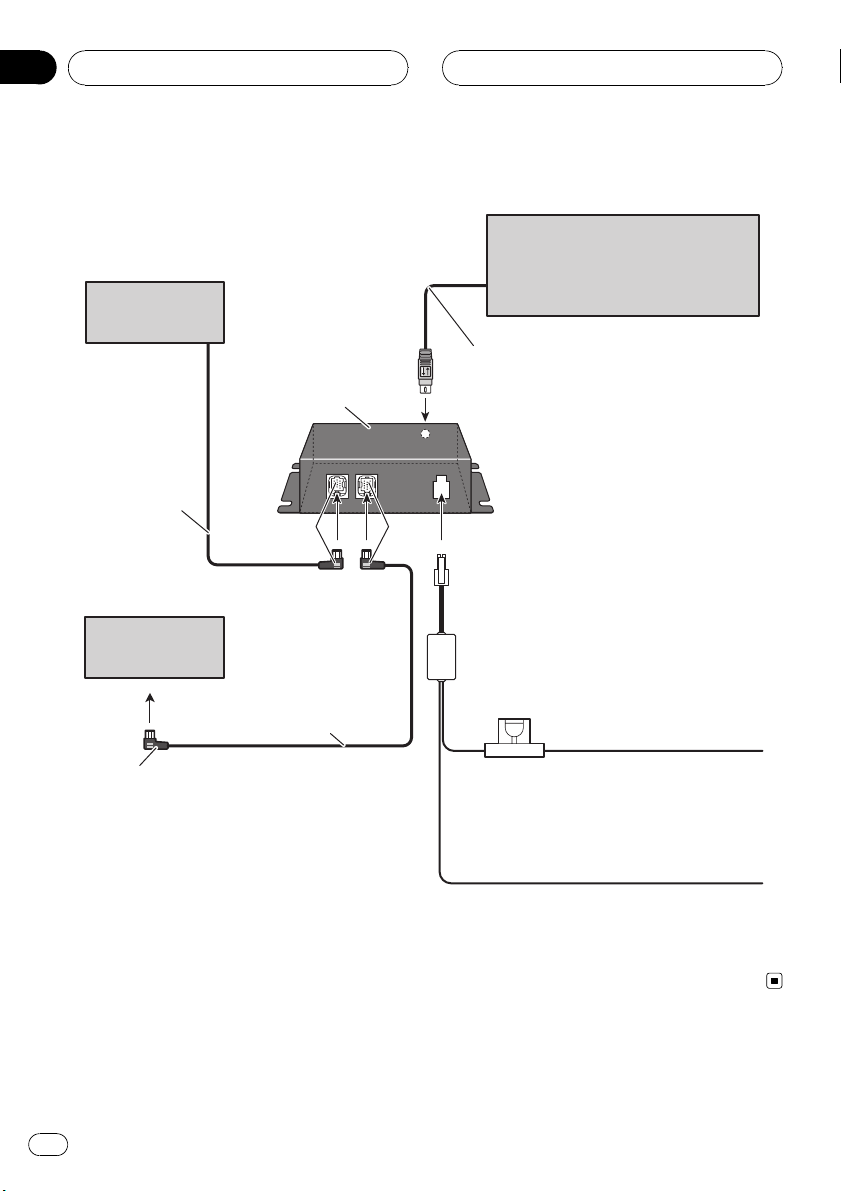

Connecting the units
Blue Black
This unit
Head unit
(sold separately)
Multi-CD player
(sold separately)
To IP-BUS input
(blue)
IP-BUS cable
IP-BUS cable
(supplied)
1.5 m (4 ft. 11 in.) Fuse (2 A) Yellow
Connect to the constant 12 V
supply terminal.
Black (chassis ground)
Connect to a clean, paint-free
metal location.
“SiriusConnect universal tuner” or
“SIRIUS Dock and play radio with
SiriusConnect vehicle kit”
(sold separately)
SiriusConnect Cable
(sold separately)
Installation
En
16
Section
03

Connections
Important
!Use of this unit in conditions other than the
following could result in fire or malfunction.
—Vehicles with a 12-volt battery and negative
grounding.
!To prevent a short-circuit, overheating or mal-
function, be sure to follow the directions
below.
—Disconnect the negative terminal of the
battery before installation.
—Secure the wiring with cable clamps or ad-
hesive tape. To protect the wiring, wrap ad-
hesive tape around them where they lie
against metal parts.
—Place all cables away from moving parts,
such as gear shift and seat rails.
—Place all cables away from hot places,
such as near the heater outlet.
—Do not pass the yellow cable through a
hole into the engine compartment to con-
nect to a battery.
—Do not shorten any cables.
—Never cut the insulation of the power cable
of this unit in order to share the power
with other devices. Current capacity of the
cable is limited.
—Use a fuse of the rating prescribed.
!IP-BUS connectors are color-coded. Be sure
to connect connectors of the same color.
Installing this unit
Important
!Check all connections and systems before
final installation.
!Do not use unauthorized parts. Use of un-
authorized parts may cause malfunctions.
!Consult your dealer if installation requires dril-
ling of holes or other modifications to the vehi-
cle.
!Do not install this unit where :
—it may interfere with operation of the vehi-
cle.
—it may cause injury to a passenger as a re-
sult of a sudden stop.
!When mounting this unit, make sure none of
the leads are trapped between this unit and
the surrounding metalwork or fittings.
!Do not mount this unit near heater outlets
where it would be affected by heat, or near the
doors where rainwater might splash onto it.
!Before drilling any mounting holes, always
check behind where you want to drill the
holes. Do not drill into the gas line, brake line,
electrical wiring or other important parts.
!If this unit is installed in the passenger com-
partment, anchor it securely so it does not
break free while the vehicle is moving, caus-
ing injury or an accident.
!If this unit is installed under the front seat,
make sure it does not obstruct seat move-
ment. Route all leads and cords carefully
around the sliding mechanism so they do are
not caught or pinched in the mechanism and
cause a short-circuit.
Installing with hook and loop
fasteners
Thoroughly wipe off the surface before affixing
the hook and loop fasteners.
!If the hook fasteners adhere to the car mat
directly, you may install this unit without
using the loop fasteners.
Installation
En 17
English
Section
03

%Mount this unit using the hook and
loop fasteners.
This unit
Hook fastener
Loop fastener
Car mat or chassis
Installation
En
18
Section
03

Specifications
General
Power source ............................. 14.4 V DC (10.8 V to 15.1 V
allowable)
Grounding system ................... Negative type
Max. current consumption
..................................................... 2.0 A
Dimensions (W × H × D) ... 127 × 35 × 52 mm
(5 × 1-3/8 × 2 in.)
Weight .......................................... 185 g (6.53 oz)
Notes
!Specifications and the design are subject to
modifications without notice due to improve-
ments.
!“SIRIUS”,“SiriusConnect”and the SIRIUS dog
logo and related marks are trademarks of SIR-
IUS Satellite Radio Inc. All rights reserved.
Additional Information
En 19
English
Appendix

Nous vous remercions d’avoir acheté cet appareil
Pioneer.
Afin d’utiliser votre appareil correctement, veuillez lire ce mode d’emploi entière-
ment. Après avoir lu ce mode d’emploi, conservez-le dans en endroit sûr pour pouvoir
vous y référer ultérieurement.
Avant de commencer
Quelques mots sur cet appareil 21
Quelques mots sur ce mode d’emploi 21
Utilisation avec différents appareils centraux
Pioneer 21
Tableaux de compatibilité des fonctions 22
–Appareils centraux du groupe 2 22
–Appareils centraux du groupe 3 23
–Appareils centraux du groupe 4 24
–Appareils centraux du groupe 5 25
–Appareils centraux du groupe 6 25
–Appareils centraux du groupe 7 26
Instructions détaillées sur la sélection d’une
équipe 28
Syntoniseur SIRIUS
Description de l’appareil 29
–Appareils centraux du groupe 1(par
exemple DEH-P6000UB) 29
–Télécommande 29
Sélection de la source SIRIUS 30
Ecoute de SIRIUS 30
–Sélection directe d’un canal
SIRIUS 30
–Changement de l’affichage SIRIUS 31
–Mise en mémoire et rappel des
canaux 31
–Affichage de l’ID de la radio 32
Introduction aux opérations avancées 32
Choix du mode de sélection du canal
SIRIUS 32
–Sélection d’un canal dans la catégorie
de canal 32
Utilisation de la fonction Alerte Match 33
–Sélection des équipes pour l’Alerte
Match 33
–Mise en service ou hors service de
l’Alerte Match 34
–Quand le match de l’équipe
sélectionnée commence 34
–Affichage des informations sur les
matchs 34
Utilisation de la fonction Relecture
instantanée 34
–Pause de la lecture 35
Installation
Connexion des appareils 36
Connexions 37
Installation de l’appareil 37
–Installation avec des fixations
Velcro 38
Informations complémentaires
Caractéristiques techniques 39
Table des matières
Fr
20
