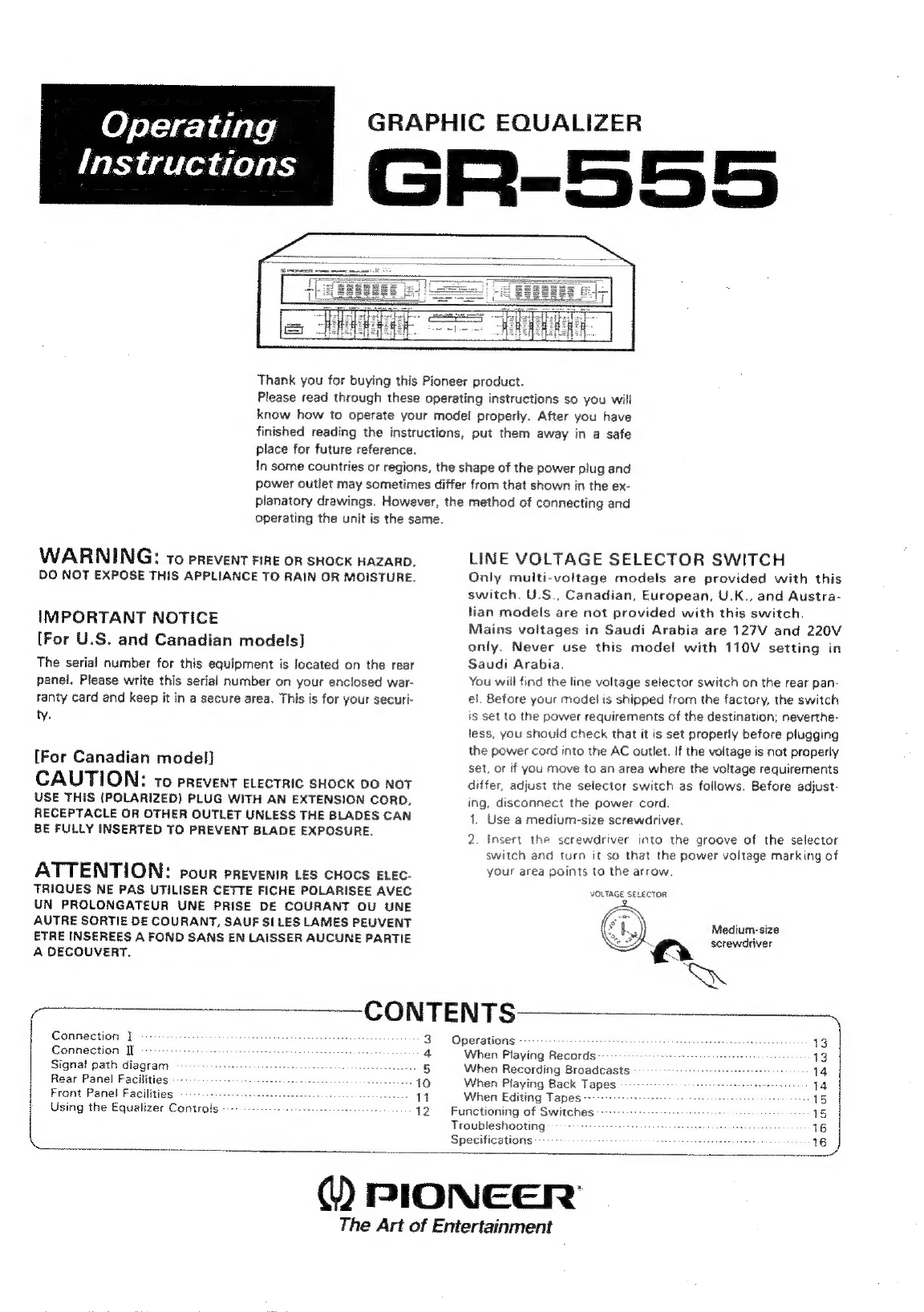

Pioneer GR-555 User manual

Operating
Instructions
GRAPHIC EQUALIZER
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will
know how to operate your model properly. After you have
finished reading the instructions, put them away in a safe
place for future reference.
in
some
countries
or
regions,
the
shape
of
the
power
plug
and
power
outlet
may
sometimes
differ
from
that
shown
in the
ex-
planatory
drawings.
However,
the
method
of
connecting
and
operating
the
unit
is
the
same.
R-555
WARNING:
1o
prevent
FIRE
OR
SHOCK
HAZARD,
DO
NOT
EXPOSE
THIS
APPLIANCE
TO
RAIN
OR
MOISTURE.
IMPORTANT NOTICE
[For U.S. and Canadian models]
The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed war-
ranty card and keep it in a secure area. This is for your securi-
ty.
[For Canadian model]
CAUTION: to prevent Etectaic SHOCK DO NOT
USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
ATTENTION: pour prevenin Les cHocs ELEC-
TRIQUES NE PAS UTILISER CETTE FICHE POLARISEE AVEC
UN PROLONGATEUR UNE PRISE DE COURANT OU UNE
AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT
ETRE INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE
A DECOUVERT.
Connection I
Connection II
Signa! path diagram
Rear Panel Facilities
Front Panel Facilities

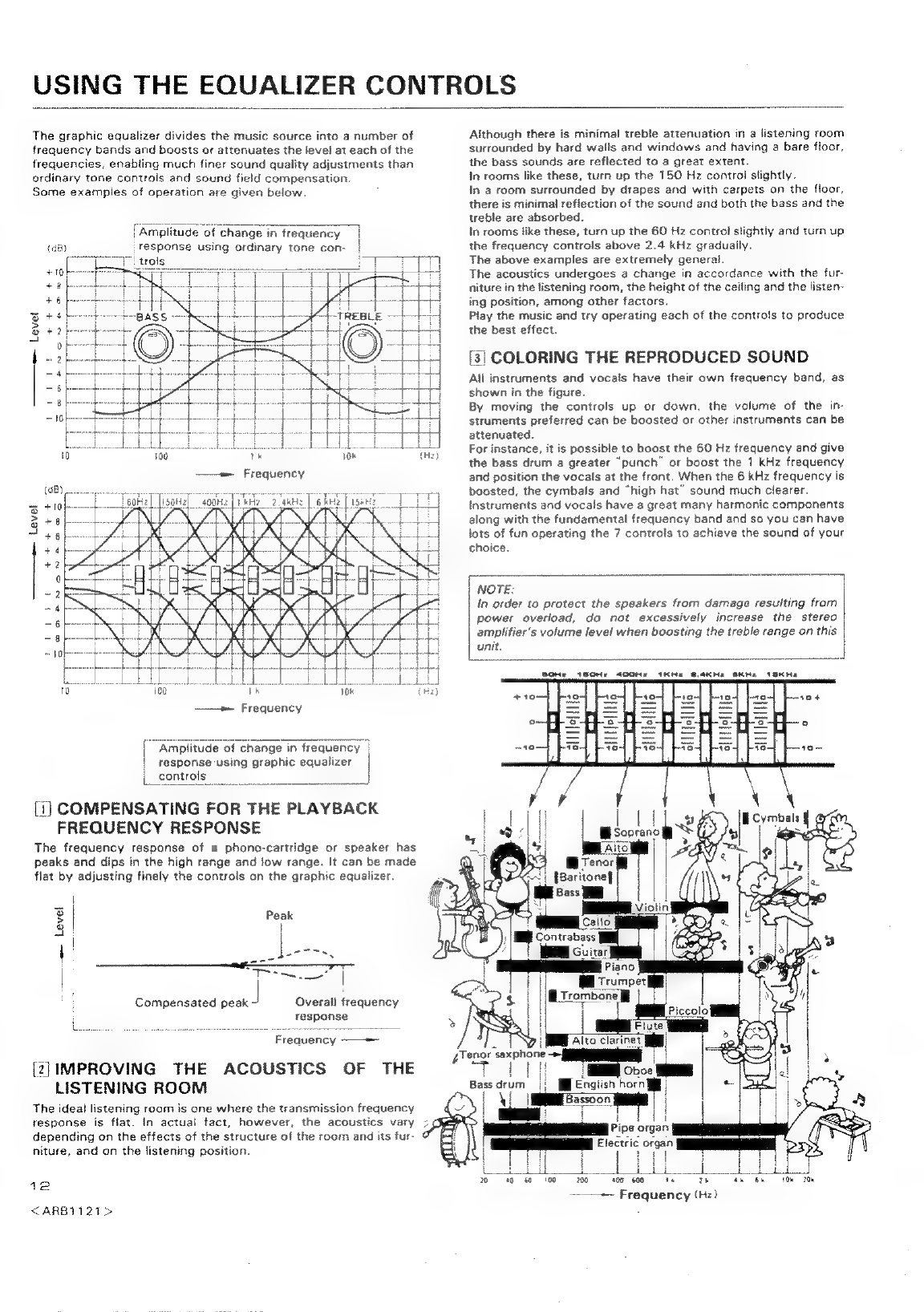

Using the Equalizer Controls
CONT
ENTS
LINE VOLTAGE SELECTOR SWITCH
Only multi-voltage models are provided with this
switch. U.S., Canadian, European, U.K., and Austra-
lian models are not provided with this switch,
Mains voltages in Saudi Arabia are 127V and 220V
only. Never use this model with 110V setting in
Saudi Arabia.
You will find the line voltage selector switch on the rear pan-
el. Before your model its shipped from the factory, the switch
is set to the power requirements of the destination; neverthe-
less, you should check that it is set properly before plugging
the power cord into the AC outlet. If the voltage is not properly
set, or if you move to an area where the voltage requirements
differ, adjust the selector switch as follows. Before adjust-
ing, disconnect the power cord.
1, Use a medium-size screwdriver.
2. Insert the screwdriver into the groove of the selector
switch and turn it so that the power voltage marking of
your area points to the arrow
VOLTAGE SELECTOR
Medium-size
screwdriver
Operations
----
errs
eres
Sate
AS
74
When
Playing
Records:
--
ni
sn
aaa
see
g
75
When
Recording
Broadcasts
-
4
bei
netig
14
sees
“10
When
Playing
Back
Tapes
14
14
When
Editing
Tapes
------0---
15
12.

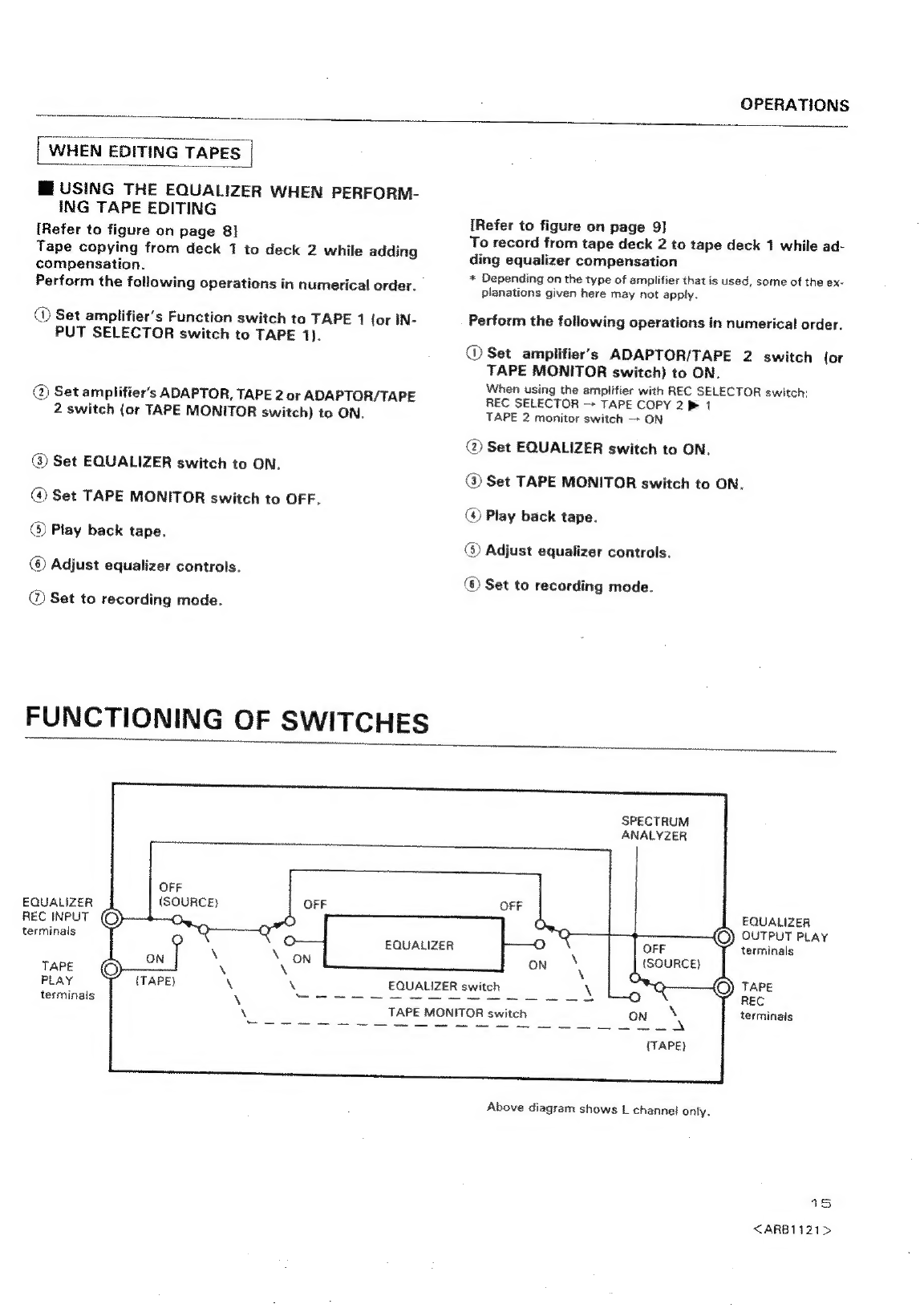

Functioning
of
Switches
-------
+5.
Troubleshooting
16
Specifications
--
;
sd
highs
asa
ion TUS
16
@ PIONEER’
The Art of Entertainment

IMPORTANT 1
The fighining flash wath arrowhesa, within an equilateral
tuangie. is intended to alert the use! to the presence of
uninsulated “oangersus @° within the produ
epciosure that may be of 6 + oxagiavude ro consti
afisk of electtic shock 10 persons
|
|
|
|
|
—
IMPORTANT 2
the apparatus is fitted with AC mains power cutlets}
see REAR PANEL FACILITIES for convenient
connection of addityonal Hi-Fi componentis}. Make alt
connections te the AC outletist and the signal termmnais
first, Connect the plug to the wall socket last (make
sure that the power switch 1s off 4
Peer on
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER {OR BACK}. NO USER-
SERVICEABLE PARTS INSIDE. HEFER SERVICING TO
QUALIFIED SERVICE PERSONNEL,
The exclamation point within an equilateral tangle ss
intended te alent the user ro the presence af important:
operating ane mamtenance (servicing) instructions in
the iteracure accompany:ng the appliance
FOR USE IN THE UNITED
KINGDOM
WARNING: This plug must only be connected to
electronic apparatus equipped with suitable sockets.
if nat, cut off the piug and fit an appropriate type in
accordance with the instructions below.
The cut-off plug must be disposed of as an electrical
shock hazard could exist if connected to a socket
outlet.
The wires in this mains lead are colourea in accordance
with the following cade
Blue Neuual
Brown: Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the cotowed |
marking identifying the terminals in your plug proceed
as follows:
The wire which 1s coloured blue must be cormected to
the terminal which is marke with the fetter Noor
coloured black
The wire which is coloured brown must be connected
to the termina which 1s marked with the letter L or
coloured red
Do not connect either wire to ne earth terminal of a
three pin plug
poate
READ INSTRUCTIONS ~ All the safety and operating
instructions should be read before the appliance is
Onerated.
RETAIN INSTRUCTIONS ~ The operating instructions
should be retamed tor future reference
HEED WARNING ~ All warnings on the appliance and in
the operating instructions should be adhered to
FOLLOW INSTRUCTIONS ~ Ail operating and use in
structions should be followed.
WATER AND MOISTURE ~ The appliance should not
be used near water ~ for example, near a bathtub,
washbow/, kitchen sink, laundry tub, in @ wet base
ment, or near 3 swimming pool, etc
LOCATION ~- The appliance should be installed in a
stable location
WALL OR CEILING MOUNTING The appliance
shoufd not be mounted to a walt or ceiling
VENTILATION » The appliance should be situated so
that its location or pasition does not interfere with
its proper ventilation. For example, the appliance
should not ba situated on abed, sofa, rug, or similar
surface that may block the venttitation openings; of
placed in a built-in installation, such os a bookcase
or cabinet that may impede the flow of air through
the ventilation openings.
HEAT ~ The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers}
that produce heat
POWER SOURCES ~ The appliance should be con
nected to a power supply only of the type de
scribed in the operating instructions or as marked
on the appliance
POWER-CORD PROTECTION ~ Power suppiy coras
should be routed so that they are not likely to be
walked on of pinched by items placed upon or
against them. Pay particular attention to cords at
plugs, convenience receptacles, and the point
where they exit from the appliance
POLARIZATION = Hf your purchased product is pro
vided with a polarized power plug, please read the
following instructions. This product is equipped
with a polarized alternating current line plug {3 plug
having one blade wider than the other}. This plug
will fit into the power outlet only one way. This is a
safety feature. if you are unable to insert the plug
| fully into the outlet, try reversing the plug. If the
plug should stiif fail to fit, contact your electrician to
replace your obsolete outlet, Do not defeat the
safety purpose of the polarized plug
| CLEANING ~ The appliance should be cleaned only
with a palishing cloth or a soft dry cloth. Never
clean with furniture wax, benzine, insecticides or
other volatile liquids since they may corrode the
cabinet
2
<ARBI121>
——

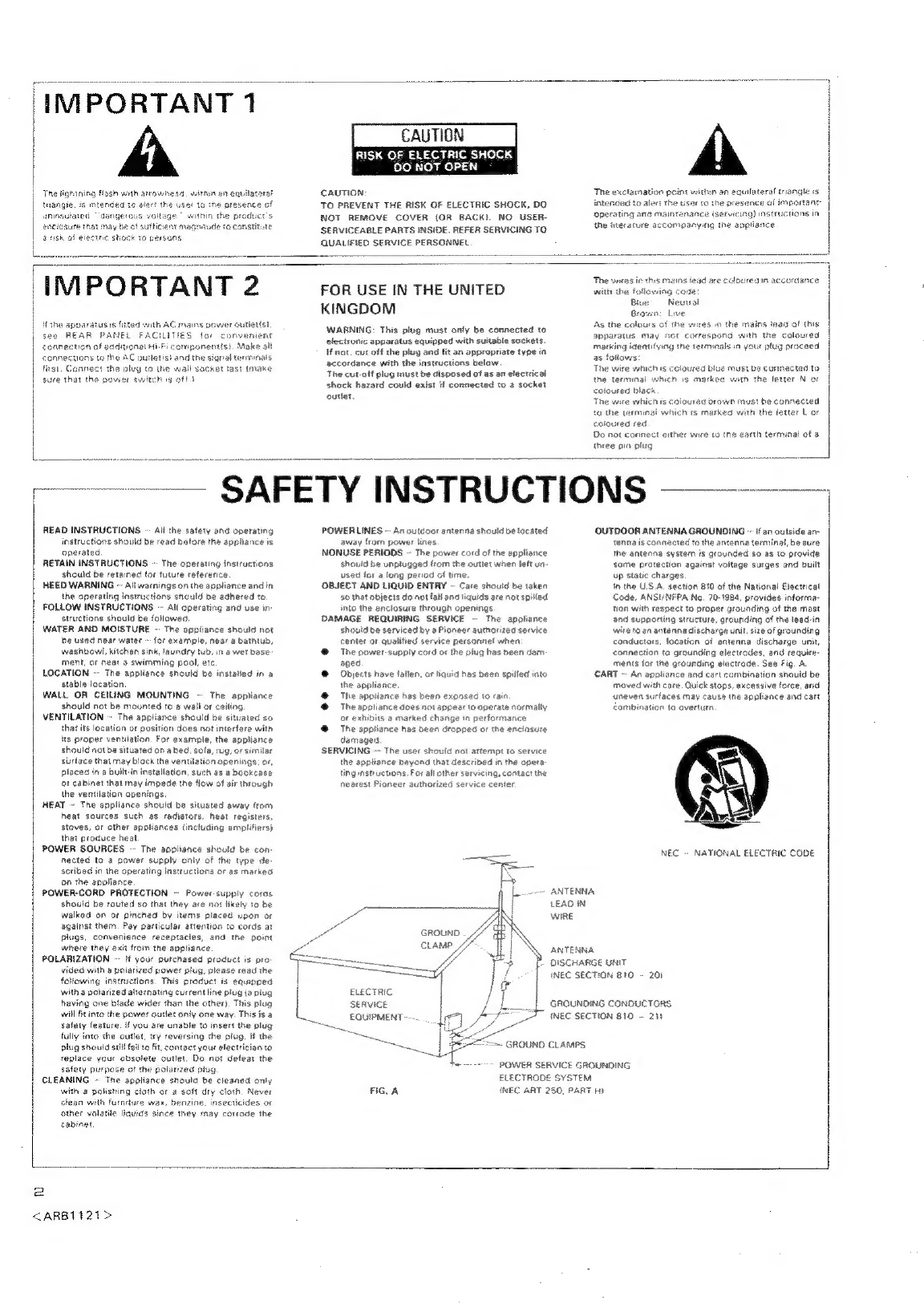

SAFETY
INSTRUCTIONS
———
POWER LINES ~ An outdoor antenna should be located
away from power lines
NONUSE PERIODS ~ The power cord of the appliance
should be unplugged from the outlet when left un-
used for a long period of time
OBJECT AND LIQUID ENTRY ~ Care should be taken
so that objects do aot fatl and liquids are not spilled
into the enclosure through openings.
DAMAGE REQUIRING SERVICE ~ The appliance
should be serviced by a Pioneer authorized service
centet or qualified service personnel when:
The power-suppiy cord or the plug has been dam:
aged.
Objects have fatten, of tiquid has been spilled into
the appliance.
The apptiance has been exposed to rain.
The appliance does not appear to operate normally
of exhibits a marked change in performance
The appliance has been dropped or the enciosure
damaged
SERVICING
The user should not attempt to service
the appliance beyond that described in the opera:
ting instructions. For all other servicing, contact the
nearest Pioneer authorized service center.
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
FIG. A
— GROUND CLAMPS
- POWER SERVICE GROUNDING
ELECTRODE SYSTEM
INEC ART 250, PART Hi
OUTDOOR ANTENNA GROUNDING ~ if an outside an-
tenna is connected to the antenna terminal, be sure
the antenna system is grounded so as to provide
some protection against voltage surges and built
up static charges.
In the U.S.A. section 810 of the National Electrical
Code, ANSI/NFPA No. 70-1984, provides informa:
tion with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of grounding
conductors. location of antenna discharge unit,
connection to grounding electrodes, and require-
ments for the grounding electrode. See Fig, A.
CART ~ An appliance and cart combination should be
moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
éombination ta averturn.
NEC = NATIONAL ELECTRIC CODE
ANTENNA
LEAO IN
WIRE
ANTENNA
DISCHARGE UNIT
INEC SECTION 810 ~ 20)
GROUNDING CONDUCTORS
{NEC SECTION 810 ~ 215

When amplifier has ADAPTOR jacks. @ EQUALIZER jacks
@ TAPE jacks
‘ b h fi itch (3 Accessory cord provided with the tape deck
When connecting components, be sure that all power switches @® Tape deck (Tape deck 2)
are OFF,
This is an example of the connections made when using the
GR~555 in conjunction with PIONEER’s components. For details,
consult the Operating Instructions of the respective components.
(53 Accessory cord provided with GR—-555
(6) Stereo amplifier
@ AC wall socket
@ Power plug
x7
|
sme
)
illustration not applicable
to U.K. model
[© RO OL o,
IMustration @®®
not applicable
to U.K. model. 7
3
<ARBII21>

CONNECTION IL
When
amplifier
has
ADAPTOR/TAPE
2
jacks.
When
connecting
components,
be
sure
that
all
power
switches
are
OFF,
For
details,
consult
the
Operating
Instructions
for
the
com-
ponents
to
be
connected.
LIN
( Fasc)
aNeUT
Hlustration not
applicable to U.K. model.
@) EQUALIZER jacks
TAPE jacks
Accessory
cords
provided
with
the
tape
deck
<4) Tape deck
@
Accessory
cord
provided
with
GR~
555
Stereo
amplifier
Gy
—(8)
{DY
AC
wail
socket
ay
7
Po Hu
8 wer plug iHustration
not applicable
to U.K. model.
a
<ARB1I121>

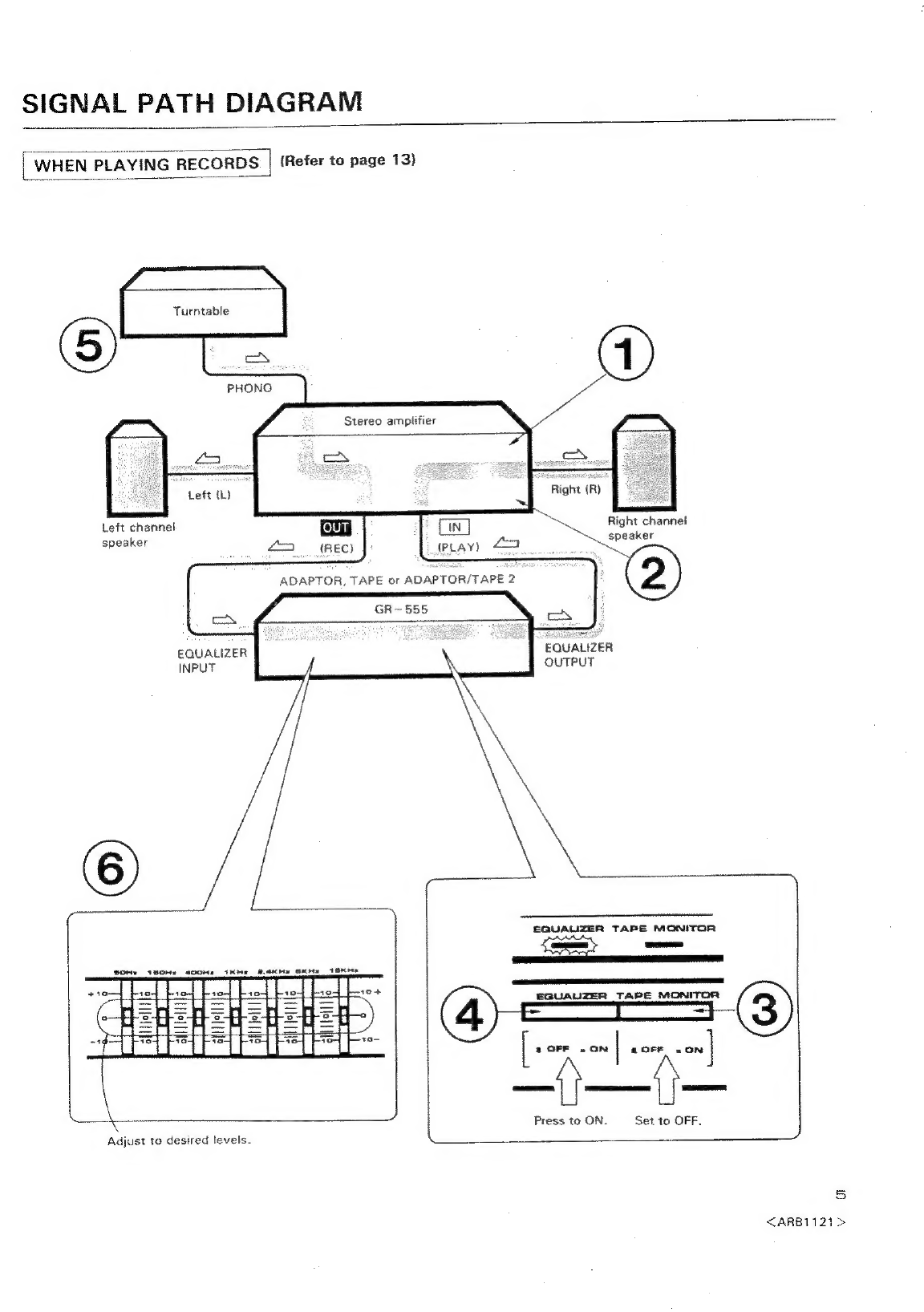

SIGNAL PATH DIAGRAM
|
WHEN
PLAYING
RECORDS
|
(Refer
to
page
13)
Turntable
Stereo amplifier
BoN
CIN] ae Right channel
speaker
Left channel
speaker
EQUALIZER
EQUALIZER
OUTPUT
INPUT
EQUALIZER TAPE MONITOR
OMT BOM: AOOHe TKHe @aKhis OX He TSK ME
EGUAUZER TAPE MONITOR
Press to ON. Set to OFF.
Adjust to desired levels.
5
<ARB1121>

SIGNAL PATH DIAGRAM
fas
ee
nT
(Refer to page 14)
H
ar
J
Tape deck 1 (double
or single tape deck}
Tuner
Stereo amptifier
[any
Right (R)
Left (L)
Right channel
speaker
Left channei
speaker
“23
(PLAY)
EQUALIZER
OUTPUT
EQUALIZER
INPUT
Tape deck 2
EQUALIZER TAPE MONITOR
Ee
EQUALIZER TAPE MONITOR
[
sor
2
ON
ROFF
won
|
he Be
i
Press
to
ON.
Set
to
OFF.
J
Adjust to desired levels.
6
<ARB1121>

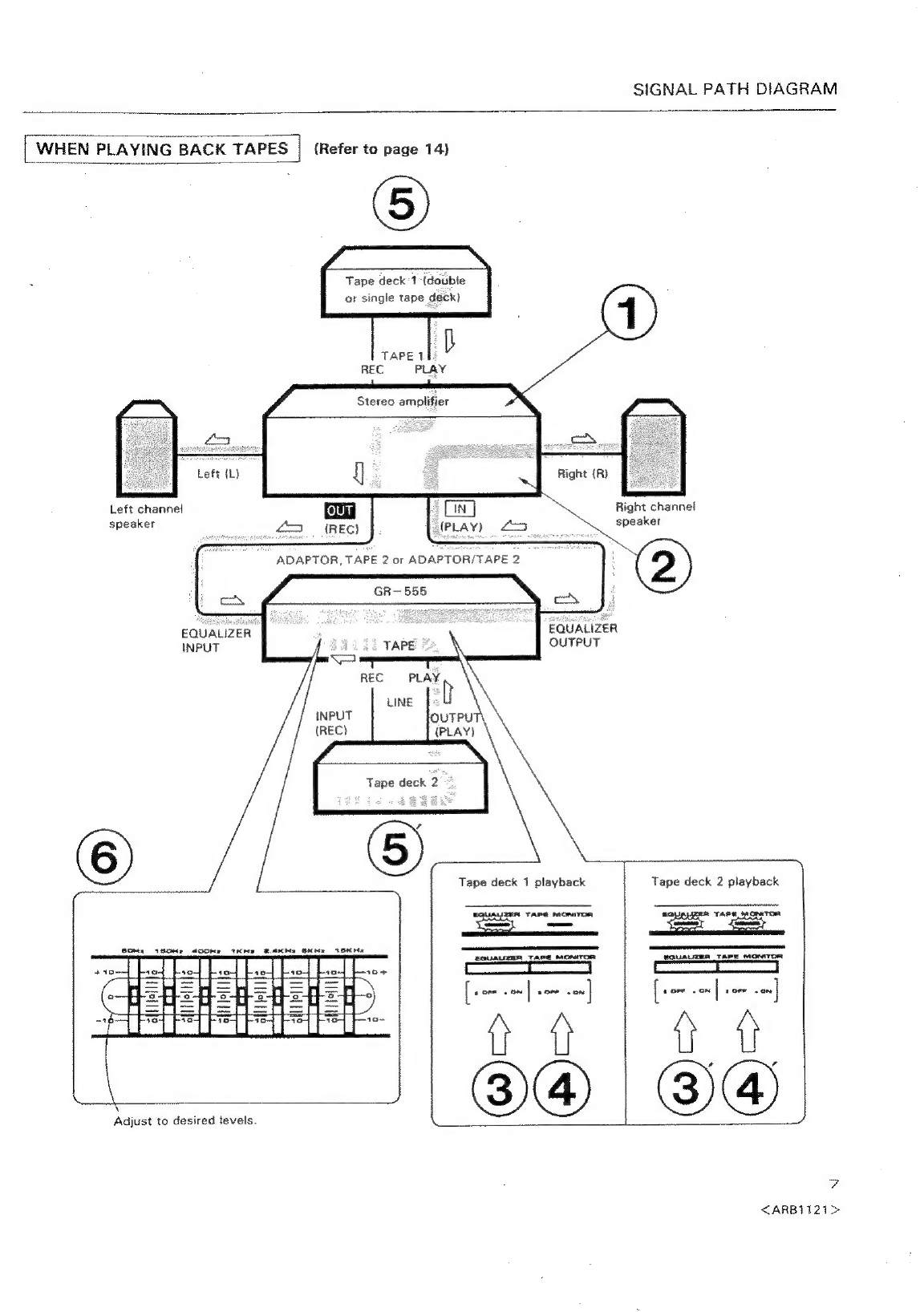

SIGNAL PATH DIAGRAM
[ WHEN PLAYING BACK TAPES | (Refer to page 14)
Tape deck’1 {double
or single tape deck)
Stereo amplifier
Right (R}
Left (L)
Right channel
speaker
OUT)
(REC) (PLAY) £55
Left channel
speaker
24
ADAPTOR, TAPE 2 or ADAPTOR/TAPE 2
EQUALIZER
EQUALIZER
INPUT
OUTPUT
Tape deck 2 playback
Tape deck 1 playback
Tase onwToss
SS TAPE MomiToR
ennnmemnneernnneememeed
Sees
EQUALIZER TAPE MONITOR
sore son
a0 | 00
@®® S@
<ARBII21>
Adjust to desired tevels.
?

SIGNAL PATH DIAGRAM
WHEN EDITING TAPES | (Refer to page 15)
Tape copying frorn deck 1 to deck 2
while adding compensation.
3
Tape deck 1 :
Stereo amplifier
Right (R)
Left (L}
Left channel
Right channel
speaker
speaker
.
2
(REC)
.
oN,
EQUALIZER
EQUALIZER
OUTPUT
INPUT
Tape deck 2
~
——
BOMs IGOHe AOOME TKHs @akHs BKHe TOKMs
[ + ore 2 ON a OFF won|
ees
th
EQUAUZER TAPE MONITOR
EQUALIZER TAPE MONITOR
Press to ON. Set to OFF.
Adjust to desired levels.
<ARB1121>

SIGNAL PATH DIAGRAM
In this Hlustration, the graphic equalizer is connected to the
WHEN EDITING ING TAPES | (Refer to page 75) ADAPTOR/TAPE 2 jack of the amplifier. and the tape deck 2 is
i
a
thin
connected
to
the
TAPE
jack
of
the
equalizer.
The
tape
deck
1
; is connected to the TAPE 1 terminal of the amplifier. With this
To
record
from
tape
deck
2
te
tape
deck
1
while
setup,
copy
can
be
taped
from
tape
deck
2
to
tape
deck
1,
but
make sure the function of
the amplifier
is
set
to
any
position
adding equalizer compensation.
except TAPE 1.
Tape deck 7
Stereo amplifier
4a S.
Left (L} Right (R}
Right channel!
Left channet
speaker
speaker
On]
(PLAY) 23
TAPE 2 or ADAPTOR/TAPE 2
EQUALIZER
EQUALIZER
OUTPUT
INPUT
Tape deck 2
—~
SQUAUZER TAPE MONITOR
EGUAUZER TAPE MONITOR
a OFF an on |
La ea a
Press to ON. Press to ON.
[ +o = ON
Adjust to desired levels.
9
<ARB1121>

REAR PANEL FACILITIES
Two pin-plug cords are included as accessories. These are used
to connect the graphic equalizer to your stereo amplifier. The
white plug is for the left channel, and the red plug is for the right
channel,
EQUALIZER jacks = TAPE jacks
Pin-plug cords
EQUALIZER jacks
Connect to stereo amplifier.
TAPE jacks
Connect to tape deck,
AC OUTLET (UNSWITCHED 100 W MAX)
Power flows continually to this outlet, regardless of whether the
equalizer is switched ON or STANDBY. Electrical power consump-
tion of the connected equipment should not exceed 100 W. The
equalizer should be disconnected by removing the mains plug
from the AC wail socket when not in regular use, e.g. while on
vacation.
NOTE:
Do not connect appliances with high power consumption
such as heaters, irons, or television sets to the AC OUTLET in
order to avoid overheating or fire risk.
This can cause the equalizer to malfunction.
AC power cord. ~~
40
<ARB1121>
AC outlet
STEREO AMPLIFIER TAPE JACKS
When the stereo amplifier has one set of tape jacks:
Connect the INPUT jacks to the stereo amplifier's TAPE REC
jacks, and connect OUTPUT jacks to the stereo amplifier’s TAPE
PLAY jacks.
Equalizer
Tape jacks jacks
TES
Amplifier
Tape jacks
CoS EES
When the stereo amplifier has two sets of tape
jacks:
Connect the INPUT jacks to the stereo amplifier’s ADAP-
TOR/TAPE 2 or TAPE 2 [REC] jacks, and connect OUTPUT jacks
to the stereo amplifier’s ADAPTOR/TAPE 2 or TAPE 2 [PLAY]
jacks.
ADAPTOR/TAPE 2 Equalizer
or TAPE 2 jacks — 7 jacks
EE
Amplifier
Tape 1 jacks
Tape deck 1
Tape jacks
fo
Tape deck 2
Connect TAPE REC jacks to the tape deck 2’s LINE (REC)
jacks.
Connect TAPE PLAY jacks to the tape deck 2’s LINE
(PLAY} jacks.

FRONT PANEL FACILITIES
QW PIONEER srewe mame souaume) GR
@) POWER Switch (POWER STANDBY/ON)
When this switch is set to the ON position, power is supplied
to the unit’s main circuits (the spectrum analyzer frequency
display light.) The unit's power switch is geared to selecting
the transformer’s secondary and so even at the STANDBY
position, the unit's circuitry will work as long as the power
cord is connected to the AC power outlet.
Disconnect the power cord from the AC power outlet when
you do not plan to use the unit for a long period of time.
(2 LEFT CHANNEL spectrum analyzer
Displays the amplification of the output signal compensated
with this instrument.
(3) EQUALIZER indicator
@ TAPE MONITOR indicator
@® RIGHT CHANNEL spectrum analyzer
Displays the amplification of the output signal compensated
with this instrument.
@) EQUALIZER CONTROLS
These are equalizer controls for the bands 60 Hz, 150 Hz,
400 Hz, 1 kHz, 2.4 kHz, 6 kHz and 15 kHz.
When the equalizer switch has been set to ON, these controls
may be adjusted. When a control is raised upwards from the
“OQ” position, the frequency band corresponding to that con-
trol will be emphasized; when the control is lowered, the fre-
quency band will be attenuated. These controls can be used
independently for right and left channels.
(D EQUALIZER Switch
When this switch is pressed, the EQUALIZER indicator lights
and its functions become operative. When pressed once
again, this indicator goes out and its functions become in-
operative. Use this switch in the following manner:
ON: When using the equalizer to add sound compensation
to program sources (FM broadcasts, records, tape
playback, etc.).
OFF: When not using the equalizer, normal play back or
recording program sources will be performed without
compensation.
NOTE:
Even when performing playback without using the functions of
this component, if the power switch is OFF, and the equalizer
switch is OFF, there will still be sound. The unit’s tape monitor
switch can also be switched ON or OFF. {TAPE MONITOR in-
dicator will not light. }
@ TAPE MONITOR Switch
When this switch is pressed, the TAPE MONITOR indicator
lights. When pressed again, the indicator goes out. Use this
switch in the following manner:
ON: When using the tape deck connected to the equalizer’s
tape terminals to play back with or without adding
sound compensation.
OFF: When using the components (tuner, turntable, tape
deck) connected to the stereo amplifier to play back
music with or without adding sound compensations,
NOTE:
Pressing the TAPE MONITOR switch ON/OFF during recording
will cause breaks in the recording. To avoid this, do not press the
tape monitor switch while recording.
NOTE:
tn order to protect your speakers from damage resulting from
excessively large inputs, whenever increasing high-frequency
sounds over a wide range, be sure not to raise your ampilifier’s
sound volume too high.
414
<ARB1121>

USING THE EQUALIZER CONTROLS
The graphic equalizer divides the music source into a number of
frequency bands and boosts or attenuates the level at each of the
frequencies, enabling much finer sound quality adjustments than
ordinary tone controls and sound field compensation.
Some examples of operation are given below.
[Amplitude of change in frequency
(3B) sresponse using ordinary tone con-
c trol
i
t
t
Levet
Level
——-m Frequency
inge in frequency |
response using graphic equalizer
L_
controls
i
[1] COMPENSATING FOR THE PLAYBACK
FREQUENCY RESPONSE
The frequency response of a phono-cartridge or speaker has
peaks and dips in the high range and low range. It can be made
flat by adjusting finely the controls on the graphic equalizer.
——.-= Level
Compensated ee Overall frequency
response
Frequency —_—
2] IMPROVING THE ACOUSTICS OF THE
LISTENING ROOM
The ideal listening room is one where the transmission frequency
response is flat. in actual fact, however, the acoustics vary 2
depending on the effects of the structure of the room and its fur-
niture, and on the listening position.
12
<ARBI121>
glenor saxphone |
Although there is minimal treble attenuation in a listening room
surrounded by hard walls and windows and having a bare floor,
the bass sounds are reflected to a great extent.
in rooms like these, turn up the 150 Hz control sfightly.
in a room surrounded by drapes and with carpets on the floor,
there is minimal reflection of the sound and both the bass and the
treble are absorbed,
in rooms like these, turn up the 60 Hz control slightly and turn up
the frequency controls above 2.4 kHz graduaily.
The above examples are extremely general.
The acoustics undergoes a change in accordance with the fur-
niture in the listening room, the height of the ceiling and the listen-
ing position, among other factors.
Play the music and try operating each of the controls to produce
the best effect.
[3] COLORING THE REPRODUCED SOUND
All instruments and vocals have their own frequency band, as
shown in the figure.
By moving the controls up or down, the volume of the in-
struments preferred can be boosted or other instruments can be
attenuated.
For instance, it is possible to boost the 60 Hz frequency and give
the bass drum a greater “punch” or boost the 1 kHz frequency
and position the vocals st the front. When the 6 kHz frequency is
boosted, the cymbals and “high hat” sound much clearer.
Instruments and vocals have a great many harmonic components
along with the fundamental frequency band and so you can have
lots of fun operating the 7 controls to achieve the sound of your
choice.
NOTE:
In order to protect the speakers from damage resulting from
power overload, do not excessively increase the stereo
amplifier’s volume level when boosting the treble range on this
unit.
AKHE BAKE OKMe
cca
co
Contrabass
Btrombone
a Flute
Aito clarinet
i
i Oboe
ji MPEngtish horn
Electric organ
ry ’ i
Pal i ae
at Pty ft nies
car a ce Tar Cr, AE
~———=~ Frequency (Hz)

USING THE EQUALIZER CONTROLS
OPERATIONS
(4) RECORDING TECHNIQUES USING THE
GRAPHIC EQUALIZER
Coloring the sound of vocals or instruments
The sound of vocals and instruments can be colored at will by
operating the controls. For instance, when the 400Hz, 1kHz and
2.4kHz controls are raised and the other controls flowered,
people's voices sound as if heard on a telephone.
Preventing howl during mixed play
Any irritating howl during play can be prevented by lowering the
knob corresponding to the frequency band in which the how! oc-
curs.
Noise can be reduced during recording and playback
When the high-range controls are boosted in step fashion during
recording and then lowered in reverse fashion during playback,
tape hiss and other high-range noise can be reduced.
el ela eee
nan 7
Ld 4 Lo
Creating recorded tapes most compatible with
the playback equipment
A sound with a greater “punch” can be recorded for playback on
car stereo equipment if the ultra-low-range, which is hard to hear,
is Cut out and the mid-range is boosted,
| WHEN PLAYING RECORDS
EQUALIZER WITH
MECOMBINING THE
RECORD PLAYBACK
{Refer to figure on page 5]
Perform the following operations in numerical order.
G) Set amplifier’s Function switch to PHONO (or IN-
PUT SELECTOR switch to PHONO}.
(2 Set amplifier’s ADAPTOR/TAPE 2 switch or
TAPE 2 switch {or TAPE MONITOR switch) to
ON.)
@ Set TAPE MONITOR switch to OFF.
(4) Set EQUALIZER switch to ON.
(3) Play back record.
(6) Adjust equalizer controls.
13
<ARB1I121>

OPERATIONS
[
WHEN
RECORDING
BROADCASTS
*
When
connecting
this
unit
to
the
TAPE
2
terminals
of
the
amplifier,
depending
on
the
type
of
amplifier
used,
it
may
not
be
possible
to
make
a
recording
via
this
unit.
MUSING
THE
EQUALIZER
WHILE
LISTENING
TO
BROADCASTS
AND
RECORDING
THE
RESULTS.
[Refer
to
figure
on
page
6]
Perform
the
following
operations
in
numerical
order.
When
tape
deck
2
connected
to
the
GR-555
is
set
to
the
recording
mode,
the
contents
of
the
equalizer-compensated
broadcast
can
be
recorded
on
cassette
tape.
G
Set amplifier's
Function
switch
to
TUNER
(or
IN-
PUT
SELECTOR
switch
to
TUNER).
(@) Set amplifier’s ADAPTOR, TAPE 2 or ADAPTOR/TAPE
2 switch (or TAPE MONITOR switch) to ON.)
(3) Set TAPE MONITIR switch to OFF.
@ Set EQUALIZER switch to ON.
(3) Tune in desired station.
© Adjust equalizer controls.
@ Record results on tape.
44
<ARB1121>
|
WHEN
PLAYING
BACK
TAPES
|
Mi
COMBINING
THE
EQUALIZER
WITH
TAPE
PLAYBACK
[Refer to figure on page 7]
Perform
the
following
operations
in
numerical
order.
@®
Set
amplifier’s
Function
switch
to
TAPE
1
(or
IN-
PUT
SELECTOR
switch
to
TAPE
1,
or
TAPE
(1)
MONITOR
switch
to
ON).
(@
Set
amplifier’s
ADAPTOR,
TAPE
2
or
ADAPTOR/TAPE
2
switch
{or
TAPE
MONITOR
switch)
to
ON.)
@), @ Set TAPE MONITOR switch and EQUALIZER
switch.
{Tape deck 1 playback]
(3) Press to ON.
@ Set to OFF.
{Tape deck 2 playback]
(3y Press to ON.
@ Press to ON
© Play back tape.
(Tape deck 1 playback)
Gy Play back tape.
(Tape deck 2 playback}
(6) Adjust equalizer controls.

OPERATIONS
MEUSING
THE
EQUALIZER
WHEN
PERFORM-
ING
TAPE
EDITING
[Refer
to
figure
on
page
8]
Tape
copying
from
deck
1
to
deck
2
while
adding
compensation.
Perform
the
following
operations
in
numerical
order.
@
Set
amplifier’s
Function
switch
to
TAPE
1
(or
IN-
PUT
SELECTOR
switch
to
TAPE
4).
@)
Set
amplitier’s
ADAPTOR,
TAPE
2
or
ADAPTOR/TAPE
2
switch
(or
TAPE
MONITOR
switch}
to
ON.
@)
Set
EQUALIZER
switch
to
ON.
(@)
Set
TAPE
MONITOR
switch
to
OFF.
G) Play back tape.
(6)
Adjust
equalizer
controls.
@ Set to recording mode.
FUNCTIONING
OF
SWITCHES
[Refer to figure on page 9]
To
record
from
tape
deck
2
to
tape
deck
1
while
ad-
ding equalizer compensation
*
Depending
on
the
type
of
amplifier
that
is
used,
some
of
the
ex-
planations
given
here
may
not
apply.
Perform
the
following
operations
in
numerical
order.
)
Set
amplifier’s
ADAPTOR/TAPE
2
switch
{or
TAPE
MONITOR
switch)
to
ON.
When
using
the
amplifier
with
REC
SELECTOR
switch:
REC SELECTOR — TAPE COPY 2 > 1
TAPE 2 monitor switch ~+ ON
@)
Set
EQUALIZER
switch
to
ON.
@)
Set
TAPE
MONITOR
switch
to
ON.
@
Play
back
tape.
(3) Adjust equalizer controls.
@) Set to recording mode.
SPECTRUM
ANALYZER
OFF
EQUALIZER (SOURCE)
REC
INPUT
EQUALIZER
terminals
OUTPUT
PLAY
OFF terminals
(SOURCE)
TAPE
PLAY
EQUALIZER
switch
TAPE
terminals
\
REC
:
TAPE
MONITOR
switch
terminals
(TAPE)
Above
diagram
shows
L
channel
only.
18
<ARB1121>

TROUBLESHOOTING
{f
you
think
the
unit
is
malfunctioning,
please
perform
the
following
checks.
Often,
incorrect
operating
procedures
are
to
blame.
The
cause
may
aiso
lie
outside
the
unit
itself.
Check
the
other
components
and
electric
appliances
being
used
at
the
same
time.
if
the
problem
is
not
remedied
after
following
the
check-list
below,
contact
your
dealer
or
the
nearest
Pioneer
Service
Center.
SYMPTOM CAUSE REMEDY
iit in mt Sasi mn ene ma |
No sound. * Power switch is OFF.
:
* Turn power switch on.
* Power cord is not connected. * Plug in power cord.
* Tape monitor switch is ON. * Set tape monitor switch to OFF,
* Incorrect operation of stereo amplifier. * Check the settings of the amplifier switches
{Consult the amplifiers operating instructions).
* Connecting cords are disconnected. * Connect the cords properly {consult page 3, 4
for proper connecting procedures).
No graphic equalizer effects. * Equalizer switch is set to OFF. * Set to ON.
* Stereo amplifier's tape monitor switch or the * Set to ON.
ADAPTOR/TAPE 2 (or TAPE 2) switch is OFF.
SPECIFICATIONS
Input terminals (reference input tevel/input impedance) Miscellaneous
INPUT. TAPE eae : 150 mV/50 kQ Power requirements
Gain eat? ik 0 6B U.K, model ra.e 240 Voits~, 50/60 Hz
Output terminals U.S. and Canadian models AC 120V, 6OHz
{reference output level/output impedance} Other destination model “AC 110V/120~127V/
OUTPUT ” 150 mV/2.2 kQ 220v/240V (switchable), 50/60Hz
REC OUT rs 150 mV Power consumption 10ers ett cs tseessirees 15W
Harmonic distortion (20H Ei “~ 20 ihe, output 1V) Dimensions... .420 (W) x 105 (H) x 334 (D) mm
: 0.03% i 4~ 18 {H) x 13 — 1/8 (D) in
Frequency response ; Weight serine tes ” 4,2 kg (9 Ib 4 oz)
INPUT, TAPE PLAY 0 ->-- --10 Hz ~ 50 kHz 55 dB
Equalizer bands Accessories
Center frequencies pi Ea eo a. cea giddevaes ut tubidginidesde ld aA ia eae eS 2
6O Hz, 150 Hz, 400 Hf, 1 kHz, 2.4 kH2, 6 kHz, 15 kHz Pin-plug.conds fone as
Variable range ---- ; +10 dB Operating Instructions —~ ELUDES “i
ee TAPE PLAY oc short cl CHEN: 1) +104 dB Specifications and design subject to possible change without
SN ratio (DIN) notice due to improvements.
INPUT, TAPE PLAY csc sccny -. 85 dB
Spectrum analyzer
Center Frequencies
60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 15 kHz
Others soos 3 dB Step, 8 points
Published by Pioneer Electranic Corporation
Copyright © 1990 Pioneer Electronic Corporation
All nghts reserved,
PIONEER ELECTRONIC CORPORATION 4-1, Meguro t-Chome. Meguro-ku, Tokyc 153, Japan
PIONEER ELECTRONICS [USA] INC. 2265 Ea: Street. Long Beach, California 90810. US. A
PO BOX Long Beach, Calitorma 90801, U.S.A
PIONEER ELECTRONICS OF CANADA. INC. 5 ane Deve. Markham. Oniaso i3R BE3, Canada
PIONEER ELECTRONIC [EUROPE] NV. Keeibe 7, 2740 Beveren, Beilmem, TEL: [phone]
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside. Victona 3195, Australia, TEL: [03] 520-9911
<92GO01YF5C30> Printed in Japan <ARB4121-B>
