INSTALLATION MANUAL
WIRED REMOTE CONTROLLER
Installation Manual
IMPORTANT NOTE:
Read this manual carefully before
installing or operating your wired
remote controller. Make sure to save
this manual for future reference.
MODEL: KJR-12B/DP(T)-F-1
KJR-12B/DP(T)-E-1A
KJR-12B/DP(T)-E-2

1
Wall-Mounted Remote Control Wiring
WARNING
•The wiring should adapt to the wire control current.
Otherwise, electric leakage or overheating may occur
and result in fire.
•The specified cables shall be used in the wiring. No
external force may be applied to the terminal.
Otherwise, the wire may be damaged and heating may
occur and result in fire.
CAUTION
•The shielded wire must be grounded.
• The connecting cable should not be longer than 20m (65.5’).
•The remote control operates on a low voltage circuit
loops. DO NOT connect a 220V or 380V cable to the
circuit loop.
•Make sure that configured tubes are 30-50cm (12-20”)
or more apart.
•DO NOT employ an ohmmeter to detect the insulation
after wiring the remote control.
Wall-Mounted Remote Control Wiring...............................1
Wall-Mounted Remote Control Installation ........................6
Table of Contents

32
An overview of the wall-mounted remote control wire outlet
Top side wire outlet
Left side
wire outlet
Right side
wire outlet
Bottom side wire outlet
TIMER
ON
TIMER
OFF
FOLLOW
ME
AUXIL
HEATER MODE
RESET LOCK
FAN SPEED
ECO
SWING TEMP
Fig. 1
1. Wiring diagram
Refer to the following diagram to wire the wall-mounted
remote control to the indoor unit.
5-Core Shield Cable
Wire Joint, 5p
Infrared Pipe
Indoor Unit
RUN GND
+5V
Indoor Unit Switch Board
Wire Controller
Fig. 2
2. Installation Diagram
Connect the wire from the display panel of the indoor
unit to a connecting cable. Then connect the other side
of the connecting cable to the remote control.
5-core wire
The connective wires group
Front grille
Fig. 3
NOTE: Be sure to reserve a length of the connecting wire
for periodic maintenance.

45
NOTE: DO NOT allow water to enter the remote control.
Use the trap and putty to seal the wires.
Putty
Putty Putty
Trap
Trap
Trap
Fig. 4
a. For exposed mounting, cut holes on three of the
sides according to Fig. 5.
b. For shielded wiring, please refer to Fig. 6.
Cut three holes for wire outlet
Fig. 5
Diameter of wall hole: Φ2cm
Embedded switch box wiring
Wiring hole
Wiring through the wall
Wall hole and wiring hole
Fig. 6

67
Wall-Mounted Remote Control Installation
WARNING
DO NOT operate the unit with wet hands, as this could
lead to electrical shock.
Remote Control Dimensions
120mm
(4.7”)
120mm
(4.7”)
21mm
(0.8”)
51.1mm
(2”)
13.1mm
(0.5”)
19.5 mm
85.5mm
(3.3”)
50mm
(1.9”)
19.5m m
(0.7”)
Fig. 7
Preparation Before Installation
1. Ensure you have the following parts
Table 1
No Name Quantity Remarks
1 Remote Control 1
2 Screws 3 M4X20 (For mounting on the wall)
3 Anchors 3 For mounting on the wall
4Screws 2 M4X25 (For mounting on switch box)
5 Plastic screw bars 2 For fixing on switch box
6The connective
wires group 1 Optional
2. Prepare the following tools
Table 2
No Name Quantity
1 Switch box 1
2Wiring tube (insulating sleeve and tightening screw) 1
3. Select installation location
DO NOT install the remote control near ammable liquids
or gases such as gasoline or hydrogen sulde.Doing so
creates a re hazard.

89
Installation Method
1. Remove the top panel of remote control
Insert a screwdriver into the two slots at the bottom of
the remote control to pop o the top panel.
Slots
Fig. 8
NOTE: The Printed Circuit Board (PCB) is mounted in the
upper part of the remote control. Be careful not to damage
the board with the screwdriver.
2. Mount the back plate of the remote control
a. For exposed mounting, fasten the back plate to the
wall with 3 screws (M4×20) and anchors.
Back plate
Screws (M4×20)
Fig. 9
b. For flush mounting, fasten the back plate to the switch
box with 2 screws (M4×25), and fasten the switch box
to the wall with 1 screw (M4×20).
Switch box
Back plate
Screw (M4×20)
Screws (M4×25)
Fig. 10
NOTE: Place the unit on a flat surface. Be careful not to
distort the back plate of the remote control by over
tightening the screws.

10 11
QSXI-007AEN
16117100000241
The design and specications are subject to change without
prior notice for product improvement.Consult with the
sales agency or manufacturer for details.
For Further Details, please go to: www.highseer.com
20160303
3. Set the time and date
The remote control has a small, built-in battery that
allows the time and date to be set. That way the remote
control can keep time even during a power outage.
When the unit displays an incorrect time and date the
batteries need to be replaced.

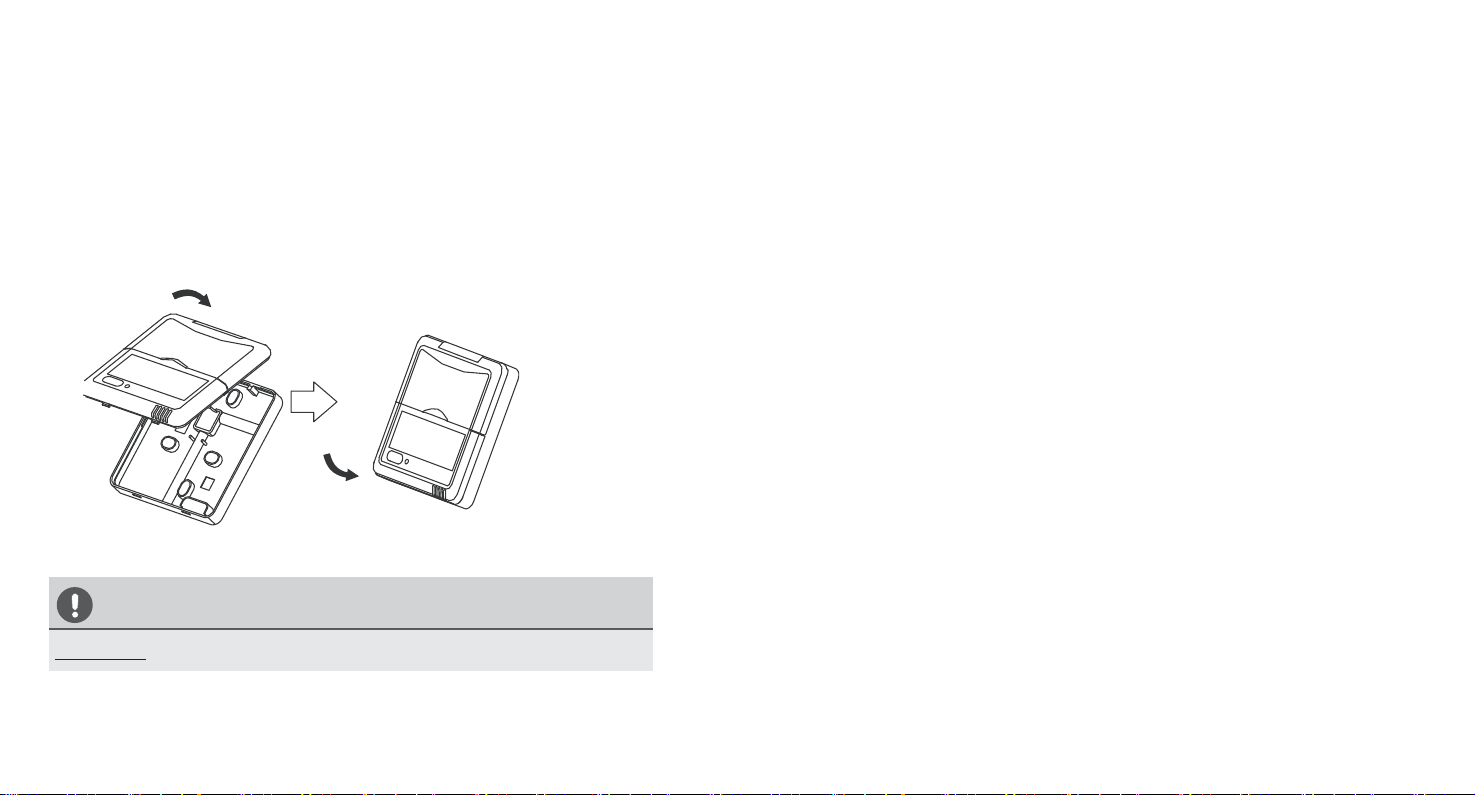

4. Reattach the top panel of the remote control
Fig. 11
CAUTION
DO NOT clamp the wires when reattaching the top panel.
