KHeating & Holding
Cabinets
In This Section

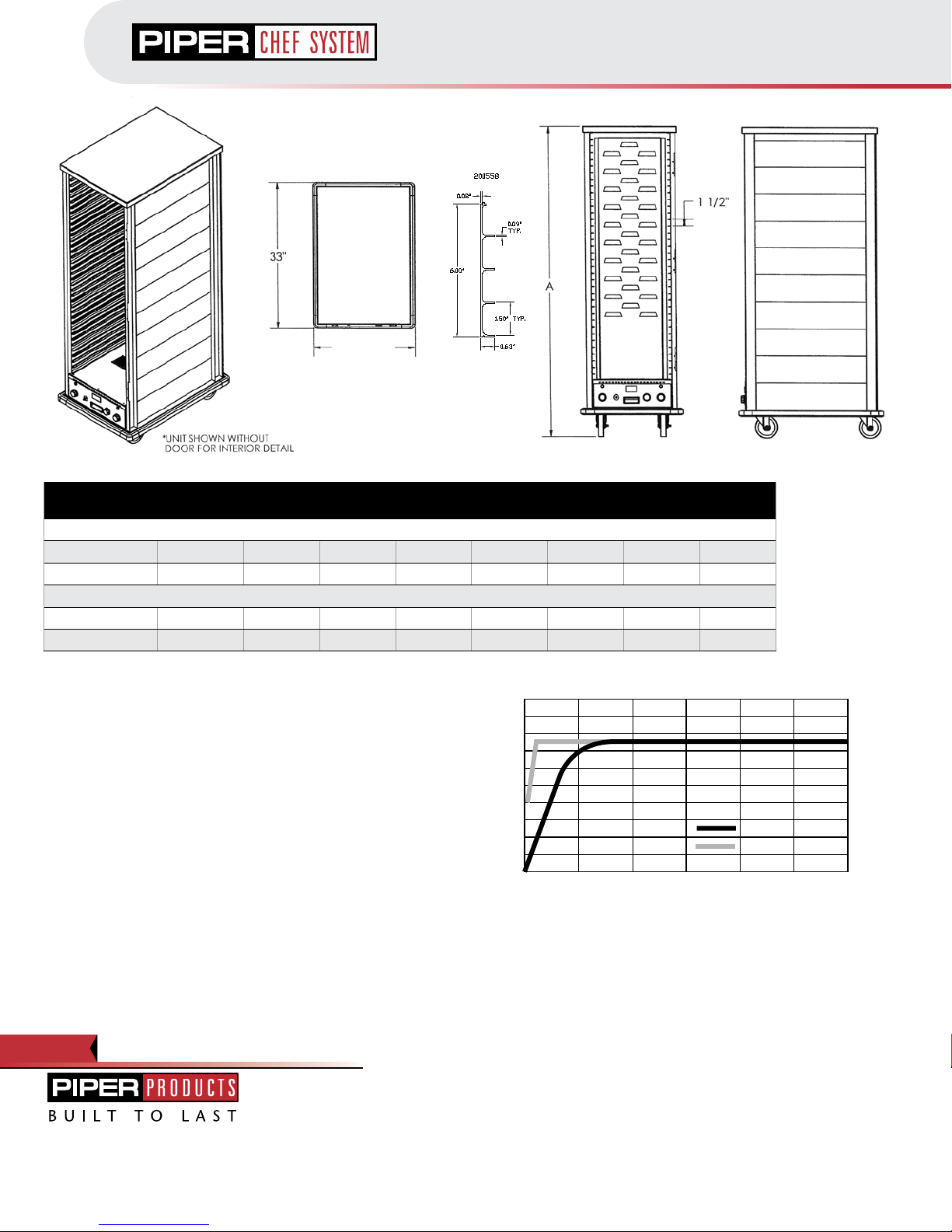

Heated Cabinet/Proofer
Aluminum, Non-Insulated & Insulated
K-1 .........................................................................................253
Universal Heated Proofer
Aluminum, Non-Insulated & Insulated
K-2 .........................................................................................255
Holding Cabinets
Stainless Steel
K-3 .........................................................................................257
Humidified Holding Cabinets
K-4 .........................................................................................259

DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: [phone]
Fax: [phone]
www.piperonline.net
K-1
Heated Cabinet/Proofer
Aluminum, Non-Insulated & Insulated
915-H
934-H
934-H-LD
1034-LD
1015 (Insulated)
1034 (Insulated)
Piper’s aluminum Heated Cabinets /Proofers are designed
with features to make your operation efficient. Controls
can be easily accessed at the front of the Cabinet without
opening the doors and the entire heater unit can be
removed for cleaning and maintenance.
STANDARD FEATURES
Base is a solid bottom constructed of .125” aluminum,
rolled edge base acts as a built-in bumper
Two 12-gauge aluminized steel reinforcing channels

attach the casters and support the bottom panel
Frame consist of four extruded channels 1-1/2” x 5/8” x

.094” aluminum. Corners have .190 channel supports
for reinforcement
Double pan top constructed of two .080” thick

aluminum panels, fully welded corners
Glides are channels spaced on 1-1/2” centers with 5/8”
ledge, .090 thick extruded aluminum continuously
welded to the frame
Door panel is .125” PVC coated aluminum attached
to cabinet with bakery hinges, 270 degree door swing
with card clip
Back panel is .090” aluminum fully welded with
removable multiple louvered vent stack
1/2” extruded aluminum tie bar keeps cabinet square
16-gauge stainless steel positive gravity latch is
provided to keep door closed during transport
Stainless steel side door latch holds door open
One inch insulation surround the cabinet (Insulated
models only)
Card clip, easy identification of cabinet content when
door is closed
DiMENSiONS
915-H - 40-3/4”H x 21-1/2”W x 31”D
934-H - 68-3/4”H x 25W x 31”D
934-H-LD - 68-1/8”H x 21-1/2"W x 31”D
1034-LD - 68-1/8”H x 21-1/2”W x 31”D
1015 (Insulated) - 40-3/4”H x 21-1/2”W x 31”D
1034 (Insulated) - 68-1/8”H x 21-1/2”W x 31”D
HEAT SYSTEM
Individual heat and food moisture controls
Digital read-out for accuracy
Stainless steel 1 gallon water pan
Unit removable for easy cleaning & maintenance
60 minute timer
120 volt, 12.5 AMP, 1500 Watts
HEAVY-DUTY CASTERS
5” diameter x 1/1/4” wide swivel sealed wheels, two with
brakes
Delrin bearing, each with 350 lb. capacity
Maximum resistance to chemicals, acids, bases, alcohol,
water and steam
Maximum low temperature flexibility or superior
performance even in freezing temperatures
COMMON OPTiONS
Lexan full-view door
Push handle
Dutch doors
Personalized embossment
See reverse side for additional options
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
PiPER’S SUPERiOR
FOUNDATiON
Featured on our toughest racks:
Two 12 gauge aluminized steel
reinforcing channels support our
.125” thick aluminum bottom
panel. The edges are formed and
rolled to create a built-in bumper
andheavy duty plate casters make
this the strongest foundation in the
industry.
915-H
934-H
253

LIMITED WARRANTY: PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
K-1 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: [phone]
Fax: [phone]
www.piperonline.net
Heated Cabinet/Proofer
Aluminum, Non-Insulated & Insulated
Model # Description (A) Height Width Depth Channel
Spacing
18x26 Pan
Capacity
Ship
Wt.(lbs)
Shipping
Class
NON-INSULATED
915-H half size 40-3/4” 21-1/2” 31” 1-1/2” 15 140 100
934-H full size 68-3/4” 21-1/2” 31” 1-1/2” 34 190 100
INSULATED
1015 half size 40-3/4” 21-1/2” 31” 1-1/2” 15 160 100
1034 full size 68-1/8” 21-1/2” 31” 1-1/2” 34 260 100
All models 120 volt, 12.5 APM, 1500 watts
OPTiONS / ACCESSORiES
(LD) Lexan full-view door
(DD) Dutch door, only available on 941 units
(CH) Chest handles, set of 2
(EMB) Personalized embossment, 12 letters per line
(PH) Push handle
(I) Insulating transport cabinet
(B) Set of 4 non-marking rubber corner bumpers
(PB) Full perimeter non-marking bumper
(Add 2" to overall width and depth)
(WB) Wheel brakes, set of 2
(5x2) Heavy-duty casters, set of 4
(CP) Correctional package, includes welded casters
and hole in door latch for paddlelock
DEGREES
FAHRENHEIT
TEMPERATURE PROFILE
01HR 2 HR 3 HR 4 HR 5 HR 6 HR
220
205
190
175
160
145
130
115
100
85
70
Preheat Time
Recovery Time
DEGREES
FAHRENHEIT
TEMPERATURE PROFILE
01HR 2 HR 3 HR 4 HR 5 HR 6 HR
270
250
230
210
190
170
150
130
110
90
70
Preheat Time
Recovery Time
Shown with optional Bumper
Glides are channels spaced on
1-1/2” centers with 5/8” ledge
Glides
27"
(CHT-2) Canned Heat Tray Insert
(Y4) Polyurethane 4" casters, set of 4, with ball bearing seals
(Y5) Polyurethane 5" casters, set of 4, with ball bearing seals
(FL) Floor Lock
254

DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: [phone]
Fax: [phone]
www.piperonline.net
K-2
934-HU (non-insulated)
1012-U (insulated)
Piper’s aluminum Heated Cabinets /Proofers are designed
with features to make your operation efficient. Controls
can be easily accessed at the front of the Cabinet without
opening the doors and the entire heater unit can be
removed for cleaning and maintenance.
STANDARD FEATURES
Base is a solid bottom constructed of .125” aluminum,
rolled edge base acts as a built-in bumper
Two 12-gauge aluminized steel reinforcing channels

attach the casters and support the bottom panel
Frame consist of four extruded channels 1-1/2” x 5/8” x

.094” aluminum. Corners have .190 channel supports
for reinforcement
Double pan top constructed of two .080” thick
aluminum panels, fully welded corners
Universal Glides are adjustable on 3” centers to
accommodate various steam table and sheet pan sizes
Door panel is .125” PVC coated aluminum attached
to cabinet with bakery hinges, 270 degree door swing
with card clip
Back panel is .090” aluminum fully welded with
removable multiple louvered vent stack
1/2” extruded aluminum tie bar keeps cabinet square
16-gauge stainless steel positive gravity latch is
provided to keep door closed during transport
Stainless steel side door latch holds door open
One inch insulation surround the cabinet (Insulated
models only)
Card clip, easy identification of cabinet content when
door is closed
HEAT SYSTEM
Individual heat and food moisture controls
Digital read-out for accuracy
Stainless steel 1 gallon water pan
Unit removable for easy cleaning & maintenance
60 minute timer
120 volt, 12.5 AMP, 1500 Watts
HEAVY-DUTY CASTERS
5” diameter x 1/1/4” wide swivel sealed wheels
Delrin bearing, each with 350 lb. capacity
Maximum resistance to chemicals, acids, bases, alcohol,
water and steam
Maximum low temperature flexibility or superior
performance even in freezing temperatures
COMMON OPTiONS
Lexan full-view door
Push handle
Dutch doors
Personalized embossment
See reverse side for additional options
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
Universal Heated Proofer
Aluminum, Non-Insulated & Insulated
PiPER’S SUPERiOR
FOUNDATiON
Featured on our toughest racks:
Two 12 gauge aluminized steel
reinforcing channels support our
.125” thick aluminum bottom
panel. The edges are formed and
rolled to create a built-in bumper
and heavy duty plate casters make
this the strongest
foundation in the industry.
1012-U
255

LIMITED WARRANTY: PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
K-2 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: [phone]
Fax: [phone]
www.piperonline.net
Universal Heated Proofer
Aluminum, Non-Insulated & Insulated
Model # Description (A)
Height Width Depth Channel Spacing
Set of
Glides 12x20 Pan Capacity
18x26 Tray
Capacity
Ship
Wt.(lbs)
UNIVERSAL LEDGE 2-1/2 4 6
934-HU non-insulated 68-7/8” 25” 31” 3-1/8” 12 24 24 6 12 240
1012-U insulated 67-1/2” 31” 30 1/2” 3-1/8” 12 24 24 6 12 260
Pan glides are adjustable on 3 1/8" centers.
Universal models shipped with 12 sets of glides, units can hold 16 sets
All models 120 volt, 12.5 APM, 1500 watts
OPTiONS / ACCESSORiES
(109497) Set of glides
(LD) Lexan full-view door
(DD) Dutch door, only available on 941 units
(CH) Chest handles, set of 2
(EMB) Personalized embossment, 12 letters per line
(PH) Push handle
(I) Insulating transport cabinet
(B) Set of 4 non-marking rubber corner bumpers
(PB) Full perimeter non-marking bumper
(Add 2" to overall width and depth)
(WB) Wheel brakes, set of 2
(5x2) Heavy-duty casters, set of 4
(CP) Correctional package, includes welded casters
and hole in door latch for paddlelock
(CHT-2) Canned Heat Tray Insert
(Y4) Polyurethane 4" casters, set of 4, with ball bearing seals
(Y5) Polyurethane 5" casters, set of 4, with ball bearing seals
(FL) Floor Lock
DEGREES
FAHRENHEIT
TEMPERATURE PROFILE
01HR 2 HR 3 HR 4 HR 5 HR 6 HR
220
205
190
175
160
145
130
115
100
85
70
Preheat Time
Recovery Time
DEGREES
FAHRENHEIT
TEMPERATURE PROFILE
01HR 2 HR 3 HR 4 HR 5 HR 6 HR
270
250
230
210
190
170
150
130
110
90
70
Preheat Time
Recovery Time
Universal glide easily adjustable
256

DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: [phone]
Fax: [phone]
www.piperonline.net
K-3
1008-SS
1016-SS
1016-SS-D
Piper Holding Cabinets are perfect for maintaining
temperatures up to 225 degrees fahrenheit.* A member
of our Chef SystemTM line, this cabinet utilizes separate
heat and humidity controls for precise control over the
holding environment. This allows the unit to be used for
holding, warming, and proofing.
It is available in multiple configurations, including a
warmer with single or dutch doors, a double warmer with
individually controlled holding sections, or a half size
warmer for smaller operations. Each is designed to hold
18” x 26” bun pans or 12” x 20” steam table pans.
STANDARD FEATURES
Precise Temperature to 225° and Humidity Control
Stainless Steel Construction
All exterior walls formed from 20 gauge stainless steel
type 304
Two inch insulation surrounds the entire cabinet
1” x 2-1/2” fully welded steel foundation
DiMENSiONS
1008-SS H44.25” x W26.937” x D31.962”
1016-SS H74.796” x W26.937” x D31.962”
1016-SS-D H74.796” x W26.937” x D31.962
HEAT SYSTEM
Individual heat and food moisture controls
Digital read-out for accuracy
Stainless steel 1 gallon water pan
Unit removable for easy cleaning & maintenance
60 minute timer
120 volt, 12.5 AMP, 1500 Watts
HEAVY DUTY DOOR
Fully insulated
Full perimeter high-temp gasket
Stainless Steel or Glass full-view panel
1” x 2-3/4” extruded frame
Left hinge standard, right hinge available. Please specify
upon ordering
FLExiBLE PAN gLiDE SYSTEM
Universal stainless steel glides fixed on 3” centers
Accommodates 18” x 26” bun pans or 12” x 20” steam table
pans
Removable for easy cleaning
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
Holding Cabinets
Stainless Steel
10081016-SS
257

LIMITED WARRANTY: PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
K-3 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: [phone]
Fax: [phone]
www.piperonline.net
Holding Cabinets
Stainless Steel
Interior View
Control Panel View
OPTiONS / ACCESSORiES
Full perimeter bumper (PB)
Pass-thru Door (PT)
Glass full-view door (GL)
Locking Hasp (LH)
Height includes casters.
Typical freight class: 100
Holds: 18” x 26” bun pans, 12” x 20” steam table pans.
Applications: Meat, Poultry, Fish, Vegetables, Casseroles,
Bakery rolls, Etc.
Electrical: 120 V.A.C. - 50/60 Hz, 1 ph
2000 Watts
16.7 Amps (max.)
NEMA 5-20 P
20A - 125V Plug
HOLDiNg CABiNET SPECiFiCATiONS
Model# Description Height
Inches
Width
Inches
Depth
Inches
Glide
Spacing
18” x 26”
Capacity
12” x 20”
Capacity
Ship Wt.
(lbs)
1008-SS Half size 44.25 26.937 31.962 3 8 16 280
1016-SS Full size 74.796 26.937 31.962 3 16 32 460
1016-SS-D Double Unit 74.875 24.3125 35.25 3 16 32 460
258

DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
JOB__________ ITEM # __________ QTY # __________
SPEC
MODEL NUMBER
300 S. 84th Avenue
Wausau, WI 54401
Phone: [phone]
Fax: [phone]
www.piperonline.net
K-4
Humidified Holding Cabinets
CS2H-5
CS2H-10
Improve holding capabilities with the Chef System Humidified
Holding Cabinets! Designed for simple operation and
exceptional holding performance in 5- or 10-pan models, the
CS2H provides Piper reliability in a holding cabinet that keeps
a wide range of menu items hot for extended holding times.
With 5 levels of humidity, crisp food will stay crisp and moist
food moist. The 90°F to 185º (32ºC to 85ºC) air temperature
range allows precise food temperature control for holding and
proofing.
STANDARD FEATURES
Precise temperature and humidity control is ideal for
proofing and for holding.
Prepare food in advance of peak serving periods.
CS2H-5 accommodates up to seven 1" (3 cm) deep pans
and model CS2H-10 holds up to fourteen 1" (3 cm) deep
pans.
Five levels of humidity to keep crisp food crisp and moist
food moist.
DiMENSiONS
CS2H-5: 26-7/8"W x 34"D† x 34"H (68 x 86 x 86 cm) on 4"
(10 cm) casters.
CS2H-10: 26-7/8"W x 34"D† x 51-1/2"H (68 x 86 x 131 cm)
on 4" (10 cm) casters.
†Add 11/4" (3 cm) for pass-through models.
FEATURES
Temperature Range: 90°F to 185°F (32°C to 85°C)
Relative Humidity Settings:
1 = 20%,
2 = 35%,
3 = 50%,
4 = 65%,
5 = 80%
Water Capacity: 2.5 gallons (9.5 liters)
ELECTRiCAL
120 volts, 60 Hz, 2350 watts, 19.6 amps (uses NEMA
5-20P). (Not available in Canada.)
208 volts, 60 Hz, 2350 watts, 11.3 amps (uses NEMA
6-15P).
240 volts, 60 Hz, 2350 watts, 9.8 amps (uses NEMA 6-15P).
WARRANTY
One year parts and labor. Warranty is detailed on inside
front cover of the price list.
CS2H-10
CS2H-5
259

LIMITED WARRANTY: PIPER PRODUCTS warrants to the original purchaser parts and labor for a period of
twelve (12) months from the date of purchase. See manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by companies that have been accredited at the Federal Level
by the Occupational Safety and Health Agency (OSHA) and ANSI as a National Recognized Testing Laboratory. These
companies include CSA International, Underwriters Laboratories, and the National Sanitation Foundation. However, a
continuing program of product improvement makes it necessary to submit new models to the agencies as they are
developed. Consequently, all models may not bear the appropriate labels at all times.
We reserve the right to change specifications and product design without notice. Such revisions do not entitle buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment. Information is not
for design purposes.
DISPENSERS DISPENSERS
ELITE 500 ELITE 500
STEAM TABLES STEAM TABLES
SUPPORT EQUIPMENT SUPPORT EQUIPMENT
DROP-INS DROP-INS
K-4 SPEC
300 S. 84th Avenue
Wausau, WI 54401
Phone: [phone]
Fax: [phone]
www.piperonline.net

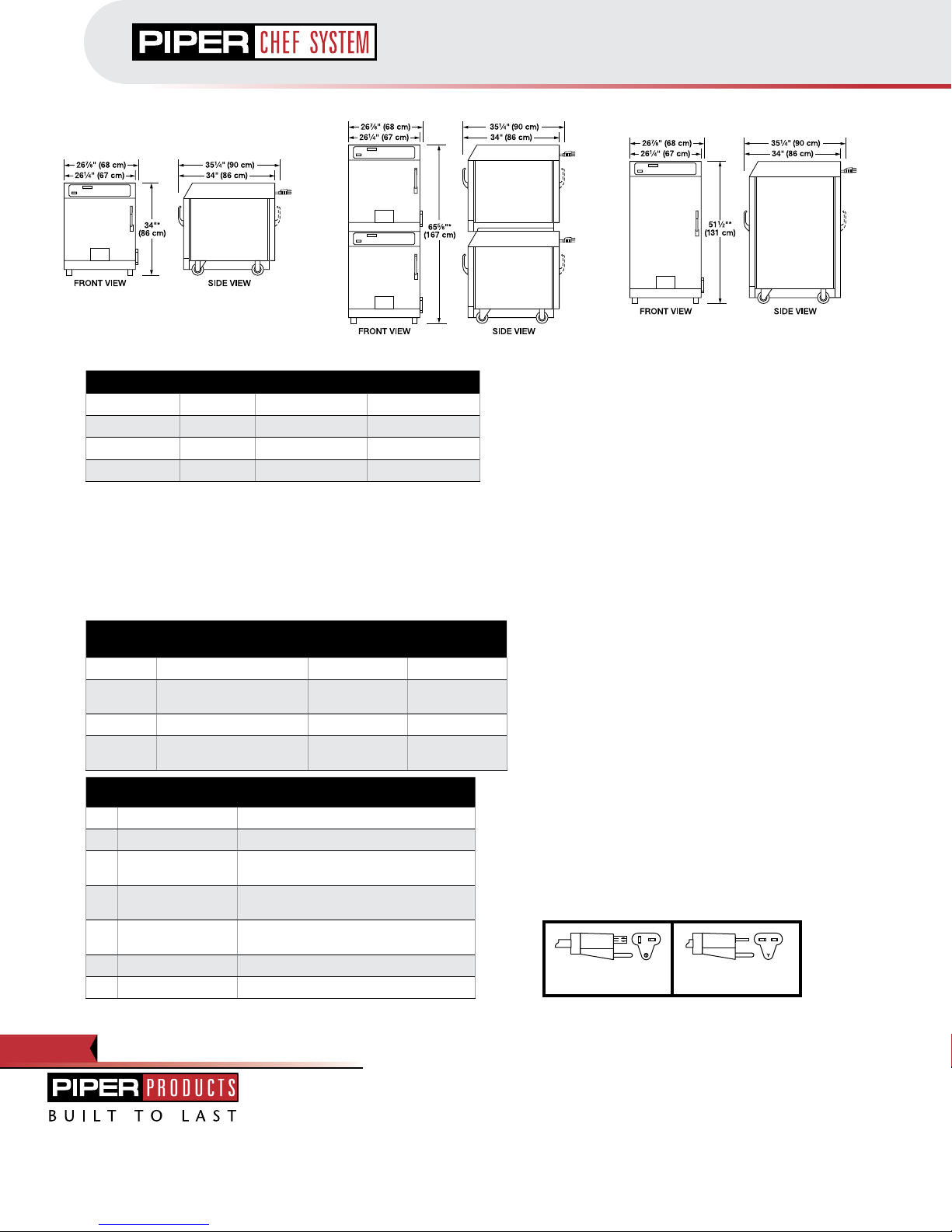

Humidified Holding Cabinets
SPECiFiCATiONS
Model Type Rack Style• Shipping Weight
CS2H-5 1 Door Adjustable Slides 240 lbs. (109 kg)
CS2H-5-2* 2 Door Adjustable Slides 240 lbs. (109 kg)
CS2H-10 1 Door Adjustable Slides 320 lbs. (145 kg)
CS2H-10-2* 2 Door Adjustable Slides 320 lbs. (145 kg)
• 5-Pan Model has 5 slides on each side. Sheet Pans not included.
10-Pan Model has 10 slides on each side. Sheet Pans not included.
* 2-Door single cabinet, not two units stacked.
Typical freight class: 85
CAPACiTY
No. of 2 1/2" (6
cm) Deep Pans
No. of 1" (3 cm)
Deep Pans
CS2H-5 3 3/4" (10 cm) Centers 10 (2 per shelf) 5
2 1/2" (6 cm) Centers – 7 (Extra slides
required)
CS2H-10 3 3/4" (10 cm) Centers 20 (2 per shelf) 10
2 1/2" (6 cm) Centers – 14 (Extra slides
required)
Part Number Description
CS2H-SSBack-5 Stainless Steel Back (CS2H-5 only)
CS2H-SSBack-10 Stainless Steel Back (CS2H-10 only)
CS2H-Heavycast 5" Heavy-Duty Casters (In lieu of stan-
dard Casters)
CS2H-SSLeg 6" Stainless Steel Adjustable Legs (In
lieu of standard Casters)
CS2H-Stack Stacking hardware for multiple holding
cabinets
CS2H-Slide Additional slides
20A-Recep 20 Amp receptacle, 125V (Nema 5-20R)
WATER QUALiTY REQUiREMENTS
Water supply in excess of 3.0 grains of hardness
per gallon (GPG) (.75 grains of hardness per liter)
must be treated and softened before being used.
Water containing over 3.0 GPG (.75 GPL) will
decrease the efficiency and reduce the operating
life of the unit.
Note: Product failure caused by liming or sediment buildup is not
covered under warranty.
FOOD APPLiCATiONS
Breaded, Unbreaded, Crisp, Fried and Baked
Pasta Eggs
Rice Meats
Breads Fish & Seafood
Rolls Chicken
Potatoes Pizza
Vegetables Tacos
Casseroles Tortillas
Dishes with Gravy Bakery Products
Dishes with Sauce Hot Desserts
Breakfast Food
CORD LOCATiON
Rear top center.
Pass-through models: Rear top, left-hand side.
PLUg CONFigURATiONS
NEMA 5-20P NEMA 6-15P
MODEL # CS2-5 MODEL # CS2-5-2 MODEL # CS2H-10
260
