Quick Start Guide
Spectralink 87-Series Handsets
Welcome to PIVOT by Spectralink
Your PIVOT handset combines the familiarity of an Android™
smartphone with the advanced functionality and durability needed
for a workplace environment. PIVOT is not a cell phone. It is a
Wi-Fi device that utilizes the wireless infrastructure installed in
your workplace for connection and communication.We call it a
WorkSmart device.
The PIVOT family of products consists of two form factors and
three models. All models feature a large, backlit color display, a
touchscreen with full keyboard, an enterprise-grade speaker-
phone and superior resistance to dust and liquids, including
cleaning agents. The PIVOT:S (8742) and PIVOT:SC (8744)
have a streamlined design with a slim profile for a familiar
smartphone feel. The PIVOT:SC has a rear-facing camera.
PIVOT 8741 has a patented kickstand spine design. PIVOT 8753
includes an integrated, high-performance 1D/2D barcode
scanner. All models have removable, rechargeable batteries.
Like other devices powered byAndroid, PIVOT uses applications
to deploy functionality. Each facility chooses what applications it
makes available to its PIVOT users. Contact your system
administrator for information about what capabilities are
configured for your facility.
Spectralink applications are translated into French, German,
Spanish and Italian. If you select a different language from the list
of languages offered by the Android platform, some text may
appear in English.
Instructions for using standard Android features are readily
available online. Specialized Spectralink applications follow these
same usage guidelines. Use this document to start exploring
PIVOT and learn a new way of working smart.
The complete PIVOT by Spectralink User Guide is available
online at http://support.spectralink.com/pivot.
Carrying Accessories
PIVOT:S 8742 (8742) or PIVOT:SC (8744) models
Use a holster to carry and protect your PIVOT:S 8742 or
PIVOT:SC (8744).
A belt clip from Spectralink holds the phone firmly to your
pocket or waistband
PIVOT 8741, 8753
Two belt clipstyles are available for secure carrying: Both
theclothespin-style and button-style easilyattach to a belt
or other firm edge.
Use the cross-body lanyard forconvenient carrying and
quick access.
Attach a silicone bumper to protect your PIVOT without
interfering with use.
Contact your service representative for more information about PIVOT
accessories.

721-0026-000_D-en.docx
April 2016 2
PIVOT:S 8742, 8744 PIVOT 8741,8743
Charging with the USB Cable
Charge PIVOT fully before using it. An all-night charge is best.
Caution
Your PIVOT handset must be turned on in order for itto
accept a charge. If it is turnedoff when you plugit in, it will
turn on. If you turn it off while it is pluggedin, it will turn
itself back on.
Dialer
PIVOT’s Dialer easily makes calls by free dialing, through
selecting recent calls or contacts from the People application or
by selecting contacts from a corporate directory if enabled in your
facility.
The sleek PIVOT:S
8742 and PIVOT:SC
(8744) models provide
a slim profile and a
familiar smartphone
grip.
If you have smaller hands
use the spine grip, shown
here, available on the
8741 and 8753 models.

721-0026-000_D-en.docx
April 2016 3

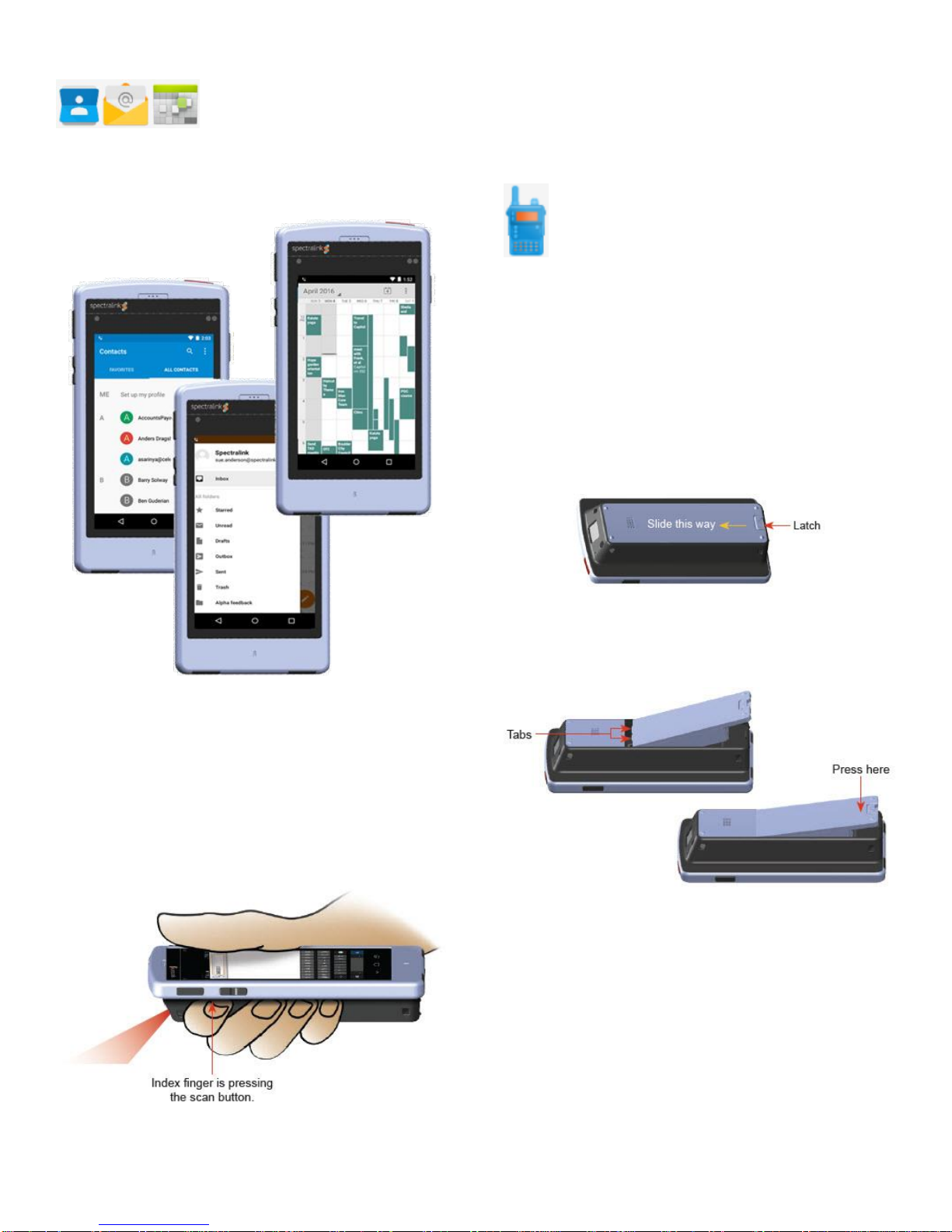

Corporate Sync
If supported in your facility, your PIVOTsupports over-the-air
synchronization with corporatecontacts, email and calendars.
Contact your system administrator for details on how to set this
up on your device.
Barcode Reader (8753 only)
The barcode reader is activated by an application that utilizes the
scanned barcode as data. Both 1D and 2D types of barcodes can
be scanned.
Open the application that requires a barcode scan and hold the
device in a horizontal position and press the scan button. The
data is entered in the text field.
PIVOT is ergonomically designed so that you can hold the device
in a horizontal position when scanning. The LED slants down,
preventing wrist strain.
Applications in Webview
Applications that have been specificallydeveloped for your facility
are opened by tapping a shortcut widget in the Application box.
Push-to-Talk
If activated in your facility, the PTT feature allows your PIVOT to
operate in a group broadcast mode, where a single handset can
transmit to multiple listeners, like a two-way radio.
Battery Pack
The Battery Pack can be removed and charged in the Quad
Charger which is especiallydesigned forshift use. The battery
itself clips into a carrier and does not need to be removed from
thecarrier before charging it in the Quad Charger.
Always start every shift with a fully charged battery.
Removal: (8741, 8753) Slide the carrier latch towards the phone
body to remove the Battery Pack.
Replacement: (8741, 8753) To replace the Battery Pack, slip the
tabs at the top of the carrier into the corresponding slots at the
top of the battery cavity. Gently press the bottom of the Battery
Pack until it snaps into place. The Battery Pack should snap into
position with minimal pressure.

721-0026-000_D-en.docx
April 2016 4
Battery Pack
The Battery Pack can be removed and charged in the Quad
Charger which is especiallydesigned forshift use. The battery
itself clips into a carrier and does not need to be removed from
thecarrier before charging it in the Quad Charger.
Always start every shift with a fully charged battery.
Removal: (PIVOT:S 8742, PIVOT:SC (8744)) Slide the carrier
latch towards the phone body to remove the Battery Pack.
Replacement: (PIVOT:S 8742, PIVOT:SC 8744)) slip the wide
tab at the bottom of the battery into thecorresponding slot at the
bottom of the battery cavity.
Gently press the top of the Battery Pack until it snaps into place.
The Battery Pack should snap into position with minimal
pressure.
Spectralink SAFE
If available in your facility, the Spectralink SAFE application
receives and can respond to signs of distress. As programmed by
your administrator, the device may send an alarm if it senses
running, becomes unusually tilted, or is still for a period of time.
Any of these conditions might indicate that the user is in trouble
and needs help. The Spectralink SAFE application can also
enable a Panic button that will place an emergencycall when
pressed.
