Pixelfly PF-IPHM User manual
1080P IP Decoder w/ Multi-window
PF-IPHM
USER MANUAL
1
Important Safety Information
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Do not use this product near water. Keep away from wet places, such as: spas, pools,
sinks, laundries, wet basements, etc.
4. When cleaning, unplug the unit and wipe with a dry cloth. Do not use damp cloths,
cleaning fluids, or aerosols which may result in electric shock, fire, or unit damage.
5. Operate this product using only the included power supply and/or power cable. Use of an
unapproved power implement may impair performance, damage the product, or cause
fires.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
7. Do not install or place this product near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that produce heat.
8. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the product.
9. Only use attachments/accessories specified by Pixelfly to avoid fire, shock, or other
hazards.
10. To reduce the risk of electric shock and/or damage to this product, never handle or touch
this unit or power cord if your hands are wet or damp. Do not expose this product to rain
or moisture.
11. Unplug this product during lightning storms or when unused for long periods of time.
12. Never open, remove unit panels, or make any adjustments not described in this manual.
Attempting to do so could result in electric shock, damage to the unit, or other hazards.
2
Contents
Important Safety Information............................................................................ 1
Introduction...................................................................................................... 3
Recommended Software Versions............................................................ 3
Features ................................................................................................... 4
Package Contents .................................................................................... 5
Panel Description............................................................................................. 6
Front Panel ............................................................................................... 6
Rear Panel................................................................................................ 6
Specifications................................................................................................... 8
Installation........................................................................................................ 9
Typical Application ......................................................................................... 10
Firmware Upgrade ......................................................................................... 10
3
Introduction
PF-IPHM is a high performance H.264 decoder that works with H.264
encoders to provide complete end-to-end streaming systems. It has the
capability to simultaneously decode a maximum of nine IP streams in tile
mode, and decode a maximum of six IP streams in overlay mode, and show
them in various multi-view layouts on a single display.
The powerful decoder offers integration-friendly control features -- Windows
PC configurator (PF-IP Console), PF-I P To u c h on iPad and IP control box
(PF-IPC), providing simple, flexible control and management options.
Common applications include homes, classrooms, conference rooms and
broadcasts.
Recommended Software Versions
PF-IPHM works with H.264 encoders to distribute and switch IP streams
throughout the matrix system by using specific software versions of operation
tools. We would recommend that you use the following versions to deploy
network.
Operation Tools Software Versions
PC Configurator v7.1.5.p1 or above
PF-IP To uc h on iPad v3.7.7 or above
IP control box API v1.8/v7.0.6 (v7.1.0) or above
PF-IP Upgrade v2.1.4 or above
4
Features
Supports live IP video stream decoding.
Uses with H.264 encoders to provide complete end-to-end streaming
systems.
Input: one Ethernet input to accept up to nine H.264 high profile video
streams.
Output: one HDMI output, and one analog audio output that allows audio
extraction from any encoder.
Supports HDMI output at resolutions up to 3840x2160@60Hz in tile
mode and up to 1080p@60Hz in overlay mode.
Supports arbitrary display of up to 9 windows (tile mode) or 6 windows
(overlay mode) from video content of up to 9 encoders (tile mode) or 6
encoders (overlay mode).
In overlay mode, windows can overlap.
Provides flexible management of multi-view layouts, allowing users to
select from various layout presets and to customize layouts based on
actual applications.
Built-in auto scaling -- The output rate and resolution can be
automatically scaled and output based on EDID information received
from the connected display.
Fast and seamless switching.
Uploads and displays still image files — Upload still image files to the
unit by using PC configurator. Present still image files such as
organizational logos, photographs, or messages on each window of a
single display when streaming data has been disrupted.
HDMI 2.0 and HDCP 2.2 compliant.
Features CEC function, allowing the TVs to be remotely set to turn on
and enter standby mode by using PC configurator, PF-IP Touch, IP
control box's API commands.
5
Supports bidirectional serial, allowing control of remote RS232 devices
from both sides of decoders and IP control box.
Provides two power supply options -- the local power adapter and
remote PoE-enabled power source equipment.
Selectable network settings from Auto-IP, DHCP and static IP.
Works with Windows PC configurator, PF-IP Touch on iPad and IP
control box for device control and management.
Supports communications protocols used on the Ethernet such as
TCP/IP, ARP, DHCP, ICMP (ping), Telnet, multicast (IGMP), UDP.
Package Contents
1 x PF-IPHM Unit
1 x DC 12V Power Adapter (with US, UK, EU, AU pins)
3 x Phoenix Male Connectors (3.5 mm, 3 Pins)
2 x Mounting Brackets (with Screws)
6

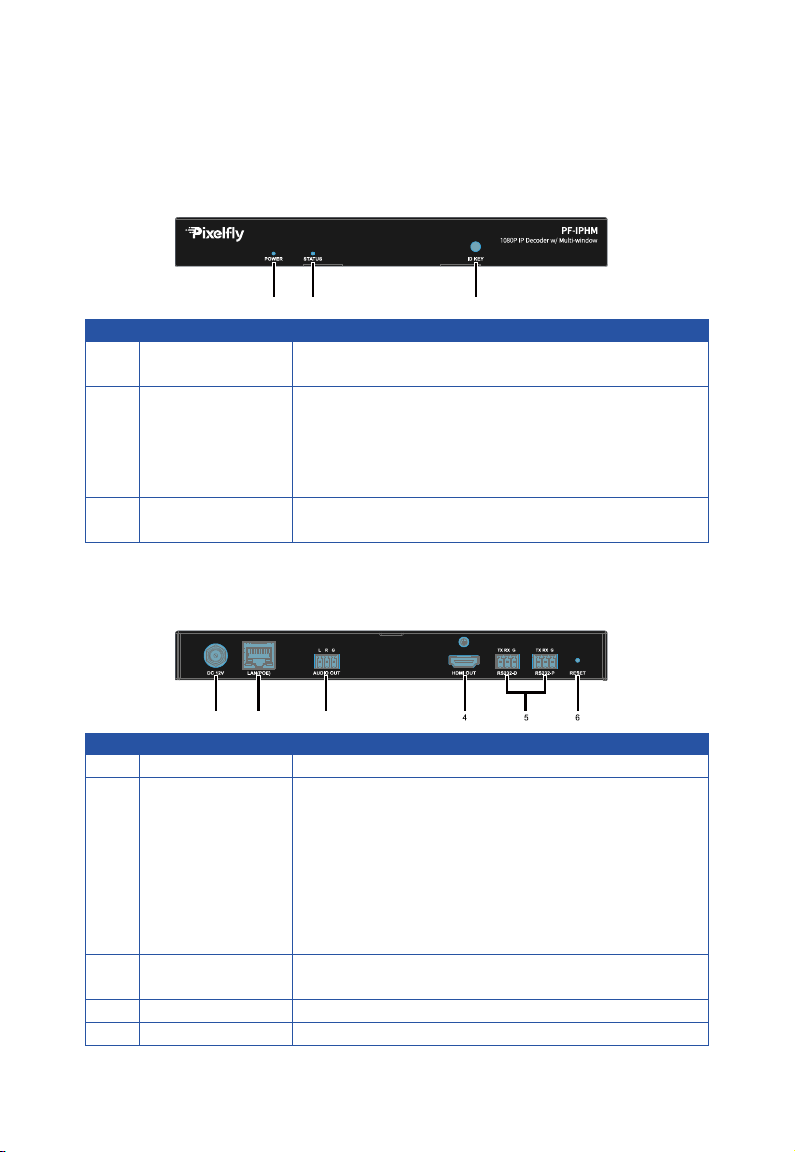

Panel Description
Front Panel
321
No.
Name
Description
1 Power LED On: The device is powered on.
Off:
The device is powered off.
2 Status LED
•Solid on: The device is connected to encoder and
the video is displayed.
•Blinking: The device is disconnected from encoder.
•Off: The device is powered off or in the boot
process.
3 ID Key Press to display the encoder and decoder information
on the screen such as device IP address or ID.
Rear Panel
3
2
1
No.
Name
Description
1 DC 12V Connect to the supplied 12V power adapter.
2 LAN (POE)
Connect this gigabit RJ-45 port to an Ethernet switch for
device control and management. PF-IPHM can be
powered by a PoE-enabled power source equipment
such as a switch via this port.
Note:
We would recommend that you power this device by
using a power adapter or a PoE-enabled switch instead
of both of them at the same time.
3 Audio Out Connect to an audio system such as an amplifier and
speaker.
4
HDMI Out
Connect to an HDMI display.
5 Serial •
RS232-D:
connect this port to a PC for debugging
7
No.
Name
Description
Communication PF-IPHM.
•RS232-P: connect this port to a RS232 device such
as a projector for bi-
directional serial
communication with a RS232 device on the IP
control box side.
6 Reset Button
When PF-IPHM is powered on, use a pointed stylus to
hold down the RESET button for five or more seconds,
and then release it, it will reboot and restore to its
factory defaults.
8
Specifications
Technical
Input Video Ports
1 x gigabit RJ-45 port
Input Video Type
H.264/MPEG-4 AVC
Input Video Resolutions
480p@60Hz~1080p@60Hz
Max. Number of Input
Streams
In tile mode: nine IP streams.
In overlay mode: six IP streams.
Output Video Ports
1 x HDMI port
Output Video Type
HDMI
Output Video
Resolutions
HDMI:
In tile mode: up to 3840 x 2160@60Hz 8bit
In overlay mode: up to 1920 x 1080@60Hz 8bit
Video Impendence
100 Ω
End-to-End Latency
When used with H.264 encoder:
About 80 ms on average (Low latency mode)
About 300 ms on average (High quality mode)
Input Audio Ports
1 x gigabit RJ-45 port
Input Audio Format
Audio embedded in streaming media
Output Audio Ports 1 x Phoenix port (Male, 3.5 mm, 3 pins)
Output Audio Format
Stereo
Control Method Windows PC configurator, PF-IP Touch on iPad and IP
control box
Upgrade Tool
Windows PF-IP Upgrade
Device Debug
1 x RS232-D (DEBUG) port
RS232 Bi-directional
Communication
1 x RS232-P port
ID Key on the Front
Panel
Present encoder and decoder information on the screen
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection
Human-body Model:
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
Power Supply DC 12 V 1 A
Power Consumption 8.3 W (Powered via a power adapter)
12 W (Powered via PoE power source equipment)
Device Dimension 220 mm x 25 mm x 130.2 mm/8.7'' x 1'' x 5.1''
9
General
(W x H x D)
Net Weight
0.78 kg/1.72lb

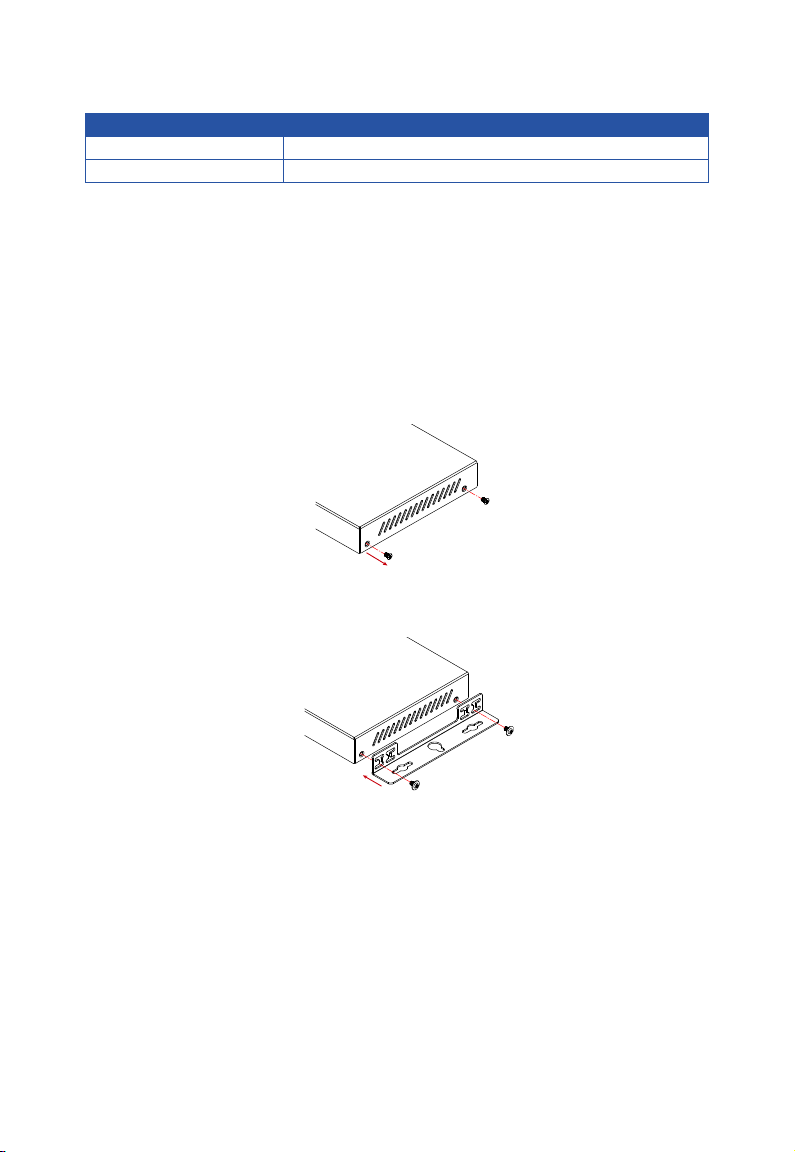

Installation
Note: Before installation, please ensure the device is disconnected from the
power source.
Steps to install the device in a suitable location:
1. Remove the four screws from the two side panels.
2. Position and install the mounting brackets on the two side panels using
the mounting screws provided in package.
3. Mount and secure the device to a surface or a suitable location with the
mounting screws (provided by others).
10

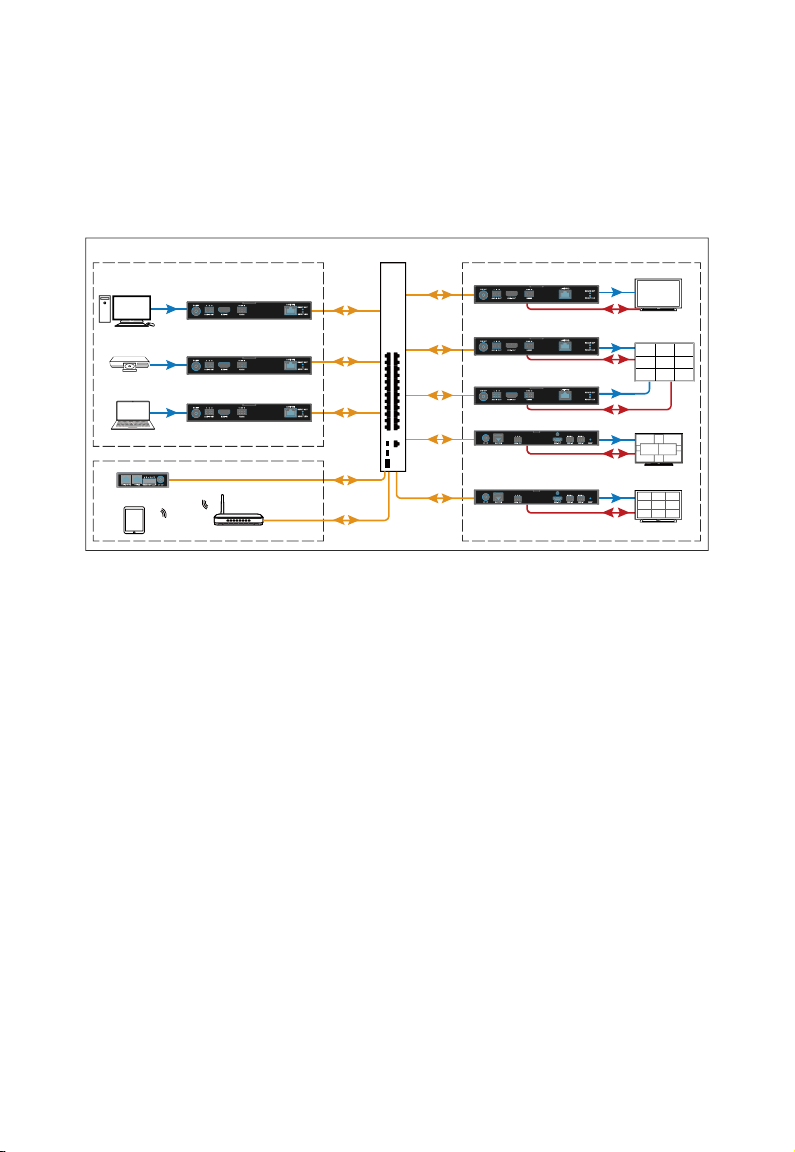

Typical Application
PF-IPHM is designed to work with H.264 encoders to perform matrix
switching.
Display
HDMI
HDMI
HDMI
RS232
3 x 3 Video Wall
HDMI
Encoder
Encoder
PF-IPHM Decoder
Decoder
Decoder
Decoder Display
Ethernet Switch
Desktop (with
PC configurator)
Laptop
HDMI
RS232
RS232
RS232
HDMI
RS232
HDMI
IP Control Box
Audio/Video OutputAudio/Video Input
Control
(3 x 3 Multiview)
Display
(Overlay Multiview)
...
...
PF-IPHM Decoder
Encoder
HDMI
Blu-ray Player
iPad with PF-I P Touch
Wireless Router
Firmware Upgrade
You can use PF-IP Upgrade to update PF-IPHM to the latest versions to
obtain new features. For more information, see the user guide of PF-IP
Upgrade.
