Planar PT1945RW User manual

PT1945R / PT1945RW
Touch Screen LCD Monitor
USER’S GUIDE
www.planartouch.com

The information contained in this document is subject to change without notice.
This document contains proprietary information that is protected by copyright.All rights
are reserved. No part of this document may be reproduced,translated to another language
or stored in a retrieval system, or transmitted by any means, electronic, mechanical,
photocopying, recording, or otherwise, without prior written permission. Windows is a registered
trademark of Microsoft, Inc. Other brand or product names are trademarks of their respective
holders.
The test results show that this device meets the FCC rules. Those limits are set to protect
residential areas from the devices with harmful emission. This device will produce, use and
radiate radio frequency energy. In addition, failure to follow the user’s manual to install or use
this device might produce harmful interference with radio communication. Not withstanding
the foregoing, it does not guarantee that this type of harmful interference does not occur in
some special installations. The interference caused by this device to the reception of radio
or television signals may be veried by turning it on and off. Any changes or modications to
this TFT LCD would void the user’s authority to operate this device.
Important Recycle Instructions:
Lamp(s) inside this product contains mercury. This product may contain other
electronic waste that can be hazardous if not disposed of properly. Recycle or
dispose in accordance with local, state, or federal laws. For more information,
contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specic
disposal information check WWW.LAMPRECYCLE.ORG.
For more information on how to recycle your product, please visit
WWW.PLANARSYSTEMS.COM/GREEN.

Table of Contents
Usage Notice
Precautions ............................................................................................................................ 1
Introduction
About PT1945R/PT1945RW ................................................................................................. 2
Touch Screen for PT1945R/PT1945RW ........................................................................ 2
Package Overview ...................................................................................................... 3
Installation
Product Overview ....................................................................................................... 4
Front View ............................................................................................................ 4
PT1945R Bottom View .......................................................................................... 4
PT1945RW Bottom View ...................................................................................... 4
Start Your Installation .................................................................................................. 5
Connecting the Display (Figure 8.1)............................................................................. 7
(Figure 8.1) .......................................................................................................... 8
Kensington Security Slot ............................................................................................. 9
VESA Mount Your Monitor .........................................................................................10
Remove the Deskstand.........................................................................................11
User Controls
Side Panel Controls ...................................................................................................12
How to Use the OSD Menus.......................................................................................13
On-Screen Display Menus..........................................................................................14
Appendix
Troubleshooting .........................................................................................................15
Warning Signal ..........................................................................................................16
No Signal .............................................................................................................16
Going to Sleep .....................................................................................................16
Out of Range .......................................................................................................16
Product Dimensions ...................................................................................................17
Compatibility Modes ...................................................................................................19
PT1945R...............................................................................................................19
PT1945RW............................................................................................................20
Touch Screen Driver Installation ................................................................................21
PT1945R/PT1945RW Optional Calibration Tool Install: .............................................21
PT1945R/PT1945RW Install Instructions:.............................................................22
Product Registration and Technical Support ...............................................................24

Usage Notice
! Warning - To prevent the risk of re or shock hazards, do not expose
this product to rain or moisture.
! Warning - Please do not open or disassemble the product as this may
cause electric shock.
Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s manual to
maximize the life of your unit.
Do:
• Turn off the product before cleaning.
• Touch screen surface may be cleaned using a soft clean cloth moistened with
mild window glass commercial cleaners or 50/50 mixture of water and isopropyl
alcohol.
• Use a soft cloth moistened with mild detergent to clean the display housing.
• Use only high quality and safety approved AC/DC adapter.
• Disconnect the power plug from AC outlet if the product is not going to be used for
an extended period of time.
Don’t:
• Do not touch the LCD display screen surface with sharp or hard objects.
• Do not use abrasive cleaners, waxes or solvents for your cleaning.
• Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.
1

Introduction
About PT1945R/PT1945RW
The PT1945R/PT1945RW is a 19" at panel screen with an active matrix, thin-lm
transistor (TFT) liquid crystal display (LCD).
Features include:
• Direct Analog signal input
• Active matrix TFT LCD technology
• PT1945R - 1280 x 1024 SXGA resolution
• PT1945RW -1366 x 768 WXGA resolution
• 19" viewable display area
• PT1945R - 31.47 ~ 80 KHz horizontal scan
• PT1945RW - 31.47 ~ 60.02 KHz horizontal scan
• 56 ~ 75 Hz high refresh rate
• PT1945R - 0.294mm x 0.294mm pixel pitch
• PT1945RW - 0.3mm x 0.3mm pixel pitch
• Auto adjustment function
• Multilingual OSD user controls
• Kensington security slot
• 100 mm VESA mount
• Removable base for exible mounting solutions.
• PT1945R/PT1945RW - 5-wire resistive touch screen with dual RS-232 Serial/USB controller.
• Built-in audio-1W x 2
Touch Screen for PT1945R/PT1945RW
• Analog 5-wire resistive touch screen for nger and stylus input
• Surface: Anti-glare treatment
• Interface: Dual RS-232 Serial/USB controller
• Transmittance: 82%±5%
• Driver: Windows® 7, VISTA, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Linux,
Apple® Mac OS
2

3
Package Overview
LCD Display Power Cord VGA Signal Cable
RS-232 Cable
USB Cable ( A to B) Audio-in Cable
Touch Screen Driver
Installation CD-ROM Landing Strip
User’s Guide
xxxxxxxxx
/
xxxxxxxxx
xxxxxxxxx
USER’S GUIDE
www.planartouch.com
Screw
DC Power Supply
(for PT1945RW only)

Installation
Product Overview
• Front View
PT1945R
PT1945RW
• PT1945R Bottom View
RS-232
VGA
AC IN USB
POWER SWITCH
Audio
• PT1945RW Bottom View
POWER SWITCH
DC IN VGA RS-232
USB EARPHONE
AUDIO
4

5
Start Your Installation
Please follow these instructions so that you can hookup the cables to associated connector.

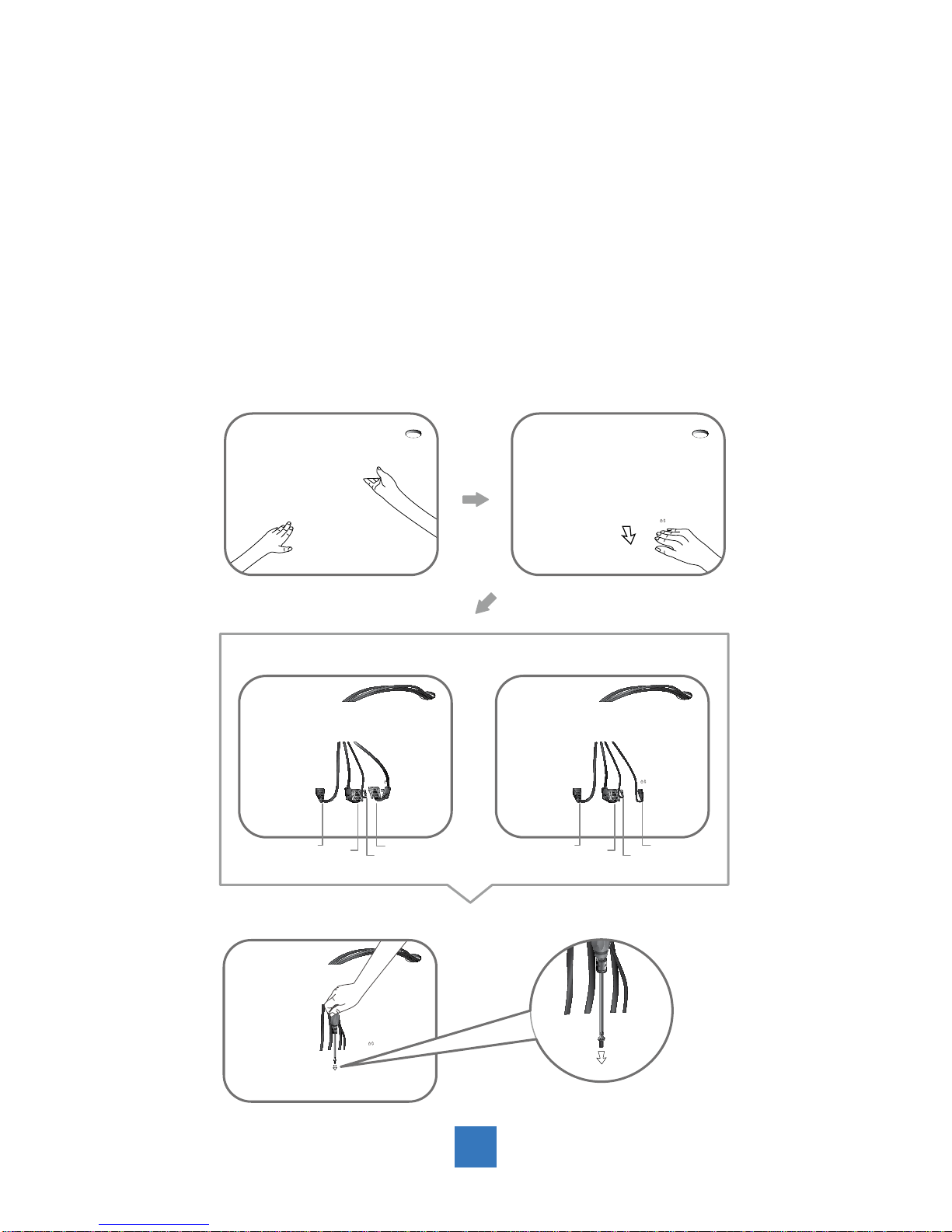

1. Lay the LCD at on an even surface.
2. Move the stand into position as seen in the step 2 diagram.
3. Remove the cable cover as seen in the step 3 diagram.
4. Connect the cables to the appropriate connectors as seen in the step 4 diagram. Use
step 4-1 diagram if using the RS-232 serial connector. Use the step 4-2 diagram if using
the USB connector.
5. Position all cables under the cover lip as seen in the step 5 diagram.
6. Re-attach the cable cover . Remove the screw (CBM M3x6) from the accessory box, and
insert the screw into the cable cover and monitor as seen in the step 5 diagram.
PT1945R
K
Step 2
K
K
RS-232
VGA Audio
Power VGA Audio Power USB
Step 4-2Step 4-1
K
Step 2 Step 3
K
Step 5
K

PT1945RW
Step 5
K
Step 2Step 2 Step 3
Step 4-2
RS-232
VGA Audio
Power
Step 4-1
USB
VGA Audio
Power
Step 4-2
6

Connecting the Display (Figure 8.1)
To setup this display, please refer to the following gure and procedures.
1. Be sure all equipment is turned off.
2. Connect the AC power cord to the power connector on the monitor and the other end
into an electrical outlet (8.1).
3. Connect the D-SUB cable from the display's VGA input connector to the D-SUB
connector of your host computer and tighten the screws (8.1).
4. Connector the audio-in cable from the audio input port of your display to the audio out
port of your computer (8.1).
5. Connect the RS-232 or USB cable from the RS-232 or USB port of your display to the
RS-232 port (8.1) or USB port (8.1) of your computer.
6. Congure the touch screen. Refer to the “Touch Screen Driver Installation” section on
page 21.
7. Once the touch screen is congured, the monitor is ready for use.
! Notice!
To ensure the LCD display works well with your computer, please congure the
display mode of your graphics card to make it less than or equal to 1280 x 1024
resolution for PT1945R, 1366 x 768 for PT1945RW and make sure the timing of the
display mode is compatible with the LCD display.
We have listed the compatible “Video Modes” of your LCD display in the appendix
(on page 20) for your reference.
7
