Planet Audio P10.1ES User manual

Contents
Contents........................................................... 01
Caution.............................................................02
Caution.............................................................03
Product Controls and Functions.......................04
Product Controls and Functions.......................05
Remote Control Diagram.................................06
PowerAnd Mode Selection...............................07
Picture...............................................................08
Volume..............................................................09
System..............................................................10
Setup Key.........................................................
11
Setup Menu.......................................................12
Setup Menu.......................................................13
DVD Functions..................................................14
DVD Functions..................................................15
DVD Functions..................................................16
DVD Functions..................................................17
DVD Functions..................................................18
Connection Diagram..........................................19
Installation..........................................................20
lnterchangeabel housing change diagram.........
21
Disc Inform ation................................................22
Troubleshooting.................................................23
Specifications....................................................24
1

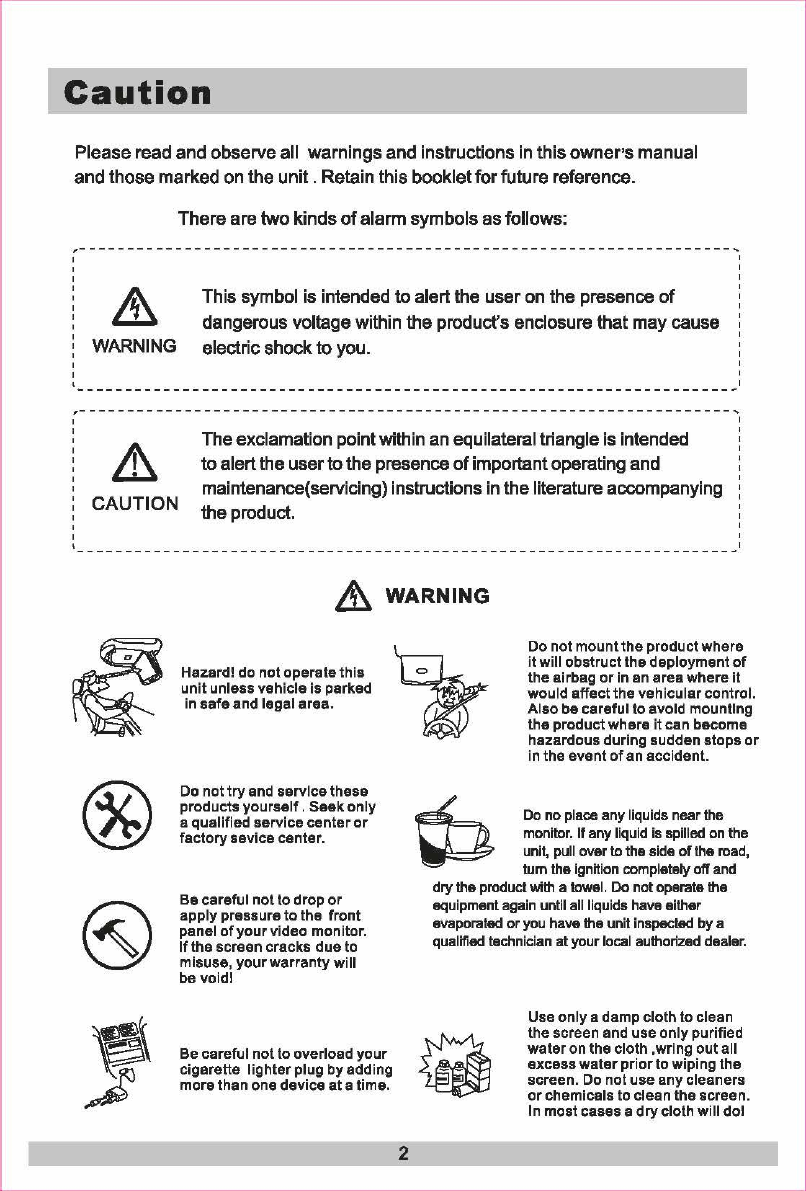

Caution
Please read and observeall warnings and instructions in thisowner•s manual
andthose marked on the unit. Retain this bookletforfuture reference.
There are two kinds
of alarm symbols asfollows:
,--------------------------------------------------------------------,
I
WARNING
CAUTION
This symbol is intended to alert the useron the presence of
dangerous voltage within the product's enclosure that may cause
electricshock to you.
The exclamation pointwithin an equilateraltriangle is intended
to alertthe usertothe presence of importantoperatingand
maintenance(servicing) instructions in
the literatureaccompanying
the product.
& WARNING
Hazard! do not operate this
unit unless vehicle is parked
in safe and legal area.
Do not try and service these
products yourself. Seek only
a quaIified service center or
factory sevice center.
Be careful not to drop or
applypressure to the front
panel of your video monitor.
If the screencracks due to
misuse, your warranty will
be void!
Do not mount the productwhere
itwilI obstruct the deployment of
the airbag or in an area where it
would affect the vehicularcontrol.
Also be careful toavoid mounting
the productwhere it can become
hazardous during sudden stops or
in the event of an accident.
Do no place anyliquids nearthe
monitor. Ifany liquid is spilled on the
unit, pull overto the side of the road,
tum the ignition completely off and
drythe productwith a towel. Do notoperate the
equipmentagain until all liquids have either
evaporated or you have the unit inspected by a
qualified technician atyourlocal authorized dealer.
Be careful not to overload your ~
cigarette lighter plug by adding -
morethan one device at a ti me.
Use only a damp cloth lo clean
the screen and use onlypurified
water on the cloth .wring out all
excess water prior to wiping the
screen. Do not use anycleaners
or chemicals to clean thescreen.
In mostcasesa dry cloth will dol
2

I
Quality installations are best
performed by qualified and
certified Installers.
Don'ttouch the unit if there is
lightning as this may cause an
electricshock to you.
&cAUTION
Do not cover the heaterducts or
vents as this maycause a fire or
electricshock
~ Check Point
Caution
Watching the monitor for an
extended period oftime
without the engine running
may deplete the vehicle•s
battery charge.
This product is designed for
operation with a 12 Volt DC,
negative ground vehicle .It
is not suitable for operation
under other conditions or
voltages.
Do notbring magnetic items such
as credit cardsand othercards with
magnetic strips nearthe monitor
as
this maycause damage to the unit
and/or magneticitem
1.Theoperating temperature of this product is limted to -10°c-+ 60"C.
Yourvehicle can reach temperatures up to 80·cin the summertime.
2.From time to time when yourvehicle isextremely hot or cold you mustallow
time for your air conditioner or heaterto cool or heatthevehicle and for
operating temperatures to return to normal operating ranges.Your monitorwill
return to itsnormalfunctionswhen these operating temperature areachieved.
3.Your optimum picturequalityis achieved when you are directlyin front
of the
monitor(+f-30 degrees).
4.Do
not open covers and repair yourself. Referservicing to qualified personnel.
5.DVD Players use an invisible laserbeam which can cause hazardous radiation
exposure.
Be sure to operatethe unitcorrectly as instructed.
6.
Do notturn ignition off while adiscis playing . Itcan cause damage to the
DVD Player.
3

Product Controls and Functions
Wireless Infrared (IR) Transmitter.
IR audio signals are transmitted wirelessly to
optional IR headphones
4
Remote Control Eye.
Thisallowstransmitting of the
remote control's IR signals for
controlling all functions of your
monitor.

Product Controls and Functions
REMARKS:
Following functions workwhen long pressing 1-2 seconds.
"OPEN" " ... II .. .... " " w .. " • •
•Caution
I
r---
1
I
Do not bring magnetic items such
as credit cards or other cards with
magneticstrips nearthe monitor
as this may cause damage to the
unit and/or magnetic item.
5
use
SD/MMS/MS
AV IN

Remote Control Diagram
~~~~~~~~~~~--
Mode
Disc/SD/USB
Eject
Disc
Repeat
Return
Previous
Next
Setup
TFTMenu
Play/pause
Up Right
Stop
Down
Enter
DVD Menu
Zoom
Disp
Program
Numeric Button Subtitle
6

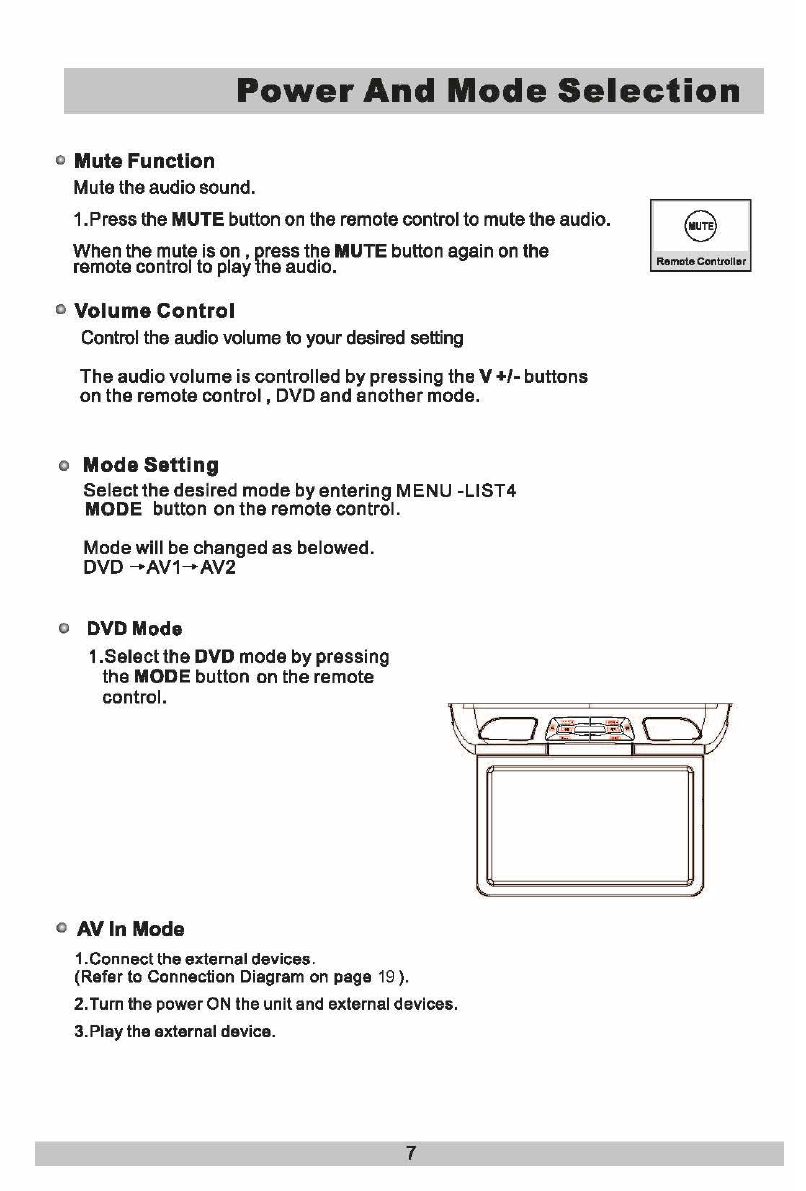

Power And Mode Selection
o Mute Function
Mutetheaudiosound.
1.Pressthe MUTE buttonon the remote control to mute the audio.
When the mute ison , presstheMUTE button again on the
remote control to play theaudio.
o Volume Control
Control the audio volume to yourdesired setting
The audiovolume is controlled bypressing the V +/-buttons
on the remote control , DVD and another mode.
o Mode Setting
Select the desired mode by entering MENU-LIST4
MODE button on the remote control.
Mode will be changed asbelowed.
DVD -+AV1-+AV2
o DVD Mode
1.Selectthe DVD mode by pressing
the MODE button on the remote
control.
o AV In Mode
1.Connecttheexternal devices.
(Refer to Connection Diagram
on page 19 ).
2.Turn thepower ON the unitand external devices.
3.Playthe external device.
7
8
Remote controller

o BRIGHTNESS/CONTRAST/COLOR/HUE
Selection of BRIGHTNESS/CONTRAST/COLOR/HUE and changethe
picture condition asyourtaste,
1, Bring upthe on-screen function menu by pressing
the MENU button on the unit
or theTFTMENU button
on the remote control.
2, Selectthe desired menu by pressing the MENU
button on the unit or the TFT MENU button on the
remote control .
3, Change the figure of desired function to adjust
Contrast, Brightness, Color, ect.
1, Bring upthe on-screen function menu by pressing the MENU button on
the
unit or the TFTMENU button on the remote control.
2, Selectthe Language ,ZOOM bypressing the menu
button on the unit
or TFTmenu button on the remote control.
3, Control the desired mode bypressing the '4 I ti>
buttonson the unit or the '4 / ti> buttonson the
remote control asyou want.
8

VOLUME
"ii ;;1.q,,m;g'
A built-in dual channel IR transmitter is built-in to the unit to allow for audio to
be transmitted wlrelessly
to your IR headphones. Both channels A and B can
be selected on our optional dual channel IR headphones.
1, Bring up the on-screen function menu by pressing
the MENU buttonon
the unit or the TFT MENU button
on the remote control.
2, Select and open "I R".
3, Press the ~ / ~ button on the unit or~ / ~ button
on
the remote cont r ol to select the A or B IR channel
at your choice,
A built-in
FM Transmitter allowaudio to be sentto yourcar'sspeakers
1, Bring up the on-screen function menu by pressing the
MENU button on the unit or the TFT MENU button on the
remote control.
2,
Select the desired menu by pressing the menu button
on
the unit or the TFT MENU buttonon the remote control.
3,
Adjust the Radio frequency from 87 . 7M H Z-107 .9MHZ
bypressing the ~ I ~ on the unit or the ~ I ~ buttonson
the remote control .
9

SYSTEM
1, Bring up the on-screenfunction menu bypressingthe MENU button on
the unit
or theTFT MENU button on the remotecontrol.
2, Selectthe S-COLOR by pressing the menu button
on the unit
or theTFTmenu button on the remote control.
3, Control the desired OSD and colorby pressing
the
.,. / ~ buttonson the unit or the .,. /~ buttons
on theremote control .
1, Bring uptheon-screen function menu by pressing the MENU button on
the unit
or theTFT MENU button on the remote control.
2, Select CLOCK and set to the correct time.
3, Then filled ina figure of the SLEEP,TIME,
OFF-TIME.ON-TIME byclickyourremote control
or pressing the .,. I ~ buttonson the
unit
or the .,. I ~ buttons on the remote control .
10

SETUP KEY
oSETUP KEY
Press the SETUP button to enter the SETUP MENU as shown below.
Inside the DVD SETUP MENU, three categories SYSTEM, LANGUAGE,
VIDEO,
could be chosen.
Userscan adjust or choose differentoptions included in the DVD disc that isplaying.
1. SYSTEM SETUP
A. TV SYSTEM B. POWER RESUME
C. TV TYPE D.PASSWORD
E. RATING F. DEFAULT
11

SETUP MENU
2. LANGUAGE SETUP
A. OSD LANGUAGE
C. SUBTITLE LANG
8. AUDIO LANG
0.MENU LANG
12

3. VIDEO SETUP
A. BRIGHTNESS
C.HUE
E. SHARPNESS
SETUP MENU
B.CONTRAST
0 . SATURATION
13

DVD FUNCTIONS
Pressing the EJECT button changes the play mode.
To adjust the audio output level of the speaker from 0 to 60.
Pressing of the MUTE button changes the play mode.
PLAY OR PAUSE(.,.11)
[DVD] I [AUDIO] I [Mp3]
Use this button to select a particular scene or play the
disc . Most DVD discs will play automatically.
[DVD]
Changetheaudiooutputtype.
(Ifthe loaded discsupports available audio type.)
[VCD] [AUDIO]
Changetheaudiooutputtype. Stereo
(Ifthe loaded discsupports available audio type.)
Mono Left
Mono Right
MixMono
[MP3]
An invalid button press.
14
Stereo
MonoLeft
MonoRight
Mix Mono

DVD FUNCTIONS
[DVD] I [AUDIO]
Press the STOP button once to stop the
movie temporarily. Press the Play/Pause
button to resume play and pause. Press
STOP button twice to completely stop and
reset the memory. Pressing Play/Pause button
again will send you back
to the beginning of the disc.
[MP3]
Press the STOP button
to stop the disc.
Press the Play/Pause button to display
the first file of the disc.
[DVD]
~.:[email protected],,1.:~~
1.lime Stop Stop
Numeric buttons 0 to 9 are used to enter the number of tracks, the number
of the DVD chapter, time data , etc.
[AUDIO]
You can selectatrack by pressing the
corresponding numeric button.
[MP3]
You can selectatrackin the folder by
pressing the corre spending numericbutton.
Use to set various functions according to your individual preference.
[DVD]
The menu of a DVD disc varies.
The content of the menu on the screen is dependent on the particular DVD.
[AUDIO]/[MP3] 0
An invalid button press.
15

DVD FUNCTIONS
[DVD]
Used to displaythe title menu of the loaded DVD disc.
(Thisfunction isdisc-dependent.)
[AUDIO] /[Mp3] 0
An invalid button press.
FAST REVERSE SEARCHING(...i)
[DVD)
Pressing FR button changes
the play mode as follows:
OSD
COl'llDmON
FR2X 2X rewindsearch
FR4X 4X rewindsearch
FR8X 8X rewindsearch
FR16X 16Xrewindsearch
FR32X 32Xrewind search
PlAY PLAY
16
[AUDIO] I [DVD]
Pressing FR button changes
the playmode
as follows:
[MP3] I [DVD]
Pressing FR button changes
the play mode as follows:
FR4X
FR8X
FR16X
FR32X
32X rewind play
PLAY PLAY

[DVD]
Pressing FR button changes
the
play mode as follows:
OSD CONDmoN
FF2X 2X forward search
FF4X
4X forward search
FFBX BXforward search
FF16X
16Xforward search
FF32X
32Xforward search
PLAY PLAY
[DVD] I [VCD]
DVD FUNCTIONS
[AUDIO)/ [VCD)
Pressing FR button changes
the play mode
as follows:
OSD CONDITION
FF2X 2X forward play
FF4X
4X forward play
FFBX
8X forward play
FF16X
16X forward play
FF32X 32X forward Dlav
PLAY PLAY
[Mp3]
Pressing FR button changes
the playmode as follows:
OSD CONDITION
FF2X 2X forwardplay
FF4X 4X forward play
FFBX
8X forwardplay
FF16X 1SXforward play
FF32X 32X forward Dlav
PLAY PLAY
Used to move to the previous chapterfrom the currentchapter.
[AUDIO] I [MP3]
Used to move to the previoustrack.
[DVD] I [VCD]
Used to move to the nextchapterfrom the currentchapter.
[AUDIO] I [MP3]
Used to move to the nexttrackfrom the currenttrack.
17

DVD FUNCTIONS
[DVD]
Pressing REPEAT button changes
the playmode as follows.
Chapter Repeatchapter
repeattl11e
All
all
repeat off
[VCD]
An invalid button press.
18
[AUDIO]
Pressing REPEAT button changes
the playmode
as follows.
Track Repeatsingle
Al
all
repeat off
[MP3]
Used to change the playmode.
Pressing REPEAT button changes
the playmode
as follows:
OSD CONDmON
Repeat One Siltje
RepeatFolder repeat fi::>lder
Folder repeatfolderonetime
Shuffle
Random
Si le

Connection Diagram
C l'I D(BLACK) ---~
A CC (R OD ) --
0
®
Pl! Aotcona()!uCl)
*How to connectthe DOORTRIGGERwire
1. Connectyellow positive ( +) wire
AUOI0 1 R I N(RED )
AUDIO 1 l l N{'HIIE)
VIDE 01 IN (YE LLOW)
AU DIO R OUT (RED)
AUD IO LOUT( lHi le)
VI DE O OUT {YELLOW)
0
0
2. Check your vechicle' s door trigger ispositive "+" or negative "-"
3. Connectunitone correct triggerwire (positive "+" or negative "-" )
with vechicle' s door trigger in accordance
19

1.0pen the box and check thecontents.
•= = •
=·
0 /
Mounting Plate
UNIT
TT
'f 'f
SCREWB
2. Align mounting plate with installation position and secure plate with screws
s = = e
Use the correctscrews that matches the car.
3.Tighten the unitwith thesupplied
SCREW B.
•=
'
'
~ :
=·
D
t,
20
