PLANET ECLIPSE EMEK 68CAL Instruction manual

WORKSHOP MANUAL
PLANET ECLIPSE: EMEK .68CAL
.68CAL

PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
WARNING
!
THE PLANET ECLIPSE EMEK IS NOT A TOY. PAINTBALL SAFETY RULES MUST BE FOLLOWED AT
ALL TIMES.
!
Careless or improper use of the EMEK, including failure to follow instructions and warnings within
this Workshop Manual could cause serious injury or death.
!
Do not remove or deface any warnings attached to the EMEK.
!
Paintballindustrystandardeye/face/earandheadprotectiondesignedspecicallytostop
paintballs and meeting ASTM standard F1776 (USA) or CE standard (Europe) must be worn by the
user and any person within range. Proper protection must be worn during assembly, cleaning and
maintenance.
!
Hearing protection should be worn.
!
Never shoot at a person who is not wearing proper protection.
!
Never look directly into the barrel of the marker. Accidental discharge into the eyes may cause
permanent injury or death. Never look into the barrel or breech area of the EMEK whilst the marker
isswitchedonandabletore.
!
The push button safety is the marker’s disabling device, also known as the ‘safety’. Always switch the
Emek to ‘PUSH SAFE’ when not in use and only switch to ‘PUSH FIRE’ when ready to shoot.
!
Treateverymarkerasifitisloadedandreadytore.
!
Alwaystabarrel blocking device to the EMEK when not in use.
!
Always remove paintballs from the EMEK when not in use.
!
Donoteldstriporremoveanypartswhilethemarkerispressurised.
!
Do not pressurise the EMEK without all the components of the marker correctly installed, as
high-pressure gas may be emitted.
!
DonotretheEMEKwithouttheboltcorrectlyinstalled.
!
NeverputyourngeroranyforeignobjectsintothepaintballfeedtubeoftheEMEK.
!
Never allow pressurised gas to come into contact with any part of your body.
!
Alwaysremovetherststageregulator and relieve all residual gas pressure from the EMEK before
disassembly.
!
Alwaysremovetherststageregulator and relieve all residual gas pressure from the EMEK for
transport and storage.
!
Alwaysfollowtheguidelinesgivenwithyourrststageregulator for safe transportation and
storage.
!
Always store the EMEK in a secure place.
!
Observe all local and national laws, regulations and guidelines.
!
Persons under 18 years of age must have adult supervision when using or handling the EMEK.
!
Onlyuseprofessionalpaintballeldswherecodesofsafetyarestrictlyenforced.
!
Only use compressed air/nitrogen. Do not use any other compressed gas or pressurised liquid
including CO2.
!
Always follow instructions, warningsandguidelinesgivenwithanyrststageregulator you use with
the EMEK.
!
Use 0.68 inch calibre paintballs only.
!
Always measure your marker’s velocity before playing paintball, using a suitable chronograph.
!
Never shoot at velocities in excess of 300 feet (91.44 metres) per second, or at velocities greater
than local or national laws allow.
!
Anyinstallations,modicationsorrepairsshouldbecarriedoutbyaqualiedindividualata
licensed and insured paintball facility.
This Users Manual is in English.
It contains important safety guidelines and instructions. Should you be unsure at any stage, or unable to understand the contents
of this manual you must seek expert advice.
Le mode d’emploi est en Anglais.
Il contient des instructions et mesures de sécurité importantes. En cas de doute, ou s’il vous est impossible de comprendre le contenu du monde d’emploi, demandez conseil à un expert.
Este manual de usuarios (operarios)
Usarios está en Inglés.Contiene importantes normas de seguridad e instrucciones. Si no está seguro de algùn punto o no entiende los contenidos de este manual debe consultar con un experto.
Diese Bedienungs - und Benutzeranleitung ist in Englisch.
Sie enthålt wichtige Sicherheitsrichtlinen und - bestimmungen. Solten Sie sich in irgendeiner Weise unsicher sein, oder den Inhalte dies Heftes nicht verstehen, lassen Sie sich bitte von einen
Experten beraten.
READ CAREFULLY BEFORE USE

01 BOLT SYSTEM
02 FRAME ASSEMBLY
03 3-WAY VALVE
04 FL 3-WAY VALVE
05 ASA SCREWS
06 REGULATOR ASSEMBLY
07 PAL FEEDTUBE ASSEMBLY
08 PAL QD FEEDTUBE ASSEMBLY
09 DETENT ASSEMBLY
10 CAN
11 BOLT
12 BOLT GUIDE
13 SPOOL
14 SWITCH
15 VALVE CHAMBER
16 LEAKING DOWN BARREL
17 FIRST SHOT DROP OFF (FSDO)
18 ‘PUFFS’ AND DOES NOT FIRE
19 LEAKS FROM THE 3-WAY VALVE
20 LEAKS FROM THE FL 3-WAY VALVE
21 HIGH VELOCITY
22 LEAKS FROM THE INLINE REGUALTOR
23 PAL LOADER NOT FEEDING
24 PAL QD LOADER NOT FEEDING
25 BREAKING PAINT IN THE BREECH OR BARREL
26 SHOOTING MULTIPLE SHOTS WHEN TRIGGER HELD DOWN
CONTENTS
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD

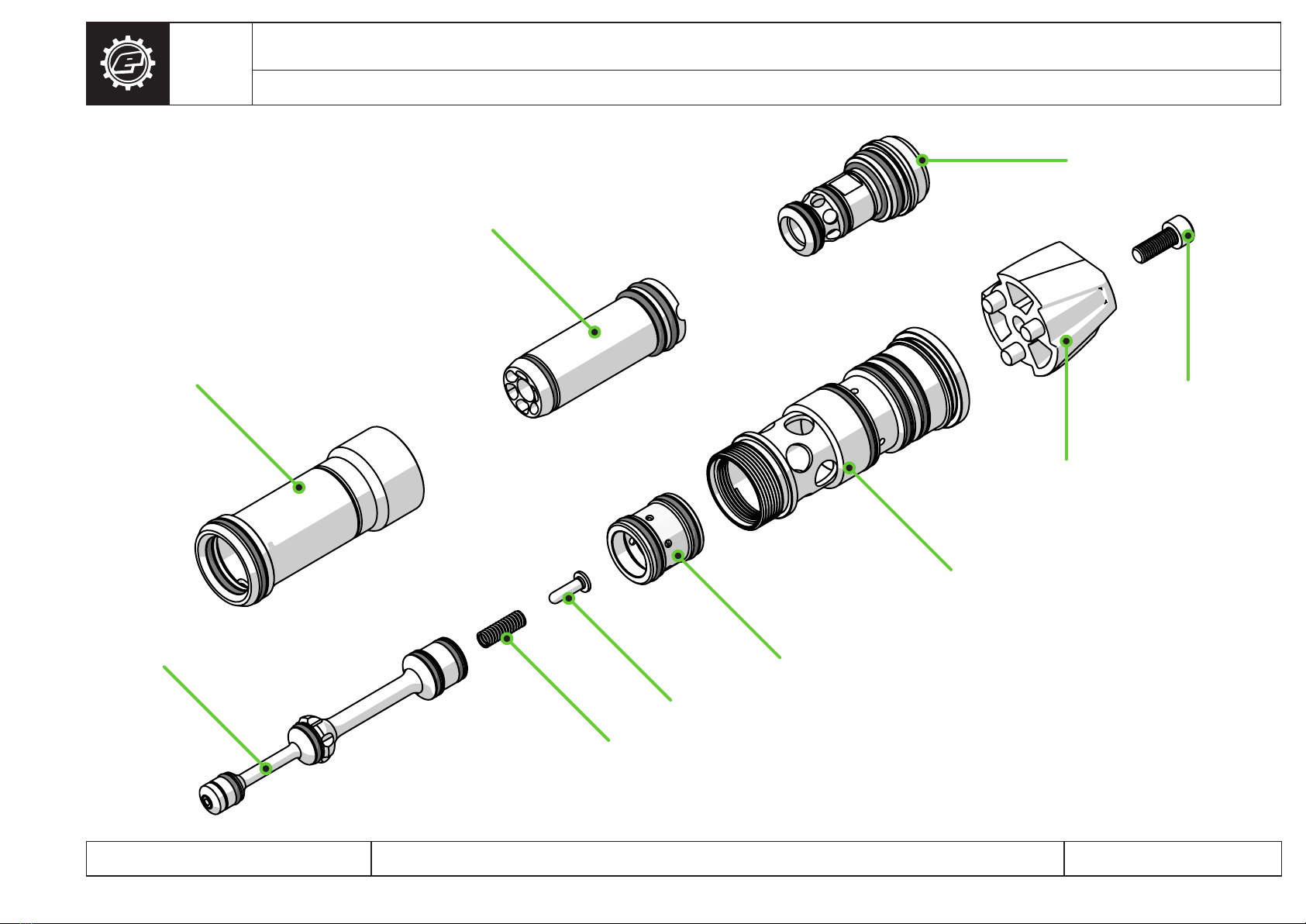

01 BOLT SYSTEM
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
CAN
#10-32X0.5” CAP
HEAD SCREW
BACKCAP
VALVE CHAMBER
SWITCH
SPOOL SPRING GUIDE
SPOOL SPRING
SPOOL
BOLT
BOLT GUIDE

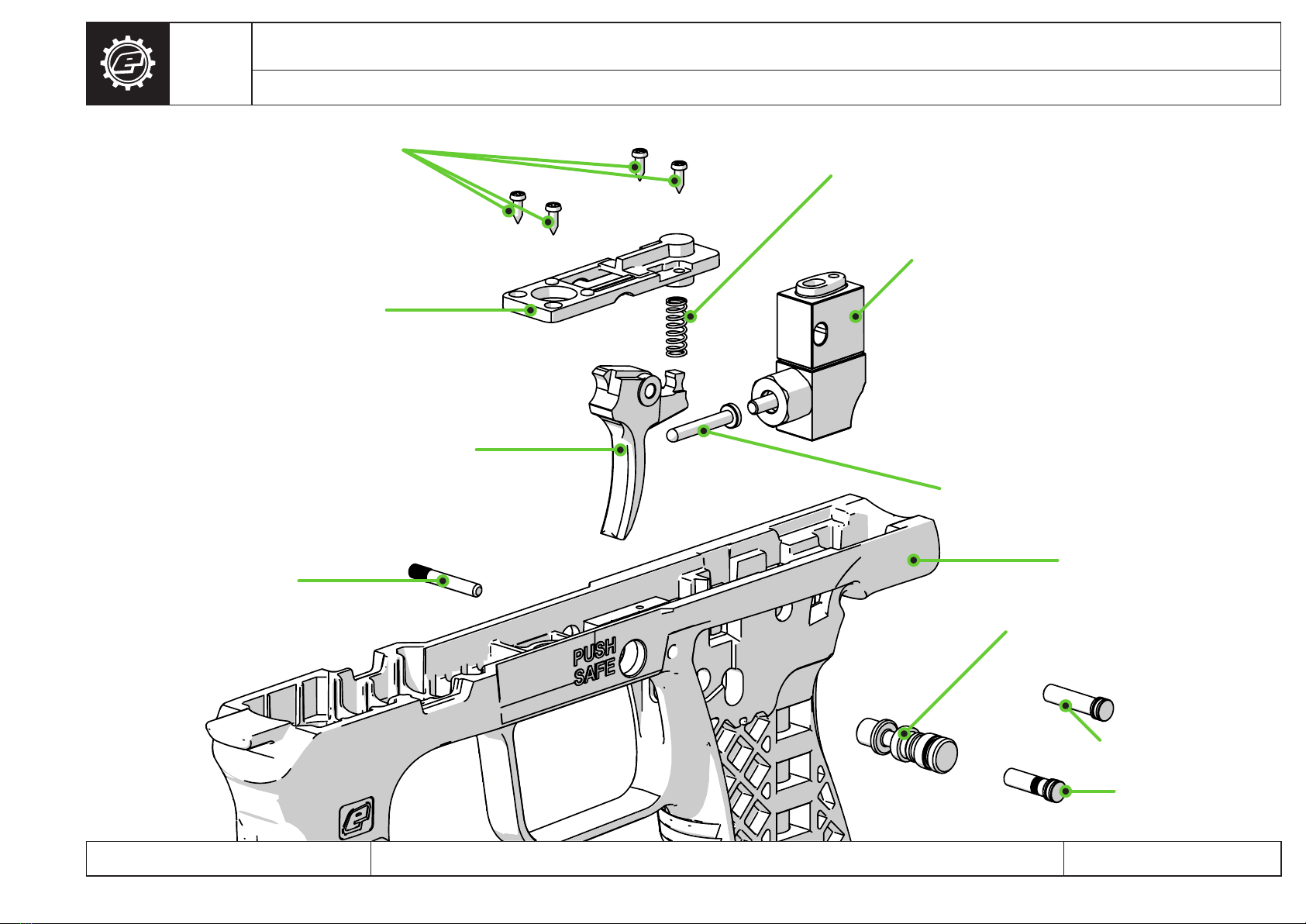

02 FRAME ASSEMBLY
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
3-WAY & TRANSFER BLOCK
TRIGGER SPRING
PUSH ROD
FRAME
TRIGGER SAFETY
PUSH ROD PIN
3-WAY PIN
PLATE SCREW
TRIGGER PLATE
TRIGGER
TRIGGER PIN

03 3-WAY VALVE
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
TRANSFER BLOCK
SOLENOID GASKET
4X1 NBR70 O-RING
#6 SPOOL SEAL
#6 SPOOL SEAL
3-WAY BODY
SOLENOID GASKET
3-WAY CAP
3-WAY SPOOL

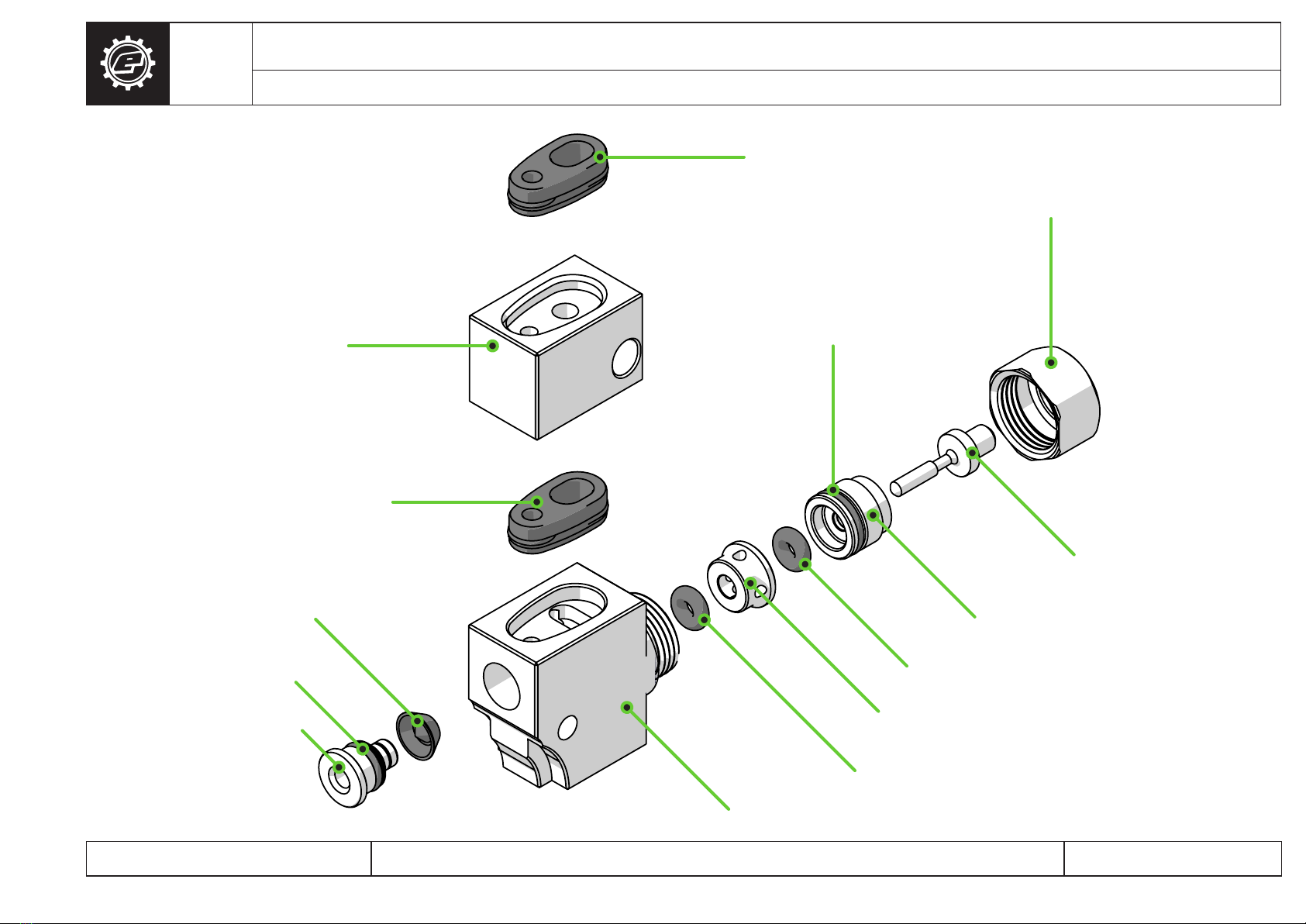

04 FL 3-WAY VALVE
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
TRANSFER BLOCK
QEV DIAPHRAM
SOLENOID GASKET
QEV CAP
4X1 NBR70 O-RING
FL 3-WAY CAP
6X1 NBR70 O-RING
3-WAY SPOOL
3-WAY SPOOL GUIDE
004 NBR70 O-RING
3-WAY SPOOL SPACER
004 NBR70 O-RING
3-WAY BODY
SOLENOID GASKET

05 ASA SCREWS
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
FRAME NUT
FRAME NUT 10-32 UNF X 1” CAP HEAD SCREW

06 REGULATOR ASSEMBLY
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
010 NBR70 O-RING
011 NBR70 O-RING
008 NBR70 O-RING
ADJUSTER TOP
REGULATOR SEAL
PURGE POPPET
PURGE POPPET SPRING
ADJUSTER SCREW
011 NBR70 O-RING
REGULATOR BODY
015 NBR70 O-RING
015 NBR70 O-RING
ASA BODY
INLET PIPE
010 NBR70 O-RING
REGULATOR CAP
016 NBR70 O-RING
REGULATOR PISTON
REGULATOR SPRING

07 PAL FEEDTUBE ASSEMBLY
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
FEED SWIVEL
10-32 UNF X 0.625” CAP HEAD SCREW
10-32 UNF X 0.5” CAP HEAD SCREW
FEED LEVER
006 NBR70 O-RING
PAL FEEDTUBE
3X1 NBR70 O-RING
PALS PLUNGER

08 PAL QD FEEDTUBE ASSEMBLY
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
10-32 UNF X 0.5” CAP HEAD SCREW
LATCH BUTTON
PAL QD FEED NECK
3X1 NBR70 O-RING
PAL PLUNGER

09 DETENT ASSEMBLY
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
RUBBER DETENT
BS PLUG
LEFT DETENT COVER
RIGHT DETENT COVER
6-32 UNC X 0.3125”
COUNTER SUNK SCREW

BB
SECTION B-B
10 CAN
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
020 NBR70 O-RING
CAN
017 NBR70 O-RING

CC
SECTION C-C
11 BOLT
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
BOLT
013 NBR70 O-RING
14X2 NBR70 O-RING
015 NBR90 O-RING

DD
SECTION D-D

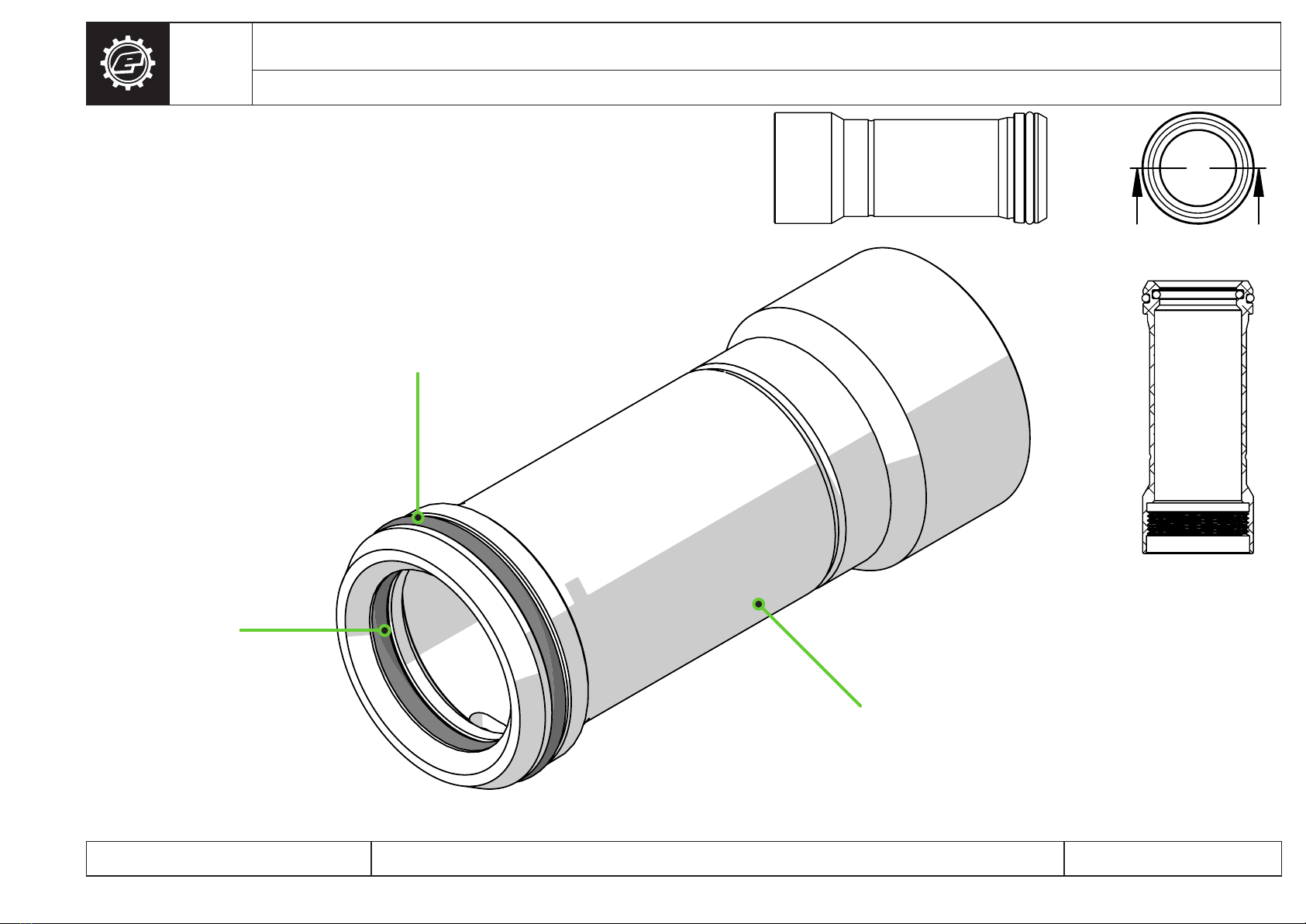

12 BOLT GUIDE
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
014 NBR70 O-RING
BOLT GUIDE
14X2 NBR70 O-RING
013 NBR70 O-RING
013 NBR70 O-RING
013 NBR70 O-RING

EE
SECTION E-E
13 SPOOL
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
011 NBR70 O-RING
SPOOL
SPOOL INSERT
012 NBR70 O-RING
012 NBR70 O-RING
008 NBR70 O-RING

GG
SECTION G-G
14 SWITCH
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
016 NBR70 O-RING
016 NBR70 O-RING
SWITCH

FF
SECTION F-F

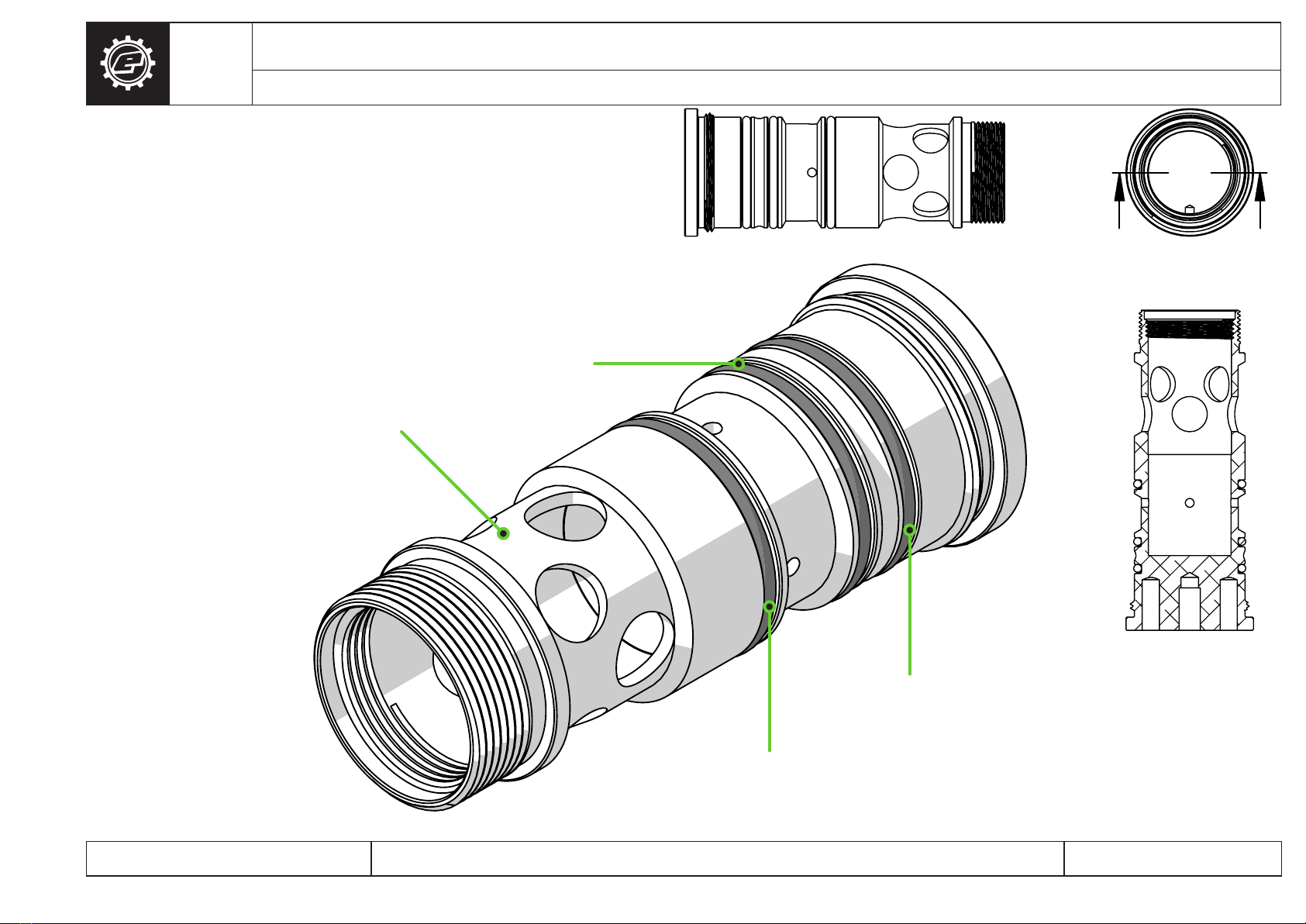

15 VALVE CHAMBER
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
020 NBR70 O-RING
VALVE CHAMBER
020 NBR70 O-RING
020 NBR70 O-RING

16 LEAKING DOWN THE BARREL
CLEAN AND CHANGE HIGHLIGHTED SEALS AND FACES
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
(C) = COMMON FAULT (R) = RARE FAULT
020 NBR70 O-RING (R) BOLT (OUTSIDE FACE) (C)
SWITCH
(INSIDE FACE) (R)
METAL BODY
(INSIDE FACE) (R)
BOLT GUIDE
(INSIDE FACE) (R)
017 NBR70 O-RING (C)
011 NBR70 O-RING (C)
CAN BOLT BOLT GUIDE
SPOOL SWITCH BODY
012 NBR70 O-RING (R)
14X2 NBR70 O-RING (C) 14X2 NBR70 O-RING (R)
CAN (INSIDE FACE) (C)
C
R
R
R
R
R
R
R
C
CC
C
C

17 FIRST SHOT DROP OFF (FSDO)
CLEAN AND CHANGE HIGHLIGHTED SEALS AND FACES
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL EMEK .68 CAL © 2022 PLANET ECLIPSE LTD
(C) = COMMON FAULT (R) = RARE FAULT
CAN (INSIDE FACE) (C)
BOLT (OUTSIDE FACE) (R)
BOLT (INSIDE FACE) (C)
017 NBR70 O-RING (R) 013 NBR70 O-RING (R)
016 NBR70 O-RING (R)
14X2 NBR70 O-RING (C)
011 NBR70 O-RING (R)
013 NBR70 O-RING (C)
CAN BOLT BOLT GUIDE
SPOOL SWITCH
R
R
R
R
R
R
C
CC
C
C
