Internet Telephony PBX System
IPX-2000
Quick Installation Guide

Overview
PLANET IPX-2000 is the next generation voice communication platform for the small
to medium enterprise. Designed as an open, scalable, and highly reliable telephony
solution, the IPX-2000 is able to accept 200 extension registrations, and effectively
scales from under 100 users to as many as 200 in a standard rack-mountable unit.
Designed to run on a variety of VoIP applications, IPX-2000 provides centralized
call control, auto-attendant, voice conferencing, PSTN access, digital and IP-based
communications. IPX-2000 integrates up to 8 calls via the IPX- FXO (Foreign
eXchange Ofce, FXO) module to become a feature-rich PBX system that supports
seamless communications between existing PSTN calls, analog, IP phones and SIP-
based endpoints.
IPX-2000 integrates telephony call processing, call control, voice mail, and a widely
PBX application programming interface into a highly scalable architecture designed
to support both traditional circuit-based and the Internet telephony service within a
distributed enterprise communications network.
With IPX-2000, standard SIP phones can be easily integrated in your ofce; plus
the auto-cong feature, you may integrate our IP phone VIP-254T/VIP-254PT,
and the analog telephone adapter – VIP-156/VIP-157 series to build up the VoIP
network deployment in minutes.
Allowing distributed IP technology to meet traditional voice services, with proactive
management interface, the IPX-2000 in the daily business processes, enterprises
can make people more productive, more intelligent tasks, and more customer
satisfaction

Table of Contents
Preparation before beginning administration on IP PBX System............................ 5
Physical Interfaces...................................................................................... 5
Administration Interface .............................................................................. 5
Web conguration access ..................................................................... 5
LAN/WAN Interface quick congurations ................................................ 6
WAN IP address conguration via web interface ..................................... 7
IP PBX Basic operation guideline ....................................................................... 9
Adding PSTN to IPX-2000..................................................................... 9
Quick reference in CD-ROM guide ....................................................................12

4
Document Objectives
This guide provides physical installation, network congurations, and Internet
access establishment information for the IP PBX System.
Document Organization
This guide is organized as follows:
• Preparation before beginning administration on IPX-2000
• Administration interface
• Network Interface quick congurations
• Internet access setup guide

5
Preparation before beginning administration on IP
PBX System
Physical Interfaces
1AC Power AC 100-240V, 50-60 Hz
2Telephony
interface ports
4 ports per module, numbered from right to the left.
The rightmost port at slot A is port 1 and the leftmost
port at slot B (if installed) is port 8.
3USB ports
2 external ports with compliance to USB 1.1/2.0. Plug
in a USB hard drive for voicemail backup from the
internal one
4WAN Connect to a broadband modem or a WAN router
5LAN Connect to a LAN switch

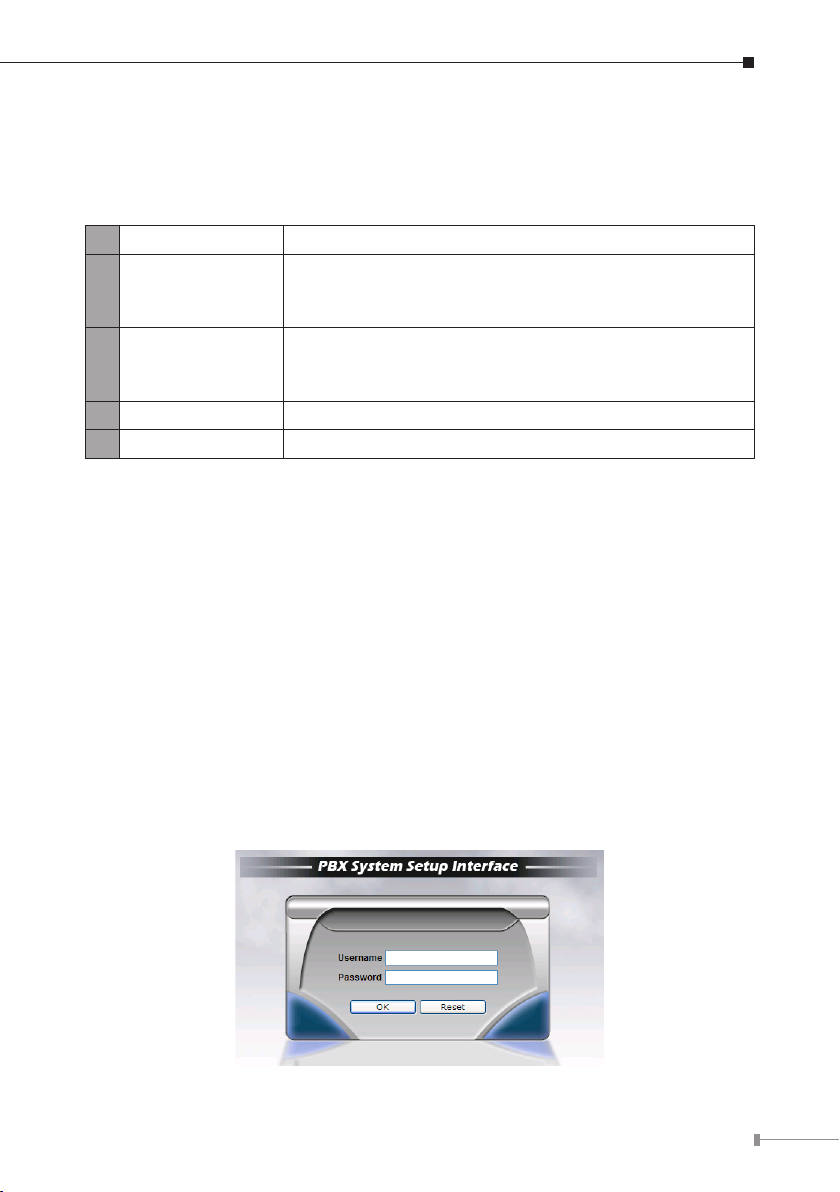

Administration Interface
The IP PBX provides GUI (Web based, Graphical User Interface) for machine
management and administration.
Web conguration access
To start IP PBX web conguration, you must have one of these web browsers
installed on computer for management
• Microsoft Internet Explorer 6.0 or higher with Java support
Default LAN IP address of IP PBX is 192.168.1.1. You may now open your web
browser, and insert https://192.168.1.1 in the address bar of your web browser
to logon IP PBX web conguration page.
IPX-2000 will prompt for logon username/password, please enter: admin / admin
to continue machine administration.

6
Note
The IPX-2000 supports HTTPs secure web session. Machine
operators or system administrator may login machine via secure
web connection for machine administration.
Format: https://WAN IP address of IP PBX
Note
In order to connect machine for administration, please locate your
PC in the same network segment (192.168.1.x) of IPX-2000. If
you’re not familiar with TCP/IP, please refer to related chapter on
user’s manual CD or consult your network administrator for proper
network configurations.
LAN/WAN Interface quick congurations
Nature of PLANET IPX-2000 is an IP Sharing (NAT) device, it comes with two
default IP addresses, and default LAN side IP address is “192.168.1.1”, default
WAN side IP address is “192.168.0.1”. You may use any PC to connect to the
LAN port of IPX-2000 to start machine administration.
Hint
In general cases, the LAN IP address is the default VoIP router
of LAN side workstations for Internet access, and the WAN IP of
IPX-2000 are the IP address for remote calling party to connect
with.
Execute your web browser, and insert the IP address (default:
https://192.168.1.1) of IP PBX in the adddress bar. After logging on machine
with username/password (default: admin / admin), browse to “System” -->
“LAN setup” conguration menu:
Parameter Description
IP address LAN IP address of the IP PBX
Default: 192.168.1.1
Mask LAN mask of the IP PBX
Default: 255.255.255.0
After conrming the modication you’ve done, Please click on the Save button to
apply settings and browse to “IP PBX service” page in “Service” menu to click
the “Reload” button to make the settings effective
Hint
It is suggested to keep the DHCP server related parameters in
default state to keep machine in best performance.

7
WAN IP address conguration via web interface
Execute your web browser, and insert the IP address https://192.168.0.1
(default: 192.168.0.1) of IP PBX in the adddress bar. After logging on machine
username/password (default: admin / admin), browse to “System” conguration
menu and select “WAN setup” option, you will see the conguration screen
below:
Parameter Description
IP address WAN IP address of IPX-2000
Default: 192.168.0.1
Subnet Mask WAN mask of IPX-2000
Default: 255.255.255.0
Connection Type Data required
DHCP In most circumstances, it is no need to congure the
DHCP settings
PPPoE The ISP will assign PPPoE username / password for
Internet access
STATIC IP The ISP will assign IP Address, and related information.
After conrming the modication you’ve done, Please click on the Save button to
apply settings and browse to “IP PBX service” page in “Service” menu to click
the “Reload” button to make the settings effective.
Hint
Please contact your Internet service provider to obtain the Internet
access type, and select the proper network settings in IPX-2000 to
establish the network connections.

8
Save Change to reload congurations
After modifying the IP PBX parameters, the changes are temporary stored in
machine memory,. Please be sure to activate the modications via reloading the
machine congurations.
Operation path: Service ---> IP PBX service

9
IP PBX Basic operation guideline

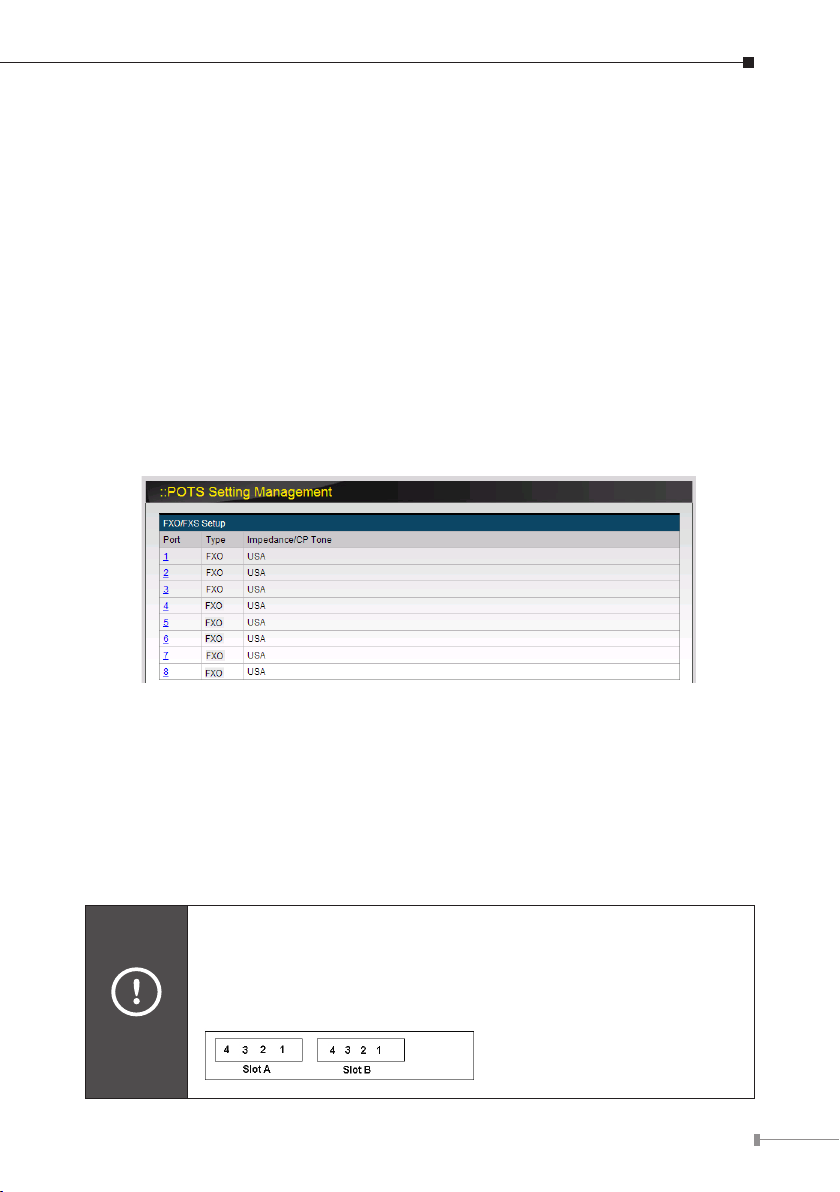

Adding PSTN to IPX-2000
When inserting or removing the IPX-2000 FXO Module (IPX-FXO), please follow
these operation procedure to ensure the system operating properly.
• Install the FXO module securely into machine.
• Login the GUI as administrator.
• Enter FXO Setup page. (Trunk ™POTS Setup)
• Select the proper Country Setting for each port.
• Press APPLY to save the change.
• Enter IP PBX Service page. (Service ™IP PBX service)
• Press Restart to restart IP PBX service.

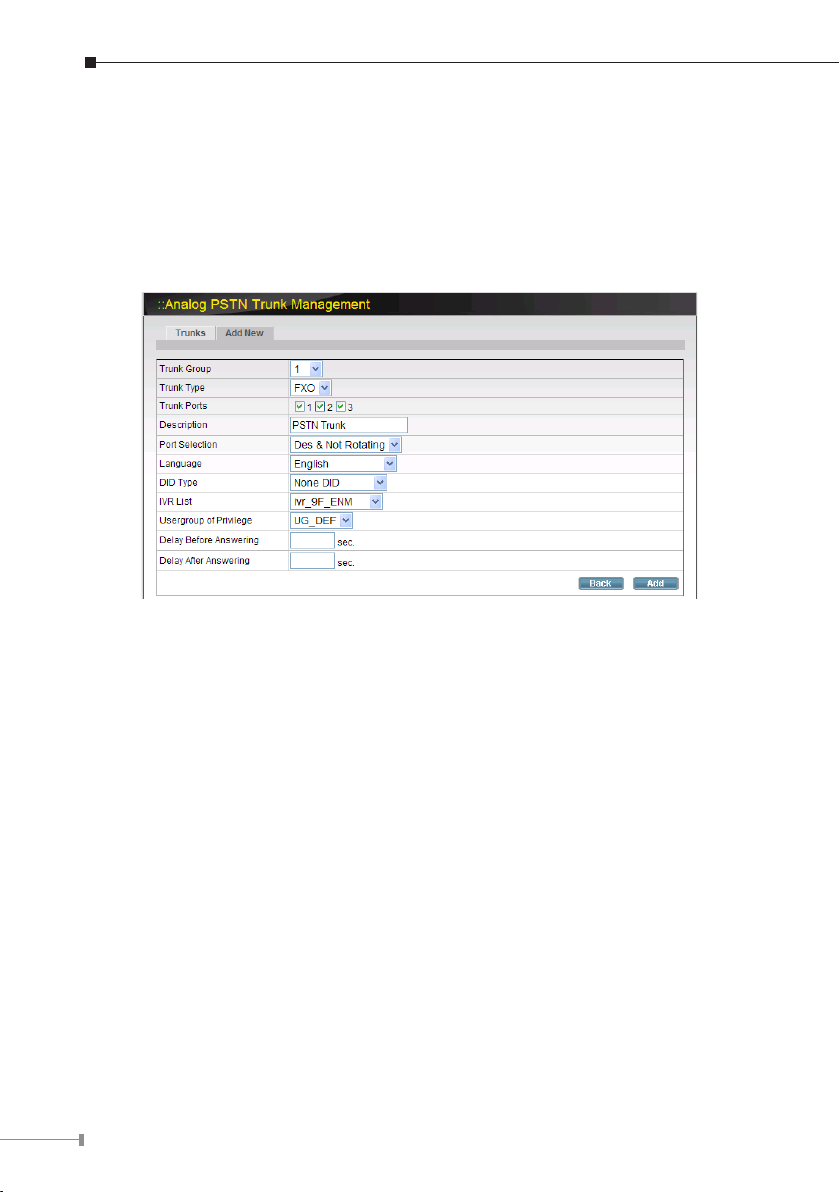

After the PSTN physical installation, please browse to “Analog PSTN trunk”
page in “Trunk” menu, and refer to the following conguration steps for more
understandings:
a) Press <Add new> button from the left panel to add a new PSTN trunk.
b) Insert ID number of this PTSN “Trunk group (1~31)” and FXO port indices
grouped by this PTSN “Trunk ports” in the eld for management the PSTN
trunk.
Hint
• Maximum port index depends on the number of physical ports
available. Such as 1 or 1,2 or 1-4.
• Please make sure the FXO module is connected properly; the
sequence from left to right: Slot A -> Slot B; Port 4 ™Port 3 ™
Port 2 ™Port 1

10
Outbound routegroup: select a routegroup to associate routes with this trunk.
Outbound calls match included route patterns could employ this trunk to access
PSTN.
Language: preferred language for system instructions heard from the trunk.
Usergroup of privilege: when disabled DID, select a usergroup whose reachability
to other usergroups and trunks will be used as the privilege of inbound calls from
this trunk.

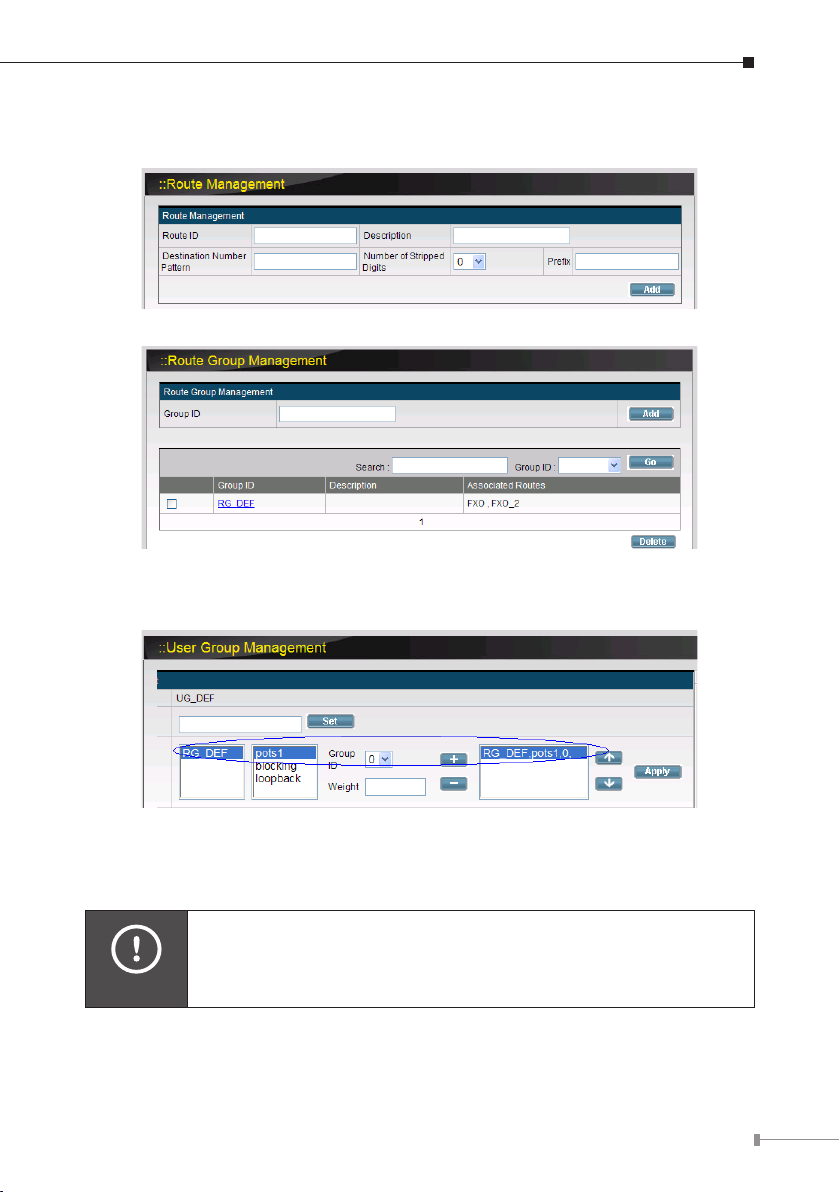

1) Please browse to “Route management” page in “Route” menu to add routes
ID in IP PBX system.
2) Press <Add new> button from the left panel to add a new routes table and
Insert following data:
Route ID: a unique ID containing alphabets, numbers, and underscore only
without spaces; 32 characters maximum.
Destination number pattern: a destination number pattern consisting of digits,
digit set, and wildcard character
Number of stripped digits: number of leading digits to be stripped from the
original dialed number when matches this route.

11
3) Please browse to “Routegroup” page in “Route” menu and select PSTN route
associated routes by this routegroup.
4) Please browse to “Usergroup” page in “User” menu, and select outbound
“pstn1” trunks accessible by this usergroup.
5) After these congurations, be sure to press to “Save” button to apply settings
and browse to “IP PBX service” page in “Service” menu to click the “Reload”
button to make the settings effective
Hint
After any configurations, be sure to press to “Save” button to
apply settings and browse to “IP PBX service” page in “Service”
menu to click the “Reload” button to make the settings effective.

12
Quick reference in CD-ROM guide
This guide is used to help you startup your IP PBX system settings. It is also
recommended to check the user manual CD-ROM for more details likes the “Web
Setup”, and how to set the device back to default value.
