Chapter 1. Introduction
Thank you for purchasing the IP surveillance product. It is versatile
and high image solution of the perfect surveillance application. The IP
surveillance state-of-art design is considerable to t in various network
environments.
1.1 Before Installation
Before installation, please be sure to read this quick installation guide
and user’s manual (CD) carefully to complete machine installation.
This QIG includes the following chapter:
• Chapter 2. ICA-510 – Dual Mode CCD Dome IP Camera
• Chapter 3. ICA-700 – CCD Box PoE IP Camera
• Chapter 4. Setup Tool Installation and operation
• Chapter 5. Cam Viewer Plus Installation
• Appendix A: Feature Listing for Cam Viewer Plus
• Appendix B: Suggest Hardware / System Requirement

4
Chapter 2. ICA-510 – Dual Mode CCD Dome IP
Camera
2.1 Package Content
ICA-510 x 1
Power Adapter x 1
Mounting Screws x 1
CD Disk x 1
Quick Installation Guide x 1
Note
1. If any of the above items are missing, please contact
your dealer immediately.
2. Using a power supply with a different voltage that the
one included with the package will cause damage and
void the warranty.

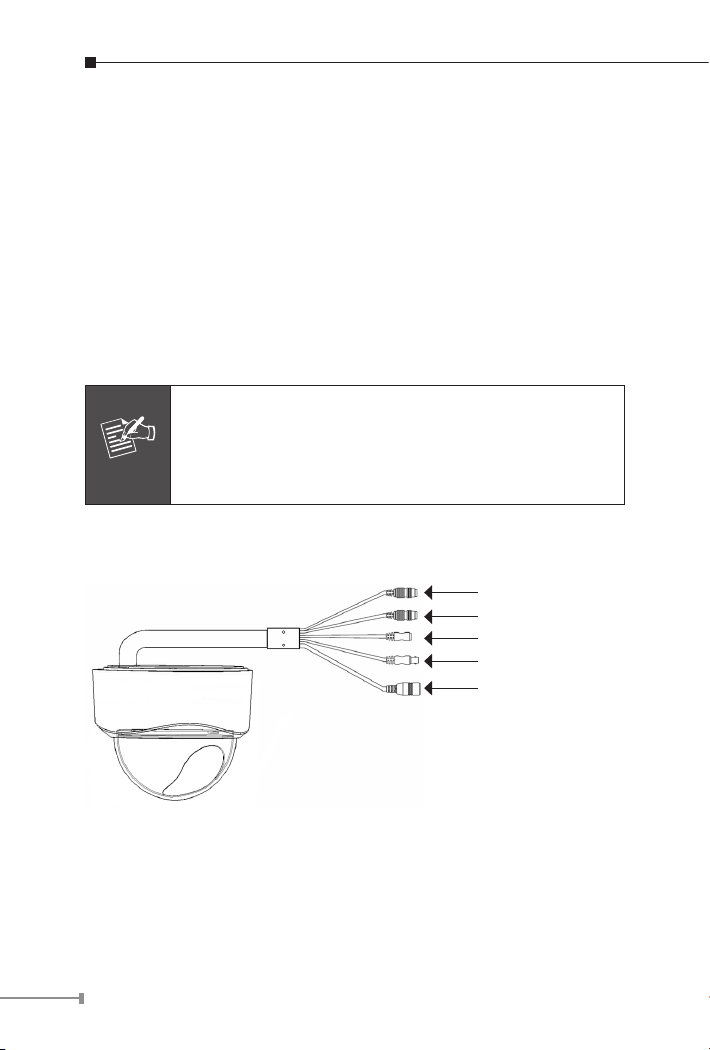

2.2 Connectors
AUDIO OUT (Green)
AUDIO IN (Red)
PWR
Video OUT
LAN (PoE)

5
Connector Description
AUDIO OUT An external speaker can be plugged in.
AUDIO IN An external microphone can be plugged in.
PWR
Connect the supplied power adapter (12VDC 1.0A).
When this camera is obtained power from PoE, you
don’t have to attach the power adapter to the ICA-
510.
Video OUT Analog video output.
LAN (PoE)
Connect your Camera to a 10/100Base-TX hub or
switch. It is compliant with IEEE 802.3af PoE. Either
mid-span PSE or end-span PSE supported.
2.3 Physical Installation

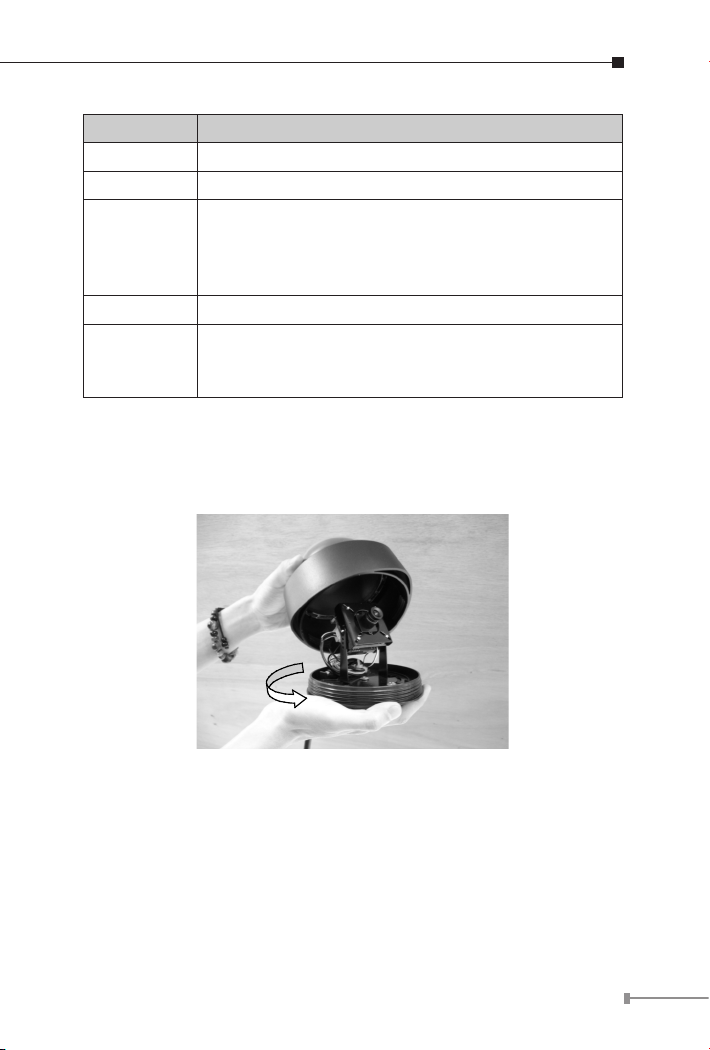

1. Hold the base and rotate the cover to open this camera.

6
2. Use the provided screws to mount the camera on the ceiling.
3. Attach the provided power adapter to the camera’s power connector.
If there is a PoE switch/hub existing, you can connect the ICA-
510 LAN port to your PoE switch/hub to power up. If this camera
is obtained power from PoE, you don’t have to attach the power
adapter.
Note
Please use the power adapter that is bundled in package.
Using a power supply with a different voltage rating will
damage and void the warranty for this product.

7
4. Set camera face to the location you want, and you can connect the
Video Out connector to a monitor then turn the lens to adjust focus.
5. When the position and focus adjustment done, rotate the housing
back to the main base and then turn the hemisphere cover to the
proper direction.
6. Connect ICA-510 LAN port to your network device, if it is not power
up from PoE switch/hub.

8
Chapter 3. ICA-700 CCD Box PoE IP Camera
3.1 Package Content
ICA-700 x 1
Power Adapter x 1
CD Disk x 1
Quick Installation Guide x 1
Camera Stand x 1
Note
1. if any of the above items are missing, please contact
your dealer immediately.
2. Using a power supply with a different voltage that the
one included with the package will cause damage and
void the warranty.

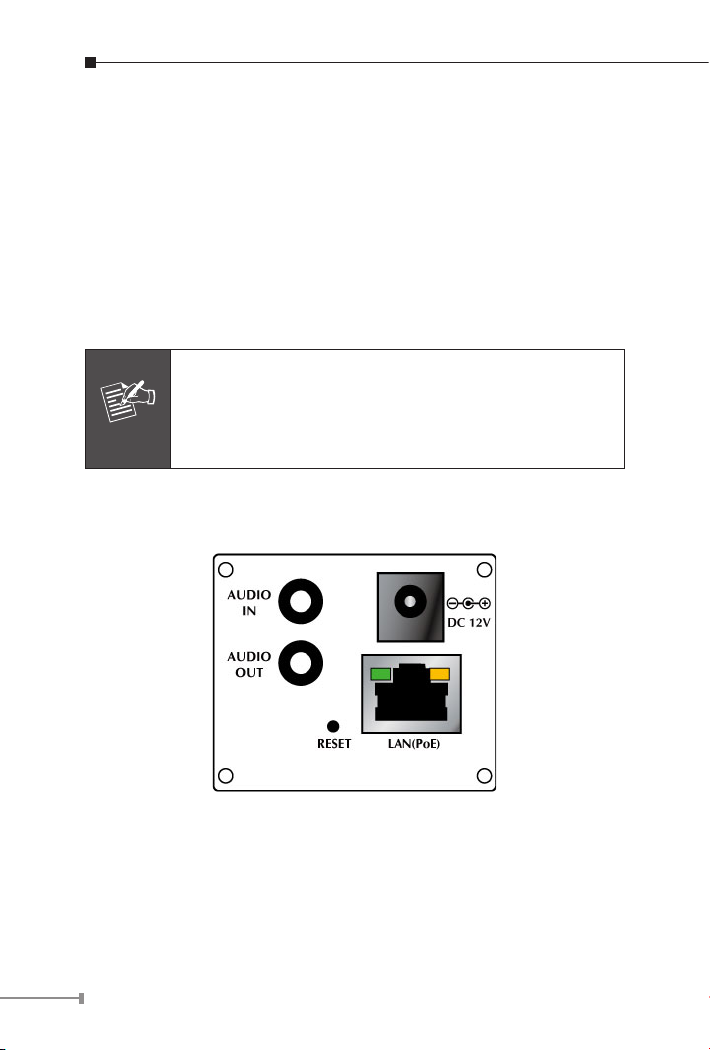

3.2 Rear Panel

9
Port Description
AUDIO IN An external microphone can be plugged in.
AUDIO OUT An external speaker can be plugged in.
RESET
Reset to manufacturer default valued and reboot.
When pressed and held over 10 seconds, the settings
of IP Camera will be set to the default values.
DC 12V
Connect the supplied power adapter.
When this device is obtaining power from PoE, you
don’t have to attach the power adapter.
LAN (PoE)
Connect your Camera to a 10/100Base-TX hub or
switch. It is compliant with IEEE 802.3af PoE. Either
mid-span PSE or end-span PSE supported.
3.3 Physical Installation
1.Connect an Ethernet cable
Connect one end of an Ethernet cable to the LAN port located on
the IP camera’s rear panel and connect the other end to the network
device (hub or switch).
2.Attach the external power supply
Attach the provided power adapter to the IP camera’s connector
labeled “DC 12V” on the rear panel. If this camera is obtained power
from PoE, you don’t have to attach the power adapter.
Note
Please use the power adapter that is bundled in package.
Using a power supply with a different voltage rating will
damage and void the warranty for this product.
3.Connect Microphone and Speaker
If you will use the 2-Way audio function, please connect microphone
to Audio In and speaker to Audio Out.

10
Chapter 4. Setup Tool Installation and
operation
This chapter shows how to quick set up your IP surveillance product.
The IP surveillance product is with the default settings. However to
help you nd the networked camera quickly the windows utility-Setup
Tool can search the cameras in the network that shall help you to
congure some basic setting before you started advanced management
and monitoring.
4.1 Setup Tool Installation
Note
In the installation steps below, this guide use ICA-510 as
the example. However, the steps for ICA-700 are similar.
Initial setup should be performed by using the supplied Windows-based
Setup Tool as follows:
1. Insert the bundled product CD into CD-ROM drive to launch the
autorun program.
2. Please click the IP camera model name.
3. When the web page displayed, select and click the “Setup Tool”
hyperlink on the menu to start the installation process.
Note
If the CD’s menu does not appear, click “Start” on the
task bar and select “Run” to type “X:\Utility\SetupTool\
SetupTool.exe”, assume X is your CD-ROM drive.
4. Click “Yes” to start the Setup Tool Installation.

11

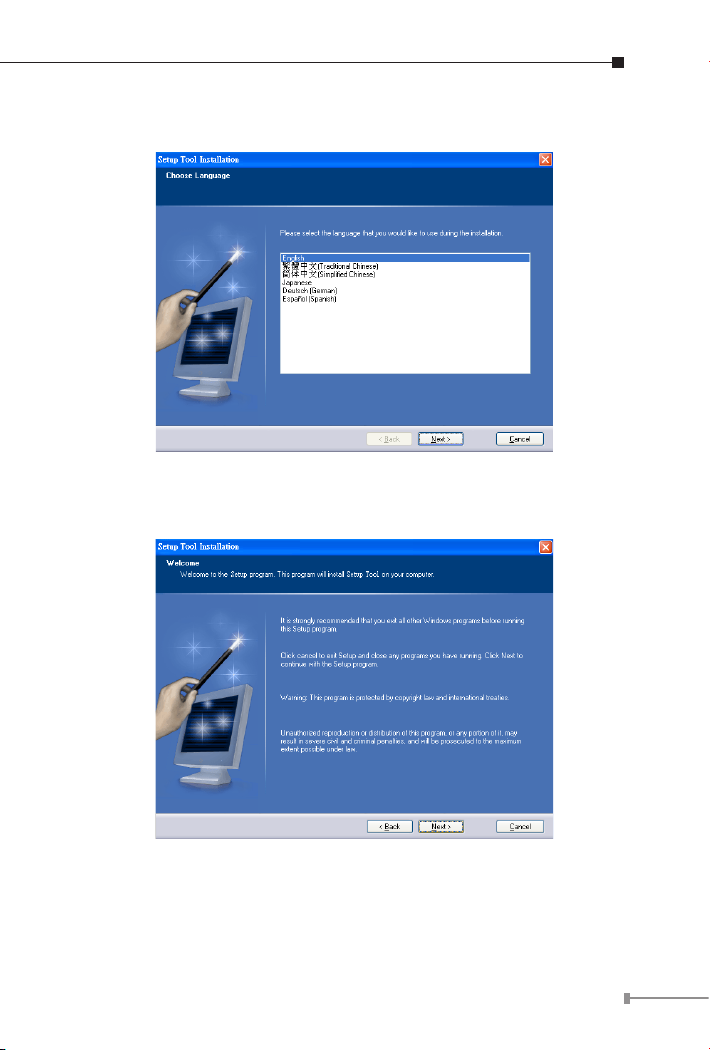

5. Choose the language you need, and click “Next” to continue.
6. Follow the step for install the Setup Tool, and click “Next” to
continue.

12
7. If you wish to install the Setup Tool in an alternative location, click
“Browse” and dene a location; otherwise click “Next” to continue.
8. If you wish to install the Setup Tool in an alternative folder of start
menu, type a new folder name or select an exiting folder; otherwise
click “Next” to continue.

13
9. Check the installation summary, and click “Install” to start the instal-
lation.
10. The Setup Tool will be start install to your computer.

14

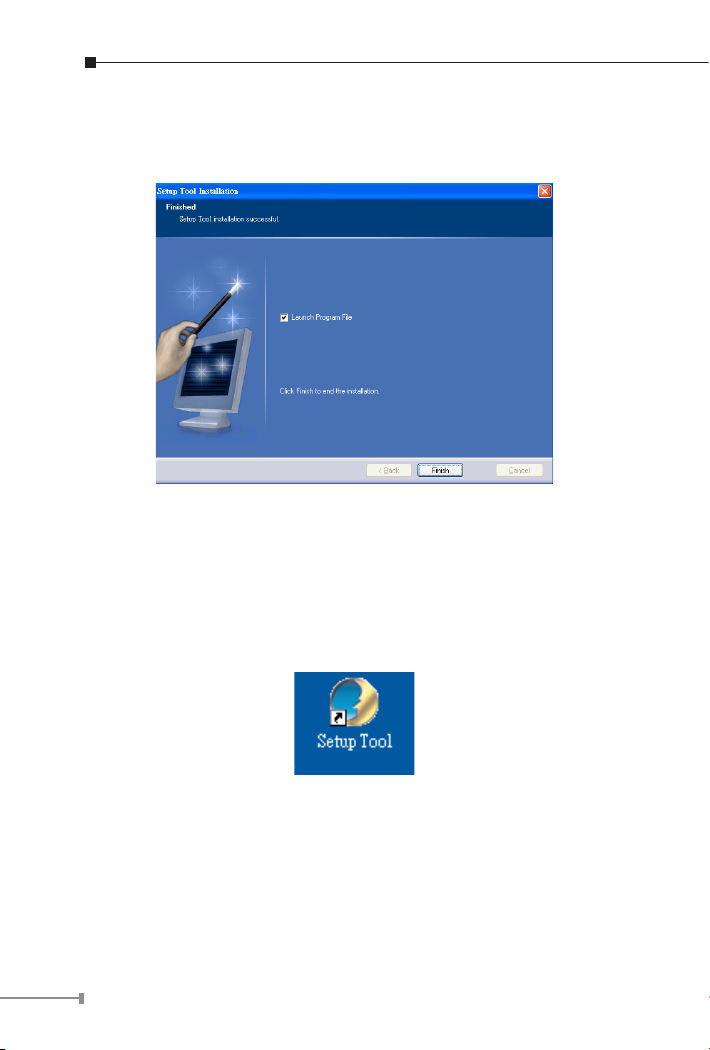

11. The Setup Tool installation successful. Click “Finish” to complete the
installation. If you would like to run the Setup Tool, please check
“Launch Program le” before click Finish button.
4.2 Setup Tool Operation
This section shows how to perform basic conguration functions by
Setup Tool.
1. Double click the icon of Setup Tool on the desktop.

15

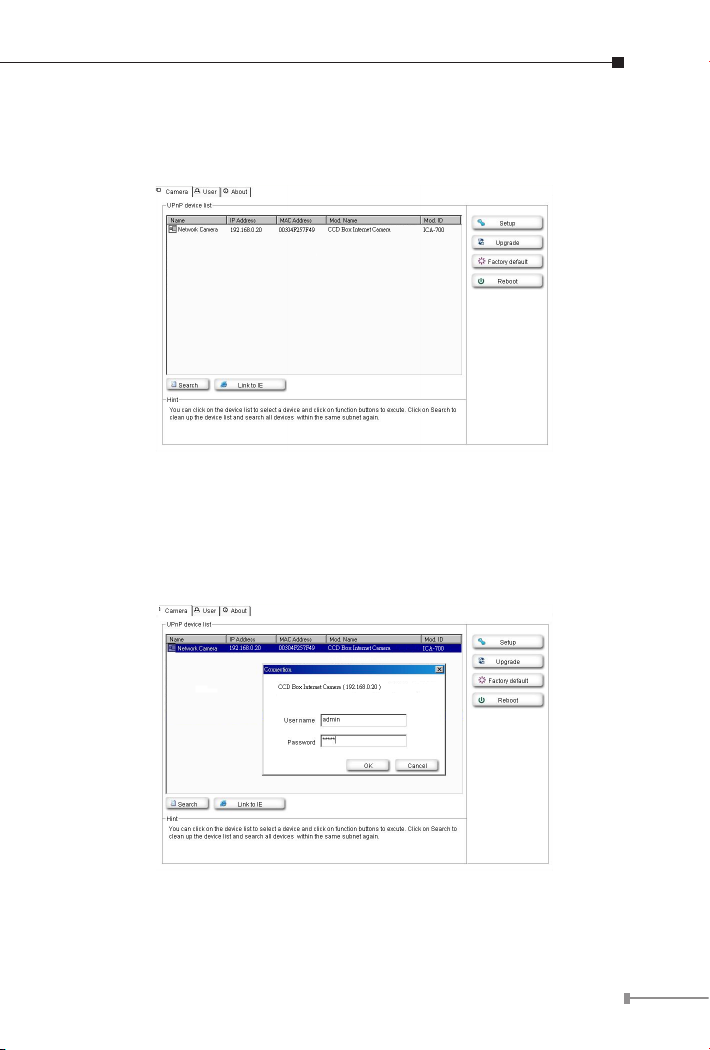

2. The Setup Tool screen will show up as below. It will automatically
search and list the IP cameras on your network.
3. Select the IP camera you want, and then click the “Setup” button
on the right side. The login window will pop up. If the Administrator
User Name and Password have been changed, you will need to enter
the new settings. In default values, please enter “admin” for both
User Name and Password. Then click “OK”.

16
4. On the following System information screen, it displays the Product
Name, Firmware Version and Hardware Version. Click on “Next” to
continue.
5. On the following Account settings screen, you can modify the Admin-
istrator login user name and password. And you can add some
user accounts as Admin, Operator or Viewer. Please click “Next” to
continue.

17

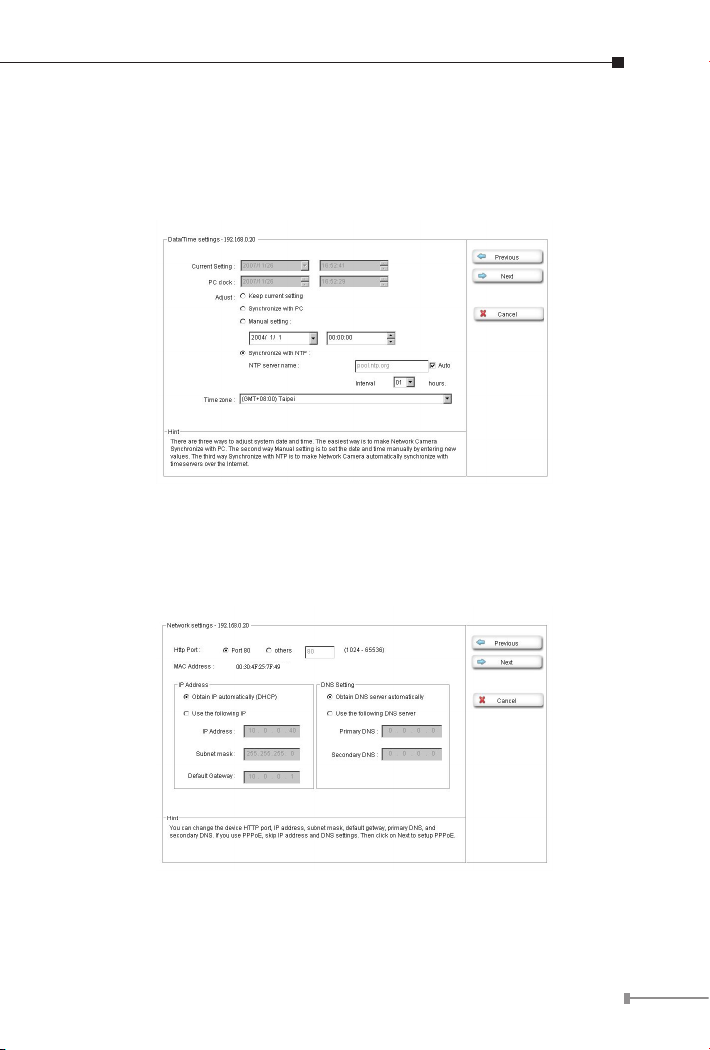

6. On the following Date/Time settings screen, you can adjust the date
and time to synchronize with PC, manual setting or synchronize with
NTP server. Select the correct Time Zone, and then click “Next” to
continue.
7. On the following Network settings screen, you can congure the
device HTTP port number, IP address, subnet mask, default gateway
and DNS. If you are use PPPoE, please select obtain automatically for
IP address and DNS settings. Click “Next” to continue.

18
8. On the following PPPoE settings screen, if you are use PPPoE connec-
tion, please select “On” and ll the correct User ID and Password for
dialling. Click “Next” to continue.
9. On the following DDNS settings screen, if you have registered the
account from the DDNS provider and want to use DDNS function,
please select “On” to ll the correct User ID, Password and Host-
name for connecting. Click “Next” to continue.

19
10. In Apply settings screen. Please click “Apply” to nish the cong-
uration, we will suggest you check the “Reboot system to apply
new settings” to let the camera work with new settings. Or click
“Previous” to check your settings.
After modications, you may now connect the IP camera with the new
conguration via web browser. For more information, please refer to
the User’s manual.

20
Chapter 5. Cam Viewer Plus Installation
Note
The Cam Viewer Plus Pro 30 days trial version installa-
tion steps are similar. Below is the installation of Cam
Viewer Plus.
Insert the bundled CD disk into the CD-ROM drive to launch the
autorun program. Once completed, a welcome menu screen will appear.
Click the “Cam Viewer Plus” hyperlink, the below InstallShield Wizard
dialog box will appear.
Note
If the welcome screen does not appear, click “Start” at
the taskbar. Then, select “Run” and type “D:\Utility\Cam
Viewer Plus\setup.exe”, assume “D” is your CD-ROM
drive.
Simply place the setup disc into your optical drive and wait for seconds,
you will see welcome web page, please click the Cam Viewer Plus to
start the installation.
Select the language once the “Choose Setup Language” Windows pop-
up, and then click “Next” to continue the installation.
