Planet NOVASwitch GSW-800S User manual

PLANET GSW-800S
2
Trademarks
Copyright PLANET Technology Corp. 2002.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology
Corp. All other trademarks belong to their respective owners.
FCC Warning
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the Instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference, in which case the user
may be required to take adequate measures.
Revision
PLANET NOVASwitch User's Manual
FOR MODELS: GSW-800S
Part No.: EM-GSW8V1
Before Starting
In this User's Manual, "Switch" is used for GSW-800S,
“NovaSwitch” for PLANET’s 19”-range Ethernet Switch,
where “switch” represent the third party switch.

GSW-800S User's Manual 3
TABLE OF CONTENTS
1. INTRODUCTION........................................................5
1.1 PACKAGE CONTENTS........................................................5
1.2 HOW TO USE THIS MANUAL ..............................................5
1.3 PRODUCT SPECIFICATIONS ...............................................6
2. INSTALLATION..........................................................9
2.1 PRODUCT DESCRIPTION ...................................................9
2.1.1 Product Overview..............................................................9
2.1.2 Product Features ............................................................10
2.1.3 GSW-800S Front Panel..................................................11
2.1.4 LED Indicators................................................................11
2.1.5 GSW-800S Rear Panel...................................................12
2.2 INSTALLING A GSW-800S ..............................................12
2.2.1 Desktop or Shelf Mounting..............................................13

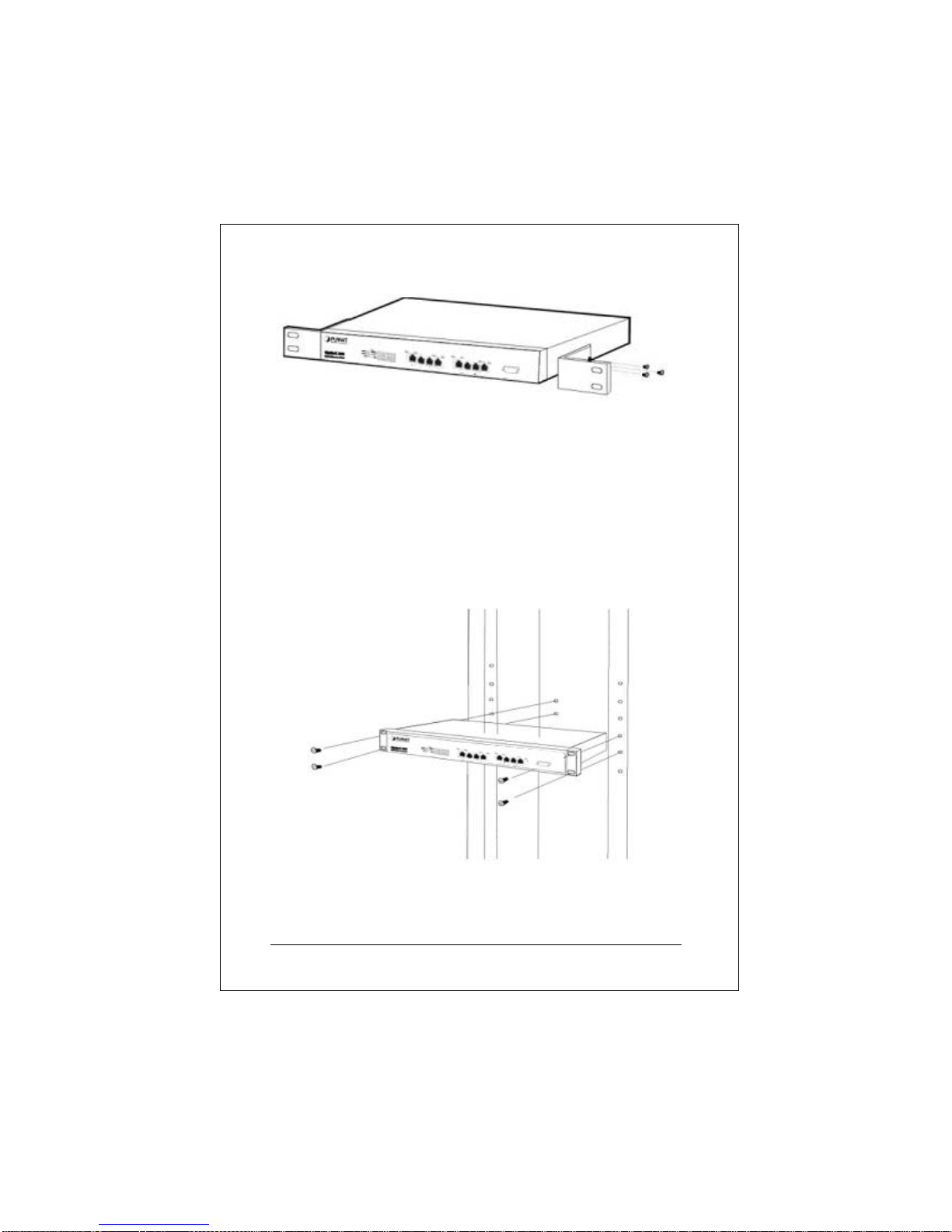

2.2.2 Rack Mounting................................................................13
3. CONFIGURATION....................................................15
3.1 PREPARING FOR CONFIGURATION....................................15
3.1.1 Connecting a PC or Terminal to the RS-232 Port...........15
3.1.2 Terminal Emulation Setup Program................................15
3.1.3 Power-up Self-test Status ...............................................16
3.2 GETTING STARTED.........................................................18
3.2.1 General Guidelines.........................................................18
3.2.2 Main Menu Screen..........................................................19
3.2.5 Port Trunking Configuration............................................24
3.2.6 Mirror Port Configuration.................................................26
3.2.7 VLAN Configuration........................................................27
3.2.8 Priority Configuration ......................................................30
3.2.9 Port Statistics..................................................................31
3.2.10 Restart..........................................................................31
4. SWITCH OPERATION .............................................33
4.1 ADDRESS TABLE ............................................................33
4.2 LEARNING......................................................................33
4.3 FORWARDING & FILTERING.............................................33
4.4 STORE-AND-FORWARD...................................................33
4.5 AUTO-NEGOTIATION .......................................................34

PLANET GSW-800S
4
5. TROUBLESHOOTING..............................................35
APPENDIX A................................................................37
A.1 SWITCH‘S RJ-45 PIN ASSIGNMENTS...............................37
A.2 10/100MBPS, 10/100BASE-TX......................................37

GSW-800S User's Manual 5
1. INTRODUCTION
1.1 Package Contents
Check the contents of your package for following parts:
 GSW-800S.
 User's manual.
 Power cord.
 19” rack mount brackets.
 RS-232 cable.
If any of these pieces are missing or damaged, please contact
your dealer immediately, if possible, retain the carton including
the original packing material, and use them against to repack
the product in case there is a need to return it to us for repair.
1.2 How to Use This Manual
This GSW-800S User Manual is structured as follows:
 Section 2, Installation
It explains the functions of GSW-800S and how to physically
install the GSW-800S.
 Section 3, Configuration
It contains information about the smart function of GSW-800S.
 Section 4 Switch operation
It contains troubleshooting and specifications of GSW-800S.
 Appendices
It contains cable information of GSW-800S.

PLANET GSW-800S
6
1.3 Product Specifications
Model GSW-800S
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x,
IEEE 802.3ab,IEEE 802.1Q, IEEE 802.1p,
Protocol CSMA/CD
Ports 8 10/100/1000 Mbps ports
Connector RJ-45 connector
Speed 10/100 at half duplex.
20/200/2000M at full duplex
Cabling Type UTP/STP Category 5 or better
Topology Star
LEDs PWR, Over Heat, Fan Failure for unit
10 Mbps, 100 Mbps, 1000 Mbps, LNK/ACT, FDX/COL
per port
Maximum Segment
Length 100m (328 ft) over Category 5 twisted-pair cable or better
VLAN 32 Groups
Trunking 4 Groups (MAX. 4 Ports per Group), Fail Over
Port Mirroring Support
QoS 4 priority queues for VLAN Tag
Jumbo Packet Support 9K Bytes packet size
Buffer Memory 1.5M-byte packet memory
MAC Address 16K
Dimensions(WxDxH) 430mm x 240mm x 44.45mm
Weight 3.6kg
System
Configuration 1 Console port, RS-232 for out of band management
AC Power 100~240VAC, 50W, 50~60Hz, 1A

GSW-800S User's Manual 7
Environmental
Requirements Operating temperature: 0℃to 50℃( 32℉to 122
℉)
Storage temperature: -40℃to 70℃( -40℉to 158
℉)
Operating humidity: 5% to 95% relative humidity,
non-condensing
Storage humidity: 5% to 95% relative humidity,
non-condensing
EMC Certification FCC Class A, CE

PLANET GSW-800S
8
This page intentionally left blank!

GSW-800S User's Manual 9
2. INSTALLATION
This section describes the functionalities of GSW-800’s components
and guides how to install it on the desktop or shelf. Basic knowledge of
networking is assumed. Please read this chapter completely before
continuing.
2.1 Product Description
The PLANET GSW-800S provides 8 Gigabit Ethernet Switch ports.
The PLANET GSW-800S delivers eight ports worth of
high-performance, feature-rich integrated Gigabit Ethernet switching
over traditional copper cabling. It provides 8 Ethernet ports and is
capable of smart functions, such as VLAN, Port trunking and Prot
mirroring. GSW-800S can be configured by out-of-band channel via
the console port (RS232) directly. Each port supports 10Mbps,
100Mbps, and 1000Mbps as well as half/full mode and can be easily
connected to corporate backbones and servers.
2.1.1 Product Overview
PLANET GSW-800S is a gigabit Ethernet switch with 8 RJ-45
10/100/1000 Mbps ports for high-speed network connectivity.
GSW-800S can also automatically identify and determine the correct
transmission speed and half/full duplex mode of the attached devices
with its 8 ports. Plus, the Gigabit port, together with jumbo frame
feature supported, can handle extremely large amounts of data
transmission in a secure topology linking to a backbone or high-power
servers.
This product also supports store-and-forward forwarding scheme to
ensure low latency and high data integrity, eliminates unnecessary
traffic and relieves congestion on critical network paths. With an
intelligent address recognition algorithm, GSW-800S could recognize
up to 16K different MAC address and enables filtering and forwarding
at full wire speed.

PLANET GSW-800S
10
2.1.2 Product Features
 Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x,
IEEE 802.3ab, IEEE 802.1Q,and IEEE 802.1p Priority Queues.
 Eight 10/100 Mbps auto-detecting half/full duplex and 1000
Mbps full duplex switch ports.
 Features Store-and-Forward mode with wire-speed filtering
and forwarding rates.
 Hardware based 10/100Mbps, half/full duplex and 1000Mbps
full duplex mode, flow control and auto-negotiation.
 IEEE802.3x flow control for full duplex operation.
 Backpressure for half duplex operation.
 Fully wire speed for both unicast and multicast forwarding
 Integrated address look-up engine, support 16K absolute MAC
addresses.
 Automatic address learning and address aging.
 Embedded 1.5MB data packet memory.
 Jumbo packet support with max. 9KB packet size.
 Head of Line (HOL) blocking prevention.
 Broadcast storm protection.
 Auto MDI/MDI-X switching.
 IEEE 802.1Q VLAN.
 Up to 4 groups of Trunk.
 Port mirroring support.
 IEEE 802.1p QoS with 4-level priority for switching.

GSW-800S User's Manual 11

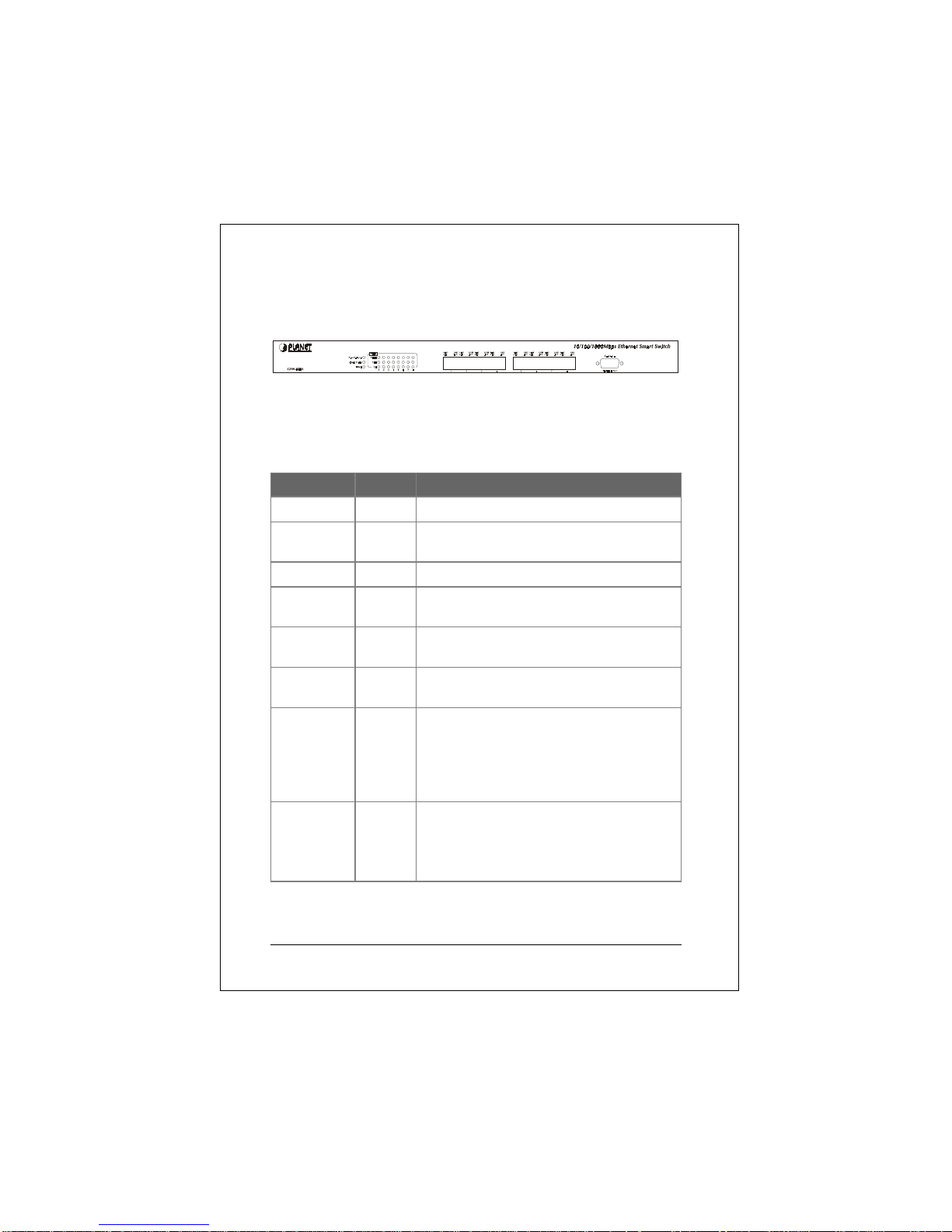

2.1.3 GSW-800S Front Panel
Figure 2-1 shows a front panel of GSW-800S.
Figure 2-1 PLANET GSW-800S Front Panel
2.1.4 LED Indicators
LED Color Function
PWR Green Lit: Power on
Over Heat*1 Red Lit: indicate over limiting the operation
temperature
Fan Failure*2 Red Lit: indicate the fan not active
10Mbps Orange Lit: indicate that the port is operating at
10Mbps.
100Mbps Green Lit: indicate that the port is operating at
100Mbps.
1000Mbps Green Lit: indicate that the port is operating at
1000Mbps.
FDX/COL Orange Lit: indicate that the connection made
through the corresponding port is running in
Full Duplex mode.
Blink: indicate that the connection is
experiencing collisions
LNK/ACT Green Lit: indicate the link through that port is
successfully established
Blink: indicate that the switch is actively
sending or receiving data over that port

PLANET GSW-800S
12
*1 When the internal temperature is equal to or higher than 60
degree C, the standby fan will be drove to run and the Over
Heat LED will light on. Once the temperature is equal to or
higher than 70 degree C, the buzzer will sound. Users can
press the buzzer On/Off button to turn off the buzzer.
*2 There are two fans in the unit. Normally, only one of the fans
is running. Another fan is standby. Once the running fan is
failed, the standby fan will be drove to run and the Fan
Failure LED will light on.
2.1.5 GSW-800S Rear Panel
The rear panel of the GSW-800S has a Power Connector and two Fans
at the rear of the switch. Besides, a Buzzer ON/OFF button is placed
between. The power port is where you will connect the AC power cord.
(See Figure 2-3 of Rear Panel of GSW-800S)
Figure 2-3 Rear Panel of GSW-800S
Power Notice:
1. The device is a power-required device, it means, it will not work till it
is powered. If your networks should active all the time, please
consider using UPS (Uninterrupted Power Supply) for your device. It
will prevent you from network data loss or network downtime.
2. In some area, installing a surge suppression device may also help
to protect your switch from being damaged by unregulated surge or
current to the Switch or the power adapter.
2.2 Installing a GSW-800S
This part describes how to install your GSW-800S Gigabit Ethernet
Switch and make connections to the switch. Please read the following
topics and perform the procedures in the order being presented.
PLANET GSW-800S Gigabit Ethernet Switch do not need software
configuration. To install your GSW-800S on a desktop or shelf, simply
complete the following steps.

GSW-800S User's Manual 13
2.2.1 Desktop or Shelf Mounting
To install a GSW-800S on a desktop or shelf, simply complete the
following steps:
Step1: Attach the rubber feet to the recessed areas on the bottom of
the switch.
Step2: Place the GSW-800S on a desktop or shelf near an AC power
source.
Step3: Keep enough ventilation space between the switch and the
surrounding objects
Note: When choosing a location, please keep in mind the
environmental restrictions discussed in Section 4, Specification.
Step4: Connect your GSW-800S to network devices
A. Connect one end of a standard network cable to the
10/100/100 RJ-45 ports on the front of the GSW-800S.
B. Connect the other end of the cable to the network devices
such as printer servers, workstations or routers…etc.
Note: Connection to the Switch requires UTP Category 5 network
cabling with RJ-45 tips. For more information, please see the Cabling
Specification in Section 4, Specification.
Step5: Supply power to the Switch.
A. Connect one end of the power cable to the GSW-800S
B. Connect the power plug of the power cable to a standard
wall outlet.
When the GSW-800S receives power, the Power LED should remain
solid Green.
2.2.2 Rack Mounting
To install the switch in a 19-inch standard rack, follow the instructions
described below.
Step1: Place your GSW-800S on a hard flat surface, with the front
panel positioned towards your front side.
Step2: Attach a rack-mount bracket to each side of the switch with
supplied screws attached to the package. Figure 2-4 shows
how to attach brackets to one side of the switch.

PLANET GSW-800S
14
Figure 2-4 Attaching the brackets to the GSW-800S
Caution:
You must use the screws supplied with the mounting brackets.
Damage caused to the parts by using incorrect screws would
invalidate your warranty.
Step3: Secure the brackets tightly.
Step4: Follow the same steps to attach the second bracket to the
opposite side.
Step5: After the brackets are attached to the switch, use suitable
screws to securely attach the brackets to the rack, as shown in
Figure 2-5
Figure 2-5 Mounting the Switch in a Rack
Step6: Proceed with the steps 4 and steps 5 of session 2.2.1 Desktop
or Shelf Mounting to connect the network cabling and supply
power to your switch.

GSW-800S User's Manual 15
3. CONFIGURATION
Unlike the unmanaged switch (Dumb switch), GSW-800S performs
series smart functions that make the switch operate more effectively.
This section will describe the common usage of the Switch Smart
Configuration.
3.1 Preparing for configuration
3.1.1 Connecting a PC or Terminal to the RS-232 Port
When you are ready to configure the smart functions of the switch,
make sure you had connected the supplied RS-232 serial cable to the
RS-232 port at the front panel of your GSW-800S switch and your PC.
3.1.2 Terminal Emulation Setup Program
In Windows 95/98/2000/XP,launch “HyperTerminal”, create a new
connection, and adjust settings as below:
 Emulation: VT-100 compatible
 Baud per second: 38400
 Data bits: 8
 Parity: None
 Stop bits: 1
 Flow Control: None
To gain a demo, please see the Figure 3-1.

PLANET GSW-800S
16
Figure 3-1 Port Settings for smart functions
3.1.3 Power-up Self-test Status
As the switch powers on, it goes through a self-test process to ensure
proper operations of the GSW-800S hardware. A series of messages
will be displayed to show the test progress and result. When the test
completes successfully, the system will display a log-in message. If any
of the components fails during the test, you may need to contact your
local dealer and have the switch replaced. Figure 3-2 shows a
successful Self-test menu of the Power-up System Self-diagnostic
Process.

GSW-800S User's Manual 17
Figure 3-2 Self-test menu of the Power-up System Self-diagnostic
program
3.1.4 Log-in
Log-in is required to access the command console after the self-test
completes successfully. The factory default password is "admin". You
may change it in the System Menu. To access to the Main Menu,
please always enter the correct password. (See Figure 3-3)
Figure 3-3 Log-in Message

PLANET GSW-800S
18
3.2 Getting Started
3.2.1 General Guidelines
GSW-800S allows users to configure the machine via
menu-driven screens. To work within the menu, please follow
the guidelines shown in Table 3-1.
Items Description
OBJECTS Objects are strings of characters on the screen. Each
object represents a distinct function. There are a few
kinds of objects.
INFO OBJECTS They only display information or messages and cannot
be changed. The cursor never stops at them either.
COMMANDS
OBJECTS They provide function trigger or menu navigation. When
highlighted, an "Enter" key triggers the object and the
function or navigation is performed.
LIST OBJECTS They provide a list of predefined values for the selection.
The "Space" key starts the selection process and "Enter"
key confirms the selection. The Ctrl-X key cancels the
process and reverts the original value
VALUE OBJECTS The user can change them. The "Enter" key starts the
edit process. The user can then input the desired value.
If the change value is not a desire one, press the "Ctrl-X"
to cancel the edit process.
CURRENT
OBJECTS There are many distinct objects on the command screen. The one that is currently being accessed is highlighted.
ARROWS KEY Provides navigation functions.
TAB KEY The Tab key is used to access the next object. Some
terminal or terminal emulation program might not be able
to provide Arrow keys correctly, such as some versions
of Microsoft HyperTerminal. The Tab key is the only way
to navigate the screen with those terminals.
ENTER KEY The Enter key is used extensively to start a selected
function, to start or end the editing process, or to access
the next level of menu functions.
Ctrl-X key When a list selection or text editing is being performed,
the Ctrl-X key can be used to cancel the change and
revert to original value.
ESC KEY When menu selection is being performed, the ESC key
exit the current menu level and enters the upper level.
SPACE KEY When a List Object is performed, the Space key starts

GSW-800S User's Manual 19
the selection and scrolls through the available choices.
Status Line The Status line is at the second line to the bottom. It is
highlighted. The left area of the line shows the
description of the current object. The right area shows
the type of the object. There are 3 possible types:
READ/SELECT The object is a List object
READ/WRITE The object is a Value object
Nothing The object is either a selector to the next
menu level or a direct command.
<RETURN> A common menu item, exits the current menu level
<NEXT PAGE>
<PREVIOUS PAGE> Common menu items. Appear when the number of data
items cannot fit in one screen and the data needs to be
displayed in multiple pages. The commands change the
current page and select another group of data. Note that
the next page of the last page is the first page.
Table 3-1 General Guideline within the Menu
3.2.2 Main Menu Screen
The main menu enables you to view and manage the GSW-800S
settings. Use the "Arrow" keys to move the highlight over a selection.
Press the "Return" key to select and "Esc" key to return to the previous
selection. Please see Figure 3-4.
Figure 3-4 Main Menu Screen

PLANET GSW-800S
20
System Configuration Menu
Displays the System Configuration Menu, which enables you to
change the password, aging time, logout time and auto refresh
time.
Port Configuration Menu
Displays the Port Configuration Menu, which allows you to
configure speed, flow control, duplex and auto negotiation.
Explained in this chapter immediately after the sections
describing System Configuration Menu.
Port Trunking Configuration Menu
Displays the screen for trunking a group of ports together to speed
up data transmission. Explained in this chapter after the sections
describing the Port Configuration.
Port Mirroring Configuration Menu
Displays the screen for selecting a port to monitor.
Explained in this chapter after the sections describing the
Port Trunking Configuration.
VLAN Configuration Menu
Displays options for configuring VLAN.
Priority Configuration Menu
Displays the options available for assigning varying degree of
priority to each port.
Port Statistic Menu
Displays the individual statistical counter for selected ports with
the update rate in 12 seconds.
Restart Menu
Displays options for restarting the switch.
Exit
Highlighting this selection and pressing the “Enter” key will take
you out of the configuration.
