Planika FLA 2 User manual

USER’S MANUAL
FLA 2 model E#4
Manufactured by:
Planika Sp. z o.o.
ul. Bydgoska 38
86-06 Brzoza
Poland
Edition i1108#09 as of 16.11.2017
Serial number greater than P6499 17

Copyright Planika Sp. z o.o. www.planikafires.com 2
IT IS OBLIGATORY TO READ AND KEEP THIS INSTRUCTION MANUAL.
TABLE OF CONTENTS
I. General information .................................................................................................................................................. 3
II. Fuel ............................................................................................................................................................................ 3
III. Safety ......................................................................................................................................................................... 4
IV. Operation .................................................................................................................................................................. 5
A. Operating elements .............................................................................................................................................. 5
B. Initial start-up of the de ice .................................................................................................................................. 6
C. Flame size regulation ............................................................................................................................................ 7
D. De ice extinguishing ............................................................................................................................................. 7
E. Subsequent start up .............................................................................................................................................. 7
F. FAST START function ............................................................................................................................................. 8
G. Information and warning alert .............................................................................................................................. 8
V. Cleaning and maintenance ...................................................................................................................................... 10
VI. Disposal and recycling ............................................................................................................................................. 10
VII. Ser ice ..................................................................................................................................................................... 10

Copyright Planika Sp. z o.o. www.planikafires.com 3
I. General information
FLA 2 model E is not a heating device, but modern decorative device that uses the beauty of a real flame. ue to the innovative
technology operation of FLA 2 model E is simple and safe.
II. Fuel
To ensure the safety of the device it has to be refilled with recommended FANOLA® liquid or other in accordance with European
Union directive N.162/2013 for 86-96,6% ethanol with contaminators regarding density, viscosity and electrical conductivity.
These properties must be identical to the properties of recommended FANOLA® liquid. For more information please contact the
manufacturer.
Use of any other fuel is strictly forbidden, as it may lead to improper operation of the device, damages and hazard to health and
safety of its operators. Manufacturer will not accept any responsibility in case of using any other fuel than recommended
(i.e dehydrator and/or super purified ethanol with more than 96,6% ethanol volume) or any other which doesn’t meet above
mentioned properties.
Explanation of symbols is placed on the placed on the flap of the device:
It is forbidden to pour fuel into a burning device!
It is forbidden to pour fuel into a hot device!
FANOLA ® - additional information:
Warning symbols:
H225: Highly flammable liquid and vapors
H319: May be skin irritant
H336 - The substance can cause sleepiness, dizziness
Warning markings:
R-11 - Highly flammable liquid
Operational notes:
S-2 – Store beyond children's reach
S-7 - Keep container tightly closed
S-16 - Keep away from sources of ignition - No smoking
S-46 – In case of ingestion immediately seek medical advice – show the package or label
This mark stands for information which one needs to acquaint with.
This mark stands for warnings which one needs to acquaint with.
!

Copyright Planika Sp. z o.o. www.planikafires.com 4
III. Safety
As FLA 2 model E produce a real open fire it is necessary to follow the below specified rules in order to enable the product
to be used in a technically correct and safe manner as well as to maintain the warranty.
• When installing the device according to the instructions you must comply with national and local regulations.
• It is required to read the installation instructions in order not to use the device in an improper manner or in rooms with
smaller cubic capacity than required.
• Products should not be exposed to atmospheric conditions. It’s the product for internal use only.
• When turned on the device produce steam carbon dioxide and heat therefore it’s necessary to provide adequate
ventilation so that the total replacement of the air in the room is min. 1 / h.
• Do not use the device in the temperature lower than 10°C and higher than 30°C.
• Do not install the device in areas of large drafts of air near fans vents etc.
• Do not install the device on escape routes and in places where there may be potentially explosive atmospheres.
• The device as well as the fuel should be kept out of reach of children pets and unauthorized persons.
• It is forbidden to consume the fuel. Avoid contact with skin and eyes.
• It is required to take precautions when dealing with flammable materials for example in direct contact with object
or in area within 1 m / 3.28 ft. around the device no flammable objects should be placed. Do not place near the curtains
blinds etc.
• Do not place on the grid any elements not provided by the producer.
• It is necessary to place dry-powder or carbon dioxide extinguisher near the device.
• The device should be installed only on flat level and firm surface.
• Positioning the device on a sloping ground may cause malfunction damage to the device or fire.
• It is forbidden to use other fuel than recommended fuel FANOLA or the fuel recommended in section II Supplies and
consumables.
• Do not heat the fuel before the heating process of the device is started.
• Do not start the device in case of spillage of fuel out of the tank.
• Never pour fuel directly into the flame tray as this may cause damage to the device and result in fire. Such an attempt
may cause violent ignition result in fire burns and can even be life threatening.
• Do not cover the device while it is switched on.
• Do not operate near the fuel filler while the device is switched on.
• Do not operate with the components contained within the flame tray under the threat of burns or damage to the device.
• Do not move the device while it is switched on. The device can be moved only after the complete combustion of the fuel
when it is disconnected from power supply and when all its elements are cooled.
• The device should not be left without adult supervision while it is switched on.
• The device should be kept out of reach of untrained users.
• The device must be switched on and used as per description in point IV in instructions.
• While switching on the device the odor of fuel may be perceptible.
• The device is not suitable for continuous operation. If the device suddenly turns off proceed in accordance with the
instruction.
CAUTION!
• Glowing coil is heated to a temperature of 1300 ° C. Touching when the device is switched on may cause burns.
• While working the flame tray is heated to high temperatures. Do not touch the flame tray or hot parts located in close
area under the risk of burn injury.
• The first startup of the device can be made only after proper installation of the device and reading the manual.
• If the device requires transport it is required to burn all fuel remains and move it in a horizontal position avoid tilting it.
As the unburned fuel remains in the combustion chamber during the transfer sensors could be activated. In this case
the device could be used again only after it has dried completely.
It is forbidden to make any repairs or changes in the device. Repairs may be made only by professional technician.
!
!

Copyright Planika Sp. z o.o. www.planikafires.com 5
IV. Operation
This manual contains all the information necessary for the proper operation of the FLA 2 model E. It is obligatory to read and
keep this instruction manual.
Operation of the device is permitted only after the device is properly installed according to the instructions and the manual.
A. Operating elements
Control Panel
START
STOP
READYFUEL
HOT
ERROR
PAT.
PEND.
ECO
Fire grate
C
ontrol panel display
placed
under a
lid
Fanola filler bolt
Furnace
Glowing coil
Service USB input hidden
under a cap
Starts the device from
standby mode or switches
to the standby
Switches to ECO
mode
The red indicator The blue indicator
The green indicator
Tempered glass

Copyright Planika Sp. z o.o. www.planikafires.com 6

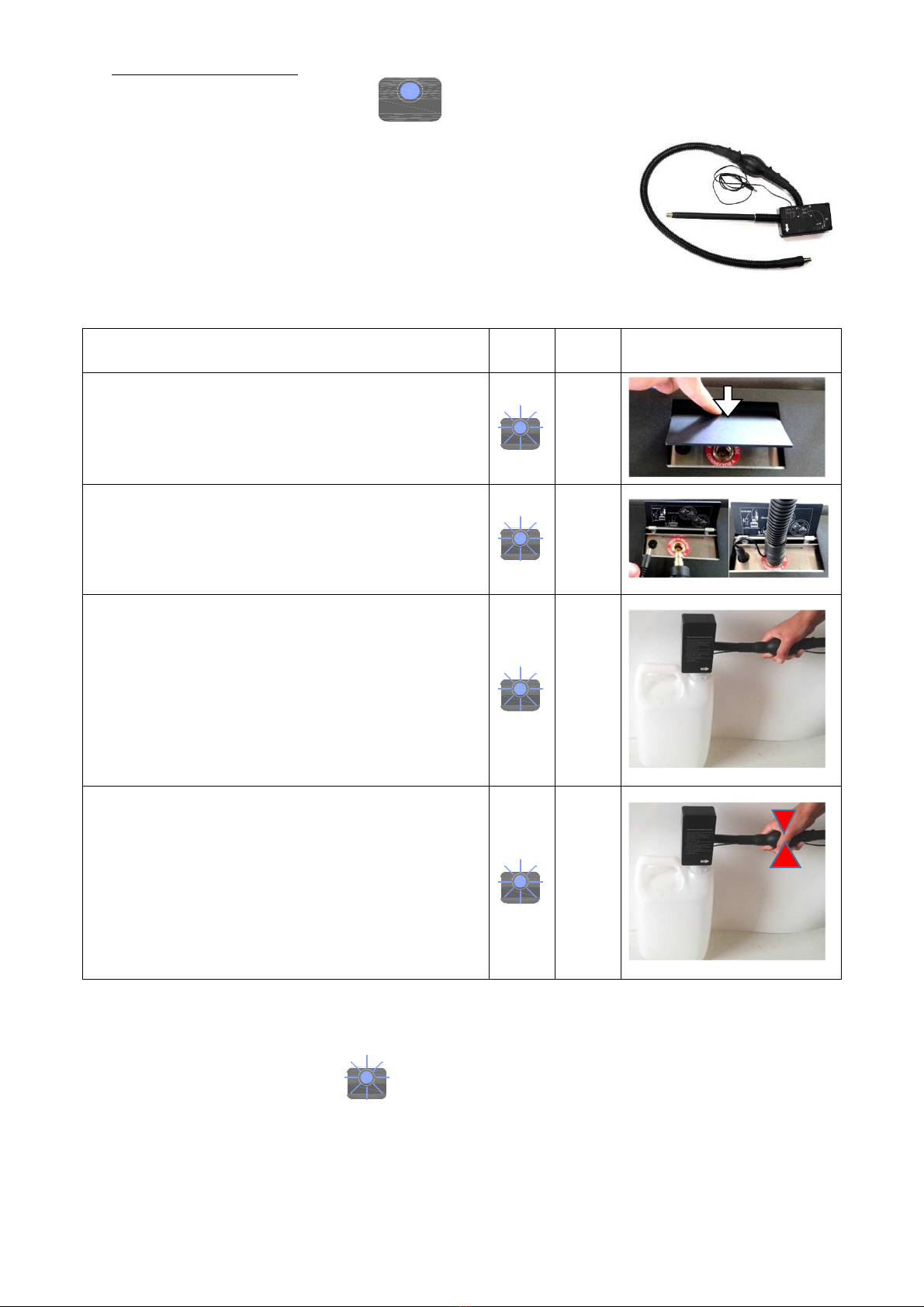

B. Initial start-up of the device
1. On the control panel the blue light flashes it indicates the lack of fuel in the tank. Please refuel.
2. Refuelling. For refuelling please use the automatic fuel pump provided with the
FLA 2 model E.
Before use please read the instructions written on the pump.
LE Sound
signal
Open the filler fuel flap placed on the right side of the FLA 2
model E. The diode will start to blink and you will hear the
intermediate sound.
--
Push the metal connector of flexible hose dynamically into
the matching socket under the fuel flap. Properly attached
fuel connector should make a click sound. Plug the automatic
fuel pump power cord to the matching socket underneath
the fuel filler flap. Both should be placed firmly in their place.
--
Place the stiff tube in the external fuel container from which
the fuel will be pumped out into the FLA 2 model E’s fuel
tank.
--
To start the automatic pump squeeze the rubber manual
pump several times until you will hear the buzzing noise.
--
Automatic fuel pump will start working once the fuel reaches the sensor inside the black box. Pump will cease the refuelling
process once:
a) FLA 2 model E’s fuel tank will be full. LE diode will start to blink and you will hear the intermediate sound.
b) The external fuel tank will be empty. In this case, connect another external fuel tank and re-pour or finish.
If you want to finish the refuelling disconnect the power connector. Hold the fuel hose connector and press the metal plate under
it (marked with a red circle) The connector will be released. Please be aware, that some fuel can still be present in the fuel hose
after releasing. Close the fuel filler lid.
F U E L
FUEL
FUEL
FUEL
FUEL
FUEL

Copyright Planika Sp. z o.o. www.planikafires.com 7

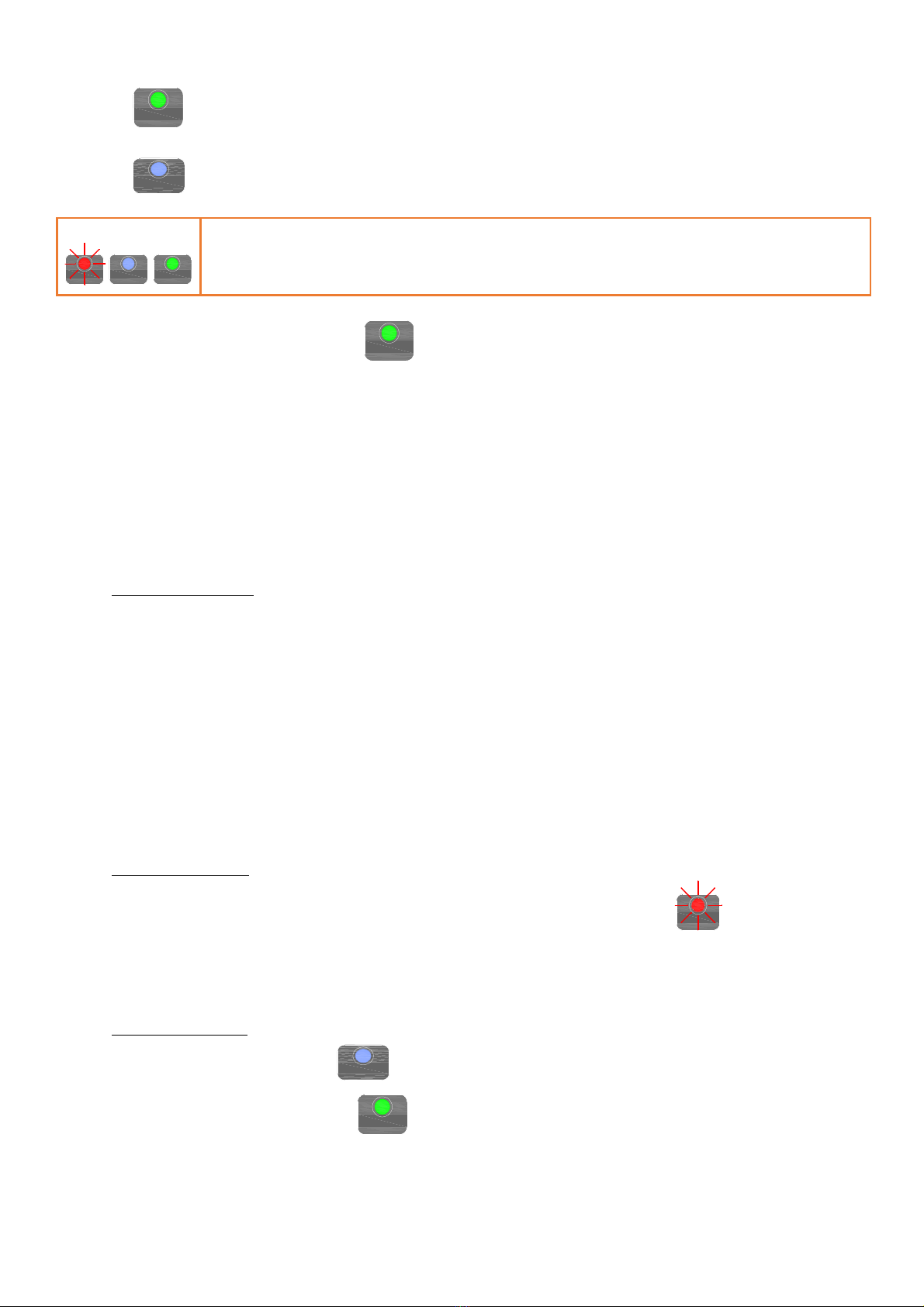

After closing down the fuel filler flap the LED lights on FLA 2 model E will indicate:
− FLA 2 model E is ready to use
or
−
Too little fuel was pumped repeat refueling.
3. Starting the device. The green indicator flashes on the control panel .
3.1. Press the START/STOP button on the control panel and hold it until you hear the sound signal.
3.2 The green led READY will start blinking to indicate starting the device and the filament will start to glow. Wait until
the fire appears.
3.3. While the appliance is in work mode the green indicator goes off and the flame starts to appear. The device works
automatically until they run out of fuel or disable the device by the user.
Depending on the temperature and amount of fuel the startup sequence may take up to 10 minutes. When the LEDs are off they
will go out.
C. Flame size regulation
The FLA 2 model E can operate in two modes: Normal and ECO. The device always starts with a standard flame size. The device
has the adjustable flame size during operation.
In order to reduce the height of the flame press the ECO button. You will hear two beeps and the ECO button will be highlighted.
The unit is now operating in ECO mode.
To return to the normal height of the flame press the ECO button you will hear one beep and the ECO button backlight turns off.
The device is now in normal mode.
ATTENTION! It might take a few moments for the flame to adjust.
ATTENTION! The device switches to ECO mode by itself when there is a danger of over-temperature of the device.
D. Device extinguishing
Press the START/STOP button on the control panel. You will hear two beeps and the red indicator will start to blink.
The blinking red indicator means that the device is too hot to be restarted. When the device cools the message will disappear and
depending on the amount of the fuel in the tank either the green indicator will flash and indicate the readiness for operation or
the blue indicator will indicate the lack of the fuel.
E. Subsequent start up
If on the control panel flashes the blue FUEL indicator start to run the product from the point B.2.
If on the control panel flashes the green READY indicator you can:
• start to run the product from the point B.3.
• fill the fuel in accordance with B.2 paragraph.
READY
F U E L
READY
HOT
F U E L
READY
During pouring be careful not to spill out the fuel. If the fuel is spilled error message
may be displayed.
Go to step F and follow the guidance provided in the table. I the spillage is excessive the source o
power needs to be disconnected.
READYFUEL
HOT

Copyright Planika Sp. z o.o. www.planikafires.com 8
F. FAST START unction
With the FAST START function turned on the waiting time for flame is shortened during the device start up. START UP function is
factory-set.
START UP function is possible to be turned on or turned off only when the green led is lit on the control panel
.
To disable FAST START hold down ECO button for about 10 s until you hear 4 beeps.
To re-enable the FAST START function hold down ECO button for about 10s until you hear 2 beeps.
WARNING! With FAST START function enabled the device consumes 100 W of energy.
G. In ormation and warning alert
In order to increase safety the FLA 2 model E is equipped with an electronic system to keep the operation safe. In the case of a
dangerous situation the device immediately triggers alarms.
LE END:
READYFUELHOT
HOT
HOT
HOT
The indicator is off
The indicator flashes
The indicator is blinking

Copyright Planika Sp. z o.o. www.planikafires.com 9

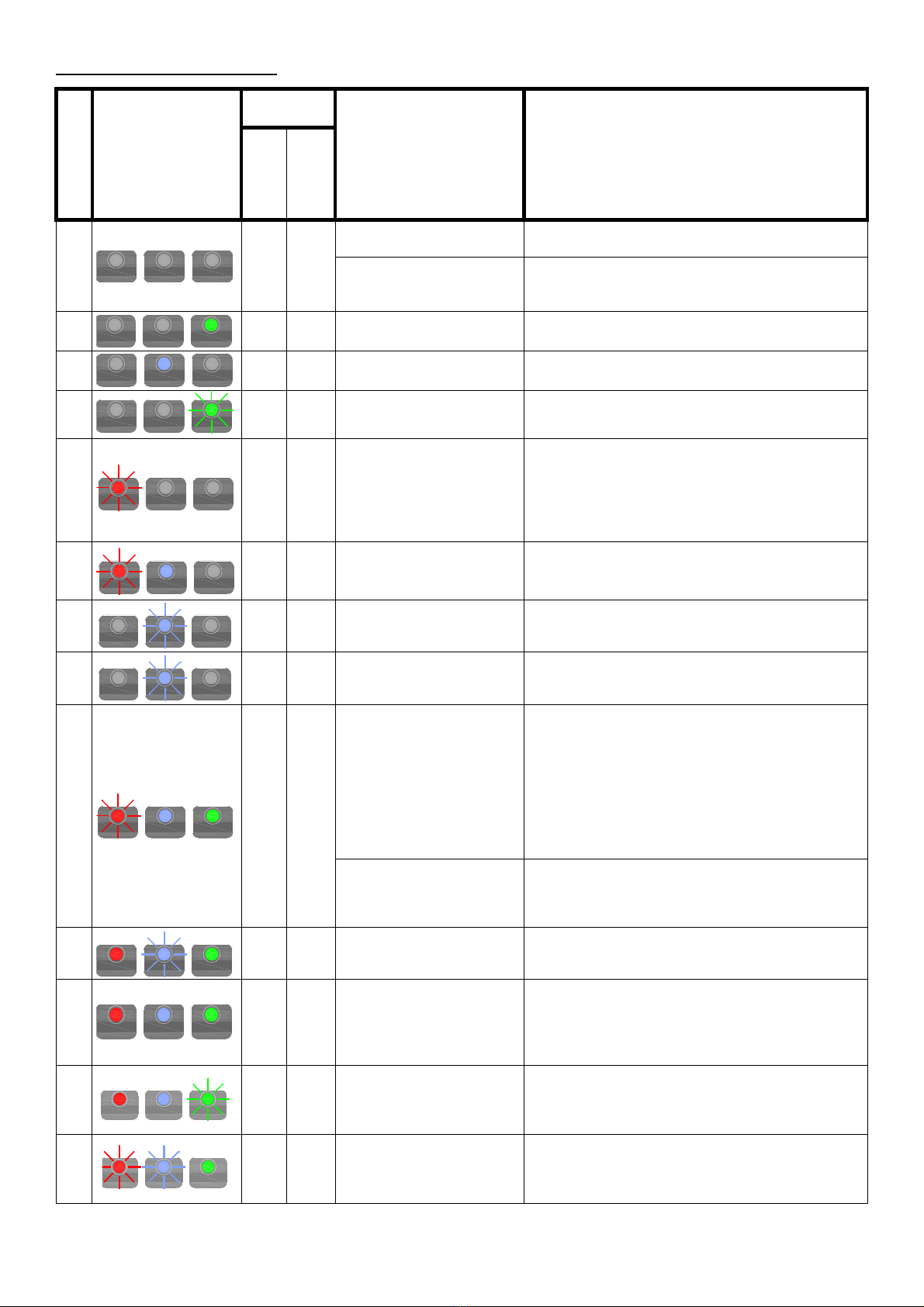

Information and warning alerts
Lp. Control Panel
Indicators
SOUND
SIGNALS
Event Procedure
constant
intermittent
1
If the fire is not visible - NO
POWER.
Make sure the device is properly connected to the po er
supply.
If you see a fire - the device is
in operation. Do not leave the device unattended by an adult.
2
The device is ready for
operation. You can run the device in accordance ith section B.3
3 No fuel in the tank Fill the fuel in accordance ith B.2 paragraph
4
Initial start-up of the device
Wait for the appearance of fire, the light goes off.
5
Works protected against too
rapid restart of the hot device
or the allo able temperature
has been exceeded
Allo the device to cool do n. After cooling the device,
the red indicator ill turn off and the green indicator ill
start to flash.
6
The device automatically
turns off due to lack of fuel in
the tank.
Allo the device to cool do n. After cooling the device,
the red indicator ill turn off
7
The device is ready for
refuelling. Fill the fuel in accordance ith B.2 paragraph.
8
×
The fuel tank is full ( ith
intermediate sound).
Disconnect the fuel hose. Close the filler bolt.The blue
indicator ill turn off, the green one ill start to flash.
9
×
There as a fuel spill or
If refueling process is in progress it ill cease
automatically. Disconnect the automatic pump. Press the
START / STOP button on the control panel to turn off the
sound. If the spillage is e cessive the source of power
needs to be disconnected Wait at least 1 hour to
evaporate the remaining moisture and then close the
fuel filler bolt. If the alarm message reappears, ait a
little bit longer until the rest of the moisture evaporates.
If the message reappears, contact your service provider.
The time given for the flame
to appear has been exceeded
If the alarm message appears during the start of the
device, press the START / STOP button to turn off the
sound and hold the ECO button for about 5 seconds.
If the message reappears, contact your service provider.
10
×
Operation error
Press the START / STOP button to turn off the sound and
hold the ECO button for about 10 seconds.
If the message reappears, contact your service provider.
11
×
The device temperature
belo 10°C or critical
operation error
Press the START / STOP button to turn off the sound.
Provide higher ambient temperature. Wait until the
device obtains the indoor temperature. Hold do n the
ECO button for about 10 seconds.
If the message reappears, contact your service provider.
12
×
Too much liquid in the tank
Shut the filler bolt. Press the START / STOP button to turn
off the sound and hold the ECO button for about 10
seconds. If the message reappears, contact your service
provider.
13
×
Fuel filler lid opened
during start up sequence
or ork of the device
Shut the filler bolt. Press the START / STOP button to turn
off the sound and hold the ECO button for about 10
seconds. If the message reappears, contact your service
provider.
READYFUELHOT
READYFUELHOT
READYFUEL
HOT
READYFUEL
HOT
READYFUELHOT
READYFUEL
HOT
READYFUEL
HOT
READYFUEL
HOT
READYFUEL
HOT
READYFUEL
HOT
READYFUEL
HOT
READYFUEL
HOT
READYFUELHOT

Copyright Planika Sp. z o.o. www.planikafires.com 10
V. Cleaning and maintenance
Switch off the device before cleaning. Wait until the temperature of the device gets close to the ambient temperature. To maintain
appropriate technical condition of the device please observe the following rules:
• Lacquer coating the furnace is not resistant to abrasion. It is not recommended to wipe the surface.
• Clean the furnace with a soft cloth and water to avoid causing cracks and scratches
When purchasing and dozing cleaners be sure to protect the environment and comply with the recommendations of
manufacturers.
It is forbidden to clean the inside of the device by unauthorized persons.
The manufacturer does not foresee a situation where it will be necessary to clean elements not normally available.
The manufacturer is not liable for damage resulting from:
 improper operation (non-manual)
 self-dismantling
 attempts to modify
 using other liquids than those recommended in point II. Fuel.
VI. Disposal and recycling
The product is equipped with parts made of aluminium steel plastics and electronics. If you need to dispose of the device follow
the terms of disposal and recycling in force in your country.
Moreover dispose of the empty Fanola containers should be dumped to plastic waste baskets.
Most of the materials used in Planika appliances can be recycled.
FANOLA® fuel recommended for this product has received following certifications:
VII. Service
If you have any technical problems or some questions please do not hesitate to contact your distributor or visit our page
www.planikafires.com/service and follow the instructions on the page.
