INSTALLATION and USER’S MANUAL
GUSTAV Gas
G30/G31 (Propane-Butane/Propane)
H
L
D

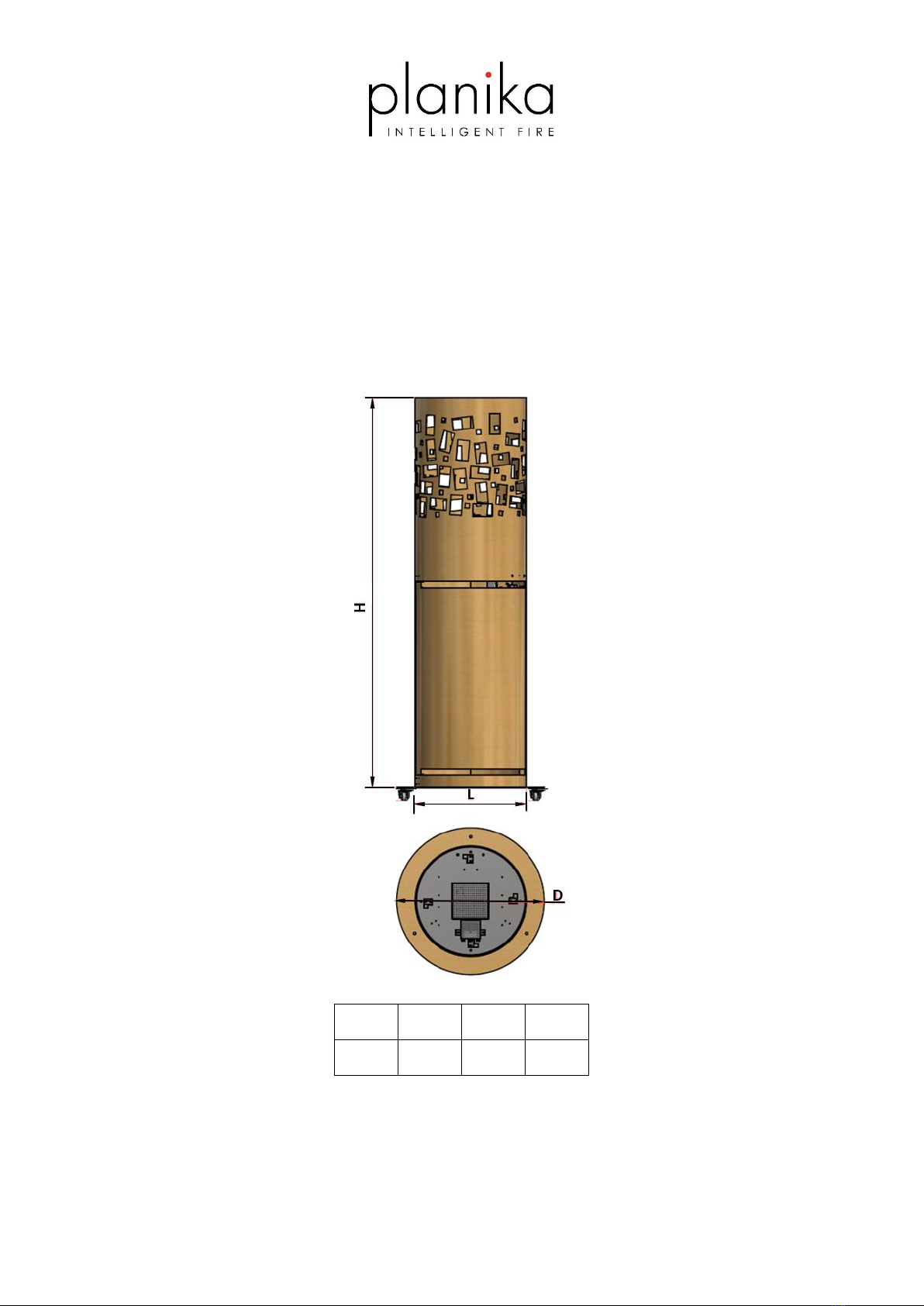

[mm]
1302
370
490
Manufactured by
Planika Sp. z o.o.
ul. Bydgoska 38
86-061 Brzoza
Poland

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 2
IT IS OBLIGATORY TO READ AND KEEP THIS INSTRUCTION.
TABLE OF CONTENTS
1. INTRODUCTION.........................................................................................................................................................3
2. SAFETY INSTRUCTIONS..............................................................................................................................................3
2.1 Safety instruction regarding the use of the gas cylinders.................................................................................5
3. INSTALLATION...........................................................................................................................................................6
3.1. Box contents .....................................................................................................................................................6
3.2. Unboxing and installation .................................................................................................................................6
3.3. Gas cylinder montage .......................................................................................................................................7
3.4. Installation of the gas linkage ...........................................................................................................................8
3.4.1. Connection and replacement of the gas cylinder.........................................................................................8
3.4.2 Adapter for the gas cylinder connection.....................................................................................................10
3.4.3 Regulator replacement ...............................................................................................................................11
4. USER’S MANUAL .....................................................................................................................................................13
4.1 Start-up of the device .....................................................................................................................................13
4.2 Regulation of the flame size............................................................................................................................15
4.3 Device shutdown.............................................................................................................................................16
5. TESTING...................................................................................................................................................................17
5.1 Checking for gas leaks.....................................................................................................................................17
5.2 Checking the flame appearance......................................................................................................................17
6. MAINTENANCE AND UPKEEP..................................................................................................................................18
6.1. Testing and cleaning .......................................................................................................................................18
6.2. Glass cleaning (if delivered) ............................................................................................................................18
7. TROUBLESHOOTING................................................................................................................................................19
8. TECHNICAL SPECIFICATION.....................................................................................................................................20
9. MANUFACTURER’S CONTACT DETAILS ...................................................................................................................20

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 3
1. INTRODUCTION
The Gustav Gas fireplace is decorative fuel-effect gas appliances intended only for outdoor use. It is obligatory to
acquaint oneself with the below installation manual and user’s manual before committing to the installation and use
of the Gustav Gas fireplace. This manual is to be kept safely for the lifetime of the device.
2. SAFETY INSTRUCTIONS
•Read the instructions before use. Keep the instructions for future reference.
•For use outdoors or in amply ventilated areas only. The use of this appliance in enclosed areas is DANGEROUS
and is PROHIBITED.
•An amply ventilated area must have a minimum of 25 % of the surface area open. The surface area is the sum
of the walls surface.
•Do not move the appliance when in operation.
•Shut off the valve at the gas cylinder or the regulator before moving the appliance.
•In case of violent wind precautions must be taken against tilting of the appliance.
•This appliance must be used, and the gas cylinder stored, in accordance with the regulations in force.
•The Gustav fireplace should installed and controlled annually according to the below installation manual as
well as enforced national and local laws regarding gas safety (installation and use).
•One needs to assess whether the data one the product plaque complies with the local type of gas and pressure.
•Do not change the structure of the device or its sealed elements nor modify the default settings of the Gustav
fireplace.
•Do not set any additional imitation blocks nor any glowing coal fragments on the burner or in the combustion
chamber.
•A CO2 or a powder fire extinguisher needs to be placed near the device.
•During the first ignition the Gustav fireplace needs to be burnt on maximum level for a few hours in order for
the elements to acquire correct temperature and for the remains of paint, lacquer and lubricant to evaporate.
•Do not move the device while it’s working.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 4
•Gustav has been designed for decorative purposes. The surface of the Gustav fireplace including the glass
screens may get hot (up to 100 degrees Celsius) with the exception of the side walls of the appliance and the
control panel.
WARNING!!! Parts of the device that are easy to reach may be very hot. Keep children away from the device.
•Glass panels must be installed when Gustav is in use.
•This appliance must be kept away from flammable materials during use. Do not place any combustible

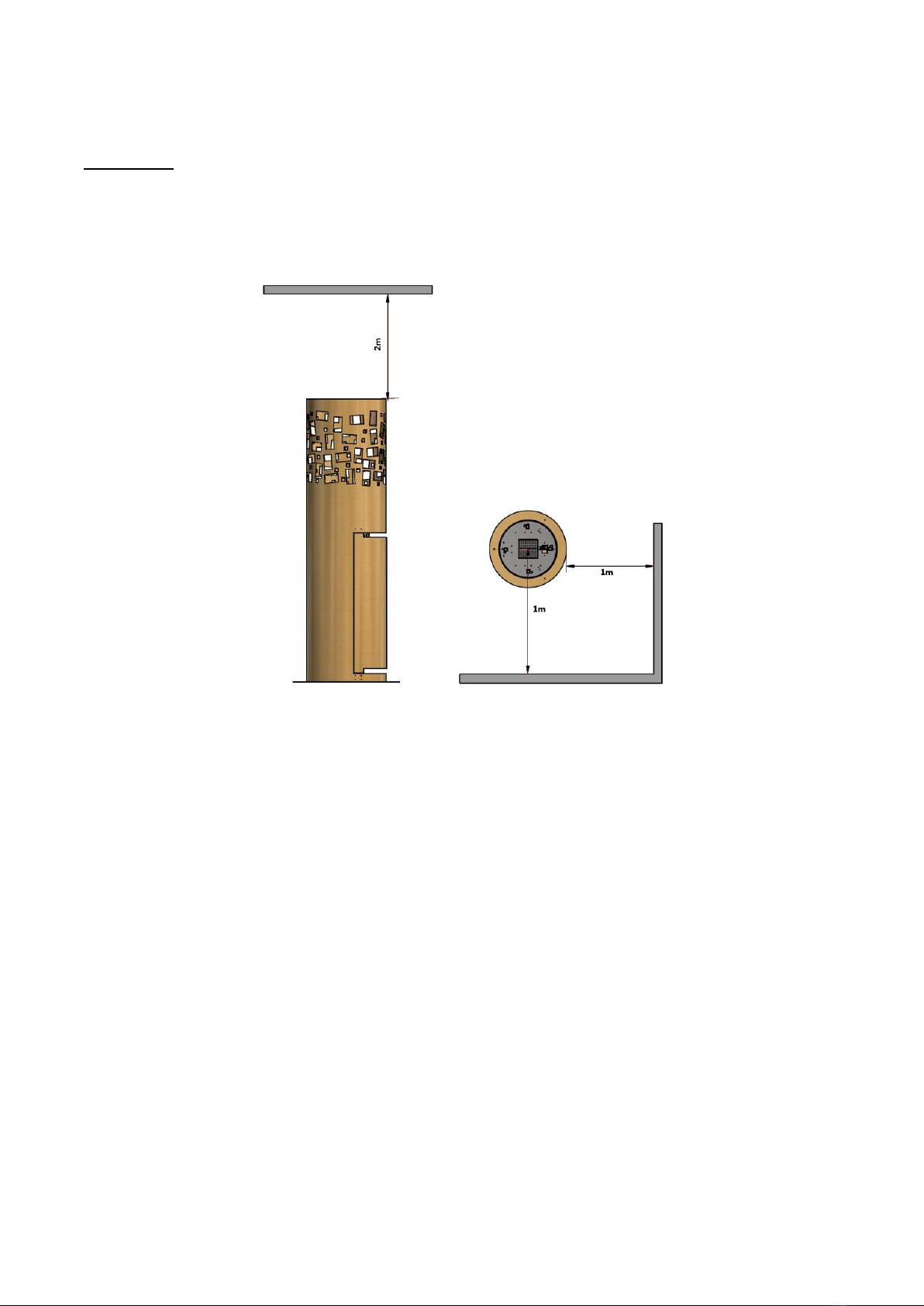

materials within a distance of 0,3 m of Gustav and 1 m over the appliance (Picture 1).
Picture 1
•When the Gustav Gas fireplace is on it’s not to be exposed to rain.
•When not being used the Gustav Gas is to be protected from atmospheric conditions and the main valve of
the gas cylinder needs to be turned off.
•If the Gustav Gas is not in use for a longer period of time (e.g. winter time), we advise you to store it inside.
•Corrosion of the coating of the base of Gustav Gas is a natural process resulting from the characteristics of the
Corten steel which the fireplace is made of. It is an additional protective layer of the appliance against the
negative influence of unfavorable weather conditions.
•Other parts of the Gustav Gas fireplace are made of stain resistant material.
•Never leave a turned on Gustav Gas without supervision.
•The Gustav Gas fireplace needs to be installed in a place inaccessible for children, unauthorised persons or
animals for the direct contact with the flame or hot parts of the device to be impossible.
•In case of heavy wind the Gustav Gas fireplace needs to be immediately turned off and one needs to await
until the heavy wind passes.
•In case of noticing any sort of gas leaks the fireplace as well as the main valve of the gas cylinder need to be
turned off.
•After use turn off the gas cylinder valve.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 5
2.1 Safety instruction regarding the use of the gas cylinders.
•Use only the type of gas and pressure specified by the manufacturer.
•The minimum distance between the appliance and the gas cylinder for appliances without cylinder housing.
•Change the gas cylinder in a amply ventilated area, away from any ignition source (candle, cigarettes, other
flame producing appliances).
•Do not obstruct the ventilation holes of the cylinder housing.
•In the event of gas leakage, the appliance shall not be used or if alight, the gas supply shall be shut off and the
appliance shall be investigated and rectified before it is used again.
•The gas cylinders should always be placed in a vertical position –during use and transport.
•Always store the gas cylinder in an easily accessible place to allow its immediate turn-off.
•During the installation process do not allow an open flame or any ignited object to reach the gas cylinder.
•The gas cylinder should be in a distance not shorter than 1,5 metres away from the Gustav fireplace.
•Leaks should be found with the use of a cleaning liquid and water. If bubbles form on the surface that means
that a there’s an existing leak.
•Always use a pressure regulator between the gas bottle and the device. Replace the pressure regulator every
5 years. The allowed pressures are: 30mbar, 37mbar (recommended), 50 mbar. Use only regulators complying
with the European EN16129 Norm.
•Use only approved and certified gas connection linkage. Replace the linkage every 2 years.
•Check the flexible hose at least once per month and each time the cylinder is changed. If it shows signs of
cracking, splitting or other deterioration it shall be exchanged for new hose of the same length and of the
equivalent quality.
•Do not connect the gas cylinder directly to the appliance without regulator.
•The tubing or the flexible hose must be changed within the prescribed intervals.
•Use only the type of gas and the type of cylinder specified in these instructions.
•The elastic linkage connecting gas to the fireplace is to be led away from sharp edges and hot surfaces. Refrain
from bends and twists of the elastic connection on its full length.
•Remember that the LPG bottle should be stored in a well-ventilated place. LPG gas is heavier than air and its
accumulation near the bottom surface may generate an explosive mixture.
•The gas cylinder needs to be shut if the fireplace is not being used.
•Filling the gas cylinders is to be commissioned to certified gas filling stations.
•Replacement of empty cylinders for full ones is to be conducted only in authorised locations.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 6
3. INSTALLATION
3.1. Box contents
•1x complete Gustav Gas fireplace
•4x bag of decorative stones
•1x 2 metre rubber gas linkage –installed
•1x pressure regulator (37mbar) –installed
•1x AA Battery
•1x Euro Set
•1x installation manual and user’s manual
3.2. Unboxing and installation
•The contents of the boxes need to be carefully unwrapped from the foam foil.
•Remove the bags with decorative stones from the burner reservoir and place them away from it.
•Check the completeness of the elements with the contents list.
•Make sure that the device nor its elements weren’t damaged during the transportation (if they were, notify
the supplier).
•Place Gustav Gas on a flat, paved surface outside of the building, preferably on the place of final installation.
Leave sufficient space on the side of the appliance where control panel is located (minimum 1 m).
•The decorative stones are to be scattered evenly around the reservoir to completely cover the burner of the
fireplace.

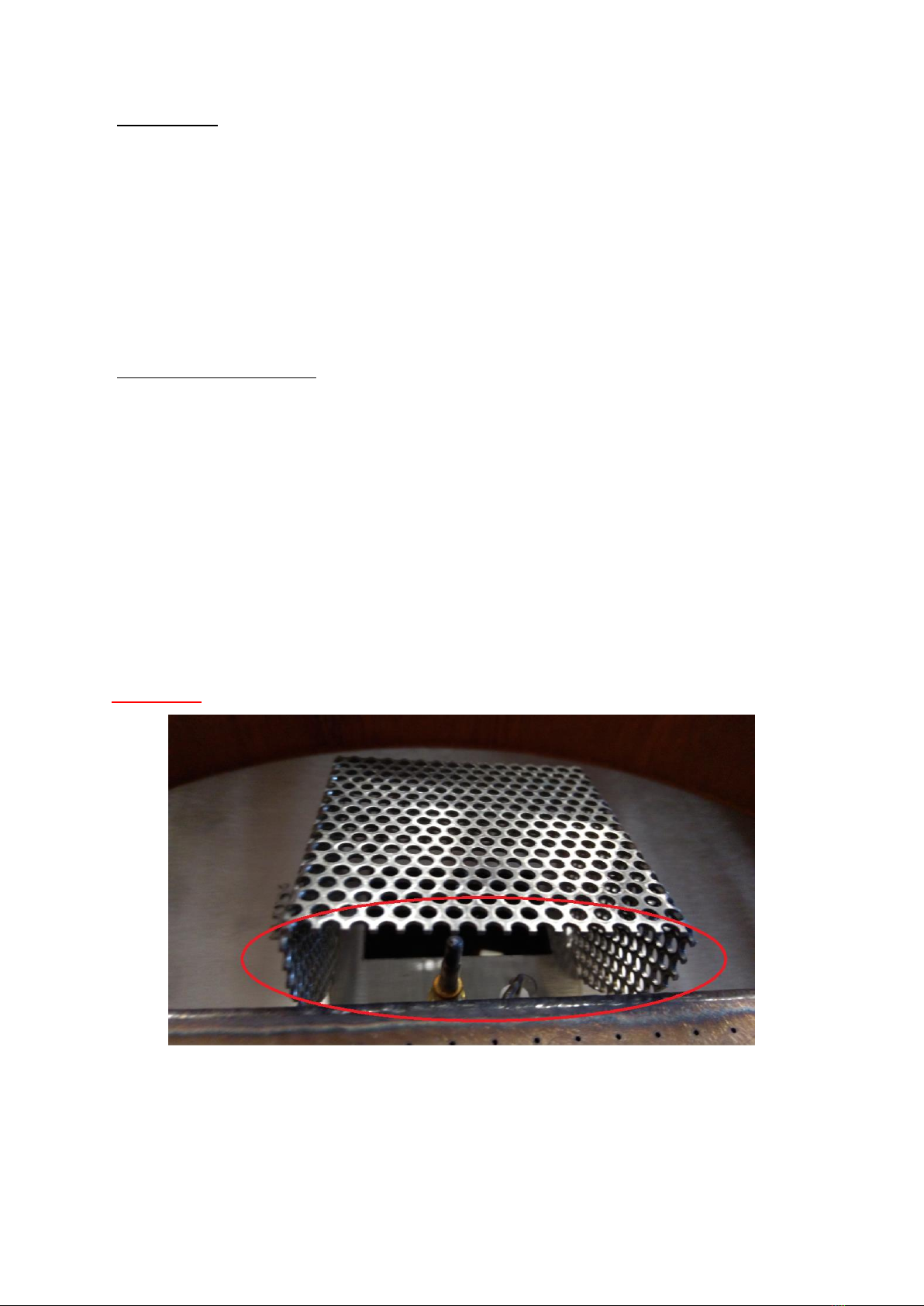

•WARNING!!! The stones may not cover or be placed inside the device protecting the ignition unit
Photo 1

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 7
•The stones may not be also placed on the top of the protective basket of the ignition unit
Photo 2
3.3. Gas cylinder montage
•The gas linkage attached to the device allows to place the gas bottle maximally 2 meters away from the
connected control panel during it replacement. During operation the gas cylinder is hidden inside the device
behind doors equipped with magnetic locking system.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 8
•The housing for the gas bottle is not airtight and has to be correctly ventilated. It is equipped with an upper
ventilation slot above the top of the bottle (of an area min 1/100 of the area of the base of the housing) and
a lower ventilation slot (of an area min 1/50 of the area of the base of the housing).
3.4. Installation of the gas linkage
WARNING!!! The montage and service needs to be conducted by a qualified professional, a company or the gas
supplier.
Before proceeding with the connection of the gas cylinder to the fireplace all activity regarding the correct placement
and installation of the Gustav Gas needs to be already performed. Place the gas linkage away from hot or sharp edges
and make sure it is not twisted.
3.4.1. Connection and replacement of the gas cylinder
The Gustav Gas is delivered together with an elastic gas linkage which, on one end is connected to the valve of the
device and one the other end to the 37mbar regulator (in the twist-on version) ready to be connected to the gas
cylinder. One needs to control the expiry date both of the regulator as well as the gas linkage and if necessary (for

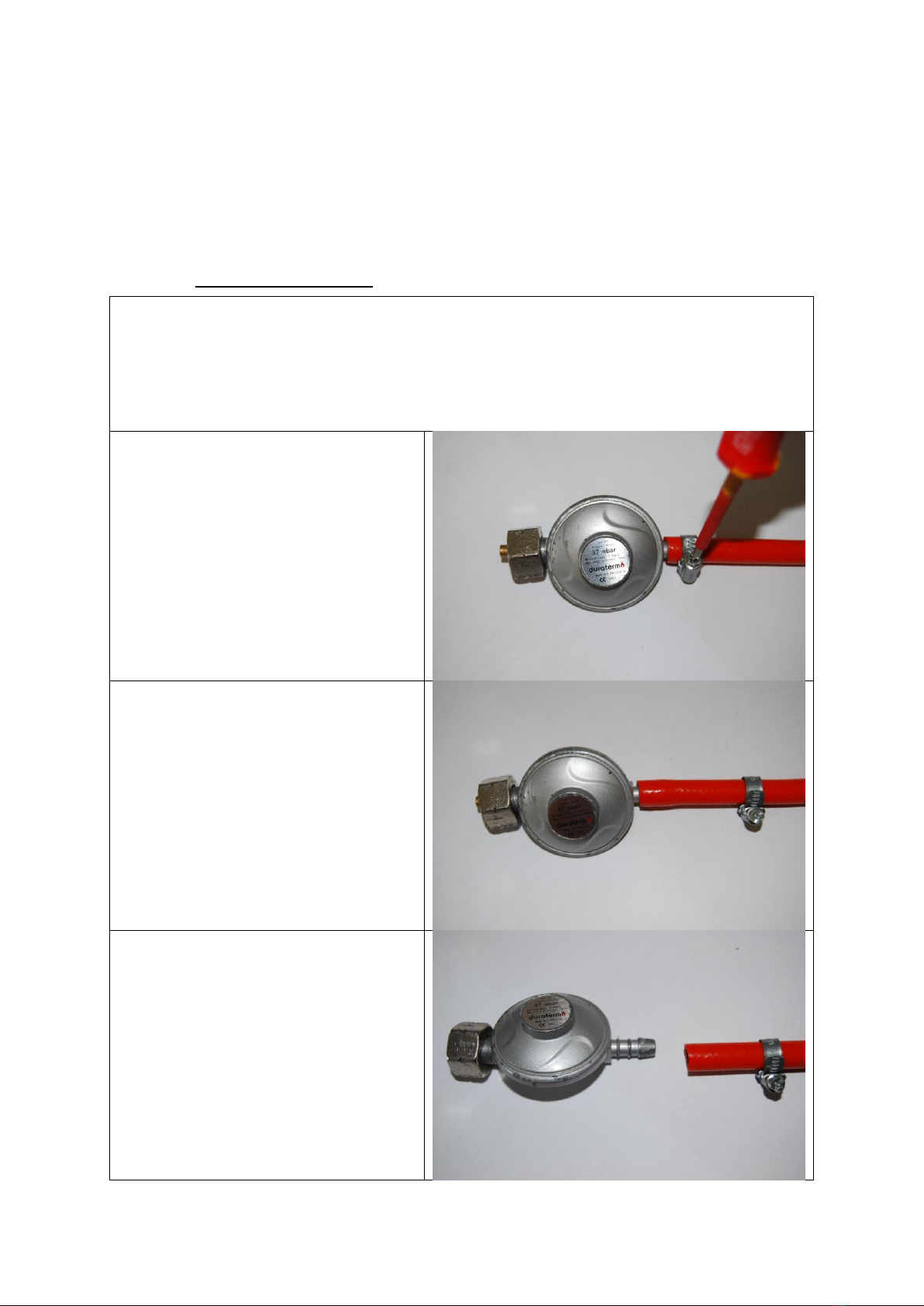

instance: broken, cut, scratched linkage) replace the components for new ones according to national standards and
norms.
The Gustav Gas fireplace can use metal or steel bottles or composite bottles filled with propane-butane gas or propane
gas. This device features a twist-on regulator with current pressure of 37mbar. It can be replaced into a regulator with
a quick-release with pressure regulator of 37 mbar.
WARNING!!! NEVER use an unstable gas connection or a regulator for other gas pressure.
Gas cylinders have two types of connectors:
•Twist-on connection: The most important thing is the black seal. Always check if the seal is present and
whether it hasn’t been damaged during the gas cylinder replacement. Some connections have a knob to fasten
them in place while others require the use of a wrench. Tighten securely (left thread). Using the tool pay
attention not to fasten the connection too tightly as this may damage the seal.

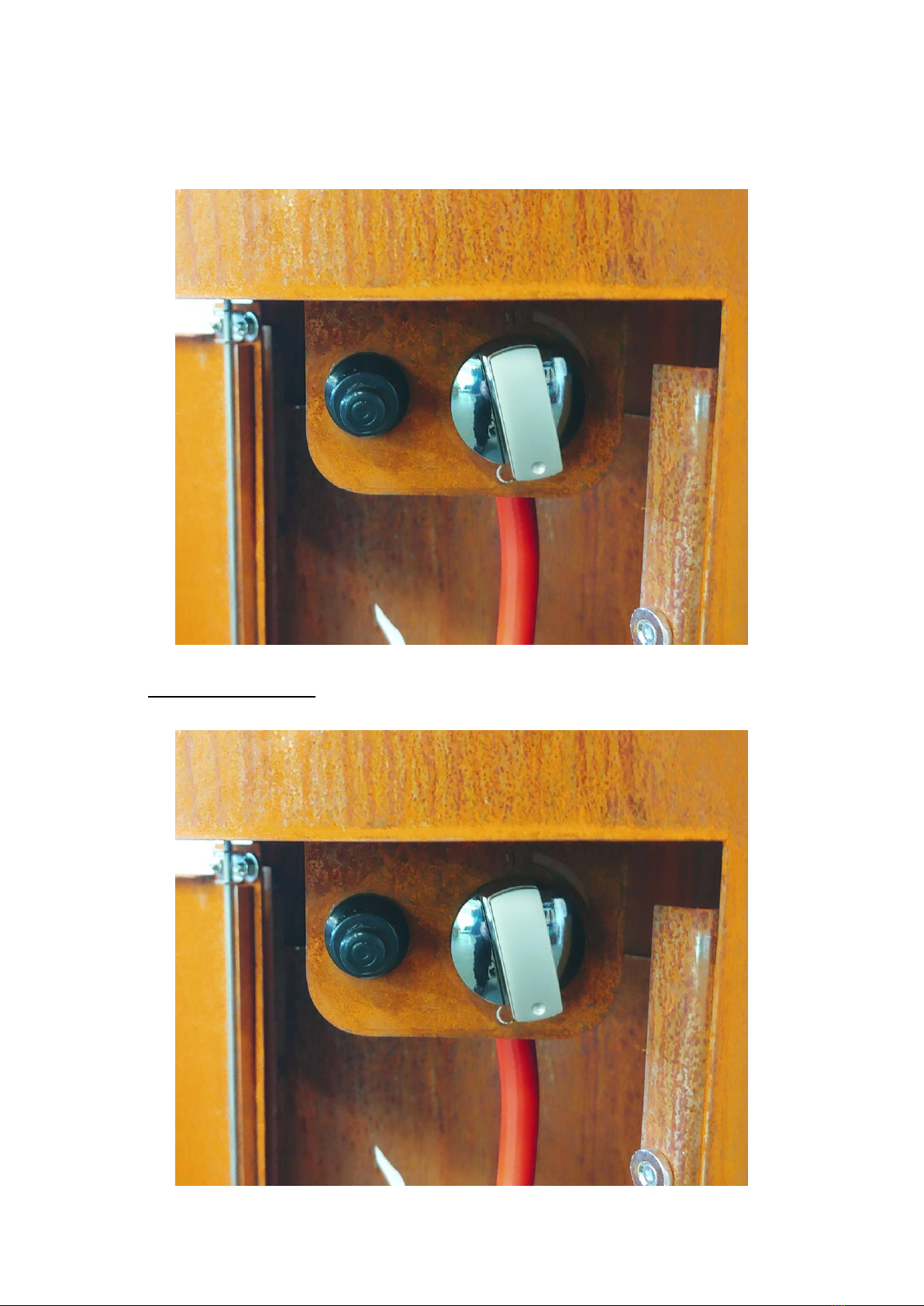

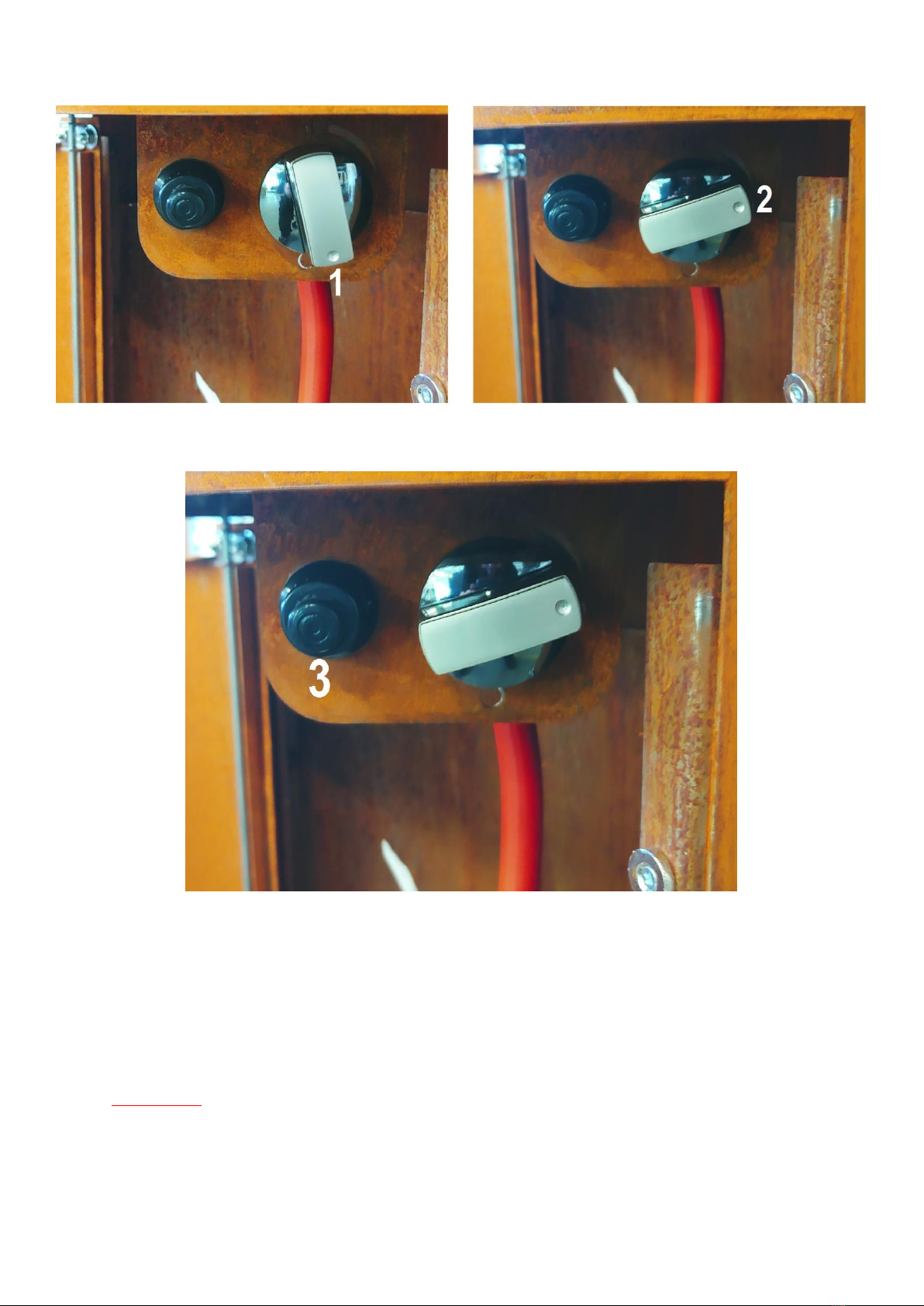

•Quick-release: For this type of connection no tool is required. On/off regulation of gas connection is made
through a switch on the regulator or on a special connector. In case of using a connector with a thread
regulator of an old type put a special emphasis on checking if the connecting nut has been tightly fastened
with the help of wrench.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 9

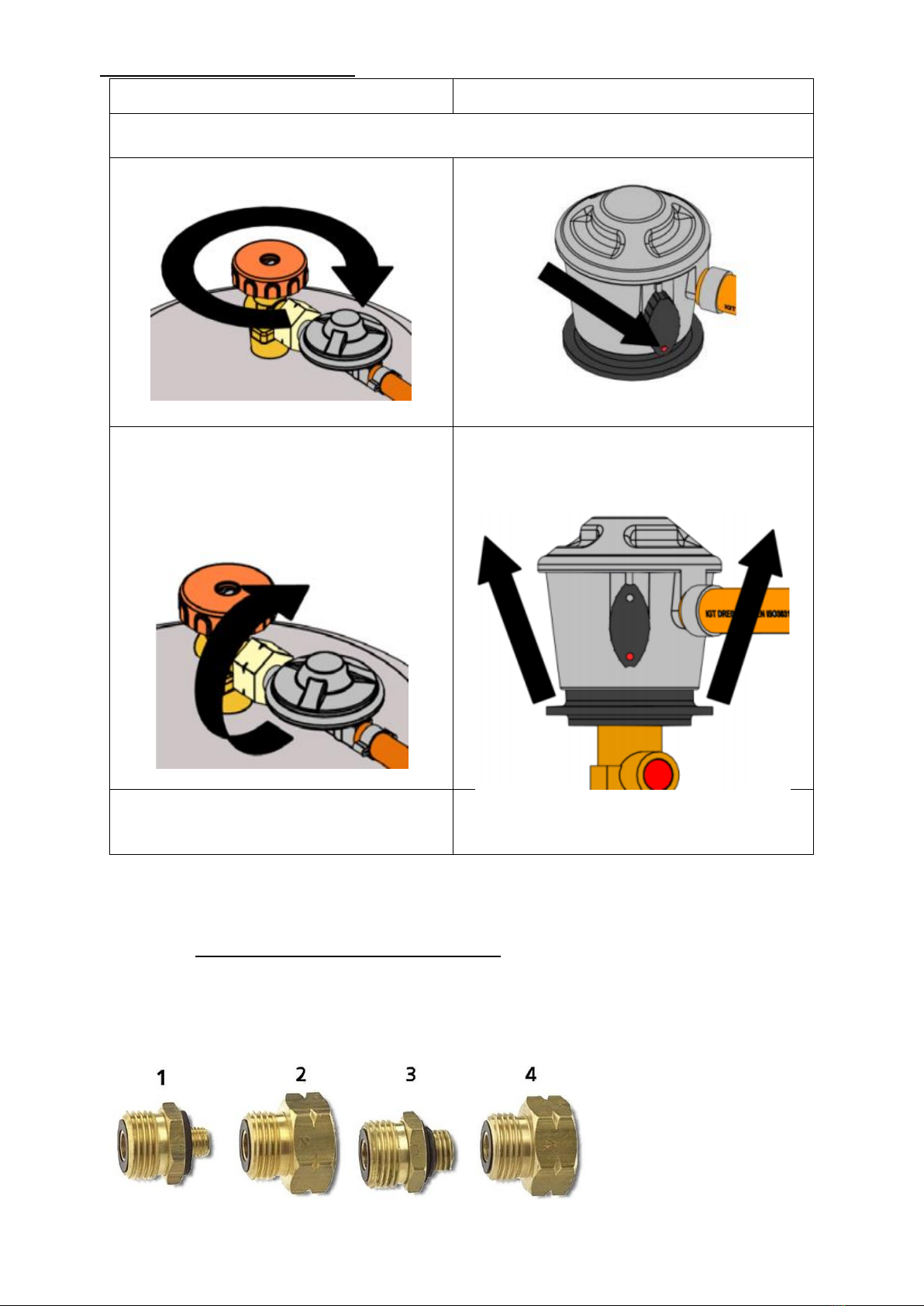

Gas cylinder connection
Twist-on connection
Quick-release
1. Check if the bottle valve is TURNED OFF turning
it clockwise
2. Remove the protection tip and store it for later
use.
1. Remove the protection tip. Do not use any tools,
leave the tip hanging freely.
3. Before making the connection check if the black
seal is not damaged.
2. Make sure all the taps on the gas device are
closed and if the switch in in the OFF position.
4. Fit the connecting nut to the cylinder with the
use of a correct wrench or the connecting knob.
(left thread) Do not allow the gas bottle
connectors to be fastened too tightly.
3. Place the quick-release regulator on the valve
and press it down hard. If the switch is correctly
turned off you will hear a characteristic click.
5. When the gas flow is required turn the valve of
the bottle counter-clockwise.
4. To let the gas flow in turn the switch into the ON
position (or into the flame image).
•Place the gas bottle in a correct distance from the fireplace (min 1,5 metres away).
•WARNING!!!Check the gas connection for leakage. If anything suggests a leak is present (for instance a
characteristic gas smell) close the gas bottle valve and under no circumstances turn the device on before
removing the leak. (See point 5.1).
•After removing the leak one may open the gas bottle valve again.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 10
Disconnection of the gas cylinder
Twist-on connection
Quick-release
1. Turn off the Gustav Gas –put it into the OFF position. The main and pilot burner need to be
turned off.
2. Turn the bottle valve into the OFF position
(clockwise).
2. Turn the switch into the OFF position.
3. NEVER DO NOT unmount the regulator (or
connecting nut) when the bottle valve is
open.
4. TAKE OFF the regulator (or the connecting
nut) with the use of a wrench or a
connecting knob.
3. Take off the quick-release regulator by
pressing the switch horizontally and
simultaneously pulling the whole regulator
upwards.
5. REPLACE the linkage closer or cap on the
empty or partially full bottle if it’s not being
used.
4. REPLACE the tightening cap on an empty or
partially full bottle if it’s not being used.
3.4.2 Adapter for the gas cylinder connection
When the thread of the installed pressure regulator does not fit into the thread on the valve of the gas cylinder,
it is necessary to use an appropriate adapter that is delivered with the device.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 11
1 - Italy, Switzerland: external thread M 10 x 1;
2 - Italy, Greece, Austria, Slovenia: internal thread W20X1/14 LH;
3 - United Kingdom, Finland, Iceland, Norway, Portugal, Sweden: external thread M14x1,5;
4 - Belgium, United Kingdom, France, Netherlands, Ireland, Croatia, Lithuania, Luxembourg, Macedonia,
Montenegro, Serbia, Slovakia, Slovenia, Switzerland, Spain, Czech Republic: internal thread W21,8x1/14 LH.
3.4.3 Regulator replacement
1. You always need to use a pressure regulator between the gas bottle and the device. Replace the
pressure regulator every 5 years. Allowed pressures: 30 mbar, 37 mbar (recommended), 50
mbar. Use only the redactors that comply with the EN16129 European Norm.
2. Turn off the Gustav Gas –the „OFF” position. The main burner and the pilot burner need to be
turned off.
3. Disconnect the regulator from the gas bottle (description above).
4. Loosen the metal clamp with the use of
a screwdriver (philips) or a flat wrench.
5. Move the clamp away from the stub of
gas regulator.
6. Take off the linkage from the stub of
regulator.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 12
7. Attach a new linkage on the stub of
regulator.
8. Move the clamp into the stub again and
tighten it. WARNING! In the event of
visible damage on the clamp, replace it
for a new one.
Gustav Gas is equipped with the anti-tilt valve which shuts the device down in case if the fireplace is
tilted or collapsed. The valve automatically cuts off the gas supply to the controller and this
extinguishes the flame.
WARNING!!! make sure the anti-tilt valve is always installed in upward position.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 13
4. USER’S MANUAL
The Gustav Gas fireplace has a control valve with a built-in ignition for the main burner (without pilot flame). The flame
height of the main burner may be appropriately regulated with by turning the knob. Next to the know is placed elective
ignition button (powered by AA battery)
The control panel is placed behind the door of the gas cylinder compartment (Photo 3).
Photo 3
4.1 Start-up of the device
•Make sure that the knob is placed in „OFF” position (all the way clockwise) (Photo 4).
Photo 4

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 14
•Open the valve on gas cylinder.
•Press the knob and while still pressing turn it counter-clockwise from position (1) to position (2)
Photo 5
•While keeping the knob still pressed start the flame by pressing the ignition button (3).
Photo 6
•A spark will appear which ignites the main burner on the minimum flame height. If the flame did not ignite
repeat this process 2-3 times. This will be required especially when you have replaced and installed a new LPG
gas cylinder.
•When the flame is ignited keep holding the knob for around 5 seconds until the thermo-couple, which will
keep the main valve in an open position, warms up.
•You may now release the knob. If however the flame is extinguished repeat the process once again until a
stable flame is achieved.
•WARNING!!! After 2-3 unsuccessful attempts terminate and check the connections. Try again in 10 minutes.
If the installed gas bottle is new or the fireplace has not been used for a longer period the first thing that needs
to be done is to release air from the gas linkage. In this case conducting a few attempts will be needed until
the flame is ignited.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 15
4.2 Regulation of the flame size
•When the flame is burning the desired height of the flame may be adjusted and regulated by turning the knob
clockwise or counter-clockwise.
•To achieve a higher flame turn the know counter-clockwise to “Hi” position. To achieve a lower flame turn the
knob clockwise to “Lo”position (Photo 7).
Photo 7

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 16
4.3 Device shutdown
•To turn off the device, simultaneously press and turn the knob all the way clockwise (Photo 8). The gas supply
will be cut and the flame on burner will be turned off.
Photo 8
•Additionally, close also the valve on the gas cylinder.
4.4 Replacing the battery
If the battery is inserted incorrectly, the electronic ignitor may be irreparably damaged. Only replace the battery when
the appliance has been completely switched off.
The battery is placed in the container located on the control pane next to the flame regulation knob
•Unscrew the ignition button

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 17
•Remove the battery and place the new one into the container. WARNING! Remember about proper
polarization of the battery.
•Screw the cover of the battery container.
5. TESTING
WARNING!!! NEVER TURN ON THE DEVICE IF THE CHARACTERISTIC SMELL OF GAS IS PERCEPTIBLE.
If you smell gas during the operation of the fireplace turn off the device immediately and cut off the gas supply from
the gas cylinder by shutting its valve.
5.1 Checking for gas leaks.
•Check if all connections are airtight.
•To do that apply all connections with soapy water (or water with another foamy substance) or with a
professional spray for leak detection.
•If air-bubbles are present that means the connection has a leak.
•Remove the leaks in the identified spaces.
•Check for leaks once again.
•After the inspection dry the inspected connections.
•The device may only be used again after all leaks are removed.
•If the problem happens again please contact the dealer.
5.2 Checking the flame appearance.
•Burn the Gustav Gas on max flame height and check the appearance of the flame.
•The flame should evenly placed on the whole surface of the main burner.
•If visible gaps are present or there are substantial differences in flame height turn off the fireplace and after
the device is cooled adjust the placement of decorative stones in such a way for them to be evenly placed on
the whole surface of the main burner.
•WARNING!!! Remember not to cover the protective basket which houses the ignitor and thermocouple, with
stones.
•Turn on the fireplace and check the appearance of the flame once again.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 18
6. MAINTENANCE AND UPKEEP
We recommend cleaning the ignitor, thermocouple and the main burner before the device is started again
after its been removed from storage during the winter period.
6.1. Testing and cleaning
Please check and clean if necessary:
•The main burner - if necessary, remove broken parts of stones and the existing dust.
•Thermocouple (if necessary, remove the existing sediment). In the event of visible damage contact your
dealer.
•Igniter - gap between igniter and the burner should not be bigger than 5 mm.
•Glass screens/tube –check for dirt smudges or possible scratches or cracks. If cracks are present replace the
glass screen for a new one. To conduct this contact your dealer.
•Gas linkage and pressure regulator (in case their expiry date is invalid replace these ancillaries for new ones).
•If you encountered problems with the regulator, gas linkage, burner or regulation valves do not try to fix these
parts. Contact a sales person, an authorised service or an importer in order to acquire spare parts. To ensure
the device is working efficiently use only original spare parts.
6.2. Glass cleaning (if delivered)
Most of the existing types of smudges may be wiped with a dry cloth. In case of more substantial smudge you may use
liquids normally applied to ceramic tiles or windows. Always dry the glass screen to avoid damp patches which could
irreversibly embed into the glass.
WARNING!!! Avoid leaving fingerprints on the glass. They will be embedded into the glass and you will not be able to
clean them.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 19
7. TROUBLESHOOTING
Warning! Montage, upkeep and service need to be conducted by a qualified professional with
appropriate qualification, an appropriate company or the gas supplier.
PROBLEM
POSSIBLE CAUSE
CORRECTIVE ACTION
SMELL OF GAS
CLOSE THE VALVE ON THE GAS CYLINDER IMMEDIATELY. DO NOT USE
THE DEVICE UNTIL LEAKS HAVE BEEN REMOVED.
Leak detected at cylinder,
regulator or other
connection.
1. A loose regulator linkage.
2. Leak in the gas linkage, in the
regulator or on the gas knobs.
1. Tighten and test it.
2. Report this issue to service.
Burner does not ignite
1. The bottle is empty.
2. Igniter linkage is not connected.
3. No ignition spark.
4. The igniter electrode is placed
incorrectly opposite the igniter.
5. Gas nozzles are blocked.
6. Gas linkage is twisted.
7. Pressure regulator link is loose.
1. Replace Gas Cylinder.
2. Connect the igniter linkage.
3. Replace igniter.
4. Realign electrode and clear any
surrounding debris from area.
5. Unmount burner, clean the nozzle.
6. Straighten the linkage. Keep the
linkage away from the housing.
7. Tighten the link. Check for leaks.
Igniter Not Working
1. Ignitor wire not connected.
2. Electrode misaligned on pilot
burner
3. Igniter malfunction
4. The battery has run out
1. Ensure pilot electrode wire is
connected.
2. Realign electrode and clear any
surrounding debris from area.
3. Replace Igniter
4. Replace battery
Low efficiency, „cracking”
sounds
1. The bottle is empty.
2. The nozzles of the burner are
blocked.
1. Replace Gas Cylinder.
2. Unmount the burner, clean the
nozzle.
Thumping sounds made
by the regulator.
The cylinder valve has opened
rapidly.
Unfasten the bottle valve slowly.
A vivid/ bright orange and
smoky flame of the
burner.
Holes blocked in the apparatus
producing the gas and air mixture.
Unmount the burner and clean/
unblock the apparatus’ holes.

Copyright Planika Sp. z o.o. www.planikafires.com IG0263#04 21.02.2020 20
8. TECHNICAL SPECIFICATION
Applianace Category
I3P
I3B/P
I3+
Reference gas
G31
G30
G30
G31
Inlet pressure
[mbar]
30
37
50
30
37
50
28-30
37
Injector diamater
[mm]
1,1
1,1
1,1
Gas consumption
[kg/h]
0,28
0,32
0,35
0,28
0,32
0,35
0,27-0,28
0,32
Nominal Heat Input (Hi)
[kW]
3,7
4,1
4,8
4,2
4,7
5,5
4,1-4,2
4,1
Nominal Heat Input (Hs)
[kW]
4,0
4,4
5,2
4,6
5,2
6,0
4,5-4,6
4,4
Safety device
Thermocouple
Gas control valve
BS190
Flexible hose (2 m)
Ø9mm
9. MANUFACTURER’S CONTACT DETAILS
Company Name: Planika Sp. z o.o.
Address: Bydgoska 38
86-061 Brzoza
Poland
Telephone: + 48 52 364 11 60
Fax: + 48 52 364 11 70
