Plasma Ions PS-501S User manual

Plasma Ions
Fault condition
Processing check
Power and other
indicator signals
are not lit
Check if the power cords securely inserted into the unit and
it is loose. Check the power outlet for power supply and check
the fuse
Plasma generator
Under normal circumstances, there is a slight current sound
and black There is a faint blue light in the dark. If found.The
ion tube bursts and the ion tube needs to be replaced.0.5 A
standard (with certified) fuse.
Please send the following to the company's designated
maintenance department for repairs.
1. The problem cannot be solved as described above.
2. Foreign matter or moisture enters, and abnormal conditions occur.
【Fault Check】
【Maintenance Notice】
1. Please read this manual carefully before use.
2.Free services can be provided with warranty card and invoice,welcome to contact us
if you need technical support.
3.Customers can get 1 year warranty service from us with product related invoice and
documents.
4.Please keep the warranty card properly so that the warranty can be obtained when
the product needs repair.
5.The company is not responsible for the following repair services beyond the product,
but we can still provide you with paid services.
Products due to improper use or storage.
Products without warranty card or other valid documents.
Products due to unstable power supply voltage or beyond the normal voltage
range or power supply and installation does not meet the electrical installation
requirements.
Promotional products.
Products damaged caused by irresistible natural disasters.
Products beyond maintenance period,damaged due to not follow the rules and
methods of application.
Warranty Card
（Please keep it properly）
Product
Name
Product
Number
Purchase
Time
Contact
Number
Customer
information
Name/company
contact address
Sales company stamp：
【Technology Specification】
Please read the instructions before use
Plasma Air Disinfection Purifier
Model: PS-501S
Size
Model
PS-501S
Power
6 W
Voltage
220V AC / 240V AC
Adapted
air volume
1000CFM(1700m³/h)
Application
area
80 m2
Weight
2.55 Kg
Noise
≤2 0 dB
Ion Tube
quantity
1（Standard）
Size
178*103*260mm
Ion tube size
180mm(7inch）
Ion tube life
17000 Hours

This machine is designed for only indoor general using. Do not place it open-air or high
temperature place.
Before operating the machine, make sure the power cord is firmly plugged into the power
outlet, and place the power cord in a safe position. Do not touch, install or unplug the
power cord with wet hands to avoid electric shock accidents.
Before unplugging the power cord, please turn off the machine power in the correct
procedure, otherwise it may cause damage to the machine.
If don't use the machine for a long time, please unplug the power supply.
Before operation, please check whether the air inlet and outlet positions of the machine
are blocked.
Do not put debris at the air inlet or outlet, because there is the fan installed inside with
high-speed rotation, it may caused injured if touch it.
In order to ensure the best performance of the machine, do not place any obstacles within
1 meter nearby of the air outlet position and air introduction position.
The machine has precision components built inside. Don't open the case by yourself to
avoid damage to the machine parts and may happen dangerous.
Do not dismantle the front wind panel or the chassis during machine is operating to avoid
dangerous.
Pay attention to ventilation when using it together with fuel appliances. Please do not use
machine in the kitchen.
Before cleaning the chassis of the machine, make sure turn off the power and unplug it of
the machine.Only use cloth with a little clean water and clean it softly,don't use volatile
cleaners.
Forbidding to place and using in the bathroom, otherwise it may cause electric shock.
There are electronic devices installed inside, do not open the case to avoid the risk of electric shock.
Please read this [user manual] carefully before using the machine and follow the below points of
operation base on the manual.Otherwise It may cause damage to product, or even cause injury
to yourself or others at varying degrees.
1.If the space is not enough,the equipment can’t be installed in the pipe,please see
the other install method below
2.Please choose the good airflow place
3.Turn on the power,the indicator light is on.
4.Rotary 1.2.3 switch to control ion quantity
Work lights Ion Power
control connector
38mm
178mm
80mm
103mm
Ion tube
Ion generator

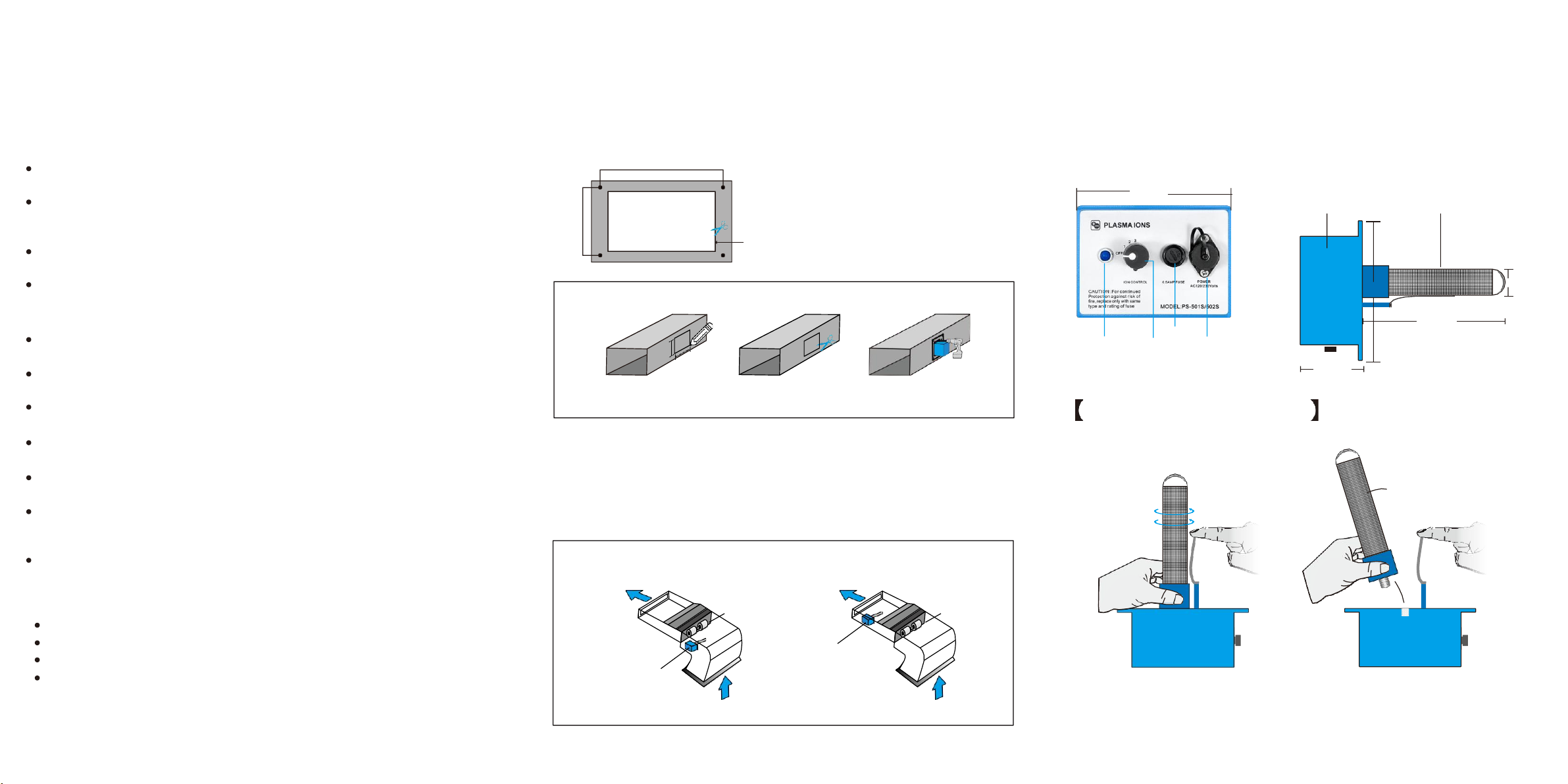

1.Gently move away the power sheet
metal,Pinch the ion tube counterclockwise
twist for a few turns, you can take it out
2.Take the new ion tube clockwise twist.it can
be fixed,put back the power sheet metal on the
ion tube,the replacement is completed
Spin twist
Gently remove
Replace the
new ion tube
Horizontal hole pitch: 156mm
Vertical hole distance: 86mm
Pipe shear opening range: 100*70mm
Pipe cut size
100mm
70mm
86mm
Replace the ion tube
Note: Unplug the power before operation!
7 0 m m
10 0
m m
a b c
【Use & Characteristics】
The shell is made of metal.
Plasma ions generator play a long-lasting and active positive and negative ion purification effect.
This product can be used for a long-term.(Suggest clean the ion tube about 8500 Hours later.)
Suitable for small central air-conditioning (FAN-coil) or ventilation system piping, food
processing/preservation, catering, office buildings, shopping malls, hotelsAnd guest rooms,
nursing homes, hospitals, public places, fresh air is not enough, prone to odor and bacteria
places, etc.
【Precautions】【Pipeline Installation 】
a) Mark size 100*70mm on the pipe.
b) Using scissors or metal shears to cut of the marking areas
c) Using self-acting screw to fix the equipment on the pipe.
156mm
【Product Installation】
1.Checking the product before install.plug in the power to test the equipment,
If damaged in transit, please contact customer service in time
2.This product should not be installed in the air temperature more than 60°,
preferably in a well-ventilated position.
Plasma air disinfection system
Fan coil
Air Inlet
Air Inlet
Plasma air disinfection system
Installation instructions for fan coil units:
Air Outlet Air Outlet
Fan coil
Ion tube size canbe customized
(180/230/350/520mm)
180mm
FUSE
