Plasma Ions PS-501TY User manual

PlasmaIons
Product Installation Instructions
1.Checking the product before install.plug in the power to test the equipment,
If damaged in transit, please contact customer service in time
2.This product should not be installed in the air temperature more than 60°,
preferably in a well-ventilated position.
【InstallationNotes】
（1）No punching steps：
Label position Punch Expansion rubber plug
4.Screw the expansion
plugWire, set aside 5 mm
5.Plug in the power
cord first.
6.Then hang the product
on the wall.
Do not run out of screws Hang on the wall Plug in the power cord
（2）Disassembly cleaning steps:
1.Mark the location of
the hole punch.
2.Percussion drilling,
hole diameter 6mm.
3.Put the rubber plug.
1. Lock the equipment on
both sides of the product
Open with a wildcard key.
2. Open the lid after
unlocking,See the
internal structure.
3. When you need to
clean the filter, straight
Just pull the filter up
Come up.
1.0AMPNO/OFF
ION CONTROLSPEED CONTROL
OFF
1
23
0.5AMP
1.0AMPNO/OFF
ION CONTROLSPEED CONTROL
OFF
1
23
0.5AMP
730*180*405mm
WarrantyCard
（Please keep it properly）
Product
Name
Purchase
Time
Product
Number
Contact
Number
Customer
information
Name/company
contact address
Sales company stamp：
631mm
376mm
308mm
Plasma Air Disinfection Purifier
Pleasereadtheinstructionsbeforeuse
Model: PS-501TY
Model
Voltage
Power
Air volume
Weight
Noise Number & size
of ion tubes
Size
PS-501TY
50~150m²
≤50dB
70 W
0~500CFM(0~850m³/h)
15.5Kg
2（Standard）&
520mm(20.5inch）
Filter type
Ion tube life 17000 Hours
120V AC / 240V AC
Material Stainless Steel
Application
Area
730*180*405mm
Technical specification
Primary/high efficiency
filter (optional)

Plasma ions generator play a long-lasting and active positive and negative ion purification effect.
This product can be used for a long-term.(Suggest clean the ion tube about 12 months later,
clean or change the filter)
Plasma generator
Power and other
indicator signals
are not lit
Check if the power cords securely inserted into the unit and
it is loose. Check the power outlet for power supply and check
the 1.0 A standard (certified) fuse
Under normal circumstances, there is a slight current sound
and black There is a faint blue light in the dark. If found.The
ion tube bursts and the ion tube needs to be replaced.0.5 A
standard (with certified) fuse.
Please send the following to the company's designated
maintenance department for repairs.
1. The problem cannot be solved as described above.
2. Foreign matter or moisture enters, and abnormal conditions occur.
Fault condition Processing check
This machine is designed for only indoor general using. Do not place it open-air or high
temperature place.
Before operating the machine, make sure the power cord is firmly plugged into the power
outlet, and place the power cord in a safe position. Do not touch, install or unplug the
power cord with wet hands to avoid electric shock accidents.
Before unplugging the power cord, please turn off the machine power in the correct
procedure, otherwise it may cause damage to the machine.
If don't use the machine for a long time, please unplug the power supply.
Before operation, please check whether the air inlet and outlet positions of the machine
are blocked.
Do not put debris at the air inlet or outlet, because there is the fan installed inside with
high-speed rotation, it may caused injured if touch it.
In order to ensure the best performance of the machine, do not place any obstacles within
1 meter nearby of the air outlet position and air introduction position.
The machine has precision components built inside. Don't open the case by yourself to
avoid damage to the machine parts and may happen dangerous.
Do not dismantle the front wind panel or the chassis during machine is operating to avoid
dangerous.
Pay attention to ventilation when using it together with fuel appliances. Please do not use
machine in the kitchen.
Before cleaning the chassis of the machine, make sure turn off the power and unplug it of
the machine.Only use cloth with a little clean water and clean it softly,don't use volatile
cleaners.
Forbidding to place and using in the bathroom, otherwise it may cause electric shock.
There are electronic devices installed inside, do not open the case to avoid the risk of electric shock.
Please read this [user manual] carefully before using the machine and follow the below points of
operation base on the manual.Otherwise It may cause damage to product, or even cause injury
to yourself or others at varying degrees.
1.Please read this manual carefully before use.
2.Free services can be provided with warranty card and invoice,welcome to contact us
if you need technical support.
3.Customers can get 1 year warranty service from us with product related invoice and
documents.
4.Please keep the warranty card properly so that the warranty can be obtained when
the product needs repair.
5.The company is not responsible for the following repair services beyond the product,
but we can still provide you with paid services.
Products due to improper use or storage.
Products without warranty card or other valid documents.
Products due to unstable power supply voltage or beyond the normal voltage
range or power supply and installation does not meet the electrical installation
requirements.
Promotional products.
Products damaged caused by irresistible natural disasters.
Products beyond maintenance period,damaged due to not follow the rules and
methods of application.

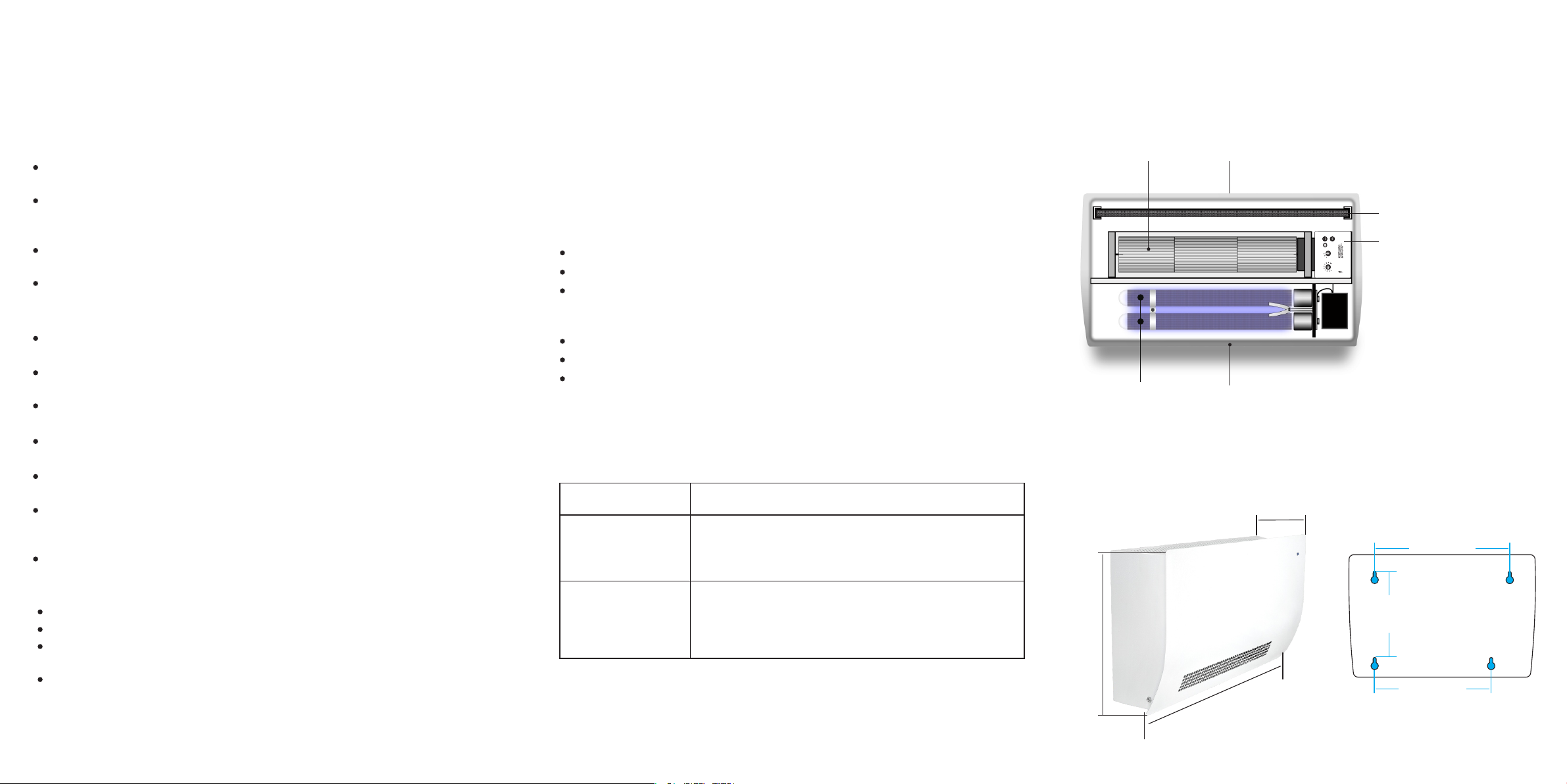

(1）product description：
Air inlet
Ion tube*2
Control panel
Air outlet
Silent motor
(2）product size：
①
②
③
④
⑤
Speed control
Ion control
Safety switch
Device 1.0 safety device
Ion 0.5A safety device
OFF
IONCONTROL
SPEEDCONTROL
0.5AMP
DANGER HIGH VOLTAGE
1.0AMP
NO/OFF
【Useand Characteristics】
【FaultCheck】
【Precautions】【MaintenanceNotice】【CompositionUnit】
Shell is stainless steel.
①
②
③
④⑤
Mounting hole pitch size
Primary/high efficiency
filter (optional)
Apply in hotels,residential,hospitals,nursing houses,schools,internet cafe,supermarket,restaurants,
airports,office buildings,casinos,public toilets,transportation,underground parking lot,food
processing,animal slaughterhouse,dry goods storage, warehouses,sewage treatment factories,
garbage transfer stations and some commercial and industrial facilities.
405mm
730mm
180mm
308mm
631mm
576mm
