pleasant hearth 23-07-71 User manual

1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-447-4768, 8:30 a.m. - 4:30 p.m., CST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
MODEL #23-07-71
MERLOT MEDIA MANTEL
FOR 23 IN. FIREBOX
Français p. 11
Español p. 21
Warming Your Home. WarmingYour Heart.

PACKAGE CONTENTS
2
A
B
C
D
E
PART DESCRIPTION QUANTITY
A Top Panel 1
B Top Shelf 1
C Base 1
D Left Side Panel 1
E Right Side Panel 1
F Left Inner Panel 1
G Right Inner Panel 1
H Left Cabinet Door 1
J Right Cabinet Door 1
K Adjustable Shelf 1
L Lower Back Panel 2
M Upper Back Panel 1
N Shelf Rail 1
F
G
H
N
J
M
K
L
K
L

3

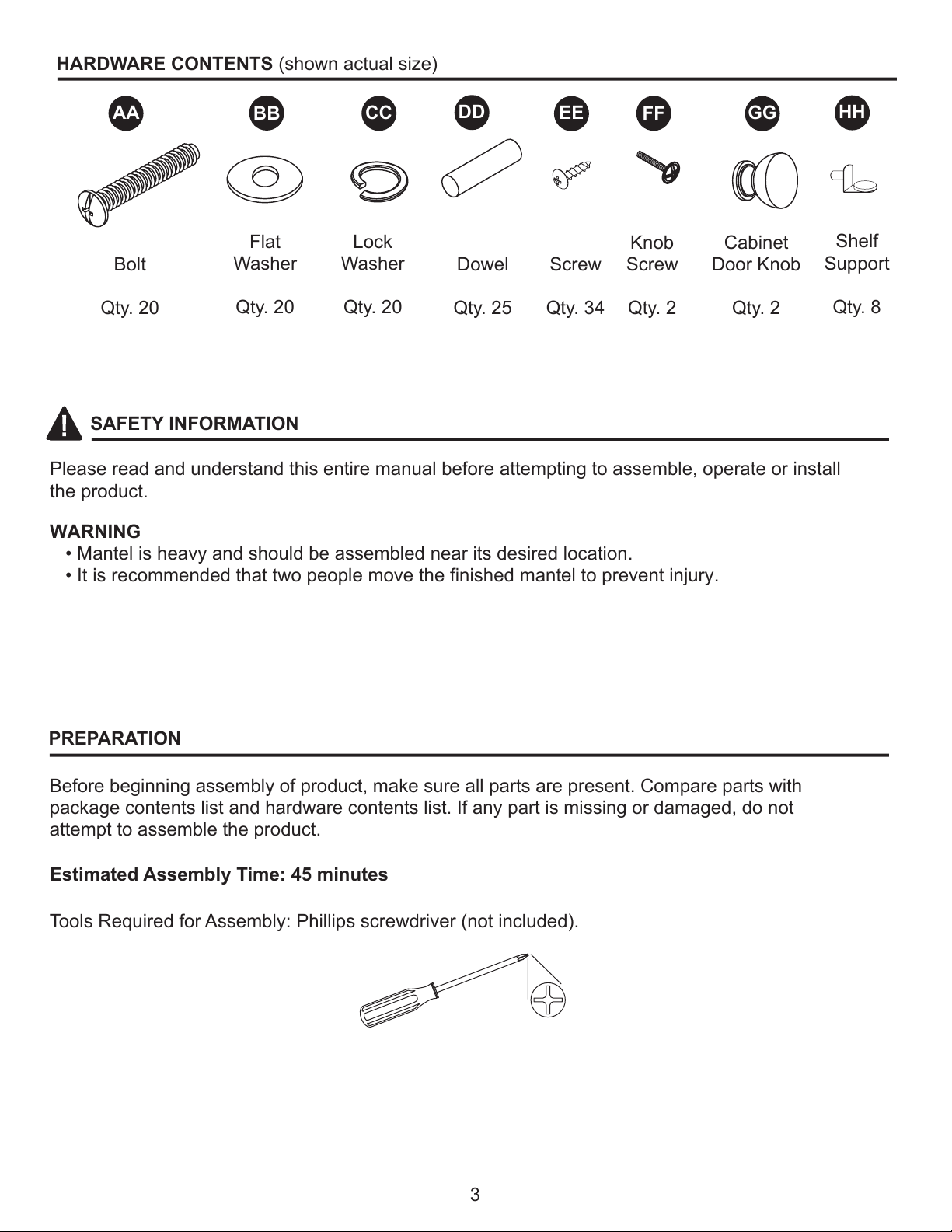

HARDWARE CONTENTS (shown actual size)
Bolt
Qty. 20
AA BB
Flat
Washer
Qty. 20
CC
Dowel
Qty. 25
SAFETY INFORMATION
PREPARATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
WARNING
0DQWHOLVKHDY\DQGVKRXOGEHDVVHPEOHGQHDULWVGHVLUHGORFDWLRQ
,WLVUHFRPPHQGHGWKDWWZRSHRSOHPRYHWKHILQLVKHGPDQWHOWRSUHYHQWLQMXU\
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 45 minutes
Tools Required for Assembly: Phillips screwdriver (not included).
Lock
Washer
Qty. 20
DD
Screw
Qty. 34
EE FF
Knob
Screw
Qty. 2
GG
Shelf
Support
Qty. 8
Cabinet
Door Knob
Qty. 2
HH

4
F
ASSEMBLY INSTRUCTIONS

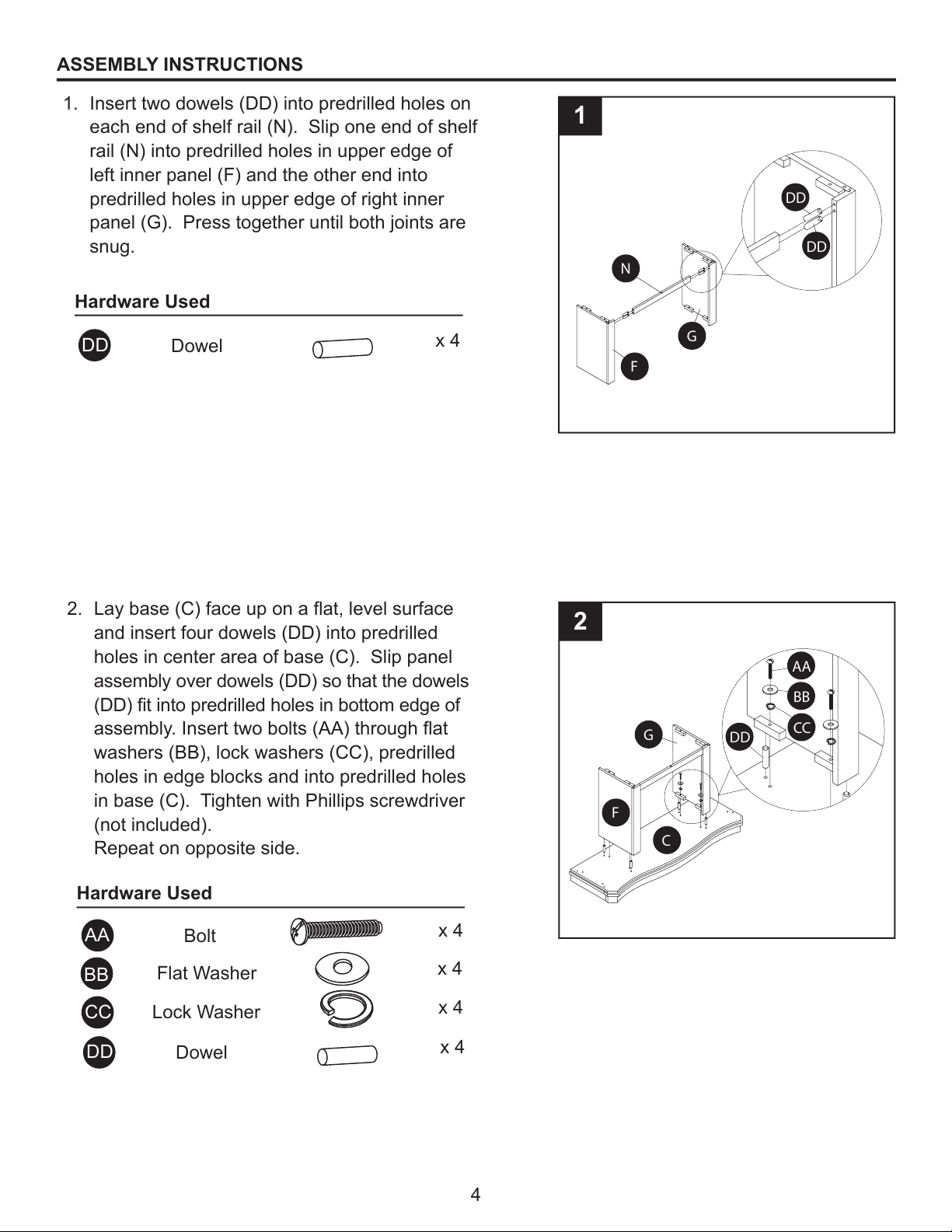

1. Insert two dowels (DD) into predrilled holes on
each end of shelf rail (N). Slip one end of shelf
rail (N) into predrilled holes in upper edge of
left inner panel (F) and the other end into
predrilled holes in upper edge of right inner
panel (G). Press together until both joints are
snug.
2. Lay base (C) face up on a flat, level surface
and insert four dowels (DD) into predrilled
holes in center area of base (C). Slip panel
assembly over dowels (DD) so that the dowels
(DD) fit into predrilled holes in bottom edge of
assembly.
Insert two bolts (AA) through flat
washers (BB), lock washers (CC), predrilled
holes in edge blocks and into predrilled holes
in
base (C) . Tighten with Phillips screwdriver
(not included).
Repeat on opposite side.
1
2
G
DD
DD
Hardware Used
Hardware Used
x 4
AA
x 4
BB
x 4
CC
Bolt
Flat Washer
AA
BB
CC
Lock Washer
C
x 4
DD Dowel
x 4
DD Dowel
F
GDD
N

5
ASSEMBLY INSTRUCTIONS

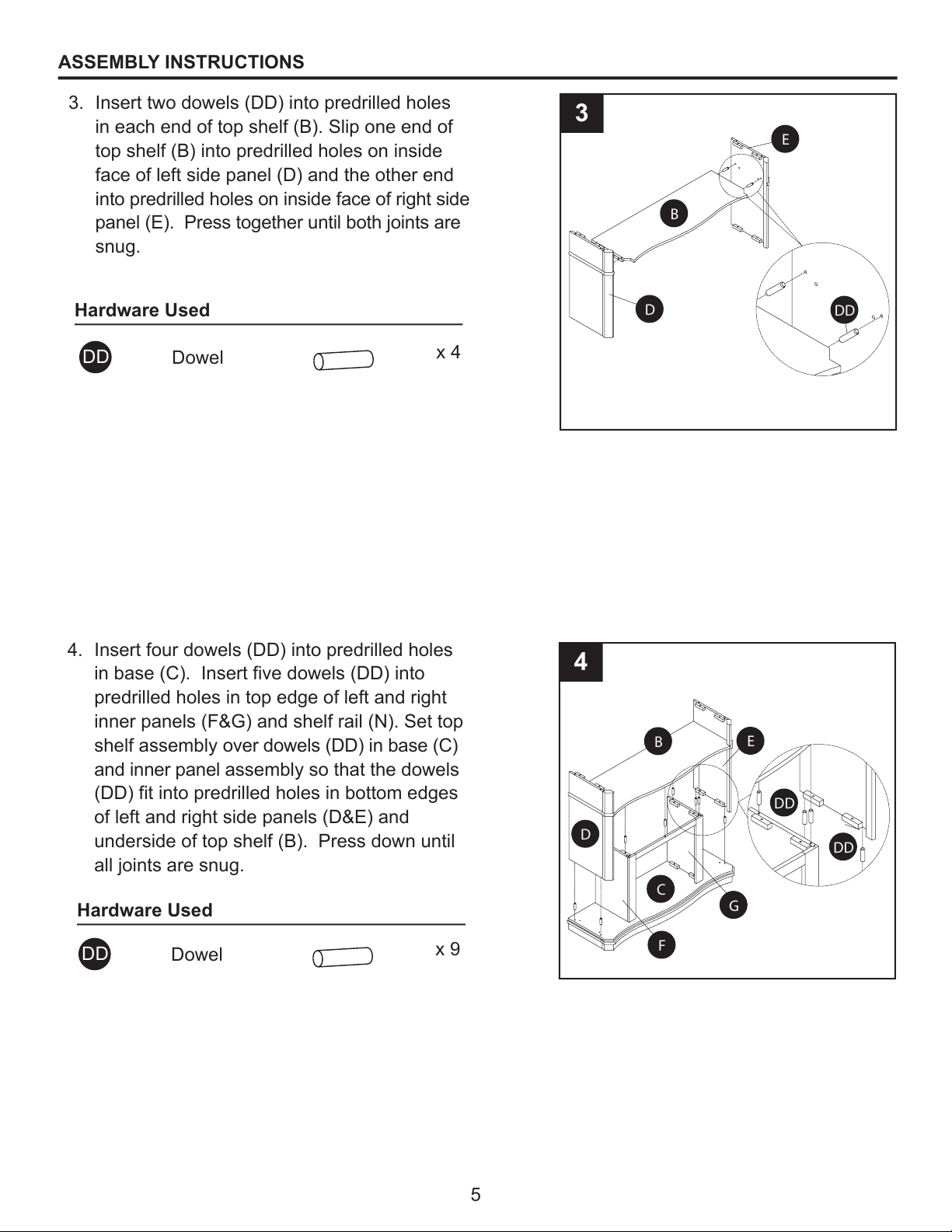

3. Insert two dowels (DD) into predrilled holes
in each end of top shelf (B). Slip one end of
top shelf (B) into predrilled holes on inside
face of left side panel (D) and the other end
into predrilled holes on inside face of right side
panel(E).Presstogetheruntilbothjointsare
snug.
3
B
Hardware Used
x 4
DD Dowel
4. Insert four dowels (DD) into predrilled holes
in base (C). Insert five dowels (DD) into
predrilled holes in top edge of left and right
inner panels (F&G) and shelf rail (N). Set top
shelf assembly over dowels (DD) in base (C)
andinnerpanelassembly so that the dowels
(DD) fit into predrilled holes in bottom edges
of left and right side panels (D&E) and
underside of top shelf (B). Press down until
all joints are snug.
4
Hardware Used
DD
F
DD
G
B
D
E
D
C
E
x 9
DD Dowel
DD

6
ASSEMBLY INSTRUCTIONS

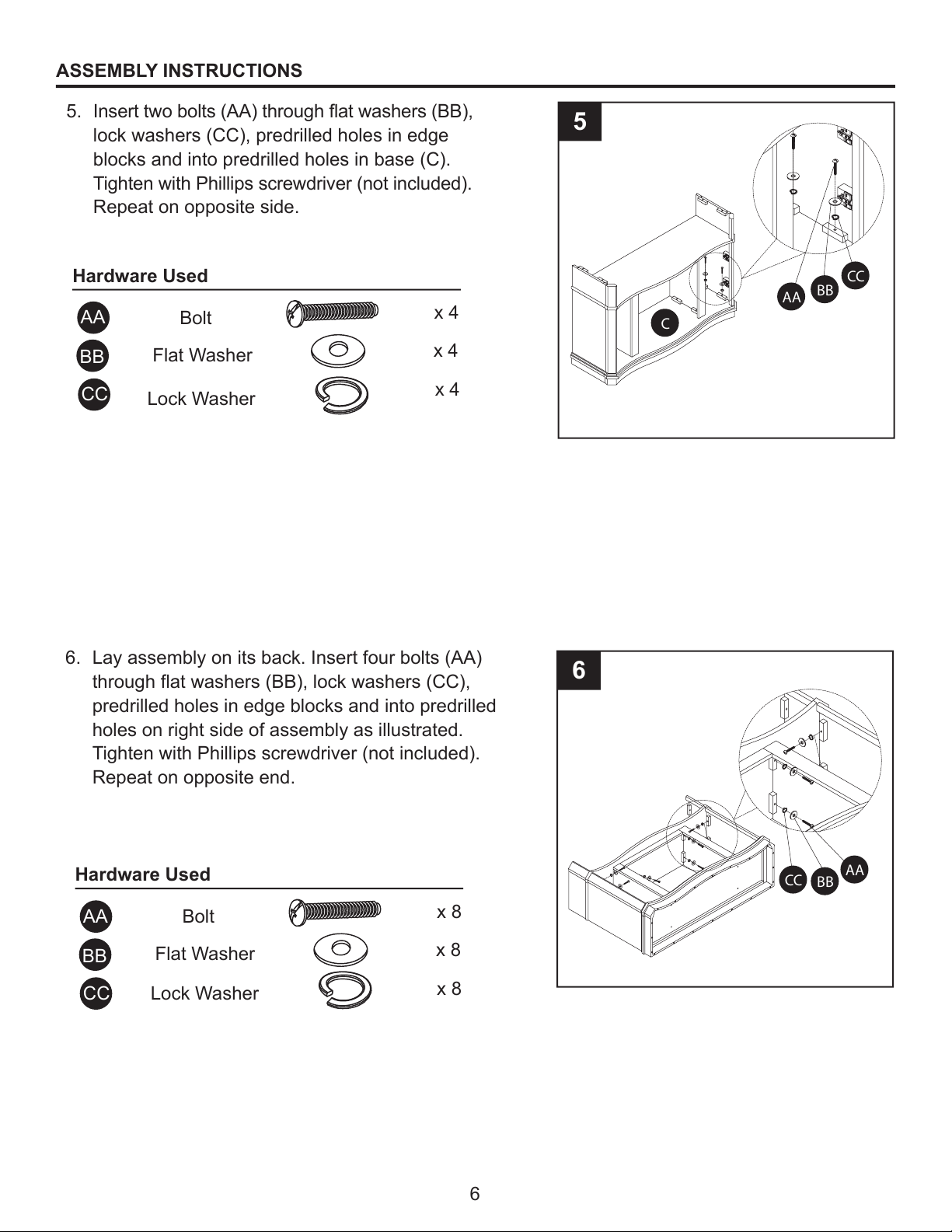

5.
Insert two bolts (AA) through flat washers (BB),
lock washers (CC), predrilled holes in edge
blocks and into predrilled holes in
base (C) .
Tighten with Phillips screwdriver (not included).
Repeat on opposite side.
5
CC
BB
AA
Hardware Used
x 4
AA
x 4
BB
Bolt
Flat Washer
Lock Washer x 4
CC
6. Lay assembly on its back.
Insert four bolts (AA)
through flat washers (BB), lock washers (CC),
predrilled holes in edge blocks and into predrilled
holes on right side of assembly as illustrated.
Tighten with Phillips screwdriver (not included).
Repeat on opposite end.
6
Hardware Used
x 8
AA
x 8
BB
x 8
CC
Bolt
Flat Washer
AA
BB
CC
Lock Washer
C

7
ASSEMBLY INSTRUCTIONS
7. With assembly sitting upright, insert four
dowels (DD) into predrilled holes in top of
edges of assembly. Slip top panel (A) over
dowels (DD) so that the dowels fit into
predrilled holes in bottom edge.
Insert two
bolts (AA) through flat washers (BB), lock
washers (CC), predrilled holes in edge blocks,
and into predrilled holes in
top panel (A) .
Tighten with Phillips screwdriver (not included).
Repeat on opposite side.
7
A
Hardware Used
8. Attach upper back panel (M) and lower back
panels
(L) by inserting screws (EE) into
predrilled holes and tightening with Phillips
screwdriver (not included).
8
Hardware Used
EE
L
M
x 34
EE Screw
x 4
AA
x 4
BB
Bolt
Flat Washer
Lock Washer x 4
CC
CC
BB
AA
L
x 4
DD Dowel
DD

8
ASSEMBLY INSTRUCTIONS

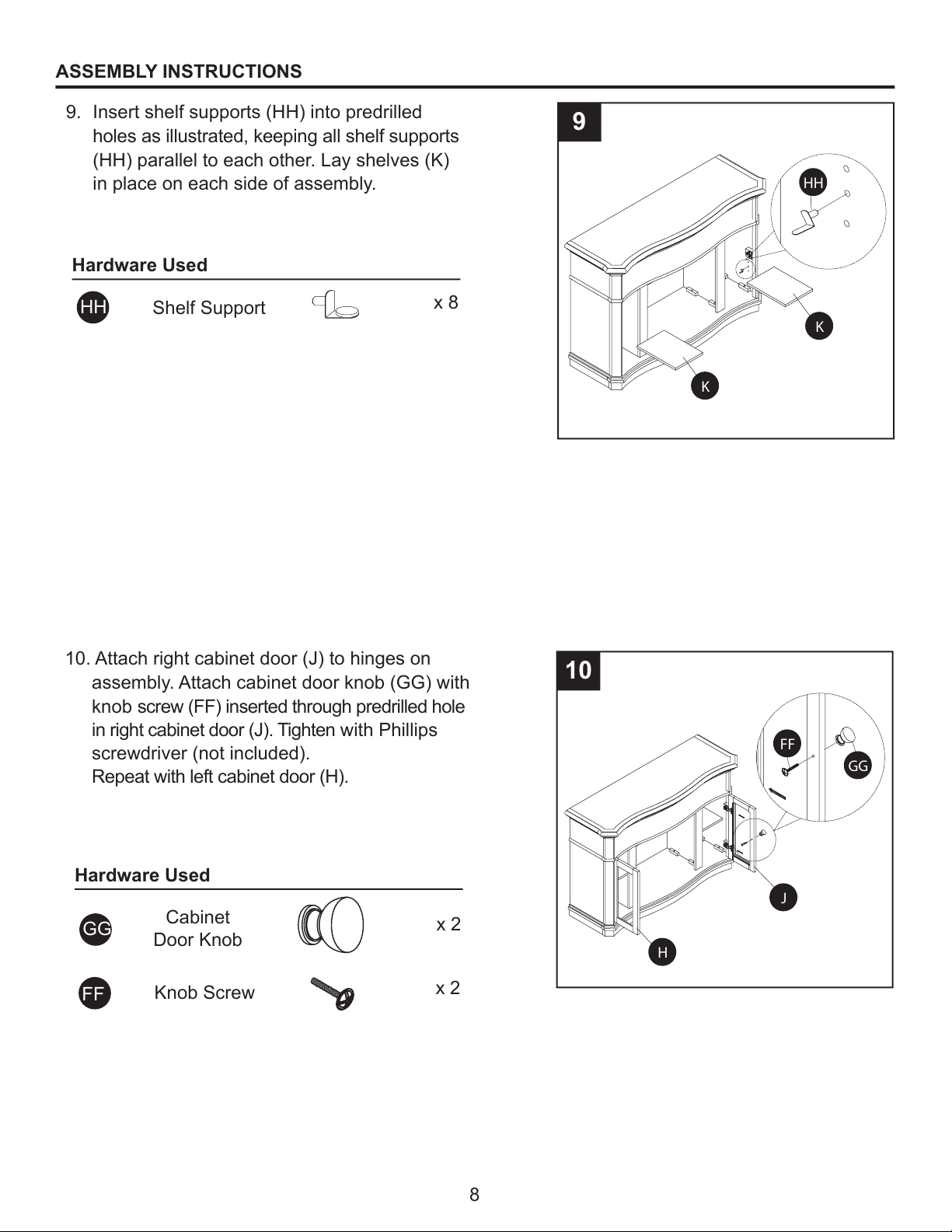

9. Insert shelf supports (HH) into predrilled
holes as illustrated, keeping all shelf supports
(HH) parallel to each other. Lay shelves (K)
in place on each side of assembly.
9
K
K
HH
Hardware Used
x 8
HH Shelf Support
10. Attach right cabinet door (J) to hinges on
assembly. Attach cabinet door knob (GG) with
knob
screw (FF) inserted through predrilled hole
inrightcabinetdoor(J).Tightenwith Phillips
screwdriver (not included).
Repeatwithleftcabinetdoor(H).
10
Hardware Used
x 2
GG
x 2
FF
Cabinet
Door Knob
Knob Screw
FF
GG
J
H

9

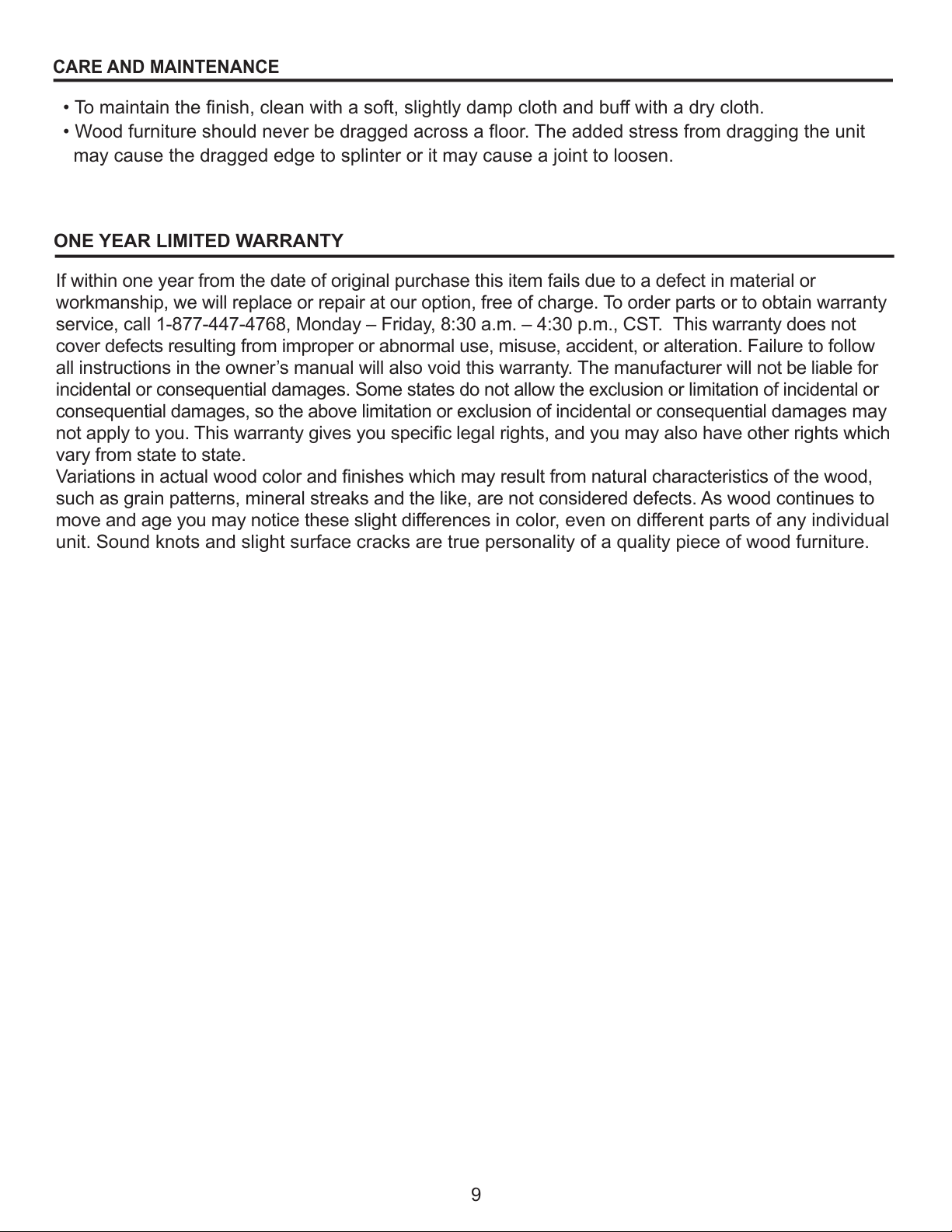

ONE YEAR LIMITED WARRANTY
If within one year from the date of original purchase this item fails due to a defect in material or
workmanship, we will replace or repair at our option, free of charge. To order parts or to obtain warranty
service, call 1-877-447-4768, Monday – Friday, 8:30 a.m. – 4:30 p.m., CST. This warranty does not
cover defects resulting from improper or abnormal use, misuse, accident, or alteration. Failure to follow
all instructions in the owner’s manual will also void this warranty. The manufacturer will not be liable for
incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion of incidental or consequential damages may
not apply to you. This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Variations in actual wood color and finishes which may result from natural characteristics of the wood,
such as grain patterns, mineral streaks and the like, are not considered defects. As wood continues to
move and age you may notice these slight differences in color, even on different parts of any individual
unit. Sound knots and slight surface cracks are true personality of a quality piece of wood furniture.
CARE AND MAINTENANCE
To maintain the finish, clean with a soft, slightly damp cloth and buff with a dry cloth.
Wood furniture should never be dragged across a floor. The added stress from dragging the unit
may cause the dragged edge to splinter or it may cause a joint to loosen.

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at at 1-877-447-4768, 8:30 a.m. - 4:30 p.m.,
CST, Monday - Friday.
10
PART DESCRIPTION PART #
A Top Panel 20-12-202
B Top Shelf 20-12-203
C Base 20-12-204
D Left Side Panel 20-12-205
E Right Side Panel 20-12-206
F Left Inner Panel 20-12-207
G Right Inner Panel 20-12-208
H Left Cabinet Door 20-12-209
J Right Cabinet Door 20-12-210
K Adjustable Shelf 20-12-211
L Lower Back Panel 20-12-212
M Upper Back Panel 20-12-213
N Shelf Rail 20-12-214
AA Bolt 20-12-215
BB Flat Washer 20-12-216
CC Lock Washer 20-12-217
DD Dowel 20-12-218
EE Screw 20-12-219
FF Knob Screw 20-12-220
GG Cabinet Door Knob 20-12-221
HH Shelf Support 20-12-222
Printed in China
20-10-129
