pleasant hearth 321-42-10 User manual

1
255895
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m. CST,
Monday – Friday.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING!
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY,
AN ELECTRICAL SHOCK OR FIRE MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
IMPORTANT INSTRUCTIONS
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE
ATTACH YOUR RECEIPT HERE
Serial Number ________________________________ Purchase Date _________________________________
Español p. 19
ELECTRIC FIREPLACE
MODEL # 321-42-10
220131

2
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible electric shock, injury to
persons, fire hazard and will void the warranty.
Please read the Installation & Operating Instructions before using this appliance.
TABLE OF CONTENTS
Safety Information ............................................................................................................................3
Package Contents............................................................................................................................5
Fireplace Dimensions ......................................................................................................................6
Preparation ......................................................................................................................................7
Electrical Connection .......................................................................................................................4
Grounding Instructions.....................................................................................................................4
Remote Control ............................................................................................................................... 7
Assembly Instructions ..................................................................................................................... 7
Pre-Installation ................................................................................................................................7
Installation: Wall Mount ...................................................................................................................7
Installation: Table Top ......................................................................................................................7
Operating Instructions...................................................................................................................... 8
Care and Maintenance .....................................................................................................................9
Circuit Diagram...............................................................................................................................10
Service Parts ..................................................................................................................................13
Troubleshooting.............................................................................................................................. 11
Warranty .........................................................................................................................................12
PRODUCT DAMAGE MAY OCCUR.
Never attempt to disassemble or alter the product in any way not instructed by this manual.
CAUTION

3
1. Read all instructions before using this replace.
2. Always unplug this appliance when not in use.
3. Children should be advised not to play with this replace.
4. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been
dropped or damaged in any manner. Return heater to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
5. Any repairs to this appliance should be carried out by qualied/authorized service personnel only.
6. Under no circumstances should this appliance be modied. Parts having to be removed for
servicing must be replaced with original “OEM” (original equipment manufacturers) parts only.
7. Do not use outdoors.
8. This appliance is not intended for use in bathrooms, laundry areas, and similar indoor locations.
Never locate this appliance where it may fall into a bathtub or other water container.
9. Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners, or the like.
Arrange the cord away from trafc areas and where it will not be tripped over.
10. To disconnect heater, turn controls to off, then remove plug from outlet.
11. Connect to properly grounded outlets only.
12. This appliance, when installed, must be electrically grounded in accordance with local codes, with
the current CSA C22.1 Canadian Electric codes, or for USA installations, follow local codes and the
National Electrical Code, ANSI/NFPA No. 70.
13. There is a thermostat limiter inside the replace. When the inner temperature over heats or
abnormal heating occurs, the thermostat protective device will cut off power supply to avoid
damage to the replace or risk of re.
14. This appliance has hot and arching or sparking parts inside. Do not use it in areas where gasoline,
paint, or ammable liquids are used or stored. This appliance should not be used as a drying rack
for clothing, nor should Christmas stockings or decorations be hung on or near it.
15. Use this appliance only as described in this manual. Any other use not recommended by the
manufacturer may cause re, electric shock, or injury to persons.
16. The use of an extension cord is not recommended due risk of re. If used the extension cord shall
be No. 14 AWG minimum size and rated no less than 1875 watts, and the extension cord shall be a
three-wire cord with grounding type plug and cord connector. The extension cord shall not be more
than 20 ft (6 m) in length.
17. Do not use this appliance with a programmable timer or any other device that switches the
appliance on and off automatically. In order to avoid a hazard due to inadvertent resetting of the
thermal cut out, this appliance must not be supplied through an external switching device, such as
a timer, or connected to a circuit that is regularly switched on and off by an utility.
18. This product contains a button battery. If swallowed, it could cause severe injury or death in just 2
hours. Seek medical attention immediately.
Please read and understand this entire manual before attempting to assemble, operate or install the product.
SAFETY INFORMATION SAVE THESE INSTRUCTIONS

4
SAFETY INFORMATION (CONTINUED)
CAUTION: Operate only on supplied stand or mount to wall. Do Not install heater less
than 60 cm/23.6 in from the oor.
CAUTION: Do not insert or allow foreign objects to enter any ventilation or exhaust
openings, as this may cause an electric shock or re, or damage to the heater.
CAUTION: When using electrical appliances, basic precautions should always be
followed to reduce the risk of re, electrical shock, and injury to persons.
IMPORTANT: SAVE THESE INSTRUCTIONS.
WARNING: This heater is hot when in use. To avoid burns, do not let bare skin touch
hot surfaces. If provided, use handles when moving this appliance. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least
3 feet (0.9 m) from front, sides and rear of the heater.
WARNING: This Product can expose you to chemicals including Diisononyl phthalate
(DINP) which is known to the State of California to cause cancer and Di-isodecyl
phthalates (DIDP) which is known to the State of California to cause birth defects or
other reproductive harm. For more information go to www.p65Warnings.ca.gov
CAUTION: Extreme caution is necessary when any heater is used by or near children or
invalids, and whenever the heater is left operating and unattended.
CAUTION: To prevent a possible re, do not block heater air intakes or the exhaust in
any manner. Do not operate the heater on soft surfaces, like a bed, where openings may
become blocked.

5

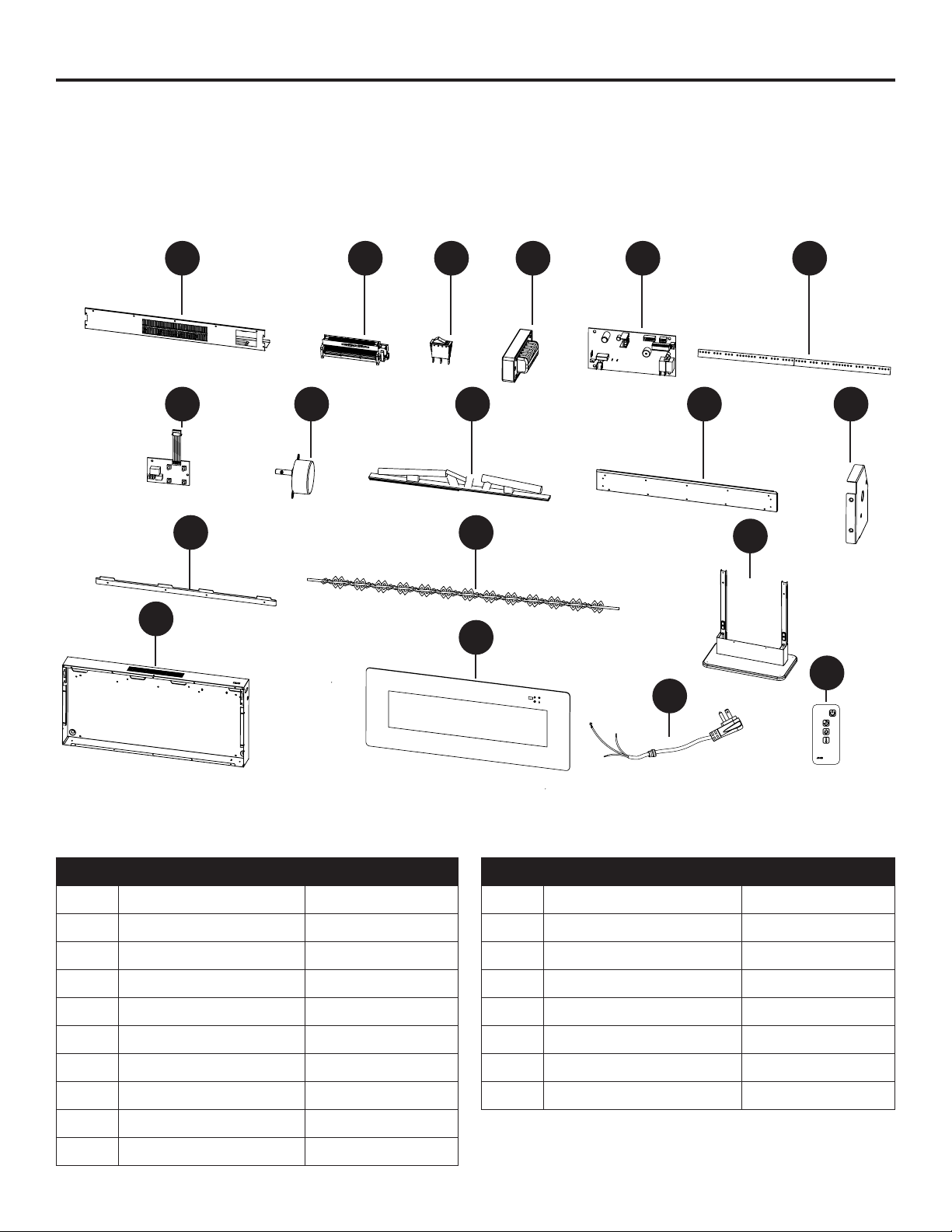

PART DESCRIPTION QUANTITY
A Electric Firebox 1
B Remote Control 1
C Wall Mounting Bracket 1
D Foot Bracket 2
E Front Panel 1
F Table top Base 1
PACKAGE CONTENTS
A
D
D
F
E
C
B

6
REF. 321-42-10
A 8.7 in.
B 21 in.with base
C 17.3 in. without base
D 42 in.
TECHNICAL SPECIFICATIONS
Voltage 120V AC
Frequency 60HZ
Amps 11.7A
Rating 1400W
FIREPLACE DIMENSIONS
CLEARANCE TO COMBUSTIBLES
Sides 4 in. (101.6 mm)
Floor 0 in. (0 mm)
Top 36 in. (914 mm)
Front 36 in. (914 mm)
Rear 0 in. (0 mm)
B
C
A
D
WARNING: Keep combustible
materials, such as furniture,
pillows, bedding, papers, clothes,
and curtains at least 3 feet (0.9 m)
from front, sides and rear of the
heater.

7
Planning Installation
Before you begin assembly, locate the instructions and hardware. Compare all parts with the
Hardware Included and Package Contents lists. Be sure you have all the parts and can identify them.
A helping hand is always good. Assemble your replace with an adult assistant if possible.
Some pieces are heavy and will need to be held by a helper. Assembly time will take approximately
5-20 minutes.
Before assembly, use scissors to unwrap the parts from the packaging. Do not use a box cutter or
exacto-knife, as you may cut into the heater pieces inside the box and damage the nish. Check
for the hardware bag located inside the packaging, taped to the top of the box. Do not discard any
pieces. Use an appropriate screwdriver to insert and tighten all screws.
Electrical Connection
Grounding Instructions
A 15 Amp, 120 Volt, 60 Hz circuit with a properly grounded outlet is required to operate this
appliance. Preferably, the appliance will be on a dedicated circuit, as other appliances on the same
circuit may cause the circuit breaker to trip or the fuse to blow when the replace is in operation.
The unit comes standard with a 6 ft (1.8 m) long 3-wire cord, exiting out the back of the replace.
Plan the installation to avoid the use of an extension cord. If an extension cord must be used, it must
be a minimum No. 14 AWG, 3-wire with grounding type plug and connector, and must be rated not
less than 1875 watts. The extension cord shall not be more than 20 ft (6 m) in length.

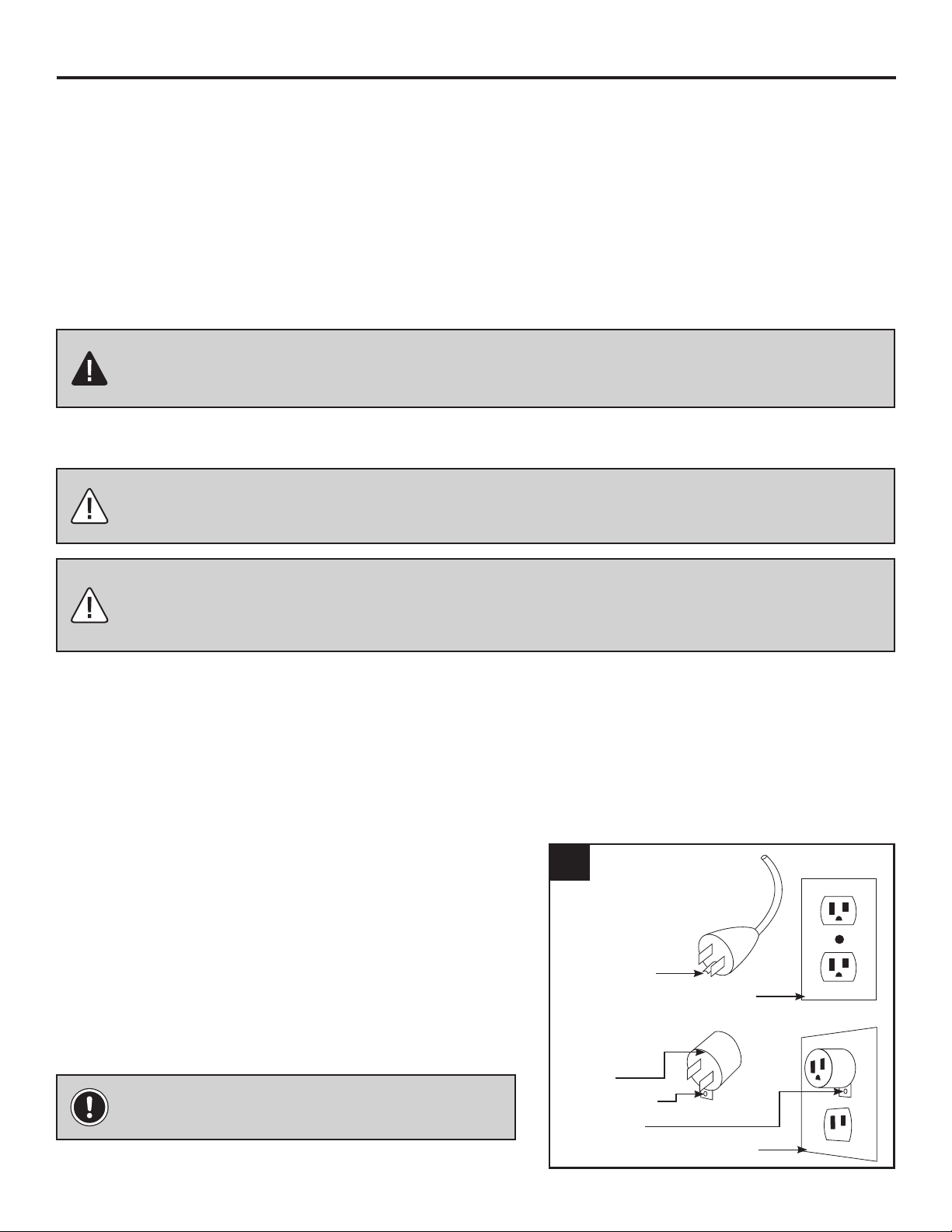

This heater is for use with 120 volts. The cord has
a plug as shown at (A) in Figure 1. An adapter as
shown at (C) is available for connecting three-blade
grounding-type plugs to two-slot receptacles. The
green grounding lug extending from the adapter
must be connected to a permanent ground such as
a properly grounded outlet box. The adapter should
not be used if a three-slot grounded receptacle is
available.
PREPARATION
CAUTION: This carton includes a GLASS panel! Always use extreme caution when
handling glass. Failure to do so could result in personal injury or property damage.
WARNING: Electrical outlet wiring must comply with local building codes and other
applicable regulations to reduce the risk of re, electrical shock, and injury to persons.
WARNING: Do not use this replace if any part of it has been under water. Immediately
call a qualied service technician to inspect the replace and replace any part of the
electrical system which has been under water.
Grounding Pin
Cover of Grounded Outlet Box
Adapter
Grounding Lug
Metal Screw
Cover of Grounded Outlet Box
A
B
C
NOTE: Adapters are NOT for use in Canada.
1

8
PRE-INSTALLATION
This Class (B) device complies with Part 15 of the FCC Rules and Canadian ICES-003. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. There is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one ore more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
This remote control requires 1 Lithium Coin Cell Battery (size CR2025), which is included.
REMOTE CONTROL
CAUTION: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
WARNING: DO NOT mix old and new batteries.
DO NOT use re chargeable silver oxide cell batteries with remote control unit.
DO NOT mix alkaline, standard (Carbon-Zinc), or rechargeable (Nickel-Cadmium) batteries.
DO NOT dispose of batteries in re. Improper disposal may cause batteries to leak or explode.

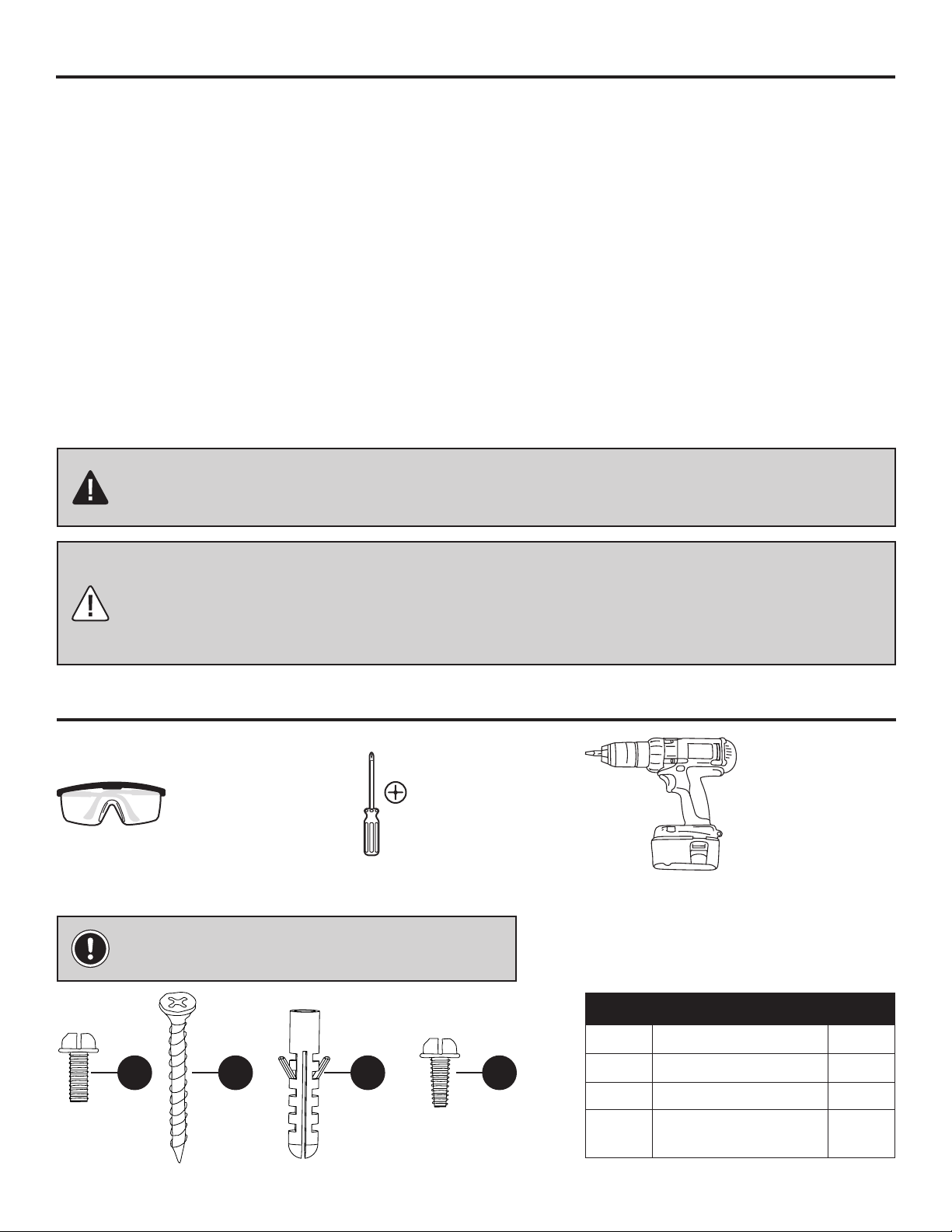

Tools Required (not included)
Safety Goggles Phillips Screwdriver Power Drill
Hardware Included
NOTE: Hardware shown not actual size.
Part Description Qty.
AA Small Bolt 2
BB Large Wall Screw 4
CC Wall Anchor 4
EE Small Bolt
(Triangular thread) 6
AA BB CC EE

9
C
CC
BB
C

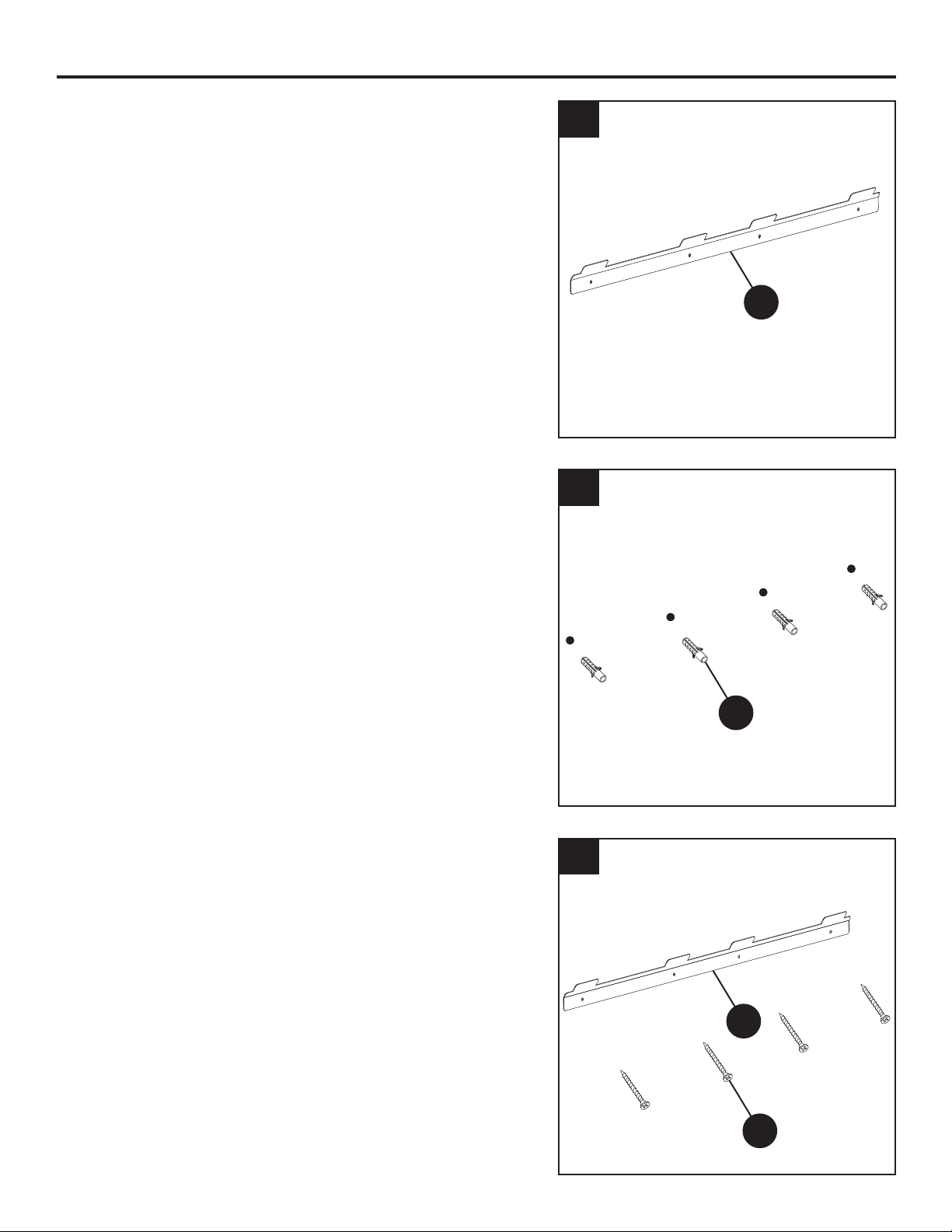

1. Choose a solid wall. Position the mounting bracket
(C) where the electric rebox (A) is to be installed
on the wall, and ensure that the mounting bracket
(C) is level.
Use a pen to mark the 4 mounting holes on the
wall at the desired mounting location, using the
mounting bracket (C) as a template.
2. Insert the 4 self-drilling wall anchors (CC) into
the wall where previously marked. If installing the
mounting bracket (C) to a wall stud, there is no
need to drill the holes in the wood and no need for
the plastic wall anchors (CC). It is recommended
to install the mounting bracket to at least one stud.
3. Secure the mounting bracket (C) to the wall using
4 large screws (BB).
1
2
3

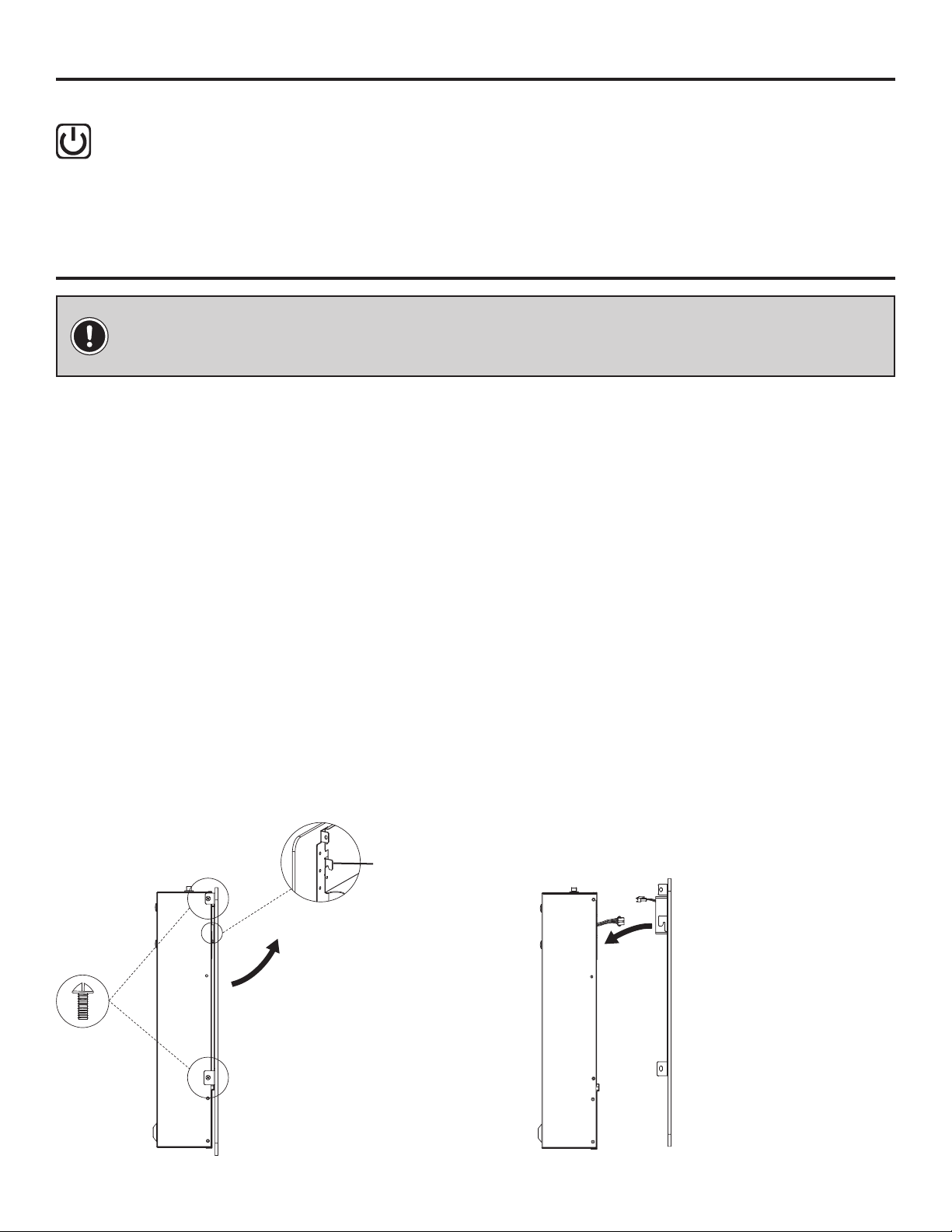

INSTALLATION: WALL MOUNT

10
4. Hang the electric rebox (A) on the mounting
bracket (C).

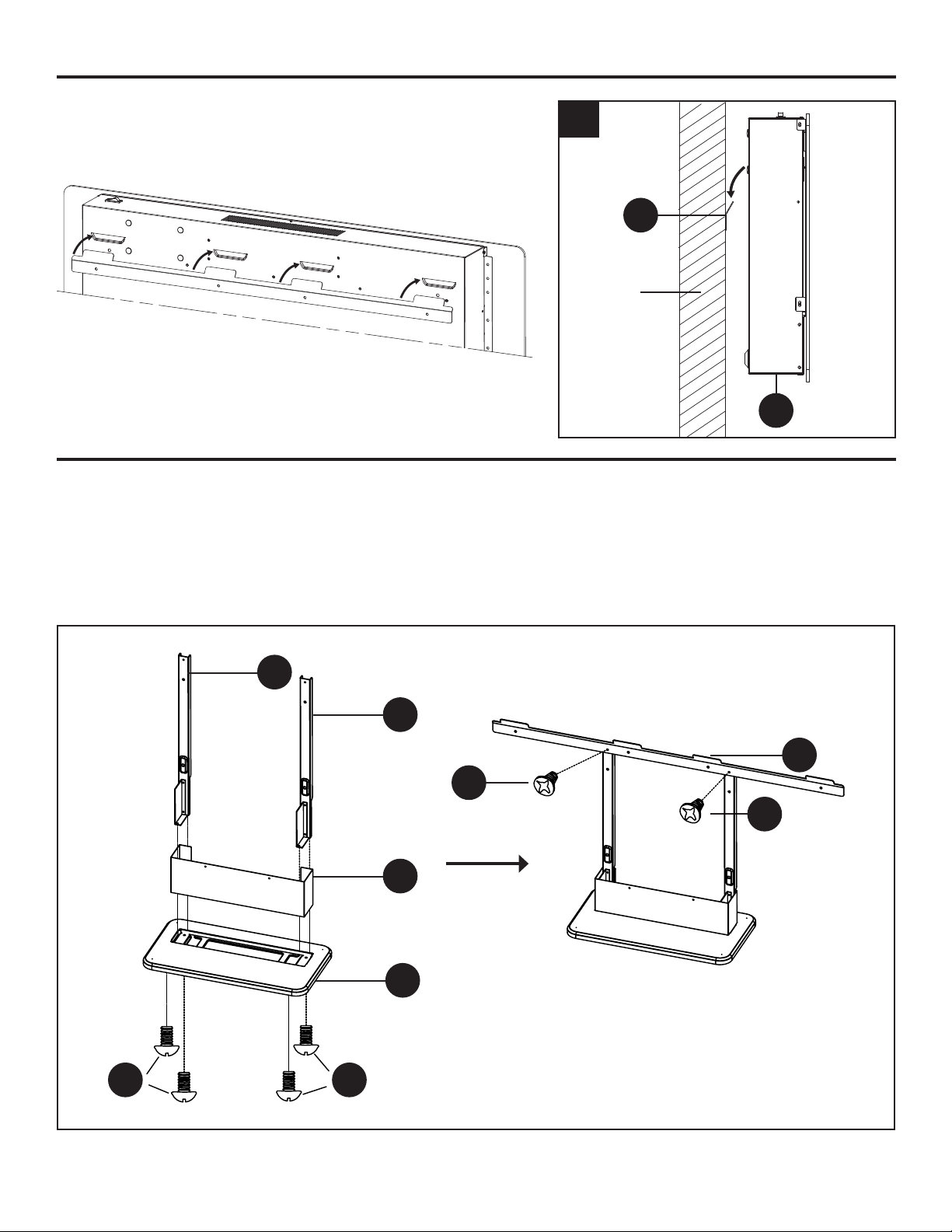

1. Attach the front panel (E) to the table top base (F).
2. Attach the left and right brackets (D) to the table top base (F) using 4 screws (EE). Use a
screwdriver to secure the mounting bracket(C) to the table top stand with 2 small screws(EE)
4
INSTALLATION: WALL MOUNT (CONTINUED)
INSTALLATION: TABLE TOP
C
A
Wall
EE
EE
EEEE
F
E
D
D
C

11
3. Use a screwdriver to secure the mounting rebox
(A) to table top stand with 2 small screws (AA).
3
INSTALLATION: TABLE TOP (CONTINUED)
Read All Instructions Before Use
Figure 2
Check that the heater outlet grill is not covered or obstructed in anyway, and make sure the power to
the unit is switched on.
OPERATING INSTRUCTIONS
NOTE: This unit comes equipped with a switch on the top panel which disables the
heater (See Figure 2). To enable the heater, please ensure the switch is in the "On" mode.
The heater will function using the remote control or control panel on the front of the unit.
Enable Heater
Calefaccion habilitada
Disable Heater
Calefaccion deshabilitada
AA
AA

12
OPERATING INSTRUCTIONS (CONTINUED)

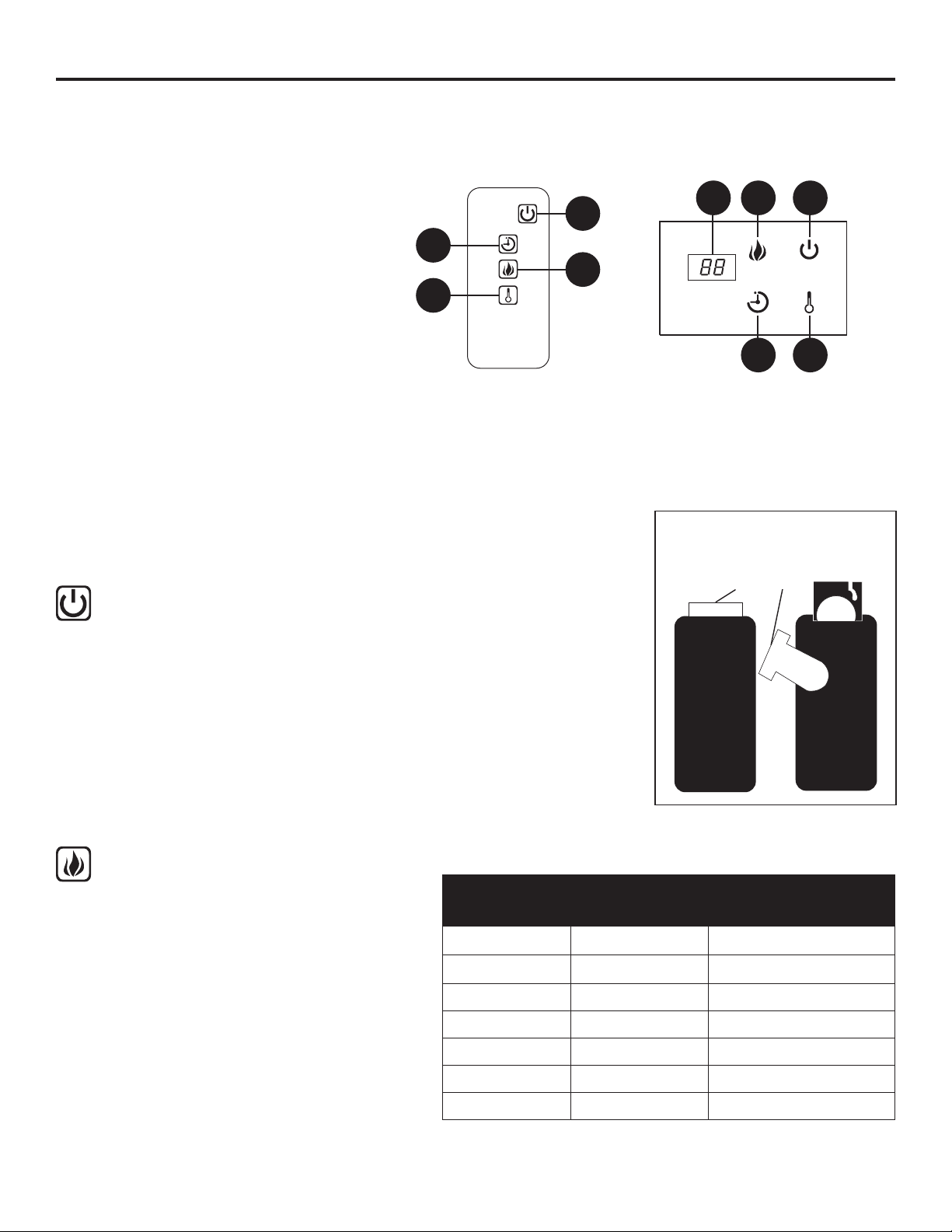

Using the Manual and Remote Controls
Using the Power Button
Using the Flame Control Button
On the top-right side of the electric replace (A) is the control panel. The buttons on the front of the
electric replace (A) and the remote control (B) function in the same way. The remote control has an
effective range of up to 13 ft.
• The main power button (1) is located on the
control panel on the front of the electric replace.
• Pressing the power button (1) once turns the
power on.
• Pressing the power button (1) again will turn the
power off.
• If you nd that none of the other buttons appear
to work, check to make sure that the main power
(1) is turned on.
• Press the ame control button (2)
to turn on the ember bed and
ame effect.
• Pressing the ame control button (2)
once turns ames on and lights the
ember bed.
• Pressing the ame control button
(2) again will cycle through different
colors of the ember bed. The color
rotation mode will cycle through
different color settings continuously.
Reference the table for more
detailed information.
Check that the heater outlet grill is not covered or obstructed in any way, and make sure the power
to the unit is switched on. The replace can be accessed in two ways: Using the touchpad control
panel, or using the multifunction remote control unit.
Press the appropriate button to operate your replace:
1. Power Button
2. Flame Control Button
3. Heater Control Button
4. Timer Control Button
5. Digital Display Panel
JY-3B
JY-3B
12
4
1
3
5
2
4
3
The plastic tab inside the battery
compartment MUST be removed
before the remote control will operate.
(Pull Tab)
Button Press Display Value Ember Bed and
Flame Color
1st Press 1 Orange
2nd Press 2 Green
3rd Press 3 Blue
4th Press 4 Orange/Green
5th Press 5 Orange/Blue
6th Press 6 Orange/Green/Blue
7th Press 7 Cycle

13
OPERATING INSTRUCTIONS (CONTINUED)
Using the Heater Control Button
Using the Timer Control Button
This button controls the heater
ON/OFF. When the temperature
unit is set as “F” or “C”, the
temperature scope is as shown
in the table.
To display the temperature
setting in either Fahrenheit or
Celsius, press the heat button
(3) of control panel once, then
press and hold the heater
button (3) of control panel for
10 seconds. The display will
switch between Fahrenheit or
Celsius.
Pressing the timer control button (4) will set the
timer. This interval period is shown in the display
(5) on the control panel on the front of the electric
replace. The set intervals are as listed in the table.
NOTE: If this product experiences exceptionally
high temperature, it may automatically stop
heating. If this occurs the product should be
unplugged or isolated from the main supply for
a period of 5 minutes before the power is then
resupplied.
Button
Press
Celsius
Temperature
1st Press 17 ˚C
2nd Press 18 ˚C
3rd Press 19 ˚C
4th Press 20 ˚C
5th Press 21 ˚C
6th Press 22 ˚C
7th Press 23 ˚C
8th Press 24 ˚C
9th Press 25 ˚C
10th Press 26 ˚C
11th Press 27 ˚C
12th Press 28 ˚C
13th Press 29 ˚C
14th Press 30 ˚C
15th Press ON
Button
Press
Timer
Interval
Display
Value
1st Press 1 Hour 1H
2nd Press 2 Hours 2H
3rd Press 3 Hours 3H
4th Press 4 Hours 4H
5th Press 5 Hours 5H
6th Press 6 Hours 6H
7th Press 7 Hours 7H
8th Press 8 Hours 8H
Button
Press
Fahrenheit
Temperature
1st Press 62 ˚F
2nd Press 63 ˚F
3rd Press 64 ˚F
4th Press 65 ˚F
5th Press 66 ˚F
6th Press 67 ˚F
7th Press 68 ˚F
8th Press 69 ˚F
9th Press 70 ˚F
10th Press 71 ˚F
11th Press 72 ˚F
12th Press 73 ˚F
13th Press 74 ˚F
14th Press 75 ˚F
15th Press 76 ˚F
16th Press 77 ˚F
17th Press 78 ˚F
18th Press 79 ˚F
19th Press 80 ˚F
20th Press 81 ˚F
21st Press 82 ˚F
22nd Press 83 ˚F
23rd Press 84 ˚F
24th Press 85 ˚F
25th Press 86 ˚F
26th Press ON

14
To turn off heat mode, press and hold the power button for 10 seconds to enter heat lock out
mode. Flame lights will ash 6 times to signal the heat function is turned off and locked out. To
turn on heat mode, press and hold the power button for 10 seconds. The ame lights will ash
6 times and the heat function will be restored. When the heat button is pressed in lock out
mode, the ember bed will ash 6 times until the heating mode is turned on.
OPERATING INSTRUCTIONS (CONTINUED)
CARE AND MAINTENANCE
Heater Locking Function
IMPORTANT: Always unplug the power cord before cleaning the unit. Allow the unit to
cool before cleaning it.
• Wipe the exterior surface of the electric rebox occasionally with a soft, damp cloth (not dripping
wet), and dry the exterior surface before operating.
• Do not immerse the electric replace in water.
• Do not use any cleaning chemicals such as detergents and abrasives.
• Do not allow the interior to get wet, as this could create a hazard.
• Light accumulated dust may be removed from the electric replace with a soft, dry cloth.
• To store the electric replace, put it back into its original packaging and store in a clean, dry place.
• The blower and ame motor are pre-lubricated for a durable using time and need no further
lubrication or maintenance. Dust particles will accumulate on/in the electric replace, so periodic
cleaning/vacuuming of the electric replace is recommended.
• Always turn the heater OFF and unplug the power cord from the outlet before cleaning.
• Cleaning behind the front glass can be done by removing the front glass from the engine assem-
bly. There are two screws on each side of the engine that hold the glass in place. Remove the four
screws that hold the glass and then lift the glass up and away from the engine assembly. While
holding the glass, disconnect the control panel wire harness from the engine assembly. Clean with
a lint free damp cloth. To replace the glass, center the glass over the engine assembly and re-
connect the control panel's wire harness to the engine assembly and lower the glass until it seats.
Install the four screws that you removed into the brackets on each side of the glass. Tighten all the
screws.
Remove the four screws.
Lift the glass up and
away from the rebox.
Disconnect the control
panel wire harness.
Re-connect the control
panel's wire harness.
Lower the glass onto the
rebox.
Install and tighten the
four screws.
Front Glass Removal Front Glass Installation
Hook

15
M
M
N
L
N
L
GND
AC120V/60HZ
S
The battery may contain hazardous substances which could endanger the environment
and human health. This symbol marked on the battery and/ or packaging indicates that
used battery shall not be treated as municipal waste. Batteries should be disposed
of at an appropriate collection point for recycling. By ensuring the used batteries are
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health. The recycling of materials will help to conserve natural
resources. For more information about the recycling of used batteries, please contact
your local municipality waste disposal service.
Disconnect power before servicing.
Any electrical re-wiring of this appliance must be done by a qualied electrician.
This wiring must be done in accordance with local codes and/or in Canada with
the current CSA C22.1 Canadian Electrical Code, and for US installations, the
National Electrical Code ANSI/NFPA No. 70.
If repairing or replacing any electrical component or wiring, the original
wire routing, color coding and securing locations must be followed.
DANGER
Circuit
Board
LED
Flame Effect Motor
**Heater Disable
Switch Self-Hold Thermostat
Heater
Element
Fan
Motor
**Heater Disable Switch on Some Models Only
CARE AND MAINTENANCE (CONTINUED)
CIRCUIT DIAGRAM
Disposal of Used Batteries
CAUTION: Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or
rechargeable (ni-cad, ni-mh, etc) batteries.
WARNING: Disconnect power before servicing.
Battery replacement instruction
CR2025
OPEN
PUSH
RELEASE
Battery Replacement
Procedure
Battery Size CR2025

16
For replacement parts, please call customer service at
1-877-447-4768, 8:00 a.m. – 4:30 p.m. CST, Monday – Friday.
PART DESCRIPTION PART #
1 Middle Panel EF3114210001
2 Fan Heater EF3114210002
3 Switch EF3114210003
4 NTC Plastic Box EF3114210004
5 Main PCB EF3114210005
6 LED PCB EF3114210006
7 Key PCB EF3114210007
8 DC Motor EF3114210008
9 Logset EF3114210009
10 Bottom Cover Panel EF3114210010
PART DESCRIPTION PART #
11 Motor Bracket EF3114210011
12 Mounting Bracket EF3114210012
13 Flame Reector EF3114210013
14 Table Top Stand EF3214210001
15 Back Housing Accessory EF3114210016-22
16 Glass EF3114210017
17 Power Cord & Connector EF3114210018
18 Remote EF33510AS-15
SERVICE PARTS
1
7
12 13 14
15
8 9 10 11
18
17
16
2 3 4 5 6

17
If you have any questions regarding the product, please call customer service at
1-877-447-4768, 8:00 a.m. – 4:30 p.m. CST, Monday – Friday.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fireplace does not
operate.
1. The replace is not
plugged in.
1. Make sure the replace is plugged in
to a standard 120V outlet.
2. A circuit breaker is tripped
or a fuse blown.
2. Check additional appliances on the
circuit; ideally the replace should be
on a dedicated 15 Amp circuit.
3. Defective ON/OFF switch. 3. Call customer service.
4. Loose wiring. 4. Call customer service.
Power light is ON
but the ame effect
is not visible.
1. Incorrect operation. 1. Refer to operating instructions.
2. LED strip is not
functioning. 2. Call customer service.
3. Loose wiring. 3. Call customer service.
Heater is not
operating.
1. Incorrect operation. 1. Refer to operating instructions.
2. Defective heater switch. 2. Call customer service.
3. Defective heater assembly. 3. Call customer service.
4. Loose wiring. 4. Call customer service.
5. Dirty or clogged vents. 5. Unplug the unit. Clear vent area of dust and debris. Wait ten minutes, plug the unit
in again and turn on the heater.
Display shows "E1". 1. NTC is Defective. 1. Call customer service.
Excessive noise
when the heater is
operating.
1. Defective fan. 1. Call customer service.
2. Defective heater assembly. 2. Call customer service.
3. Dirt/dust on fan. 3. Refer to maintenance section.

18
The manufacturer warrants that your new electric replace is free from manufacturing and material
defects for a period of one year from date of purchase, subject to the following conditions and
limitations.
1. This electric replace must be installed and operated at all times in accordance with the
instructions furnished with the product. Any alteration, willful abuse, accident, or misuse of the
product shall nullify this warranty.
2. This warranty is non-transferrable, and is made to the original owner, provided that the purchase
was made through an authorized supplier of the manufacturer.
3. This warranty is limited to the repair or replacement of part(s) found to be defective in material or
workmanship, provided that such part(s) have been subjected to normal conditions of use and
service, after said defect is conrmed by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this
warranty by refunding the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from
defective part(s), repair, replacement, or otherwise of same, will not be covered by this warranty,
nor shall the manufacturer assume responsibility for same. Further, the manufacturer will not be
responsible for any incidental, indirect, or consequential damages, except as provided by law.
6. All other warranties - expressed or implied - with respect to the product, its components and
accessories, or any obligations/liabilities on the part of the manufacturer are hereby expressly
excluded.
7. The manufacturer neither assumes, nor authorizes any third party to assume, on its behalf,
any other liabilities with respect to the sale of this product.
8. The warranties as outlined within this document do not apply to non-manufacturer accessories
used in conjunction with the installation of this product.
This warranty is void if:
a) The replace has been operated in atmospheres contaminated by chlorine, uorine or
other damaging chemicals.
b) The replace is subjected to prolonged periods of dampness or condensation.
c) Any alteration, willful abuse, accident, or misuse of the product.
IF WARRANTY SERVICE IS NEEDED . . .
1) Contact customer service at 1-877-447-4768, 8:00 a.m. – 4:30 pm CST, Monday – Friday.
Make sure you have your warranty, your sales receipt, and the model/serial number
of your product.
2) DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF.
WARRANTY
GHP Group, Inc.
6440 W. Howard St. • Niles, IL. • 60714-3302
271 Massey Road, Guelph, Ontario, N1K 1B2
Printed in Vietnam

19
255895
English p. 1
CHIMENEA ELECTRICA
MODELO # 321-42-10
INSTALADOR: Deje este manual con el electrodoméstico.
CONSUMIDOR: Conserve este manual para referencia futura.
¡ADVERTENCIA!
SI NO SE SIGUE CON PRECISIÓN LA INFORMACIÓN DE ESTE MANUAL, SE
PUEDE PRODUCIR UNA DESCARGA ELÉCTRICA O UN INCENDIO QUE
PRODUZCA DAÑOS A LA PROPIEDAD, LESIONES PERSONALES O MUERTE.
INSTRUCCIONES IMPORTANTES
LEA ESTE MANUAL ANTES DE INSTALAR Y USAR EL ELECTRODOMÉSTICO
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, comuníquese
con nuestro departamento de Servicio al Cliente llamando al 877-447-4768, de
8:00 a.m. a 4:30 p.m., HEC, de lunes a viernes.
ADJUNTE SU RECIBO AQUÍ
Número de serie _____________________________ Fecha de compra _____________________________

20
IMPORTANTE: lea con atención todas las instrucciones y advertencias antes de
comenzar la instalación. Si no se siguen las instrucciones, se puede provocar una
descarga eléctrica, lesiones a personas, riesgo de incendio, lo que anulará la garantía.
Lea estas instrucciones de instalación y funcionamiento antes de utilizar el
electrodoméstico.
ÍNDICE
Información de seguridad ................................................................................................................3
Contenido del paquete.....................................................................................................................5
Dimensiones de la chimenea ...........................................................................................................6
Preparación ......................................................................................................................................7
Conexión eléctrica............................................................................................................................4
Instrucciones de puesta a tierra.......................................................................................................4
Control remoto .................................................................................................................................7
Instrucciones de ensamblaje............................................................................................................7
Preinstalación...................................................................................................................................7
Instalación: Fijación a pared............................................................................................................. 7
Instalación: Mueble ..........................................................................................................................7
Instrucciones de operación..............................................................................................................8
Cuidado y mantenimiento ................................................................................................................9
Diagrama del cableado eléctrico....................................................................................................10
Listas de piezas de repuesto .........................................................................................................13
Solución de problemas ..................................................................................................................11
Garantía..........................................................................................................................................12
EL DAÑO DEL PRODUCTO PUEDE OCURRIR.
Nunca trate de desarmar o alterar este producto sin seguir las instrucciones de este manual.
PRECAUCIÓN
