pleasant hearth OFG012T User manual

OUTDOOR
PROPANE FIRE PIT
MODEL # OFG012T / OFG824T / OFG007TF / OFG125T-1
Français p. 59
*Propane cylinders
sold separately.
**Item may have
a slightly different
appearance
depending on
the model #
purchased.
Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE
130-10-106 Rev. 11/23/2018
Español p. 30
C US
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-447-4768, 8:30AM – 4:30PM CST, Monday – Friday, or
e-mail us at [email protected].
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING
If the information in this manual is not followed exactly, a re or explosion may result
causing property damage, personal injury or loss of life.
IMPORTANT INSTRUCTIONS
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE

2
TABLE OF CONTENTS
Safety Information .................................................................................................................. 4
Package Contents .................................................................................................................. 7
Preparation........................................................................................................................... 10
Assembly Instructions............................................................................................................................. 11
Operation Instructions .......................................................................................................... 18
Care and Maintenance ......................................................................................................... 23
Warranty ............................................................................................................................... 24
Troubleshooting.................................................................................................................... 25
Replacement Parts List ........................................................................................................ 26
DANGER WARNING:
Do not store or use gasoline, or other
ammable vapors and liquids, in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
WARNING: For Outdoor Use Only.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which
has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car or home.
WARNING: Improper installation, adjustment, alteration, service or
maintenance can cause property damage, personal injury or loss
of life. Refer to the owner’s information manual provided with this
appliance. Installation and service must be performed by a qualied
installer, service agency, or the gas supplier.
Installation and service must be performed by a qualied installer, service agency, or the
gas supplier.
If you smell gas:
•
Failure to follow these instructions could
result in re or explosion, which could cause
property damage, personal injury, or death.
Shut off gas to the appliance.
Extinguish any open ame.
If odor continues, leave the area
immediately.
After leaving the area, call your gas
supplier or re department.
•
•
•
FIRE OR EXPLOSION HAZARD

3
ANSI Z21.97-2014 • CSA 2.41-2014 Outdoor decorative gas appliances
March 2014 © 2014 CSA Group 45
Figure 1
LP-Gas Cylinder Label
(See Clause 4.18.2.)
DANGER
• FLAMMABLE GAS UNDER PRESSURE.
LEAKING LP-GAS MAYCAUSEA FIREOR EXPLOSION IF IGNITED
CAUSING SERIOUS BODILYINJURYOR DEATH.
CONTACT LP GAS SUPPLIER FOR REPAIRS, OR DISPOSALOF THIS
CYLINDER OR UNUSED LP-GAS.
WARNING• FOR OUTDOOR USE ONLY.*
DO NOT USE OR STORE CYLINDER IN A BUILDING,
GARAGE OR ENCLOSED AREA.
WARNING:
Know the odor of LP-gas. If you hear, see
or smell leaking LP-gas, immediately get
everyone away from the cylinder and call the
Fire Department. Do not aκempt repairs.
CauΩon your LP-gas supplier to:
Be certain cylinder is purged of trapped
air prior to first filling.
Be certain not to over fill the cylinder.
Be certain cylinder requalificaΩon date is
checked.
LP-gas is heavier than air and may seκle in
low places while dissipaΩng.
Contact with the liquid contents of cylinder
will cause freeze burns to the skin.
Do not allow children to tamper or play with
cylinder.
When not connected for use, keep cylinder
valve turned o�. Self contained appliances
shall be limited to a cylinder of 30 lb
capacity or less.
Do not use, store or transport cylinder where
it would be exposed to high temperatures.
Relief valve may open allowing a large
amount of flammable gas to escape.
When transporΩng, keep cylinder secured in
an upright posiΩon with cylinder valve turned
o�.
WHEN CONNECTING FOR USE:
Consult manufacturer’s instrucΩons
concerning the cylinder connecΩon provided
with your appliance.
Be sure regulator vent is not poinΩng up.
Turn o�all valves on the appliance.
Do not check for gas leaks with a match or
open flame. Apply soapy water at areas
marked “X”. Open cylinder valve. If bubble
appears, close valve and have LP-gas
service person make needed repairs. Also,
check appliance valves and connecΩons to
make sure they do not leak before lighΩng
appliance.
Light appliance(s) following manufacturer’s
instrucΩons.
When appliance is not in use, keep the
cylinder valve closed.
Cylinder
Pressure relief valve
Point of connecΩon
Cylinder valve hand wheel
Liquid level indicator
(opΩonal)
DO NOT REMOVE, DEFACE, OR OBLITERATETHIS LABEL
*EXCEPT AS AUTHORIZED BYANSI/NFPA 58.
DANGER. Do not store a spare LP cylinder under or near a barbecue grill, or other heat sources.
NEVERfill an LP cylinder beyond 80%full: a fire causing death or serious injury may occur.
Use only in compliance with applicable codes.
Read and follow manufacturer’s instrucΩons.
PROPANE GAS CYLINDER LABEL

4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or
install the product. If you have any questions regarding the product, please call customer
service at 1-877-447-4768 8:30AM – 4:30PM CST, Monday – Friday.
DANGER
• Failure to follow the dangers, warnings and cautions contained in this owner’s manual may
result in serious bodily injury or death, or in a re or an explosion causing damage to property.
WARNING
• Max. gas supply: 250PSI (1750 KPa). Min. gas supply for input adj. 25PSI (175 KPa ).
Manifold pressure with regulator provided: 11 in wc (2.74KPa).
• This appliance shall be used only outdoors in a well-ventilated space and shall not be used
in a building, garage or any other enclosed area.
• DO NOT use this appliance for cooking.
• When an appliance is for connection to a xed piping system, the installation must conform
with local codes, or in the absence of local codes with the National Fuel Gas Code, ANSI
Z223.1 • NFPA 54; National Fuel Gas Code; Natural Gas and Propane Installation Code ,
CSA B149.1; or Propane Storage and Handling Code , CSA B149.2, as applicable.
• Do not use this appliance if any part has been under water. Immediately call a qualied
service technician to inspect the appliance and to replace any part of the control system
and any gas control that has been under water.
• Do not store a spare or disconnected propane cylinder under or near this appliance.
• Do not operate the propane appliance if there is a gas leak present.
• Never use a ame to check for gas leaks.
• Clearance to combustible materials minimum of 24 inches/60.96cm from the sides of
your propane appliance and minimum of 60 inches/152.4 cm from the top of your
propane appliance. Only place unit on non-combustible surfaces.
• Do not put any other appliance cover or anything ammable on, or beneath the appliance.
• The propane appliance should never be used by children. Young children should be
carefully supervised when they are in the area of the appliance.
• Children and adults should be alerted to the hazards of high surface temperatures
and should stay away to avoid burns or clothing ignition.
• Should re go out while burning, turn the gas valve off. Follow the instructions and wait ve
minutes before attempting to relight.
• Never use wood or any other solid fuel in the appliance. Solid fuels shall not be burned in
this gas re pit.
• Never hang or place clothing or other ammable materials on or near the appliance.
• Never lean over the operating appliance or place hands or ngers on the upper portion of
the operational unit.
• Keep ventilation openings in cylinder enclosure free and clear of debris.
• Do not alter the appliance.
• The conversion or attempted use of natural gas in a propane unit or propane gas in a
natural gas unit is dangerous.
• For use with cylinders marked PROPANE only. DO NOT connect to a remote gas supply.
• Do not use this appliance on vehicles or boats. Always operate the appliance on a
at/level surface.

5
SAFETY INFORMATION
WARNING
• Keep any electrical supply cord and fuel supply hose away from any heated surfaces.
• Keep your appliance free and clear from combustible materials, gasoline and other
ammable vapors and liquids.
• Visually inspect burner for obstructions. Keep tank enclosure free and clear from debris.
• Do not use this appliance unless all parts are in place.
• Any guard, barrier, or other protective device removed for servicing the appliance
must be replaced prior to operating the appliance.
• The hose assembly must be replaced prior to the appliance being put into operation
if there is evidence of excessive abrasion or wear or if the hose is damaged. The
replacement hose assembly shall be specied by the manufacturer.
• Installation and repair should be done by a qualied service person. The appliance
should be inspected before use and at least annually by a qualied service person.
More frequent cleaning may be required as necessary. It is imperative that control
compartment, burners and circulating air passageways of the appliance are
kept clean.
• The propane gas supply cylinder to be used must be constructed and marked in
accordance with the Specications for LP Gas Cylinders of the U.S. Department of
Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres and Tubes for Transportation of Dangerous Goods; and Commission, as
applicable; and provided with a listed overlling prevention device.
• Use only 20-pound cylinders (approximately 18 1/4 inches high and 12 1/4 inches in
diameter) equipped with a cylinder connection device compatible with the connection
for the hose regulator supplied with this appliance. The cylinder must include a collar to
protect the cylinder valve. The gas cylinder should not be dropped or handled roughly!
• Cylinders must be stored outdoors in a well-ventilated area out of the reach of children.
• Disconnect the cylinder when the appliance is not being used.
• Disconnected cylinders must have valve caps tightly installed and must not be stored in a
building or any other enclosed area.
• Do not use this appliance under umbrellas, awnings, etc.
• Only use the appliance on stable surfaces.
• Do not operate with a vinyl or PVC cover.
• Allow the unit to cool before placing a vinyl or PVC cover on the unit.
• Do not sit on unit.
• Never use charcoal or lighter uid with the re pit.
• Do not use gasoline, kerosene or alcohol for lighting.
• Never keep a lled LP cylinder in a hot car or car trunk. Heat will cause the gas pressure
to increase, which may open the relief valve and allow gas to escape.
• Do not lean over re pit when lighting. Read instructions before lighting.
• If the ame extinguishes accidentally during ignition or operation, immediately TURN OFF
the cylinder valve and then TURN OFF the control knob.

6
F
WARNING
FOR PROPANE GAS UNITS
• The gas pressure regulator provided with the propane appliance must be used.
• The replacement pressure regulator must be those specied by the appliance manufacturer.
• Do not attempt to disconnect the gas cylinder or any gas tting while your appliance is in
operation.
• A dented or rusty propane cylinder may be hazardous and should be checked by your gas
supplier prior to use.
• Do not use a propane cylinder with a damaged valve and any other worn out parts.
• Transit and store the empty gas cylinders carefully and properly.
• If you see, smell or hear the hiss of escaping gas from the propane cylinder:
1. Disconnect propane gas cylinder.
2. Do not attempt to correct the problem yourself.
3. Get to your gas supplier and/or the re department for help.
SAFETY INFORMATION
This product and the fuels used to operate this product (liquid propane or natural gas), and the
products of combustion of such fuels, can expose you to chemicals including benzene, which is
known to the State of California to cause cancer and reproductive harm.
For more information go to www.p65Warnings.ca.gov
WARNING
CAUTION
GLASS ROCKS
1. Do not light or use gas unit if glass rocks are wet. Make sure glass rocks are completely dry
before lighting as intense heat could cause the rock to crack.
2. Glass rocks could hit a person’s face or eyes during the initial startup of this unit. Keep away
from the appliance for the rst 20 minutes after lighting.
3. Use only Pleasant Hearth / GHP Group, Inc. factory-authorized glass rocks. The use of any
glass rock that is not factory-authorized can be dangerous and will void your warranty.
4.
5.
6.
Do not add additional rocks to the re bowl. Only 7.72 lbs /3.5 kgs are approved for safe use
with this re pit.
Do not use two different sizes of glass rocks at the same time.
Do not mix glass rocks with lava rocks.

7

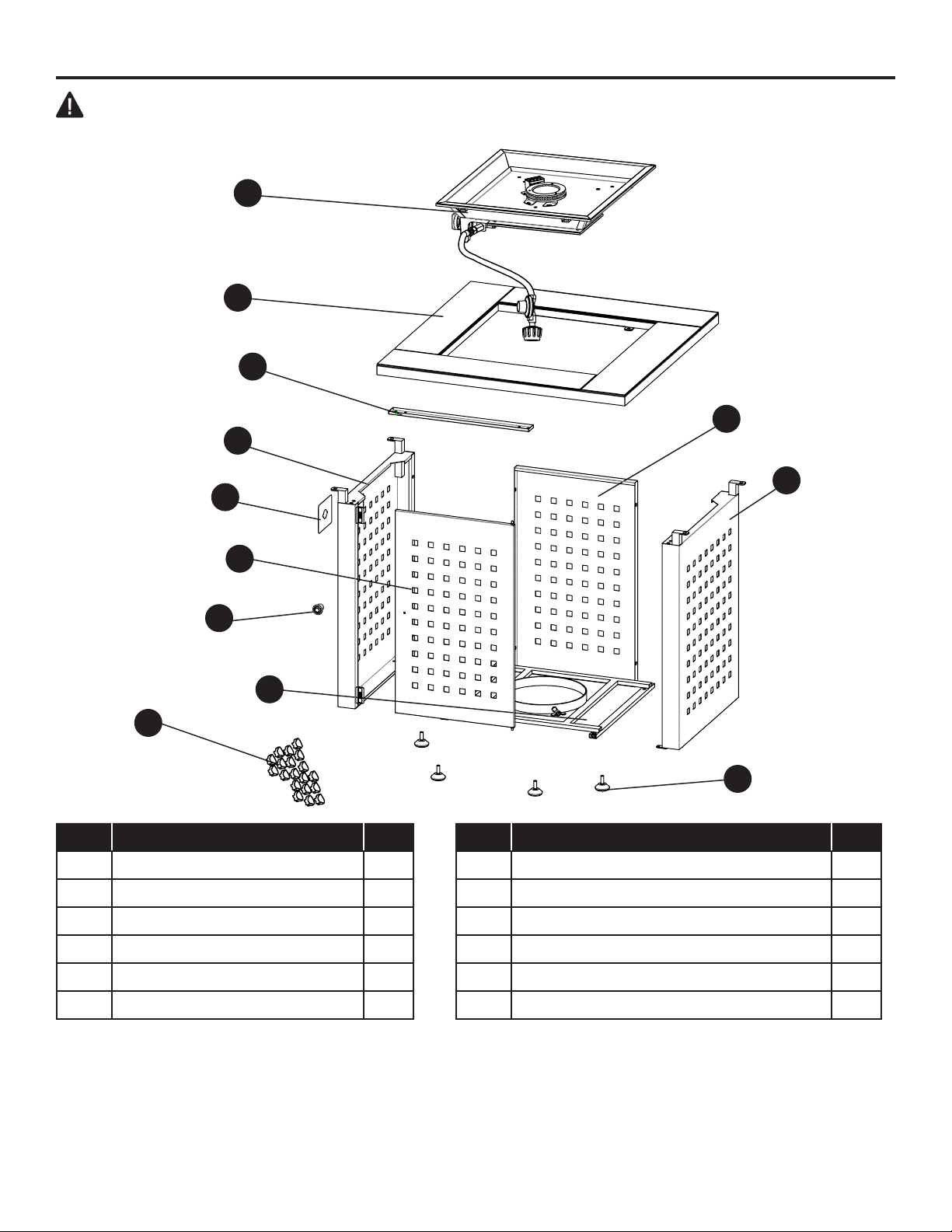

PACKAGE CONTENTS FOR OFG012T / OFG125T-1
PART DESCRIPTION QTY.
CBurner Assembly 1
DGlass Table 1
E Door Bracket 1
F Left Side Panel 1
G Control Panel 1
H Door 1
PART DESCRIPTION QTY.
IKnob 1
J Bottom Plate 1
K Glass Rocks (One 7.72 lb/3.5 kg Pack) 1
L Back Panel 1
M Right Side Panel 1
NFoot 4
D
H
G
I
J
K
L
M
N
C
E
F
WARNING: Failure to position the parts in accordance with these diagrams or failure to
use only parts specically approved with this appliance may result in property damage or
personal injury.

8

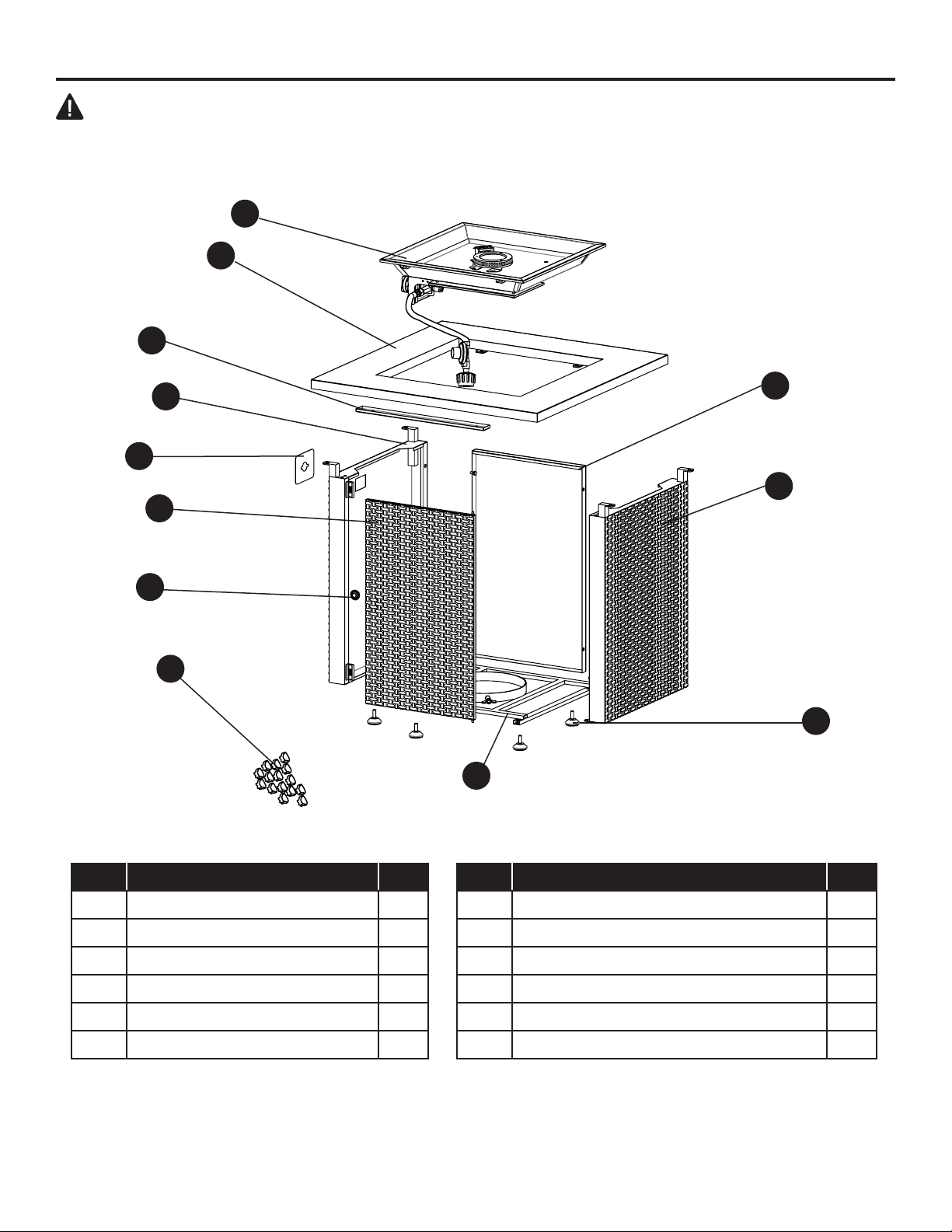

PACKAGE CONTENTS FOR OFG824T
PART DESCRIPTION QTY.
CBurner Assembly 1
D Table 1
E Door Bracket 1
F Left Side Panel 1
G Control Panel 1
H Door 1
PART DESCRIPTION QTY.
IKnob 1
J Bottom Plate 1
K Glass Rocks (One 7.72 lb/3.5 kg Pack) 1
L Back Panel 1
M Right Side Panel 1
NFoot 4
D
H
G
I
J
K
L
M
N
C
E
F
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only
parts specically approved with this appliance may result in property damage or personal injury.

9
PACKAGE CONTENTS FOR OFG007TF
PART DESCRIPTION QTY.
CBurner Assembly 1
D Table 1
E Door Bracket 1
F Left Side Panel 1
G Control Panel 1
H Door 1
PART DESCRIPTION QTY.
IKnob 1
J Bottom Plate 1
K Glass Rocks (One 7.72 lb/3.5 kg Pack) 1
L Back Panel 1
M Right Side Panel 1
NFoot 4
D
H
G
I
J
K
L
M
N
C
E
F
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only
parts specically approved with this appliance may result in property damage or personal injury.

10
HARDWARE USED
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 45 minutes
Tools required for assembly (not included):
Leak Detection Solution.
AA BB CC EE
DD
Bolt
M6 X 12
Qty. 20
Screw
M4 X 6
Qty. 1
Screw
M5 x 8
Qty. 2
Phillips
screwdriver
Qty. 1
Washer
ø4
Qty. 1
CAUTION
THIS UNIT IS HEAVY. Two people required for safe assembly.
Two people required for safe assembly. Some parts may contain sharp edges. Wear protective
gloves if necessary. Read and follow all safety statements, warnings, assembly instructions and
use and care instructions before attempting to assemble and use.

11
ASSEMBLY INSTRUCTIONS
1. Attach the bottom plate (J) to the left and right side
panels (F and M) with four M6X12 bolts (AA) as
shown on gure 1. Make sure the center ring on the
bottom plate (J) is positioned closer to the
magnet side of left side panel (F). Tighten with
Phillips screwdriver (EE). The conguration as
pictured is upside down. Keep the unit in this
position.
Hardware Used
2. Screw the four feet (N) into the bottom of the left and
right side panels (F and M) as shown on gure 2.
3. Turn the unit upright. Attach the back panel (L) to
the left and right side panels (F, M) with four M6X12
bolts (AA) as shown on gure 3. Tighten with Phillips
screwdriver (EE).
Hardware Used
1
2
3
AA
AA
Bolt M6 X 12
Bolt M6 X 12
X 4
X 4
J
M
N
F
M
M
L
F
F
EE Phillips screwdriver
AA
AA
AA
Magnet
EE Phillips screwdriver

12
4
X 1
X 1
ASSEMBLY INSTRUCTIONS
4. Attach the knob (I) to the door (H) with one M4X6
screw (BB) and one washer ø4 (DD). Tighten with
screwdriver (EE).
Hardware Used
5. Insert the bottom spindle of the door (H) into the
hole on the bottom plate (J). Hold the door in
place and put the door bracket (E) on top, as
pictured in gure 5. Attach the door bracket (E) to
the left and right side panels (F and M) with four M6 x
12 bolts (AA). Tighten with screwdriver (EE).
Hardware Used
6.
Hardware Used
5
BB
DD
Screw M4 X 6
Washer ø4 H
I
E
H J
AA
AA
Bolt M6 X 12
Bolt M6 X 12
X 4
X 4
BB
DD
AA
EE Phillips screwdriver
EE Phillips screwdriver
EE Phillips screwdriver
Remove the control knob (P) from the burner
assembly (C) and put it aside. Lay the burner
assembly (C) upside down on a soft surface, such
as a carpet or blanket to avoid scratching. Turn the
table (D) upside down and rest it on top of
the upside down burner assembly (C).
Line up the holes on the table (D) with the
screw holes on the burner assembly (C). Attach with
four M6X12 bolts (AA) as shown in gure 6. Tighten
with screwdriver (EE).
C
P
D
AA
6

13
7. Turn the base assembly upside down. Insert the
valve stem on the burner assembly (C) into the
square hole on the left side panel (F). The regulator
assembly (Q) must remain inside the base assembly
during installation. DO NOT let the base assembly
press into the regulator assembly (Q) during
installation. Attach the base assembly to
the table (D) with four M6X12 bolts (AA) as shown in
gure 7. Tighten with screwdriver (EE)
Hardware Used
8. Attach the control panel (G) to the left side panel
(F) with two M5X8 screws (CC). Tighten with
screwdriver (EE). Then attach the control knob (P)
to the control panel (G) as shown in gure 8. Turn
the control knob (P) to the “OFF” (o) position
as illustrated below.
8
ASSEMBLY INSTRUCTIONS
CC X 2
Screw M5X8
P
G
AA Bolt M6 X 12 X 4
F
Hardware Used
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
CC
EE Phillips screwdriver
EE Phillips screwdriver
7
D
Q
AA
F
C

14

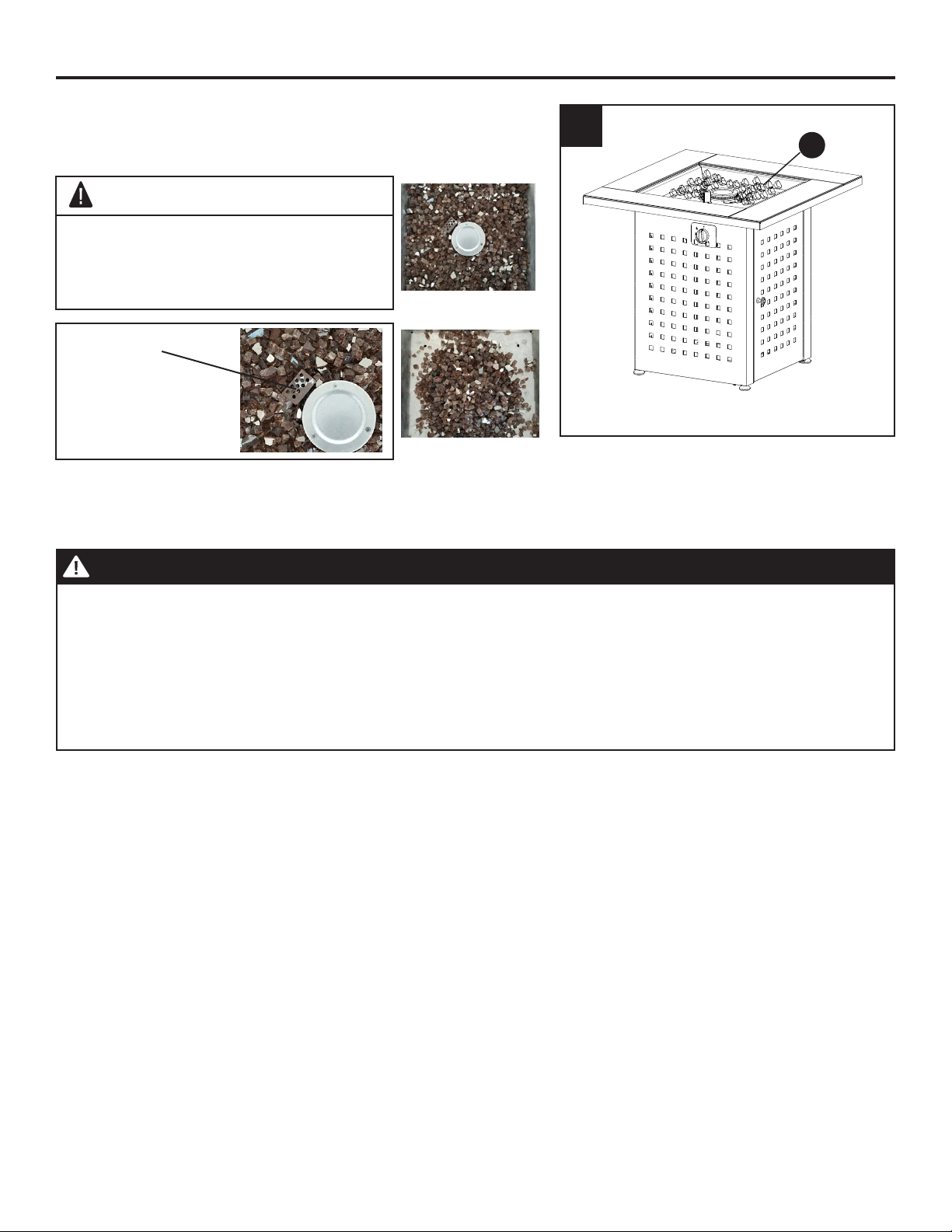

9. Pour one pack of the glass rocks (K) over the
burner. Do NOT cover ignition screen with glass
rocks (K). Use a glove when handling glass rocks.
9
ASSEMBLY INSTRUCTIONS
K
The edge of the burner must be covered by glass rocks
completely. Otherwise the ame may be extinguished occasionally.
See the Figure CORRECT and INCORRECT for reference.
CORRECT
INCORRECT
WARNING
DO NOT COVER THE IGNITION SCREEN when
placing the glass rocks into the re bowl. Always
keep Ignition Screen visible. This screen must be
clear and free of obstructions at all times to insure
proper operation.
Screen
Do not place
glass rocks on screen.
Keep screen clear.
CAUTION
GLASS ROCKS - Use a glove when handling glass rocks.
1. Do not light or use gas unit if glass rocks are wet. Make sure glass rocks are completely dry before lighting as intense heat could
cause the rock to crack.
2. Glass rocks could hit a person’s face or eyes during the initial startup of this unit. Keep away from the appliance for the rst 20
minutes after lighting.
3. Use only Pleasant Hearth / GHP Group, Inc. factory-authorized glass rocks. The use of any glass rock that is not factory-
authorized can be dangerous and will void your warranty.
4.
5.
6.
Do not add additional rocks to the re bowl. Only 7.72 lbs /3.5 kgs are approved for safe use with this re pit.
Do not use two different sizes of glass rocks at the same time.
Do not mix glass rocks with lava rocks.

15

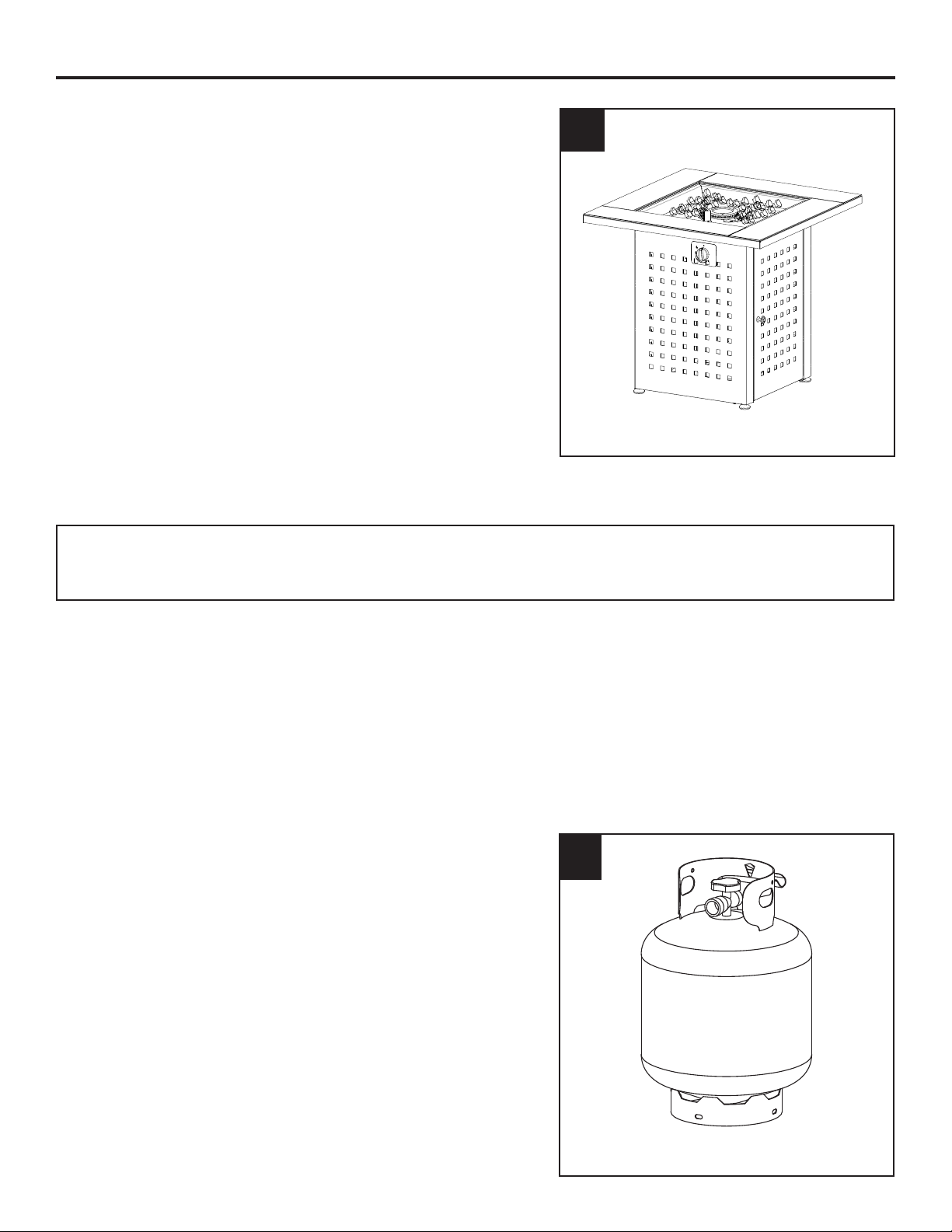

10. Total re pit installation is complete.
11. Use only 20-pound cylinders (approximately 18
1/4 inches high and 12 1/4 inches in diameter)
equipped with a cylinder connection device
compatible with the connection for the hose
regulator supplied with this appliance. Propane
gas and cylinder are sold separately.
A dented, rusted or damaged propane cylinder
may be hazardous and should be checked by your
cylinder supplier. Never use a propane cylinder
with a damaged valve connection.
10
11
Standard 20 lb. tank
ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE. INTENDED FOR
RESIDENTIAL USE ONLY.
Use a glove when handling glass rocks.
Do not sit or stand on this table.
Keep children away during assembly. This item contains small parts which can
be swallowed by children.
Do not use indoors and inside any enclosure.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

16
The propane cylinder must be constructed and marked in accordance with the U.S. Department of
Transportation (DOT) Specications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres
and Tubes for Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable.
The cylinder must have a listed overlling prevention device.
The cylinder must have a connection device compatible with the connection for the appliance.
Never connect an unregulated propane cylinder to this appliance.
The cylinder must include a collar to protect the cylinder valve. The gas cylinder should not be
dropped or handled roughly.
The LP-gas supply cylinder must be disconnected when this appliance is not in use. Storage of
an appliance indoors is permissible ONLY if the cylinder is disconnected and removed from the
appliance. Cylinders must be stored outdoors out of the reach of children and must not be stored in a
building, garage or any other enclosed area. Your cylinder must never be stored where temperatures
can reach over 125°F / 51.5°C.
ASSEMBLY INSTRUCTIONS
The maximum inlet gas supply pressure: 250 psi /1750 kPa.
Place a dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of
dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or
plugs may result in leakage of propane.
DO NOT obstruct the ow of combustion air and ventilation air to the re pit.
The propane cylinder must be arranged for vapor withdrawal and equipped with a listed overlling
prevention device. Please use the proper cylinder orientation to provide vapor withdrawal.
NOTE: The cylinder must be fully upright for the cylinder to have vapor withdrawal only.
CORRECT WRONG WRONG
Vapor
Liquid
Vapor
Liquid
Vapor
Liquid

17
ASSEMBLY INSTRUCTIONS
CAUTION
a. Do not store a spare LP-gas cylinder under or near this appliance.
b. Never ll the cylinder beyond 80 percent full.
c. If the information in (a) and (b) is not followed exactly, a re causing death or serious injury
may occur.
The pressure regulator and hose assembly supplied with the appliance must be used.
When an appliance is for connection to a xed piping system, the installation must conform with
local codes, or in the absence of local codes with the National Fuel Gas Code , ANSI Z223.1 • NFPA
54; National Fuel Gas Code; Natural Gas and Propane Installation Code , CSA B149.1; or Propane
Storage and Handling Code , CSA B149.2, as applicable.
12. Put the gas cylinder inside the unit on the bottom
plate (J).
Before connection, be sure that there is
no debris caught in the outlet of the gas cylinder,
inlet of the regulator valve or in the outlet
of the burner and burner ports. Ensure the
propane cylinder valve is turned off. Then
connect the gas cylinder with the regulator (Q)
as shown in gure 12. Fix the gas cylinder in
place by tightening the buttery bolt.
12
J
J
Q
Buttery Bolt
WARNING: Do not allow to tip or fall over, as re, damage to property, or serious injury could
occur. The re pit must remain upright, as illustrated, at all times.

18

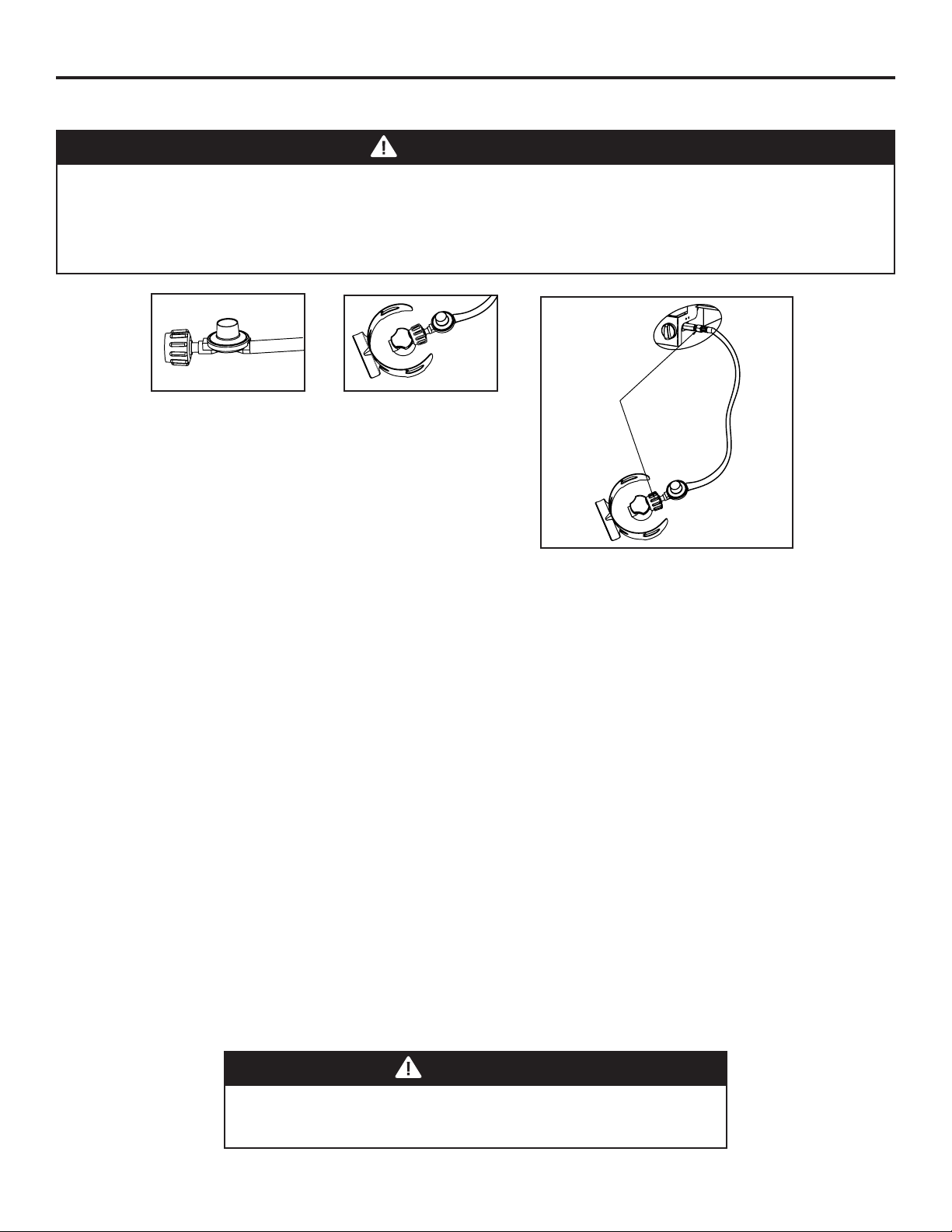

OPERATION INSTRUCTIONS

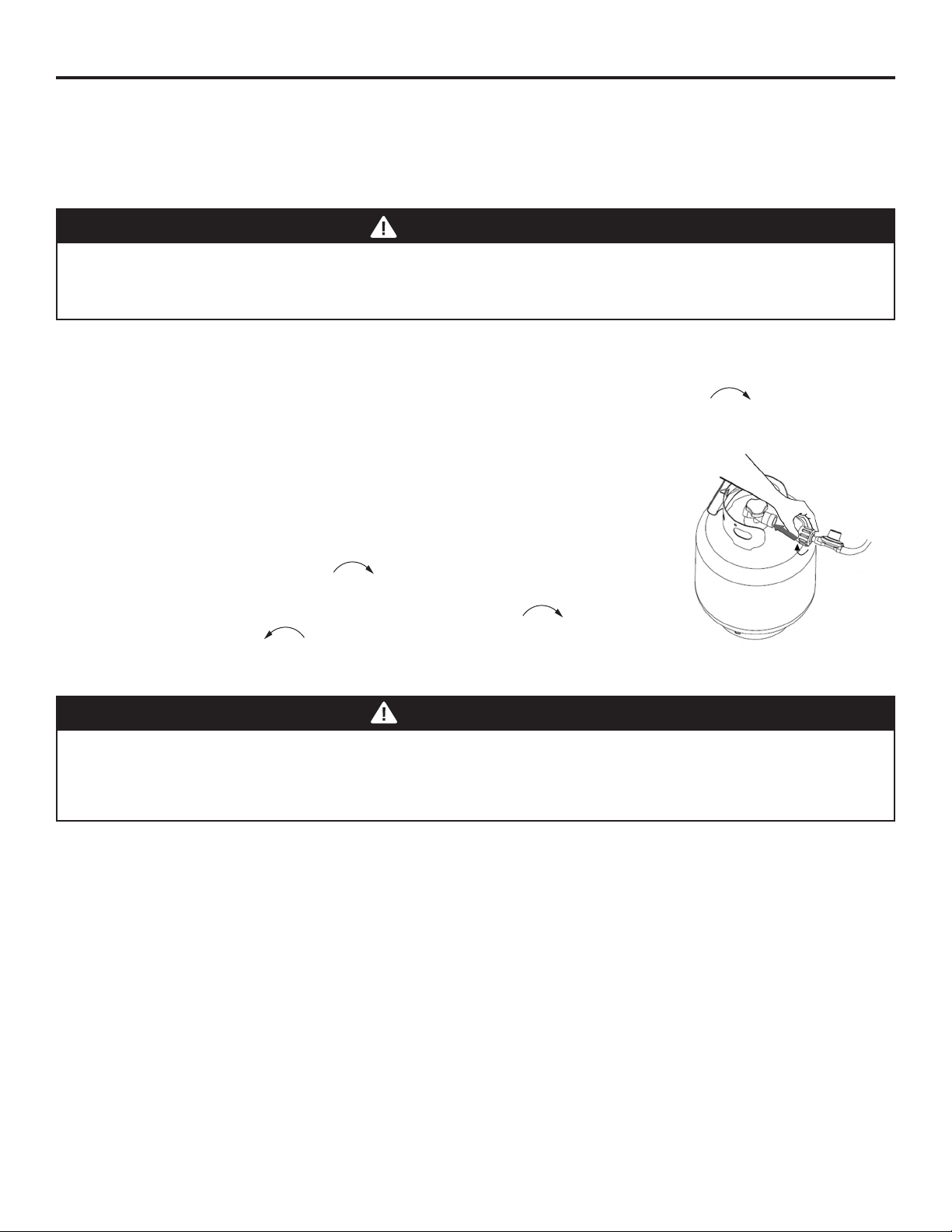

CONNECTING THE LP TANK
1. The knob on the LP tank must be closed. Make sure that the knob is turned clockwise
to a full stop. The cylinder supply system must be arranged for vapor withdrawal.
2. Check that the control knob on the control unit is turned off.
3. Remove the protective cap from the LP tank valve and coupling nut.
4. Hold the regulator in one hand and insert the nipple into the valve outlet.
Be sure the nipple is centered in the valve outlet. The coupling nut
connects to the large outside threads on the valve outlet. Use care –
do not cross thread the connection.
5. Hand-tighten the coupling nut clockwise until it comes to a full
stop. Firmly tighten by hand only. Do not use tools.
To Disconnect: Fully close the tank valve by turning clockwise.
Turn the coupling nut counterclockwise until the regulator
assembly detaches.
WARNING
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO
PREVENT FIRE, DAMAGE AND/OR INJURY.
ARNING
WARNING
In the connection process, make sure:
• the regulator inlet connector mates with the cylinder valve outlet properly, safely and rmly, and;
• the LP gas hose does not come in contact or remain in contact with the burner assembly.
CHECKING FOR LEAKS
After all connections are made, check all connections and ttings on the LP gas tank valve,
gas hose and regulator for leaks with a water and soap solution.
To prevent res or explosions while testing for a leak:
• Always perform a leak test prior to lighting the re pit.
• Do not smoke while testing for a leak.
• Always perform leak tests outdoors in a well-ventilated area.
• Do not use any source of ame while testing for leaks.
• Do not use the re pit until any and all leaks are corrected.
• If you are unable to correct a leak, disconnect the propane supply and call a gas
appliance service dealer.
Before connection, be sure that there is no debris caught in the outlet of the gas cylinder, inlet of the
regulator valve or in the outlet of the burner and burner ports. Keep the propane cylinder valve closed
and disconnect the propane cylinder from the regulator valve when the re pit is not in use.
Straight

1919
LEAK CHECK
1. Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three
parts water).
2. Put leak solution in a spray bottle.
3. Make sure cylinder valve and control valve are OFF.
4. Apply several drops of solution where hose attaches to regulator.
5. Apply several drops of solution where regulator connects to cylinder.
6. Turn cylinder valve ON.
If bubbles appear at any connection, there is a leak.
1. Turn cylinder valve OFF.
2. If leak is at hose/regulator connection: tighten connection and perform another leak test.
If bubbles continue appearing, the hose should be returned to the place of purchase.
3. If leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform
another leak check. If you continue to see bubbles after several attempts, cylinder valve
is defective and should be returned to cylinder’s place of purchase.
If NO bubbles appear at any connection, the connections are secure.
Note: Whenever gas connections are loosened or removed, you must perform a complete
leak test.
Complete installation.
WARNING
• Perform all leak tests outdoors.
• Extinguish all open ames.
• NEVER leak test when smoking.
• Do not use the re pit until all connections have been leak tested and do not leak.
Hose/Regulator
connection
Regulator/Cylinder
connection
DANGER
NEVER USE A LIGHTER/FLAME TO CHECK FOR
GAS LEAKS.
OPERATION INSTRUCTIONS

20
Note: Other cylinders may be acceptable for use with this appliance provided they have the same
prole and dimensions to be compatible with the appliance nesting hole and retention means.
Before Turning Gas Supply ON:
1. Your re pit was designed and approved for outdoor use only. Do NOT use it inside a building,
garage, or any other enclosed area.
2. Make sure surrounding areas are free of combustible materials, gasoline, and other ammable
vapors or liquids.
3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and
there are no leaks.
4. Be sure the cylinder cover is clear of debris. Be sure any component removed during
assembly or servicing is replaced and fastened prior to starting.
Caution: Do not attempt to operate until you have read and understand all General Safety
Information in this manual and all assembly is complete and leak checks have been performed.
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
Figure A Figure B Figure C
OPERATION INSTRUCTIONS
Before Lighting:
1. Fire pit should be thoroughly inspected before each use, and by a qualied service person at
least annually. If relighting a hot re pit, always wait at least 5 minutes.
2. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas
should be leak tested. If the hose leaks, it must be replaced prior to operation. Only use the
replacement hose assembly specied by manufacturer.
Lighting:
1. Turn the control knob to the “OFF” (
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
) position (Figure A).
2. Fully open LP cylinder valve.
3. Push in gas control knob and turn counterclockwise to “IGNITER” ( ) (Figure B) to light the re
pit.
If needed, keep depressing and turning control knob counterclockwise until the re pit lights
(You should hear a clicking sound).
4. After the re pit lights, release the control knob. Push in and turn the control knob to the
“HIGH” (
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
) (Figure C), then release the control knob. If you want a lower temperature, push in
the control knob and turn counterclockwise to the “LOW” (
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
).
Note: If burner fails to remain lit, all valves should be closed and a waiting period of at least
5 minutes should pass before attempting to light.
WARNING
Lighting operations should comply with Lighting Instructions section. Improper lighting operations
will cause serious injury and explosion.
