30 Palmetto Fire Pit
MODEL #OFW717RC / #OFW717R-1
Français p. 17
Español p. 9
30-10-100 Rev. 11/02/2016
ATTACH YOUR RECEIPT HERE
Serial Number ________________________________ Purchase Date _________________________________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m. CST, Monday – Friday, or
email us at [email protected]

2

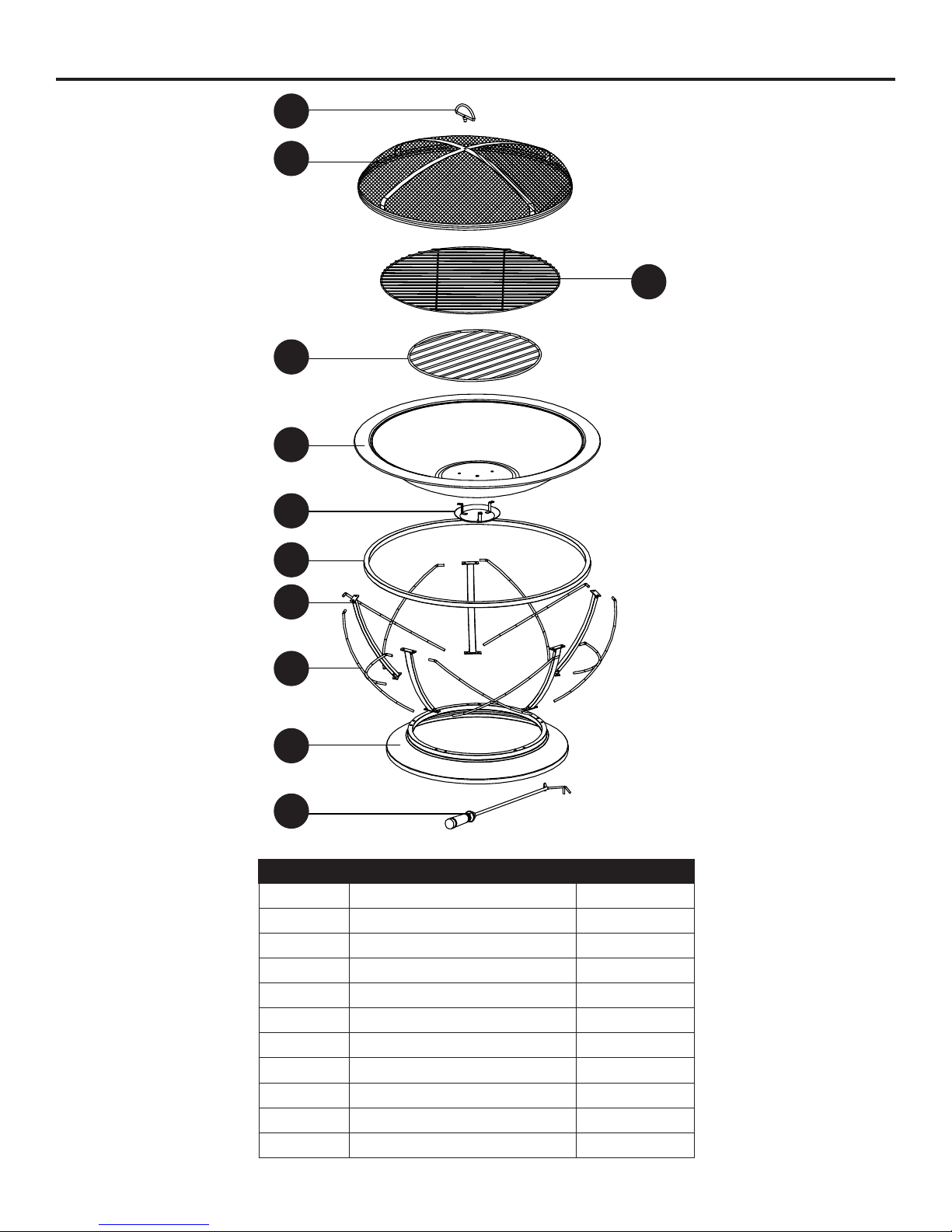

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Poker Bracket 1
BMesh Cover 1
CWood Grate 1
D Fire Bowl 1
E Ash Catcher 1
FSupport Ring 1
GSide Supports 5
HCross Details 5
IBase 1
JPoker 1
KCooking Grid 1
A
B
C
K
E
F
G
D
I
J
H
** NOTE: Cooking grid part
ONLY applies to
model # OFW717RC

3

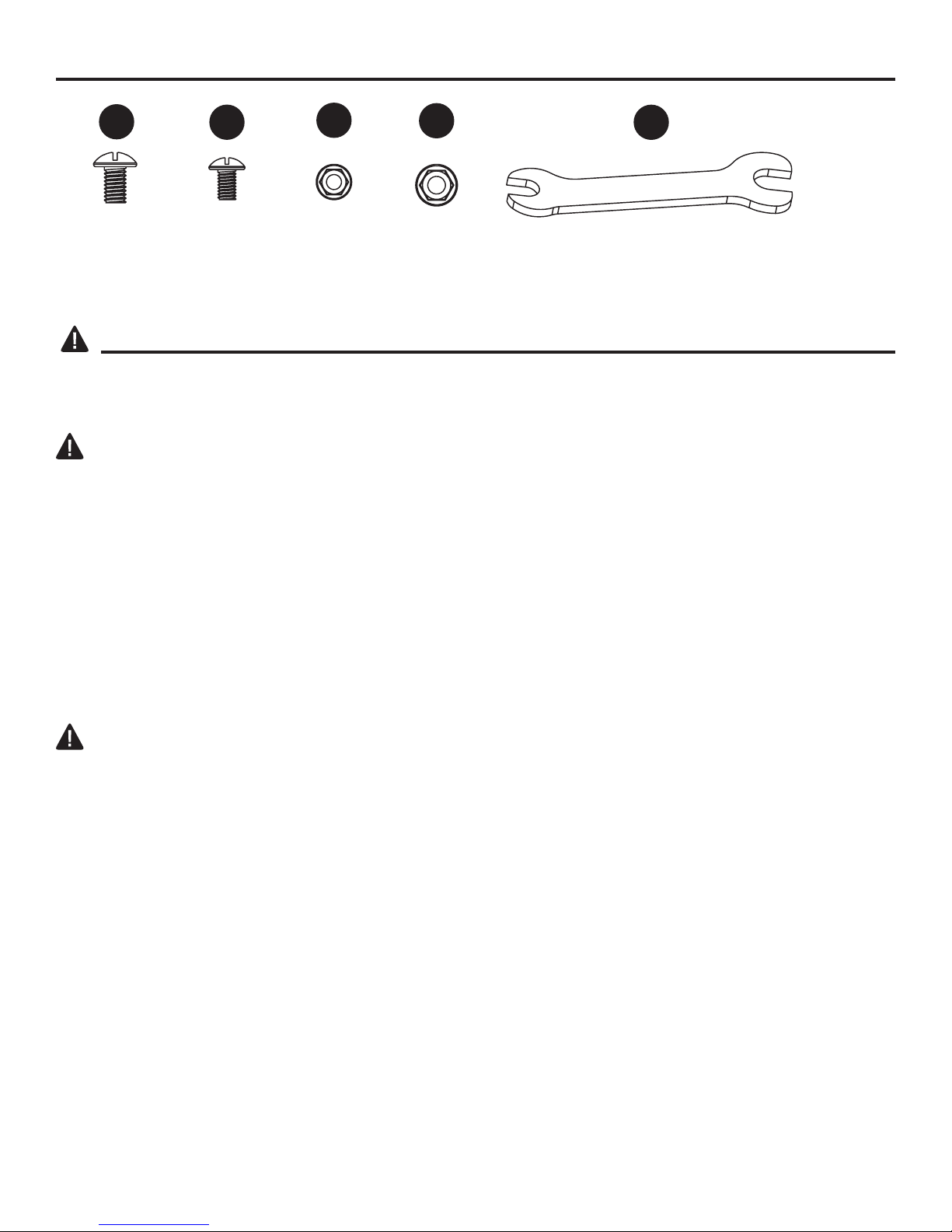

HARDWARE LIST
M6x10mm
Bolt
Qty. 20
M5x10mm
Bolt
Qty. 3
AA BB CC DD EE
M5 Nut
Qty. 3 M6 Nut
Qty. 1 Wrench
Qty. 1
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at 1-877-447-
4768, 8:30 a.m. – 4:30 p.m. CST, Monday – Friday.
WARNINGS:
• DO NOT allow children or pets near the re pit without supervision.
• DO NOT touch surface of re pit while in use.
•FOR OUTDOOR USE ONLY! Burning wood and charcoal indoors can kill you. It gives off carbon
monoxide, which has no odor.
• NEVER burn in vehicles, tents, garages, other enclosed areas or indoors. CARBON MONOXIDE HAZARD.
•NEVER LEAVE FIRE UNATTENDED!
•NEVER place a cover on re pit when in use. Ensure the re pit and mesh cover have cooled before
placing a cover over the re pit.
• When the re pit is in use, the poker bracket on the mesh cover can reach extreme temperatures that can
cause serious injury to an unprotected hand. Use a poker when handling.
• DO NOT use under overhead cables or power lines.
CAUTIONS:
• Adequate re extinguishing material should be readily available.
• Always ensure that the mesh cover is secured over re bowl while in use.
• Burn only seasoned hard wood or re logs in the re pit.
• DO NOT attempt to move the re pit while it is hot or in use.
• DO NOT use gasoline or kerosene to start the re in your re pit.
• DO NOT use this outdoor re pit under any overhead or near any unprotected combustible constructions. Avoid
using near or under overhanging trees and shrubs. DO NOT use this unit on long or dry grass and/or leaves.
• Always use this outdoor re pit on a hard, level, non-combustible surface such as concrete, rock or stone.
An asphalt or blacktop surface may not be acceptable for this purpose. DO NOT use on wooden decks.
• Place the re pit no closer than 10 feet / 3.05 meters from walls or combustibles during use.
• Poker handle may become hot during and after use.
• Use heat-resistant gloves to handle hot tools.
CALIFORNIA PROPOSITION 65 WARNING: Fuels used in wood or charcoal burning appliances and
the products of combustion of such fuels, contain chemicals known to cause cancer, birth defects or other
reproductive harm.
Consumers should check State and Provincial, in addition to local codes and regulations regarding the
use of the product.

4
PREPARATION
ASSEMBLY INSTRUCTIONS

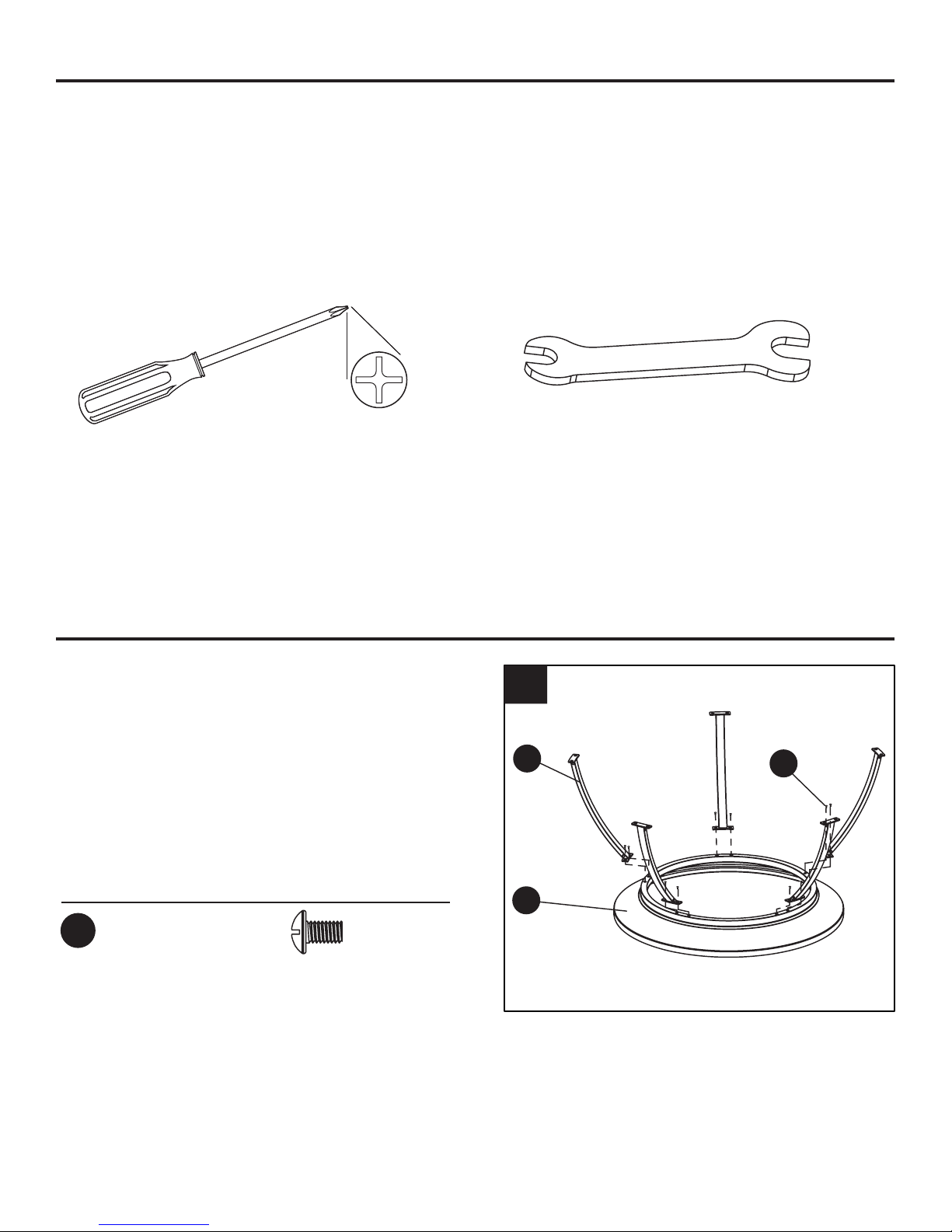

1. Set base (I) on a smooth, at surface. Attach
side supports (G) to base (I) by inserting screws
(AA) through predrilled holes in side supports (G)
and into base (I) as shown. Tighten all screws
(AA) securely.
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents above. If any part is missing or damaged, do not attempt to
assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 30 minutes
Tools Required for Assembly: Phillips Screwdriver (Not Included) and Wrench (Included)
Hardware Used
AA M6x10mm Bolt x 10
1
GAA
I

5
ASSEMBLY INSTRUCTIONS
2. Set support ring (F) on a smooth, at surface
with ve sets of predrilled holes on top. Turn
base assembly upside down and align side supports
(G) with corresponding holes. Attach side
supports (G) to support ring (F) by inserting screws
(AA) through predrilled holes in side supports
(G) and into support ring (F) as shown. Tighten
all screws (AA) securely.
3. Return assembly to an upright position. Insert
the straight bottom ends of one cross detail (H)
into the openings in the bottom edge of two side
supports (G). Insert the bent top ends into the
openings in the top edge of the same side sup-
port (G) as shown. Repeat using the remaining
cross details (H).
4. Afx poker bracket (A) to the mesh cover (B)
by inserting the poker bracket (A) through the
predrilled hole in the top of the mesh cover (B)
and securing with nut (DD).
Tighten nut with Wrench (EE).
2
H
G
B
DD
3
F
A
AA
4
Hardware Used
DD x 1
EE Wrench
M6 Nut
x 1
Hardware Used
M6x10mm BoltAA x 10
G

6
7
ASSEMBLY INSTRUCTIONS

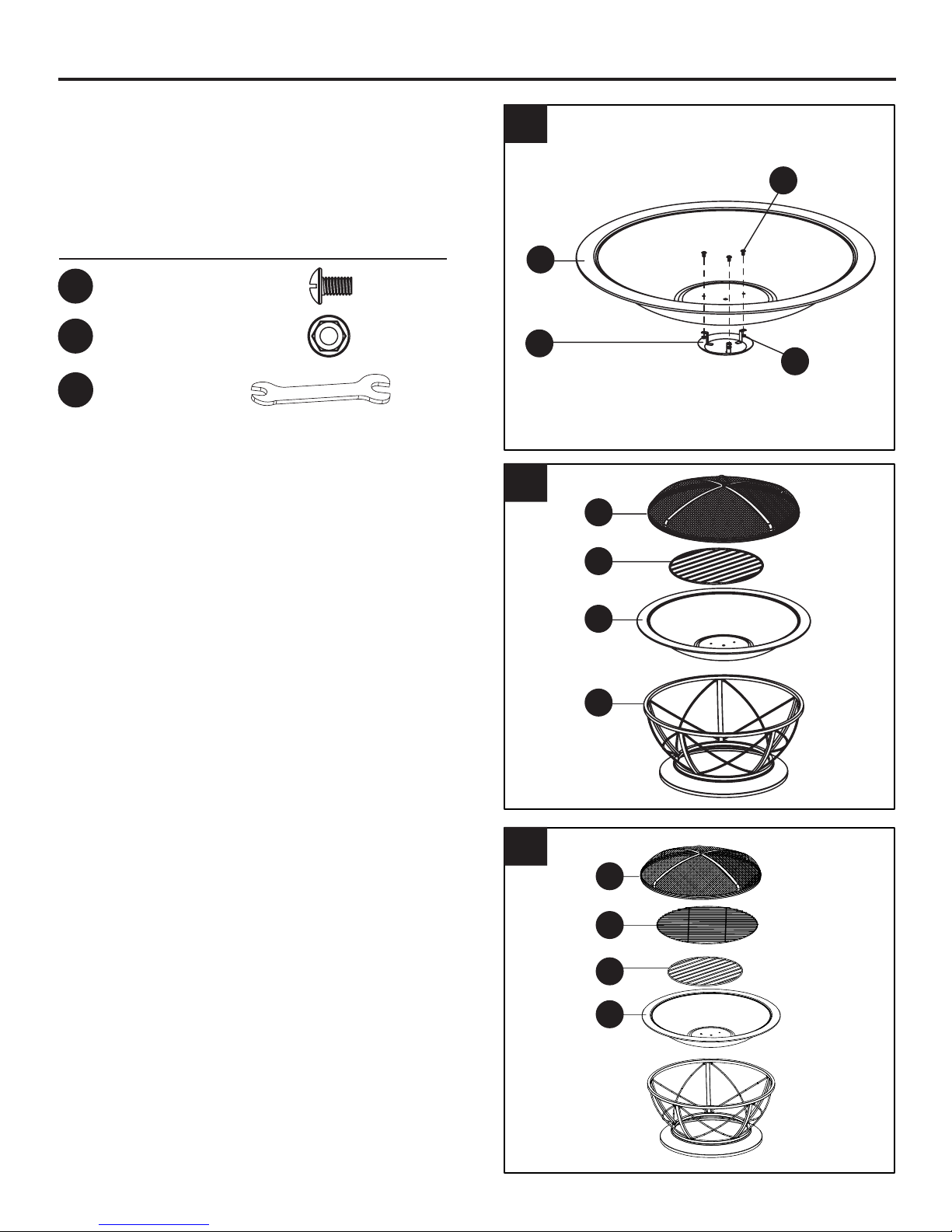

5. Attach the ash catcher (E) to the re bowl (D)
by inserting screws (BB) through predrilled holes
in bottom of re bowl (D) and securing tightly into
the ash catcher (E) with nuts (CC).
Tighten nuts with Wrench (EE).
5
C
ECC
Hardware Used
B
6. With base assembly sitting upright, set re
bowl (D) into support ring (F), set wood grate (C)
into re bowl (D), and top with mesh cover (B).
Please note this step is only for
model # OFW717RC.
7. For use with the cooking grid, place the wood
grate (C) into the re bowl (D). Place the cooking
grid (K) into the re bowl (D). Set the mesh cover
(B) over the re bowl (D).
6
D
BB
D
BB M5x10mm Bolt x 3
CC M5 Nut x 3
F
K
B
C
D
EE Wrench x 1

7

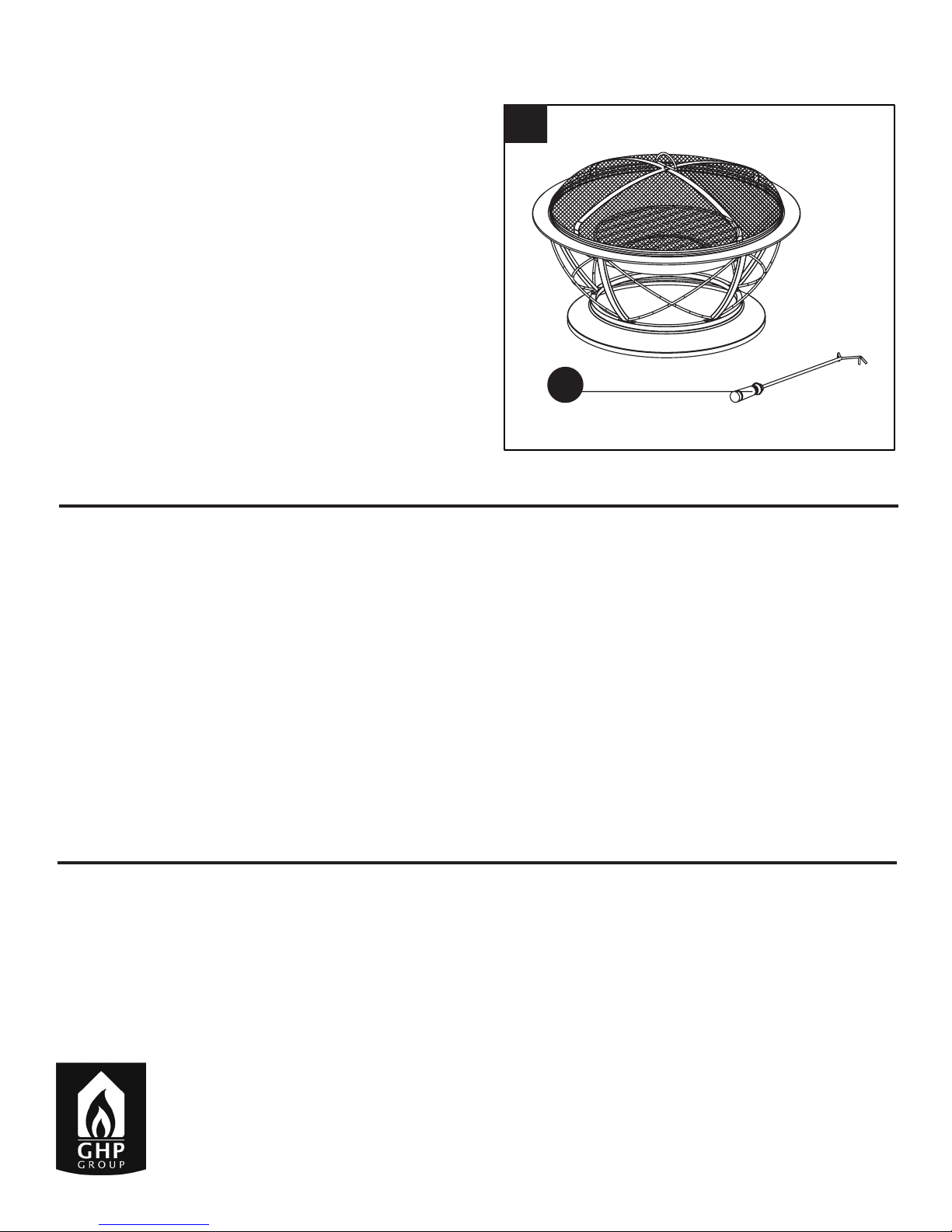

8. Place Poker (J) beside re pit for use
as needed.
CARE AND MAINTENANCE
• To protect re pit nish, use a soft cloth to wipe re pit and poker.
• Do not attempt to clean while hot.
• Clean ash catcher after each use once ashes have cooled.
• Store in a cool, clean, dry place.
8
J
1-YEAR LIMITED FRAME WARRANTY
If within one year from the date of original purchase, this item fails due to a defect in material or
workmanship, we will replace or repair at our option, free of charge. To order parts or to obtain
warranty service, call 1-877-447-4786, Monday - Friday, 8:30 a.m. - 4:30 p.m. CST. This warranty
does not cover defects resulting from improper or abnormal use, misuse, accident, or alteration.
Failure to follow all instructions in the owner's manual will also void this warranty. The
manufacturer will not be liable for incidental or consequential damages, or common erosion of
outdoor products. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation may not apply to you. This warranty gives you
specic legal rights, and you may also have other rights which vary from state to state.
GHP Group, Inc.
6440 W. Howard St.
Niles, IL 60714-3302
877-447-4768

8

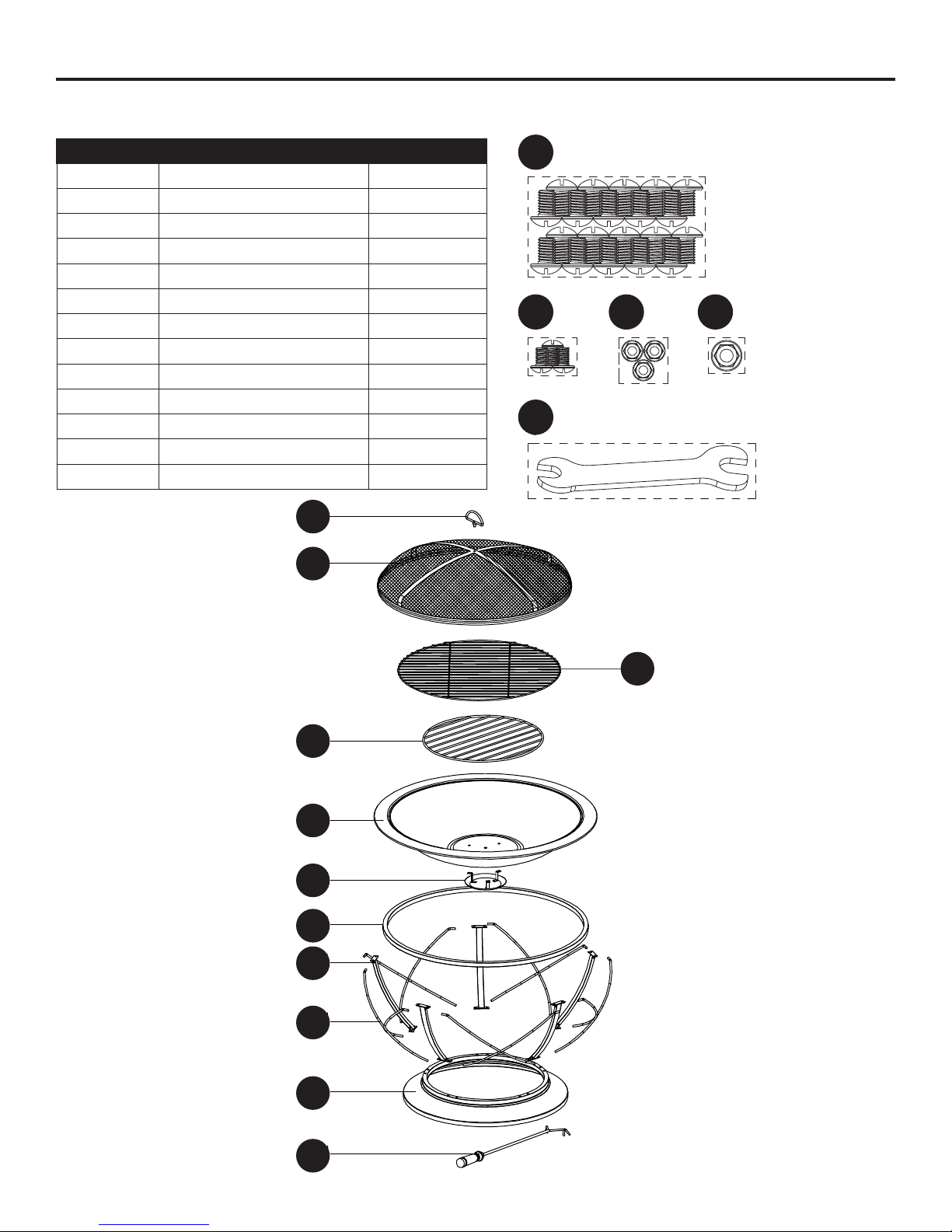

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m.,
CST, Monday – Friday.
E
F
C
B
A
G
D
I
J
K
H
Printed in China
** NOTE: Cooking grid part ONLY
applies to model # OFW717RC
PART DESCRIPTION PART #
A Poker Bracket 40-07-453
BMesh Cover 30-05-005
CWood Grate 30-01-012
D Fire Bowl 30-06-28
E Ash Catcher 40-08-116
FSupport Ring 30-06-283
GSide Supports 30-06-284
HCross Details 30-06-285
IBase 30-06-286
JPoker 40-04-409
KCooking Grid 30-01-115
AA - EE Hardware Pack 30-09-113
N/A Instruction Manual 30-10-100
EE
AA
BB CC DD
