pleasant hearth TRAVERSE User manual

1
TRAVERSE FIRE PIT
MODEL #OFW888R
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Español p.9
Français p.17
1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m. CST, Monday – Friday, or email
us at [email protected].
30-10-202 Rev. 06/29/2020

2

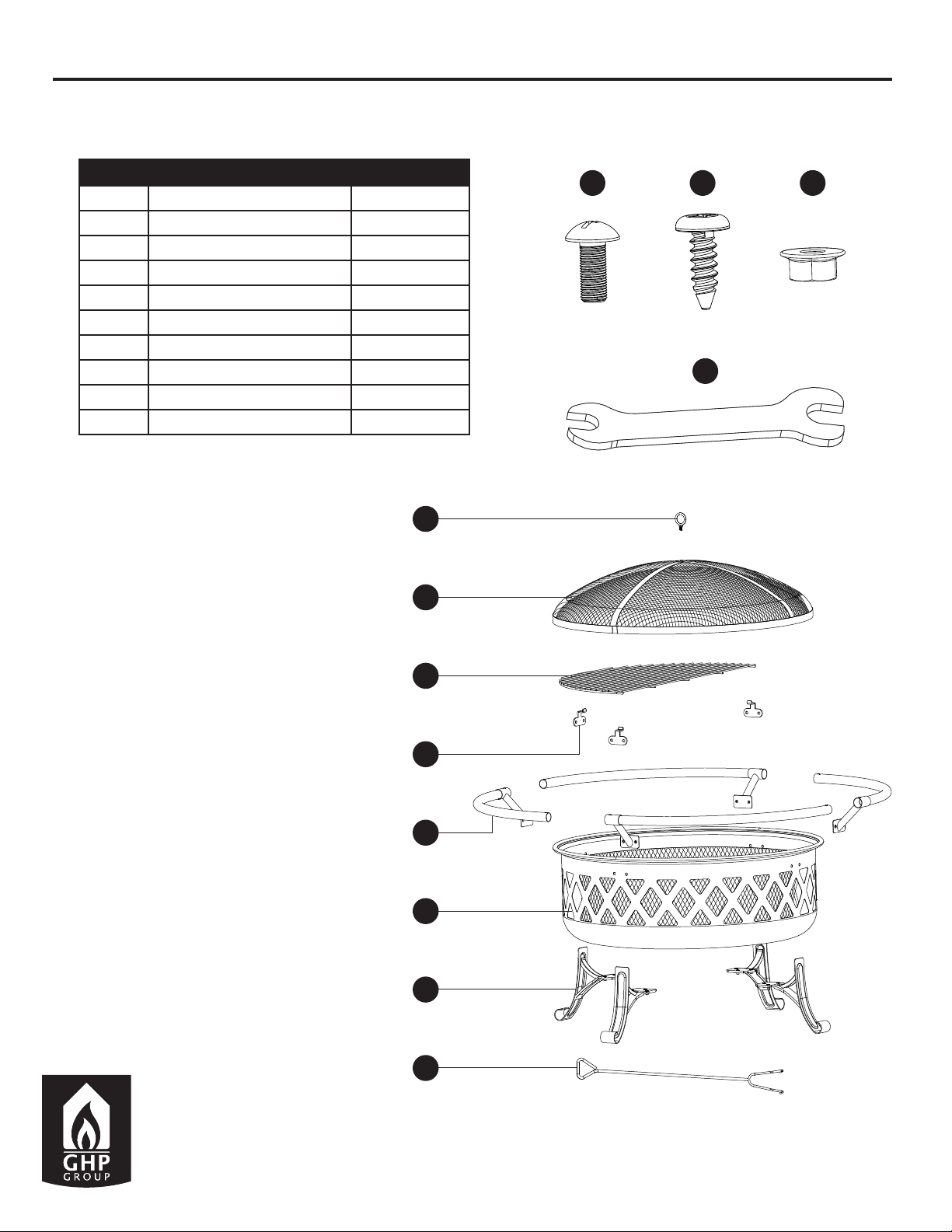

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
APoker Bracket 1
BMesh Cover 1
CCooking Grid 1
DMesh Cover Rest 3
EOuter Ring 4
FFire Bowl 1
GLeg 4
HPoker 1
A
B
C
D
E
F
G
H

3

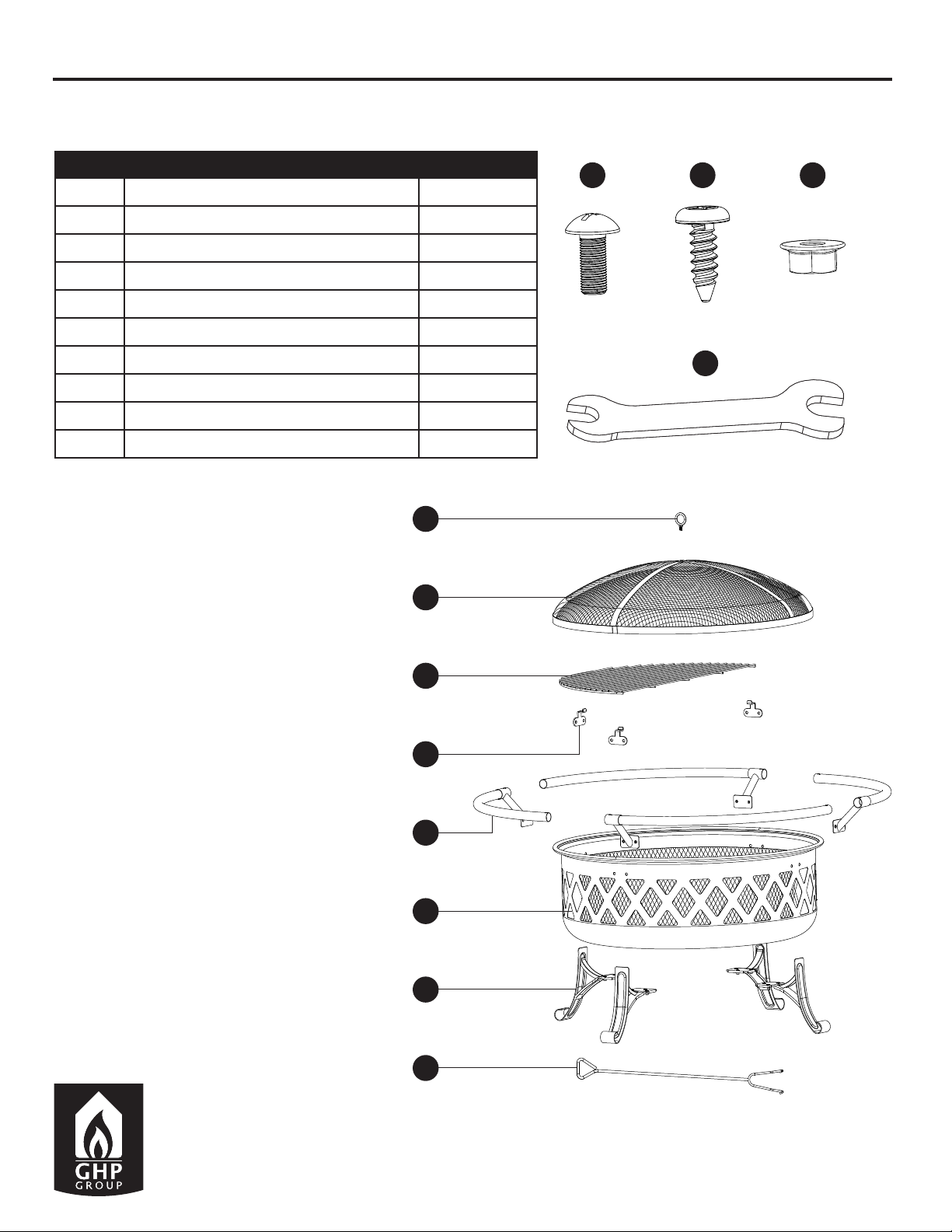

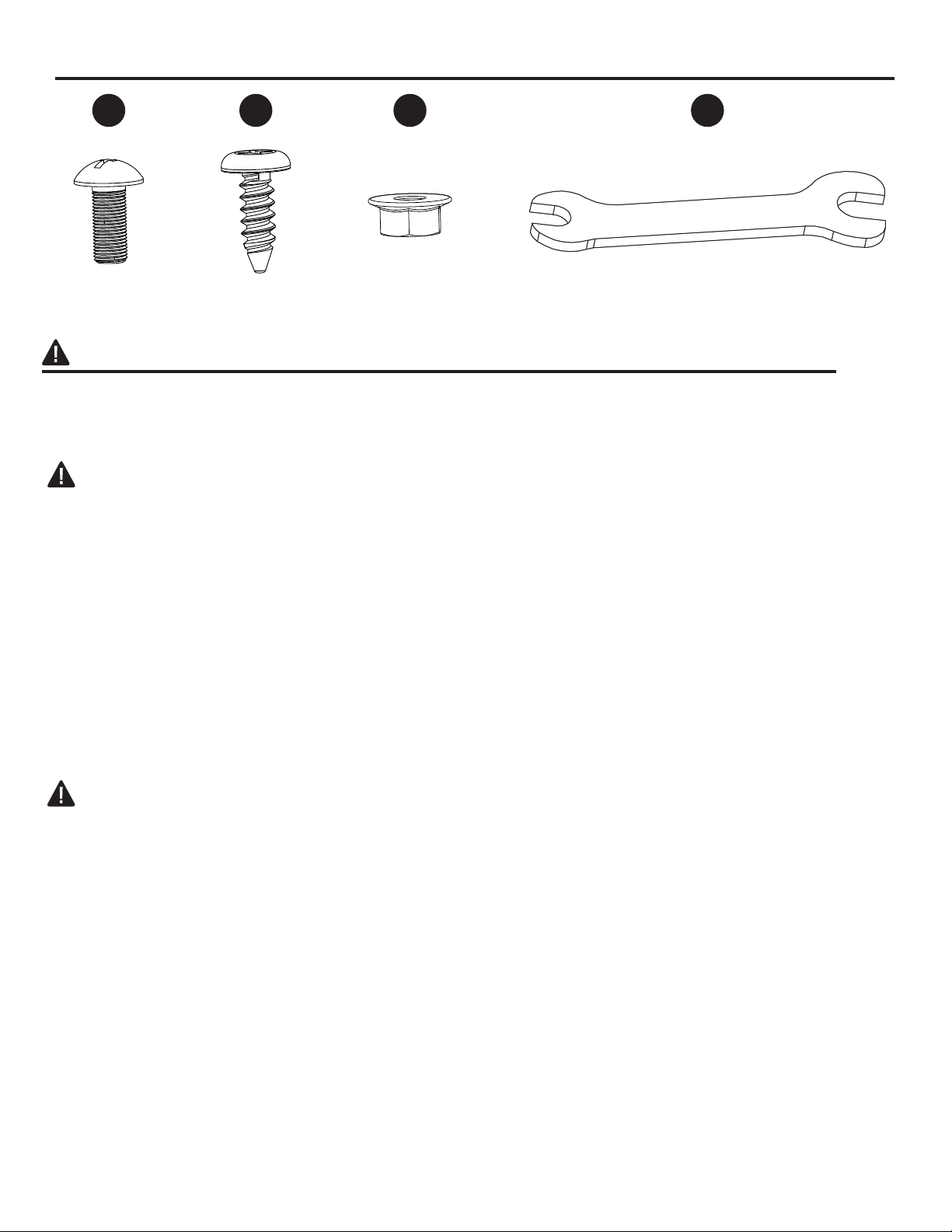

HARDWARE USED
Wrench
QTY: 1
ST5x15mm Bolt
QTY: 4
M6 Nut
QTY: 1
M5X12mm Bolt
QTY: 20
DDAA BB CC
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product. If you have any questions regarding the product, please call customer service at
1-877-447-4768, 8:00 a.m. – 4:30 p.m. CST, Monday – Friday.
WARNINGS:
• DO NOT allow children or pets near the re pit without supervision.
• DO NOT touch surface of re pit while in use.
• FOR OUTDOOR USE ONLY! Burning wood or charcoal indoors can kill you. It gives off carbon
monoxide, which has no odor.
• NEVER burn in vehicles, tents, garages, other enclosed areas or indoors. CARBON
MONOXIDE HAZARD.
• NEVER LEAVE FIRE UNATTENDED!
• NEVER place a storage cover on re pit when in use. Ensure the re pit and mesh cover have
cooled before placing a storage cover over the re pit.
• When the re pit is in use, the poker bracket on the mesh cover can reach extreme temperatures
that can cause serious injury to an unprotected hand. Use a poker when handling.
• DO NOT use under overhead cables or power lines.
CAUTIONS:
• Adequate re extinguishing material should be readily available.
• Always ensure that the mesh cover is secured over re bowl while in use.
• Burn only seasoned hard wood or re logs in the re pit.
• DO NOT attempt to move the re pit while it is hot or in use.
• DO NOT use gasoline or kerosene to start the re in your re pit.
• DO NOT use this outdoor re pit under any overhead or near any unprotected combustible
constructions. Avoid using near or under overhanging trees and shrubs. DO NOT use this unit
on long or dry grass and/or leaves.
• Always use this outdoor re pit on a hard, level, non-combustible surface such as concrete,
rock or stone. An asphalt or blacktop surface may not be acceptable for this purpose. DO NOT
use on wooden decks.
• Place the re pit no closer than 10 feet / 3.05 meters from walls or combustibles during use.
• Poker handle may become hot during and after use.
• Use heat-resistant gloves to handle hot tools.
• Burn only 7LBs/3.18KG of charcoal, wood or re logs in the re pit.

4
SAFETY INFORMATION
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents above. If any part is missing or damaged, do not attempt to
assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 30 minutes

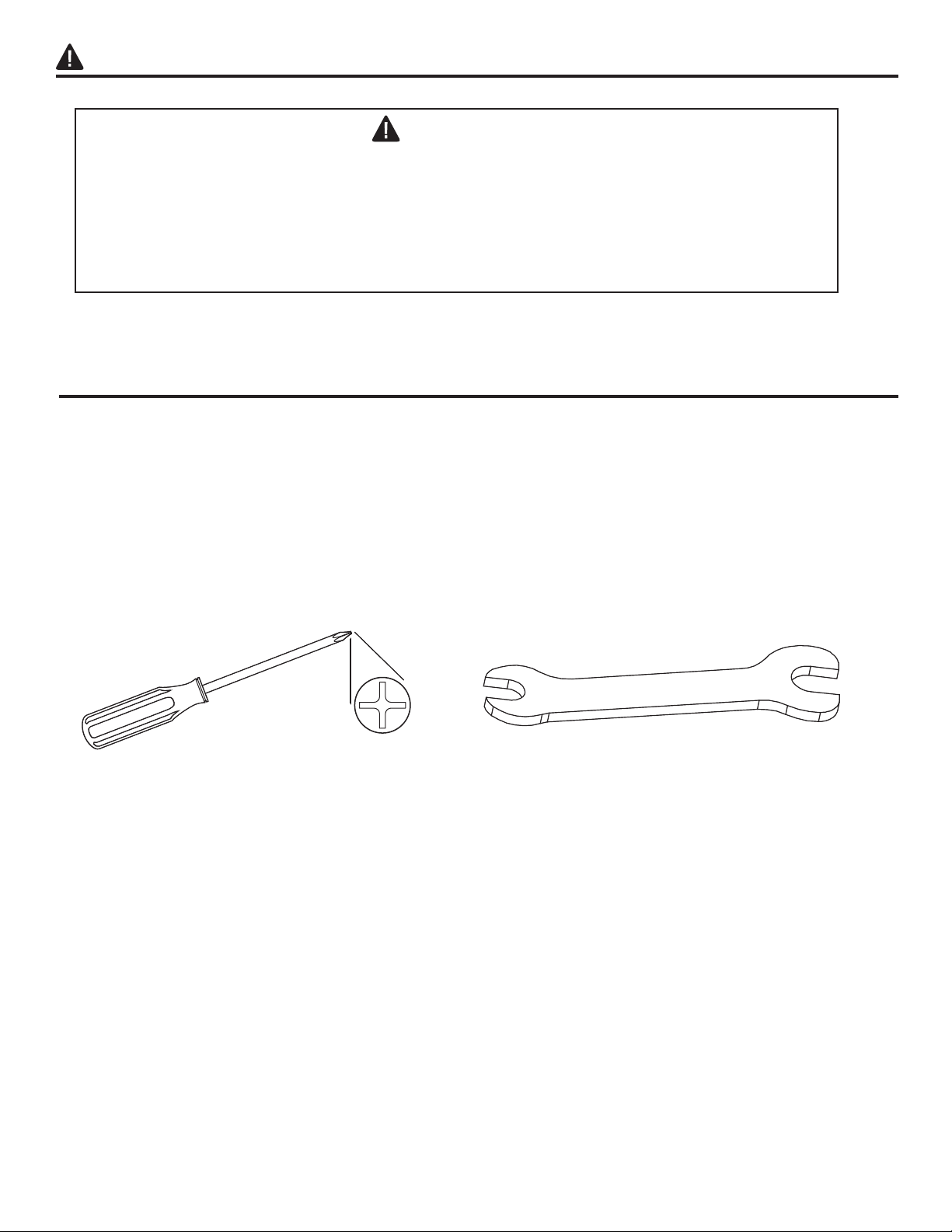

Tools Required for Assembly:
Phillips Screwdriver (Not Included) and Wrench (Included).
WARNING
This product and the fuels used to operate this product (charcoal or wood), and
the products of combustion of such fuels, can expose you to chemicals including
carbon black, which is known to the State of California to cause cancer, and carbon
monoxide, which is known to the State of California to cause birth defects or other
reproductive harm.
For more information go to www.p65Warnings.ca.gov

1
5
ASSEMBLY INSTRUCTIONS

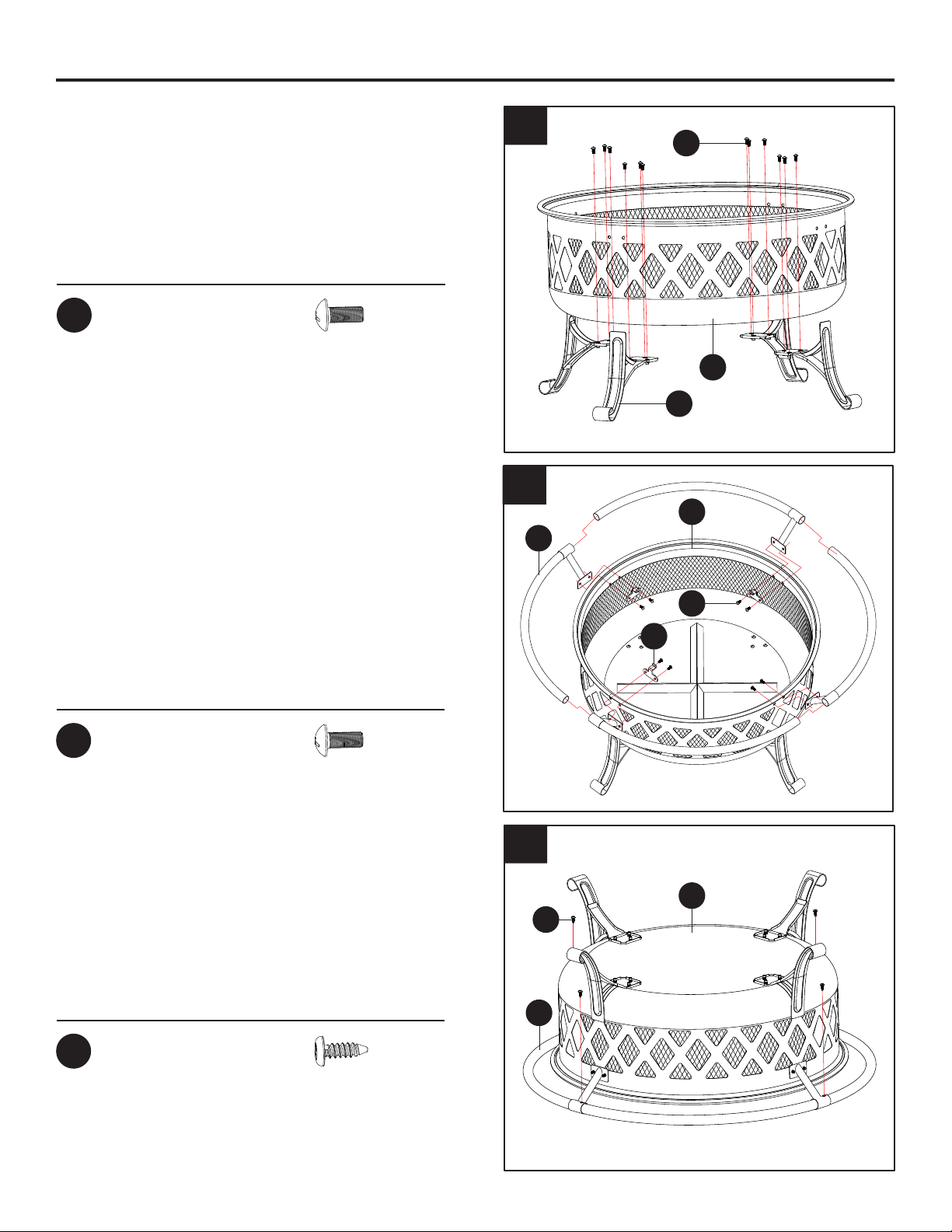

1. Insert three of the M5x12 bolts (AA) through
the holes in the re bowl (F) and into the three
holes in a leg (G). Position the leg as shown in
Step 1. Repeat this step for the three remaining
legs. Tighten securely with a screwdriver.
AA
F
G
AA
Hardware Used
M5x12mm Bolt x 12
2. Insert two M5x12mm bolts (AA) through the
mesh cover rest (D), through the holes in the side
of the re bowl (F), and into the bracket holes of
the outer ring section (E). Make sure to insert the
male parts of the ring section (E) into the female
parts of the ring section (E). Loosely tighten by
hand. Repeat this step on two additional outer ring
sections (E). Assemble the nal outer ring section
(E) without a mesh cover rest (D).
3. Turn the re bowl (F) upside down. Insert
one ST5x15 bolt (BB) into the outer ring (E) and
tighten with a screwdriver. Repeat this step on
the remaining three connection points on the
outer ring (E). Once complete, tighten the bolts
from Step 2 with a screwdriver.
AA
BB
Hardware Used
Hardware Used
M5x12mm Bolt
ST5x15mm Bolt
x 8
x 4
3
2
AA
D
E
E
F
F
BB

4
5
6
6
ASSEMBLY INSTRUCTIONS
4. Insert the poker bracket (A) into the hole in
the mesh cover (B) and secure with one M6 nut
(CC). Tighten the nut with the wrench (DD).
5. For re pit use, place the mesh cover (B) over
the re pit as illustrated. Place poker (H) beside
the re pit for use as needed.
6. For barbeque use, remove the mesh cover
(B) and place the cooking grid (C) onto the mesh
cover rests (D). Place food onto the cooking grid
and replace the mesh cover (B). Keep the poker
(H) near the re pit for use as needed.
CC
DD
Hardware Used
M6 Nut
Wrench
x 1
x 1
A
CC
B
B
H
H
B
CD

7
CARE AND MAINTENANCE
• Use gloves in lieu of bare hands while handling.
• To protect re pit nish, use a soft cloth to wipe re pit and poker.
• Do not attempt to clean while hot.
• Store in a cool, clean, dry place.
1-YEAR LIMITED FRAME WARRANTY
If within one year from the date of original purchase, this item fails due to a defect in material or
workmanship, we will replace or repair at our option, free of charge. To order parts or to obtain
warranty service, call 1-877-447-4768, Monday - Friday, 8:00 a.m. - 4:30 p.m. CST. This warranty
does not cover defects resulting from improper or abnormal use, misuse, accident, or alteration.
Failure to follow all instructions in the owner's manual will also void this warrranty. The
manufacturer will not be liable for incidental or consequential damages, or common erosion of
outdoor products. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation may not apply to you. This warranty gives you
specic legal rights, and you may also have other rights which vary from state to state.

A
B
C
D
E
F
G
H
8
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m.,
CST, Monday – Friday.
Printed in China
Manufactured by
GHP Group, Inc.
6440 W. Howard St.
Niles, IL 60714-3302
877-447-4768

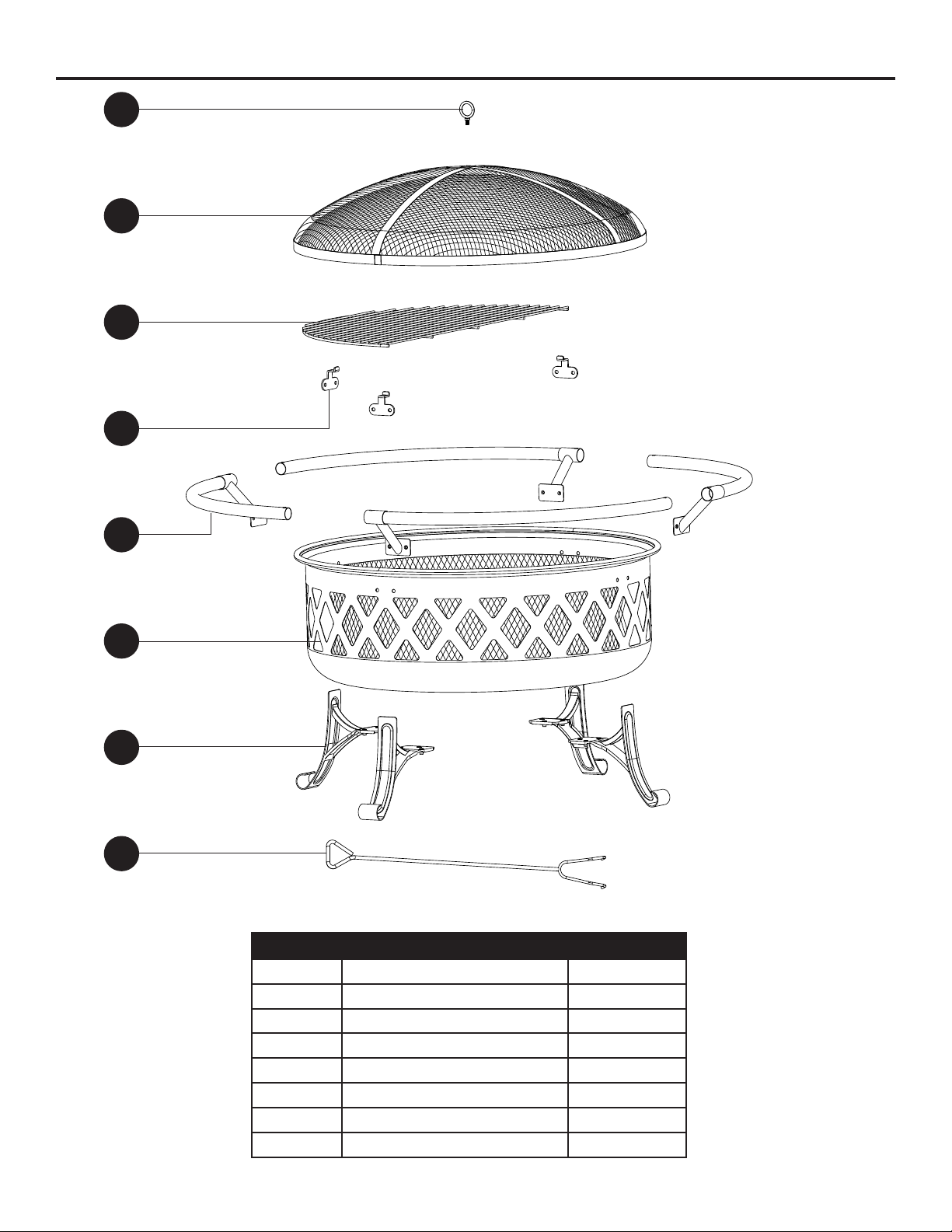

PART DESCRIPTION PART #
APoker bracket 40-06-697
BMesh Cover 40-06-698
CCooking Grid 40-06-699
DMesh Cover Rest 40-06-700
EOuter Ring 40-06-701
FFire Bowl 40-06-702
GLeg 40-06-703
HPoker 40-04-409
AA - DD
Hardware Pack 30-09-553
N/A Instruction Manual 30-10-202
DD
AA BB CC

9
¿Preguntas, problemas, piezas faltantes?
Antes de volver a la tienda, llame a nuestro departamento de servicio al cliente al 1-877-447-4768,
de lunes a viernes de 8:00 a.m. a 4:30 p.m., hora central estándar o envíenos un correo electrónico
a [email protected].
English p. 1
Français p.17
ADJUNTE SU RECIBO AQUÍ
Número de serie Fecha de compra
BRASERO TRAVERSE
MODELO #OFW888R
30-10-202 Rev. 06/29/2020

10
CONTENIDO DEL PAQUETE
PIEZA DESCRIPCIÓN CANTIDAD
ASoporte del atizador 1
BFunda de malla metálica 1
CLa parrilla 1
DApoyo de la cubierta de malla 3
EManija exterior 4
FTazón de fuego 1
GPierna 4
HAtizador 1
A
B
C
D
E
F
G
H
