pleasant hearth OFW155H User manual

1
CHESTERFIELD
FIRE PIT
MODEL #OFW155H
Français p. 9
ATTACH YOUR RECEIPT HERE
Serial Number ____________________________ Purchase Date _______________________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday or
email us at [email protected].
Español p. 17
30-10-023 Rev. 4/19

2

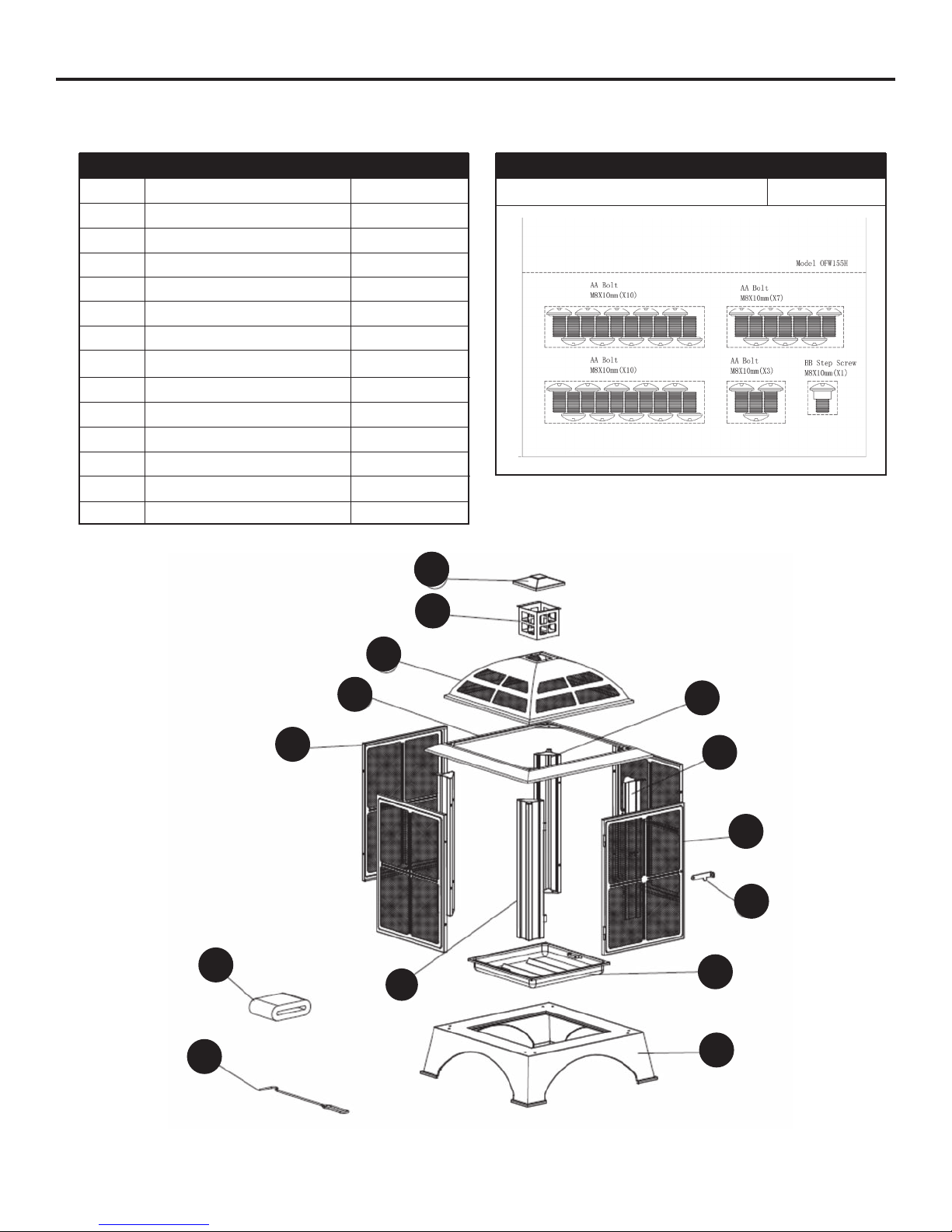

PACKAGE CONTENTS
C
MK
J
PART DESCRIPTION QUANTITY
A Chimney Cover 1
B Chimney 1
C Stove Body Cover 1
D Back Upright Column 2
E Screen Panel 3
F Right Upright Column 1
G Door Panel 1
PART DESCRIPTION QUANTITY
H Door Locker 1
I Left Upright Column 1
J Fire Bowl 1
K Base 1
L PVC Cover 1
M Poker 1
A
A
EF
B
D
I
H
G
L

3

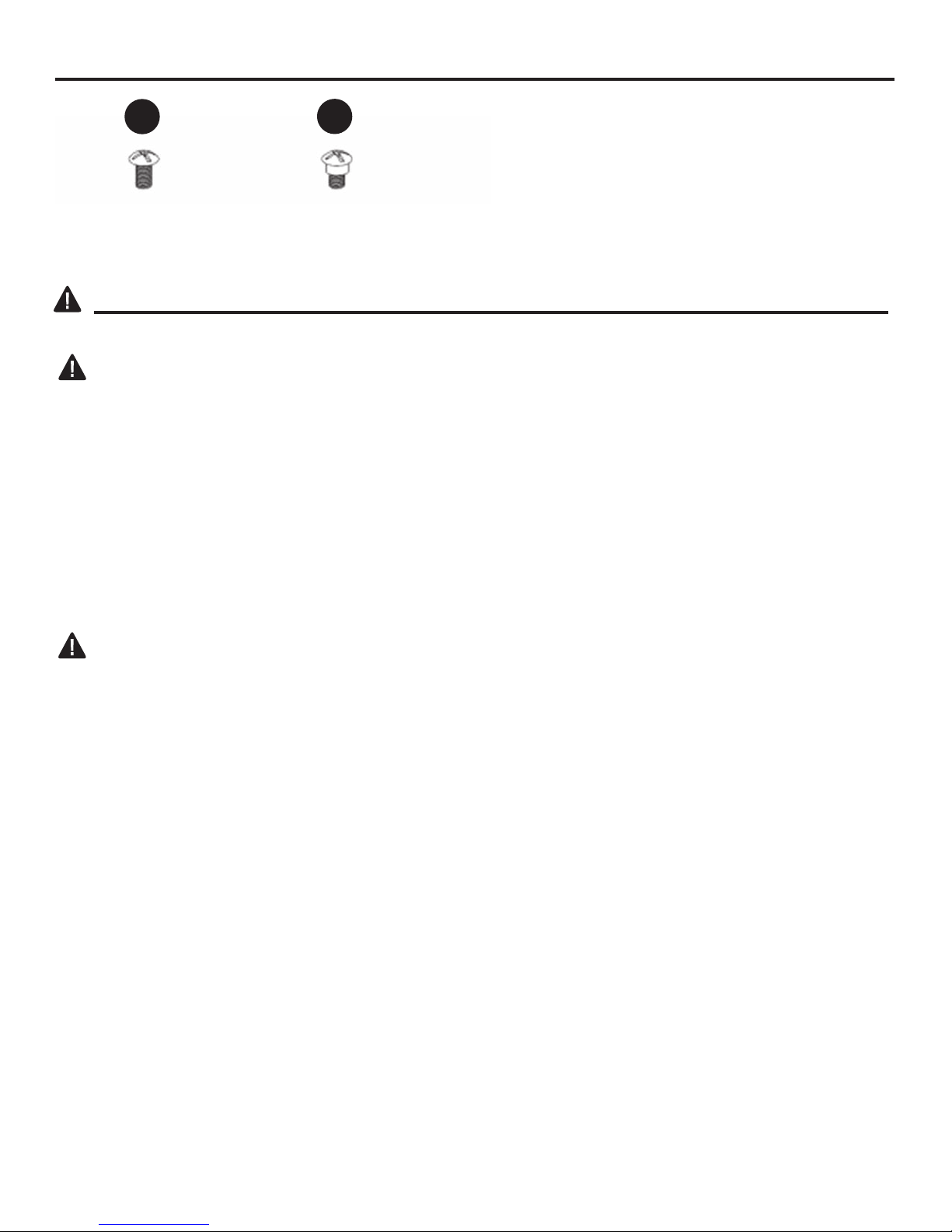

HARDWARE LIST
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNINGS:
•FOR OUTDOOR USE ONLY! Burning charcoal indoors can kill you. It gives off carbon monoxide,
which has no odor.
• NEVER LEAVE FIRE UNATTENDED!
 •DO NOTallowchildrenorpetsneartherepitwithoutsupervision.
• NEVER placevinylcoveronreplacewheninuse.
 •NEVER burn in vehicles, tents or indoors.
 •Whentherepitisinuse,thehandleonthemeshscreencanreachextremetemperaturesthat
can cause serious injury to an unprotected hand. Use a poker or an appropriate heat resistant
glove or pad when handling.
 •Toavoidmarringthenish,handlethesurfaceusingasoftclothinsteadofyourbarehands.
CAUTIONS:
 •Burnonlywood,charcoalorrelogsintherepit.
 •DO NOTusegasolineorkerosenetostartthereinyourrepit.
•DO NOT use this unit on a wood deck, long or dry grass and/or leaves, or on combustible surfaces.
 •DO NOTattempttomovetherepitwhileitishotorinuse.
 •Placetherepitnocloserthan8feetfromwallsorcombustiblesduringuse.
 •Adequatereextinguishingmaterialshouldbereadilyavailable.
 •Alwaysensurethatthedoorsaresecurelyclosedwhileinuse
 •Pokerhandlemaybecomehotduringandafteruse.
 •Useheat-resistantglovestohandlehottools.
PROPOSITION 65: Fuels used in gas or oil red appliances and the products of combustion of such fuels
contain chemicals known to the state of California to cause cancer, birth defects or other reproductive
harm. This product contains chemicals, including lead and lead compounds, known to the state of
California to cause cancer, birth defects or other reproductive harm. Wash hands after handling.
Consumers should check State and Provincial, in addition to local codes and regulations regarding the
use of the product.
SAFETY INFORMATION
Bolt M6x10mm
Qty. 30
Step Screw
M5x10mm
Qty. 1
AA BB

4
PREPARATION
ASSEMBLY INSTRUCTIONS
1. Attach Back Upright Columns (D), Left
Upright Column (I) and Right Upright
Column (F) to the Base (K) using
M6x10mm Bolts (AA).
 DONOTtighten.
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do
not attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 25 minutes
Tools Required for Assembly: Phillips Screwdriver (Not Included)
EE
I
AA
D
K
1
F
Hardware Used
AA M6x10mm Bolt x8

5
ASSEMBLY INSTRUCTIONS

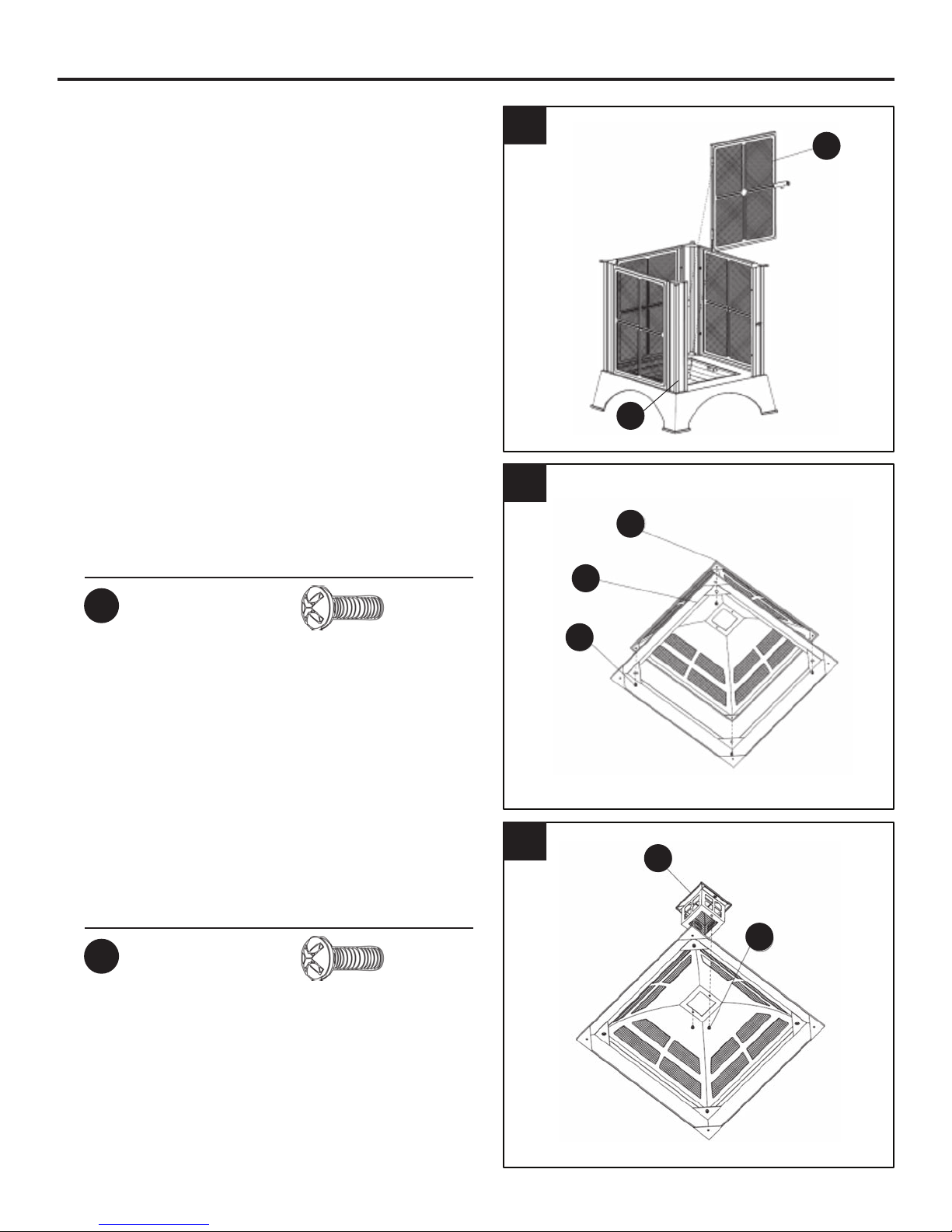

2. Place the Fire Bowl (J) into the Base (K).
3. Attach three Screen Panels (E) to
Upright Columns using M6x10mm
Bolts(AA).DONOTtighten.
2
J
3
AA
E
4. Attach Door Locker (H) to Door Panel (G)
 usingStepScrew(BB).Tightensecurely
with screwdriver (not included).
4
H
G
BB
Hardware Used
AA M6x10mm Bolt x 12
Hardware Used
BB M5 Step Screw x 1
K

6
ASSEMBLY INSTRUCTIONS
5. Slip the hinges on Door Panel (G) down over
the hinges on Left Upright (I) column.
 DONOTtighten.
6. Attach Chimney (B) to Stove Body Cover
 (C)usingM6x10mmBolts(AA).Tighten
securely with screwdriver (not included).
5G
6
AA
B
7. Attach Chimney Cover (A) to Chimney (B)
 usingM6x10mmBolts(AA).Tighten
securely with screwdriver (not included).
7A
AA
C
Hardware Used
AA M6x10mm Bolt x 4
Hardware Used
AA M6x10mm Bolt x 2
I

7
ASSEMBLY INSTRUCTIONS

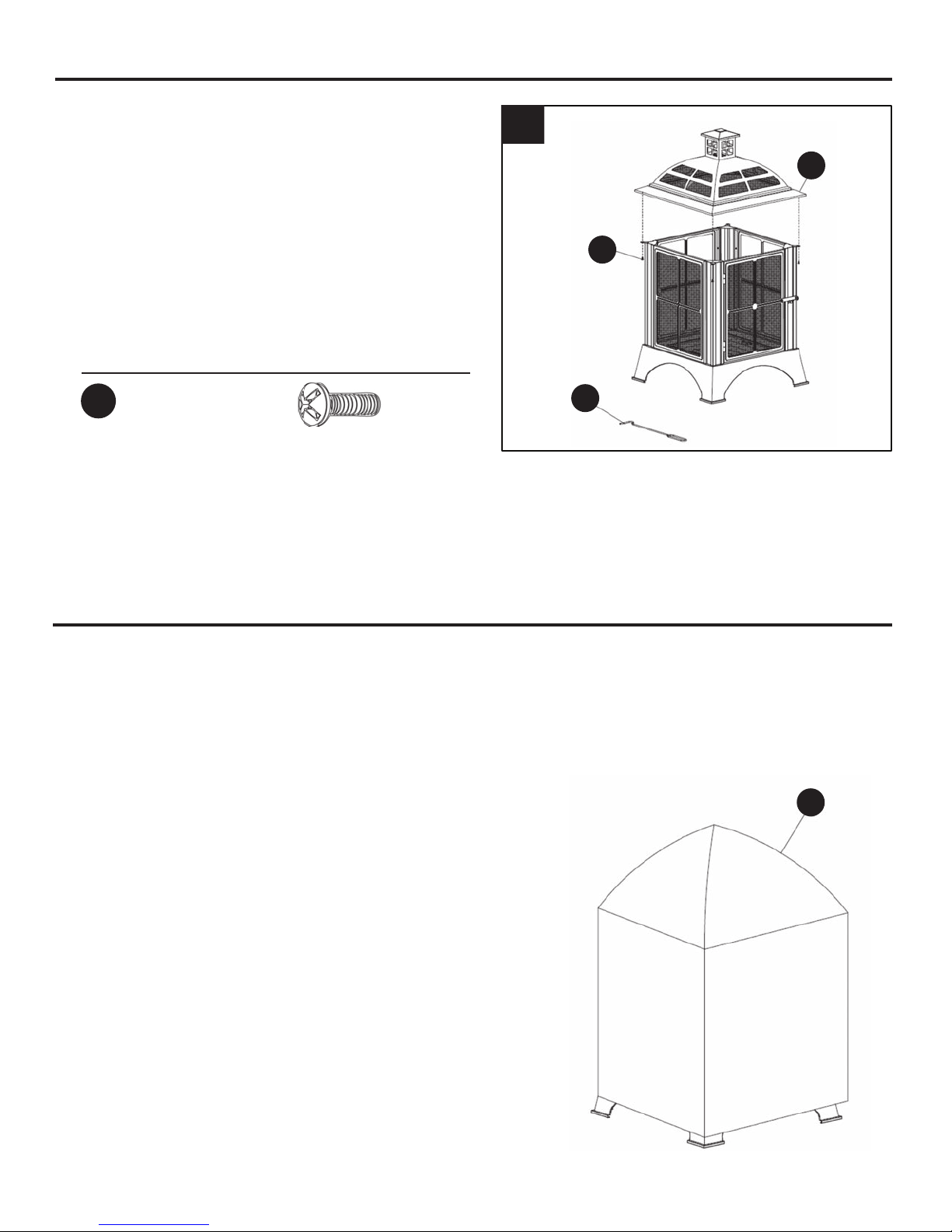

8.AttachStoveBodyCover(C)toUpright
 ColumnsusingM6x10mmBolts(AA).Tighten
all hardware with screwdriver (not included).
Putthepoker(M)besidetheassemblyre
house.Yourrehouseisnowreadyforuse.
Keeppoker(M)nearrepitforuseanytime.
8
AA
M
C

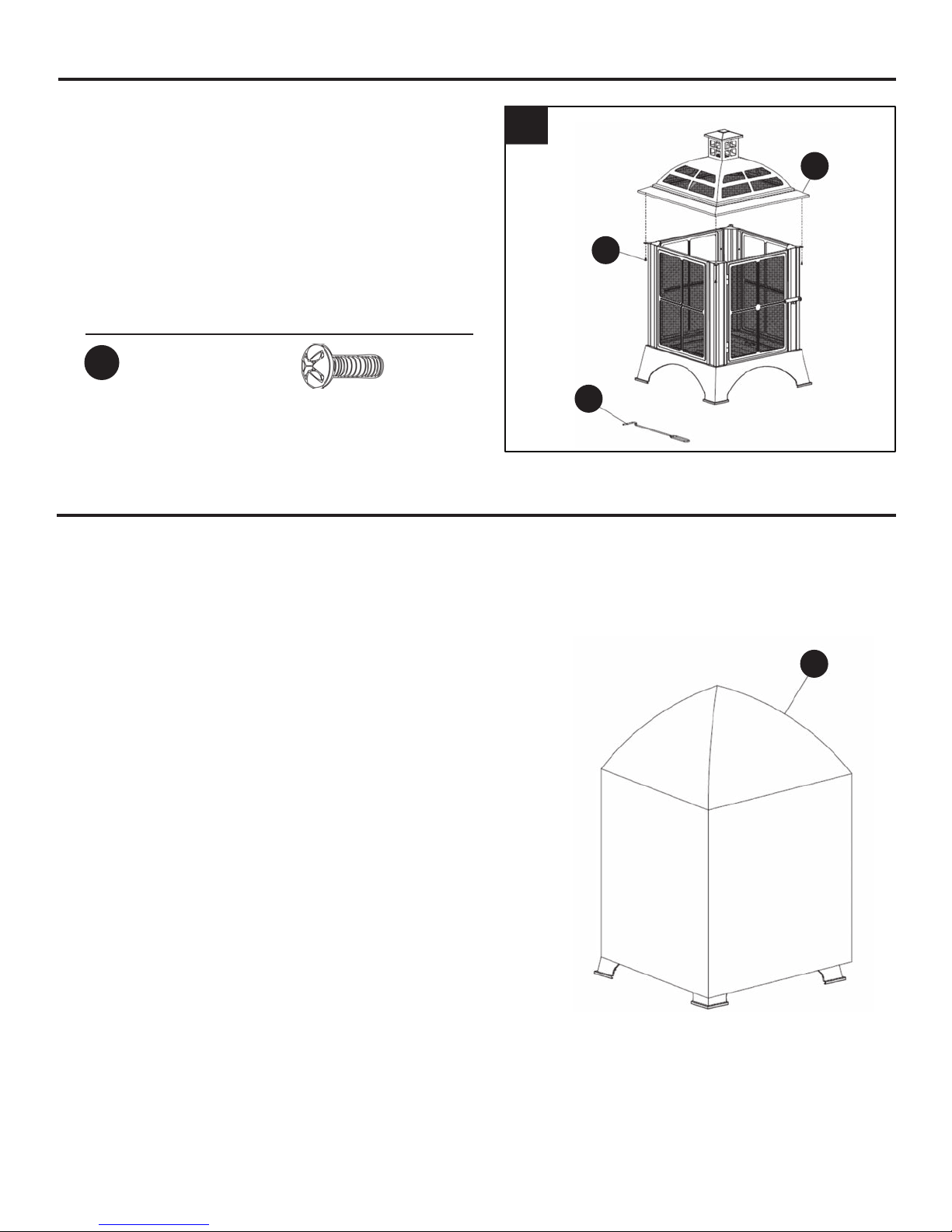

CARE AND MAINTENANCE
•Toextendthelifeofyourrepit,cleanitaftereachuseandusePVCcover(L)toprotecttheunit
from the elements.
•Toprotectrepitnish,useasoftclothinlieuofbarehandswhilehandling.
•Useasoftclothtowiperepitandpoker.
•Donotattempttocleanwhilehot.
•Cleanashcatcheraftereachuseonceasheshavecooled.
•Storeinacool,clean,dryplace.
L
Hardware Used
AA M6x10mm Bolt x 4

8
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m.,
CST, Monday – Friday.
30-10-023 Printed in China
A
A
A
A2
C
EF
B
L
G
J
H
I
K
PART DESCRIPTION PART #
A1 Chimney Cover Cap 30-06-132
A2 Chimney Cover Base 30-06-133
B Chimney 30-06-134
C Stove Body Cover 30-06-135
D Back Upright Column 30-06-136
E Screen Panel 30-06-137
F Right Upright Column 30-06-138
G Door Panel 30-06-139
H Door Locker 30-06-140
I Left Upright Column 30-06-141
J Fire Bowl 30-06-142
K Base 30-06-143
L PVC Cover 30-06-144
M Poker 30-06-145
PART DESCRIPTION PART #
HardwarePack 30-09-089
A
A
A
A1
M
D

9
