TO ACHIEVE OPTIMUM FUNCTION AND SAFETY, PLEASE READ THIS MANUAL BEFORE USINGYOUR FILTER.
Plymovent MW-lter is specially designed to handle oilmist from both emulsions and straight cutting uids.
The lter has a unique combination of different ltration methods.The captured oilmist passes a rotation-lter stage where most of the
mist condenses and is collected in the lter's separation chamber.
The next step is the main lter where the smallest particles of oilmist and fumes are separated.
Advantages
• Highefciencyrotationltration.
• Quickreplacementoflterswithouttools.
• Simpleinstallation.
• Compactdesign.
• Flexibleinstallationpossibilty.
• Minimumofmaintenace.
Mist Wizard
Filter unit product no Weight Filter area Inlet/Outlet Typical air volume Max air volume
Mistwizard MW-2 29lb/13kg 107,6ft²/10m² 6,3”/ 160mm 294cfm/500m³h
Accessories
Wall bracket MW-W 3,7lb/1,7kg
Fan Kit MW-FAN-KIT 3,3lb/1,5kg
Inlet with drain MW-INL 1,8lb/0,8kg 6,3”/ 160mm
Variable outlet MW-OUT 0,22lb/0,1kg 6,3”/ 160mm
Stand MW-STA 4,2lb/1,9kg
PA- Adapter MW-ADA 6,6lb/3,0kg
Stanchion 1100mm PA-110 37lb/17kg
Stanchion 2200mm PA-220 55lb/25kg
Y- connection MW-Y 100 2,4lb/1,1kg 4"/100mm
Y- connection MW-Y 125 3,1lb/1,4kg 5"/125mm
Suitable fans Noise level
3 phase FUA-1300 26,5lb/12,6kg <70dB(A) 6,3”/ 160mm
1 phase FUA-1301 28,6lb/13,2kg <70dB(A) 6,3”/ 160mm
Filter media Max air volume Initial pressure drop Max pressure drop
Oleofob -2 CART 2 OLE 7,5lb/3,4kg 107,6ft²/10m² 588cfm/1000m³/h 0,6"wg/150Pa 0,4"wg/1000Pa
Delivery
Filter cabinet complete with lter media and pressure guage
manometer.
Accessories has to be ordered separately.
The inlet/outlet connection are Ø 6,3"/160mm.
General
It is forbidden to use the lter in an explosive environment.
An ”oil mist lter” must never be used for gases or aerosols with a
temperature higher than 194°F/ +90°C.
TECHNICAL DESCRIPTION

0000117115/180618/A MistWizard EN - 3
MistWizard/ENG/USA/CAN/3/11
C
H
G
B
I
E
H
D
F
A
mm inches
A 542 21 11/32
B 642 25 13/32
C 428 16 27/32
D 390 15 13/32
E 597 23 17/32
F 442 17 13/32
G 165 6 1/2
H 159 6 1/4
I 10.5 13/32
J 572 22 1/5
K 1070 42 1/8
L 695 27 1/4
M 45 1 25/32
Model: MW-2 with FUA-1300
A
B
C
D
A
D
Model: MW-2
NOTE! If the lter unit with fan or without shall be connected to external duct system on ltrated air side a exible connection is needed
between the unit and duct system. MW-2: L= 600mm.

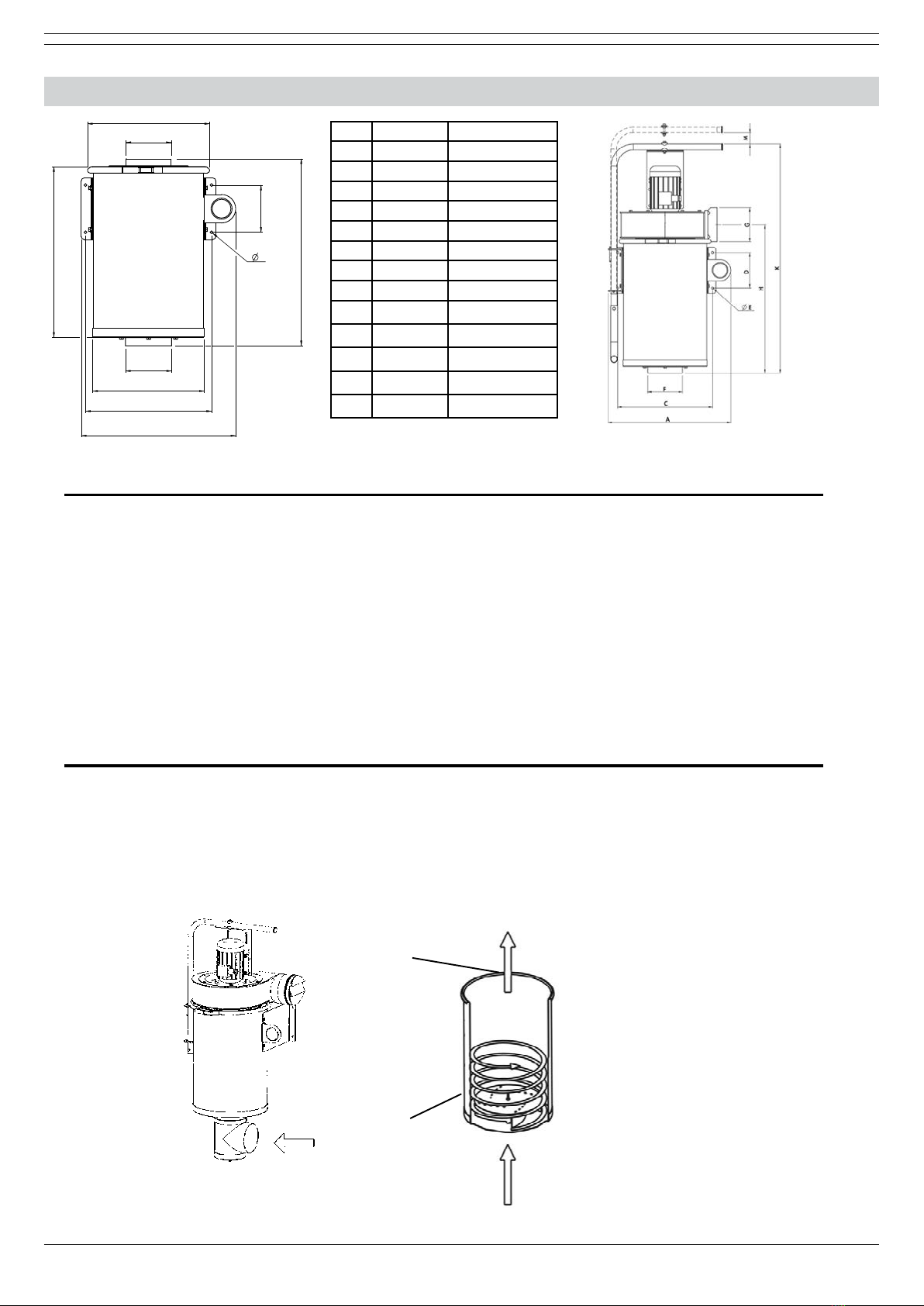

DIMENSIONAL DATA
Design and function
Plymovent Mist Wizard Filter is a highly effective mechanical lter for ltration of oil mist.The unique design
removes the oil mist in two stages.These are incorporated in order to maximize their effectiveness.
The collected liquids can be re-used or disposed.

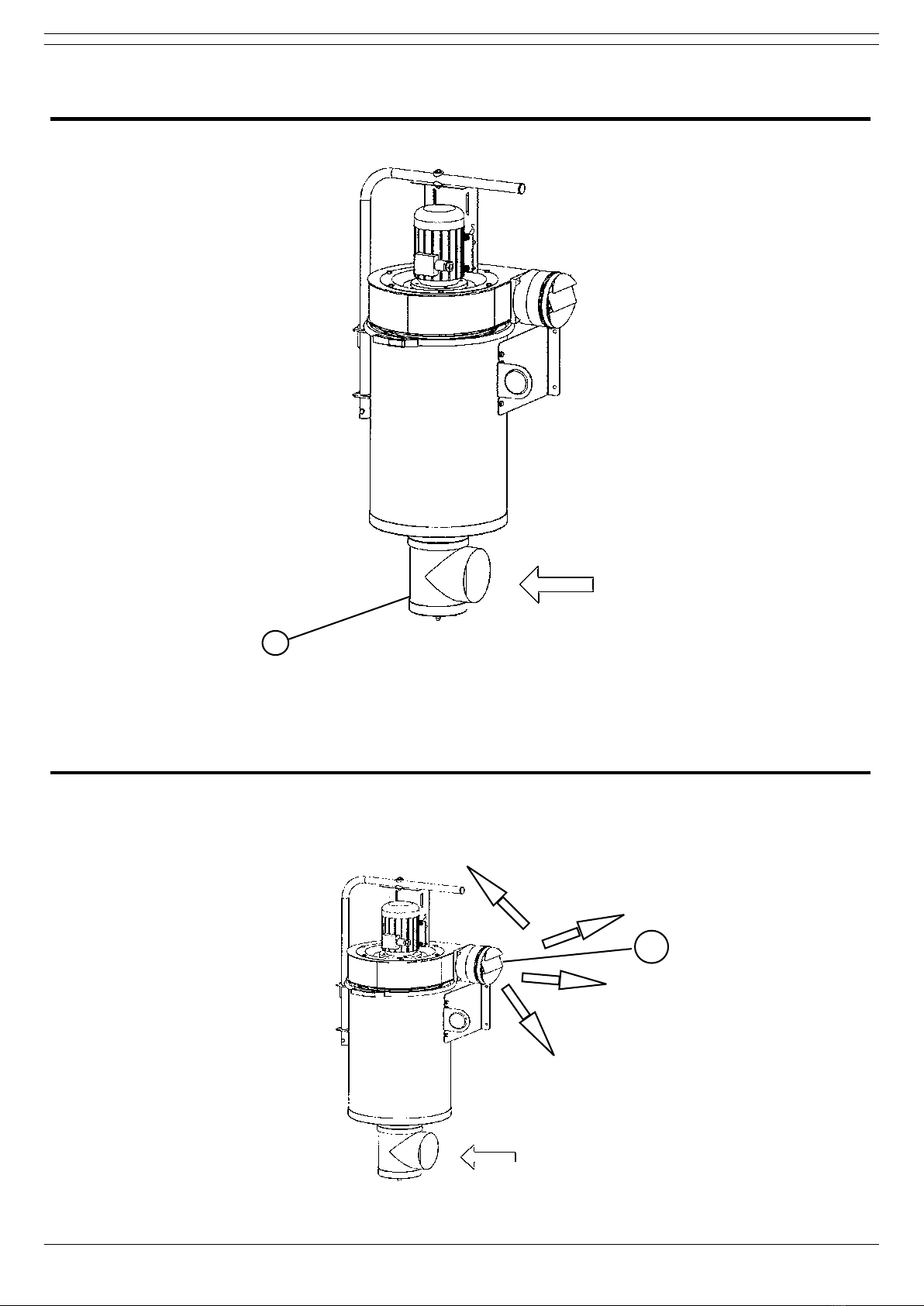

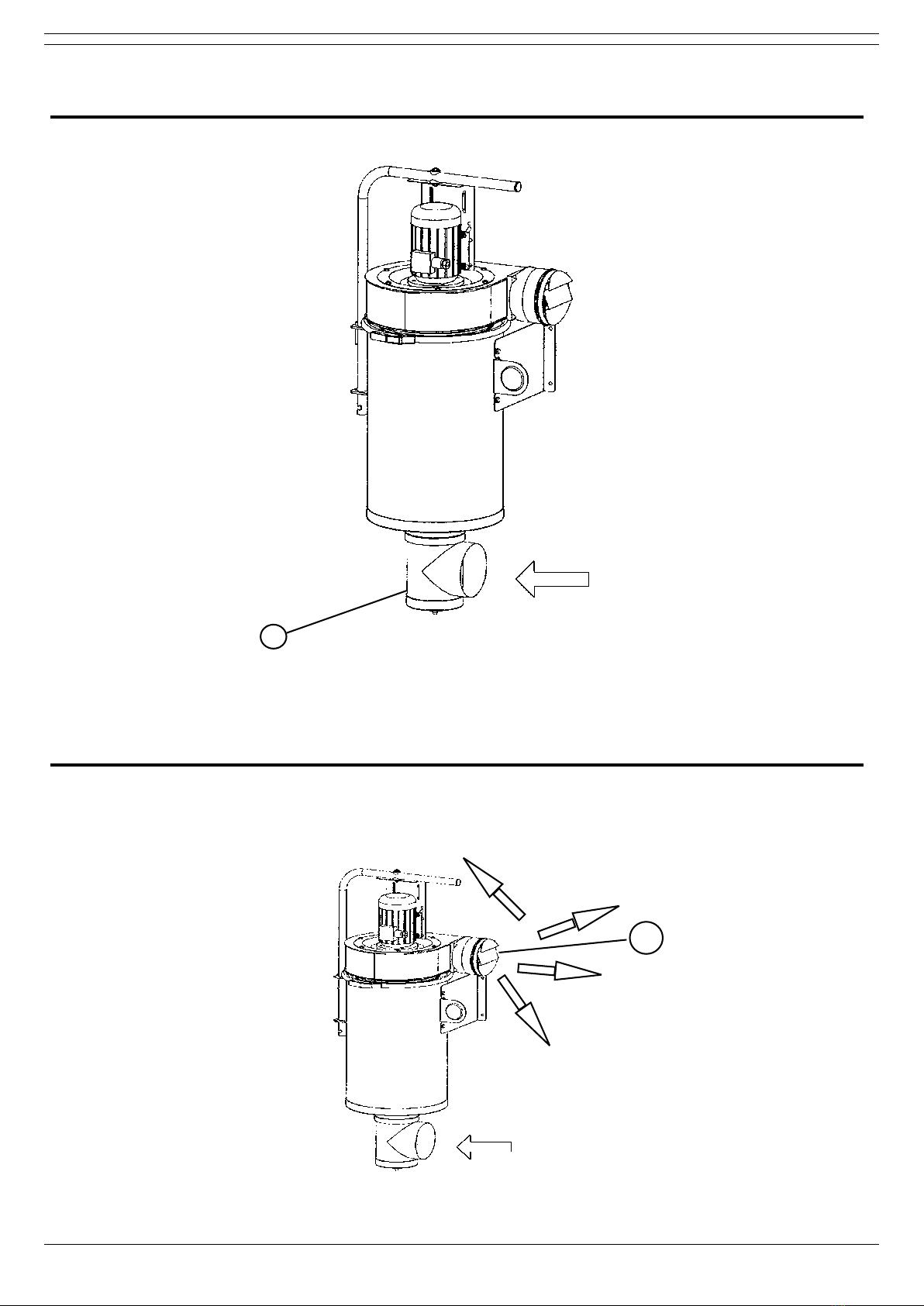

Filtration:
Polluted air (A) leads in the inlet, duct or hose and passes an air rotation separation stage (B) where separation of solid oil takes place by
centrifugal force.The main lter (C) separates the remaining oil particles from the air-stream (D).
Safety information:
1. Before replacing the lter cartridge always switch off the power to the fan.
(see separate information: Filter maintenance)
2. Be careful when lifting and turning away fan from the lter unit.
3. When replacing the lters, always use protective gloves and mask.
The collected oilmist may be dangerous to your health.
4. The lter must never be opened during operation.
5. All electrical maintenance must be carried out by an authorized electrician.

0000117115/180618/A MistWizard EN - 4
Price list CSS EUROPE 1-7-2013.
Description Type Specification Art. no.
FUA-1300 (215) 230V/1ph/50Hz 0000100300
FUA-1300 (435) 230-400V/3ph/50Hz 0000100302
MB-MW/W 0000100777
MW-FAN-KIT 0000100778
MB-MW/S1 0000100779
MB-MW/S2 0000100780
PA-110 1,1 m 0000101231
PA-110 PA-220 2,2 m 0000101234
PA-220
MW-INLET 0000100781
MW-OUTLET 0000100782
MW-WRAP/2 0000100293
360° adjustable outlet diffuser 45°
angle discharge. Outlet size Ø 160 mm.
Filter wrapper
Oil coalescer filter wrapper for MW-2.
Stanchion
Stanchion for ceiling, wall, floor or
bench mounting of a MistWizard.
MB-MW/S2 to be ordered separately.
Inlet
Inlet for 160 mm duct connection.
Includes drain loop kit and mounting
screws.
Outlet
Stand
Stand for elevated machine mounting.
Stand elevation 150 mm.
Stanchion mounting bracket
PA Stanchion mounting bracket. PA-110
and PA-220 to be ordered separately.
Mounting bracket
Wall mouting bracket for MistWizard.
Fan kit
Fan mounting kit. To be used with FUA-
1300.
MistWizard
OPTIONS and ACCESSORIES
Extraction fan
Extraction fan with radial impeller.
Speed of revolutions: 2800 rpm.
Outlet: Ø 160 mm.
1

0000117115/180618/A MistWizard EN - 5
MistWizard/ENG/USA/CAN/5/11
© Copyright 2008:All rights reserved.All information within this printed matter may not be reproduced,
handed over, copied,xeroxed or translated into another language in any form or means without written
permission from PlymoventAB.PlymoventAB reserves the right to make design changes.
Date: 10-09-24
Product no:
MW-2
Mist Wizard
1.
2.
440mm/17,32"
165mm/605"
1.
2.

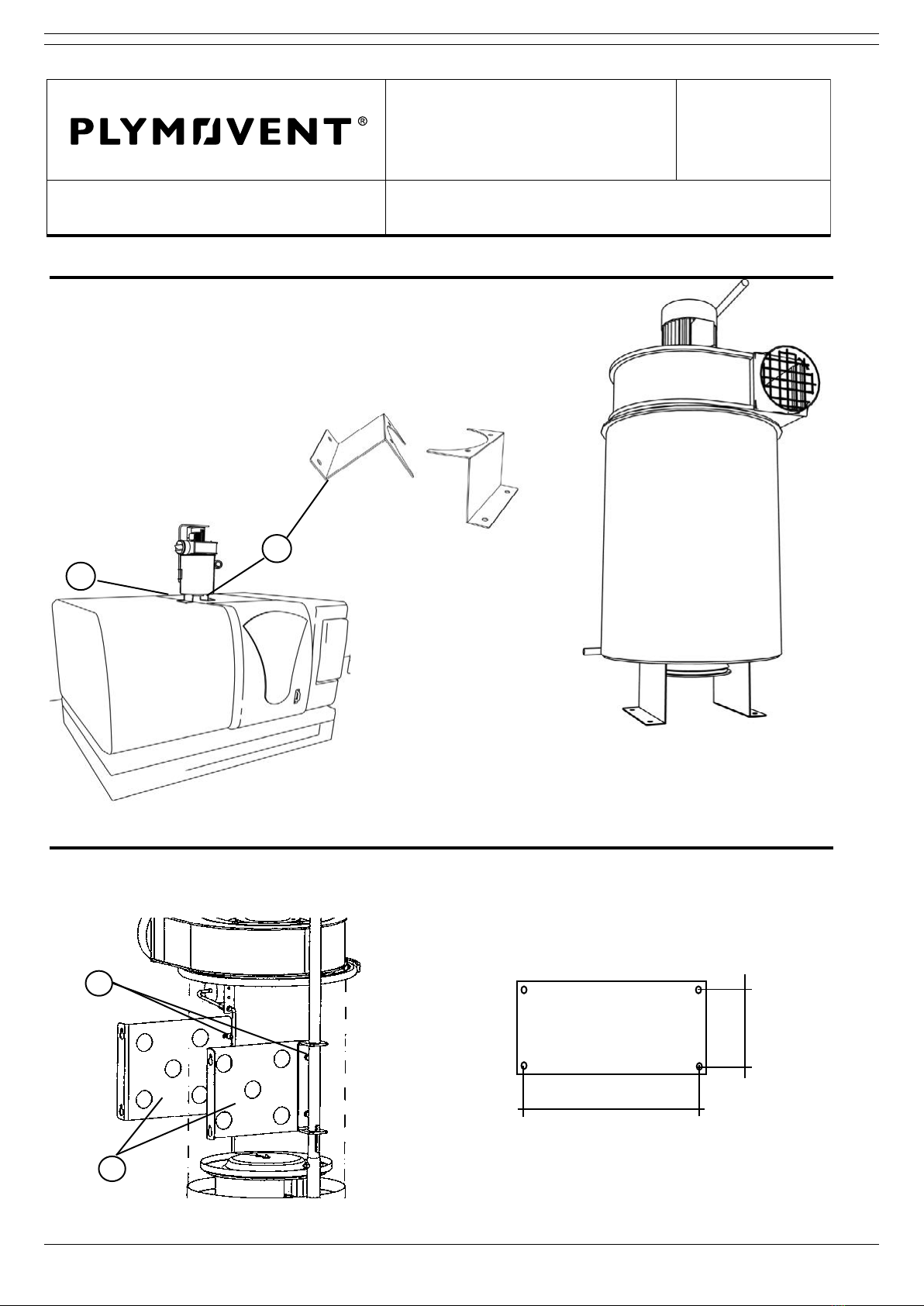

MOUNTING INSTRUCTION
To enter the machine (1.) a Ø165 opening is needed. Filter stand
MW-STA (2.) can be used (accessory).
Applicate brackets (1) to the lter unit by supplied hardwear (2), Note! M8x25 on
fan bracket side.
Direct mounting to machine:
Wall mounting of lter: MW-W
Hole pattern for wall mounting.
NOTE! If the lter unit shall be connected to an external
duct system on ltrated air side a exible connection is needed between
the unit and duct system to allow easy lter access.
MB-MW/S1

0000117115/180618/A MistWizard EN - 6
MistWizard/ENG/USA/CAN/6/11
1.
1.
To applicate inlet with drain: MW-INL
To applicate adjustable fan outlet: MW-OUT
Applicate inlet with drain (1) using supplied detailes.
Applicate adjustable outlet (1.) using supplied detailes.
MW-INLET
MW-OUTLET

0000117115/180618/A MistWizard EN - 7
MistWizard/ENG/USA/CAN/7/11
1.
2.
3.

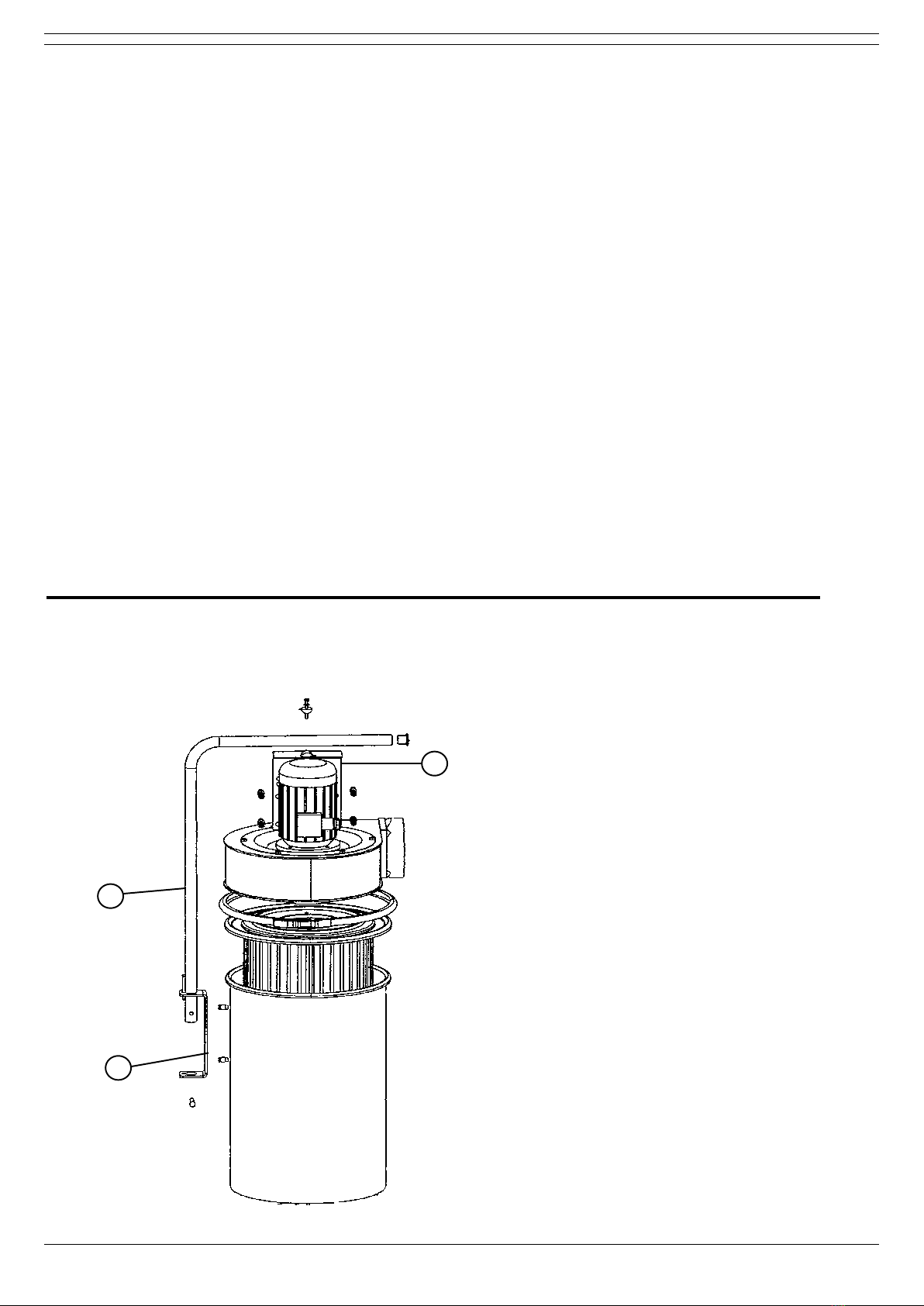

To mount fan direct on lter unit: MW-FAN-KIT
Applicate the bracket (1) to the fan motor, applicate the bracket (2) to the lter unit.
Applicate the tube (3) in to the bracket (2).
Put the fan on top of the lter unit and bolt tubing (3) to bracket (1).
Note! Bracket (1) universal for IEC and NEMA motors.
Note! When connected to an external ductwork, always use
a hose connection or other quick coupling between fan outlet and ducting to allow easy lter access.
To applicateY-connection: MW-Y100/ MW-Y125
Replace the inlet spigot withY-Connection.

0000117115/180618/A MistWizard EN - 8
MistWizard/ENG/USA/CAN/8/11
1.
2.
3.
4.
5.
1. MW-FAN-KIT
2. FAN: FUA-1300, 1301
3. CART OLE: Cartridge, oleofob.
4. Manometer.
5. MW-W:Wall mounting bracket.
Location for plastic spigot
without fan.
Location for plastic spigot
when using fan.
MB-MW/S1: wall mounting bracket

0000117115/180618/A MistWizard EN - 9
MistWizard/ENG/USA/CAN/9/11
© Copyright 2008:All rights reserved.All information within this printed matter may not be reproduced,
handed over, copied,xeroxed or translated into another language in any form or means without written
permission from Plymovent AB.PlymoventAB reserves the right to make design changes.
Date: 10-09-24
Product no:
MW-2
mist Wizard
E
D
A
B
C
5
10
15
20
0
0
2
4
6
8
MAINTENANCE INSTRUCTION
WHEN REPLACING OR WASHING THE FILTER, ALWAYS
USE PROTECTIVE GLOVES AND MASK.
1. Lift and turn fan (A) to the side (unit with fan), unlock the
lter cartridge lock (B).To detach the lter cartridge (C) lift
upwards.
2. Put the lter cartridge (C) to side.
3. Re-assemble the lter carefully - avoid touching the lter
media (D), check the sealing (E).
Main lter
Pressure drop check
Washing lter cartridge/ Replacing lter cartrige
Bad ltration or low airow, check differential pressure
manometer. If the value is 1000Pa/ 4"wg or higher it is
neccesary to wash or replace lter cartridge.

0000117115/180618/A MistWizard EN - 10
MistWizard/ENG/USA/CAN/10/11
© Copyright 2008:All rights reserved.All information within this printed matter may not be reproduced,
handed over, copied,xeroxed or translated into another language in any form or means without written
permission from PlymoventAB.PlymoventAB reserves the right to make design changes.
Date: 10-09-24
Product no:
MW-2
mist Wizard
1.
4.
2.
3.
5.
6.

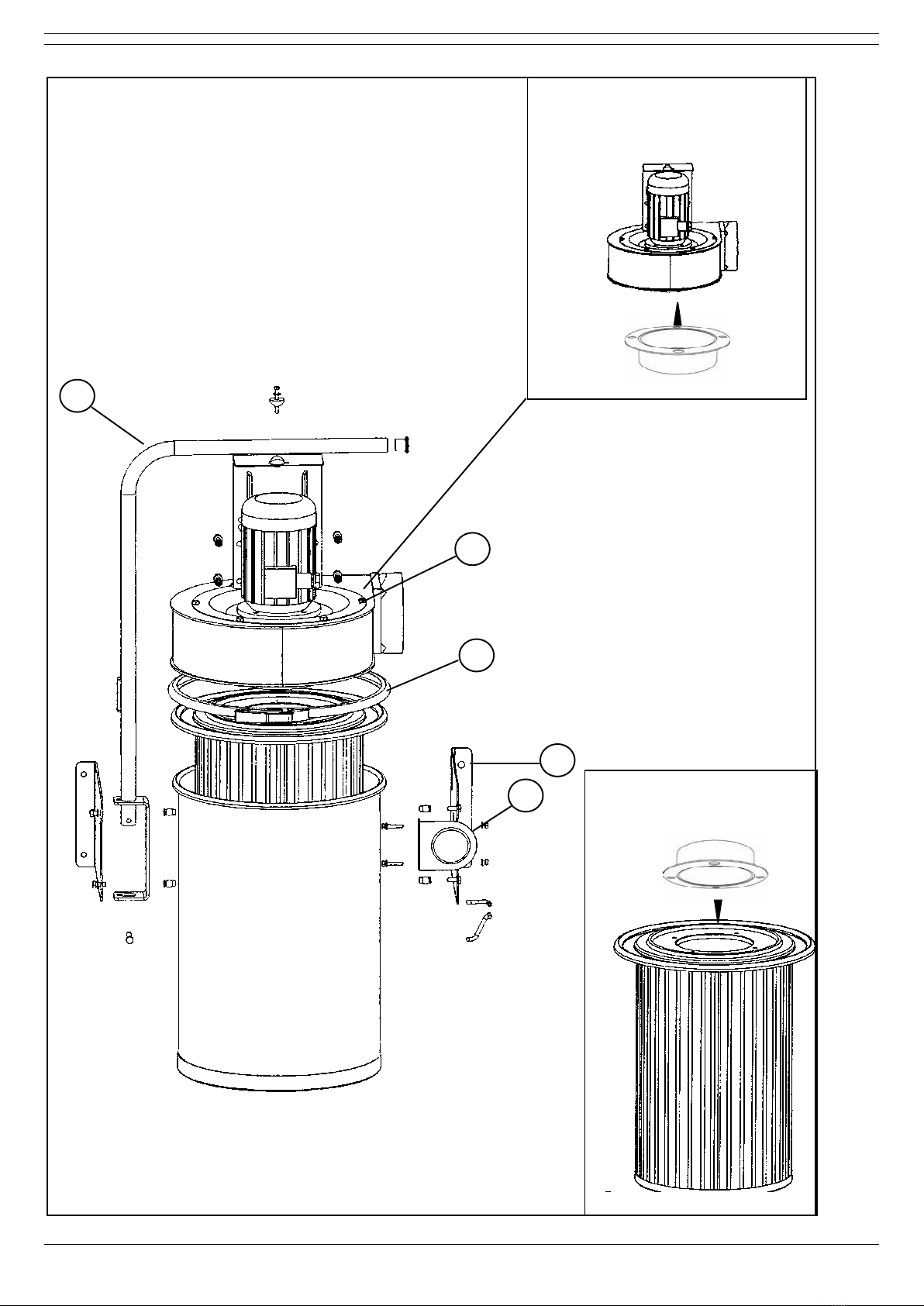

SPARE PART DRAWING
MistWizard/ENG/USA/CAN/10/11
© Copyright 2008:All rights reserved.All information within this printed matter may not be reproduced,
handed over, copied,xeroxed or translated into another language in any form or means without written
permission from Plymovent AB.PlymoventAB reserves the right to make design changes.
Date: 10-09-24
Product no:
MW-2
mist Wizard
1.
4.
2.
3.
5.
6.
SPARE PART DRAWING
MistWizard/ENG/USA/CAN/11/11
BSAB No: T3.1
SPARE PARTS LIST Ser. No: MW / RR
Date: FEB-11
Replace: Dec-01
Mist Wizard: MW-
Produkt No: Decription
A All models All models of MW
B MW-1
C MW-2
D
E
F
G
Abreviations
X = Order as requiered, state requiered length.
Pos Art. No: A B C D E F G Description Note
1 962 787 1 Clamp ring
2 6160-1011 1 CART-1-OLE incl Pre-filter
6170-1011 1CART-2-OLE incl Pre-filter
3 994 103 1 Manometer incl. hose connections from 03181
7773-1011 1 Complete manometer kit from 03181
4 505 826 1 Inlet Ø157mm/6,2"
5 985 945 X Hose for manometers 8mm/0,31"
6 6125-1011 1 WRAP-2 Prefilter for CART-2-OLE
When ordering spare parts please quote:
•Product No. (see label) • Batch No • Description • Part No • Quantity
For example:
MW, 00040, Clamp ring, 962 787, 1 pcs
© Copyright: All right reserved. All information within this printed matter may not be reproduced,
handed over, copied, xeroxed or translated into another language, in any form or any means without
written permission from PlymoVent AB. PlymoVent AB reserves the right to make design changes.
MultiMistFilter/Land/10/
MistWizard/ENG/USA/CAN/11/11
BSAB No: T3.1
SPARE PARTS LIST Ser. No: MW / RR
Date: FEB-11
Replace: Dec-01
Mist Wizard: MW-
Produkt No: Decription
A All models All models of MW
B MW-1
C MW-2
D
E
F
G
Abreviations
X = Order as requiered, state requiered length.
Pos Art. No: A B C D E F G Description Note
1 962 787 1 Clamp ring
2 6160-1011 1 CART-1-OLE incl Pre-filter
6170-1011 1CART-2-OLE incl Pre-filter
3 994 103 1 Manometer incl. hose connections from 03181
7773-1011 1 Complete manometer kit from 03181
4 505 826 1 Inlet Ø157mm/6,2"
5 985 945 X Hose for manometers 8mm/0,31"
6 6125-1011 1 WRAP-2 Prefilter for CART-2-OLE
When ordering spare parts please quote:
•Product No. (see label) • Batch No • Description • Part No • Quantity
For example:
MW, 00040, Clamp ring, 962 787, 1 pcs
© Copyright: All right reserved. All information within this printed matter may not be reproduced,
handed over, copied, xeroxed or translated into another language, in any form or any means without
written permission from PlymoVent AB. PlymoVent AB reserves the right to make design changes.
MultiMistFilter/Land/10/

0000117115/180618/A MistWizard SE - 11
MistWizard/ENG/USA/CAN/2/11
© Copyright 2008:All rights reserved.All information within this printed matter may not be reproduced,
handed over, copied,xeroxed or translated into another language in any form or means without written
permission from PlymoventAB.PlymoventAB reserves the right to make design changes.
Date: 10-09-24
Product no:
MW-2
MistWizard
FÖR ATT UPPNÅ OPTIMAL FUNKTION OCH SÄKERHET SKALL DENNA MANUAL LÄSAS
NOGGRANT INNAN FILTRET TAS I BRUK!
Plymovent MistWizard Filter är anpassat för att ltrera oljedimma från emulsioner eller raka skär-
oljor.
Filtret har en unik kombination av ltrering i olika steg. Den uppsamlade oljedimman passerar
rotations ltreringen där det mesta av oljedimman kondenseras och avskiljs. Nästa steg är huvudl-
tret där de minsta partiklarna av oljedimman och stoft avskiljs. MistWizard Filtret nns i två olika
storlekar vilket innebär stor exibilitet av luftöden.
Fördelar
• Högeffektivltreringierasteg.
• Enkeltattbytalter.
• Enkelattinstallera.
• Kompaktdesign
• Flexiblamonteringsmöjligheter
• Minimaltunderhåll.
MistWizard Filter
Leverans
Filterenheten levereras med ltermedia, äkt och differenstryckmätare.
Alla tillbehör måste beställas separat.
Filtrets in och utlopp är Ø160mm.
Allmänt
Fitret får aldrig användas i explosiv miljö. Filtret får inte användas
till
TEKNISK BESKRIVNING
Filter unit product no Weight Filter area Inlet/Outlet Typical air volume Max air volume
Mistwizard MW-2 29lb/13kg 107,6ft²/10m² 6,3”/ 160mm 294cfm/500m³h
Accessories
Wall bracket MW-W 3,7lb/1,7kg
Fan Kit MW-FAN-KIT 3,3lb/1,5kg
Inlet with drain MW-INL 1,8lb/0,8kg 6,3”/ 160mm
Variable outlet MW-OUT 0,22lb/0,1kg 6,3”/ 160mm
Stand MW-STA 4,2lb/1,9kg
PA- Adapter MW-ADA 6,6lb/3,0kg
Stanchion 1100mm PA-110 37lb/17kg
Stanchion 2200mm PA-220 55lb/25kg
Y- connection MW-Y 100 2,4lb/1,1kg 4"/100mm
Y- connection MW-Y 125 3,1lb/1,4kg 5"/125mm
Suitable fans Noise level
3 phase FUA-1300 26,5lb/12,6kg <70dB(A) 6,3”/ 160mm
1 phase FUA-1301 28,6lb/13,2kg <70dB(A) 6,3”/ 160mm
Filter media Max air volume Initial pressure drop Max pressure drop
Oleofob -2 CART 2 OLE 7,5lb/3,4kg 107,6ft²/10m² 588cfm/1000m³/h 0,6"wg/150Pa 0,4"wg/1000Pa

0000117115/180618/A MistWizard SE - 12
MistWizard/ENG/USA/CAN/3/11
C
H
G
B
I
E
H
D
F
A
mm inches
A 542 21 11/32
B 642 25 13/32
C 428 16 27/32
D 390 15 13/32
E 597 23 17/32
F 442 17 13/32
G 165 6 1/2
H 159 6 1/4
I 10.5 13/32
J 572 22 1/5
K 1070 42 1/8
L 695 27 1/4
M 45 1 25/32
Model: MW-2 with FUA-1300
A
B
C
D
A
D
Model: MW-2 DIMENSIONERINGSDATA
Uppbyggnad och funktion:
Säkerhets information:
1. Bryt alltid strömmen före byte av lterkassett eller rengöring av lter. ( se instruktion lterbyte )
2. Iaktag försiktighet vid öppnande av lter och lyft av äkt.
3. Använd alltid skyddshandskar och andningsskydd vid byte eller rengöring av lter.
Den uppsamlade oljedimman kan vara farlig för hälsan.
4. Filtert får aldrig öppnas under drift.
5. All elektrisk service skall göras av behörig elektriker.
Plymovent MistWizard Filter är ett högeffektivt mekaniskt oljedimlter. En unik konstuktion renar oljedimma i två steg.
Filtreringen sker i sådan ordning att effektiviteten i oljedimavskiljningen maximeras. Den uppsamlade oljedimman dräneras
direkt ned i maskinen eller samlas upp. Den uppsamlade oljan kan återanvändas eller deponeras.
Filtrering
Förorenad luft ( A ) leds direkt in i inloppet eller via slang/kanaler till rotationsltreringen ( B ). Där avskiljs tunga och
stora oljepartiklar. Luften leds vidare upp i steg två (C). Detta huvudlter renar bort dom återstående oljepartiklarna ur
den renade luften (D).
NOTE! If the lter unit with fan or without shall be connected to external duct system on ltrated air side a exible connection is needed
between the unit and duct system. MW-2: L= 600mm.

0000117115/180618/A MistWizard SE - 13
Price list CSS EUROPE 1-7-2013.
Description Type Specification Art. no.
FUA-1300 (215) 230V/1ph/50Hz 0000100300
FUA-1300 (435) 230-400V/3ph/50Hz 0000100302
MB-MW/W 0000100777
MW-FAN-KIT 0000100778
MB-MW/S1 0000100779
MB-MW/S2 0000100780
PA-110 1,1 m 0000101231
PA-110 PA-220 2,2 m 0000101234
PA-220
MW-INLET 0000100781
MW-OUTLET 0000100782
MW-WRAP/2 0000100293
360° adjustable outlet diffuser 45°
angle discharge. Outlet size Ø 160 mm.
Filter wrapper
Oil coalescer filter wrapper for MW-2.
Stanchion
Stanchion for ceiling, wall, floor or
bench mounting of a MistWizard.
MB-MW/S2 to be ordered separately.
Inlet
Inlet for 160 mm duct connection.
Includes drain loop kit and mounting
screws.
Outlet
Stand
Stand for elevated machine mounting.
Stand elevation 150 mm.
Stanchion mounting bracket
PA Stanchion mounting bracket. PA-110
and PA-220 to be ordered separately.
Mounting bracket
Wall mouting bracket for MistWizard.
Fan kit
Fan mounting kit. To be used with FUA-
1300.
MistWizard
OPTIONS and ACCESSORIES
Extraction fan
Extraction fan with radial impeller.
Speed of revolutions: 2800 rpm.
Outlet: Ø 160 mm.
1

0000117115/180618/A MistWizard SE - 14
MistWizard/ENG/USA/CAN/5/11
© Copyright 2008:All rights reserved.All information within this printed matter may not be reproduced,
handed over, copied,xeroxed or translated into another language in any form or means without written
permission from PlymoventAB.PlymoventAB reserves the right to make design changes.
Date: 10-09-24
Product no:
MW-2
Mist Wizard
1.
2.
440mm/17,32"
165mm/605"
1.
2.
MONTERINGSANVISNING
Markera hål och hålbild för montage på maskin (1) och genomför håltagning,
Ø165mm är lämpligt.
Stativ MW-STA(2.) kan med fördel användas (tillbehör).
OBS! Om lter/ Fläkt skall monteras till frånluftkanal skall slang eller annan
typ av snabbkoppling användas mellan lter/ äkt och kanalsystem.
Montera väggfästen (1) till lterenheten med medföljande
fästelement (2), OBS! M8x25 äktfästesida.
Filter placering på vägg: MW-W
Direktmontera på maskin
Hålbild för väggplacering.
MB-MW/S1

0000117115/180618/A MistWizard SE - 15
MistWizard/ENG/USA/CAN/6/11
1.
1.
Montering av inlopp med dränering: MW-INL
Montering av justerbart utlopp: MW-OUT
Montera inloppet (1) med medlevererade detaljer.
Montera justerbara utloppet (1.) med medlevererade detaljer.
MW-INLET
MW-OUTLET

0000117115/180618/A MistWizard SE - 16
MistWizard/ENG/USA/CAN/7/11
1.
2.
3.
Direktmontera äkt på ltret: MW-FAN-KIT
Montera fäste (1) till ätmotor, montera fäste (2) till lterhus.
Montera rör (3) till fäste (2).
Placera äkten uppe på lterenheten och montera
samman rör (3) och fäste (1).
OBS! Fäste (1) passar era typer av motorer.
OBS! När utloppet skall anslutas till extern kanal
måste slang eller annan typ av snabbkoppling
monteras mellan kanal och
äktens utlopp.
Montering av manometer: MW-Y100/ MW-Y125
Demontera bef. anslutningsstos och ersätt med MW-Y

0000117115/180618/A MistWizard SE - 17
MistWizard/ENG/USA/CAN/8/11
1.
2.
3.
4.
5.
1. MW-FAN: Fläkt kit.
2. FLÄKT:FUA-1300, 1301
3. CART OLE: Filterpatron oleofob.
4. Manometer.
5. MW-W:Väggmonteringsdetaljer.
Placering av plaststos när
äkt skall monteras.
Placering av plaststos när äkt
ej används.
MB-MW/S1: väggmonteringsdetaljer

0000117115/180618/A MistWizard SE - 18
MistWizard/ENG/USA/CAN/9/11
© Copyright 2008:All rights reserved.All information within this printed matter may not be reproduced,
handed over, copied,xeroxed or translated into another language in any form or means without written
permission from Plymovent AB.PlymoventAB reserves the right to make design changes.
Date: 10-09-24
Product no:
MW-2
Mist Wizard
E
D
A
B
C
5
10
15
20
0
0
2
4
6
8
SKÖTSELANVISNING
VID BYTE ELLER TVÄTTNING AV FILTER ANVÄNDALLTID
ANDNINGSSKYDD OCH SKYDDSHANDSKAR.
1. Lyft upp och sväng undan äkten (A), lås upp patronlterlå-
set (B), lyft upp och ställ ltret (C) vid sidan.
2. Återmontera ltret i omvändordning (OBS se till att inte
skada tätningslisten (E) eller ltermediat (D).
Huvudlter
Differenstryck kontroll
Tvättning/ byte av lter
Lågt öde eller försämrad ltrering, kontrollera tryck-
mätaren. Om mätaren visar 1000Pa eller mer måste
ltret tvättas eller bytas.

www.plymovent.com
0000117115/180618/A MistWizard
