PNI B3000 User manual

2.4GHz Wireless Digital Audio Baby Monitor
PNI B3000

-1-

CONTENTS
Introduction……………………………………………………………………3
Safety…………………………………………………………………………3
Package included………………………………………………………………4
Features of the units……………………………………………………………5
Operations ……………………………………………………………………6
Pairing……………………………………………………………………7
Some points to remember………………………………………………………8
Trouble Shooting……………………………………………………………9
Specifications………………………………………………………………10
-2-

INTRODUCTION:
The Baby monitor has been designed to help you look after your baby and is not
Intended as a tool for substituting the adults’ supervision & care in any circumstances.
The Baby Monitor is a portable monitoring system with the following features:
- 2.4Ghz Wireless Digital Audio baby Monitor
- Transmission range: 300m (in open area)
- Two-way communication
- Low Interference with high privacy
- High sensitivity microphone
- VOX function
- Volume adjustment
- Out of range LEDs with sound alert
- Low battery LED alert
- Three LEDs on parent unit indicate the noise level in baby room
- With Silicone cover on the LEDs to make the light diffuse comfortabily and softly
- USB adaptor operated for both units
- Battery operated for both units
Transmitter: AAA normal battery
Receiver: AAA normal battery
- Belt clip for the receiver
- Night Light on the Baby unit and the night light can be turned on / off by baby or parent unit
Safety:
For your safety, please use the provided power adaptors. (The manufacturer will not be
responsible to any loss incurred by not using the manufacturer’s provided power
adaptors).
To reduce the risk of fire or electric shock, do not expose this baby monitor to rain or
moisture.
Connect the baby monitor to an easily accessible AC outlet. Should you notice an
abnormality in the device, disconnect the main plug from the AC outlet immediately.
DON’T disassemble the casing in order to avoid the risk of the electric shock.
Refer servicing to qualified personnel only.
DON’T use the damaged power adaptors.
DON’T interfere the plug of power adaptors with conductors, e.g. with rings.
Warning:
Battery may explode if mistreated.
Do not recharge, disassemble or dispose of in fire.
-3-

Package included:

Baby unit x 1 pc

Parent unit x 1 pc

Power adaptors x 2 pcs

Intruction manual x 1 pc
Main features:

-4-

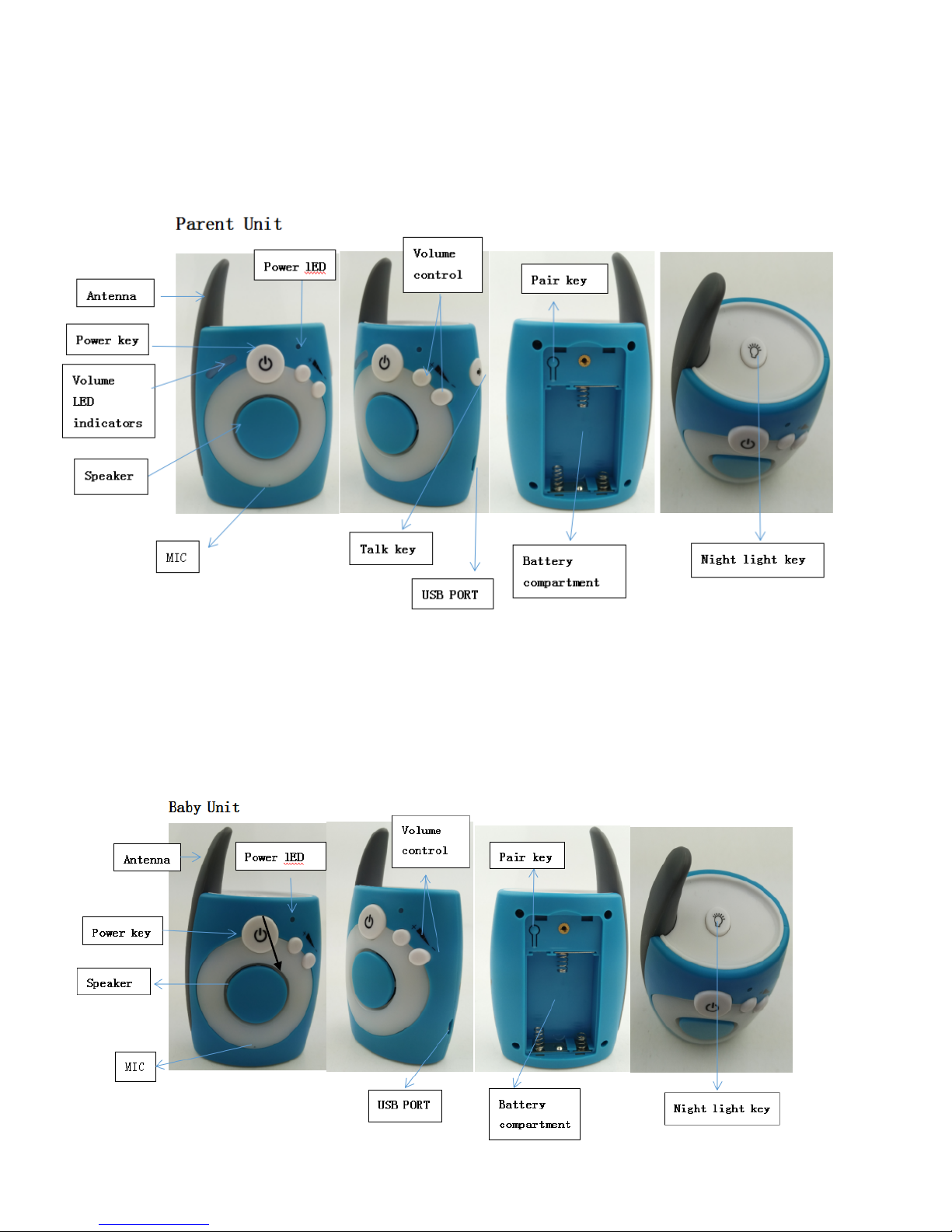

Features of Units:
Parent Unit
Baby Unit
-5-

Operation:
Connect both the parent unit and the baby unit to the provided power adaptors
or battery. Switch power key upward. The power LED will be on in green color。
·
Wait for around 2 seconds. The baby unit and the parent unit will pair
automatically. Once the pairing is successful, the volume LED indicators
will flash. Put the baby unit in the baby room and keep it from the baby
at 2m distance. Parents can hear the baby voice with the receiver .If the
parent unit volume is too small,adjust the volume. The volume LEDs indicate
the sound level of the baby.
·
In extreme case, eg.serious interference or very poor signal or signal
loss in operation, you can try to change the channel by pressing the pairing
button in the baby unit battery compartment. The baby and parent units
will search an interference-free channel to continue the operation.（Avoid
doing it under good transmission）
-6-
Press the button

Pairing:
Under the normal situation, the units are well paired by the manufacturer. To
do the pairing by users is a really accidental incidence. You have to do that
if the parent unit (receiver) loses the signal from the baby unit (transmitter).
Procedures：
1)
Press the pairing button in the battery compartment of both baby and parent
units simultaneously by a pin and hold it（refer to the below pic）
2)
Turn on both units.
3)
Release the pairing button after one second.
4)
When seeing the volume LEDs flash, this means the pairing is successful.
-7-
Pair key

Some points to remember:
Battery Power.
For both units, receiver and transmitter:
1) Use exclusively AAA size 1.5V alkaline batteries ( 6pcs required, but not included)
2) Unscrew the screw of the battery compartment, take the lid off and insert the batteries
with right polarity.
3) Put the lid back, screw in the screw and check that it is perfectly closed.
4) Switch the unit on and check that the power LED is on and in green.
Electricity power.
The Baby monitor can operate by batteries as well as by power adaptors.
1) Insert the power adaptor into AC outlet.
2) If your outlet has a security switch, make sure it is on.
3) Switch the unit on and check that the power LED is on and in green.
Low battery indicator and Out of range alert :
When battery becomes weak, the power LEDs of the units turn into red color . It is time to
replace for a new battery. So for long hours use, it is advisable to use power adaptor.
If the receiver is too far from transmitter, the system cannot work properly. You will hear
“ beep beep” sound which is Out of range alert. Meanwhile the volume LEDs flash . In this
case, you have to put the two units nearer to each other.
If the receiver is too close to the transmitter, an acoustic feedback might be heard. In this
case, you have to put the two units farther from each other, or turn down the volume of the
receiver.
A background noise from the receiver may signal that the batteries are exhausting and they
need to be replaced. Check that if power LED turns into orange color, it means they need to
be replaced.
-8-

Trouble shooting
Trouble
Solution
Hearing much background
noise when operating the
baby monitor with
batteries.
Please check if the battery becomes weak. It is
better to replace for a new battery if power LED
turns into orange color
No response from the
receiver suddenly.
If there is no voice from the baby unit surrounding,
the baby unit will stop transmitting the signal
to the parent unit. The parent unit is in VOX mode
(standby mode). When there is voice again from the
baby unit, it will trigger the parent unit to work
again.
Poor signal
Please make sure the baby & parent units are not out
of range. In extreme case, you can try to change
the channel or to do re-pairing.
-9-

Specifications:
Product Specification
Item Value
TRANSMITTER
Transmission Frequency 2400MHz-2480MHz
Transmission Power 20dBm
Unobstructed Effective Range 400M
Operating Temperature 0℃-50℃
Storage Temperature 25℃
Operating Humidity 20％-80％RH
Modulation Mode FHSS
Consumption Current min:25mA max:100mA
Power Supply DC5V 1000mA
RECEIVER
Transmission Frequency 2400MHz-2480MHz
Transmission Power 20dBm
Unobstructed Effective Range 400M
Operating Temperature 0℃-50℃
Storage Temperature 25℃
Operating Humidity 20％-80％RH
Modulation Mode FHSS
Audio output 300mW
Consumption Current min:50mA max:120mA
Power Supply DC5V 1000mA
Receiving Sensitivity -88dBm
