PNI Turbo Heat 2000W User manual

Convection heater PNI Turbo Heat 2000W
User manual

1
Brief introduction:
The convector PNI Turbo Heat adopts convection heating technology with a high
heating efficiency.
Main features:
- 3 selectable power levels
- Turbo, Timer, Adjustable thermostat
Technical features:
- Power: 2000W
- Voltage: 220V
- Frequency: 50Hz
- Noise level (with Turbo ON): 55 dB
- Dimensions / Weight: 650x170x420mm / 3.18 kg
The convector has a reasonable foot structure not easy to be toppled by
accident.

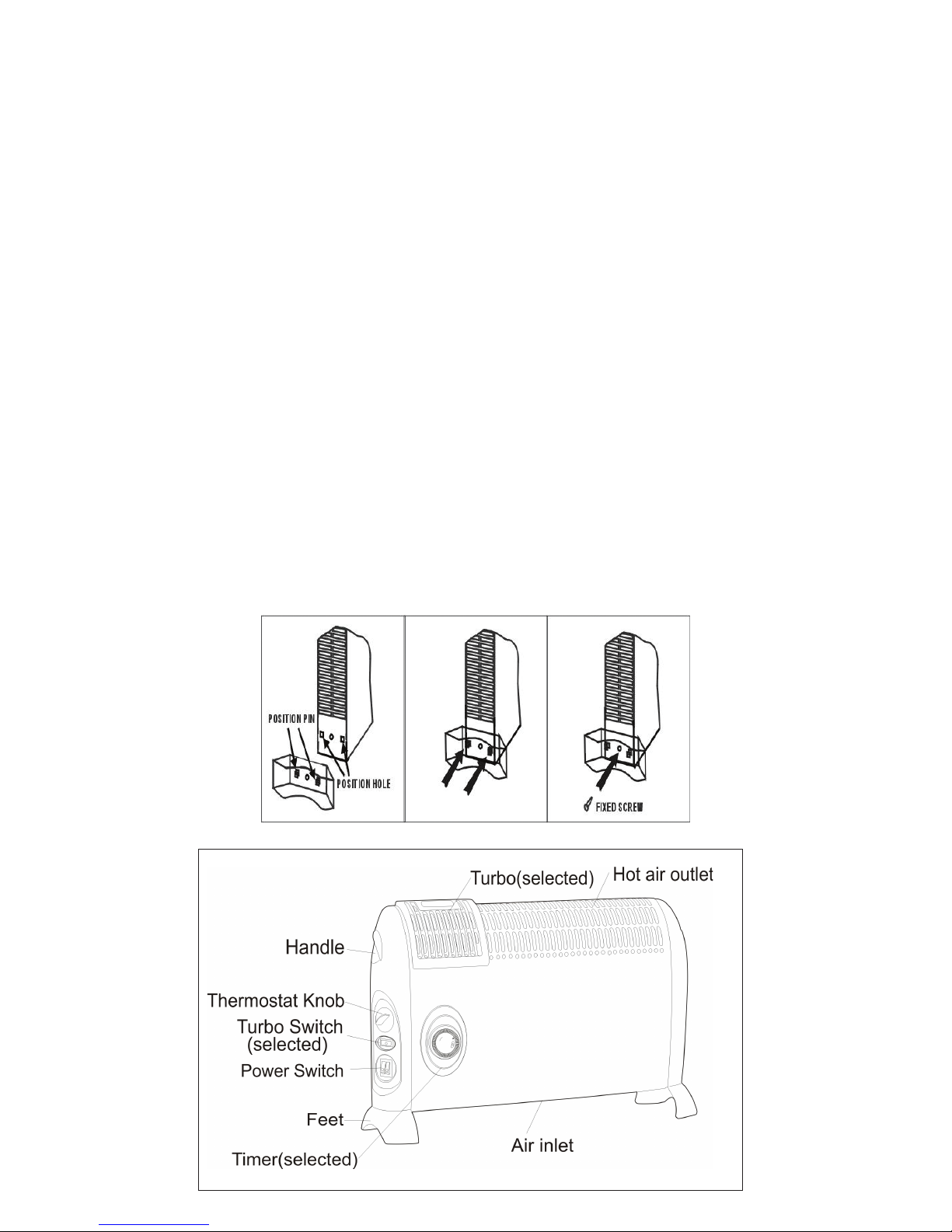

Assemble before use:
Please assemble the feet and the body in the order given in the picture below.
1.Place the convector on the flat surface.
2. Insert the 4 position pins of the feet into the position holes of the body
3. Tight the screw to connect body and feet.
Components:
1

2

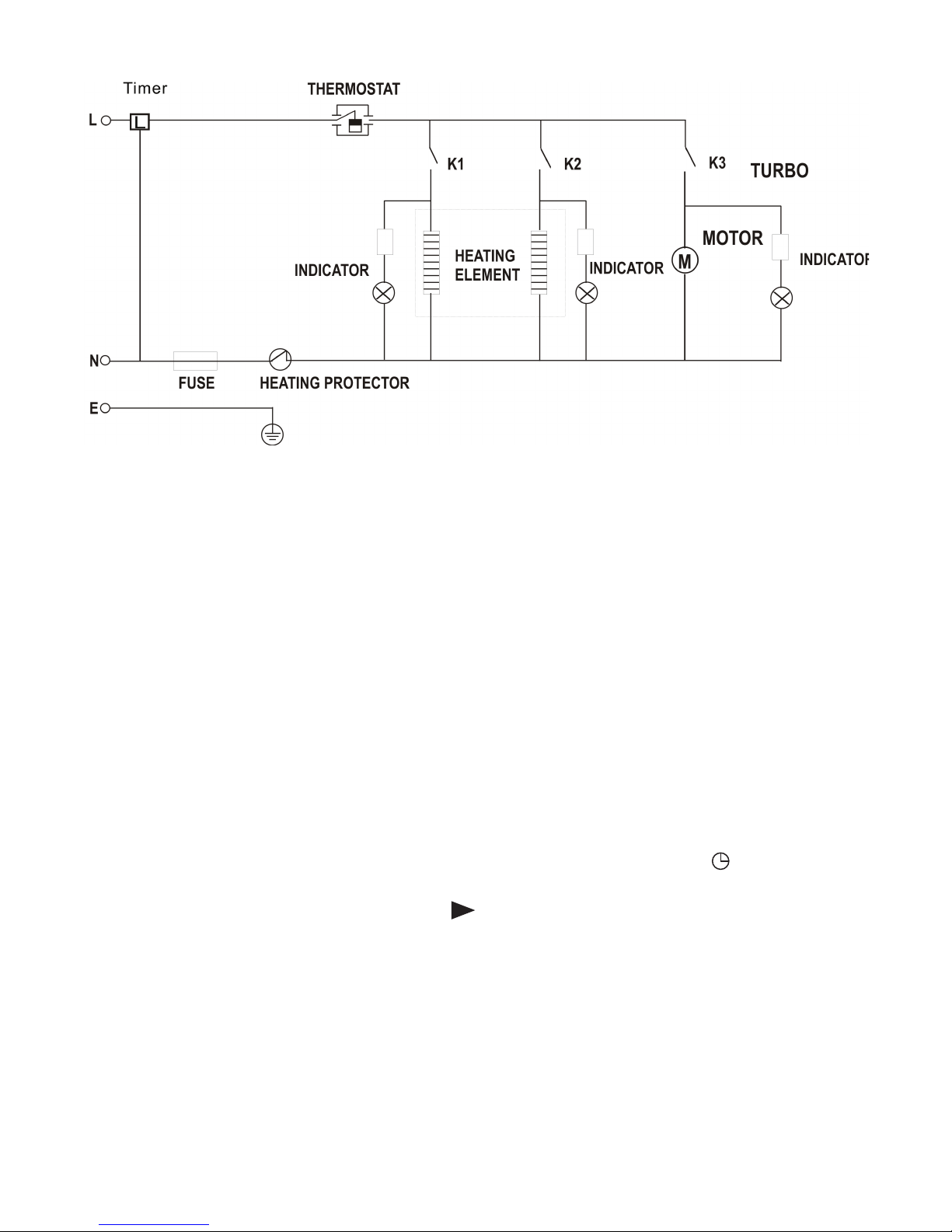

Electric drawing:
Usage:
1. Please check before use the electric wire. Please do not use the socket lower
than 10A.
2. Place the convector on a flat surface to avoid being toppled.
3. Set the convector’s power: “I” - 800W, “II” - 1200W or “I”+”II” - 2000W
(800W+1200W)
4. There is a thermostat knob for adjusting heating. You can rotate the knob to get
your desired heating level.
5. For the convector with turbo, there is a independent switch for this function
6. If you stop using the convector, turn off all the power switch, then unplug it
7. If you want to move the convector from one place to another, use the side
handles. Unplug the convector before moving it.
8. Usage of the timer:
- The heater will be always on when the slide switch is in TIMER position “I”
- The heater will be always off when the slide switch is in TIMER position “0”
- The timer operates when the slide switch is in TIMER position “ ”.
To set the timer, rotate the clock dial clockwise, until the current time is aligned
with the indicator arrow at the centre “ “
When you wish the heater to switch ON, push the corresponding time segment
outwards from the centre. Each segment represents around 15 minutes. For
example, if you want the heater continuously ON for 2 hours, push 8 segments
outwards the centre face.
2

3
Notes:
1. The product is for household use only.
2. Don’t use the convector near combustible or explosive objects or things easy
to be deformed or deteriorate.
3. Don’t use the convector in areas where it can be easyly shocked or toppled.
4. Don’t use the convector when it is covered by objects such as clothes or
towels
5. Do not unplug the convector before turning the switches off
6. Do not use the convector without the feet fixed
7. Do not locate the convector immediately below a socket-outlet
8. Don’t use the same plug or socket-outlet with other big power appliance.
9. If there is something wrong with the convector, please turn off the machine
and put off the plug immediately and send it to a service center.
10. Do not use this convector with a programmer, timer or any other device that
switche the convector on automatically
11. Do not use this convector in the immediate surroundings of a bath, a shower
or a swimming pool
12. When working, the convector surface is very hot, therefor it is strictly prohibit
for children to touch. Usually keep a distance of at least 0.5m
13. Use the convector in a well-ventilated place
14. The convector should not be used by children younger than 8 years old or
old people with reduced mental and sensory capacities.
15. Supervise children while the convector works
16. The convector maintenance and cleaning should be performed only by
adults, in safe conditions.
Maintenance:
1. Unplug the convector before cleaning it.
2. Do not use water or solvents to wash the convector, it can be cleaned by a
piece of soft damp cloth with a little neutral detergent.
3. Plug the convector only after it is completely dry.
Note:
If you stop using the convector for a while, unplug the power cord from the
socket and store it in a dry place, packed preferably in the original packaging or
in another plastic wrap to prevent the ingress of moisture to avoid rusting of
metal components.

4
Convector electric PNI Turbo Heat 2000W
Manual de utilizare

5
Introducere:
Convectorul PNI Turbo Heat adopta tehnologia de incalzire prin convectie cu
eficienta ridicata.
Functii principale:
- 3 trepte de putere selectabile
- Turbo, Temporizator, Termostat reglabil
Parametri tehnici:
- Putere: 2000W
- Alimentare: 220V
- Frecventa: 50Hz
- Nivel de zgomot (cu Turbo pornit): 55 dB
- Dimensiuni / Greutate: 650x170x420mm / 3.18 kg
Convectorul are o structura metalica rezistenta, cu picioare de sprijin ce
impiedica rasturnarea accidentala.

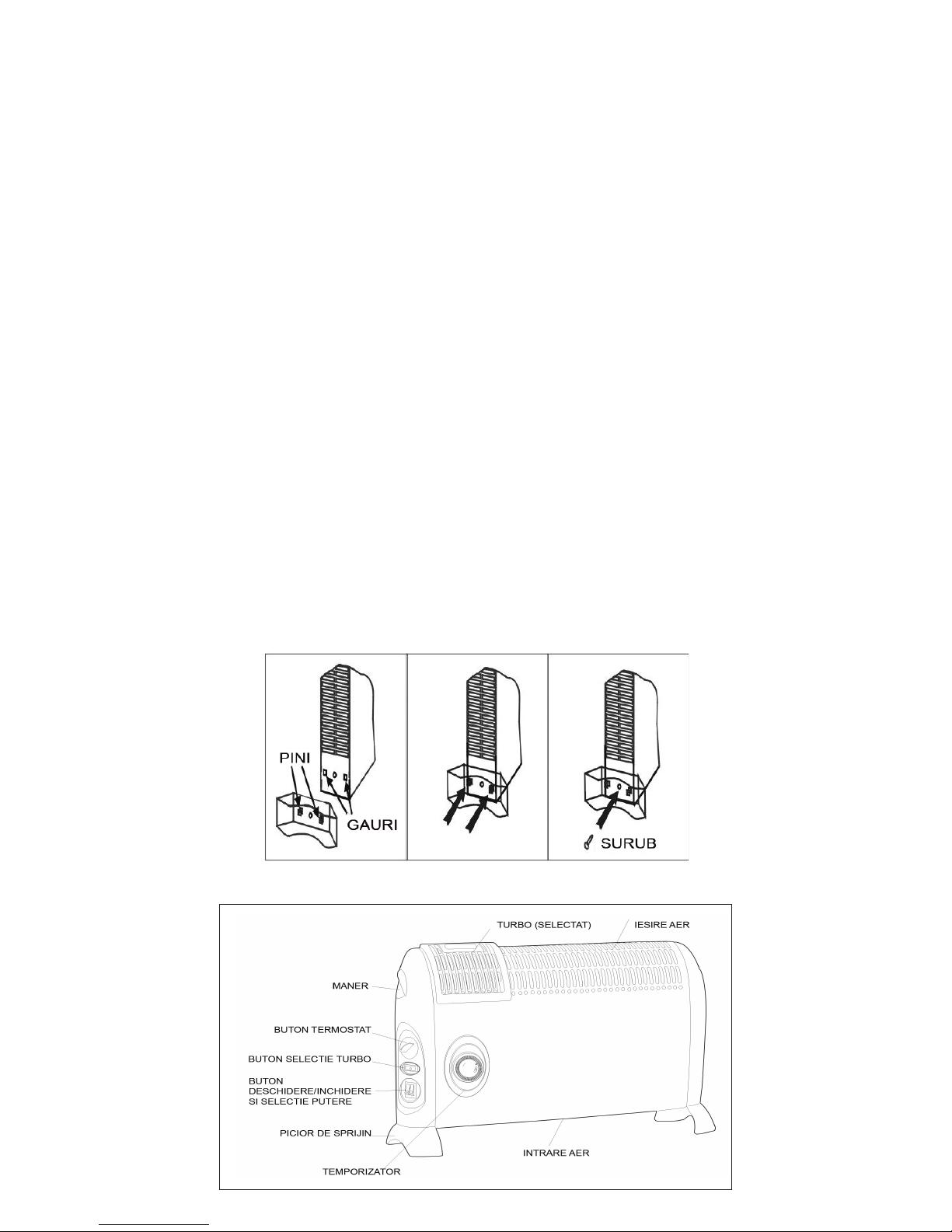

Asamblarea:
Asamblati corpul si picioarele convectorului conform imaginilor de mai jos.
1. Pozitionati convectorul pe o suprafata plana.
2. Fixati cei 4 pini de pe picioarele de sprijin in gaurile corespunzatoare de pe
corpul convectorului.
3. Strangeti surubul pentru a fixa cele doua parti.
Descriere convector:

6

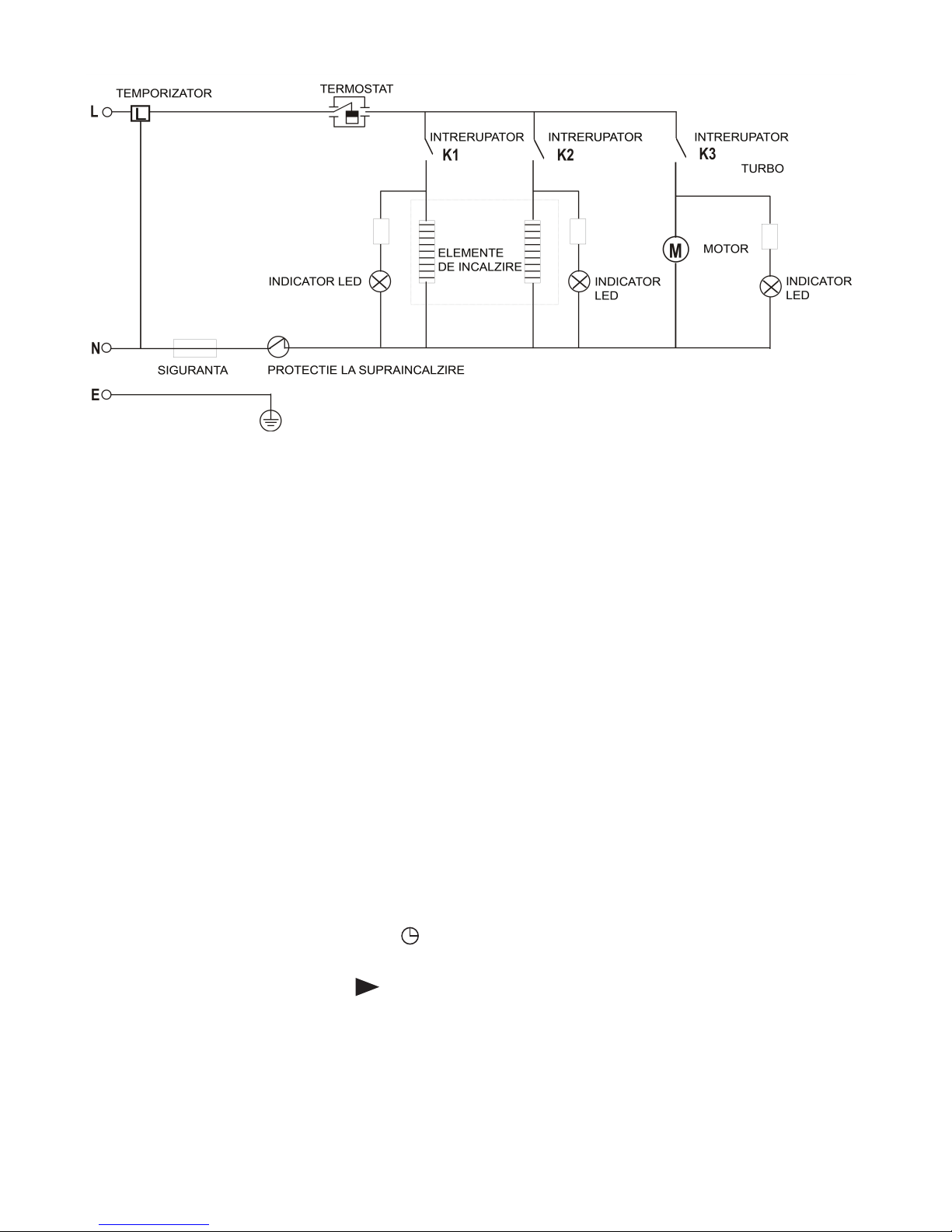

Shema electrica:
Instructiuni de utilizare:
1. Inainte de a porni convectorul verificati cablul de alimentare. Nu alimentati
convectorul dintr-un circuit cu o siguranta mai mica de 10A.
2. Pozitionati convectorul pe o suprafata plana pentru a evita rasturnarea lui
3. Reglati puterea convectorului: “I” - 800W, “II” - 1200W sau “I”+”II” - 2000W
(800W+1200W)
4. Reglati temperatura dorita rotind potentiometrul pentru termostat
5. Activati functia Turbo, apasand comutatorul corespunzator
6. Daca nu folositi convectorul, pozitionati comutatorul “I” si “II” pe “O” apoi
deconectati-l de la priza
7. Pentru a muta convectorul dintr-un loc in altul, folositi manerele laterale.
Scoateti aparatul din priza, inainte de a-l muta.
8. Folosirea temporizatorului:
- Convectorul va fi tot timpul pornit daca potentiometrul temporizatorului este pe
pozitia “I”
- Convectorul va fi tot timpul oprit daca potentiometrul temporizatorului este pe
pozitia “0”
- Convectorul va functiona conform setarilor orare daca potentiometrul
temporizatorului este pe pozitia “ ”.
Rotiti potentiometrul orar in sensul acelor de ceasornic pana cand ora curenta
este aliniata cu indicatorul “ “
Cand doriti sa porneasca convectorul, impingeti indepartand de centru pin-ul
rosu corespunzator orei dorite. Fiecare segment are aproximativ 15 minute. De
exemplu, daca doriti convectorul aprins timp de 2 ore, impingeti pin-ul rosu din 8
segmente invecinate.

7
Note:
1. Produsul este destinat doar folosirii casnice.
2. Nu folositi convectorul in apropierea obiectelor inflamabile, explozive sau
care se deformeaza/deterioreaza la temperaturi ridicate.
3. Nu amplasati convectorul in zone unde poate fi lovit sau rasturnat.
4. Nu folositi convectorul daca acesta este acoperit de alte obiecte. Nu folositi
convectorul pentru a usca rufe. Nu acoperiti convectorul cu carpe ude pentru a
umezi aerul in incapere.
5. Nu scoateti din priza convectorul inainte de a-l opri din comutatoarele de
oprire
6. Nu folositi convectorul fara picioarele de sustinere
7. Nu amplasati convectorul sub o priza de curent
8. Nu alimentati in aceeasi priza de curent alte dispozitive electrice cu consum
mare
9. In caz de defectiune, reparati convectorul sau partile componente ale
acestuia doar in centre de service specializate.
10. Nu folositi alt programator sau temporizator care porneste automat
convectorul.
11. Nu folositi convectorul in apropierea unei incaperi umede (baie, dusuri,
piscina)
12. In timp ce functioneaza, suprafata convectorului este foarte fierbinte. Evitati
atingerea lui si pastrati o distanta de cel putin 0.5 m
13. Folositi convectorul in spatii bine ventilate.
14. Convectorul nu trebuie folosit de copii cu varsta sub 8 ani sau de batrani cu
capacitati mentale si senzoriale reduse.
15. Supravegheati copiii in timp ce convectorul functioneaza
16. Intretinerea si curatarea convectorului trebuie efectuata doar de persoane
adulte, respectand conditiile de siguranta.
Instructiuni de intretinere:
1. Scoateti din priza convectorul inainte de a-l curata
2. Nu folositi apa sau solventi pentru a curata convectorul. Folositi o carpa usor
umezita intr-un detergent neutru.
3. Dupa ce ati curatat convectorul, asteptati sa se usuce complet inainte de a-l
folosi.
Nota:
Daca nu mai folositi convectorul pentru o perioada, scoateti cablul de
alimentare din priza si depozitati-l intr-un loc uscat, ambalat de preferita in
ambalajul original sau intr-un alt ambalaj din plastic care sa impiedice
patrunderea umezelii, pentru a evita ruginirea componentelor metalice.
