PNI SH121 User manual

PNI SH121 / PNI SH222
EN User manual ........................................................ 2
BG Ръководство за употреба ............................. 9
DE Benutzerhandbuch ............................................. 16
ES Manual de usuario ............................................... 23
FR Manuel utilisateur ............................................... 30
HU Használati utasítás .............................................. 37
IT Manuale utente .................................................. 44
NL Handleiding ........................................................ 51
PL Instrukcja obsługi ............................................... 58
RO Manual de utilizare ............................................. 65

PNI SH121 / PNI SH222
Touch light switch

User manual - 3
Warnings
» To prevent the risk of electric shock, disconnect
the general fuse of the house before starting the
installation of the switch.
» Do not carry out maintenance operations on
the switch if it is connected to the mains.
» This switch must only be installed by a licensed
electrician.
» It is important to make all connections
according to the connection diagram below.
» At the end of the assembly, make sure that the
wires are not stressed and that the screws are
well tightened.
» Do not exceed the maximum recommended
load.
Technical specifications
» Nominal voltage: 170V-240V AC
» Nominal current: max. 10A
» Maximum power: 200W/switch

User manual - 4
(Note: for LED bulbs or economic bulbs, the
power must be less than 100W/switch)
» Dimensions: 86 x 86 x 34mm
» Operating temperature: -26°C ~ +80°C

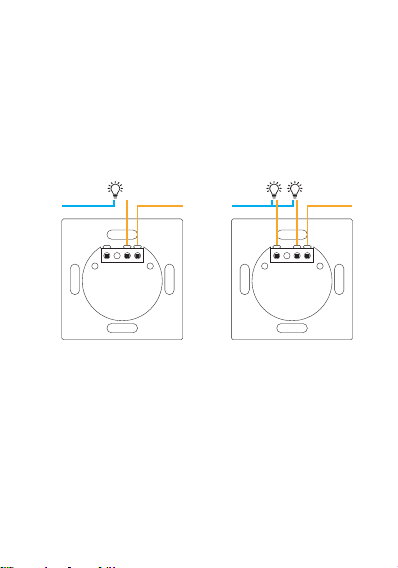

Connection diagram
L3 L2 L1 L
N
N
L
PNI SH121
L3 L2 L1 L
N
N
L
PNI SH222
L- Line
N - Neutral

User manual - 5
Installation
» Remove the front panel with a screwdriver.
» Connect the wires according to the diagram
above.
» Fix the switch in the wall box.
» Mount the glass panel (pressing from top to
bottom).
» Turn on the electricity supply.
» Wait 10 sec. then test the touch button.
Troubleshooting

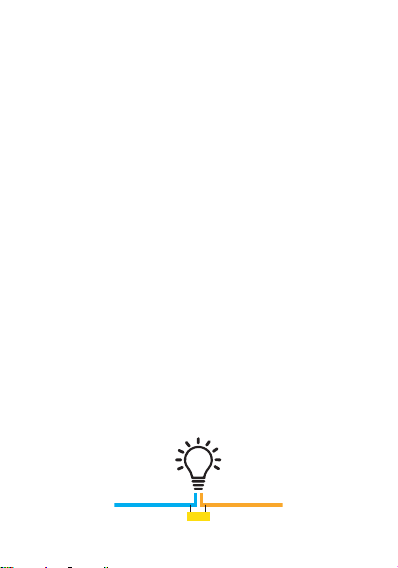

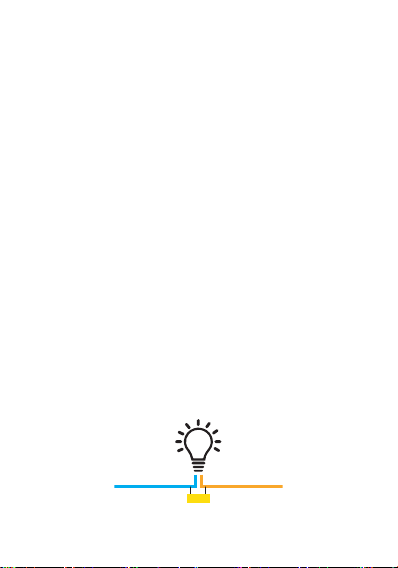

» The bulb light glows dimly or flickers.
If the bulb does not light up, lights up weakly
or flickers, please connect the yellow capacitor
between the neutral wire and the line wire
according to the diagram below:
N
L

User manual - 6
» The switch is installed and connected
correctly, but the touch button does not work.
First make sure that the wires are connected
correctly and that the bulb is not burned out.
1. Cut o the power for 1 minute.
2. Restart the power supply.
3. Wait 10 seconds and then touch the buttons
to operate the switch.
Compatible lamps or bulbs
Compatible lamps or bulbs: LED, incandescent,
halogen, economical, fluorescent or with
electronic driver.
Note: The switch does not work with fluorescent
(neon) lamps with magnetic inductance ballast.

User manual - 7
Simplified EU declaration of conformity
ONLINESHOP SRL declares that the PNI
SH121/ PNISH222touchswitchisin compliance
with the EMC Directive 2014/30/EU. The
full text of the EU declaration of conformity is
available at the following internet address:
https://www.mypni.eu/products/9158/
download/certifications
WARRANTY CERTIFICATE
The warranty period for individuals is 24 months
from the date of delivery for manufacturing and
material defects. The warranty period for legal
entities is 12 months from the date of delivery
for manufacturing and material defects.
The commercial guarantee does not aect the
rights of the consumer provided by the applicable
legislation in force, namely Emergency
Ordinance 140/28.12.2021 regarding certain
aspects related to contracts for the sale of goods,
OG 21/1992 regarding consumer protection

User manual - 8
with subsequent amendments and additions and
Law 296/2004 regarding the consumption code
with subsequent changes and additions.
Please download the full version of the warranty
certificate:

PNI SH121 / PNI SH222
Сензорен ключ за осветление

Ръководство за употреба - 10
Предупреждения
» За да предотвратите риска от токов удар,
изключете общия предпазител на къщата,
преди да започнете инсталирането на
превключвателя.
» Не извършвайте операции по поддръжка
на превключвателя, ако е свързан към
електрическата мрежа.
» Този ключ трябва да се монтира само от
лицензиран електротехник.
» Важно е да направите всички връзки според
схемата на свързване по-долу.
» В края на сглобяването се уверете, че
проводниците не са напрегнати и че винтовете
са добре затегнати.
» Не превишавайте максималното
препоръчително натоварване.

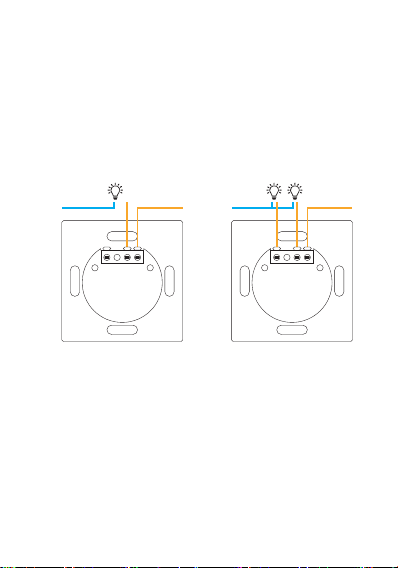

Технически спецификации
» Номинално напрежение: 170V-240V AC
» Номинален ток: макс. 10А
» Максимална мощност: 200W/ключ
