Pocket Wizard Plus IV User manual

Quick Guide
PLUS®IV
FCC/IC: 344.04 - 354.00 MHz
CE: 433.62 - 434.22 MHz
Help: [e-mail]
wiki.PocketWizard.com
Register: PocketWizard.com/support
An Auto-Sensing Transceiver that
operates as a radio transmitter or
receiver, as needed, for wireless flash
sync or remote camera shutter release.

WARNING: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy, and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
Mounting and cable connections detailed in this document represent the
intended usage, however, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and the receiver.
3. Consult the dealer or an experienced radio or television technician for help.
USA / CANADA
This device complies with Part 15 of the FCC rules and with Industry Canada
Licence-exempt RSS Standards. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This
device must accept any interference received, including interference that
may cause undesired operation.
Le présent appareil est conforme aux CNR d‘Industrie Canada applicables
aux appareils radio exempts de licence. L‘exploitation est autorisée aux deux
conditions suivantes: (1) l‘appareil ne doit pas produire de brouillage, et
(2) l‘utilisateur de l‘appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d‘en compromettre le fonctionnement.
Transceiver FCC ID Number: KDS-PW4-100
Transceiver CANADA IC: 2170A-PW4100
2
|
PocketWizard Plus IV
USA - THE FCC WANTS YOU TO KNOW

S/N: XXXXXXXXXX
Model: P4-CE
433.62 - 434.22 MHz
Made in USA
U.S. Pat.: www.pwpatents.com
Model: P4-FCC
344.04 - 354.00 MHz
FCC ID: KDS-PW4-100
IC: 2170A-PW4100
Made in USA
U.S. Pat.: www.pwpatents.com
S/N: XXXXXXXXXX
FCC/IC:
344.04-354.00 MHz (<1mW)
FCC/IC and CE radios are not compatible with each other.
PocketWizard.com/wheretobuy/frequency
CE:
433.62-434.22 MHz (<1mW)
PocketWizard.com
|
3

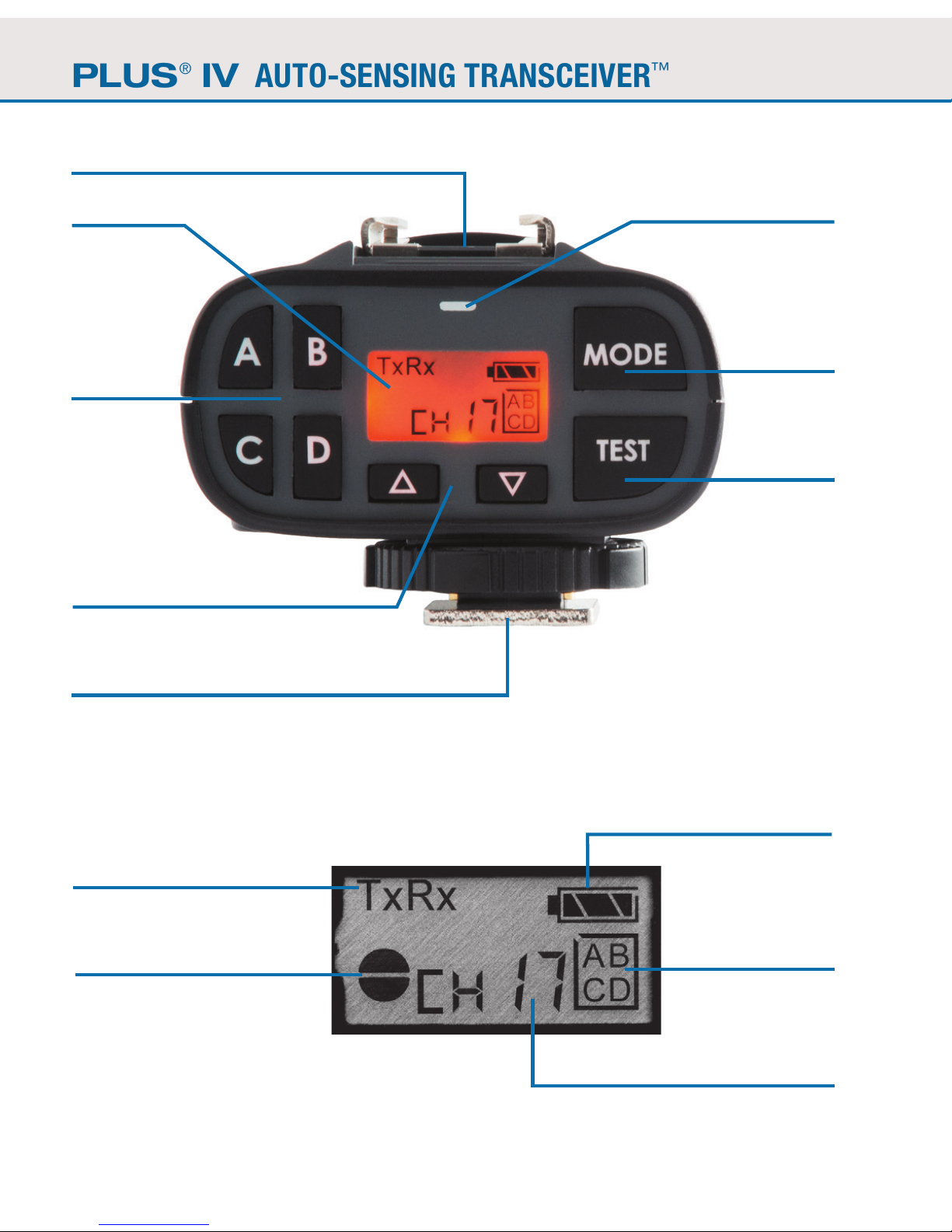

PLUS® IV AUTO-SENSING TRANSCEIVER™

Hot Shoe with Sync Contacts (pg. 16)
Backlit LCD
Zone Toggle
Buttons
(pg. 13)
Channel Select Buttons (pg. 13)
Mounting Foot with Locking Ring/Pin and
Sync Contacts (pg. 16)
Test
Button
(pg. 7)
Mode Select
Button
(pg. 12)
Status LED (pg. 11)
Selected Zones
(pg. 13)
Battery Level (pg. 11)
Mode (pg. 12)
Half Press/Full Press
indicator (pg. 11)
Channel Number (pg. 13)
4
|
PocketWizard Plus IV
PLUS® IV AUTO-SENSING TRANSCEIVER™

NOTE: You need at least two PocketWizard radios;
one for your camera and one for each remote flash.
Batteries and cables not included. See pages 11 and 16.
Flash/Camera Port
3.5mm (1/8") stereo
(pg. 16)
Keypad Lock (pg. 13)
USB/DC Port (pg. 16)
Power Switch
Internal Antenna
Battery
Compartment
(pg. 16)
Note proper battery
orientation/polarity
2x AA/LR6 1.5V
Battery Door and Latch Mounting Foot with Locking Ring/
Pin and Sync Contacts (pg. 16)
1/4"-20
Mount
(pg. 9)
PocketWizard.com
|
5
PLUS® IV AUTO-SENSING TRANSCEIVER™

Connect everything securely
Power everything ON
Set Channel,
Zone and Mode
on radio
NOTE:
On-camera speedlight optional.
May be TTL-enabled or full manual.
Remote flashes must be
set to manual mode when
syncing from a Plus IV on
camera. Remote flashes
will not perform TTL.
1
3
2
2
3
1
6
|
PocketWizard Plus IV
OPERATION: TRANSMITTER WITH ON-CAMERA SPEEDLIGHT

Connect everything securely
Power everything ON
and set speedlight/flash
to manual power
Set Channel, Zone and Mode
on radio
Take Pictures
NOTE:
Speedlights mounted on remote
Plus IV radios do not perform TTL.
Set a manual power level.
Press TEST to verify operation.
7
5
6
5
6
4
4
7
PocketWizard.com
|
7
OPERATION: RECEIVER WITH SPEEDLIGHT

Cables and mounting hardware not included.
Visit your local dealer for PocketWizard accessories.

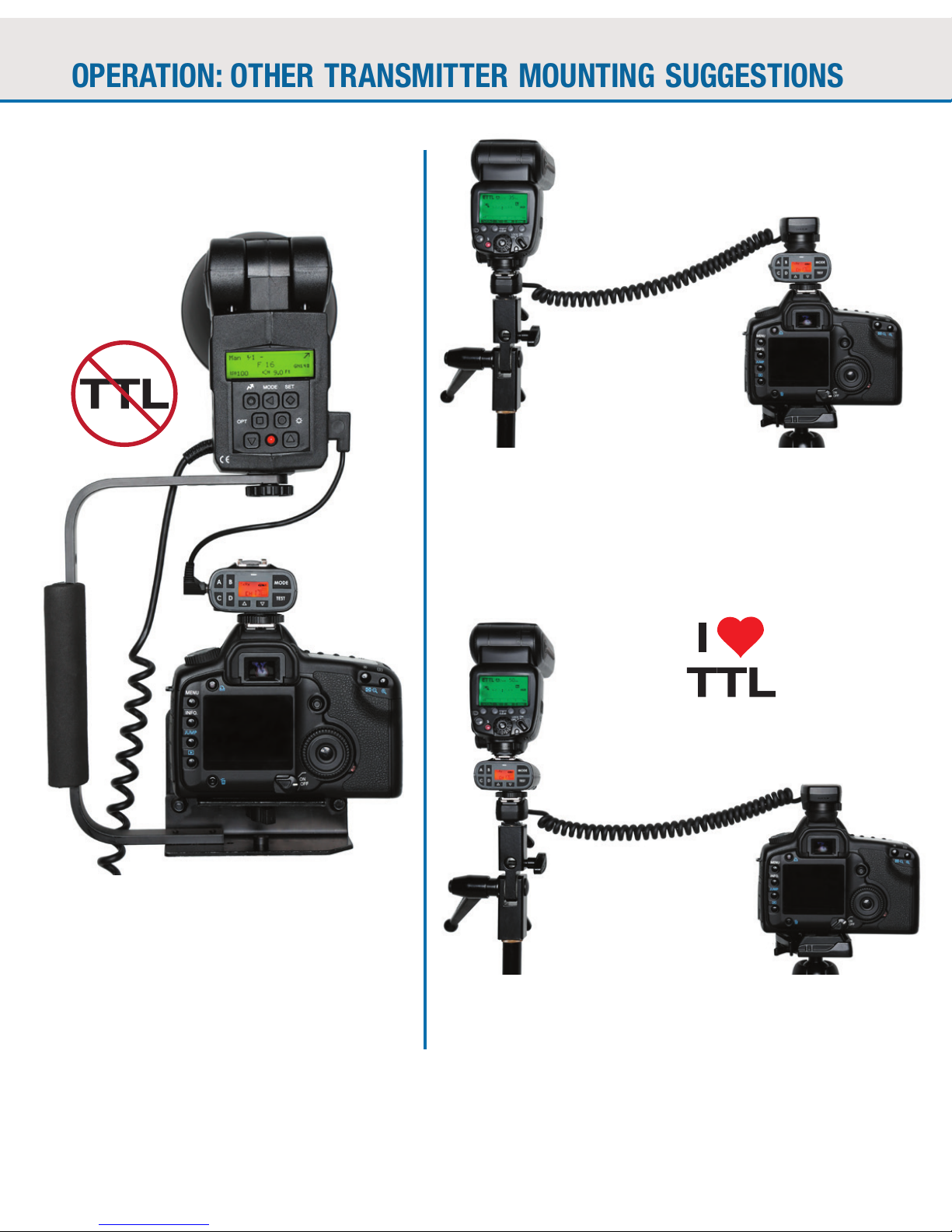

Non-TTL flash on bracket
or near camera
NOTE:
Compatible TTL flashes will
also work with correct TTL
off-camera shoe cord in
this setup
TTL off-camera shoe cord,
radio on camera
TTL off-camera shoe cord,
radio off camera
8
|
PocketWizard Plus IV
OPERATION: OTHER TRANSMITTER MOUNTING SUGGESTIONS

Cables and mounting hardware not included.
Visit your local dealer for PocketWizard accessories.
NOTE:
PocketWizard Plus III
recommended for
remote studio flash
Light stand
Umbrella
adapter
Spring clamp Super clamp
PocketWizard.com
|
9
OPERATION: OTHER REMOTE MOUNTING SUGGESTIONS

Set remote flash radio
one Channel higher
Remote Shutter Release
Take a picture with a remote camera
Any PocketWizard transmitter may be used
Cables not included. See page 11.
Auto-Relay
Take a picture with a remote camera and a remote flash
(on-camera flash optional)
Use TxRx mode
)))))))))))))))))))))))))))))
))))))))))))))))))))))))))))))))))))))))))))))))))
))))))))))))))
10
|
PocketWizard Plus IV
OPERATION: REMOTE SHUTTER RELEASE & AUTO-RELAY

Half/Full Press Indicator
Indicates half and full press operation
for remote camera shutter. Requires
Channels 17 and higher. Works
with a Plus III or a Plus IV using
-ACC/ stereo remote camera cables.
Factory Reset
Hold TEST as you power on the radio to reset it to factory defaults:
Channel 17 with all Zones enabled, TxRx Mode.
Status LED
Illuminates AMBER (half) /RED (full)
with sync contact or TEST press,
and shows remaining battery level
with colors and a blinking pattern.
< 1/4
< 1/2
> 1/2
Full Press
Half Press
Remote camera and
flash sync cables
not included.
Find the correct cables
for your remote camera or flash:
pocketwizard.com/support/cable_finder
Color and number of
blinks indicate battery
life remaining
PocketWizard.com
|
11
CABLES/ FACTORY RESET / STATUS LED / HALF/FULL PRESS FEATURE

TxRx – Auto-Sensing Transceiver. Selects Transmit or
Receive automatically. Default Mode. Use for Auto-Relay
(pg. 10).
Tx Only – Transmit Only.
Disables receive mode.
Rx Only – Receive Only.
Disables transmit and Auto-Relay modes.
HSR – High Speed Receive / FAST MODE. Use with
remote speedlights for fastest FPS (Frames Per Second).
While set to HSR on Channel 17 or higher, disable
all Zones to activate FAST MODE which may improve
X-sync operation with some studio flashes.
LR – Long Range (Auto-Sensing Transceiver).
Doubles range, but may affect maximum flash sync
shutter speed. Ideal for remote camera shutter release.
Must be enabled on every radio. Compatible with Plus
III and MultiMAX.
RP – Repeater. Retransmits on the selected Channel
for increased operating range but may affect maximum
flash sync shutter speed. Place RP radio between trans-
mitter and receiver. Multiple RP radios may be used, but
make sure each repeating radio and receiver can only
receive the signal from one other radio otherwise a
repeating loop may occur. Not for use with LR mode.
Press MODE to toggle through available modes
12
|
PocketWizard Plus IV
MODES

Radios set to the same Channel and Zones
work together. You may have as many
radios on the same Channel and Zone
as you’d like.
32 Standard Channels
Choose Channels that other
photographers are not using.
Default is Channel 17.
Channels 1-16 = Compatible with all PocketWizard radios.
Channels 17-32 = Enables Zones and are compatible with most
PocketWizard radios such as the Plus IV, Plus III and others.
Quad-Zone Triggering
4 Zones, ABCD, are toggled on and off using the Zone buttons. Use
Zones for selecting which remote radios will be used for your picture.
NOTE: All PocketWizard radios are compatible for select functionality using Standard
Channels. Some PocketWizard radios, like the MiniTT1 or FlexTT5 operate on both
Standard Channels and ControlTL Channels. ControlTL Channels are required for
remote TTL and Power Control. The Plus IV works on Standard Channels only and
does not perform remote TTL or Power Control. The Plus IV allows for on-camera
TTL, but remote speedlights must be set manually.
Keypad Lock
Set to filled-in circle (away from sync port) to lock
settings and disable all keypad buttons except TEST.
Set to open circle (toward LCD) for normal operation.
Locked Unlocked
PocketWizard.com
|
13
CHANNELS/ZONES / KEYPAD LOCK

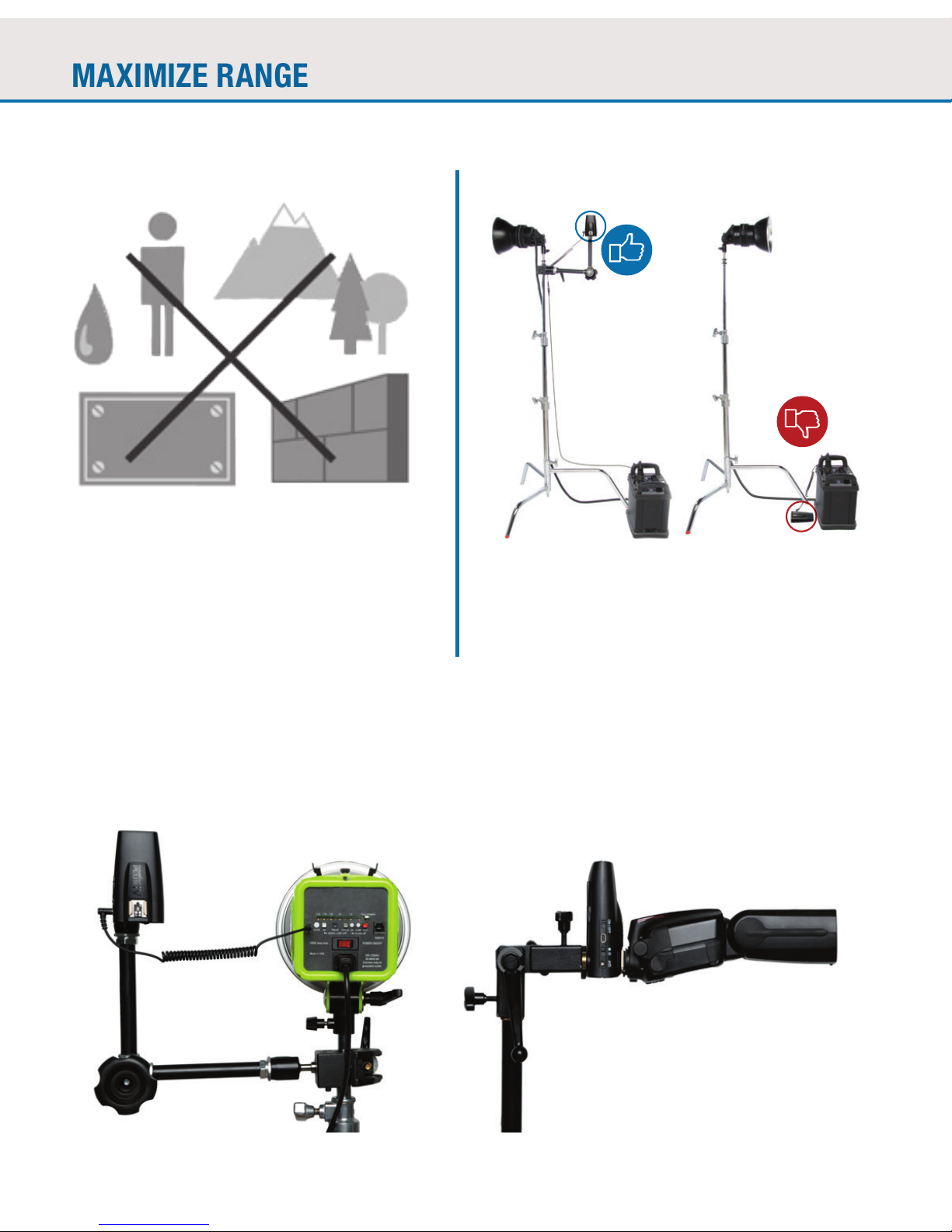

Avoid mounting near the ground
or behind large metal, concrete,
trees, groups of people, or hills.
Maintain line of sight when possible.
Recommended minimum radio height:
1.5 m (5')
*Add a PocketWizard MMX cable
to optimize radio and flash
performance independently.
*
MMX
cable
Move radio away from “dead spots.” Often relocating only a few inches or
centimeters away is required. Having range issues? Try mounting the radio
up high for maximum RF performance. Always mount with safety in mind!
14
|
PocketWizard Plus IV
MAXIMIZE RANGE

Information subject to change. Visit wiki.PocketWizard.com for more
details and the latest information.
Help:wiki.PocketWizard.com
PocketWizard.com/support
[e-mail]
Warranty / Registration
This PocketWizard®product is covered by a two-year limited
manufacturer’s warranty. For details, or to register your radio, use
the links below or contact your distributor via PocketWizard.com.
PocketWizard / LPA Design
Attn: Warranty
21 Gregory Drive
Suite 140
South Burlington, VT 05403, USA
[e-mail]
Registration: PocketWizard.com/warranty
Patent Information: www.pwpatents.com
© 2016 LPA Design. All rights reserved. Product features and specifications are subject
to change without notice. PocketWizard, ControlTL, MiniTT1, FlexTT5, HyperSync, Plus
and MultiMAX are either trademarks or registered trademarks of LPA Design. All other
trademarks contained herein are the property of their respective owners.
PocketWizard.com
|
15
WARRANTY AND REGISTRATION

12768 v1.0
5 0 ° C
( 12 0 ° F )
-15 ° C
( 5° F )
75 ° C
( 16 5 ° F )
- 3 0 ° C
( -2 2 ° F )
Sync port: 3.5mm (1/8") stereo miniphone jack, compatible with stereo or mono
PocketWizard PC, flash sync and remote camera cables.
Maximum Sync Voltage: 300 volts – a speedlight on a Plus IV on a camera passes
the speedlight’s voltage directly to the camera. Verify third
party speedlights operate within camera specifications.
X-Sync: Up to 1/250 (radio delay=1/1200s),14.5 FPS (on-camera TTL operation
reduces maximum FPS (Frames Per Second))
Storage
(always
remove batteries
when storing)
Operating
Hot Shoe/Metal Foot: ISO compatible, on-camera TTL pass-through for pin/
electrically compatible equipment including most Canon, Nikon, Fuji, Panasonic, and
Olympus speedlights and cameras (and some compatible third party equipment).
Sony Multi-Interface cameras and speedlights pin compatible for simple manual
flash sync only (no on-camera TTL with Sony equipment).
WARNING: Panasonic battery-less speedlights will damage your Plus IV.
Frequency: FCC 344.04 – 354.00 MHz; CE: 433.62 – 434.22 MHz (< 1 mW)
Batteries/Power: 2x AA / LR6, Alkaline recommended,
see page 5 for orientation/polarity.
External USB Mini-B @ 5 volts, <100mA,
also used for firmware upgrades.
Approximately 50 hours life with alkaline batteries. Rechargeable and other
chemistries may be used, but battery life and battery level reporting may vary.
Dimensions: Length = 10.7 cm (4.2")
Width = 5.3 cm (2.1")
Height = 3.0 cm (1.2")
Weight: 30 grams (4.7 ounces)
with alkaline batteries installed
SPECIFICATIONS
