Poindus Varipos 250 User manual

User Manual

Version V1.0 May. 2018

VariPOS™ 250

Contents

Contents------------------------------------------------------------------2

Notices----------------------------------------------------------------------------------------------------3

Safety information---------------------------------------------------------------------------------------4

CE verification--------------------------------------------------------------------------------------------5

FCC verification------------------------------------------------------------------------------------------6

Welcome-----------------------------------------------------------------7

Packa e contents----------------------------------------------------------------------------------------7

Accessory items------------------------------------------------------------------------------------------7

Gettin to know your VariPOS250-------------------------------------

8

Front view------------------------------------------------------------------------------------------------8

Rear view-------------------------------------------------------------------------------------------------9

Optional I/O interface-----------------------------------------------------------------------------------9

Specification------------------------------------------------------------10

UEFI BIOS and Le acy BIOS settin s (PE21) ----------------------

12

System Assembly & Disassembly------------------------------------

15

Install the Customer display---------------------------------------------------------------------------15

Install the MSR------------------------------------------------------------------------------------------15

Power confi uration of COM ports--------------------------------------------------------------------16

Install the Cash drawer--------------------------------------------------------------------------------17

Motherboard information (PE20) -----------------------------------19

Motherboard Layout------------------------------------------------------------------------------------19

Connectors & Jumper Settin s------------------------------------------------------------------------

20

Motherboard information (PE21) -----------------------------------21

Motherboard Layout------------------------------------------------------------------------------------21

Connectors & Jumper Settin s------------------------------------------------------------------------

22

Version Chan e History-----------------------------------------------23

Notices

The information contained in this document is subject to chan e without notice.

We make no warranty of any kind with re ard to this material, includin , but not limited to, the implied warranties of

merchantability and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental

or consequential dama es in connection with the furnishin , performance, or use of this material.

Proprietary information contained in this document is copyri ht protected. Photocopyin , producin or translatin this

document or any part of it without obtainin a written consent from Poindus is prohibited. Chan es in this document

or in the products described herein may be made without prior notice. Incidental or consequential dama e/s related

to the use of this document is not Poindus liability.

Includin but not limited to the implied warranties of merchantability or fitness for a particular purpose, POINDUS

make this publication available without warranty of any kind.

TRAD MARK

Poindus®/ VariPOS TM are re istered trademarks of Poindus Systems.

Intel®/ Bay Trail-T are re istered trademarks of Intel ® Corporation. Microsoft® and Windows® are re istered

trademarks of Microsoft Corporation.

Other trademarks mentioned herein are the property of their respective owners.

Safety information

IMPORTANT SAF TY INSTRUCTIONS

1) Carefully read and follow these instructions. Pay attention to the dan er and caution labels displayed on the

product.

2) Only operate the product based on the type of power indicated on the label. Consult your dealer or local power

company if unsure of the type of power available.

3) Make sure the power cord is placed safely where it would not be walked on. Do not rest anythin on the power

cord.

4) In disconnectin the machine from the electrical power supply, first switch off the power button, and then

remove the power plu from the wall socket.

5) This product must not be placed on an unstable platform such as a stand or table for its fall may cause serious

dama e to the product.

6) Slots and openin s are there to provide proper ventilation, prevent overheatin and ensure reliable operation of

the product, thus must not be blocked or covered. Do not place the product on a bed, sofa, ru or the like so as

to avoid blockin the openin s. Unless proper ventilation is provided, never place the product over or near a

radiator, heat re ister or a built-in installation.

7) Never insert any kind of objects throu h the openin s/slots to avoid touchin dan erous volta e points which

could cause electric shock or fire.

8) If there is smoke or stran e smell, unplu the power cord from the power outlet immediately and request repair

from your dealer or POINDUS.

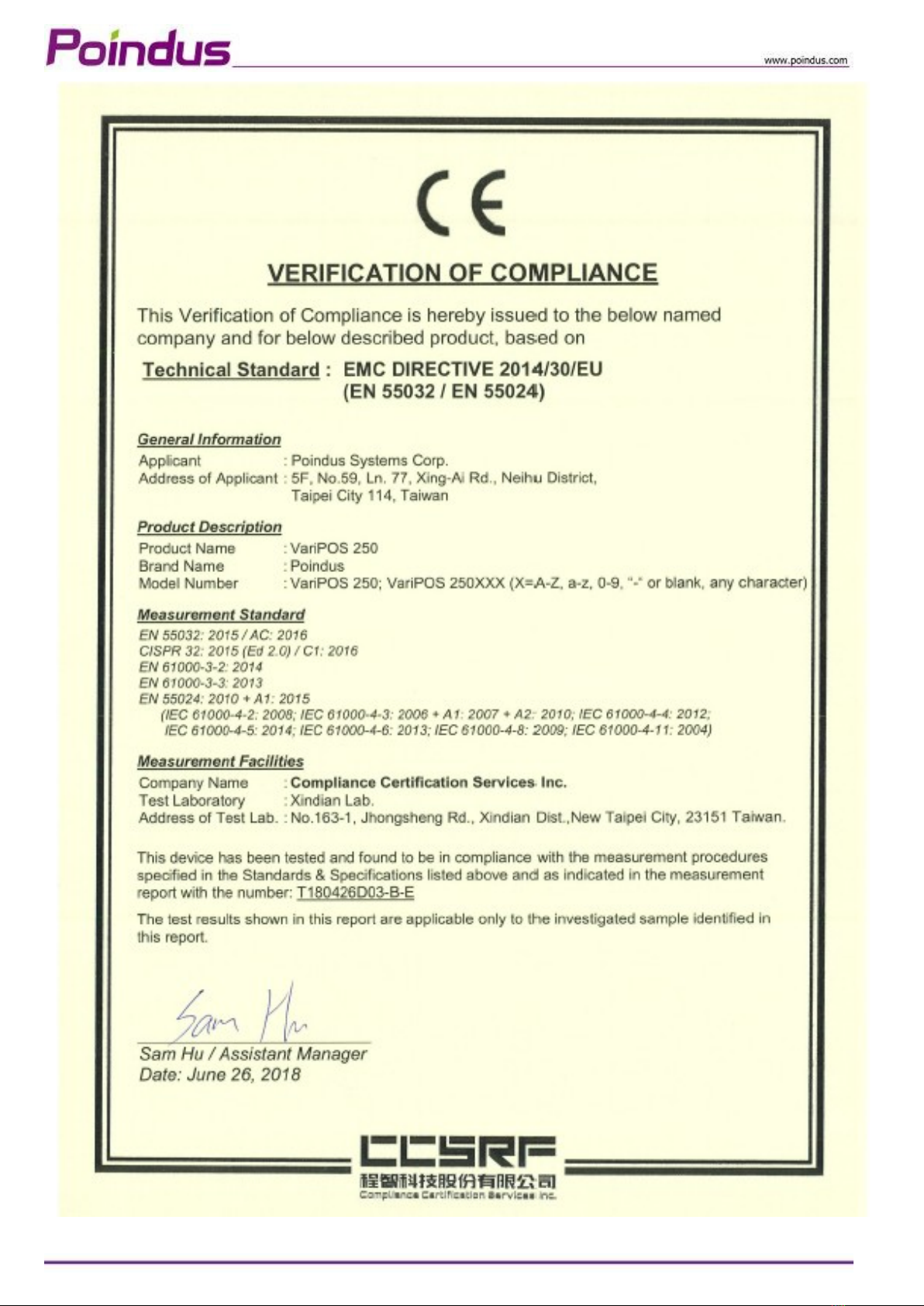

C

This device complies with the requirements of the VariPOSTM directive 2004/108/EC with

re ard to “Electroma netic compatibility”.

FCC

This device complies with part 15 of the FCC rules. Operation is subject to the

followin two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, includin interference that may

cause undesired operation

Welcome

Congratulations on your purchase of VariPOS/VariPPC. The following illustration displays the package contents of

your new product. If any of the following items is damaged or missing, please contact Poindus.

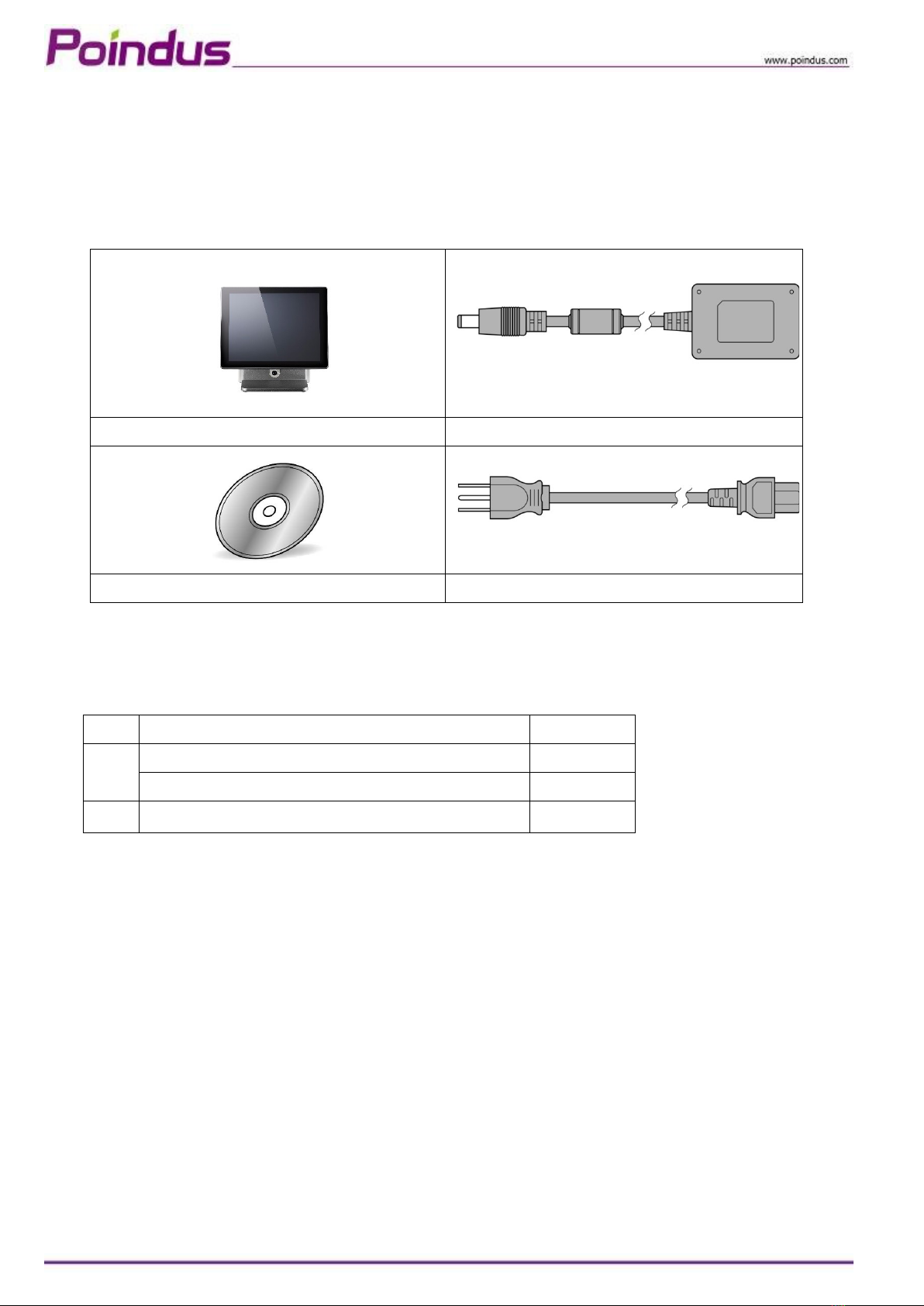

Package contents

【 VariPOS 250™ 】

VariPOS250 Power adapter

Driver bank CD Power cord

Accessory items

Description Q’ty

1 SCREW PACK 1

Screw driver 1

2 RJ-48 Cable 1

Getting to know your VariPOS250

Front view

*all peripherals are depends on customer’s demand

True flat touch panel

PCT

Die-castin aluminum base

Rear view

I/O interface

【VariPOS250】

Specification

Model VariPOS250

Motherboard P 20 P 21

CPU Intel® Celeron® Processor J1900 (2M

Cache, up to 2.42 GHz)

Intel® Skylake Core™ i5-6500TE Processor (6M

Cache, up to 3.30 GHz) 35W

Intel® Skylake Core™ i3-6100TE Processor (4M

Cache, 2.70 GHz) 35W

Intel® Skylake Celeron® Processor G3900TE

(2M Cache, 2.30 GHz) 35W

Chipset CPU Inte rated Intel® H110

TPM N/A Intel F/W

AMT N/A N/A

System Memory 1 x SO-DIMM DDR3L, up to 8GB 1 x SO-DIMM DDR4, up to 16GB

Display

TFT LCD 15" HD 4:3 TFT LCD (LED backli ht)

Bri htness 400nits

Resolution 1024 x 768 (4:3)

Touch Screen True Flat Projected Capacitive Technolo y

Storage

HDD/SSD 1 x SATA II (2.5'') 1x SATA III (2.5'')

RAID function N/A N/A

I/O Ports (Bottom)

DC Input 1 x Mini Din 4P (DC 19V only)

Cash Drawer 1 x RJ-11 (Support DC +12V or +24V (default)) port supports 2 cash drawers

Network (LAN) 1 x Gi abit Ethernet by RJ-45

USB Port 4 x USB 3.0

2 x USB 2.0

Powered USB Port N/A 2 x DC+12v Powered USB, max. 2A (Option)

1 x DC+24v Powered USB, max. 1.5A (Option)

Serial Port 3 x RS-232(COM1/2:DB-9, COM3:RJ-48) w/ RI/5V/12V Selectable by BIOS (default is RI)

LPT port N/A

VGA port 1 x DB-15 w/12V Enable Power by BIOS (default is Disable)

Bus Expansion 1 x Mini-PCI-E Slot

Speaker HD Audio, 2W Speaker x 2

I/O Ports (Broadside)

Power Switch 1 x power on/off switch button

System Management

OS Support Win10 2016 (32/64bit), Win8.1 (32/64bit),

Win7/POS Ready 7 (32/64bit)

Win10 2016 (64bit), Win8.1 (64bit), Win7/POS

Ready 7 (32/64bit)

Power Supply

External adapter, DC Model : 65 Watts,

Volta e:+19VDC 3.42 Amax

90 Watts, Volta e:+19VDC 4.74 Amax

180Watts, Volta e:+19VDC 9.47 Amax (Power USB)

Material Main Unit: Die-castin aluminum ; Other Cover: Plastic

Certifications CE, FCC, LVD, RoHS

Dimension( W x H x

D ) 365.89 x 354.48 x 196.55 mm

Wei ht 6.37K

Operatin Temperature 0ºC ~ 40ºC, 10% ~ 90% RH, non-condensin

Stora e Temperature -20ºC ~ 60ºC, 10% ~ 90% RH, non-condensin

1. PE21 : TPM feature only available for UEFI BIOS (Standard BIOS). If user select Le acy BIOS (Optional) this feature will be disabled.

2. PE21 : Win10 64bit and Win8.1 64ibt will use UEFI BIOS and Le acy BIOS is for Win7 (32/64bit) only.

*Poindus reserves the ri ht to chan e the specification without prior notice.

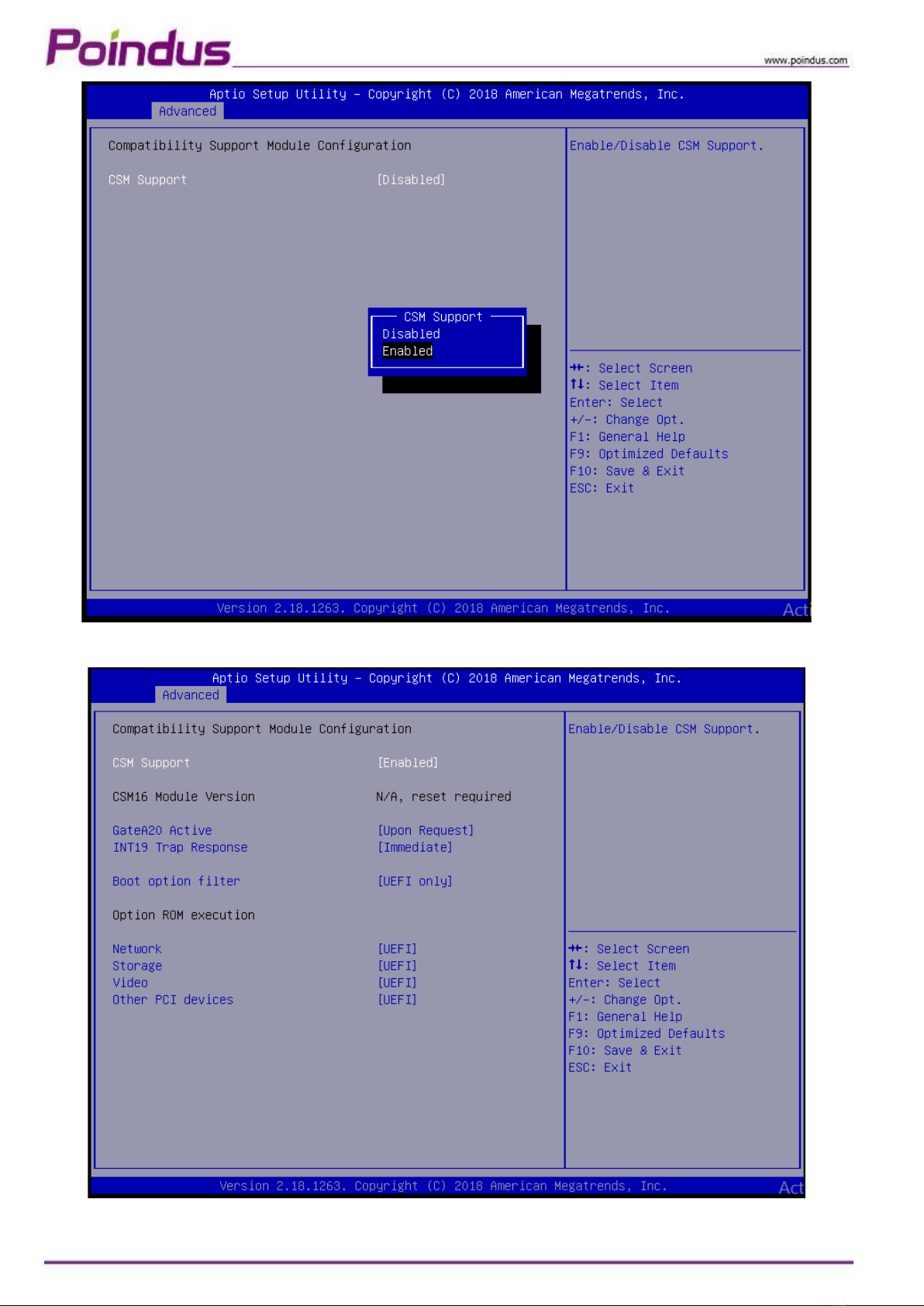

U FI BIOS and Legacy BIOS settings (P 21)

U FI BIOS

Legacy BIOS

System Assembly & Disassembly

Install a Customer Display and 2nd display

Install MSR module

Power configuration for COM PORTS

1

r

Install a Cash Drawer

You can install a cash drawer throu h the cash drawer port. Please verify the pin assi nment before installation.

Cash Drawer Pin Assi nment

Pin 6 5 4 3 2 1

Si nal GND DOUT bit1 12V/19V DIN bit0 DOUT bit0 GND

Cash Drawer Controller I/O Address

Register Location: 482h

Attribute: Read / Write

Size: 8bit

7 6 5 4 3 2 1 0

BIT BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

Attribute Write Reserved Read Write Read Reserved

Reserved

Cash Drawer “DIN0”

Pin output control

Cash Drawer “DOUT0”

Pin output control

Cash Drawer “DIN1”

Pin output control

Cash Drawer “DOUT1”

Pin output control

Cash drawer bit define should be follow DIN0/DOUT0 for cash drawer 1 DIN1/DOUT1 for cash drawer 2:

Bit 0: Reserved

Bit 1: Reserved

Bit 2: Reserved

Bit 3: Cash Drawer “DIN0” pin output control.

= 1: the Cash drawer closed or no Cash Drawer

= 0: the Cash Drawer opened

Bit 4: Cash Drawer “DOUT0” pin output control.

= 1: openin the cash drawer

= 0: allow close the cash drawer

Bit 5: Cash Drawer “DIN1” pin output control.

= 1: the Cash drawer closed or no Cash Drawer

= 0: the Cash Drawer opened

Bit 6: Reserved

Bit 7: Cash Drawer “DOUT1” pin output control.

= 1: openin the cash drawer

= 0: allow close the cash drawer

Note: Please follow the cash drawer control si nal to control the cash drawer

Cash Drawer Control Command xample

Use Debu .EXE pro ram under DOS

Command Cash Drawer

O 482 10 Open cash drawer

O 482 00 Allow to close

Set the I/O address 482h bit4 =1 (openin cash drawer by “DOUT bit0” pin control)

Set the I/O address 482h bit4 =0 (allow to close cash drawer)

Command Cash Drawer

I 482 The status of cash drawer

The I/O address 482h bit3 =1 (Cash Drawer is opened or not exist)

The I/O address 482h bit3 =0 (Cash Drawer is closed)

Motherboard information

Motherboard Layout (P 20)

Connectors & Jumper Settings

COM3 : RJ48 for COM3 Port

PIN1 N/C PIN2 DCD

PIN3 DSR PIN4 RX

PIN5 RTS PIN TX

PIN7 CTS PIN8 DTR

PIN9 GND PIN1

0

RI

COM4 : Pin Header for COM4 Port

PIN1 DCD PIN2 RX

PIN3 TX PIN4 DTR

PIN5 GND PIN DSR

PIN7 RTS PIN8 CTS

PIN9 RI PIN1

0

+5V

JP1 : Clear CMOS Setup

JP1 Description

1-2 Normal operation

2-3 Clear CMOS

JP2 : Cash Drawer oltage Setup

JP2 Description

1-2 +19V

2-3 +12V
