Pokini FT 7M User manual

Pokini FT 7M
Manual
english

Deutsch
2
Copyright
This document contains proprietary information protected by copyright. No part of this manual may be reproduced
by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
Disclaimer
The information in this document is subject to change without prior notice in order to improve the reliability, design
and function. It does not represent a com-mitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect, special, incidental, or consequential
damages arising from the use or inability to use the product or documentation, even if advised of the possibility of
such damages.
About this Manual
This user’s manual provides the general information and installation instructions for the product. The manual is
meant for the experienced users and integrators with hardware knowledge of personal computers. If you are not sure
about any description in this manual, consult your vendor before further handling. We recommend that you keep one
copy of this manual for the quick reference for any necessary maintenance in the future.

3
2
Content
Chapter 1: Introduction ............................................................................................................. 6
1.1 Product Highlights .............................................................................................................. 6
1.2 Parts of the Device ............................................................................................................. 6
1.3 Extended Cable Denition ................................................................................................ 7
1.3.1 Standard Version ............................................................................................................. 7
1.3.2 OBD-II Version .................................................................................................................. 8
1.3.3 SAE J1939 Version .......................................................................................................... 9
1.3.4 CAN Bus Version ............................................................................................................ 10
1.4 Specications .................................................................................................................... 11
Chapter 2: Getting Started .................................................................................................... 14
2.1 Power On/Off and Sleep/Wake ..................................................................................... 14
2.1.1 Power on the Device ...................................................................................................... 14
2.1.2 Power off the Device ..................................................................................................... 14
2.1.3 Sleep and Wake the Device ......................................................................................... 14
2.2 Installing Micro SD and SIM Card ................................................................................. 15
2.3 Charging the Battery ........................................................................................................ 15
2.3.1 Charging with the Power Adapter .............................................................................. 16
2.3.2 Checking the Battery Level ......................................................................................... 16
2.3.3 Installing/Replacing the Battery ................................................................................ 17
2.4 Optimizing Battery Life .................................................................................................... 18
Chapter 3. Using Tablet Hardware Interface ..................................................................... 20
3.1 Transferring Files between Computer and the Device ............................................. 20
3.1.1 Connection ....................................................................................................................... 20
3.2 Using Serial Port Demo App........................................................................................... 22
3.3 Using ACC .......................................................................................................................... 23
3.3.1 ACC Connection Instruction ...................................................................................... 23
3.3.2 ACC Functions .............................................................................................................. 23
3.3.3 ACC Settings Path ....................................................................................................... 24
3.3.4 ACC Settings ................................................................................................................. 25
3.4 Using GPIO ......................................................................................................................... 26
3.3.1 GPIO Tail Lines Instruction ......................................................................................... 26
3.3.2 GPIO Typical Connection ........................................................................................... 26
3.3.3 GPIO Specication ....................................................................................................... 27
3.3.4 GPIO_DEMO Instruction ............................................................................................. 27
3.5 Using NFC Function ......................................................................................................... 30
3.5.1 NFC Activation Method ................................................................................................ 30
3.5.2 NFC Usage Demo ......................................................................................................... 31
3.6 System Root Switch Usage Guide ............................................................................... 33
3.7 OBD-II Interface (optional) ............................................................................................. 34
3.8 J1939 Interface (optional) .............................................................................................. 35
3.9 CAN Bus Interface (optional) ......................................................................................... 36
Chapter 4. Docking Station Using Instruction ................................................................. 36
Chapter 5 . Accessories.......................................................................................................... 39

Deutsch
4
Declaration of Conformity
The CE symbol on your product indicates that it is in compliance with the di-rectives of the Union European (EU). A
Certicate of Compliance is available by contacting Technical Support.
This product has passed the CE test for environmental specications when shielded cables are used for external
wiring. We recommend the use of shielded cables.
FCC Class B
This device complies with Part 15 of the FCC Rules. Any changes or modica-tions not expressly approved by the
guarantee of this device could void the user’s authority to operate the equipment.
RoHS
Certies that all components in its products are in compliance and conform to the European Union’s Restriction of
Use of Hazardous Substances in Electri-cal and Electronic Equipment (RoHS) Directive 2002/95/EC.
Safety Symbols
This symbol of “CAUTION” indicates that there is a danger of injury to the user or a risk of damage to
the product, should warning no-tices be disregarded.
Battery Recycle
This symbol indicates electrical warning.
Important Safety Instructions
• Read all cautions and warnings on the equipment.
• Place this equipment on a reliable surface when installing. Dropping it or letting it fall may cause damage.
• Make sure the correct voltage is connected to the equipment.
• For pluggable equipment, the socket outlet should be near the equipment and should be easily accessible.
• Keep this equipment away from humidity.
• Disconnect this equipment from the A/C outlet before cleaning it. Use a moist cloth. Do not use liquid or sprayed
detergent for cleaning.
• Do not scratch or rub the screen with a hard object.
• Never use any of the solvents, such as Thinner Spray-type cleaner, Wax, Benzene, Abrasive cleaner, Acid or Alkali-
ne solvent, on the display. Harsh chemicals may cause damage to the cabinet and the touch sensor.
• Remove the dirt with a lightly moistened cloth and a mild solvent detergent. Then wipe the cabinet with a soft dry
cloth.
• If the equipment will not be used for a long time, disconnect it from the power source to avoid damage by tran-
sient over voltage.

5
4
Important Safety Instructions
• Never pour any liquid into openings. This may cause re or electrical shock.
• If one of the following situations arises, get the equipment checked by ser-vice personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to the user’s manual.
e. The equipment has been dropped or damaged.
f. The equipment has obvious signs of breakage.
Rechargeable Battery Pack Safety
With very little care, you can optimize the battery life and maximize the lifespan of the battery. Most importantly, use
only the equipment in its ideal operating temperature (as described in 1.4 Specications) – do not leave it in a hot trunk
during the summer.
• Using the Equipment for the First Time
Be sure to fully charge (approx. 4 hours) the equipment when charging the equipment for the rst time.
• Long-Term Storage & Maintenance
If you are putting away the battery for more than three months, it is recom-mended that the battery should be
stored separately and fully charged, and get recharged every three months. If you store an uncharged battery, it
could fall into a deep worn-out state which would render it incapable of holding any charge. Be sure to store the
equipment and battery at the proper temperature (as described in 1.5 Specications).
Additional Information & Technical Support
You can download the related technical documents such as data sheet and user’s manual as well as driver on our
website.
Warranty
This product is warranted to be in good working order during the warranty pe-riod. Should this product fail to be in
good working order at any time during this period, we will, at our option, replace or repair it according to after-sale-
service terms. This warranty does not apply to products damaged by misuse, modications, accident or disaster.
Vendor assumes no liability for any damages, lost prots, lost savings or any other incidental or consequential dama-
ge resulting from the use, misuse of, or inability to use this product. Vendor will not be liable for any claim made by
any other related party.
Return authorization must be obtained from the vendor before returned mer-chandise will be accepted. Authorization
can be obtained by calling or email-ing the account representative from vendor and requesting a Return Merchan-di-
se Authorization (RMA) number. Returned goods should always be accom-panied by a clear problem description.

Deutsch
6
Chapter 1: Introduction
1.1 Product Highlights
• Qualcomm Cortex-A53 64-bit Octa-core processor 1.8G
• Android 9.0 Operation System
• Comply with IP67 rating
• WIFI, Bluetooth, LTE, GNSS and 5000mAh rechargeable battery supported
• 7 Inch IPS Display, physical 1280x800 resolution, 800cd/m², multi-point capaci-tive touch
• Portable with Docking Station
1.2 Parts of the Device

7
6
1.3 Extended Cable Definition
1.3.1 Standard Version

Deutsch
8
1.3.2 OBD-II Version

9
8
1.3.3 SAE J1939 Version

Deutsch
10
1.3.4 CAN Bus Version

11
10

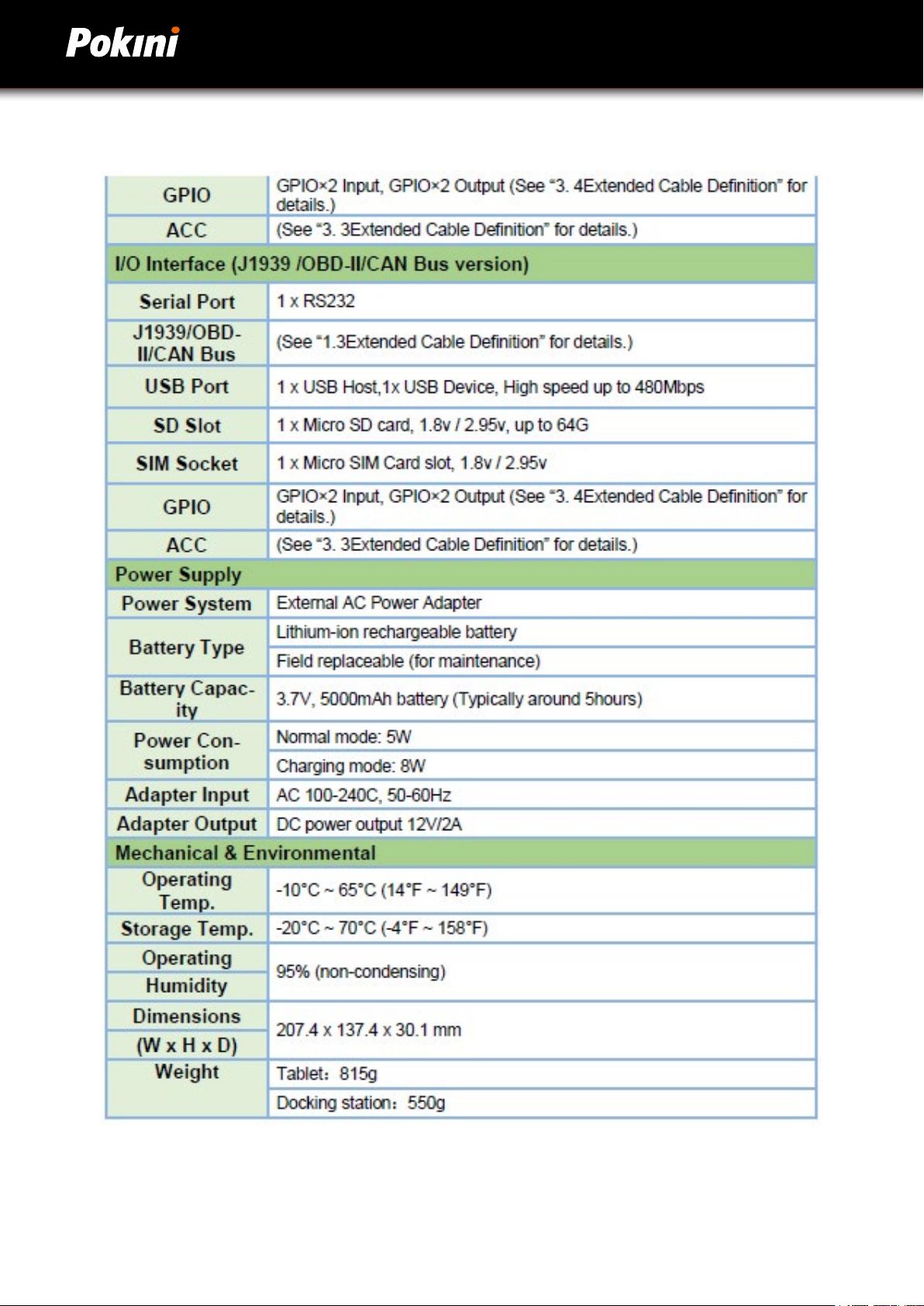

1.4 Specifications

Deutsch
12

13
12

Deutsch
14
Chapter 2: Getting Started
2.1 Power On/Off and Sleep/Wake
This Chapter is describing how to power on/off the device, put the device into sleep mode (screen saver) and force
restart.
Proper operation of power on/off the device will be benecial to ensure the stability of the system. The device status
indicated by the color of the indicator is as de-scribed in the following table for the standard tablet. We provide custo-
mized ser-vice if the customer has other requirements regarding the operation of switch.

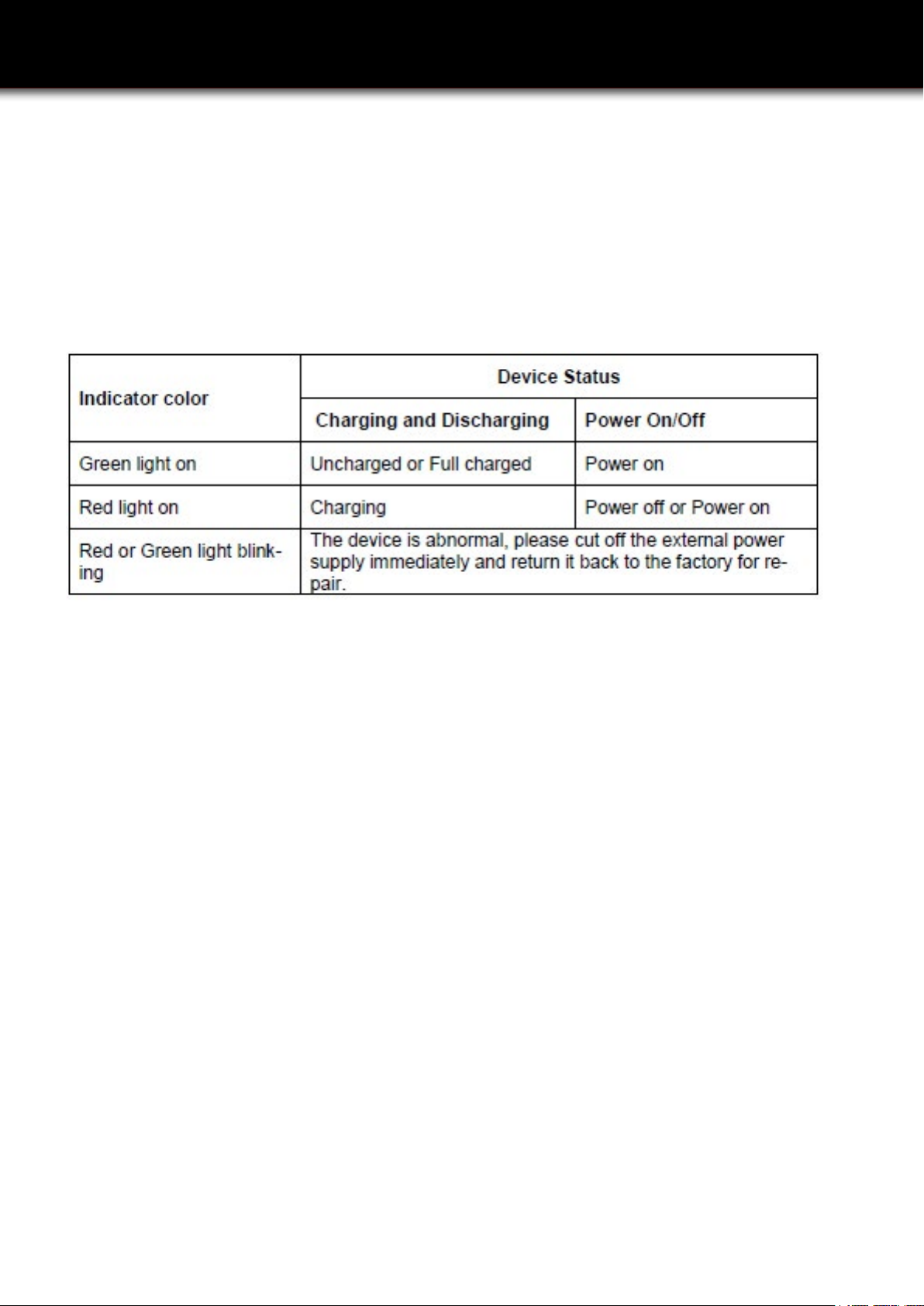

Table 2.1.1 Indicator color and device status table
2.1.1 Power on the Device
1. Power on by pressing the button: Long press the power button for more than 2 seconds until the boot screen dis-
played. It needs around 40 seconds to start the system. The indicator is on when tablet activate normally.
2. Power on by connecting ACC, see the details in Chapter “3.3 Using ACC”.
3. Power consumption during operation: 5w (typical)
2.1.2 Power off the Device
1. Power off by pressing the button: In the status of working on the device desk-top, long press the power button for
more than 2 seconds until the shutdown prompt pop-up then click the “POWER OFF” option.
2. Power off by ACC, see the details in the Chapter “3.3 Using ACC”.
3. Remark: In order to reduce the standby power consumption, the red light is on in charging status when power on.
And the light will go off if full charged.
4. The consumption during power off (with docking station): around 100mW.
2.1.3 Sleep and Wake the Device
a. Auto sleep, the sleep time can be set up in the settings.
b. Short press button to sleep.
c. Sleep by ACC, see the details in Chapter “3.3 Using ACC”
d. Short press to wake
e. Wake by ACC, see the details in Chapter “3.3 Using ACC”
f. The average of power consumption in sleep status: 1W

15
14
2.2 Installing Micro SD and SIM Card
To install the micro SD card and/or Micro SIM (Note Must be installed in power off status)
a. Find the Micro SIM card slot and the Micro SD card slot. The following graphics illustrates the correct cards orien-
tation, which the card chips is facing into the display orientation:
b. To install the Micro SIM card(s) or the Micro SD card, orient the card as indi-cated, and fully insert the card into the
slot until it locks into place.
c. Lock the interface cover with screws.
2.3 Charging the Battery
The battery is partially drained during the transportation. Be sure to charge the bat-tery to full when you are charging
it for the rst time.
Tips:
Please keep the DC in charging status at work if available. Owe to the unique power supply design (Patent No.:
CN201821205954.6), the device using the power supplied by DC input or USB type-C input in priority, rather than the
power from the internal battery. It makes the battery to be stored after fully charged. This excellent design is very
benecial for extending the life of the tablet battery and ensuring the safety in use.
In order to ensure the life and performance of the battery, if your tablet has been stored in the warehouse for more
than three months, it is recommended to charge the battery every three months.

Deutsch
16
2.3.1 Charging with the Power Adapter
To charge the battery with the provided power adapter:
a. If the device with an optional docking station, then mount the tablet with dock-ing station, connect the power
adapter to the DC port of Docking Station.
b. The tablet could be charged by a 5V 2A or above by USB type-C cable.
Warning:
Please ensure that the input voltage of the DC interface is within the range of 8V-36V, or use the 12V adapter coming
with device. If the input voltage of the DC is outside this range, the tablet may be unable to charge or damaged. It
may cause the warranty invalid.
2.3.2 Checking the Battery Level
a. When the charging is in process, a battery indicator will appear in the status bar showing the charging percentage.
To view the charge percentage, swipe down the Status Bar and you will see the charging percentage.

17
16
b. When the battery is fully charged, you can disconnect the DC input or USB type-c cable. If available, please keep
the device in charging by DC power supply. See the details in “2.3 Charging the Battery”.
2.3.3 Installing/Replacing the Battery
In case you need to install or replace the battery, follow the steps below to access the battery chamber and replace
the battery.
1. Place the device on a at surface, with the rear side facing up. Loosen the re-taining screws on the back cover by
using a Hexagon socket screwdriver with at head.
2. To install a new battery, orient the new battery so that the contact pins are aligned correctly.
3. Assemble the battery cover and secure the retaining screws by using a Hexa-gon socket screwdriver with at
head.

Deutsch
18
2.4 Optimizing Battery Life
If the tablet is unable to keep charging by DC power supply, to optimize the oper-ating time of the battery, it is recom-
mended that you do the following:
• Decrease the LCD display brightness.
• Set a shorter timeout of inactivity to allow the screen enter sleep mode.
• Turn off the display if you are not using it.
• Turn off Wi-Fi, Bluetooth or GPS function if you are not using it.
• Turn off the App that heavily drains the battery if you are not using it. To view the battery usage by individual App,
swipe down the Status Bar in the upper right corner and tap and hold the Battery icon.

19
18
Enable CPU power saving mode on battery settings page to limit the maxi-mum CPU performance to conserve batte-
ry life and lower device tempera-ture.
To access the battery settings page, swipe down the Status Bar in the up-per right corner and then tap and hold the
Battery icon.

Deutsch
20
Chapter 3. Using Tablet Hardware Interface
3.1 Transferring Files between Computer and the Device
You can transfer les, such as pictures or audio les, between your computer and your device using the provided USB
cable.
3.1.1 Connection
Connect the device to the computer by using the USB type-c cable, and open the prompt message of the device.
Refer to the following gure, and click “USB charging this device” to charge the battery.
