Polar Electro Polar OH1 User manual

USER MANUAL

2
Contents
Contents 2
Polar OH1 User Manual 8
Introduction 8
Get connected to the Polar ecosystem and get the most out of your OH1 9
Setting up your OH1 10
Choose one option for setup 10
Option A: Set up with your computer via FlowSync 11
Option B: Set up with your mobile device via Flow app 11
Button functions and LEDs 12
Button Functions 13
LED Guide 13
During charging 13
After setting power on 13
When used as a sensor 13
When used as an independent training device 13
During fitness test 14
Other 14
Wearing your OH1 15
When measuring heart rate from your forearm or upper arm 15
Pairing 15
Pair a mobile device with your OH1 15

3
Pair OH1 with a Polar wrist unit 16
Pair OH1 with Polar Beat 17
Updating the firmware 17
With mobile device or tablet 18
With computer 18
Heart rate training 19
Measuring heart rate with your OH1 19
Start a training session 19
Start a training session as an independent training device 20
Start a training session with a Polar wrist unit 20
Start a training session with Polar Beat 21
Polar Flow App 22
Training data 22
Image sharing 22
Start using the Flow app 23
Polar Flow Web Service 23
Feed 24
Explore 24
Diary 24
Progress 24
Community 25
Programs 25
Syncing 26

4
Sync with Flow mobile App 26
Sync With Flow Web Service Via FlowSync 27
Battery 29
Charging OH1 battery 29
Caring for your OH1 30
Keep your OH1 clean 30
Take good care of the optical heart rate sensor 31
Storing 31
Service 31
Precautions 32
Interference during training 32
Minimizing risks when training 32
Technical specification 34
OH1 34
Polar FlowSync Software 35
Polar Flow mobile application compatibility 36
Water resistance of Polar products 36
Limited international Polar guarantee 38
Disclaimer 40
Contents 2
Polar OH1 User Manual 8
Introduction 8
Get connected to the Polar ecosystem and get the most out of your OH1 9

5
Setting up your OH1 10
Choose one option for setup 10
Option A: Set up with your computer via FlowSync 11
Option B: Set up with your mobile device via Flow app 11
Button functions and LEDs 12
Button Functions 13
LED Guide 13
During charging 13
After setting power on 13
When used as a sensor 13
When used as an independent training device 13
During fitness test 14
Other 14
Wearing your OH1 15
When measuring heart rate from your forearm or upper arm 15
Pairing 15
Pair a mobile device with your OH1 15
Pair OH1 with a Polar wrist unit 16
Pair OH1 with Polar Beat 17
Updating the firmware 17
With mobile device or tablet 18
With computer 18
Heart rate training 19

6
Measuring heart rate with your OH1 19
Start a training session 19
Start a training session as an independent training device 20
Start a training session with a Polar wrist unit 20
Start a training session with Polar Beat 21
Polar Flow App 22
Training data 22
Image sharing 22
Start using the Flow app 23
Polar Flow Web Service 23
Feed 24
Explore 24
Diary 24
Progress 24
Community 25
Programs 25
Syncing 26
Sync with Flow mobile App 26
Sync With Flow Web Service Via FlowSync 27
Battery 29
Charging OH1 battery 29
Caring for your OH1 30
Keep your OH1 clean 30

7
Take good care of the optical heart rate sensor 31
Storing 31
Service 31
Precautions 32
Interference during training 32
Minimizing risks when training 32
Technical specification 34
OH1 34
Polar FlowSync Software 35
Polar Flow mobile application compatibility 36
Water resistance of Polar products 36
Limited international Polar guarantee 38
Disclaimer 40

8
Polar OH1 User Manual
This user manual helps you get started with your new OH1. For OH1 video
tutorials and FAQs, go to support.polar.com/en/OH1.
Introduction

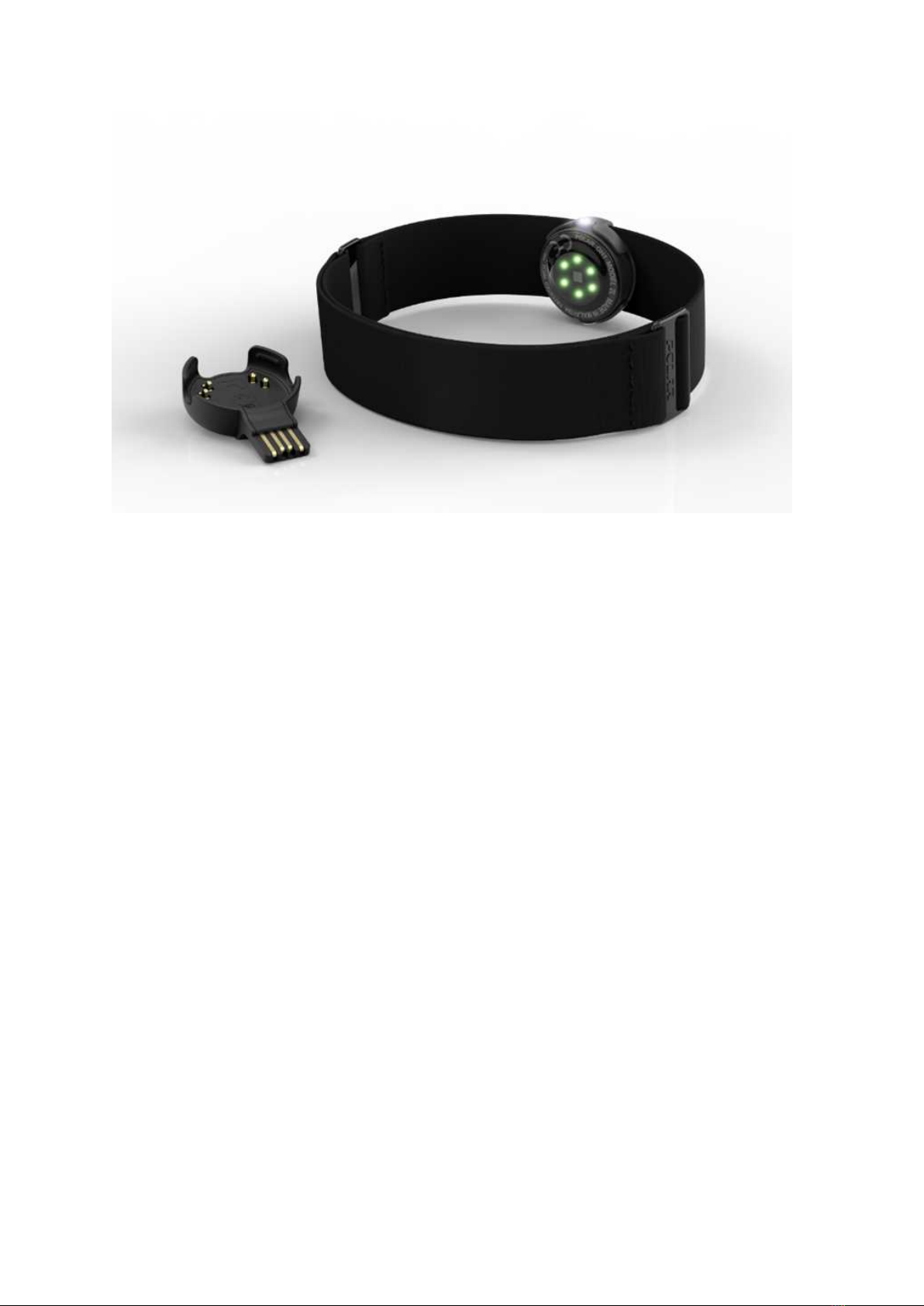

Congratulations on your new Polar OH1! The Polar OH1 is an optical heart
rate sensor that is worn around your forearm or upper arm. It can be used as
an independent training device that records and stores data or as a heart
rate sensor with a Polar wrist unit. When used as a heart rate sensor, the
OH1 sends the heart rate data to your Polar wrist unit.
OH1 is compatible with Polar wrist units using Bluetooth technology as well
as with Polar Beat app. It can also be used with Polar Club, Polar GoFit and
Polar Team app. In addition, it's compatible with iOS and Android devices that
support the standard Bluetooth Heart Rate Profile.

9
Get connected to the Polar ecosystem and get
the most out of your OH1
Get the Polar Flow app from the App Store®or Google PlayTM. Sync your OH1
with the Flow app after training, and get an instant overview and feedback of
your training results and performance.
Sync your training data to the Polar Flow web service with the FlowSync
software on your computer or via Flow app. In the web service you can plan
your training, track your achievements, get guidance and see detailed
analysis of your training results. Let all your friends know about your
achievements, find fellow exercisers and get motivation from your social
training communities. Find all this at flow.polar.com.

10
Setting up your OH1
We recommend that you charge the battery before you start using your OH1.
If the battery is completely empty, it may take a moment for the charging to
start. See Batteries for detailed information on charging the battery.
Note that when your OH1 battery has enough power it will advertise itself to all
compatible receivers nearby.
CHOOSE ONE OPTION FOR SETUP
A. Wired computer setup is quicker and you can charge your OH1 at the same
time, but you need a computer available. This method requires an internet
connection.
B. Mobile setup is convenient if you don't have access to a computer with a
USB port, but it might take longer. This method requires an internet
connection.
Fill in all the physical details required for accurate training data at once, and get
the latest firmware for your OH1.

11
Option A: Set up with your computer via FlowSync
1Place the sensor into the USB
adapter with the lens facing up
so that the contacts on the
sensor and the USB adapter
meet (picture 1).
2Plug the USB adapter into
your computer USB port
(picture 2), and go to
flow.polar.com/start and install
Polar FlowSync data transfer
software to your computer.
3Sign in with your Polar
account or create a new one.
We’ll walk you through the sign-
up and setup within the web
service.
During the setup you'll be asked to
set where you wear your product
and fill in your physical settings. It
is important to set these correctly
to receive the most accurate data.
After the setup is done, you’re
ready to go. Have fun!
Option B: Set up with your mobile device via Flow app
Polar OH1 connects to the Polar Flow mobile app wirelessly via Bluetooth, so
remember to have Bluetooth turned on in your mobile device.
Check the Polar Flow app compatibility at support.polar.com.

12
1Download the Polar Flow app onto your mobile device.
2Turn Bluetooth® on, and open Flow app on your mobile device.
3Turn OH1 on by pressing the button until the LED is switched on, Flow
app then prompts you to start pairing. Accept the pairing request and fol-
low the on-screen instructions.
During the setup you'll be asked to set where you wear your product and fill
in your physical settings. It is important to set these correctly to receive the
most accurate data.
After the setup is done, you’re ready to go. Have fun!
Button functions and LEDs
OH1 has one button that has different functions depending on the situation
of use, and how long it is pressed. The LED on the device indicates different
modes. See below what functions the button has in different modes, and
what the different colored LEDs mean.
Quick Instructions Inside Armband Holder
The following markings are visible inside the sensor holder in the armband.
The markings explain the OH1 basic button functions.
1X = ON (Set power ON: Short button press)
2X = REC (Set training recording ON - Use as an independent training device:
Press button twice when OH1 is on)
1X LONG - OFF (Set power OFF: Long button press)

13
Button Functions
Set power ON: Short button press
Set training recording ON
(Use as an independent train-
ing device):
Press button twice when OH1
is on
Set power OFF: Long button press
LED Guide
DURING CHARGING
Charging: Yellow LEDblinks slowly
Battery full: Green LEDcontinuously on
AFTER SETTING POWER ON
Battery status normal: Green LED blinks five times
Battery status low: Red LED blinks five times
WHEN USED AS A SENSOR
Heart rate not detected: White LED blinks once every
two seconds
Heart rate detected: Green LED blinks once every
two seconds
WHEN USED AS AN INDEPENDENT TRAINING DEVICE
Training recording set on but
first time use not done:
Red LEDblinks three times

14
Heart rate not detected: White LEDblinks quickly
twice
Heart rate detected: Green LEDblinks quickly
twice
Battery low: Green and Red LED alternate
every other second
Battery critical: Red LED blinks quickly
DURING FITNESS TEST
Heart rate not detected: White LEDblinks once every
two seconds
Heart rate detected: Purple LEDblinks once every
two seconds
OTHER
Connecting, Syncing or Pair-
ing:
Blue LED blinks
Searching or waiting for con-
firmation:
Blue LED blinks quickly
Updating firmware: Blue LEDcontinuously on
Error: Red LEDcontinuously on

15
Wearing your OH1
When measuring heart rate from your forearm or upper arm
To measure heart rate accurately, you need to wear the OH1 snugly on your
forearm or upper arm, not on your wrist.

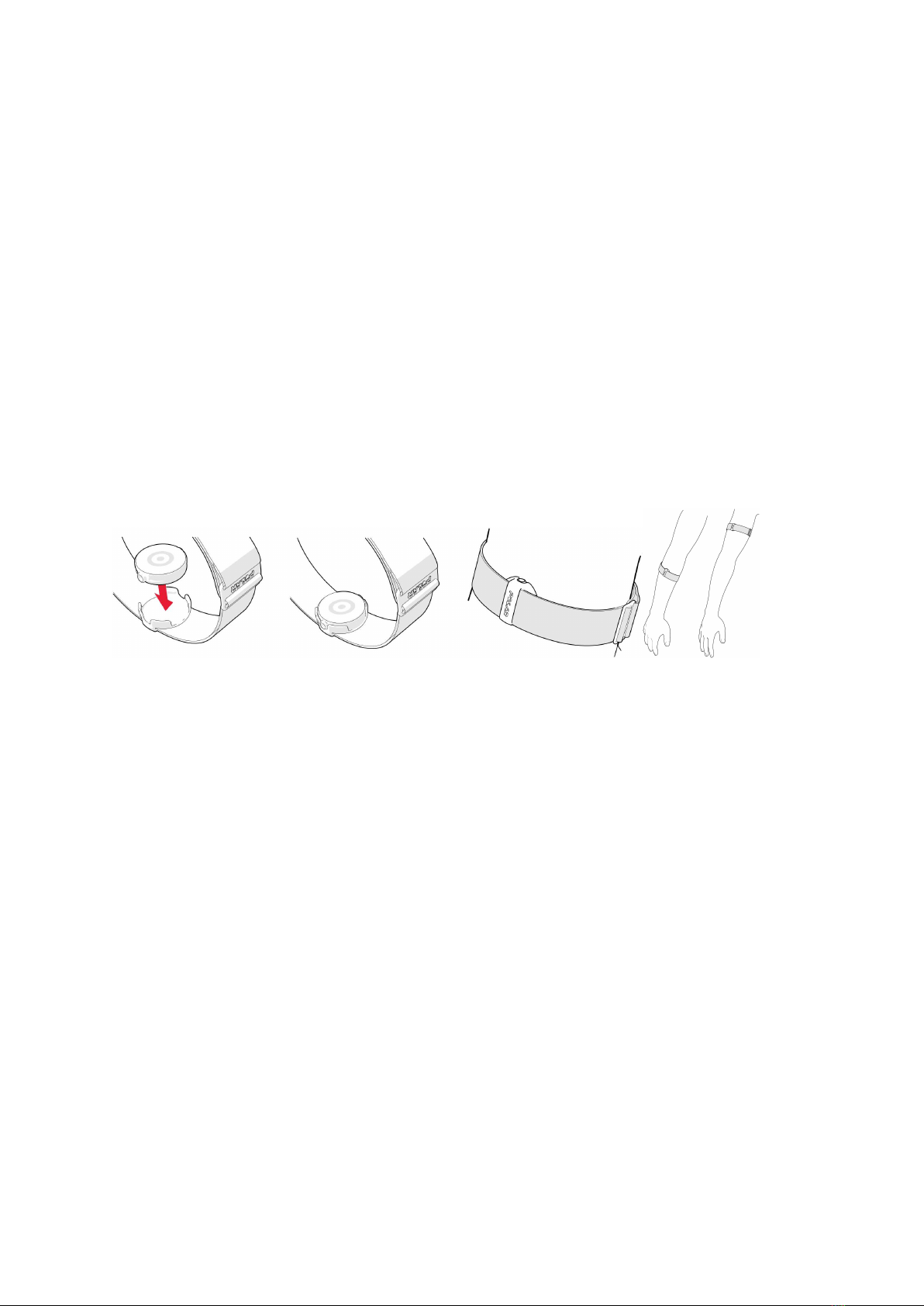

1Place the sensor into the armband holder with the lens facing up.
2Wear the armband so that the sensor is on the underside of the armband
firmly against your skin.
3Wear the OH1 around your forearm or upper arm.
The sensor must be in firm skin contact, but not too tight to prevent blood
flow. For most accurate heart rate measurement, we advise you to wear your
OH1 for a few minutes prior to starting the heart rate measurement.
Pairing
Pair a mobile device with your OH1
If you've done the setup for your OH1 with a mobile device as described in
chapter "Setting up your OH1" on page10, your OH1 has already been paired

16
with your mobile device.
If you did the setup with a computer, and would like to use your OH1 with
Polar Flow app you need to perform one training session with OH1 as an
independent training device before it can be paired with Flow app. See
detailed instructions below.
Before pairing make sure:
•You have a Polar account and Flow app.
•Your mobile device has Bluetooth turned on, and airplane mode/flight
mode is not turned on.
•You have performed at least one training session with OH1 as an inde-
pendent training device. For details, see "Start a training session" on
page19
Once all the criteria above is met:
1Sign in to Flow app with your Polar account.
2On OH1, press the button until the LED is switched on, and release. OH1
is now on.
3Flow app automatically prompts you to pair your OH1 with it if it is within
Bluetooth range.
Your OH1 syncs with the Flow app automatically if your phone is within the
Bluetooth range. When your OH1 syncs with Flow app, your training data is also
synced automatically via an internet connection to the Flow web service.
Pair OH1 with a Polar wrist unit
On OH1, press the button until the LEDis switched on, and release. OH1 is
now on.

17
Check the user manual of your Polar wrist unit at support.polar.com for
specific pairing instructions.
Pair OH1 with Polar Beat
1Download Polar Beat onto your mobile device from the App Store®or
Google PlayTM.
2Make sure your mobile device has Bluetooth turned on, and airplane
mode/flight mode is not turned on.
3On your mobile device, open Polar Beat and sign in with your Polar
account, which you have created when setting up your OH1 or create a
new account if you don't have one.
4On OH1, press the button until the LED is switched on, and release. OH1
is now on.
5On Beat, go to Settings > HR sensor and tap Pair next to your OH1
under Found sensor.
Updating the firmware
You can update the firmware of your OH1 yourself to keep it up to date. You'll
be notified via Flow when a new version is available. Firmware updates are
performed to improve the functionality of your OH1. They can include
improvements to existing features, completely new features or bug fixes. We
recommend that you update the firmware of your OH1 every time a new
version is available.
You won't lose any data due to the firmware update. Before the update begins,
the data from your OH1 is synced to the Flow web service.

18
With mobile device or tablet
You can update the firmware with your mobile device if you're using the Polar
Flow mobile app to sync your training and activity data. The app will let you
know if there's an update available and will guide you through it. We
recommend that you plug the OH1 into a power source before starting the
update to ensure flawless update operation.
The wireless firmware update may take up to 20 minutes, depending on your
connection.
With computer
Whenever a new firmware version is available, FlowSync will notify you when
you connect the OH1 to your computer. The firmware updates are
downloaded via FlowSync.
To update the firmware:
1Place the sensor into the USB adapter with the lens facing up so that the
contacts on the sensor and the USB adapter meet.
2Plug the USB adapter into your computer USB port.
3FlowSync starts syncing your data.
4After syncing, you are asked to update the firmware.
5Choose Yes. New firmware is installed (this may take up to 10 minutes).
Please wait until the firmware update has been finalized before you detach
the OH1 from your computer.

19
Heart rate training
Although there are many subjective clues as to how your body is doing during
exercise (perceived exertion, breathing rate, physical sensations), none of
them are as reliable as measuring heart rate. It is objective and affected by
both internal and external factors—meaning that you will have a dependable
measure of your physical state.
Measuring heart rate with your OH1
To measure heart rate accurately you need to wear your OH1 snugly around
your forearm or upper arm. The sensor must be in constant touch with your
skin, but the armband should not be too tight to prevent blood flow. For most
accurate heart rate measurement, we advise you to wear your OH1 for a few
minutes prior to starting the heart rate measurement.
If you have tattoos avoid placing the sensor right on them it as it may prevent
accurate readings.
Also it's a good idea to warm up the skin if your hands and skin get cold
easily. Get the blood going before starting your session!
For detailed instructions on wearing OH1, see "Wearing your OH1" on page15
Start a training session
Wear the OH1 around your forearm or upper arm, for details see "Wearing
your OH1" on page15

20
Start a training session as an independent training device
Before using OH1 as an independent training device, it needs to be
registered and linked to a Polar Flow account. For details, see "Setting up
your OH1" on page10.
1Switch OH1 on by pressing the button until the LED is switched on and
release.
2OH1 is now on, press the button shortly twice to switch recording on.
3When your heart rate is detected, the green LED will blink rapidly, and
you can start your session.
After your training session, you can stop the recording by pressing the
button until the LED is switched off. Then sync your training session to the
Flow app and web service to view the details of your session. See "Syncing" on
page26 for more information.
When used as an independent training device training sessions are stored
under the Other indoor Sport Profile. The memory capacity is up to 200
hours of training.
Start a training session with a Polar wrist unit
Before starting, make sure the OH1 is paired with your Polar wrist unit. For
details see "Pairing" on page15
1Switch OH1 on by pressing the button until the LEDis switched on and
release.
2OH1 is now on, and can be used as a heart rate sensor with a Polar wrist
unit.
3When your heart rate is detected, the green LED blinks once every two
