Polaris 2869924 User manual

HEATED VEST
User Manual

1
Included Components
Included Components.................................................................................
Control Module Functions and Operations.................................................
Primary Functions........................................................................................
Secondary Functions...................................................................................
Tertiary Functions........................................................................................
Maintenance, Storage, Laundering and Cautions......................................
Troubleshooting..........................................................................................
Technical Specifications.............................................................................
Control Module Transportation...................................................................
Control Module Disposal and Recycling....................................................
Heated Vest One-Year Limited Warranty....................................................
FCC Radio Frequency Interference Statement...........................................
A. Control
Module (1)
Contents
1
2
3
6
6
7
8
9
10
11
11
13
*Replacement parts may be purchased at Polaris.com
B. USB to 5.5mm
DC Plug (1)
C. 12V to 5.5mm
DC Plug (1)

2
Power Button will light up when charging and discharging power.
*The heaters and LEDs only draw power from the Control Module. The
snowmobile recharges the battery, but does not send power directly to
heaters and LEDs. Circuits inside the Control Module protect the battery
from overcharging via the snowmobile or a wall outlet.
*The Control Module is not to be used with avalanche beacons or
transceivers. It may interfere with the signal.
Control Module Functions and
Operations

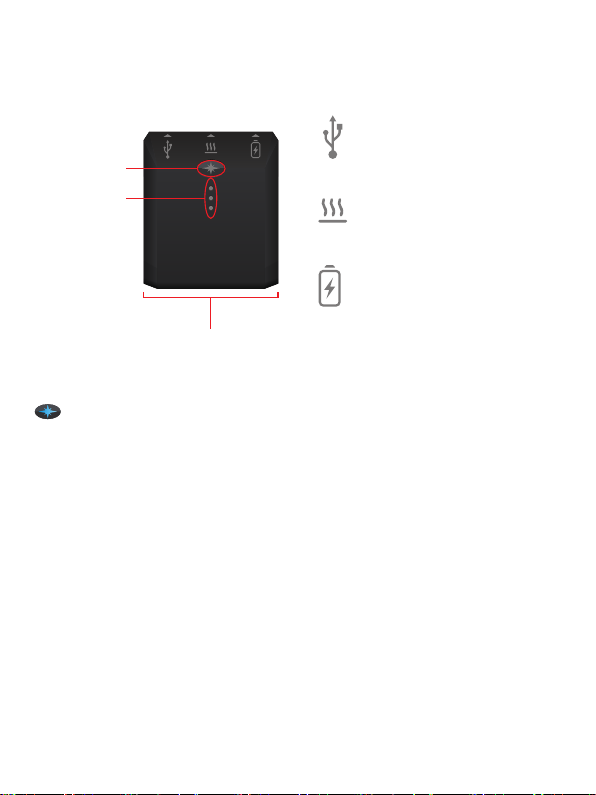

USB Port for charging
mobile devices.
4.0 DC jack for heated vest.
5.5 DC jack for charging the
Control Module, with either
the USB or 12V charge
cables.
Control Module
Power Button
LEDs indicating
heat setting
and battery life.

3
-Plug the USB Charge Cable into the Control Module, then plug the USB
Charge Cable into a USB outlet. Under this mode, the only function is
charging.
-Plug the 12V Charge Cable into the Control Module, then plug into the
snowmobile. Under this mode, the system supports heating functions and
recharging mobile devices at the same time.
-For optimal battery life, please ensure Control Module is fully charged
before use.
A. Charging the Control Module.
Primary Functions
66% Charged, bottom
light blinking.
33% Charged, bottom
two lights blinking.
Less than 33% charged,
all three lights blinking.
Fully Charged, all lights solid.
-Charge status is
indicated by lights
blinking in
succession.
-Charge time:
4 Hours (via 5V/2A
USB Charge Cable)
or <3 Hours (via 12V
Charge Cable)
-Please ensure
Control Module is
fully charged before
use.

4
LEDs will light up red. Heaters will begin at the high
temperature setting. Press Power Button to cycle
through high, medium and low settings.
*Heating times can vary based on wind and
temperature.
To turn heaters on, press and hold for 3 seconds.
Power Button will light up blue for 3 seconds, when
heaters are plugged into the Control Module.
To turn heaters off, press and hold for 3 seconds.

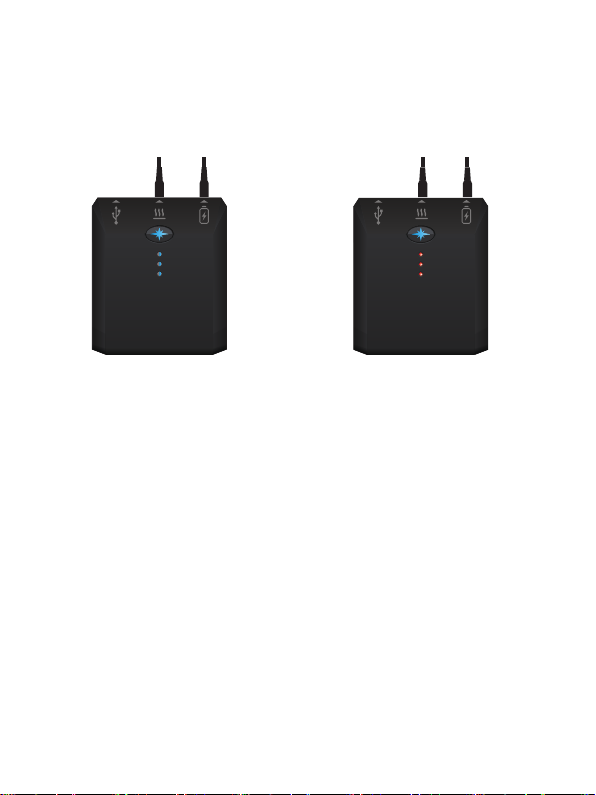

B. Heaters are plugged in.
High: 113° ±3°F: approximate time 1.6hrs
Medium: 104° ±3°F: approximate time 2.5hrs
Low: 95° ±3°F: approximate time 4 hrs

C. Mobile device is plugged into Control
Module.
-When a mobile device is plugged into the Control
Module, the blue light will stay on to indicate that
it’s charging. The Control Module will automatically
shut off 5V power to the USB port when the mobile
device is fully charged, to optimize better
performance.
5

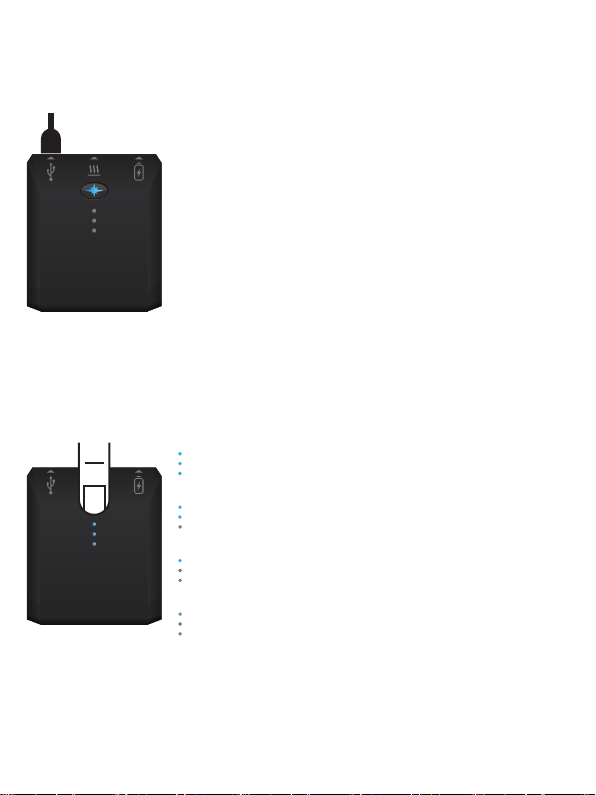

D. Checking battery life.
≥66%-<90%
≥33%-<66%
<33%
>90% -When nothing is plugged in,
press and hold the Power Button
to check battery life. As soon as
the Power Button is released,
battery life indication will turn off.

Accidental turn on override/System reset
Tertiary Functions
-Under any mode, if the Power Button is held down for 8 seconds, the
Control Module will automatically reset and power off.
6
Secondary Functions
Control Module is charging via 12V Charge
Cable, heaters are turned on.
-When heaters are
turned on, Control
Module indicates
temperature setting.
-Until heaters are
turned on, Control
Module indicates
charging.

Maintenance and Storage
Maintenance, Storage, Laundering
and Cautions
When storing the Control Module for extended periods of time, it’s important
to follow these steps to ensure its quality. If proper care has not been
taken, consider the Control Module defective and dispose of properly.
-Keep the Control Module dry, wipe off snow, water or residue.
-Before storing, discharge battery life to 50%.
-Check the Control Module once a month to make sure it’s at 50%, charge
the Control Module accordingly if battery life has dropped below that.
-Store in a cool dry place. Make sure temperatures stay between 41°F
and 68°F
-Increased elevations can effect Control Module life cycle.
Due to the nature of lithium ion batteries, when reaching its end of life,
please consider proper disposal if encountering these issues:
-If the Control Module work time drops below 80%
-If the charge time significantly increases.
7
Laundering
When washing the vest, first make sure that the Control Module has been
properly removed. Next, make sure the heating cord is tucked into the
pocket and the zipper is closed. Finally, machine wash the vest on the
gentle cycle and line dry.
Cautions
-Do not wear the garment next to skin. It is encouraged to wear a base
layer underneath the heated vest.
-Do not expose the Control Module to any excessive conditions, these may
include, but are not limited: to submerging in water, exposure to flame,
excessive heat above 140°F. The heated vest is not intended for survival or
extreme conditions.

8
Troubleshooting
If the Control Module is not functioning properly, please follow these steps:
-Unplug and replug all connections.
-Make sure the Control Module is fully charged.
-Connect the Control Module to another electronic device through either the
USB Charge Cable or 12V Charge Cable.
-Press and hold the Power Button for 8 seconds to reset the system.
-If you or anyone using the device has any medical conditions or health
concerns, please consult your medical physician first.
-Do not open, break or damage the control module in anyway.
-Keep away from children.
-Do not use on animals.
-Do not put the heated vest or Control Module in the microwave or dryer.
-If the Control Module is leaking fluids, dispose of properly. If any fluids from
the Control Module come in contact with the eye, do not rub eyes.
Immediately, flush the eye with water and promptly seek medical attention.
If any fluids are ingested, please consult your nearest Poison Control Center.

Heater Specification and Test Condition
1.1 Output current A: Battery voltage = 7.4V B: Battery 12V recharging
1.1.1 Output current (High temperature) 1200mA (max) 1800mA (max)
1.1.2 Output current (Medium temperature) 800mA (max) 1400mA (max)
1.1.3 Output current (Low temperature) 500mA (max) 1000mA (max)
1.2 Heater work time A: Battery voltage = 7.4V B: Battery 12V recharging
1.2.1 Mode 1 High temperature ~1.6hours Unlimited
1.2.2 Mode 2 Medium temperature >2.5hours Unlimited
1.2.3 Mode 3 Low temperature >4hours Unlimited
1.3 Temperature settings per mode A: Battery voltage = 7.4V B: Battery 12V recharging
1.3.1 Mode 1 High temperature 113° ±5°F 122° ±5°F
1.3.2 Mode 2 Medium temperature 104° ±5°F 113° ±5°F
1.3.3 Mode 3 Low temperature 95° ±5°F 104° ±5°F
1.4 Heater Material parameter:
1.4.1 Heat Resistance 6.8Ω±10%
2. Charging features:
2.1 Input charge voltage 5~15V
2.2 Charge current 1.1A max
2.3 Charge time <4 Hours (via 5V/2A USB Charge Cable) or <3 Hours (via 12V Charge Cable)
Notes: The charge time via 5V/2A USB Charge Cable can change based on various devices it’s
plugged into.
2.4 Control Electronics charging temperature <149°F
3. USB port output features:
3.1 Output voltage 5V±5%
3.2 Output current 2A(max)
4. Li-polymer battery:
4.1 Nominal Capacity 7.4V/2000mAh
4.2 Maximum Constant Charging Current 2000mA
4.3 Operating Temperature -68~140°F
4.4 Cycle life ≥500 times
4.5 Protection PCM (Protective Circuit Module)
4.6 Dimension 52mm x 40mm x 18mm (L x W x H)
*For lower amperage devices(i.e. USB sources like laptops), the Control Module is unable to support
simultaneous heating and charging functions.
*All temperatures are listed in Fahrenheit.
Technical Specifications
9

The Control Module in your heated vest contains rechargeable lithium polymer
batteries. Contact the Rechargeable Recycling Corporation (www.rbrc.org) for U.S.
and Canadian regulations or your local battery recycling organization.
Many countries prohibit the disposal of waste electronic equipment in standard waste
receptacles. Only discard Control Modules in an approved battery-collection container.
Always check all applicable local, national, and international regulations before
transporting a lithium polymer battery. Transporting a damaged or recalled battery
may, in certain cases, be specifically limited or prohibited.
Control Module Disposal and
Recycling
10
Control Module Transportation
The Control Module for your heated vest contains rechargeable lithium polymer
batteries. All lithium polymer batteries are subject to various regulations for all modes
of transportation in many nations. Regulatory agencies governing the transportation of
these batteries include, without limitation here, the U.S. Department of Transportation,
the International Civil Aviation Organization (ICAO), the International Air Transport
Association (IATA), and the International Maritime Organization (IMO). For more
information, please visit http://safetravel.dot.gov.

-6-8 Week Processing Time
What this warranty covers:
This One-Year Limited Warranty covers defects in materials and workmanship. This
includes defects that may occur under normal wear. Polaris does not warrant against
and is not responsible for damages caused by misuse, abuse, accident, neglect,
laundering, the natural breakdown of materials over time, problems that may be
reasonably expected with normal wear, or for problems resulting from failure to follow
use, cleaning, care and storage instructions. This warranty is void in the event of
attempted battery repair by any third party.
How long this warranty lasts:
This warranty lasts for one year from the date of purchase. Coverage ends if you sell
or transfer the product.
How to get warranty service:
If you have a warranty claim, please return the heated vest with the original receipt
within the warranty period to your nearest Polaris dealer.
This Polaris Product uses UL Recognized Component battery cells. The Polaris
Product is in compliance with California Code of Regulations, Title 20, Appliance
Efficiency Regulations, and EU Directive 2006/66/EC. The electronics in this Polaris
Product are also in compliance with EU Directive 2002/95/EC with respect to the
following substances: lead (Pb), cadmium (Cd), mercury (Hg), hexavalent chromium
(Cr(VI)), polybrominated biphenyls (PBB), polybrominated diphenyl ethers (PBDE).
While electronic apparel products with batteries are currently exempt from the
requirements of EU Directive 2002/95/EC, we have voluntarily committed to minimize
the use of these substances in our products.
Regulatory Declarations
Heated Vest One-Year Limited
Warranty
11

The heated vest must be cleaned prior to shipment according to its care instructions.
Please include a cover letter with your name, address, daytime phone number, and a
brief description of the problem. A copy of your original receipt or proof of purchase
may also be required. We suggest that you send the product via a shipping service
such as UPS so that the package can be tracked if necessary.
What we will do:
The Polaris Warranty Department will inspect the product at no charge to you. If the
Warranty Department determines, at its sole discretion, that the product has a defect
covered under this warranty, we will repair or replace it. If the defective product is not
repairable and an identical product is not available, we will either replace it with a
product or a comparable style, color, and function or refund the purchase price, at
our discretion.
How local law applies:
This limited warranty gives you specific legal rights. You may also have other rights
that vary from jurisdiction to jurisdiction, to the full extent permitted under applicable
law, this limited warranty and any disputes arising out of or in connection with this
Limited Warranty (Disputes) shall be governed by the laws of the State of Minnesota,
USA, excluding conflicts of law principles and excluding the Convention for the
International Sale of Goods. The courts located in the State of Minnesota, US. shall
have exclusive jurisdiction.
Limitation of Liability:
Polaris’s and your maximum liability to the other, including without limitation liability
under any express or implied warranty or condition, is limited to the purchase price
you paid for the product. Neither you, nor Polaris are liable to the other if you or it are
unable to perform due to events you or it are unable to control, such as acts of God, or
for property damage, personal injury, loss of use, or any other consequential, indirect,
incidental, punitive or special damages, however caused, whether for breach of
warranty, tort (including negligence,) strict liability or otherwise, other than any
damages which are incapable of limitation, exclusion or restriction under applicable
law. Some jurisdictions do not allow limitations or exclusion of incidental or
consequential damages, so the above limitations or exclusions may not apply to you
in whole or in part.
12

13
If any provision of this Limited Warranty is unlawful, void or unenforceable, that
provision shall be deemed severable and shall not affect any remaining provisions. If
there is any inconsistency between the English and or other versions of this Limited
Warranty, the English version shall prevail.
Customer Service:
Please contact Polaris Industries with any questions, comments or concerns.
USA and Canada: 1-800-POLARIS
For international inquiries, please work with your distributor.
FCC Radio Frequency Interference
Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed properly and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment on and off, the user is encouraged to try and correct the interference by
one or more of the following measures.
-Reorient or relocate the receiving Control Module.
-Increase the separation between the antenna and the receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
MODIFICATIONS: Modifications may void the user’s authority to operate the device
under FCC regulations and must not be made.
