Polygroup TG76M4C92C00 User manual

ASSEMBLY INSTRUCTIONS MADE IN CHINA
Top view Side view
Fig. C
MODEL #: TG76M4C92C00, TG76M4C92C02
*Electrical Rating For The Tree
(For Indoor Use Only)
1.36A 120V 60Hz
Fig. B - Tree and Light Assembly
1. Before you start to assemble your tree, choose an appropriate location near a wall outlet.
2. Assemble the tree stand and place on a level surface. (See Fig. A)
Congratulations on purchasing your new tree from Polytree®! This tree comes with
Quick Set® technology-Set up and light up your tree in less than 10 minutes!
Carefully follow the instructions below on how to quickly and easily set up your new tree.

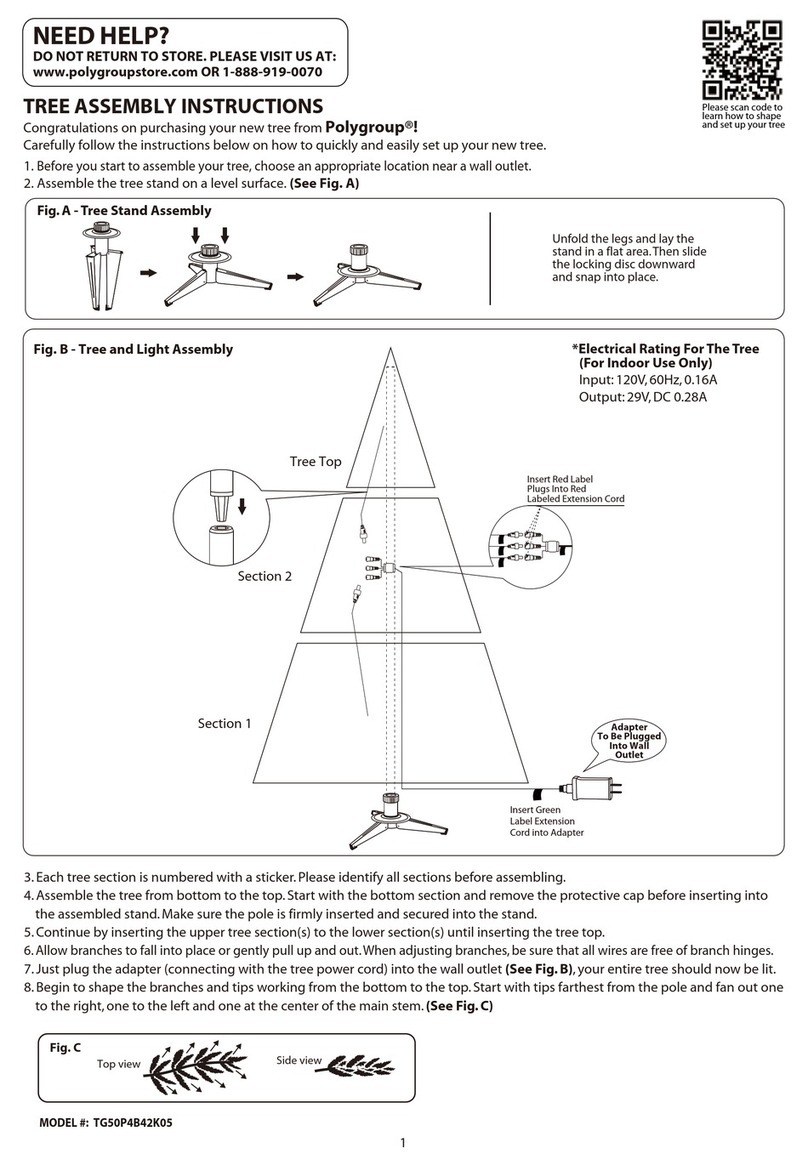

TREE ASSEMBLY INSTRUCTIONS
3. Each tree section is numbered with a tag.Please identify all sections before assembling.
4. Assemble the tree from bottom to tree top. Start with the bottom section and remove the protective
cap before inserting into the assembled stand.Make sure the pole is firmly inserted and secured into the
stand.
5. Continue by inserting the upper tree section(s) to the lower section(s) until inserting the tree top.
6. Allow branches to fall into place or gently pull up and out.When adjusting branches, be sure that all
wires are free of branch hinges.
7. Insert green label plug into the wall outlet.(See Fig. B ), your entire tree should now be lit. If some bulbs
do not light or flickers, search for any loose plugs and/or broken, loose or missing bulbs. Connecting the
plugs or replace the bad bulbs promptly in order to maintain the performance and life expectancy of
your pre-lit tree.
8. Begin to shape the branches and tips working from the bottom to the top. Start with tips farthest from
the pole and fan out one to the right, one to the left and one at the center of the main stem. (See Fig. C)
9. After shaping the entire tree following the previous step, slightly upsweep all branch tips for a uniform
look. Shift branches to fill any gaps.Your Christmas tree is now complete and ready to be decorated.
Section 3
Section 2
Section 1
Insert
Green Label
Plug Into Wall
Outlet
Do Not Tamper
Internal Parts
Open the
protective
cover
Do Not Tamper
Internal Parts
Open the
protective
cover
Fig. A - Tree Stand Assembly
Unfold the legs and lay the
stand in a flat area.Then slide
the locking disc downward and
snap into place.
Please scan code to
learn how to shape
and set up your tree

ASSEMBLY INSTRUCTIONS MADE IN CHINA
STORAGE INSTRUCTIONS
TROUBLE SHOOTING TIPS
SPARE PARTS
1. Unplug extension cord from the wall outlet first and then remove all ornaments and decorations.
2. Disassemble the tree from the top to the bottom. Start with the tree top and gently lift straight up to
remove from section below and fold all branches toward the pole.
3. Continue by gently lifting straight up each section(s) from the section
below and fold all branches toward the pole until the bottom section
is removed from the tree stand. Cover the cap on the poles to avoid
damaging the internal parts. (See Fig. D)
4. Carefully place all tree sections into shipping box and tape it shut.
5.When not in use, please store your tree in a cool, dry place away from
sunlight. Exposing your tree to excessive heat or humidity may damage your tree.
For Pre-lit Trees, If The Tree Does Not Illuminate
1. Please check to make sure that all plugs are properly connected and power cord is plugged into the wall
outlet. (If the tree comes with a foot pedal, try stepping on the on/off button).
2.Turning the poles gently to make sure pole to pole are connected into place.
3. Check for loose connection between light string plugs and extension cords.
4. Please check for loose, broken or missing light bulbs and replace as needed.
1. Extra hinge pins are included for repairing the hinges. Place the branch into the slot of the bracket.
2. Insert a new hinge pin through the hole and secure using the retainer washer.(See Fig. E)
Each tree includes hinge pins/washers, and for pre-lit
trees spare bulbs and fuses are also included. If extra
parts are needed, please contact our customer service
center.
Loose Hinge Pin
Fig.E
Fig. D
CUSTOMER SERVICE FOR CHRISTMAS TREES
For any questions, assistance, or missing parts, Do Not Return To Place Of Purchase. Please contact
us at 1-888-919-0070 or visit our website at www.polygroup.com. One of our customer service
representatives will be happy to assist you.
TREE ID# IS LOCATED ON END PANEL OF BOX.TREE ID# IS REQUIRED WHEN REQUESTING REPLACEMENT PARTS.
Customer Name:
Address:(No P.O. Boxes)
City & State:
Zip Code:
Day Phone:
Date Purchased:
Tree ID#:
Tree UPC#:
Store Purchased:
Specify Problem:
