Pond Boss NCFTN User manual

Complete Nozzle Kit
ITEM #NCFTN

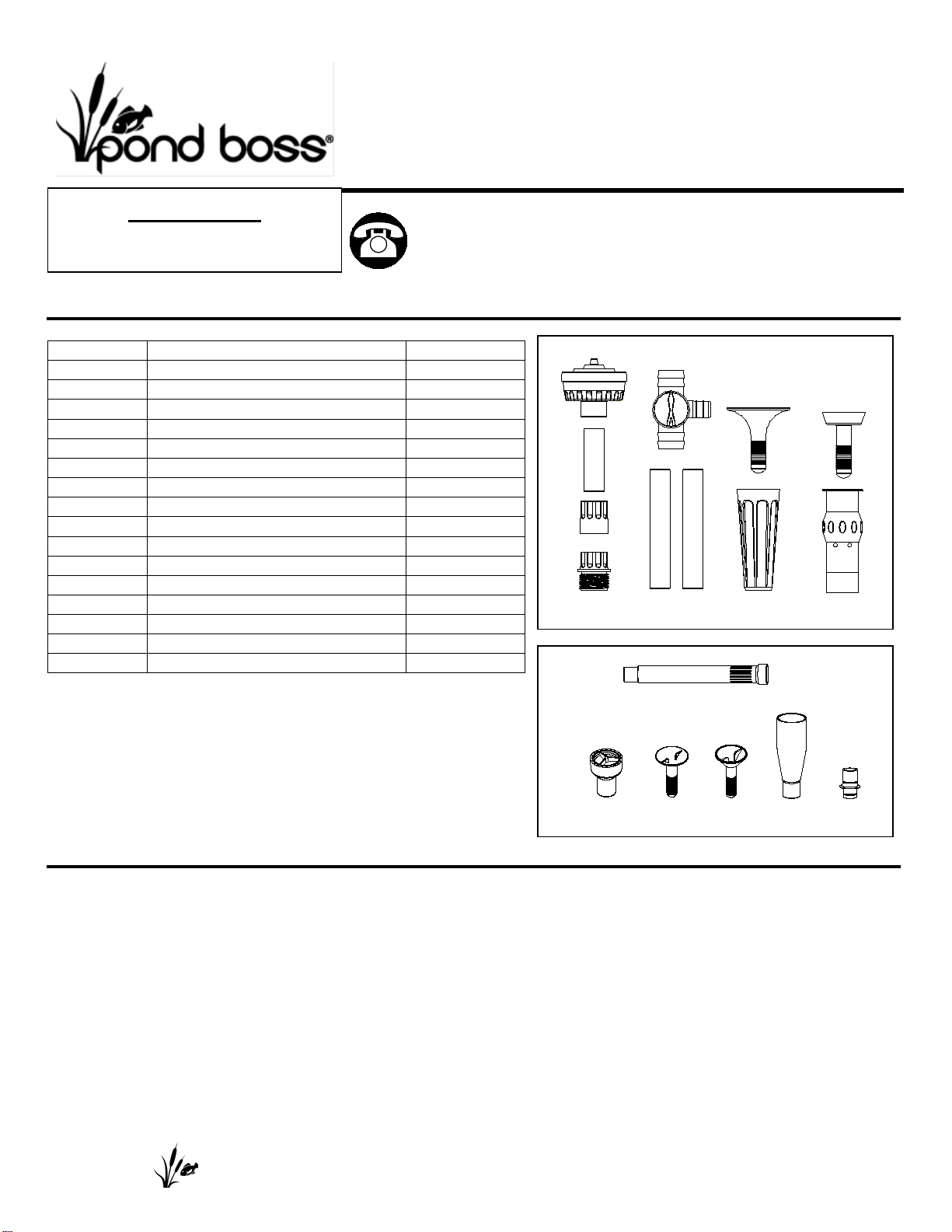

PACKAGE CONTENTS
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and diagram above. If any part is missing or damaged, do not attempt to assemble, install or
operate the product. Contact customer service for replacement parts.
•Estimated Assembly Time: 5 minutes
•No tools required for assembly.
Part
Description
Quantity
A
Extension tube
2
B
Coupler
1
C
Adapter for 1/2” outlets
1
D
Adapter for 3/4” outlets
1
E
3-tier fountain head
1
F
Trumpet fountain head
1
G
Waterbell fountain head
1
H
Foam-jet fountain head
1
I
Lower fountain head nozzle
1
J
Diverter valve
1
K
Telescoping extension tube
1
L
Waterspray nozzle
1
M
Waterbell nozzle insert
1
N
Trumpet nozzle insert
1
O
Small lower fountain head nozzle
1
P
Adapter (with o-ring)
1
E
B
D
G
F
J
C
REMINDER
CALL 1-888-755-6750
BEFORE RETURNING TO STORE.
Questions, problems, missing parts? Before returning
to your retailer, call our customer service department at
1-888-755-6750, 8 a.m.-6 p.m., EST, Monday-Friday, or
email us at [e-mail] visit our
website www.thepondboss.net.
K
L
M
N
O
P
A
A
I
H
PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET

ASSEMBLY INSTRUCTIONS
This kit includes pond nozzle kit and container nozzle kit, if use PF320,PF525, PP225, PP350 and
PP575 pump, use the pond nozzle kit( press step 1 to 7 and 10); if use other small fountain pump,
use container nozzle kit( press step 8 to10).

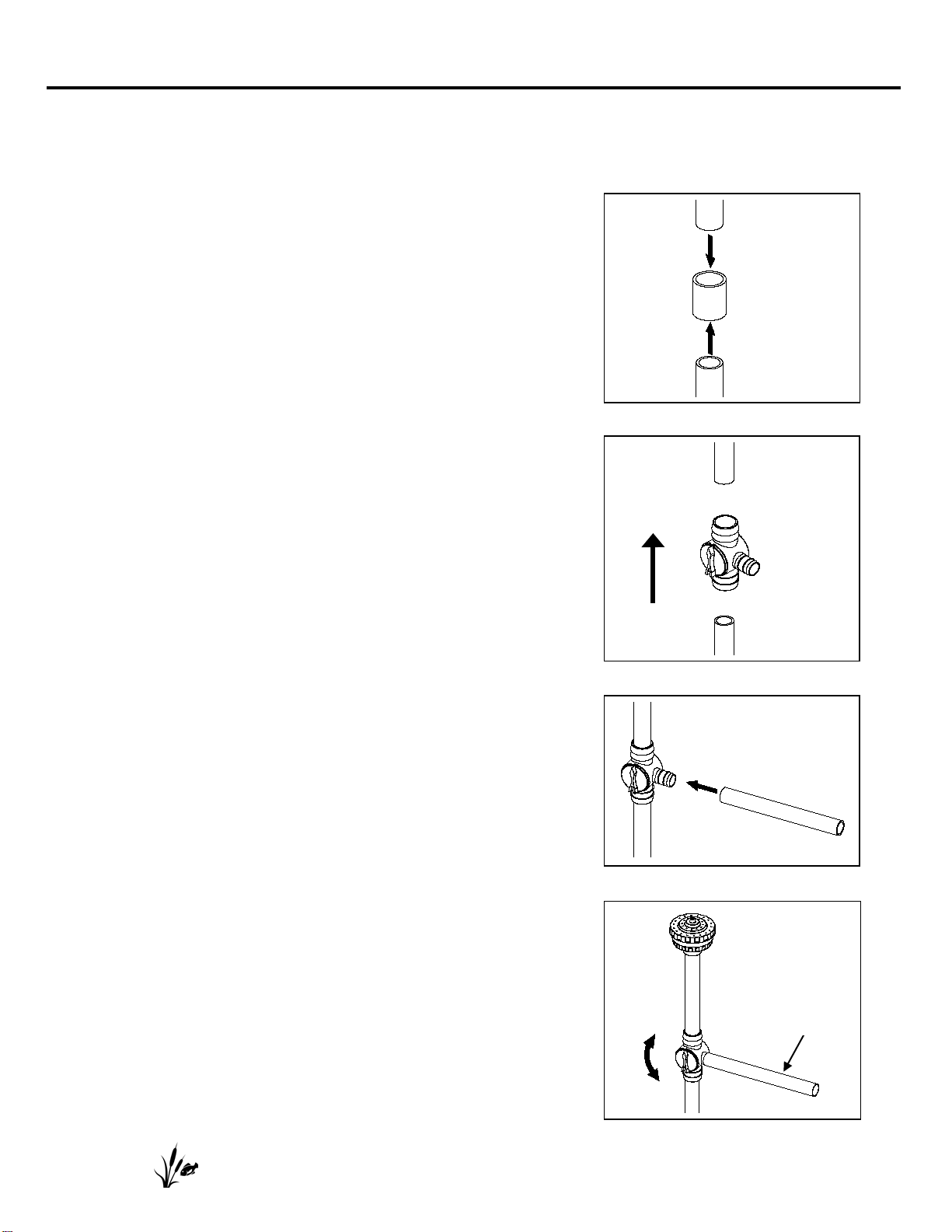

1. Connect the two extension tubes (A) with the coupler (B).
Fig. 1
NOTE: Use the coupler (B) if no spitters are to be used.
Fig. 1
2. Connect the extension tubes (A) to the diverter valve (J).
Make sure the arrow on the valve is positioned as shown and
the diverter valve is connected as shown. Fig. 2
NOTE 1: Use diverter valve (J) to simultaneously run a
spitter and fountain head from one pump.
Fig. 2
3. For 1/2 in. tubing, connect the tubing onto the second output
of the diverter valve. Connect the other end of the tubing to a
spitter or other water feature. Fig. 3
NOTE: Tubing and spitter are NOT INCLUDED.
Fig. 3
4. Connect the fountain head to the top extension tube. Adjust
the diverter valve to split the flow between the fountain head
and the spitter. Fig. 4
Fig. 4
Fountain head
Extension
tube
Connect
to spitter
A
B
A
Water flow
A
A
J
Diverter valve
1/2 in. tubing
PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET

5. Choose a fountain head for the desired water effect, and
assemble your choice as shown in Fig. 5
Fig. 5
6. For the PF320, PP225, PP350, PP575, use the 3/4” adapter
to connect the pump to the extension tubes. Fig. 6
Fig. 6
7. For the PF525, use the 5/8” adapter to connect the fountain
head kit onto the pump. Fig. 7
NOTE:5/8” adapter is NOT INCLUDED.
Fig. 7
A
A
A
A
E
H
I
I
F
G
PP225&PP350&
PP575
PF320
D
D
A
A
Extension tube
PF525
5/8” adapter
A
PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET

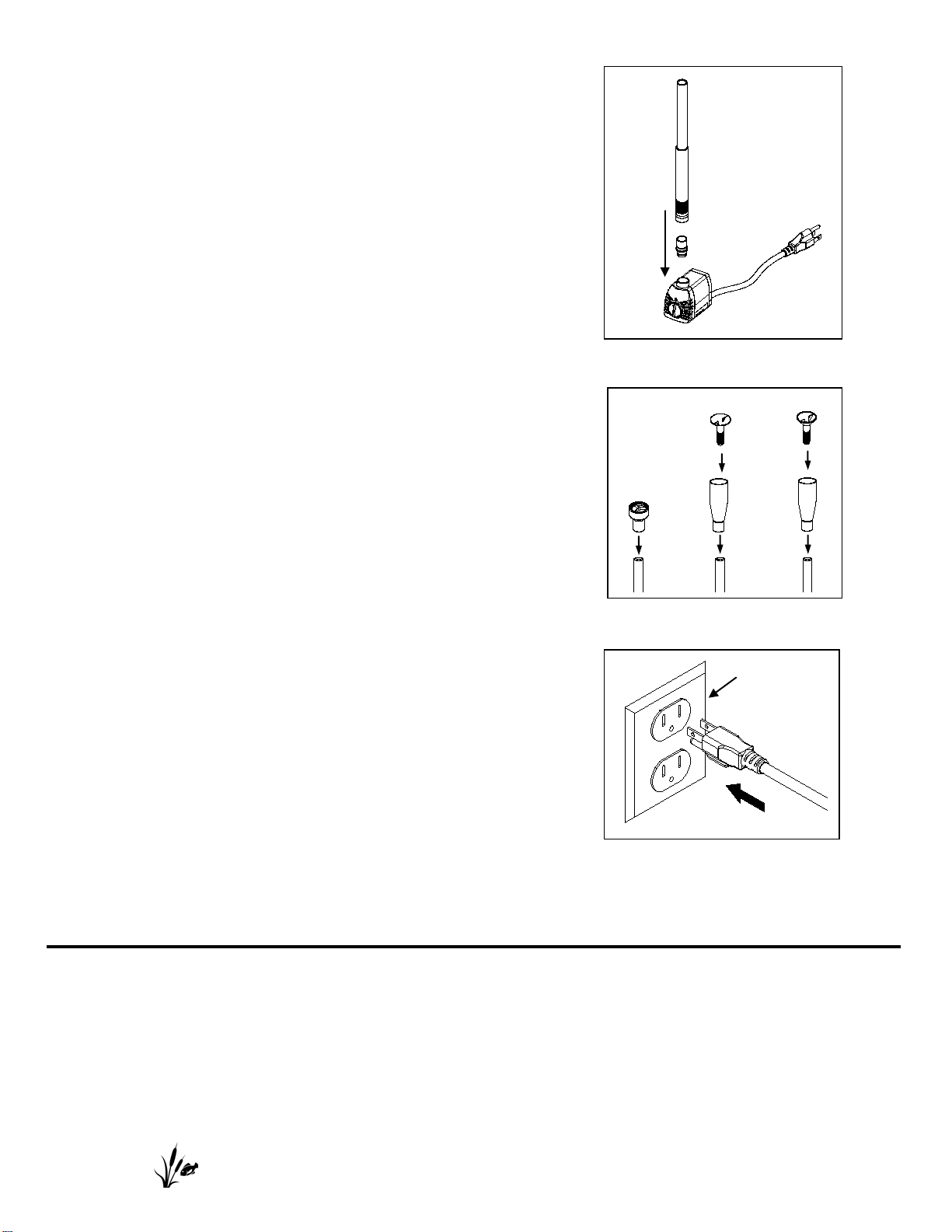

8. Connect the extension tubes to the pump using the adapter.
Fig. 8
NOTE: Pump is NOT INCLUDED.
Fig. 8
9. Choose a fountain head for the desired water effect, and
assemble your choice as shown in Fig. 9.
Fig. 9
10. Connect the pump to a proper power source. Fig. 10.
Fig. 10
CARE AND MAINTENANCE
•Periodically disassemble the fountain head kit and clean the parts.
•Use a cloth or soft brush with warm, soapy water. Be sure to use biodegradable soap.
L
K
K
K
O
N
O
M
GFCI
K
P
PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-888-755-6750, 8 a.m.-6 p.m., EST, Monday-
Friday, or email us at [e-mail].
Printed in China
Part
Description
A
Extension tube
B
Coupler
C
Adapter for ½” outlets
D
Adapter for ¾” outlets
E
3-tier fountain head
F
Trumpet fountain head
G
Waterbell fountain head
H
Foam-jet fountain head
I
Lower fountain head nozzle
J
Diverter valve
K
Telescoping extension tube
L
Waterspray nozzle
M
Waterbell nozzle insert
N
Trumpet nozzle insert
O
Small lower fountain head nozzle
P
Adapter (with o-ring)
B
C
D
E
F
G
J
K
L
M
N
O
P
A
I
H
PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET

LIMITED WARRANTY
All pumps and electrical products are warranted to the user against defective material and workmanship, under
normal working conditions. This warranty period begins on the date of purchase by the original purchaser.
Unless otherwise specified all pond boss® electrical products are warranted to the user against defective
material and workmanship, under normal working conditions for 1 year from the date of purchase.
•Pond and Waterfall pumps are warranted for 3 years.
•All pond boss® liners are warranted to the user against defective workmanship, under normal working
conditions for 20 years from the date of purchase.
•All other pond boss® products are warranted to the user against defective material and workmanship,
under normal working conditions for 90 days.
Application
Warranty covers only properly installed and maintained units. Any damage to the cord or modification to the unit
will invalidate the warranty. Pump warranty is limited to applications pumping fresh water in a pond or fountain
only. Other liquid applications or extreme temperature uses must be approved in writing by the manufacturer.
Receipt and product date code are required for warranty claims.
Warranty Claim
Warranty claims must be made by calling customer service (at 1-888-755-6750). If the item is determined
to be defective, you will be given authorization to return the defective part(s), freight pre-paid, along with proof of
purchase.
Disposition
The manufacturer will make a good faith effort for prompt disposition regarding all warranty claims. Returned
product will be inspected to determine cause of failure before warranty is applied. Warranty does not cover any
costs associated with the shipping, handling, installation or removal of products or parts subject to this warranty.
For products damaged in transit, a claim should be filed with the carrier.
Disclaimer
Any oral statements made about the product by the seller, the manufacturer, the representatives, or any other
parties do not constitute warranties, should not be relied upon by the user, and are not part of the contract for
sale. The seller’s and manufacturer’s only obligation, and buyer’s only remedy shall be for the manufacturer to
either replace and/or repair at the manufacturer’s sole discretion, the product as described above. Neither seller
nor the manufacturer shall be liable for injury, loss or damages for lost profits, lost sales, injury to person or
property, or any other incidental or consequential loss arising from any cause whatsoever, no matter whether
based upon warranty, contract, negligence or other misuse, and the buyer and user agree that no other remedy
shall be available to them. Before using, the buyer and user shall determine the suitability of the product for the
intended use, and assume all risk and liability whatsoever in connection therewith. The warranty and remedy
described in this limited warranty is an exclusive warranty and remedy in lieu of any other warranty or remedy
expressed or implied. All other warranties and remedies are hereby expressly excluded, including but not
limited to any implied warranty of merchantability of fitness for any particular purpose. This warranty gives the
buyer and user specific legal rights, and buyer and user may also have other rights which vary from state to
state. Some states do not allow exclusions or limitations of incidental or consequential damages, so the above
limitations or exclusions may not apply to you.
REMINDER
CALL 1-888-755-6750
BEFORE RETURNING TO STORE.
PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET
