Pontec PondoVario 750 User manual

EN Operating instructions
PondoVario
750 / 1000 / 1500 / 2500 / 3500
Downloaded from www.watergardeningdirect.com

--
2
A
PVO0001
B
C
PVO0008
PVO0002
Downloaded from www.watergardeningdirect.com

--
3
D
PVO0003
E
F
PVO0009
PVO0004
G
PVO0005_1
Downloaded from www.watergardeningdirect.com

-EN -
4
-EN -
Translation of the original Operating Instructions
WARNING
•This unit can be used by children aged 8 and above and by per-
sons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they are supervised or have been
instructed on how to use the unit in a safe way and they understand
the hazards involved.
•Do not allow children to play with the unit.
•Only allow children to carry out cleaning and user maintenance un-
der supervision.
•Ensure that the unit is fused for a rated fault current of max. 30 mA
by means of a fault current protection device.
•Only connect the unit if the electrical data of the unit and the power
supply correspond. The unit data is to be found on the unit type plate,
on the packaging or in this manual.
•Possible death or severe injury from electrocution! Before reaching
into the water, always disconnect all units in the water that have a
voltage of >12 V AC or >30 V DC from the power supply.
•Only operate the unit if no persons are in the water.
•Do not use the unit if electrical cables or housings are damaged.
•A damaged connection cable cannot be replaced. Dispose of the
unit.
Downloaded from www.watergardeningdirect.com

-EN -
5
Safety information
Correct electrical installation
•Electrical installations must meet the national regulations and may only be carried out by a qualified electrician.
•A person is regarded as a qualified electrician if, due to his/her vocational education, knowledge and experience, he
or she is capable of and authorised to judge and carry out the work commissioned to him/her. This also includes the
recognition of possible hazards and the adherence to the pertinent regional and national standards, rules and regula-
tions.
•For your own safety, please consult a qualified electrician.
•Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).
•Protect the plug connection from moisture.
•Only connect the unit to a correctly fitted socket.
Safe operation
•The impeller unit in the pump contains a magnet with a strong magnetic field that may affect the operation of pace-
makers or implantable cardioverter defibrillators (ICDs). Always keep magnets at least 0.2 m away from implanted
devices.
•Keep the socket and power plug dry.
•Never carry or pull the unit by the electrical cable.
•Route cables such that they are protected from damage and do not present a tripping hazard.
•Never carry out technical changes to the unit.
•Only carry out work on the unit described here.
•Only use original spare parts and accessories for the unit.
Information about these operating instructions
You made a good choice with the purchase of this product PondoVario 750 / 1000 / 1500 / 2500 / 3500.
Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.
Ensure that all work on and with this unit is only carried out in accordance with these instructions.
Adhere to the safety information for the correct and safe use of the unit.
Keep these instructions in a safe place! Please also hand over the instructions when passing the unit on to a new
owner.
Symbols used in these instructions
Warnings
The warning information is categorised by signal words, which indicate the extent of the hazard.
WARNING
•Indicates a possibly hazardous situation.
•Non-observance may lead to death or serious injuries.
CAUTION
•Indicates a possibly hazardous situation.
•Non-observance may lead to slight or minor injuries.
NOTE
Information for the purpose of clarification or for preventing possible damage to assets or to the environment.
Additional information
A Reference to a figure, e.g. Fig. A.
→Reference to another section.
Downloaded from www.watergardeningdirect.com

-EN -
6
Product Description
PondoVario 750 / 1000 / 1500 / 2500 / 3500 is a fountain pump for garden ponds, ornamental fountains and (from
PondoVario 1500) for small water courses.
•Temperature protection by built-in temperature monitor.
•Telescopic extension with various nozzles
PondoVario 1500/2500/3500
•Pivoting telescopic extension (ball joint).
•Second, separately adjustable outlet.
•Removable fine-mesh filters for feeding a water course or filter

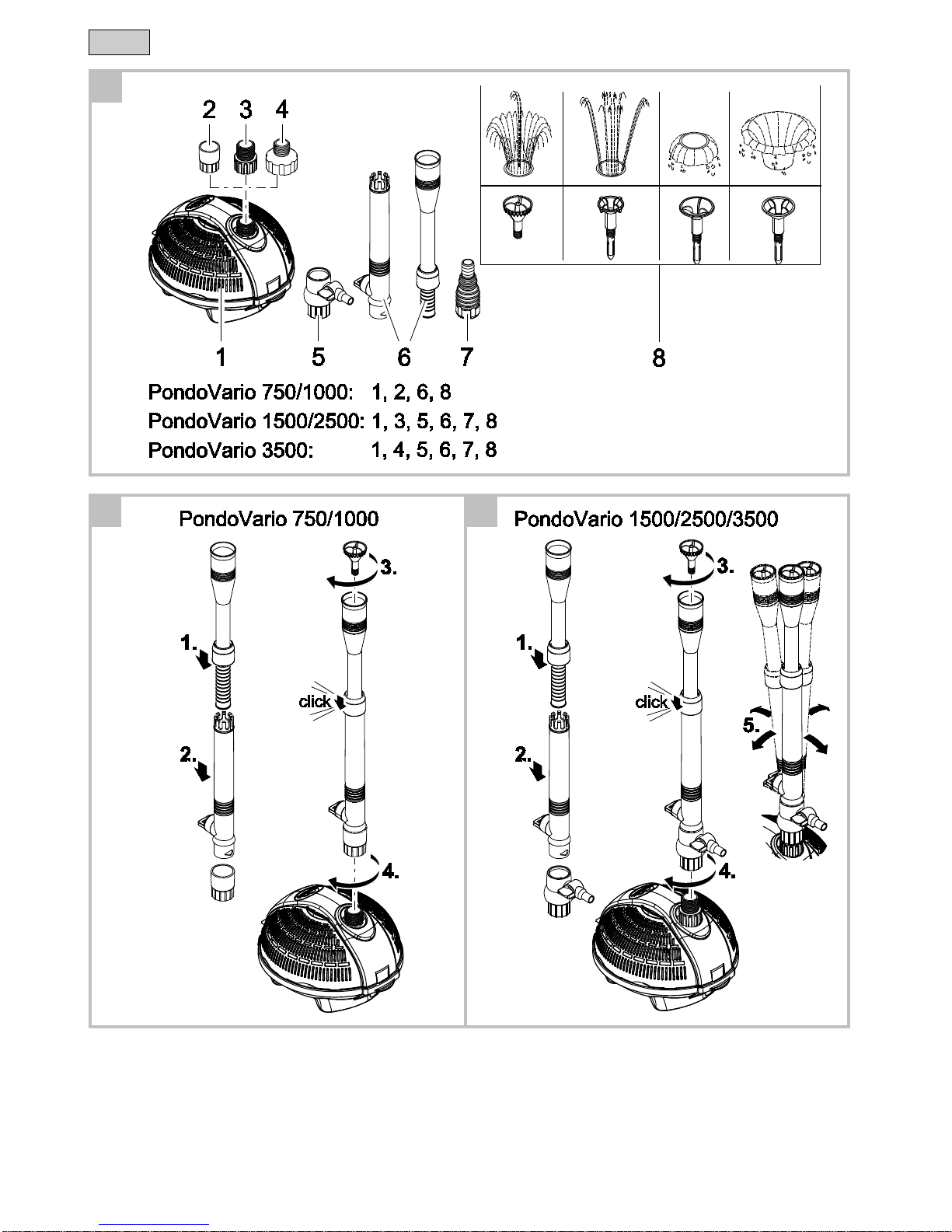

Delivery scope and unit configuration
A
Pondovario
750/1000
1500/2500
3500
1
Filter housing with filter pump
1 x
1 x
1 x
2
Transition piece
1 x
-
-
3
Transition piece
−Fastens the filter pump to the filter cover
-
1 x
-
4
Reduction element
-
-
1 x
5
Ball joint with adjustable outlet (∅9 mm)
-
1 x
1 x
6
Telescopic extension, two-part, consisting of an external and an internal pipe
1 x
1 x
1 x
7
Stepped hose connection
-
1 x
1 x
8
Nozzles
4 x
4 x
4 x
Intended use
PondoVario 750 / 1000 / 1500 / 2500 / 3500, referred to as "unit", may only be used as specified in the following:
•For pumping normal pond water for filters and water courses.
•Operate in accordance with instructions.
The following restrictions apply to the unit:
•Do not use in swimming ponds.
•Never use the unit to convey fluids other than water.
•Never run the unit without water.
•Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
Installation and connection
Use as a fountain pump
PondoVario 750/1000
How to proceed:
B
Assembling the telescopic extension: Insert the internal pipe into the external pipe and secure with the retaining collar.
Insert the telescopic extension into the transition piece.
Insert and screw the desired nozzle into the telescopic extension.
Screw the telescopic extension with transition piece onto the pump and hand-tighten.
Install the unit in the pond in a horizontal position on firm, sludge-free ground and ensure that it is completely covered
with water.
Downloaded from www.watergardeningdirect.com

-EN -
7
PondoVario 1500/2500/3500
How to proceed:
C
Assembling the telescopic extension: Insert the internal pipe into the external pipe and secure with the retaining collar.
Fit the telescopic extension onto the ball joint.
Ensure that the control valve on the telescopic extension and the outlet of the ball joint are aligned opposite each other
so that water can exit from the outlet of the ball joint.
–Ensure that the control valve on the telescopic extension and the outlet of the ball joint are aligned opposite each
other so that water can exit from the outlet of the ball joint.
–The adjustable outlet on the ball joint can be used for feeding a water course.
Insert and screw the desired nozzle into the telescopic extension.
Screw the ball joint onto the transition piece of the pump and hand-tighten.
– Vertically align the telescopic extension via the ball joint.
Install the unit in the pond in a horizontal position on firm, sludge-free ground and ensure that it is completely covered
with water.
Use as a water course pump or filter pump
PondoVario 1500/2500/3500
How to proceed:
D
Screw the stepped hose adapter onto the transition piece of the pump and hand-tighten.
Actuate the engagement hooks on the filter housing.
Remove the strainer casing.
Place the unit in the pond on a horizontal, firm and sludge-free base and ensure that it is completely covered by water.
Maximum installation depth: 2 m below the surface of the water.
Commissioning/start-up
NOTE
Never allow the pump to run dry. Otherwise the pump will be destroyed.
•Ensure that the pump is always flooded during operation.
•Regularly check the water level.
This is how to connect the power supply:
Switching on: Connect the unit to the mains. The unit switches on immediately.
Switching off: Disconnect the unit from the mains.
Use as a fountain pump
After installation and connection, adjust the shape of the fountain by changing the screw-in depth of the nozzles.
PondoVario 750/1000
E
•Turn the control valve on the telescopic extension to achieve the desired spray pattern.
PondoVario 1500/2500/3500
F
•Turn the control valve on the telescopic extension to achieve the desired spray pattern.
•If necessary, turn the control valve on the ball joint to achieve the desired flow rate.
Downloaded from www.watergardeningdirect.com

-EN -
8
Remedy of faults
Malfunction
Cause
Remedy
The unit is not operating
No mains voltage
Check mains voltage
Insufficient delivery rate
Impeller blocked
Clean impeller
Strainer casing clogged
Clean strainer casing
Excessive pressure losses in the hoses
Reduce hose length and connecting parts to a
minimum, route hoses as straight as possible
Unit switches off after a short running period
Water temperature too high
Note maximum water temperature of +35 °C
Maintenance and cleaning
ATTENTION! Dangerous electrical voltage.
Possible consequences: Death or severe injury.
Protective measures:
•Electrical units and installations with a rated voltage of U > 12 V AC or U >30 V DC located in the water:
Isolate the units and installations (switch off and disconnect from the power supply) before reaching into the
water.
•Isolate the unit before starting any work.
•Secure the unit to prevent unintentional switching on.
NOTE
Recommendation regarding cleaning:
•Clean the unit as required but at least twice a year.
•When cleaning the pump, pay particular attention to the cleaning of the impeller unit and pump housing.
•Do not use aggressive cleaning agents or chemical solutions as they could attack the housing or impair the function
of the unit.
•Recommended cleaning agent for removing stubborn limescale deposits:
–Vinegar- and chlorine-free household cleaning agent.
•After cleaning, thoroughly rinse all parts in clean water.
Cleaning the pump
How to proceed:
G
Unscrew the transition piece (with telescopic extension or stepped hose adapter) from the pump.
Actuate the engagement hooks on the filter housing and open the filter housing.
Unscrew the pump housing by turning counter-clockwise and remove (bayonet closing mechanism).
Pull out the impeller unit (magnetic resistance).
Rinse all parts.
Reassemble the unit in the reverse order.
Wear parts
•Impeller unit
Downloaded from www.watergardeningdirect.com

-EN -
9
Storage/Over-wintering
Remove the unit at temperatures below zero degrees centigrade. Thoroughly clean the unit, check for damage and
store immersed in water in a frost-free environment. Do not immerse the plug!
Repair
Repair is not possible in the following cases. The pump has to be replaced.
•If there is no replacement part approved by PfG GmbH for a defective component.
•If an electric cable permanently connected to the pump becomes damaged or is shortened.
Disposal
NOTE
Do not dispose of this unit with domestic waste.
•Render the unit unusable beforehand by cutting the cables and dispose of the unit via the return system
provided for this purpose.
Guarantee conditions
PfG grants a 3 year guarantee from the date of sale on proven material and manufacturing faults. Prerequisite for our
guarantee is the presentation of the purchase receipt. Our guarantee will become null and void if the unit is misused,
electrically or mechanically damaged by inappropriate use and improper repair by non-authorised workshops. Repairs
are reserved for workshops authorised by PfG or by PfG itself. In the case of warranty claims, please return the defec-
tive unit or part freight paid to PfG together with a description of the fault and the purchase receipt. PfG reserves the
right to invoice repair costs. PfG is not liable for transport damage. Any damage must be claimed against the carrier.
Further claims of whatever type, especially consequential damage, are excluded. This guarantee does not affect the
final customer’s claims against the dealer.
Downloaded from www.watergardeningdirect.com

10
DE
Technische Daten
Abmessungen
Gewicht
Bemessungsspannung
Leistungsaufnahme
Wassertemperatur
Förderleistung
Wassersäule
Kabellänge
EN
Technical data
Dimensions
Weight
Rated voltage
Power consumption
Water temperature
Flow rate
Head height
Cable length
FR
Caractéristiques tech-
niques
Dimensions
Poids
Tension de mesure
Consommation
Température de l’eau
Capacité de refoule-
ment
Colonne d'eau
Longueur de câble
NL
Technische gegevens
Afmetingen
Gewicht
Dimensioneringsspanning
Stroomverbruik
Watertemperatuur
Pompcapaciteit
Waterkolom
Kabellengte
ES
Datos técnicos
Dimensiones
Peso
Tensión asignada
Consumo de potencia
Temperatura del
agua
Capacidad de elevación
Columna de
agua
Longitud del cable
PT
Dados técnicos
Dimensões
Peso
Voltagem considerada
Consumo de potência
Temperatura da
água
Débito
Coluna de água
Comprimento do
cabo
IT
Caratteristiche
tecniche
Dimensioni
Peso
Tensione di taratura
Potenza assorbita
Temperatura dell'ac-
qua
Portata
Colonna d'acqua
Lunghezza cavo
DA
Tekniske specifikatio-
ner
Mål
Vægt
Nominel spænding
Effektforbrug
Vandtemperaturen
Kapacitet
Vandsøjle
Kabellængde
NO
Tekniske data
Mål
Vekt
Merkespenning
Inngangseffekt
Vanntemperatur
Kapasitet
Vannsøyle
Kabellengde
SV
Tekniska data
Mått
Vikt
övre märkspänning
Effekt
Vattentemperatur
Matningsprestanda
Vattenpelare
Kabellängd
FI
Tekniset tiedot
Mitat
Paino
mitoitusjännite
Ottoteho
Veden lämpötila
Syöttöteho
Vesipylväs
Kaapelin pituus
HU
Műszaki adatok
Méretek
Súly
mért feszültség
Teljesítményfelvétel
Vízhőmérséklet
Szállítási teljesítmény
Vízoszlop
Kábelhossz
PL
Dane techniczne
Wymiary
Ciężar
napięcie znamionowe
Pobór mocy
Temperatura wody
Wydajność pompowa-
nia
Słup wody
Długość kabla
CS
Technické údaje
Rozměry
Hmotnost
domezovací napětí
Příkon
Teplota vody
Dopravní výkon
Vodní sloupec
Délka kabelu
SK
Technické údaje
Rozmery
Hmotnost’
dimenzačné napätie
Príkon
Teplota vody
Dopravný výkon
Vodný stĺpec
Dĺžka kábla
SL
Tehnični podatki
Dimenzije
Teža
dimenzionirana napetost
Nazivna moč
Temperatura vode
Črpalna zmogljivost
Vodni steber
Dolžina kabla
HR
Tehnički podatci
Dimenzije
Težina
gornji nazivni napon
Prijemna snaga
Temperatura vode
Protočni kapacitet
Vodeni stup
Duljina kabela
RO
Date tehnice
Dimensiuni
Greutate
tensiunea măsurată
Putere consumată
Temperatura apei
Debit de pompare
Coloană de apă
Lungime cablu
BG
Технически данни
Размери
Тегло
номинално напрежение
Консумирана мощ-
ност
Температурата на
водата
Дебит
Воден стълб
Дължина на кабе-
лите
UK
Технічні характерис-
тики
Розміри
Вага
розрахункова напруга
Споживана потуж-
ність
Температура води
Продуктивність
Водяний стовп
Довжина кабелю
RU
Технические данные
Размеры
Вес
расчетное напряжение
Потребляемая мощ-
ность
Температура воды
Производительность
Водяной столб
Длина кабеля
CN
技
术
参数
尺寸
重量
设计电压
耗用功率
水温
输送能力
水柱
电缆长度
PondoVario
750
145 x 125 x 90 mm
1.6 kg
230 V AC, 50 Hz
9 W
+4 … +35 °C
≤720 l/h
≤1.10 m
10 m
1000
1.6 kg
11 W
≤1000 l/h
≤1.30 m
1500
180 x 160 x 125 mm
1.9 kg
25 W
≤1500 l/h
≤1.90 m
2500
2.2 kg
40 W
≤2500 l/h
≤2.20 m
3500
210 x 190 x 140 mm
2.8 kg
70 W
≤3400 l/h
≤2.70 m
Downloaded from www.watergardeningdirect.com

11
DE
Symbole auf
dem Gerät
Staubdicht. Wasserdicht bis 2 m Tiefe
Bei Frost das Gerät deinstallieren
Nicht mit normalem Hausmüll entsorgen!
Achtung!
Lesen Sie die Gebrauchsanleitung
EN
Symbols on the
unit
Dust tight. Submersible to 2 m depth.
Remove the unit at temperatures below zero
(centigrade).
Do not dispose of together with household
waste!
Attention!
Read the operating instructions
FR
Symboles sur
l'appareil
Imperméable aux poussières. Etanche à l'eau
jusqu'à une profondeur de 2 m
Retirer l’appareil en cas de gel
Ne pas recycler dans les ordures ménagères !
Attention !
Lire la notice d'emploi
NL
Symbolen op het
apparaat
Stofdicht. Waterdicht tot een diepte van 2 m
Bij vorst het apparaat deïnstalleren
Niet bij het normale huisvuil doen!
Let op!
Lees de gebruiksaanwijzing
ES
Símbolos en el
equipo
A prueba de polvo. Impermeable al agua
hasta 2 m de profundidad
Desinstale el equipo en caso de heladas
¡No deseche el equipo en la basura domés-
tica!
¡Atención!
Lea las instrucciones de uso
PT
Símbolos sobre
o aparelho
À prova de pó. À prova de água até 2 m de
profundidade.
Em caso de geada, desinstalar o aparelho
Não deitar ao lixo doméstico!
Atenção!
Leia as instruções de utilização
IT
Simboli sull'ap-
parecchio
A tenuta di polvere. Impermeabile all'acqua
fino a 2 m di profondità.
In caso di gelo disinstalllare l'apparecchio
Non smaltire con normali rifiuti domestici!
Attenzione!
Leggete le istruzioni d'uso!
DA
Symboler på ap-
paratet
Støvtæt. Vandtæt ned til 2 m dybde
Afmonter apparatet ved frostvejr
Må ikke bortskaffes med det almindelige hus-
holdningsaffald
OBS!
Læs brugsanvisningen
NO
Symboler på ap-
paratet
Støvtett. Vanntett ned til 2 m dyp
Ved frost, demonter apparatet
Ikke kast i alminnelig husholdningsavfall!
NB!
Les bruksanvisningen
SV
Symboler på ap-
paraten
Dammtät. Vattentät till 2 m djup
Demontera apparaten innan första frosten.
Får inte kastas i hushållssoporna!
Varning!
Läs igenom bruksanvisningen
FI
Laitteessa olevat
symbolit
Pölytiivis. Vesitiivis 2 m syvyyteen asti.
Laite purettava ennen pakkasia
Älä hävitä laitetta tavallisen talousjätteen
kanssa!
Huomio!
Lue käyttöohje
HU
A készülék szim-
bólumai
Portömített. Vízálló 2 m-es mélységig
Fagy esetén a készüléket szerelje le
A készüléket nem a normál háztartási szemét-
tel együtt kell megsemmisíteni!
Figyelem!
Olvassa el a használati útmutatót
PL
Symbole na
urządzeniu
Pyłoszczelny. Wodoszczelny do 2 m głęboko-
ści.
W razie mrozu zdeinstalować urządzenie
Nie wyrzucać wraz ze śmieciami domowymi!
Uwaga!
Przeczytać instrukcję użytkowania!
CS
Symboly na
přístroji
Prachotěsný. Vodotěsný do hloubky 2 m
Při mrazu přístroj odinstalovat
Nelikvidovat v normálním komunálním od-
padu!
Pozor!
Přečtěte Návod k použití!
SK
Symboly na
zariadení
Prachotesný. Vodotesný do hĺbky 2 m
Pri mraze prístroj odinštalovať
Nelikvidovať v normálnom komunálnom od-
pade!
Pozor!
Prečítajte si Návod na použitie
SL
Simboli na
napravi
Ne prepušča prahu. Vodotesno do globine 2
m.
Ob zmrzali demontirajte napravo.
Ne zavrzite skupaj z gospodinjskimi odpadki!
Pozor!
Preberite navodila za uporabo!
HR
Simboli na
uređaju
Ne propušta prašinu. Ne propušta vodu do 2
m dubine.
U slučaju mraza deinstalirajte uređaj.
Nemojte ga bacati u običan kućni otpad!
Pažnja!
Pročitajte upute za upotrebu!
RO
Simbolurile de
pe aparat
Etanş la praf. Etanş la apă până la o
adâncime de 2 m.
Dezinstalaţi aparatul pe timp de îngheţ
Nu aruncaţi în gunoiul menajer !
Atenţie !
Citiţi instrucţiunile de utilizare !
BG
Символи върху
уреда
Защитено от прах. Водоустойчив до дълбо-
чина 2 м
При ниски температури и опасност от зам-
ръзване деинсталирайте уреда
Не изхвърляйте заедно с обикновения до-
макински боклук!
Внимание!
Прочетете упътването
UK
Символи на
пристрої
Пилонепроникний. Водонепроникний до 2 м
Перед морозами пристрій необхідно демо-
нтувати
Не викидайте разом із побутовим сміттям!
Увага!
Читайте інструкцію.
RU
Символи на
пристрої
Пыленепроницаемый, водонепроницаемый
на глубине до 2 м
При наступлении морозов прибор демонти-
ровать
Не утилизировать вместе с домашним му-
сором!
Внимание!
Прочитайте инструкцию по использованию
Downloaded from www.watergardeningdirect.com

12
PVO0007
Downloaded from www.watergardeningdirect.com

30850/10
-17
Downloaded from www.watergardeningdirect.com
