POP NUT PNT800A User manual

PO P
NUT™
Tool
PNT800A
Maintenance Manual

Page 2 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Contents
Introduction ............................................................................................................................................... 3
Safety Instructions .................................................................................................................................... 4
Specifications............................................................................................................................................ 5
Tool Parts .............................................................................................................................................. 6
Packaged Accessories .......................................................................................................................... 6
PNT800A Diagram.................................................................................................................................... 8
Parts List................................................................................................................................................. 10
Tool Setup............................................................................................................................................... 12
Mandrel and Nosepiece installation .................................................................................................... 13

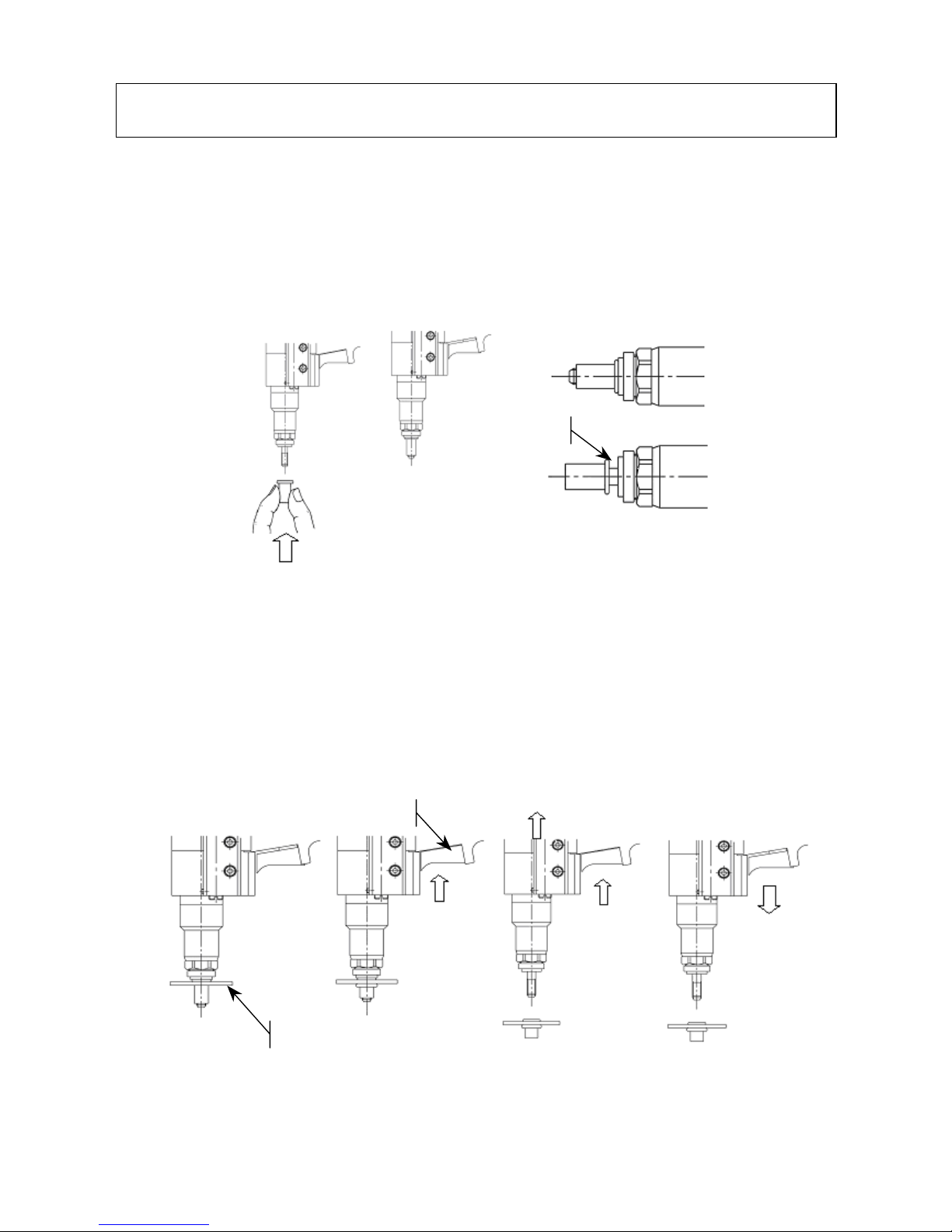

Basic Tool Operation............................................................................................................................... 14
Mandrel & Nosepiece Adjustment ....................................................................................................... 14
Tool Operation..................................................................................................................................... 15
Setting Tool Stroke.................................................................................................................................. 17
Stroke Adjustment ............................................................................................................................... 17
Stroke Setting for Standard POP NUTs™ ........................................................................................... 18
Stroke Setting for ST & Thin Wall POP NUTs™.................................................................................. 19
Maintenance ........................................................................................................................................... 20
Clean & Lube Mandrel ........................................................................................................................ 20
Lubricate Rotating Parts...................................................................................................................... 20
Recharging Hydraulics ........................................................................................................................ 21
Troubleshooting ...................................................................................................................................... 23
Safety Data ............................................................................................................................................. 25
EC Declaration of Conformity ................................................................................................................... 2

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 3
Introduction
The PNT800A is a lightweight tool for installing POP®brand POP NUT™ blind rivet nuts and other blind
threaded inserts.
Table 1 lists the POP NUT™ blind rivet nuts that can be fastened using this tool. The Nosepiece and Mandrel
must be changed to fit some sizes of POP NUT™. (See Table 5, Mandrel and Nosepiece Requirements table
in the Specification section)
Table 1: POP NUT™ blind rivet nut range
Thread Size
M3
M4
M5
M6
M8
M10
POP NUT Type
Material
6-32
8-32
10-24 /
10-32
1/4-20
5/16-18
3/8-16
Steel






Aluminum






Standard
Stainless





Steel






Aluminum






Closed End
Stainless





Steel





Hexgonal
Aluminum




Square
Steel




Knurled
Steel





Page 4 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Safety Instructions
TO INSURE PROPER FUNCTIONING AND SAFE OPERATION READ THIS MANUAL
CAREFULLY BEFORE SETTING UP OR OPERATING THE POP NUT SERIES TOOLS
DEFINITIONS:
•CAUTION! – Failure to observe this precaution could result in physical damage
or minor injury.
•WARNING! – Failure to observe this precaution could result in physical damage,
serious injury or even death.
CAUTION!
1. DO NOT use this tool in a manner other than that recommended by Emhart Teknologies.
2. DO NOT modify the tool in any way. Modification will void any applicable warranties and could result
in damage to the tool or physical injury to the user.
3. Disconnect air supply when adjusting, servicing or removing any part of the tool.
4. Trained personnel must perform tool repair and/or maintenance at prescribed intervals.
5. Only use genuine Emhart Teknologies parts for tool maintenance and repair.
6. Do not operate the tool with the Nose Housing removed.
7. Keep fingers away from the front of the tool when connecting the air supply or using the tool.
8. Do not attempt to turn the Mandrel when the air supply is connected.
9. Keep hair, fingers and loose clothing away from moving parts of the tool.
10. Do not direct tool exhaust towards anyone. The tool uses lubricated air and may eject oil mist or
debris.
11. Do not use organic solvents to clean the tool, this may damage the tool.
12. Wash hands thoroughly if exposed to hydraulic fluid or lubricant.
WARNING!
1. DO NOT exceed the maximum recommended air pressure of 0.6 MPa (87 psi / 6.0 bar).
2. DO NOT point the tool at anyone when in use.
3. Always wear safety rated eye protection when using or when near a tool in use.
4. Inspect the tool and connections for damage, worn or loose parts before connecting to the air supply.
If damaged, stop use immediately and have the tool repaired or replaced.
5. This tool is not designed for use in explosive atmospheres.

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 5
Specifications
Table 2: Tool Specifications
Feature
Specification
Weight
1.68 kg (3.7 lbs)
Overall length
287 mm (11.3 in)
Overall height
268 mm (10.5 in)
Tool Stroke
1.3 – 6.3 mm (0.05 - 0.248 in)
Pulling Force
23.1 kN @ 5.0 bar ( 5193 lbf @ 72.5 psi)
Air Supply
0.5 - 0.6MPa (5 - 6 bar) (72.5 - 87 psi)
Hydraulic Oil
See Table 3, Specified Hydraulic Oils
Setting capacity
See Table 1, POP NUT™ blind rivet nut range
Tool Noise Level
LAeq,T = 72.7 dB(A), LWA = 77.6 dB(A),
LPeak = 106.3 dB(C)
Tool Vibration Level
0.42 m/s2, Time to 2.5 m/s2> 24hrs (EAV)
Figure 1: Tool Dimensions (mm)
Hydraulic oil
Use only Emhart Teknologies specified hydraulic lubrication oils as shown in Table 3.
Use of any other oil could reduce the tool performance or even damage the tool.
Table 3: Specified Hydraulic Oils
Company name
Product name
Mobile
Mobile DTE26
Shell
Shell Telus Oil C68
Idemitsu
Daphne Hydro 68A
Cosmo
Cosmo Olpas 68
Esso
Telesso 68
Nisseki
FBK RO68
Mitsubishi
Diamond Lube RO68 (N)
287
φ22
(59)
(35)
φ27.5
268
85

Page 6 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Tool Parts
Figure 2: Tool Parts Diagram
Packaged Accessories
Table 4: Packaged Accessories
Part No.
Item
Qty
PNT800A
PNT800A-POP NUT™ Tool
1
PNT600-132
Hook
1
PNT600-133
Hex wrench 1.5 mm
1
DPN907-006
Cap screw M4 X 20
1
DPN277-179
POP NUT™ Mandrel Release
1
FG2245
Operating Instructions
1
FG2244
Maintenance Manual
1
FG2222
Warranty Card
1
Front Case
Fill Screw
Rear Case
Exhaust Holes
Handle
Swivel Air Fitting
¼NPTF
Air Fitting
(Not Included)
Coupler
(Not Included)
Air Hose
(Not Included)
Chamber
Exhaust Holes
Trigger
Control Knob
Mandrel
Nosepiece/Anvil
Lock Nut
Nose Housing

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 7
Table 5: Mandrel and Nosepiece requirements
Flat Nosepiece
Mandrel
Thick Wall
(Std & ST)
POP NUT
Thread size
POP NUT Tool
Part No.
Part No.
I.D.
Part No.
Thread size
M3X0.5
PNT800A-3
PNT600-02-3
φ4.0
PNT600-01-3
M3X0.5
M4X0.7
PNT800A-4
PNT600-02-4
φ4.5
PNT600-01-4
M4X0.7
M5X0.8
PNT800A-5
PNT600-02-5
φ5.1
PNT600-01-5
M5X0.8
M6X1.0
PNT800A-6
PNT600-02-6
φ6.1
PNT600-01-6
M6X1.0
M8X1.25
PNT800A-8
PNT600-02-8
φ8.1
PNT600-01-8
M8X1.25
M10X1.5
PNT800A-10
PNT600-02-10
φ10.1
PNT600-01-10
M10X1.5
M4, M5, M6 & M8
PNT800A
6-32
PNT800A-632R
PNT600-02-632
φ3.6
PNT600-01-632
6-32
8-32
PNT800A-832R
PNT600-02-832
φ4.3
PNT600-01-832
8-32
10-24
PNT800A-1024R
PNT600-02-5
φ5.1
PNT600-01-1024
10-24
10-32
PNT800A-1032R
PNT600-02-5
φ5.1
PNT600-01-1032
10-32
¼-20
PNT800A-420R
PNT600-02-420
φ6.5
PNT600-01-420
¼-20
5/16-18
PNT800A-518R
PNT600-02-8
φ8.1
PNT600-01-518R
5/16-18
3/8-16
PNT800A-616R
PNT600-02-10
φ10.1
PNT600-01-616R
3/8-16
Piloted Nosepiece
Mandrel
Thin Wall
(TK,TL,TH)
POP NUT
Thread size
POP NUT Tool
Part No.
Part No.
I.D.
Part No.
Thread size
M4X0.7
PNT800A-4P
PNT600-02-4P
φ4.3
PNT600-01-4P
M4X0.7
M5X0.8
PNT800A-5P
PNT600-02-5P
φ5.1
PNT600-01-5P
M5X0.8
M6X1.0
PNT800A-6P
PNT600-02-6P
φ6.1
PNT600-01-6P
M6X1.0
M8X1.25
PNT800A-8P
PNT600-02-8P
φ8.1
PNT600-01-8P
M8X1.25
M10X1.5
PNT800A-10P
PNT600-02-10P
φ10.1
PNT600-01-10P
M10X1.5
6-32
PNT800A-632P
PNT600-02-3P
φ3.6
PNT600-01-632
6-32
8-32
PNT800A-832P
PNT600-02-4P
φ4.3
PNT600-01-832
8-32
10-24
PNT800A-1024P
PNT600-02-5P
φ5.1
PNT600-01-1024
10-24
10-32
PNT800A-1032P
PNT600-02-5P
φ5.1
PNT600-01-1032
10-32
¼-20
PNT800A-420P
PNT600-02-420P
φ6.5
PNT600-01-420
¼-20
5/16-18
PNT800A-518P
PNT600-02-8P
φ8.1
PNT600-01-518
5/16-18
3/8-16
PNT800A-616P
PNT600-02-10P
φ10.1
PNT600-01-616
3/8-16
Note: Refer to the Tool Setup section for details of Nosepiece and Mandrel installation.
I.D.
Thread size
M8X1.0
I.D.
Thread size
M8X1.0

Page 8 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
PNT800A Diagram
(*) These items require Loctite®242 adhesive.

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 9

Page 10 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Parts List
Item
Part No.
Description
Qty
1
PNT600-01-6P
Mandrel M6
1
2
PNT600-02-6
Nose Piece M6
1
3
PNT600-03
Lock Nut
1
4
PNT600-04A
Nose Housing
1
5
DPN277-001
Spin Pull Head Case
1
6
DPN277-002
Spin Pull Head
1
7
PNT600-07B
Mast Housing
1
8
DPN277-003
Joint
1
9
DPN901-004
Return Spring
1
10
PNT600-10
Housing Lock
1
11
DPN277-004
Hydraulic Piston
1
12
DPN277-005
Rod Seal Case
1
13
DPN908-009
Scraper
1
14
DPN900-031
O-Ring
1
15
DPN908-010
Back Up Ring
1
16
DPN908-011
Penta Seal
1
17
DPN908-012
Piston Seal
1
18
DPN900-032
O-Ring
1
19
PNT600-19A
Bit
1
20
PNT600-20
Start Bar
1
21
DPN239-047
Fill Screw
1
22
DPN900-033
O-Ring
2
23
DPN277-006
Lock Pin Holder
1
24
DPN277-007
Lock Pin
1
25
DPN900-034
O-Ring
1
26
PNT600-26
Lock Pin Pusher
1
27
DPN901-009
Spring
1
28
DPN907-005
Socket Head Cap Screw
2
29
PNT600-29A
Truss Head Screw
1
30
PNT600-30A
Rear Case Tube
2
31
PNT800-02
Chamber Assembly
1
32
DPN900-015
O-Ring
13
33
PNT600-33A
Joint Adapter
3
34
PNT600-34
Truss Head Screw
3
35
DPN900-035
O-Ring
1
36
DPN277-008
Sleeve Upper
1
37
DPN900-036
O-Ring
1
38
DPN277-009
Handle
1
Item
Part No.
Description
Qty
39
PNT600-39
Truss Head Screw
4
40
DPN277-183
Chamber
1
41
PNT600-41A
R Joint Adapter
1
42
DPN900-021
O-Ring
2
43
PNT600-43
R Joint Spacer
1
44
PNT600-44B
R Joint
1
45
PNT600-45A
Rear Case
1
46
PNT600-46
Truss Head Screw
2
47
DPN277-010
Handle Upper
1
48
PNT600-48A
Front Case
1
49
PNT600-49
T Valve End Screw
1
50
DPN900-037
O-Ring
5
51
PNT600-51
Hexagon Thin Nut
2
52
DPN905-004
Socket Set Screw
2
53
PNT600-53
Control Knob
1
54
PNT600-54C
Control Nut
1
55
PNT600-55A
T Valve Push Rod
1
56
DPN277-011
Trigger
1
57
DPN277-071
Flat Head Screw M3X8
1
58
PNT600-58
Joint Tube
1
59
PNT600-59A
Assist Plate
1
60
DPN900-006
O-Ring
2
61
PNT800-14
Retainer Plate
1
62
DPN908-003
Penta Seal
1
63
DPN908-013
Back Up Ring
1
64
DPN277-012
Handle Lower
1
65
DPN277-013
Sleeve
1
66
PNT800-05
Tube
1
69
DPN900-038
O-Ring
1
70
DPN900-039
O-Ring
1
71
PNT600-71
Washer
1
72
PNT600-72
Tube Seal Case
1
73
DPN900-011
O-Ring
2
74
DPN909-001
SS-Washer
1
75
DPN900-040
O-Ring
1
76
DPN900-023
O-Ring
1
77
FAN277-014
Air Piston Assembly
1
78
PNT800-07A
J Valve Stopper
1

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 11
Item
Part No.
Description
Qty
79
PNT800-08A
J Valve Rod
1
80
DPN900-014
O-Ring
6
81
DPN901-010
Spring
1
82
DPN277-310
Plug
1
83
DPN239-065
J Valve Cap
1
84
PNT800-10
T Valve Rear Case
1
85
DPN900-013
O-Ring
1
86
DPN901-011
Spring
1
87
PNT800-11
T Valve Center Case
1
88
PNT800-12
T Valve Front Case
1
89
DPN900-041
O-Ring
5
90
PNT600-90
T Valve Cap
1
91
PNT600-91
T Valve Front Piece
1
92
PNT600-92
T Valve Rod
1
93
PNT600-93
S Valve End
1
94
DPN900-012
O-Ring
2
95
DPN902-001
Retaining Ring
1
96
PNT600-96
S Valve Rod
1
97
PNT600-97B
S Valve Case
1
132
DPN277-176
Scale Label
1
200
PNT600-200
Air Motor
1set
60
DPN900-006
O-Ring
2
80
DPN900-014
O-Ring
2
98
PNT600-98B
M Valve End
1
99
DPN900-042
O-Ring
1
100
DPN277-177
Flat head screw M3×6
1
101
PNT600-101A
Motor Case End Plate
1
102
DPN900-043
O-Ring
1
103
PNT600-103
M Valve Rod
1
104
PNT600-104
Motor Case End
1
105
PNT600-105
Washer
1
106
DPN900-044
O-Ring
1
107
PNT600-107
O-Ring Holder
1
108
DPN900-045
O-Ring
1
109
DPN902-002
Retaining Ring
1
110
PNT600-110
Casing
1
Item
Part No.
Description
Qty
111
PNT600-111
Ball Bearing
1
112
PNT600-112
Rear Plate
1
113
PNT600-113
Rotor
1
114
PNT600-114
Blade
4
115
PNT600-115
Spring Pin
1
116
PNT600-116
Cylinder
1
117
PNT600-117
Front Plate
1
118
PNT600-118
Ball Bearing
1
119
PNT600-119
Spacer
1
120
PNT600-120
Sun Gear
1
121
PNT600-121
Planet Gear
6
122
PNT600-122
Needle Pin
6
123
PNT600-123
Gear Cage & Gear
1
124
PNT600-124
Spacer
1
125
PNT600-125
Internal Gear
1
126
DPN901-012
Spring
1
127
PNT600-127
Gear Cage
1
128
PNT600-128
Spacer
1
129
PNT600-129
Ball Bearing
1
130
DPN902-003
Retaining Ring
1
131
DPN902-004
Retaining Ring
1
Accessories
133
PNT600-132
Hook
1
134
PNT600-133
HS Screw Key 1.5mm
1
135
DPN907-006
Cap Screw M4X20
1
136
PNT600-01-4
Mandrel M4
1
137
PNT600-01-5P
Mandrel M5
1
138
PNT600-01-8
Mandrel M8
1
139
PNT600-02-4
Nose Piece M4
1
140
PNT600-02-5
Nose Piece M5
1
141
PNT600-02-8
Nose Piece M8
1
142
DPN277-179
POP NUT Mandrel Release
1
*See table 5 for additional Mandrels and Nosepieces

Page 12 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Tool Setup
Initial Setup
1. Check that the correct Nosepiece and Mandrel are fitted for the POP NUT™ to be installed. See
the Basic Tool Operation section for proper tool adjustment.
2. Connect an air fitting to the Swivel Air Fitting of the tool. The Swivel Air Fitting is a 1/4 NPTF
thread.
3. Connect an Air Hose to the tool.
4. Connect an air filter, regulator and lubricator inline with the air supply, between the Air Supply and
the Air Hose, within 3m [6 ft ] of the tool.
5. Adjust the air pressure supply and oil drip volume of the lubricator
•Air Pressure: 0.5-0.6 MPa. (72.5-87 psi)
•Oil drip volume: 1-2 drops/ 20 nuts fastened
Figure 3: Tool Setup
Note: Refer to the instruction manual for the Lubricator used for the proper adjustment method and
lubrication oils to use relating to air motors.
Note: the tool may be manually lubricated if an oil lubricator is not available.
WARNING!
Use an air hose with a rating of 1.0 MPa (145 psi / 10 bar) or greater, maximum ordinary operating
pressure. Also make sure the hose material is suitable for the operating environment (i.e. oil proof, wear
and abrasion resistance etc.). For details, refer to your hose manufacturer's catalog.

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 13
Mandrel and Nosepiece installation
Mandrel Installation (with POP NUT™Mandrel Release, DPN277-185)
1. Disconnect the Air Supply
2. Select the correct Mandrel and Nosepiece according to Table 5.
3. Remove the Nosepiece from the tool by loosening the Lock Nut and unscrewing it.
4. Insert the POP NUT™ Mandrel Release tool over the Mandrel and into the Nose Housing.
5. Push in to disengage the Lock Pin Holder from the Mandrel.
6. While holding the Mandrel Release in, unscrew the Mandrel by turning it counter-clockwise.
7. While holding the Mandrel Release in, screw in the desired Mandrel until it stops.
8. Release the Mandrel Release and rotate the Mandrel counter-clockwise to ensure the Lock Pin
Holder has engaged the Mandrel.
9. Install the Nosepiece.
Figure 4: POP NUT™ Mandrel Release
Mandrel Installation (without POP NUT™ Mandrel Release, DPN277-185)
1. Disconnect the Air Supply
2. Select the correct Mandrel and Nosepiece according to Table 5.
3. Remove the Nose Housing from the tool to expose the Mandrel and Spin Pull Head Case.
4. Pull the Lock Pin Holder back and unscrew the Mandrel by turning it counter-clockwise.
5. While holding the Lock Pin Holder back, screw in the desired mandrel until it stops.
6. Release the Lock Pin Holder.
Note: If the Lock Pin Holder does not return to its original position then turn the Mandrel
counter-clockwise to ensure the Lock Pin engages the Mandrel and the holder moves forward.
7. Replace the Nose Housing.
Figure 5: Mandrel Installation
Nosepiece Installation
1. Disconnect the Air Supply
2. Select the correct Nosepiece according to Table 5.
3. Remove the current Nosepiece from the tool by loosening the Lock Nut and unscrewing it.
4. Remove the Lock Nut from the Nosepiece
5. Thread the Lock Nut onto the desired Nosepiece
6. Screw the Nosepiece into the Nose Housing
7. Lock it in place by tightening the Lock Nut against the Nose Housing
Nose Housing
Mandrel
Mandrel
Spin Pull Head Case
Lock Pin Holder
PULL
POP NUT™
Mandrel Release
Mandrel
PUSH

Page 14 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Basic Tool Operation
Before setting POP NUTs™ with this tool, refer to the Safety Instructions and Tool Setup sections
of this manual to ensure safe and reliable tool operation.
Mandrel & Nosepiece Adjustment
1. Verify that the correct Mandrel and Nosepiece are fitted to the tool for the desired POP NUT™
(See Table 5, Mandrel and Nosepiece Requirements table in the Specifications section).
Figure 6: Nosepiece and Lock Nut
2. Loosen the lock nut on the tool and thread the Nosepiece all the way into the Nose Housing.
3. Thread the desired POP NUT™ onto the tool.
Open End POP NUTs™
a. Thread the insert onto the mandrel until the Mandrel extends beyond the insert by
approximately 1 full thread
b. Unthread the Nosepiece until it is touching the flange of the insert
c. Tighten the lock nut against the Nose Housing.
Closed End POP NUTs™
a. Thread the insert onto the mandrel until it stops
b. Unthread the insert on full turn (one thread pitch)
c. Unthread the Nosepiece until it is touching the flange of the insert
d. Tighten the lock nut against the Nose Housing.
Figure 7: Proper Mandrel and Nosepiece adjustment
Nosepiece/Anvil
Lock Nut
One Thread
One Thread
Open End
Closed End

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 15
Tool Operation
Loading the POP NUT™ onto the tool
1. Connect the air supply to the tool.
2. Thread the insert 1/4 turn onto the Mandrel.
3. Press the insert against the Mandrel as indicated and the Mandrel will spin, automatically
threading the insert onto the Mandrel.
4. Keep pushing the insert onto the Mandrel until the Mandrel stops spinning. If the insert is not
fully threaded, the setting stroke will be shortened by the gap between the head of the insert and
the Nosepiece.
Figure 8: Loading the POP NUT™ onto tool
Installing the POP NUT™ into the work piece
1. With the POP NUT™ mounted on the Mandrel, insert it perpendicularly into the hole of the work
piece
2. Pull the trigger and hold it to install the insert
3. Keep trigger depressed until the Mandrel reverses direction and completely unthreads the
Mandrel from the insert.
4. Lightly pull the tool away from the work piece as Mandrel is reversing to disengage it from the
insert.
5. Once the tool is disengaged from the insert, release the trigger.*
Figure 9: Setting the POP NUT™
Note:
•Fit the flange of the insert flat against the work piece.
•Do not tilt the tool. The tool must be perpendicular to the work piece.
OK
Not OK
Gap
PULL
Work piece
Trigger
HOLD
LIGHTLY PULL
RELEASE

Page 16 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Figure 10: Proper insertion of POP NUT™ threaded inserts into an application
*Disengaging the tool from the insert
•If you let go of the trigger during the installation sequence, the hydraulics will reset, the insert may
not set completely and the tool will not unthread from the insert. Do not pull the trigger again,
follow the steps below to disengage the insert.
To disengage the tool from the insert and application:
1. Depress and hold the Control Knob
2. While holding the Control Knob, press and hold the trigger. This will cause the Mandrel to spin
counter-clockwise and unthread the insert.
3. When fully unthreaded, release the trigger.
To disengage the tool from the insert and work piece if the Mandrel is stuck:
1. Disconnect the air supply
2. Thread the M4 x20 Cap screw provided with the tool, into the hole in the side of the Nose
Housing. Thread the Cap screw in until if fits snugly against the inner Spin Pull Head, locking
the rotatioin of the Mandrel to the tool.
3. Turn the body of the tool counter-clockwise to detach it from the insert.
Figure 11: Disengaging the tool from the insert
OK
Not OK
Gap
Not OK
ROTATE
1. Control Knob
2. Trigger
Cap Screw
Nose Housing
Spin Pull Head

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 17
Setting Tool Stroke
•Adjust the stroke of the tool according to insert size and thickness of work piece as indicated in
the instructions below.
•Test 5 pieces before beginning production work to ensure proper setting of the POP NUT™.
•Proper setting stroke is critical:
oInsufficient setting stroke results in insufficient clamping of the insert, leading to a Spin
Out failure in the application
oToo much setting stroke results in possible insert threads stripping and Mandrel damage
Stroke Adjustment
1. Loosen the M3 Lock Screw on the Control Nut using a 1.5mm Hex Wrench.
2. Set Stroke to the value of “E” as determined by the stroke formula below or from the POP NUT
charts.
3. Adjust the stroke by turning the Control Knob (¼turn ~ 0.2mm)
a. Clockwise to decrease stroke
b. Counter-clockwise to increase stroke
4. Tighten the Lock Screw
5. Set a POP NUT and measure the “E” dimension.
6. Adjust the stroke to “E” +/-0.1mm
7. Set a POP NUT in a test piece with the desired thickness
and verify that the stroke is between SMin and SMax.
8. Re-adjust stroke as necessary.
IF…
THEN…
E (Measured) < E (Formula)
Increase stroke – See “Stroke Adjustment”
E (Measured) > E (Formula)
Check POP NUT threads and Mandrel for damage
Reduce stroke – See “Stroke Adjustment”
SMin (Measured) < SMin (Formula)
Increase stroke – See “Stroke Adjustment”
SMax (Measured) > SMax (Formula)
Check POP NUT threads and Mandrel for damage
Reduce stroke – See “Stroke Adjustment”
Lock Screw
Control Knob
Line up right edge
of Control Nut
Control Nut
Stroke Scale

Page 18 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Stroke Setting for Standard POP NUTs™
Use the following procedure to determine the proper setting requirments for POP NUTs™:
1. Determine stroke minimum, “SMin”, maximum, “SMax”, and stroke setting, “E”, from the appropriate
formula in Table 6 for the POP NUT™ being used.
2. Set the insert in a test piece with the proper thickness
3. Measure the value of SMin and compare to the formula result.
Table 6: Stroke Formula for Standard POP NUTs™
Stroke Formulas [mm]
Thread Size
SMax
SMin
E
M3X0.5
1.2+(N-t)
SMax -0.2
SMax +0.1
M4X0.7
1.6+(N-t)
SMax -0.3
SMax +0.1
M5X0.8
2.0+(N-t)
SMax -0.3
SMax +0.1
M6X1.0
2.4+(N-t)
SMax -0.4
SMax +0.2
M8X1.25 RLT *
2.4+(N-t)
SMax -0.4
SMax +0.2
M8X1.25
2.8+(N-t)
SMax -0.4
SMax +0.2
M10X1.5
3.0+(N-t)
SMax -0.4
SMax +0.2
Example: PSZFON630 POP NUT™ with a 1.5mm thick work piece
t = Workpiece thickness
N = maximum grip
t = 1.5mm, n = 3.0
Smax = 2.4 + (N – t)
Smax = 2.4 + (3.0 – 1.5)
Smax = 3.9mm S
min = 3.5mm E = 4.1mm

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 19
Stroke Setting for ST & Thin Wall POP NUTs™
Use the following procedure to determine the proper setting requirements for TK, TL, TH ST Series of
POP NUTs™:
1. Determine the Installed Length, “IL” of the POP NUT™ being used. This information can be
found in the POP NUT™ Blind Rivet Nut catalog (North America).
2. Set the insert in a test piece with the proper thickness
3. Measure the IL value after insertion and compare to the desired value
Figure 12: “IL” Measurement
IF…
THEN…
IL (Measured) > IL (Desired)
Increase stroke – See “Stroke Adjustment”
IL (Measured) < IL (Desired)
Check POP NUT threads and Mandrel for damage
Reduce stroke – See “Stroke Adjustment”
Note:
•The stoke may increase or decrease due to changes in air pressure [~0.1 mm (0.004 in) per 0.1
MPa (15 psi)]
WARNING!
Adjust stroke Control Knob by 1/4 rotations.
If the Control Knob is rotated counter-clockwise by a large amount to increase the stroke, it may cause
stripping or sticking of Mandrel and/or POP NUT™ threads.
L
IL

Page 20 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Maintenance
Table 7: Maintenance Schedule
Item
Frequency
Details
Lubricate Air
1-2 drops/20 sets
•See “Tool Setup”
•Lubricates internal seals and Air Motor
Clean & Lube Mandrel
50 sets
•Replace if worn/damaged
•Prevents insert damage or jamming.
Inspect Nosepiece
50 sets
•Replace if worn/damaged
•Prevents insert damage or jamming.
Lubricate rotating parts.
1000 sets
•Prevents loss of Mandrel rotation force.
Inspect Control Nut, T Valve Push Rod.
Mandrel breakage
•Replace if bent or broken
Recharge hydraulics
Loss of Stroke
•See “Recharging Hydraulics”
Clean & Lube Mandrel
•Clean and Lube the Mandrel every 50 sets.
oOver time, debris can stick to the Mandrel reducing its lubrication making it difficult to
mount POP NUTs™ or causing premature wear or jams.
oLube the Mandrel with 1 drop of oil. Use the same oil that is used with the Air Lubricator
or an ISO VG 32 type oil.
Figure 13: Clean and Lube Mandrel
Lubricate Rotating Parts
•Lubricate the Spin Pull Head and Spin Pull Head Case after approximately every 1000 sets.
oLack of lubrication will cause increase internal friction causing premature wear and
reducing the Mandrel rotation speed and torque
Figure 14: Lubricating the Spin Pull Head
Spin Pull Head
Spin Pull Head Case
