Terex Genie GS-2646 AV User manual

Maintenance Manual -
Scissor Lifts
Slab Scissor Lifts
This manual includes detailed
procedures for each
maintenance inspection.
Rough Terrain
Scissor Lifts
For
Repair procedures, Fault
Codes, Electrical and Hydraulic
Schematics, refer to the
appropriate Service and Repair
Manual for your machine.
Refer to the inside cover for a list of models
included in this
manual.
Original Instructions
Part No. 1272215GT
Rev E1
June 2022

Maintenance Manual June 2022
Introduction
ii Scissor Lifts Part No. 1272215GT
Intro ductio n Intro ductio n
Importan t Inf or matio n
Important
Read, understand and obey the safety rules and
operating instructions in the appropriate Operator's
Manual on your machine before attempting any
maintenance procedure.
This manual provides detailed scheduled
maintenance information for the machine owner
and user.
Basic mechanical, hydraulic and electrical skills
are required to perform most procedures.
However, several procedures require specialized
skills, tools, lifting equipment and a suitable
workshop. In these instances, we strongly
recommend that maintenance be performed at an
authorized Genie dealer service center.
Compliance
Machine Classification
Group A/Type 3 as defined by ISO 16368
Machine Design Life
Unrestricted with proper operation, inspection and
scheduled maintenance.
Technical Publications
Genie has endeavored to deliver the highest
degree of accuracy possible. However, continuous
improvement of our products is a Genie policy.
Therefore, product specifications are subject to
change without notice.
Readers are encouraged to notify Genie of errors
and send in suggestions for improvement. All
communications will be carefully considered for
future printings of this and all other manuals.
Contact Us:
Internet: www.genielift.com
E-mail: [e-mail]
Copyright © 2016 by Terex Corporation
1272215GT Rev E, November 2021
First Edition, Fifth Printing
Genie is a registered trademark of Terex South Dakota, Inc. in
the U.S.A. and many other countries.
“GS” is a trademark of Terex South Dakota, Inc.

June 2022 Maintenance Manual
Introduction
Part No. 1272215GT Scissor Lifts iii
Models included in this manual
Use the following chart to identify the specific
serial number for models included in this manual.
Models
Serial number
GS-1530 / GS-1532
GS
-1930 / GS-1932
from SN GS3010A-110000
from SN GS3011C
-10000 to
GS3016C
-23999
from SN GS3014D
-101 to
GS3016D
-607
from SN GS3016P
-151487 to
GS3016P
-160599
from GS30C
-24000
from GS30D
-6080 to GS30D-
40100
from GS30P
-160600 to
GS30P
-200100
GS
-2032/2632/3232
from SN
GS3211A-110000
from SN GS3212C
-10000 to
GS3216C
-17299
from SN GS3216P
-142676 to
GS3216P
-148699
from GS32C
-17300
from GS32D
-101 to GS32D-
10100
from GS32P
-148700 to
GS32P
-200100
GS
-2046/2646/3246
from SN GS4612A
-110000
from SN GS4612C
-10000 to
GS4616C
-18099
from SN GS4614D
-101 to
GS4616D
-5029
from SN GS4616P
-138362 to
GS4616P
-141799
from GS46C
-18100
from GS46D
-5030 to GS46D-
40100
from GS46P
-141800 to
GS46P
-200100
GS-2646 AV/2646 AV35
from SN GS4612A-110000
from SN GS4616P
-138383 to
GS4616P
-141799
from GS46P
-141800
GS
-4047
from SN GS4712C
-101 to
GS4716C
-4499
from SN GS4714D
-101 to
GS4716D
-3959
from GS4716P
-101 to
GS4716P
-999
from GS47C
-4500
from GS47D
-3960
from GS47P
-1000
GS
-2669/3369/4069 RT
from SN GS6911-101
from SN GS6916F
-7897 to
GS69F
-10499
from GS69F
-10500 to
GS69F
-17999
GS-2669/3369/4069 DC
from SN GS6912-1300
from SN GS6916F
-7897 to
GS6916F
-10499
from GS69F
-10500 to
GS69F
-17999
GS
-2669/3369/4069 BE
from SN GS6914
-5000
from SN GS6916F
-7897 to
GS6916F
-10499
from
GS69F-10500 to
GS69F
-17999
GS
-3384
from SN GS8413
-42181 to
GS8415
-42382
from SN GS8416F
-42383 to
GS8416F
-45499
from GS84D
-101 to GS84D-
400
from GS84F
-45500 to
GS84F
-45999
GS
-3390/4390/5390
from SN GS9013
-48427 to
GS9015
-51064
from SN GS9016F
-51064 to
GS9
016F-53299
from GS90D
-101 to GS90D-
3200
from GS90F
-53300 to
GS90F
-55999

Maintenance Manual June 2022
Introduction
iv Scissor Lifts Part No. 1272215GT
Find additional Manuals for your
Model
Go to http://www.genielift.com
Use the links to locate Service Manuals,
Maintenance Manuals, Service and Repair
Manuals, Parts Manuals and Operator's Manuals.
Identifying the Correct Procedure
for your Model
Unless otherwise noted, each procedure will apply
to all models. Procedures that only apply to
specific models or options will include the
information in the procedure title.
Examples of procedures that apply to specific
models:
•Test the Oscillate Axle - GS-90
•Grease the Steer Yokes - GS-30, GS-32,
GS-46 and GS-47
•Model Abbreviations:
GS-30: GS-1530, GS-1532, GS-1930, GS-
1932
GS-32: GS-2032, GS-2632, GS-3232
GS-46: GS-2046, GS-2646, GS-2646 AV,
2646 AV35, GS-3246
GS-47: GS-4047
GS-69: Unless specified DC, BE or RT
GS-2669 (all models), GS-3369 (all
models),
GS-4069 (all models)
GS-84: GS-3384
GS-90: GS-3390, GS-4390, GS-5390
Examples of procedures that apply to all models:
•Test the Drive Speed – Stowed Position
•Inspect the Electrical Wiring
Glossary of terms:
ECM – Electronic Control Module
(GS-69 RT, GS-84, and GS-90)
GCON – Ground Controller. Located at the
chassis ground controls. (GS-30, GS-32, GS-46,
GS-47, GS-69 DC, and GS-69 BE)
PCON – Platform Controller. Located at the
platform. (GS-30, GS-32, GS-46, GS-47, GS-69
DC, and GS-69 BE)
CAT5 Cable – Standard Ethernet cable used for
networking purposes.

June 2022 Maintenance Manual
Introduction
Part No. 1272215GT Scissor Lifts v
RevisionHistory
Revision History
Revision Date Section Procedure / Description
A 3/2016 Initial Release
B 5/2016 Specifications GM .998L
Maintenance Programmed Maint. Report
C-2, P2-1, P0-8
B1 7/2016 Annual A-8
B2 9/2016 Introduction Models Included
C 1/2019 All Sections GS-1330m
D
6/2019
All Sections
GS-4655
D1
6/2021
Annual
A-9
Programmed Maint. Report
E 10/2021 Introduction Add ending serial break
All Sections Remove GS-1330m, GS-4655
E1 6/2022 Annual Remove A-6, A-7, A-8
Reference Examples:
Section – Specifications Electronic Version
Click on any content or procedure in the Table of Contents to view
the update.
Section – Maintenance, (procedure)

Maintenance Manual June 2022
Introduction
vi Scissor Lifts Part No. 1272215GT
Revision History (continued)
Revision Date Section Procedure / Description
Reference Examples:
Section – Specifications Electronic Version
Click on any content or procedure in the Table of Contents to view
the update.
Section – Maintenance, (procedure)

June 2022 Maintenance Manual
Safety Rules
Part No. 1272215GT Scissor Lifts vii
Sec ti on 1 Safety Rul es
Gene ralS af ety Rul es
Danger
Failure to obey the instructions and safety
rules in this manual and the appropriate
Operator's Manual on your machine will result
in death or serious injury.
Many of the hazards identified in the
operator's manual are also safety hazards
when maintenance and repair procedures are
performed.
Do not modify or alter a MEWP without prior
written permission from the manufacturer.
Do Not Perform Maintenance
Unless:
You are trained and qualified to perform
maintenance on this machine.
You read, understand and obey:
•manufacturer's instructions and safety
rules
•employer's safety rules and worksite
regulations
•applicable governmental regulations
You have the appropriate tools, lifting
equipment and a suitable workshop.

Maintenance Manual June 2022
Safety Rules
viii Scissor Lifts Part No. 1272215GT

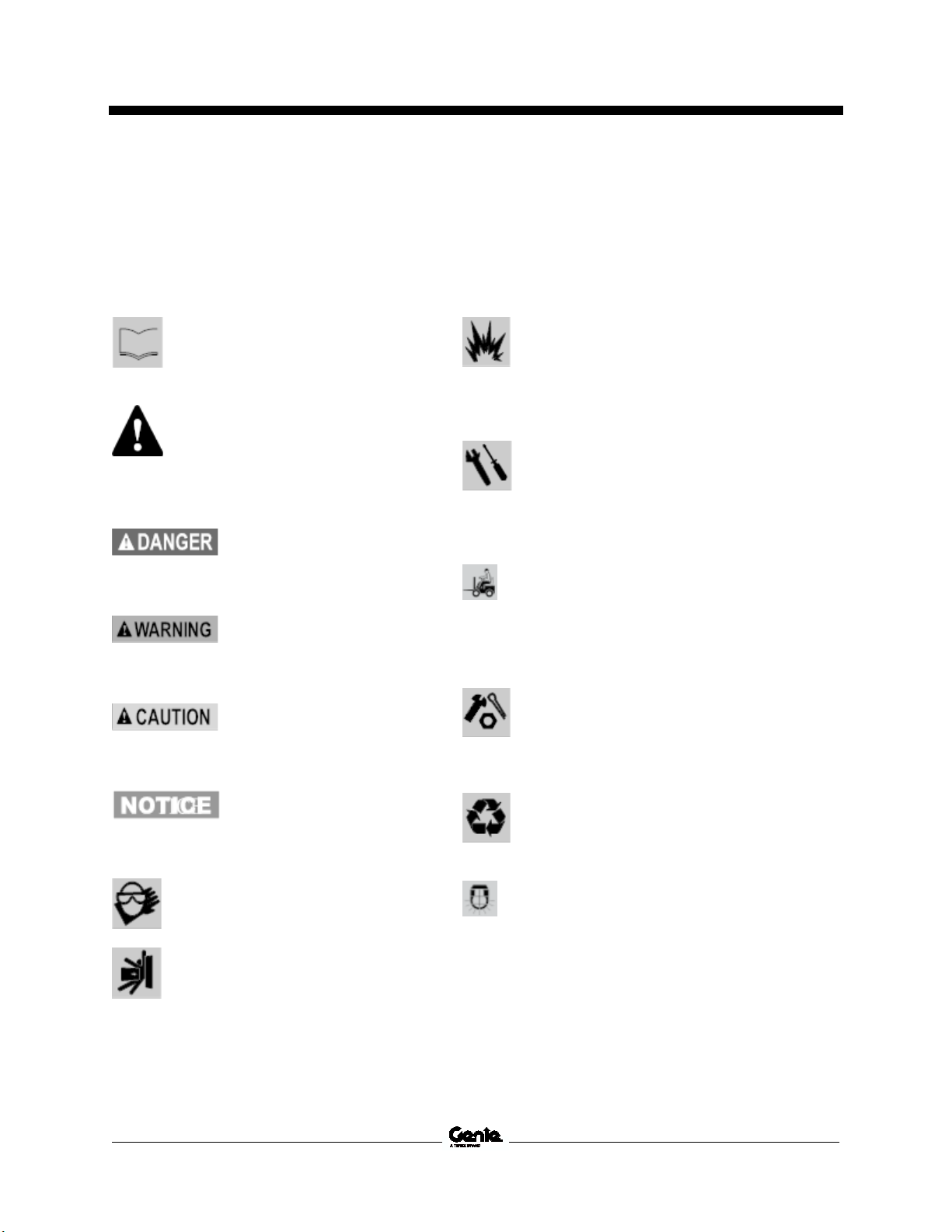

Personal Safety
Any person working on or around a machine
must be aware of all known safety hazards.
Personal safety and the continued safe
operation of the machine should be your top
priority.
Read each procedure thoroughly. This
manual and the decals on the
machine, use signal words to identify
the following:
Safety alert symbol
—used to
alert personnel to potential
personal injury hazards. Obey
all safety messages that follow
this
symbol to avoid possible
injury or death.
Indicates a imminently
hazardous situation which, if
not avoided, will result in death
or serious injury.
Indicates a potentially
hazardous situation which, if
not avoided, could result in
death or serious in
jury.
Indicates a potentially
hazardous situation which, if
not avoided, may cause minor
or moderate injury.
Indicates a potentially
hazardous situation which, if
not avoided, may result in
property damage.
Be sure to wear protective eye wear
and other protective clothing if the
situation warrants it.
Be aware of potential crushing
hazards such as moving parts, free
swinging or unsecured components
when lifting or placing loads. Always
wear approved steel
-toed shoes.
Workplace Safety
Any person working on or around a machine
must be aware of all known safety hazards.
Personal safety and the continued safe
operation of the machine should be your top
priority.
Be sure to keep sparks, flames and
lighted tobacco away from flammabl
e
and combustible materials like battery
gases and engine fuels. Always have
an approved fire extinguisher within
easy reach.
Be sure that all tools and working
areas are properly maintained and
ready for use. Keep work surfaces
clean and free of debris
that could get
into machine components and cause
damage.
Be sure any forklift, overhead crane or
other lifting or supporting device is
fully capable of supporting and
stabilizing the weight to be lifted. Use
only chains or straps that are in good
condi
tion and of ample capacity.
Be sure that fasteners intended for
one time use (i.e., cotter pins and self-
locking nuts) are not reused. These
components may fail if they are used
a second time.
Be sure to properly dispose of old
oil
or other fluids. Use an approved
container. Please be environmentally
safe.
Be sure that your workshop or work
area is properly ventilated and well lit.

June 2022
Table of Contents
Part No. 1272215GT Scissor Lifts ix
Introduction Introduction ......................................................................................................ii
Important Information ......................................................................................... ii
Models included in this manual .......................................................................... iii
Find additional Manuals for your Model.............................................................. iii
Identifying the Correct Procedure for your Model ............................................... iv
Glossary of terms: ............................................................................................. iv
Revision History .................................................................................................v
Section 1 Safety Rules....................................................................................................vii
General Safety Rules ....................................................................................... vii
Section 2 Performance Specifications.............................................................................1
Function Speeds GS-30, GS-32, GS-46, GS-47, GS-55......................................1
Function Speeds GS-69, GS-84, GS-90 .............................................................2
Drive Speeds......................................................................................................3
Torque Specifications ......................................................................................4
Tires and Wheels ...............................................................................................4
Battery Specifications......................................................................................5
Battery Specifications - DC and BE Models ........................................................5
Engine Specifications ......................................................................................6
Engine Operator and Maintenance Manuals .......................................................6
Deutz Engine Models .........................................................................................6
Perkins Engine Models .......................................................................................7
Ford Engine Models ...........................................................................................7
Kubota Engine Models........................................................................................8
Kohler Engine Models.........................................................................................8
GM Engine Models .............................................................................................9
Hydraulic Specifications ................................................................................10
Hydraulic Relief Valves.....................................................................................10
Hydraulic and Drive Hub Fluid Capacities .........................................................12
Hydraulic Oil Specifications ..............................................................................13
Hydraulic Hose and Fitting Torque Specifications .............................................16
Torque Procedure ............................................................................................17

June 2022
Table of Contents
x Scissor Lifts Part No. 1272215GT
Section 3 Maintenance Procedures............................................................................... 19
Introduction...................................................................................................... 19
Maintenance Schedule..................................................................................... 21
Pre-Delivery Preparation Report....................................................................... 22
Scheduled Maintenance Inspection Report - Scissor Lifts................................. 23
Programmed Maintenance Inspection Report - Scissor Lifts ............................. 24
Commissioning Procedures .......................................................................... 25
C-1 Perform 50 Hour Service ........................................................................... 25
C-2 Perform Engine Maintenance – 50 Hours................................................... 25
C-3 Perform 150 Hour Service ......................................................................... 26
Quarterly Maintenance Procedures............................................................... 27
Q-1 Check for Open Bulletins and Owner Registration ..................................... 27
Q-2 Battery Inspection...................................................................................... 28
Q-3 Check the Module Tray Latch Components ............................................... 31
Q-4 Inspect the Battery Balancer - GS-69 DC................................................... 32
Q-5 Inspect the Electrical Wiring ...................................................................... 33
Q-6 Inspect the Electrical Contactor -
GS-30, GS-32, GS-46, GS-47, GS-69 DC, GS-69 BE ............................... 34
Q-7 Inspect the Voltage Inverter (if equipped)................................................... 34
Q-8 Test the Flashing Beacons (if equipped) .................................................... 36
Q-9 Visual Inspection of the Hydraulic Oil......................................................... 36
Q-10 Inspect the Hydraulic Filters..................................................................... 37

June 2022
Table of Contents
Part No. 1272215GT Scissor Lifts xi
Q-11 Check the Exhaust System - Engine Models ............................................38
Q-12 Inspect the Fuel Tank Check Valve Venting System -
GS-69 RT Gas Models..............................................................................39
Q-13 Test the Fuel Select Operation - Gasoline/LPG Models ............................39
Q-14 Check and Adjust the Engine RPM ..........................................................40
Q-15 Inspect the Tires, Wheels and Lug Nut Torque.........................................43
Q-16 Confirm the Proper Brake Configuration - GS-69, GS-84, GS-90..............43
Q-17 Test the Drive Brakes ..............................................................................44
Q-18 Test the Drive Speed – Stowed Position ..................................................44
Q-19 Test the Drive Speed - Raised Position ....................................................45
Q-20 Test the Down Limit Switch, Level Sensor and Pothole Limit Switches -
GS-30, GS-32, GS-46, GS-47 ...................................................................45
Q-21 Test the Platform Gate Proximity Switches and the Extension
Deck Limit Switch - GS-2646 AV, GS-2646 AV35......................................49
Annual Maintenance Procedures...................................................................52
A-1 Check the Drive Hub Oil Level and Fastener Torque -
GS-69, GS-84, GS-90 ...............................................................................52
A-2 Test the Function Pump - GS-69 BE and GS-69 DC...................................53
A-3 Test the Oscillate Axle - GS-90 ..................................................................53
A-4 Test the Down Limit Switch Descent Delay -
GS-69, GS-84 and GS-90 (if equipped) .....................................................56
A-5 Test the Platform Overload Pressure Transducer and Platform
Height Sensor - GS-30, GS-32, GS-46, GS-47 (if equipped)......................58
A-6 Check the Steer Yoke King Pin Fastener Torque........................................60

June 2022
Table of Contents
xii Scissor Lifts Part No. 1272215GT
Programmed Maintenance Procedures......................................................... 61
P0-1 Inspect the Engine Air Filter - GS-69 RT .................................................. 61
P0-2 Grease the Steer Yokes - GS-30, GS-32, GS-46, GS-47.......................... 62
P0-3 Deutz Engine Maintenance – Under 1000 Hours...................................... 63
P0-4 Ford Engine Maintenance – Under 1000 Hours........................................ 64
P0-5 Kohler Engine Maintenance – Under 1000 Hours..................................... 65
P0-6 Kubota Engine Maintenance – Under 1000 Hours .................................... 66
P0-7 Perkins Engine Maintenance – Under 1000 Hours ................................... 67
P0-8 GM Engine Maintenance – Under 1000 Hours ......................................... 68
P1-1 Perform Engine Maintenance – 1000 Hours ............................................. 69
P1-2 Replace the Drive Hub Oil - GS-69, GS-84, GS-90................................... 70
P2-1 Perform Engine Maintenance – 2000 Hours ............................................. 70
P2-2 Replace the Hydraulic Filters ................................................................... 71
P2-3 Check the Free-wheel Configuration - GS-84 and GS-90 ......................... 72
P2-4 Check the Scissor Arm Wear Pads (and Slider Blocks, if equipped) ......... 74
P2-5 Grease the Steer Axle Wheel Bearings - GS-69 BE and GS-69 DC.......... 77
P2-6 Test or Replace the Hydraulic Oil............................................................. 78
P3-1 Perform Engine Maintenance – 3000 Hours ............................................. 79

June 2022 Maintenance Manual
Performance Specifications
Part No. 1272215GT Scissor Lifts 1
Sec ti on 2 Perfor man ce S peci fi catio ns
Functi on Sp eeds GS-30, GS -32, GS -46, GS-4 7, GS-55
Function Speeds
(models without proportional lift)
Function speed, maximum from platform controls
(with maximum rated load in platform)
GS-1530, GS-1532, GS-1930 and GS-1932
Platform up (fast mode)
Platform up (slow mode)
Platform down
15 to 17 s
econds
30 to 32 s
econds
28 to 30 s
econds
GS-2032 and GS-2632
Platform up (fast mode)
Platform up (slow mode)
Platform down
28 to 32 s
econds
58 to 62 s
econds
32 to 36 s
econds
GS-2046 and GS-2646
Platform up (fast mode)
Platform up (slow mode)
Platform down
28 to 32 s
econds
58 to 62 s
econds
32 to 36 s
econds
GS
-2646 AV and GS-2646 AV35
Platform up (fast mode)
Platform up (slow mode)
Platform down
Platform Ext. Deck
- Extend
Platform Ext. Deck
- Retract
28 to 32 s
econds
58 to 62 s
econds
32 to 36 s
econds
28 to 32 s
econds
31 to 35 s
econds
GS-3232 and GS-3246
Platform up (fast mode)
Platform up (slow mode)
Platform down
55 to 59 s
econds
108 to 112 s
econds
33 to 37 seconds
GS-4047
Platform up (fast mode)
Platform up (slow mode)
Platform down
71 to 76 s
econds
83 to 87 s
econds
41 to 46 s
econds
GS-2669DC
Platform up (fast mode)
Platform up (slow mode)
Platform down
71 to 76 s
econds
83 to 87 s
econds
41 to 46 s
econds
Function Speeds
(models with proportional lift)
Function speed, maximum from platform controls
(with 1 person in platform)
GS-1530, GS-1532, GS-1930 and GS-1932
Platform up
Platform down
15 to 17 s
econds
18 to 25 s
econds
GS
-2032 and GS-2632
Platform up
Platform down
28 to 32 seconds
24 to 28 s
econds
GS-2046 and GS-2646
Platform up
Platform down
28 to 32 s
econds
28 to 32 s
econds
GS
-2646 AV and GS-2646 AV35
Platform up
Platform down
Platform Ext. Deck
- Extend
Platform Ext. Deck
- Retract
28 to 32 s
econds
28 to 32 s
econds
28 to 32 s
econds
31 to 35 s
econds
GS
-3232 and GS-3246
Platform up
Platform down
55 to 59 s
econds
28 to 32 seconds
GS-4047
Platform up
Platform down
71 to 76 s
econds
41 to 46 s
econds

Maintenance Manual June 2022
Performance Specifications
2 Scissor Lifts Part No. 1272215GT
Functi on Sp eeds GS-69, GS -84, GS -90
Function Speeds
Function speed, maximum from platform controls
(with maximum rated load in platform)
GS-2669 DC, GS-2669 BE, GS-2669 RT
Platform up
Platform down
29 - 39 s
econds
26 - 46 s
econds
GS
-3369 DC, GS-3369 BE, GS-3369 RT
Platform up
Platform down
34 - 44 seconds
24 - 44 s
econds
GS-4069 DC, GS-4069 BE, GS-4069 RT
Platform up
Platform down
56 - 66 s
econds
33 - 53 seconds
GS-3384, GS-3390
Platform up
Platform down
40 - 50 s
econds
24 - 34 s
econds
GS
-4390
Platform up
Platform down
40 - 50 s
econds
34 - 44 s
econds
GS-5390
Platform up
Platform down
55 - 65 s
econds
44 - 54 s
econds

June 2022 Maintenance Manual
Performance Specifications
Part No. 1272215GT Scissor Lifts 3
Drive S pe eds
Drive Speeds
Model Stowed position Elevated position
Braking distance,
maximum
High range on
paved surface
Gradeability
GS
-1530, GS-1532 10.9 seconds
40 ft / 12.2 m
55 seconds
40 ft / 12.2 m
1 - 3 ft
0.3 - 0.9 m
30%
GS
-1930, GS-1932 10.9 seconds
40 ft / 12.2 m
55 seconds
40 ft / 12.2 m
1 - 3 ft
0.3 - 0.9 m
25%
GS
-2032, GS-2046,
GS
-2646
12.4 seconds
40 ft / 12.2 m
55 seconds
40 ft / 12.2 m
1 - 3 ft
0.3 - 0.9 m
30%
GS
-2632, GS-3232,
GS-3246
12.4 seconds
40 ft / 12.2 m
55 seconds
40 ft / 12.2 m
1 - 3 ft
0.3 - 0.9 m
25%
GS
-2646 AV 12.4 seconds
40 ft / 12.2 m
55 seconds
40 ft / 12.2 m
1 - 3 ft
0.3 - 0.9 m
25%
20% (35mph Wind Rating)
GS
-4047 13.6 seconds
40 ft / 12.2 m
55 s
econds
40 ft / 12.2 m
1 - 3 ft
0.3 - 0.9 m
25%
GS
-2669 RT
High speed
7.8 seconds
40 ft / 12.2 m
High torque 30 seconds
40 ft / 12.2 m
91 seconds
40 ft / 12.2 m
2 ft
0.6 m
40%
35% (with outriggers)
GS
-3369 RT
GS
-4069 RT
High speed
7.8 seconds
40 ft / 12.2 m
High torque 30 seconds
40 ft / 12.2 m
91 seconds
40 ft / 12.2 m
2 ft
0.6 m
35%
30%
(with outriggers)
GS
-2669
GS
-3369
GS
-4069
(DC and BE
models)
Forward - 6.1 seconds
Reverse - 9.1 seconds
40 ft / 12.2 m
91 seconds
40 ft / 12.2 m
3 ft
0.9 m
35% (ext deck uphill)
15% (ext deck downhill)
GS
-3384 6.8 s
econds
40 ft / 12.2 m
39 seconds
40 ft / 12.2 m
5 ft
1.5 m
50%
GS
-3390
GS
-4390
5.5 s
econds
40 ft / 12.2 m
39 seconds
40 ft / 12.2 m
5 ft
1.5 m
50%
GS
-5390 5.5 s
econds
40 ft / 12.2 m
39 seconds
40 ft / 12.2 m
5 ft
1.5 m
40%

Maintenance Manual June 2022
Torque Specifications
4 Scissor Lifts Part No. 1272215GT
Torq ue S pe ci fi c ati on s
Tires and Wheels
Tires and Wheels
Torque values are listed as lubricated unless
otherwise noted. Lug nuts must be coated with a
mineral based lubricant when removed and
replaced on the machine.
Model
GS-1530, GS-1532, GS-1930, GS
-
1932, GS-2032, GS-2632, GS
-
3232, GS-2046, GS-2646, GS
-
3246, GS-4047, GS-
2646AV
Castle nut torque
225 ft-
lbs
305 Nm
Model
GS-2669 RT, GS-3369 RT, GS
-
4069 RT
Castle nut torque
(steer end)
225 ft-
lbs
305 Nm
Lug nut torque
(steer end)
68 ft-
lbs
92 Nm
Lug nut torque
(non
-steer end)
130 ft-
lbs
176 Nm
Model
GS-2669, GS-3369, GS-
4069
(DC and BE models)
Castle nut torque
(steer end)
35 ft-
lbs
47,5 Nm
Lug nut torque
(steer end)
68 ft-
lbs
92 Nm
Lug nut torque
(non-steer end)
130 ft-
lbs
176 Nm
Model
GS-3384, GS-3390, GS-4390, GS
-
5390
Lug nut
torque 94 ft-
lbs
127 Nm
Tire pressure
high flotation
38 p
si
2,6 b
ar

June 2022 Maintenance Manual
Battery Specifications
Part No. 1272215GT Scissor Lifts 5
Batter y S pec ific ati on s
Battery Sp ec ifi cat i ons -D C a nd BE M odels
GS-1530, GS-1532, GS-1930, GS-1932,
GS
-2032, GS-2632, GS-3232, GS-
2046,
GS-2646, GS-3246, GS-2646 AV
(standard)
Voltage 6V DC
Group
GC2
Type
T-105
Quantity 4
Battery capacity, maximum 225 AH
Reserve capacity @ 25A rate
447 minutes
GS-1530, GS-1532, GS-1930, GS-1932
GS
-2032, GS-2632, GS-3232, GS-
2046,
GS
-2646, GS-3246, GS-2646 AV
(optional)
Voltage
6V DC
Group
GC2
Type 6V-AGM
Quantity 4
Battery capacity, maximum
200 AH
Reserve capacity @ 25A rate 380 m
inutes
Note: When upgrading from standard to AGM
batteries the machine software must be configured
for AGM batteries. Refer to Repair Procedure,
Machine Setup in the Service and Repair Manual.
GS
-4047
(standard)
Voltage 12V DC
Group
GC2
Type T-1275
Quantity 4
Battery capacity, maximum 150 AH
Reserve capacity @ 25A rate 280 minutes
GS
-2669, GS-3369, GS-4069
(DC and BE models)
(standard)
Voltage 6V DC
Group GC2
Type
T-105
Quantity
8
Battery capacity, maximum
225 AH
Reserve capacity @ 25A rate 447 minutes
GS-2669, GS-3369, GS-4069
(DC models)
(optional)
Voltage 6V DC
Group 902
Type
J305GH
Quantity 8
Battery capacity, maximum 315 AH
Reserve capacity @ 25A rate
678 minutes
GS-2669, GS-3369, GS-4069
(BE models)
(optional)
Voltage
6V DC
Group GC2
Type T145
Quantity
8
Battery capacity, maximum 260 AH
Reserve capacity @ 25A rate 530 minutes

Maintenance Manual June 2022
Engine Specifications
6 Scissor Lifts Part No. 1272215GT
Engi ne S p ec i f ica tio ns
Engine O per ato r an d M ai nte nanc e M anu als
Engine Operator and
Maintenance Manuals
Deutz D2011L03i
Genie part number
139320GT
Deutz D 2.9 L4
Genie part number
1251561GT
Perkins 403D
-11
Genie part number
131661GT
Ford MSG-425
Genie part number
215322GT
Diagnostic Manual
Genie part number
162067GT
Kubota D1105-E3B
Genie part number
229761GT
Kubota WG
-972
Genie part number
227584GT
Kohler KD350
Genie part number
1255885GT
GM .998L
Genie part number
1311928GT
Deutz Engi ne Mod els
Deutz Engine Models
D2011 L03i
Low idle
1500 r
pm
313 Hz
High idle
2500 r
pm
522 Hz
Oil capacity (including filter)
9.5 q
uarts
9 l
iters
Fan belt deflection
3/8 to 1/2 i
nch
9 to 12 m
m
D 2.9 L4
Low idle
1500 rpm
1500 Hz
High idle
2500 r
pm
2500 Hz
Oil capacity (including filter)
9.4 q
uarts
9 liters
Engine coolant
Ethylene Glycol
Engine coolant capacity
10 q
uarts
9.4 l
iters
Fan belt deflection
3/8 to 1/2 i
nch
9 to 12 m
m
Unit ships with 15W-40. Extreme operating
temperatures may require the use of alternative
engine oils. For oil requirements, refer to the
Engine Operator Manual for your engine.

June 2022 Maintenance Manual
Engine Specifications
Part No. 1272215GT Scissor Lifts 7
Perkins Engi ne Model s
Perkins Engine Models
403D
-11
Low idle
1500 r
pm
150 Hz
High idle
3000 r
pm
300 Hz
Oil capacity (including filter)
4.6 q
uarts
4.4 l
iters
Engine coolant
capacity 2.0 q
uarts
1.9 l
iters
Engine coolant
Ethylene Glycol
Fan belt deflection
3/16 i
nch
5 m
m
Unit ships with 15W-40. Extreme operating
temperatures may require the use of alternative
engine oils. For oil requirements, refer to the
Engine Operator Manual for your engine.
Ford E ngin e M odels
Ford Engine Models
MSG
-425
Low idle
1600 r
pm
53,3 Hz
High idle
2500 r
pm
83,3 Hz
Oil capacity (including filter)
6.7 q
uarts
6,4 l
iters
Engine coolant capacity
10 q
uarts
9,5 l
iters
Engine
coolant
Ethylene Glycol
Spark plug gap
0.049 - 0.053 i
nches
1,25 - 1,35 m
m
Fan belt deflection
3/8 - 1/2 i
nches
9 - 12 mm
Unit ships with 15W-40. Extreme operating
temperatures may require the use of alternative
engine oils. For oil requirements, refer to the
Engine Operator Manual for your engine.

Maintenance Manual June 2022
Engine Specifications
8 Scissor Lifts Part No. 1272215GT
Kubota E n gine Mo dels
Kubota Engine Models
D1105
-E3B, D1105-E4B
Low idle
1500 r
pm
250 Hz
High idle
3000 r
pm
500 Hz
Oil capacity (including filter)
5.4 q
uarts
5,1 l
iters
Engine
coolant capacity 3.3 q
uarts
3,1 l
iters
Engine coolant
Ethylene Glycol
Fan belt deflection
5/16 i
nches
8 m
m
WG-972
Low idle
1500 r
pm
250 Hz
High idle
3000 r
pm
500 Hz
Oil capacity (including filter)
3.6 q
uarts
3,4 l
iters
Engine coolant
capacity 2.4 q
uarts
2,3 l
iters
Engine coolant
Ethylene Glycol
Spark plug gap
0.024 - 0.028 i
nches
0,6 - 0,7 mm
Fan belt deflection
0.28 - 0.35 i
nches
7 - 9 m
m
Unit ships with 15W-40. Extreme operating
temperatures may require the use of alternative
engine oils. For oil requirements, refer to the
Engine Operator Manual for your engine.
Kohler En gi ne Mod el s
Kohler Engine Models
KD350
High idle
3600/3000 rpm
Oil capacity (including filter)
1.3 q
uarts
1.2 l
iters
Unit ships with 15W-40. Extreme operating
temperatures may require the use of alternative
engine oils. For oil requirements, refer to the
Engine Operator Manual for your engine.
