POWER CUT Hedge Trimmer 55
Model No. 101HT550
Operator’s Manual
To reduce the risk of injury, the user must read and understand the
Operator’s Manual. Keep these instructions for future reference.
WARNING

Introduction
Thank you for purchasing this Pope product.
We would like you to be completely satisfied with your new product, so feel free to contact Pope
for help with any information you require.
Pope's Customer Service centre number is 1300 134 880.
Please read this manual carefully to learn how to operate and maintain your product correctly. It is
important to consult these instructions in order to acquaint yourself with the tool, its proper use
and safety precautions.
Please observe the general maximum operating times as well as local regulations for tool
operation.
Should this product require repair under the conditions of the warranty, please return it to the
place of purchase. You will need to provide proof of purchase to obtain a free of charge repair, or
a replacement.
Keep these instructions in a safe place.

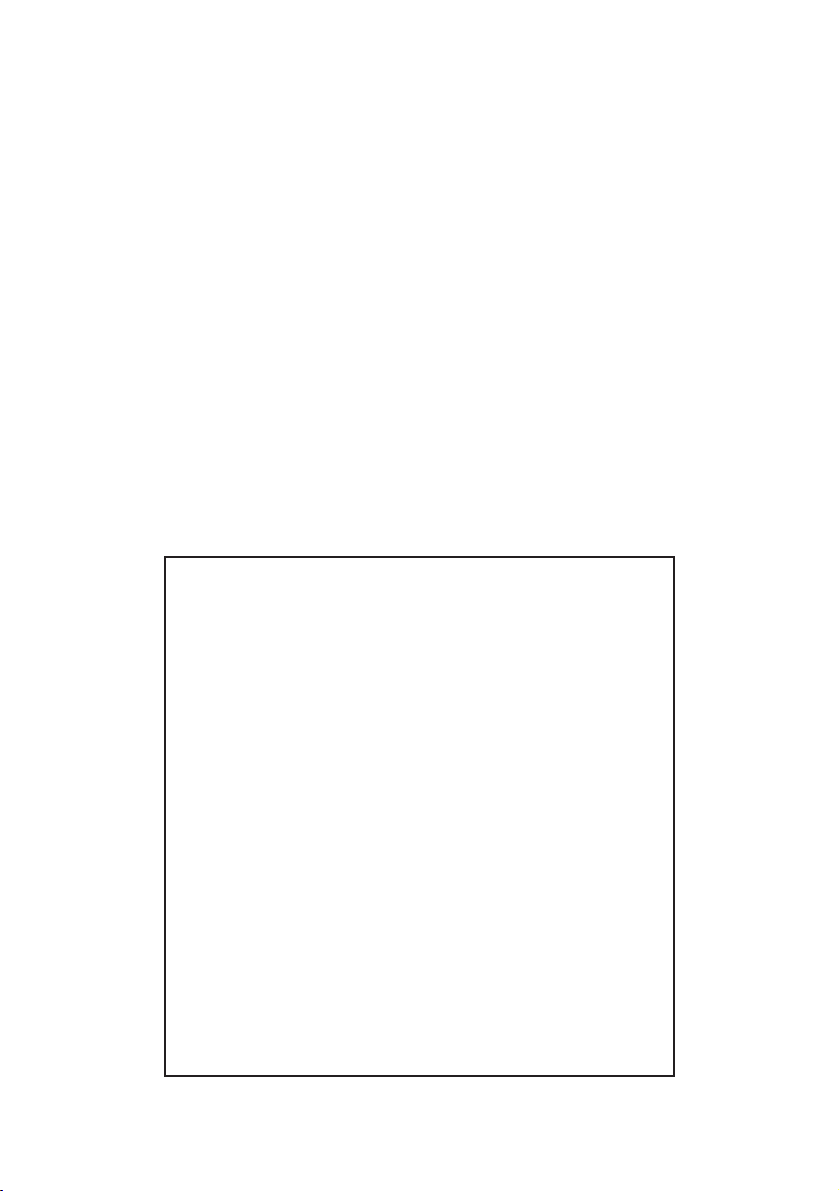

For your records, attach your receipt here.
2

SAFETY RULES
•Physical Condition of the Operator. Do not operate this product when tired, ill or under the
influence of alcohol, drugs or medication.
•Clothing Requirements. Always wear long heavy pants, boots and gloves. Do not wear loose
clothing, jewellery, short pants, sandals or go barefoot. Secure hair so that it is above shoulder level
to avoid entanglement in moving parts.
•Protective Accessories Requirements. Wear safety eye protection and sturdy gloves when
operating this product. Wear hearing protection during extended periods of operation.
•Condition of Hedge Trimmer before use. The Hedge Trimmer shall be assembled according to
the manufacturer's instructions. Failure to use the proper parts may cause product failure or increase
the risk of injury to the user. Inspect condition of the product before use. Only operate the tool when
it is in good working order and is not damaged in any way. Damaged parts have to be replaced
immediately by a qualified electrician. Never use the tool if any of its safety devices or guards are
damaged or missing.
•Proper Stance. Keep firm footings and balance. Do not overreach.
•Dangerous Environments. Do not use the product in damp or wet locations. Do not expose the
tool to wet conditions.
•Keep away from the blade. Keep hands, feet, hair and clothing well away from the blade.
•Work Area. Inspect the hedge to be trimmed and make sure that there are no obstacles, or foreign
objects in the work area. Clear the area of bystanders, pets and children. At a minimum, keep all
bystanders, pets and children outside a 15m radius. Because there still may be a risk to bystanders
from thrown objects, bystanders should be encouraged to wear eye protection. If you are
approached while operating the product, stop the motor and ensure the hedge trimmer has stopped
moving.
•Dangerous Environments. To avoid falling, do not use the product in damp or wet locations.
•Use the Right Product. This hedge trimmer should be used exclusively for trimming hedges and
shrubs. Do not use it for any other purpose.
•Use of Product. Never allow children or infirm persons to use the tool. Never allow other persons
who are not familiar with the operating instructions to use the tool. Never use the tool when there
are people, particularly children or pets nearby.
•Responsibility. The user is responsible for any accidents or hazards suffered by third parties or their
property.
•Maintenance. Switch off the tool and pull plug from the socket before carrying out any cleaning or
maintenance work.
•Outdoor Use. When working outdoors, use only extension cables which are approved for outdoor
use.
•Plugs. Plug connections must have earthing contacts and be protected from water.
Read and understand all instructions. When using the Pope Hedge
Trimmer, basic safety precautions including the following, should be followed
to reduce the risk of fire, electric shock and personal injury. Read all of these
safety instructions carefully before operating this Hedge Trimmer. Make sure
that you are familiar with the controls and the proper and safe use of the
Hedge Trimmer.
WARNING
3

4
Applications
Use this product for the following applications:
•Trimming and pruning: Bushes, hedges and other small screening plants.
•Topiary: Shaping and styling plants for topiary.
The Pope POWER CUT 55 550W Hedge Trimmer is designed to be used around the home and
should only be operated within its design limitations. Tools of this category which are designed for
home and garden use should only be operated in such settings. Tools of this category are not
suitable for use in public facilities, parks and sports centres or farms or in the forestry sector.
Unpacking
•Carefully remove the product from the box.
•Inspect the product carefully to make sure no breakage or damage occurred during shipping.
•Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
•If any parts are damaged or missing please call the Pope Customer Service Centre on
1300 134 880 for assistance.
Packing List
Hedge Trimmer (1)
Blade Safety Guard (1)
Screws (2)
Instruction Manual (1)
SPECIFICATIONS
Name Pope Hedge Trimmer
Model Number 101HT550
Hedge trimmer voltage 230V 50Hz
Cutting Rate 3500 spm
Rated Power 550W
Blade length 550 mm

ASSEMBLY
Before switching on, make sure that all personnel, particularly children and
domestic animals, are at a safe distance. Inspect the hedge to be trimmed
and make sure that there are no obstacles, or foreign objects, in the work
area. The Pope Hedge Trimmer is designed for two-handed use. It will not
operate if either of these switches is released. It is advised that heavy duty
gloves should always be worn when using this Hedge Trimmer.
WARNING
5
1
3
5
6
9
87
4
2
Parts Identification
1. Rear handle
2. On/Off switch
3. Safety switch
4. Front handle
5. Safety guard
6. Blade
7. Power cable securing hook
8. Mains cable and plug
9. Blade protector

ASSEMBLY – continued
Before switching on, make sure that all personnel, particularly children and
domestic animals, are at a safe distance. Inspect the hedge to be trimmed
and make sure that there are no obstacles, or foreign objects, in the work
area. The Pope Hedge Trimmer is designed for two-handed use. It will not
operate if either of these switches is released. It is advised that heavy duty
gloves should always be worn when using this Hedge Trimmer.
WARNING
6
Assembling the Hedge Trimmer
See Fig 1
Follow these steps to prepare the Hedge Trimmer for use:
1. Ensure Hedge Trimmer is disconnected from the power supply.
2. Slide the safety guard on to the hedge trimmer body.
3. Ensure that the guard is fully seated on the Hedge Trimmer body and that the screw holes
align between the safety guard and the body.
4. Screw firmly in place on either side, using the 2 screws supplied.
5. The Hedge Trimmer is now ready for operation.
Fig 1

OPERATION
Do not start the Hedge Trimmer with the blade guard fitted.
WARNING
7
Preparing the Hedge Trimmer for use
See Fig 2
Follow these steps to prepare the
Hedge Trimmer for use:
1. To avoid detaching power cable always
check that it is attached firmly to securing
hook before using trimmer.
2. Make a loop with the extension cable (9)
and push it through the square hole under
the rear handle (1).
3. Place the end of the loop round cable
securing hook (8) and ensure it is pulled
firmly enough to prevent it coming loose
while operating the trimmer.
Connect the power cord.
4. Remove the blade guard prior to
switching on.
Switching the Hedge Trimmer ON
Follow these steps to switch the Hedge Trimmer On or Off:
1. Squeeze the On/Off switch.
2. With the other gloved hand, hold the front handle and grip the safety switch.
3. The Hedge Trimmer will then start.
4. To switch the Hedge Trimmer off, release both the safety switch and the ON/OFF switch.
Fig 2
During operation of the hedge trimmer there may be some visible “sparking”
or “flashing” visible within the motor housing of the hedge trimmer.
This is normal and is caused by the action of the brush motor being used.
Sparking or flashing will not cause injury to the operator nor does it suggest
a problem with the motor.
IMPORTANT

Using the Hedge Trimmer
See Figs 3 and 4
Follow these steps to use the Hedge Trimmer:
1. When trimming, the blade should be tilted approximately 15 degrees towards the hedge.
Always trim from the bottom upwards.
2. Trim the sides of the hedge first and then trim the top.
3. If the branches are very long, they should be cut back in several stages.
4. Make sure that there are no objects in the hedge, such as railings, that could damage the
blade.
5. If the blade becomes jammed, always switch off power at mains before clearing the
obstruction.
6. Do not force the Hedge Trimmer to cut over sized branches. These should be cut by hand
using secateurs or shears.
Before using this Hedge Trimmer, make sure that you have read all of the
safety instructions. This Hedge Trimmer needs to be plugged into a mains
supply to be operational.
WARNING
OPERATION – continued
Fig 3 Fig 4
8

9
Follow these general maintenance guidelines before each use.
•Make sure that all nuts, bolts and screws are tight and secure.
•Check the blade, the front handle and the hand
guard for damage.
•Always have any damaged or worn parts repaired,
or replaced.
•Always have your Hedge Trimmer inspected and
maintained by qualified service personnel. Do not
attempt to repair the machine unless you are
qualified to do so.
•For easier operation and longer blade life,
lubricate the hedge trimmer blade before and
after each use. Apply light machine oil along the
edge of the bar blade. See Fig 5
Cleaning
•To ensure the best performance from the Hedge Trimmer, it must be kept clean.
•Always clean the Hedge Trimmer immediately after use. Brush the blade using a stiff nylon
brush to remove any debris.
•Do not use any aggressive cleaning agents.
•Use a damp rag to wipe dirt marks off the tool.
•Do not allow cuttings and other debris to become dry and hard on any of the Hedge Trimmer
surfaces. This will directly affect the cutting performance.
•Make sure that the blade is kept clean and clear of all cuttings and other debris.
•Take extra care to clean the cooling vents and always ensure they are not blocked by cutting
debris.
Storage
•Make sure that the Hedge Trimmer has been thoroughly cleaned before storing it in a clean dry
place out of the reach of children.
•It is advisable to lightly lubricate the blade before storing.
•Always fit the blade protector when storing the Hedge Trimmer.
MAINTENANCE
All maintenance, service and cleaning work must be performed after the power cord has
been disconnected from the socket.
WARNING
Fig 5

10
WARRANTY
You must keep your receipt as proof of purchase for return of the product under the
terms of this warranty.
Your Pope product is guaranteed to be free from defects in materials or workmanship for a period
of 24 months from the date of purchase provided the product has been used in accordance with
the manufacturer's recommendations.
If the product becomes defective within the warranty period we guarantee to either replace or
repair the product at our option, provided that:
•The product is returned to the place of purchase with evidence of purchase ie the receipt.
•The product is used for general household use only, where household use means use of the
product on the same lot as your home. Use at more than one location is considered
commercial use and no warranty applies for commercial use.
•The product has not been used for hire purposes.
•Repairs, alterations or modifications have not been attempted to the product.
•The failure is not as a result of normal wear and tear.
Failures due to the following are not covered:
•Replacing worn or damaged blades, chains or cables damaged in storage or during use.
These are regarded as replacement items which wear during normal usage.
•Failures as a result of sudden impact or obvious abuse.
•Failures due to usage not in accordance with instructions and recommendations contained in
this manual.
To the fullest extent permitted by law Toro Australia Pty Ltd is not liable for any indirect, incidental,
or consequential loss or damage in connection with the use of the Pope product covered by this
warranty or for any cost or expense of providing substitute equipment or service during any period
of malfunction or non-use pending completion of repairs under this warranty.
The above warranty does not exclude any condition or warranty implied by the Trade Practices Act
1974 or any other relevant legislation which implies any condition which cannot be excluded.
Pope®is a Registered Trademark of Toro Australia Pty Ltd
53 Howards Rd Beverley South Australia 5009
Made in China to Pope's Specifications
